DRAWING NUMBER
91095
DATE:
6/06

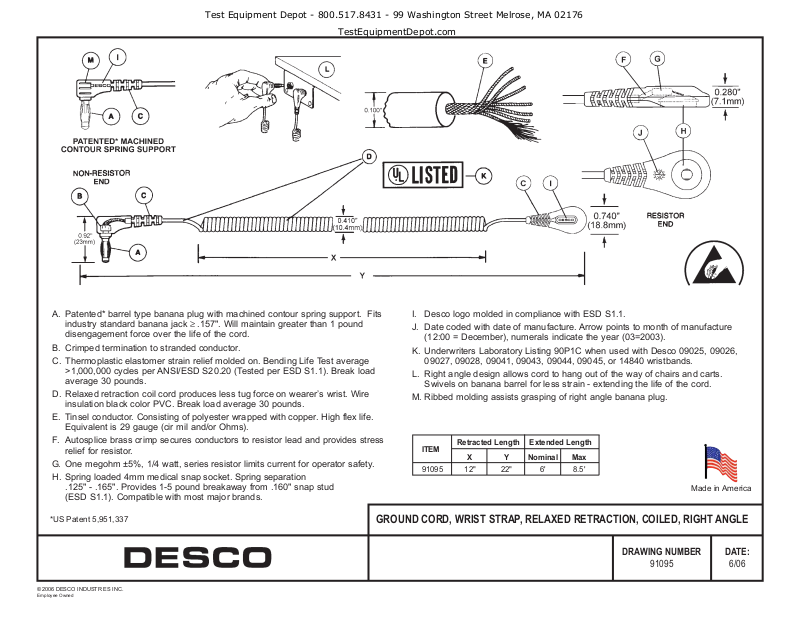

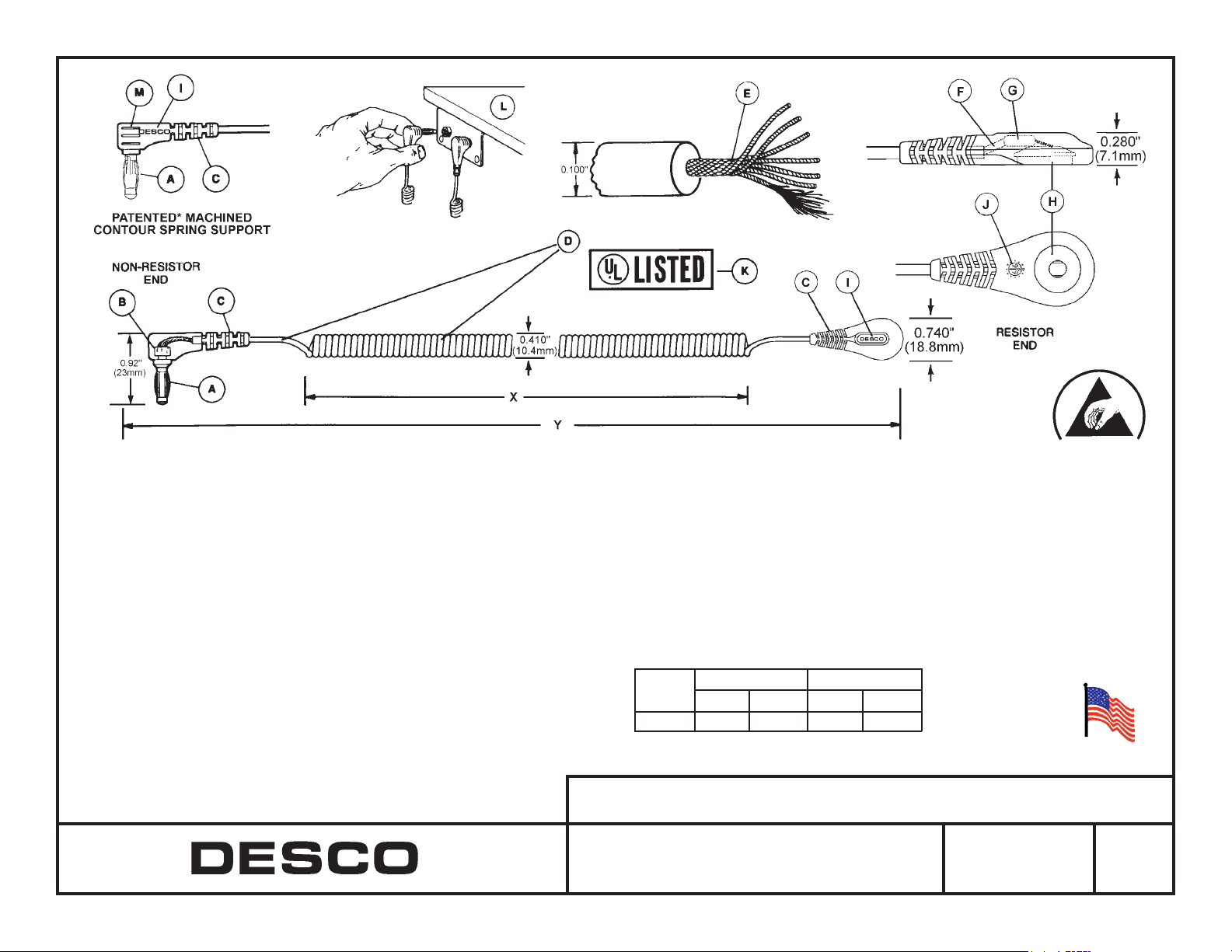

GROUND CORD, WRIST STRAP, RELAXED RETRACTION, COILED, RIGHT ANGLE
©2006 DESCO INDUSTR ES INC.
Employee Owned
A. Patented* barrel type banana plug with machined contour spring support. Fits
industry standard banana jack ≥ .157". Will maintain greater than 1 pound
disengagement force over the life of the cord.
B. Crimped termination to stranded conductor.
C. Thermoplastic elastomer strain relief molded on. Bending Life Test average
>1,000,000 cycles per ANSI/ESD S20.20 (Tested per ESD S1.1). Break load
average 30 pounds.
D. Relaxed retraction coil cord produces less tug force on wearer’s wrist. Wire
insulation black color PVC. Break load average 30 pounds.
E. Tinsel conductor. Consisting of polyester wrapped with copper. High flex life.
Equivalent is 29 gauge (cir mil and/or Ohms).
F. Autosplice brass crimp secures conductors to resistor lead and provides stress
relief for resistor.
G. One megohm ±5%, 1/4 watt, series resistor limits current for operator safety.
H. Spring loaded 4mm medical snap socket. Spring separation
.125" - .165". Provides 1-5 pound breakaway from .160" snap stud
(ESD S1.1). Compatible with most major brands.
I. Desco logo molded in compliance with ESD S1.1.
J. Date coded with date of manufacture. Arrow points to month of manufacture
(12:00 = December), numerals indicate the year (03=2003).
K. Underwriters Laboratory Listing 90P1C when used with Desco 09025, 09026,
09027, 09028, 09041, 09043, 09044, 09045, or 14840 wristbands.
L. Right angle design allows cord to hang out of the way of chairs and carts.
Swivels on banana barrel for less strain - extending the life of the cord.
M. Ribbed molding assists grasping of right angle banana plug.
Retracted Length Extended Length
ITEM
X Y Nominal Max
91095 12" 22" 6' 8.5'
*US Patent 5,951,337
Made in America
