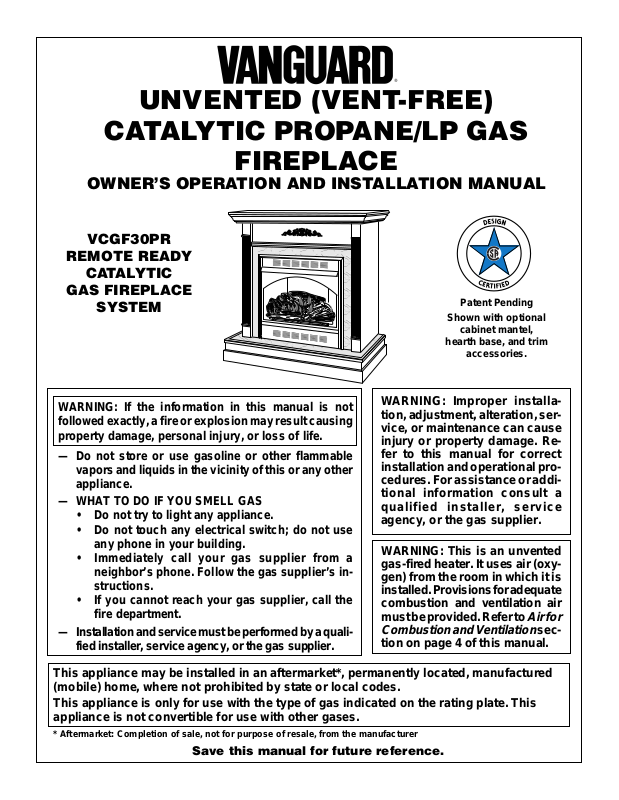

Desa VCGF30PR User Manual

UNVENTED (VENT-FREE)

CATALYTIC PROPANE/LP GAS

FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

VCGF30PR

REMOTE READY

CATALYTIC

GAS FIREPLACE

SYSTEM

Patent Pending

Shown with optional

cabinet mantel,

hearth base, and trim

accessories.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

—

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile) home, where not prohibited by state or local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Combustion and Ventilation

tion on page 4 of this manual.

Air for

sec-

Save this manual for future reference.

UNVENTED

PROPANE/LP

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs

of carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the fireplace may not be working properly. Get fresh air at once! Have fireplace serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane/LP Gas: Propane/LP gas is odor-

less. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this fireplace.

GAS FIREPLACE

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Fireplace front becomes very hot when running fireplace. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

Carefully supervise young children when they are in the room with fireplace. When using the hand-held remote accessory, keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this fireplace with the front window assembly and hood in place. Make sure front window assembly and hood are in place before running fireplace.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/ LP supply tank(s) outdoors.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do

not use any phone in your building

• immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier,

call the fire department

4. This fireplace shall not be installed in a bedroom or bathroom.

5. Do not use this fireplace as a woodburning fireplace. Use only the logs provided with the fireplace.

6. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool. Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into the control area of fireplace.

7. This fireplace is designed to be smokeless. If logs ever appear to smoke, turn off fireplace and call a qualified service person. eration, slight smoking could occur due to log curing and fireplace burning manufacturing residues.

8. T o prevent the creation of soot, follow the instructions in Cleaning and Main- tenance, page 21.

9. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

10. This fireplace needs fresh air ventilation to run properly . This fireplace has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the fireplace if not enough fresh air is available. See Air for Combus- tion and Ventilation, pages 4 through

6. If fireplace keeps shutting off, see Troubleshooting, pages 17 through 19.

11. Do not run fireplace

• where flammable liquids or vapors

are used or stored

• under dusty conditions

12. Do not use this fireplace to cook food or burn paper or other objects.

13. Do not use fireplace if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the fireplace and to replace any part of the control system and any gas control which has been under water.

14. Do not operate fireplace if any log is broken. Do not operate fireplace if a log is chipped (dime-sized or larger).

15. Turn fireplace off and let cool before servicing. Only a qualified service person should service and repair fireplace.

Note:

During initial op-

104637

OWNER’S MANUAL

SAFETY INFORMATION

Continued

16. Operating fireplace above elevations of 4,500 feet could cause pilot outage.

17. To prevent performance problems, do not use propane/LP fuel tanks of less than 100 lbs. capacity.

PRODUCT IDENTIFICATION

Optional Remote Control

WARMER

COOLER

TEMP

AUTO

OFF

Control Knobs

Figure 1 - Log Base Assembly

Top Louver Assembly

Firebox Hood

Firebox Support

Piezo Ignitor

Selector Switch (Optional)

One Piece Log Set

Top Outer Casing

Catalytic Filter (Mounted To Inside Firebox Top)

LOCAL CODES

Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANS Z223.1, also known as NFPA 54*.

*Available from: American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

UNPACKING

CAUTION: Do not remove the metal data plates from the heater base assembly. These data plates contain important warranty information.

1. With utility knife, cut the carton all the way around above the staples on the bottom tray. Lift the carton off the heater. Remove packing. hood is located in the packing on the right hand side of the heater front. Lift the heater off the bottom tray.

2. Locate two phillips-head screws at top corners of front window assembly. Remove and save these screws. Carefully lift front window assembly up and out from fireplace front.

3. Remove protective packaging applied to logs, log base assembly , and fireplace.

4. Remove fireplace hood from carton insert.

5. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought fireplace.

Note:

The

Front Window Assembly

Figure 2 - Fireplace

104637

Bottom Louver Assembly

Blower Assembly (Optional)

REMOTE CONTROL ACCESSORIES

There are four optional remote controls that can be purchased separately for this log heater:

• wall switch

• wall thermostat

• hand-held ON/OFF remote

• hand-held thermostat remote

See Accessories, pages 22 and 23.

UNVENTED

PROPANE/LP

PRODUCT FEATURES

OPERATION

This vent-free fireplace is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by both realistic flames and glowing embers. When used without the blower, the fireplace requires no electricity making it ideal for emergency backup heat.

CATALYTIC TECHNOLOGY

This fireplace incorporates a catalytic system. It features a unique steel spiral coil filter with a precious metal coating which lowers combustion by-products by reburning them.

SAFETY DEVICE

This fireplace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free room heaters. The ODS system shuts off the fireplace if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This fireplace has a piezo ignitor. This system requires no matches, batteries, or other sources to light fireplace.

BLOWER ASSEMBLY

(GA3700 and GA3700T Series)

This fireplace accepts an optional blower assembly. The GA3700T series blower operates thermostatically and features a variable speed control. The GA3700 series also features a variable speed control. The blower circulates heated air from the fireplace into the room. Use of blower is optional. See Accessories, pages 22 and 2\3.

GAS FIREPLACE

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuelburning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space The information on pages 4 through 6 will

help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for

combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings exposed to the

outside atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 per pa-sec-m2) or less with openings gasketed or sealed

b. weather stripping has been

added on openable windows and doors

c. caulking or sealants are applied

to areas such as joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

From Outdoors

If your home does not meet all of the three criteria above, proceed to

mining Fresh-Air Flow for Fireplace Location

and

, page 6

on page 5.

Ventilation Air

and

Deter-

-11

Confined Space and Unconfined Space

The National Fuel Gas Code ANS Z223.1

defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

104637

OWNER’S MANUAL

AIR FOR COMBUSTION AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR FIREPLACE LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install fireplace plus any adjoining rooms with doorless passageways or ventilation grills

between the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height = _________________cu. ft. (volume of space)

Example:

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.

_________________ (volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr the space can support)

Example:

3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free fireplace ___________________ Btu/Hr Gas water heater* ___________________ Btu/Hr Gas furnace ___________________ Btu/Hr Vented gas heater ___________________ Btu/Hr Gas fireplace logs ___________________ Btu/Hr Other gas appliances* + ___________________ Btu/Hr Total = ___________________ Btu/Hr * Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_____________ Btu/Hr (maximum the space can support) _____________ Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework work sheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-

ing room or add ventilation grills between rooms. See Ventilation Air from Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air from Outdoors, page 6. C. Install a lower Btu/Hr fireplace, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

Space size 22 ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space)

3168 cu. ft. (volume of space) ÷ 50 cu. ft. = 63.3 or 63,300 (maximum Btu/Hr the space can support)

Example:

Gas water heater Vent-free fireplace + Total =

63,300 Btu/Hr (maximum the space can support)

70,000 Btu/Hr (actual amount of Btu/Hr used)

40,000 30,000 70,000

Btu/Hr Btu/Hr Btu/Hr

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

104637

National Fuel Gas Code, ANS Z223.1, Section 5.3

or applicable local codes.

Continued

UNVENTED

PROPANE/LP

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 3). You can also remove door into adjoining room (see option 3, Figure 3). Follow the National Fuel

Gas Code, NFPA 54/ANS Z223.1, Section

5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

WARNING: Rework worksheet, adding the space of the adjoining unconfined space. The combined spaces must have enough fresh air to supply all appliances in both spaces.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation for required size of ventila-

tion grills or ducts.

IMPORTANT:

inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Do not provide openings for

GAS FIREPLACE

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 3 - Ventilation Air from Inside Building

Remove Door into Adjoining

Room, Option

12"

Outlet Air

Inlet Air

Figure 4 - Ventilation Air from Outdoors

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilated Attic

Ventilated

Crawl Space

12"

To Attic

Crawl

Space

104637

OWNER’S MANUAL

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must install fireplace. Follow all local codes.

WARNING: Never install the fireplace

• in a bedroom or bathroom

• in a recreational vehicle

• where curtains, furniture,

clothing, or other flammable objects are less than 42 inches from the front, top, or sides of the fireplace

• in high traffic areas

• in windy or drafty areas

CAUTION: This fireplace creates warm air currents. These currents move heat to wall surfaces next to fireplace. Installing fireplace next to vinyl or cloth wall coverings or operating fireplace where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.

Note:

Your fireplace is designed to be used

in zero clearance installations. Wall or framing material can be placed directly against any exterior surface on the rear, sides, or top of your fireplace, except where stand-off spacers are integrally attached. If stand-off spacers are attached to your fireplace, these spacers can be placed directly against wall or framing materials.

Use the dimensions shown for rough openings to create the easiest installation. See Built-In Fireplace Installation, page 9.

IMPORTANT:

ture to the air. Although this is beneficial, installing fireplace in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Com- bustion and Ventilation, pages 4 through 6.

IMPORTANT:

level. If fireplace is not level, log set will not work properly.

Vent-free heaters add mois-

Make sure the fireplace is

CHECK GAS TYPE

Use only propane/LP gas. If your gas supply is not propane/LP gas, do not install fireplace. Call dealer where you bought fireplace for proper type fireplace.

ELECTRICAL HOOKUP

(Models GA3700 Series and GA3700T Series Blower Accessories, and GA3555 Internal Duplex Kit)

This fireplace accepts a blower assembly with an electrical cord. The electrical cord is five feet in length. You must locate fireplace within reach of a 120 volt grounded electrical outlet. If not, you must install an electrical outlet within reach of fireplace power cord. The GA3555 outlet accessory may be used for built-in applications with blower accessory installed.

INSTALLING DEFLECTOR AND HOOD

1. Place deflector on top of exhaust shroud with triangular ends pointing out. Align hole in deflector with center hole in louver panel.

Louver Panel

Exhaust Shroud

Deflector

Hood

Screws

Figure 5 - Installing Deflector and Hood

2. Slide the hood on top of the deflector and align the center hole with the holes in the exhaust shroud and louver panel.

3. Using Phillip’s head screw provided, insert the center screw through the hood, deflector, and louver. See Figure 5.

4. Secure the hood with the remaining 2 screws provided.

ASSEMBLING AND ATTACHING OPTIONAL BRASS TRIM (Included with Mantel Accessory or Purchased Separately)

IMPORTANT:

box in a wall, do not attach brass trim at this time. See page 9 for built-in installation..

Note:

The instructions below show assem-

bling and attaching brass trim to fireplace.

1. Remove packaging from three pieces of brass trim.

2. Locate four brass screws, two adjusting plates with set screws, and two shims in the hardware packet.

3. Align shim under adjusting plate as shown in Figure 6.

4. Slide one end of adjusting plate/shim in slot on mitered edge of top brass trim (see Figure 6).

5. Slide other end of adjusting plate/shim in slot on mitered edge of side brass trim (see Figure 6).

6. While firmly holding edges of brass trim together, tighten both set screws on the adjusting plate with slotted screwdriver.

Side Brass Trim

Slot

Figure 6 - Assembling Brass Trim

If you are recessing the fire-

Set Screws

Adjusting Plate

Shim

Slot

Mitered Edge

Top Brass Trim

Continued

104637

UNVENTED

PROPANE/LP

INSTALLATION

Continued

7. Repeat steps 1 through 6 for other side.

8. Tighten trim hanging screws (#10-16 with .25 shoulder) into holes in cabinets. Place the assembled trim onto fireplace cabinet. Align hanging notches on trim with hanging screws on side of fireplace (see Figure 7). Push trim firmly into place, sliding hanging notches over hanging screws.

Trim Hanging Screws

Hanging Notches on Trim

Assembled Brass Trim

Figure 7 - Attaching Brass Trim to Fireplace

INSTALLATION CLEARANCES

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.

Carefully follow the instructions below. This will ensure safe installation.

Minimum Clearances For Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the fire-

place cabinet to any combustible material and wall should follow diagram in Figure 8.

Example:

shelf, etc. is made of combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the fireplace cabinet (see Figure 8).

B. Clearances from the top of the fireplace

opening to the ceiling should not be less than 42 inches.

The face of a mantel, book-

GAS FIREPLACE

121/

101/

Example

FIREBOX

*Minimum 16 inches from Side Wall

Figure 8 - Minimum Clearance for Combustible to Wall

.5 2

1 4 6 8 10 12 14 16

INCHES

CONVENTIONAL FIREPLACE INSTALLATION

Conventional installation of this fireplace involves installing fireplace along with the corner, face, or cabinet mantel with hearth base accessories against a wall in your home. Follow the instructions below to install the fireplace in this manner.

Note:

The instructions below show installation using the cabinet mantel and the G3000F/G3001U/G3004W/G3006F/ G3007U series hearth base accessories. The hearth base accessory shown is optional for this installation. You can install fireplace and cabinet/corner mantel directly on the floor. The corner mantel accessory cannot be installed with the G3000F/G3001U/ G3004W/G3006F/G3007U hearth bases. The conrner mantel can be paired with the G3008F/G3009U/G3010F corner hearth base. If mounting fireplace and cabinet or corner mantel to the floor, an optional G3005 Slim Base kit may be installed.

1. Assemble cabinet mantel, hearth base,

and trim accessories. Assembly instructions are included with each accessory .

2. When installing blower, install a prop-

erly grounded, 120 volt three-prong electrical outlet at fireplace location if an outlet is not there. If possible, locate outlet so cabinet mantel will cover it when installed (see Figure 9).

3. Install gas piping to fireplace location. This

installation includes an approved flexible gas line (if allowed by local codes) after the equipment shutoff valve. The flexible gas line must be the last item installed on the gas piping. See Installing Gas Piping to Fireplace Location, page 10.

7 51/ 31/ 1 7/8 7/16

4. Place hearth base accessory against wall at installation location. Cut an access hole in hearth top to run gas line to fireplace (see Figure 9). Make sure

INCHES

to locate access hole so cabinet mantel will cover it when installed.

Note:

can secure base to floor using wood screws. Countersink screw heads and putty over.

5. Route gas line through access hole in hearth base.

6. Center cabinet mantel on hearth base (see Figure 10). Make sure mantel is flush against wall.

7. Break off nailing flanges (see Figure 11, page 9) with hammer or pliers.

8. Place cardboard or other protective material on top of hearth base. Carefully set fireplace on protective material, with back of fireplace inside mantel opening.

9. If blower is installed, route blower electrical cord through access holes in either side of fireplace.

Note:

Bushing may be moved if necessary. Plug electrical cord into electrical outlet.

Hearth Base

Figure 9 - Placing Hearth Base Accessory Against Wall

Figure 10 - Installing Cabinet Mantel

Flexible Gas Line

Electrical Outlet

Gas Line Access Hole

You

Cabinet Mantel

104637

OWNER’S MANUAL

INSTALLATION

Continued

10. Carefully insert fireplace into cabinet mantel. Be careful not to scratch or damage hearth base, cabinet mantel, or any laminate trim on hearth base. Remove protective material from top of hearth base and from front of fireplace (if any). to hearth or floor. Open lower louver. Locate screw holes in bottom of base. Tighten wood screws through these holes and into hearth or floor.

11. Attach gas line from fireplace gas regulator to gas supply. See Connecting Fireplace to Gas Supply, page 11.

12. Check all gas connections for leaks. See Checking Gas Connections, page 12.

Figure 11 - Location of Nailing Flanges

Note:

You can secure fireplace

Nailing Flanges

BUILT-IN FIREPLACE INSTALLATION

Built-in installation of this fireplace involves installing fireplace into a framed-in enclosure. This makes the front of fireplace flush with wall. If installing a mantel above the fireplace, you must follow the clearances shown in Figure 16, page 10 . Follow the instructions below to install the fireplace in this manner.

Actual Framing

Height 32 Front Width 34 Depth 16

1. Frame in rough opening. Use dimensions shown in Figure 13 for the rough opening.

If installing in a corner, use dimensions shown in Figure 14 for the rough opening. The height is 33" which is the same as the wall opening above.

2. If using blower, install and properly ground GA3555, three-prong 120 volt electrical outlet, in fireplace. Follow instructions included in kit (see Acces- sories, pages 22 and 23).

3. Install gas piping to fireplace location. This installation includes an approved flexible gas line (if allowed by local codes) after the equipment shutoff valve. The flexible gas line must be the last item installed on the gas piping. See Installing Gas Piping to Fire- place Location, page 10.

4. Carefully set fireplace in front of rough opening with back of fireplace inside wall opening.

5. Attach flexible gas line to gas supply . See Connecting Fireplace to Gas Sup- ply, page 11.

6. Carefully insert fireplace into rough opening.

7. Attach fireplace to wall studs using nails or wood screws through holes in nailing flange (see Figure 15).

8. Check all gas connections for leaks. See Checking Gas Connections, page 12.

/8" 33"

/16" 35 1/2"

/16" 17 3/4"

9. Plug electrical cord into electrical outlet installed in step 2.

10. Install brass trim after final finishing and/or painting of wall (see Figure 7, page 8).

17 3/4"

33"

35 1/2"

Figure 13 - Rough Opening for Installing in Wall

39 3/8"

27 7/8"

35 1/2"

55 5/8"

Figure 14 - Rough Opening for Installing in Corner

Nails or Wood Screws

Nailing Flanges

Figure 15 - Attaching Fireplace to Wall Studs

Figure 12 - Inserting Fireplace Into Cabinet Mantel

104637

Continued

+ 19 hidden pages
