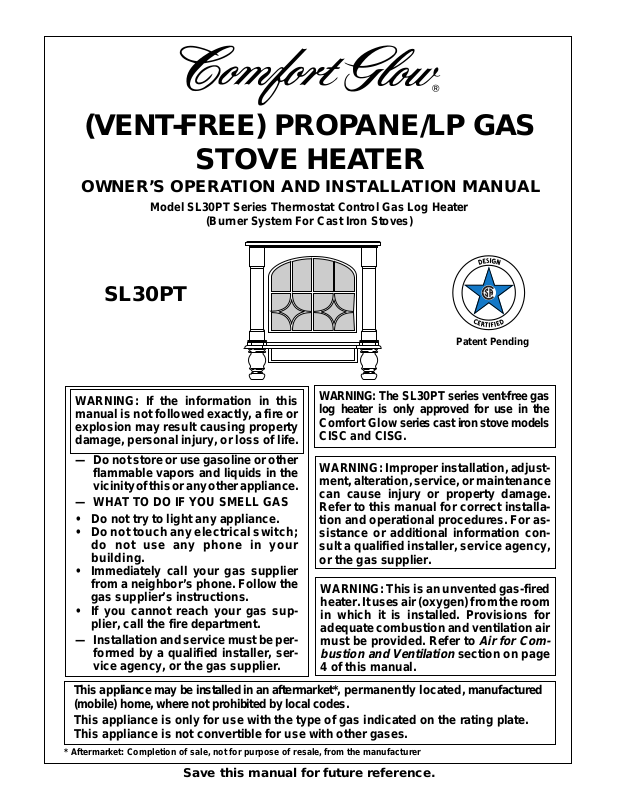

(VENT-FREE) PROP ANE/LP G A S

STOVE HEAT ER

OWNER’S OPERATION AND INSTALLATION MANUAL

Model SL30PT Series Thermostat Control Gas Log Heater

(Burner System For Cast Iron Stoves)

SL30PT

Patent Pending

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

•

Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be per-

formed by a qualified installer, service agency, or the gas supplier.

WARNING: The SL30PT series vent-free gas log heater is only approved for use in the Comfort Glow series cast iron stove models CISC and CISG.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

bustion and Ventilation

4 of this manual.

Air for Com-

section on page

This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

Page 2

VENT-FREE PROPANE/LP GAS STOVE HEATER

SAFETY INFORMATION

WARNINGS

WARNING ICON G 001

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs

of carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane/LP Gas: Propane/LP gas is odor-

less. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all Warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not allow fans to blow directly into the stove. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this heater.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Stove becomes very hot when running heater. Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surface to cool before touching.

Carefully supervise young children when they are in the room with fireplace.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/ LP supply tank(s) outdoors.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do

not use any phone in your building

• immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier ,

call the fire department

4. This heater shall not be installed in a bedroom or bathroom.

5. Do not place stove directly on carpeting, vinyl tile, or any combustible material other than wood. The stove must set on a metal or wood panel extending the full width and depth of the appliance.

6. Do not use this stove as a wood burning fireplace. Use only model SL30PT vent-free gas log heater.

7. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool. Using these added items can cause sooting.

8. This log heater is designed to be smokeless. If logs ever appear to smoke, turn off heater and call a qualified service person. slight smoking could occur due to log curing and heater burning manufacturing residues.

9. T o prevent the creation of soot, follow the instructions in Cleaning and Main- tenance, page 15.

10. Before using furniture polish, wax, car pet cleaners, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

11. This heater needs fresh, outside air ventilation to run properly . This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, pages 4 through 6. If heater keeps shutting off, see T rouble- shooting, pages 16 through 18.

12. Do not run heater

• where flammable liquids or vapors

• under dusty conditions

13. Do not use this stove to cook food or burn paper or other objects.

14. Do not use heater if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

15. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sized or larger).

16. T urn heater of f and let cool before ser vicing. Only a qualified service person should service and repair heater.

17. Operating heater above elevations of 4,500 feet could cause pilot outage.

18. To prevent performance problems, the use of a propane/LP tank of less than 100 lb. capacity is not recommended.

Note:

During initial operation,

are used or stored

104464

Page 3

OWNER’S MANUAL

PRODUCT IDENTIFICATION

Stove Body

Piezo Ignitor

Stove Door (Shown in the open position)

Gas Log Heater Base Assembly

Control Knob

One Piece Log Set Inside Stove Cavity

PRODUCT FEATURES

OPERATION

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by realistic, dancing yellow flames. This heater is designed for vent-free operation. State and local codes in some areas prohibit the use of vent-free heaters.

SAFETY PILOT

This heater has a pilot with an Oxygen Depletion Sening (ODS)safety shutoff system. The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.

Figure 1 - Typical Stove Cabinet Model with Comfort Glow Gas Log Heater

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANS Z223.1, also known as NFPA 54*.

*Available from: American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

104464

Page 4

VENT-FREE PROPANE/LP GAS STOVE HEATER

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuelburning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space The information on pages 4 through 6 will

help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings exposed to the

outside atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 per pa-sec-m2) or less with openings gasketed or sealed

b. weather stripping has been

added on openable windows and doors

c. caulking or sealants are applied

to areas such as joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

From Outdoors

If your home does not meet all of the three criteria above, proceed to

termining Fresh-Air Flow For Heater Location,

and

Ventilation Air

, page 6.

page 5.

and

-11

De-

Confined and Unconfined Space

The National Fuel Gas Code ANS Z223.1

defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

104464

Page 5

OWNER’S MANUAL

AIR FOR COMBUSTION AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between

the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height = ____________________ cu. ft. (volume of space)

Example:

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.

_________________ (volume of space) ÷ 50 cu. ft. = (maximum Btu/Hr the space can support)

Example:

3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater ___________________Btu/Hr Gas water heater* ___________________Btu/Hr Gas furnace ___________________Btu/Hr Vented gas heater ___________________Btu/Hr Gas fireplace logs ___________________Btu/Hr Other gas appliances* + ___________________Btu/Hr Total = ___________________Btu/Hr * Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_________________ Btu/Hr (maximum the space can support) _________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-

ing room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6. C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =2560 cu. ft. (volume of space)

2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum Btu/Hr the space can support)

Example:

Gas water heater 40,000 Btu/Hr Vent-free heater + 30,000 Btu/Hr Total = 70,000 Btu/Hr

51,200 Btu/Hr (maximum the space can support) 70,000 Btu/Hr (actual amount of Btu/Hr used)

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

104464

National Fuel Gas Code, ANS Z223.1, Section 5.3

or applicable local codes.

Continued

Page 6

VENT-FREE PROPANE/LP GAS STOVE HEATER

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR Ventilation Air From Inside

Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow the National Fuel

Gas Code, NFPA 54/ANS Z223.1, Section

5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

WARNING: Rework worksheet, adding the space of the adjoining unconfined space. The combined spaces must have enough fresh air to supply all appliances in both spaces.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation for required size of ventilation

grills or ducts.

IMPORTANT:

for inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Do not provide openings

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 2 - Ventilation Air from Inside Building

Remove Door into Adjoining

Room, Option

12"

Outlet Air

Ventilation Grills

Into Adjoining Room,

Ventilated Attic

Outlet Air

Inlet Air

Figure 3 - Ventilation Air from Outdoors

Crawl Space

12"

Option 2

To Attic

Crawl

Space

Ventilated

104464

Page 7

OWNER’S MANUAL

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must install heater. Follow all local codes.

WARNING: Never install the heater

• in a bedroom or bathroom

• in a recreational vehicle

• where curtains, furniture,

clothing, or other flammable objects are less than 42 inches from the front, top, or sides of the heater

• in high traffic areas

• in windy or drafty areas

IMPORTANT:

Vent-free heaters add moisture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Com- bustion and Ventilation, pages 4 through 6.

CHECK GAS TYPE

Use only propane/LP gas. If your gas supply is not propane/LP gas, do not install heater. Call dealer where you bought heater for proper type heater.

CLEARANCES TO COMBUSTIBLES (Vent-Free Operation Only)

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining side and back walls.

Front View

Side Wall Side Wall

12"

Minimum

Carefully follow the instructions below. This stove is a freestanding unit designed to set directly on the floor.

IMPORTANT:

must maintain minimum wall and ceiling clearances during installation. The minimum clearances are shown in Figure 4. Measure from outermost point of stove top.

Minimum Wall and Ceiling Clearances (see Figure 4)

A. Clearances from outermost point of

stove top to any combustible side wall should not be less than 12 inches.

B. Clearances from outermost point of

stove top to any combustible back wall should not be less than 6 inches (Includes Corner Installations).

C. Clearances from the stove top to the

ceiling should not be less than 48 inches.

Ceiling

48"

Minimum

12"

Minimum

You

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.

104464

Top View

Back Wall

Minimum

12 "

Minimum

Side Wall Side Wall

Corner

Wall

Minimum

Front of

Stove Unit

Wall

Minimum

Figure 4 - Minimum Clearance to Walls and Ceiling (Stove May Vary Depending on Model)

Side View

Ceiling

48"

Minimum

Floor

Minimum

Back Wall

Continued

Page 8

VENT-FREE PROPANE/LP GAS STOVE HEATER

INSTALLATION

Continued

STOVE CAVITY ASSEMBLY

1. Lift off corrugated box enclosing stove body crating.

2. Remove all screws fastening the wood frame enclosure. Spread wood frame open and lift away from plastic-bagged stove body. The bottom pieces of pallet wood will remain bolted to the stove body .

3. Remove plastic bag from stove body.

4. Remove back panel from stove (see Figure 5). Use an adjustable wrench or a 10 mm socket. Remove six (6) bolts and washers. Keep bolts and washers to reattach back panel later.

5. Remove all contents from inside stove cavity. Contents include:

(1) - Stove bottom (4) - Legs (Amity models include leg

leveler bolts) (1) - Bottom door (1) - Top grate (1) - Hardware kit bag with fasteners

6. Carefully lay stove body on back to attach bottom components to stove body (see Figure 6). Rest stove on drop cloth or blanket to avoid scratching stove edges.

7. Remove remaining pallet wood attached to bottom of stove body (see Figure 7). Use an adjustable wrench to remove bolts.

8. Fasten each leg to stove with four (4) bolts. Use a flat screw driver to tighten bolt to leg. Thread bolt in tapped holes on stove body (see Figure 8 and Figure 9, page 9).

Bolt

Product Identification Label

Figure 5 - Removing Back Panel

Top of Stove Unit

Front of Stove Unit

Drop Cloth/ Blanket

Figure 6 - Laying Down Stove On Side (Stove Style May Vary Depending on Model)

Bolt

Pallet Wood

Figure 7 - Removing Pallet Wood From The Bottom of The Stove

Door Hinge Step Bolt Hole

Back Stove Panel

Pallet Wood Bolted to Stove Body Bottom

Front

Front of Stove Unit

Pallet Wood

Bottom Of Stove Unit

Door Catch Bolt With Adjustable Hex Nuts Hole

Top of Stove Unit

Leg Hole

Stove Bottom Holes

Leg Hole

Figure 8 - Locating Threaded Holes for Stove Bottom, Legs, and Door Attachment (Appearance May Vary Depending on Model)

Leg Hole

Bottom Of Stove Unit

Leg Hole

104464

Page 9

INSTALLATION

Continued

9. Fasten stove bottom to stove with four (4) M6 x 1 - 25mm bolts. Use a flat washer and lock washer with each bolt. Tighten bolts into threaded holes on stove body (see Figure 8, page 8 and

10). Use an adjustable wrench or a 10mm socket.

10. Attach stove door by inserting step bolt through door hinge pivot holes and into threaded hole in stove body (see Figure 11). Use an adjustable wrench or a 12mm socket to fasten step bolt. Tighten step bolt until snug. Make sure door moves freely.

11. Install door catch bolt (M8 x 1.2555mm with two M8 hex nuts) into threaded hole on stove body (see Figure 8, page 8). Use an adjustable wrench or a 12mm socket. The catch bolt has two hex nuts attached to it (see Figure 12). The top nut is a bolt stop and the bottom nut is for door leveling adjustment.

12. Check general catch bolt alignment with door claw. Make final adjustment and door leveling after stove is in normal standing position.

13. Carefully lift stove back up on its four attached legs.

14. If available, install gas log heater inside stove cavity before installing the back panel (see Installing Gas Log Heater Into Stove, page 10).

15. Fasten back panel to stove with six (6) M6 x 1 - 20mm bolts and washers. Make sure product identification label is located on the outside in lower lefthand corner.

OWNER’S MANUAL

Washers

Bolt

Bottom Of Stove Unit

Leg

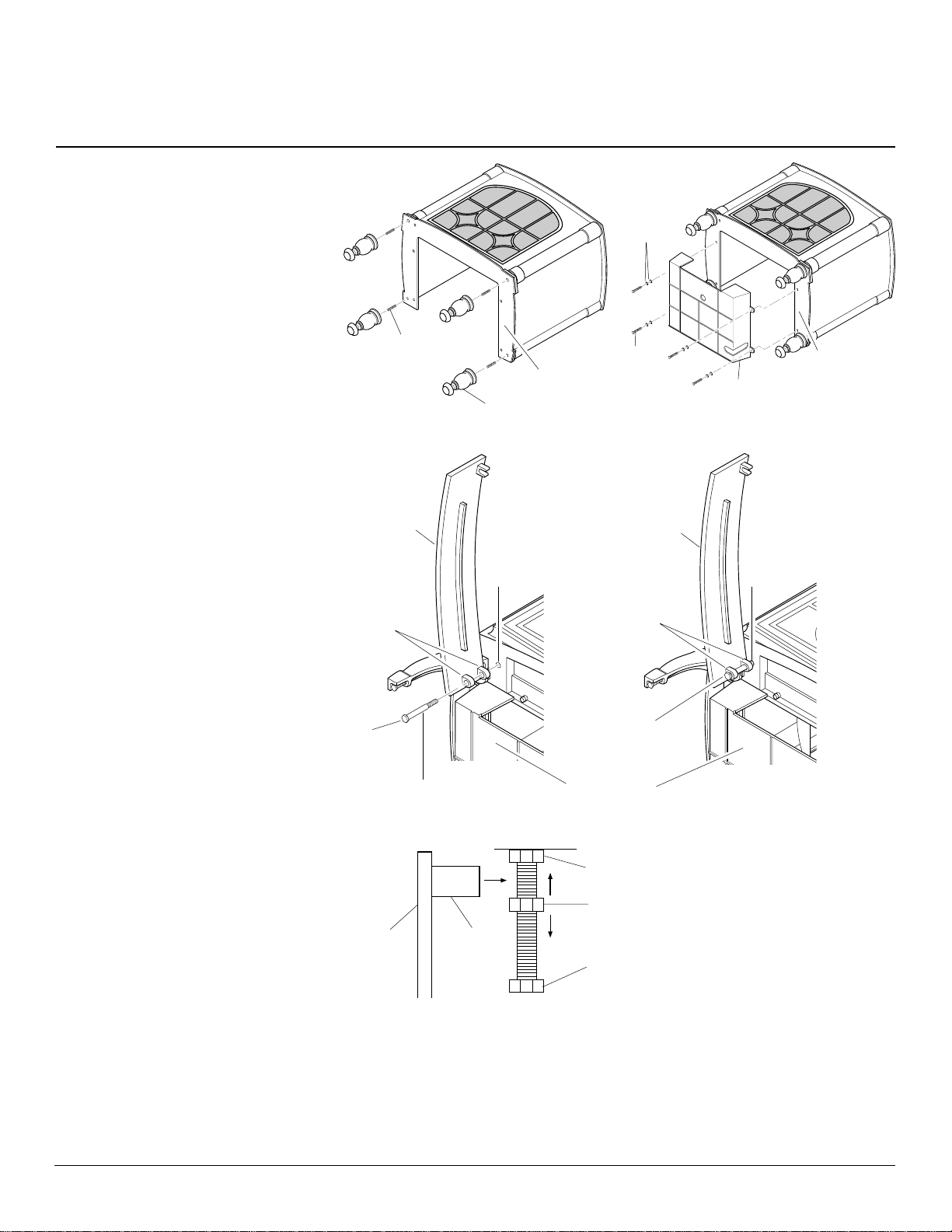

Figure 9 - Attaching Stove Legs

Stove Door

Threaded Hole

Door Hinge

Step Bolt

Stove BottomBolt

Shoulder

Figure 11 - Attaching Stove Door (Appearance May Vary Depending on Model)

Bolt

Stove Bottom

Figure 10 - Attaching Stove Bottom

Stove Door

Bolt Shoulder

Door Hinge

Step Bolt

Bolt Stop

Adjusting Nut

Bottom Of Stove Unit

104464

Door

Figure 12 - Catch Bolt and Door Claw Orientation

Door Claw

Catch Bolt

Continued

Page 10

VENT-FREE PROPANE/LP GAS STOVE HEATER

INSTALLATION

Continued

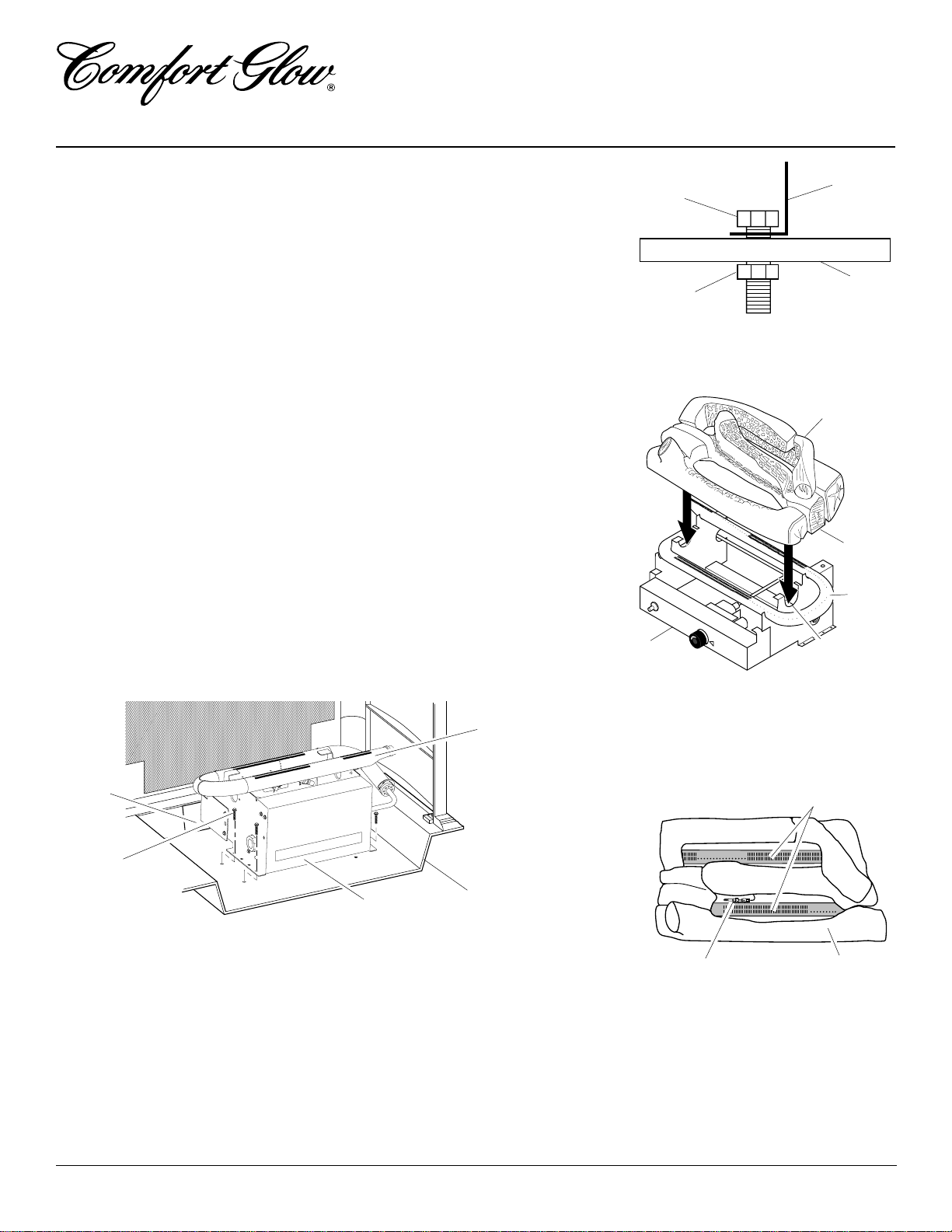

INSTALLING GAS LOG HEATER INTO STOVE

1. Remove log and gas log heater from carton. heater by the burner itself. This could damage heater. Always handle the gas log heater by the heater base only.

2. Remove all protective packaging applied to log and gas log heater for shipment.

3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought heater.

4. If not already removed, remove back panel from assembled stove body (see Figure 5, page 8). Use an adjustable wrench or a 10 mm socket. Remove six (6) bolts and washers. Keep bolts and washers to reattach back panel later.

5. Set gas log heater inside stove (see Figure 13). Make sure control knob extensions pass through bottom front opening.

6. Align outside holes on heater base with four (4) mounting holes on the stove bottom (see Figure 13).

Note:

Do not pick up gas log

7. Fasten heater base to stove bottom with #10-24 x .50 bolts and hex nuts provided with gas log heater (see Figure

14). Attachment hardware is factory packed inside plastic bag with installation manual and owner’s registration card. Push bolt through heater base mounting hole and through stove bottom. Connect hex nut to bolt on underside of stove bottom. The bolt hex head is for a 5/16" socket and the hex nuts are for a 3/8" socket. If sockets are not available, use adjustable wrenches.

8. Set one-piece log on heater base as shown in Figure 15. Make sure middle section at bottom of log is seated into "U" shaped cutout in center of heater base. Log will fit securely on base.

IMPORTANT:

Make sure log does not cover any burner ports and does not touch the stove cavity (see Figure 16).

9. Fasten back panel to stove with six (6) M6 x 1.20mm bolts and washers. Make sure product identification label is located on the outside lower left-hand corner.

10. Place freestanding stove in desired position in room. Be sure to maintain clearances to combustibles as outlined on page 7.

Heater

Bolt

Hex Nut

Figure 14 - Fastening Heater Base to Stove Drop Bottom

OFF

Heater Base

PILOT

Base

Stove Bottom

One-Piece Log Set

Middle Section at Bottom of Log Set

Burner

"U" Shaped Cutout in Chassis

Burner

Bottom Front Opening

Bolt

Heater Base

Figure 13 - Placing Heater Base In Stove Cavity (Appearance May Vary Depending on Model)

Stove Bottom

Figure 15 - Installing One-Piece Stove Log Set

Burner Porting Areas (double slotted rectangular openings

Safety Pilot Location

Figure 16 - Top View of One-Piece Log Set on Gas Log Heater

One-Piece Log Set

104464

Page 11

OWNER’S MANUAL

INSTALLATION

Continued

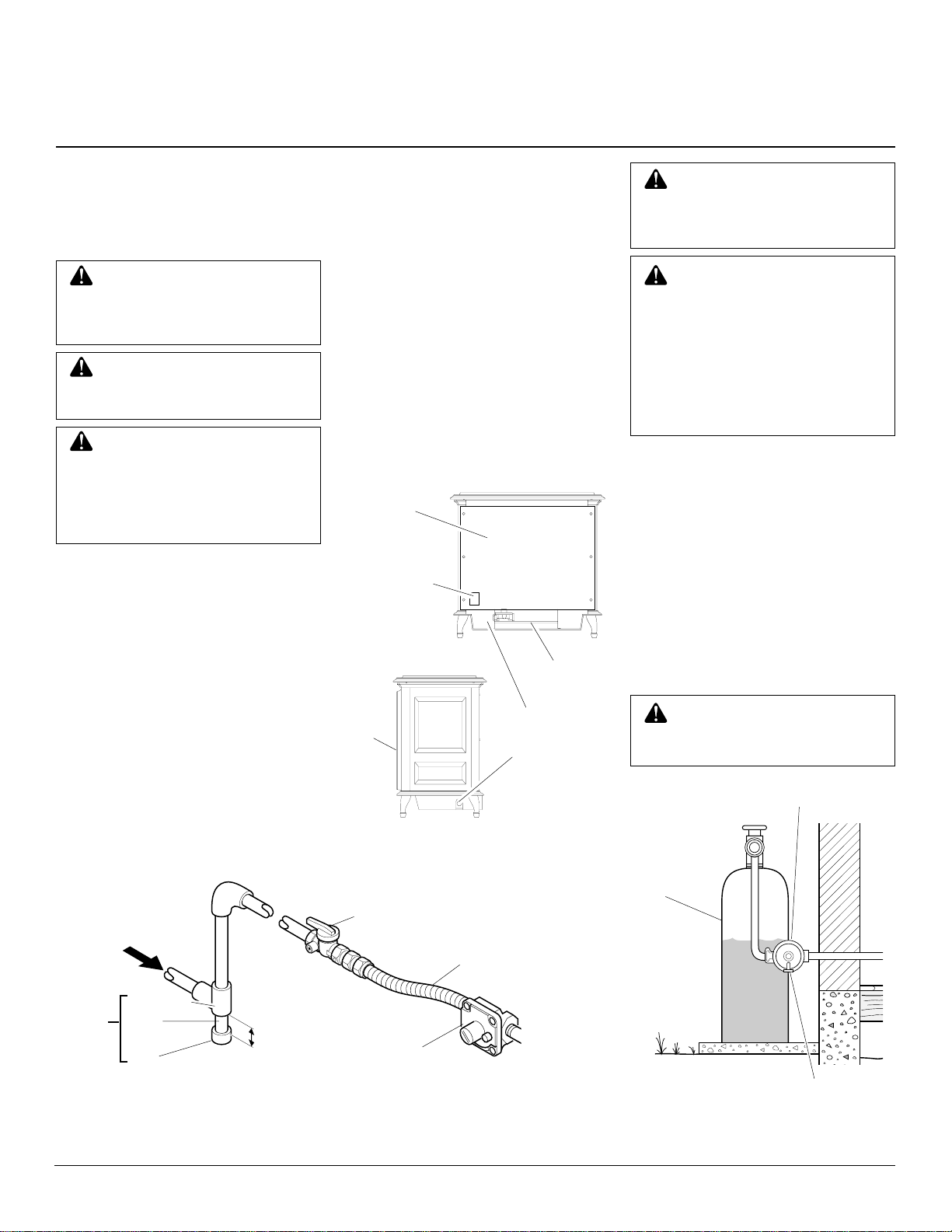

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 1/2" NPT (National Pipe Thread) inlet connection to the pressure regulator.

The gas inlet connection for the stove heater is located on the lower right-hand side of the stove when viewed from the front of the unit. The gas connection can be made either through the bottom right side or through the lower back opening as illustrated in Figure

17. Make sure gas log heater is secured to the stove cavity assembly.

The installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce

WARNING: A qualified service person must connect heater to gas supply. Follow all local codes.

incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with

CAUTION: Never connect heater directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between

the vent pointing down as shown in Figure

18. Pointing the vent down protects it from freezing rain or sleet.

Back Stove Panel

the heater and propane/LP supply.

Installation Items Needed

Before installing heater, make sure you have

Product Identification Label

Back View

the items listed below.

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

Front of Stove Unit

Side View

Gas Inlet Connection Access

Gas Log Heater

* An CSA/AGA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA/AGA design-certified equipment shutoff valve from your dealer. See Accessories, page 19.

From External Regulator (11" W.C.** to 14" W.C. Pressure)

Sediment Trap

Figure 19 - Gas Connection

Tee Joint Pipe

Nipple Cap

3" Minimum

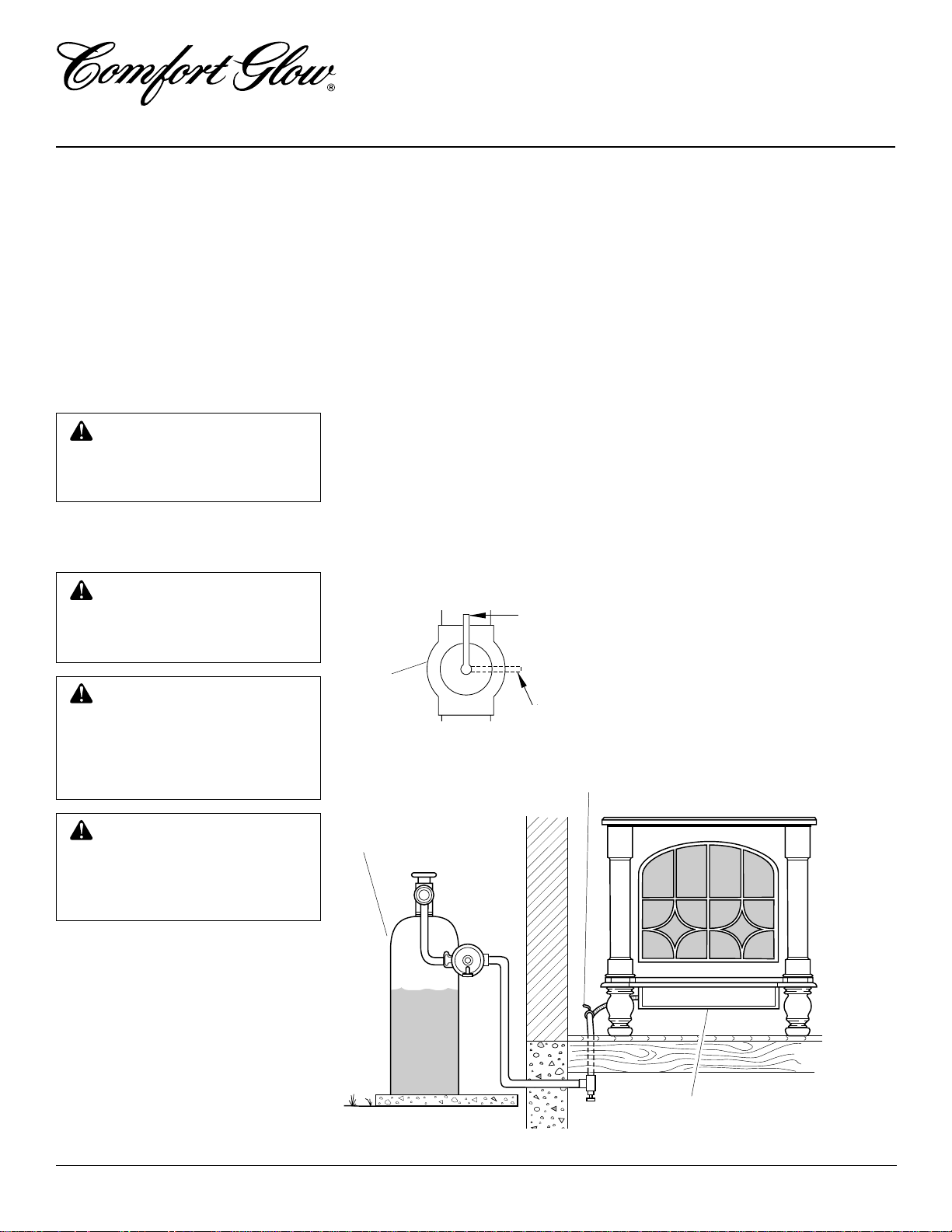

Figure 17 - Gas Regulator Location and Gas Line Access Into Stove Cabinet

CSA/AGA Design-Certified Equipment Shutoff Valve With 1/8" NPT Tap*

Approved Flexible Gas Hose (if allowed by local codes)

Gas Regulator

* Purchase the optional CSA/AGA design-certified equipment shutoff valve from your

dealer. See Accessories, page 19.

**Minimum inlet pressure for purpose of input adjustment.

WARNING: Never connect heater to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of pressure will occur.

Installation must include a equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figure 19).

IMPORTANT:

Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

CAUTION: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

External Regulator

Propane/LP Supply Tank

Vent Pointing Down

Figure 18 - External Regulator With Vent Pointing Down

Continued

104464

Page 12

VENT-FREE PROPANE/LP GAS STOVE HEATER

N T

O S

INSTALLATION

Continued

We recommend that you install a sediment trap in supply line as shown in Figure 19, page 11. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not installed or is installed wrong, heater may not run properly.

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings.

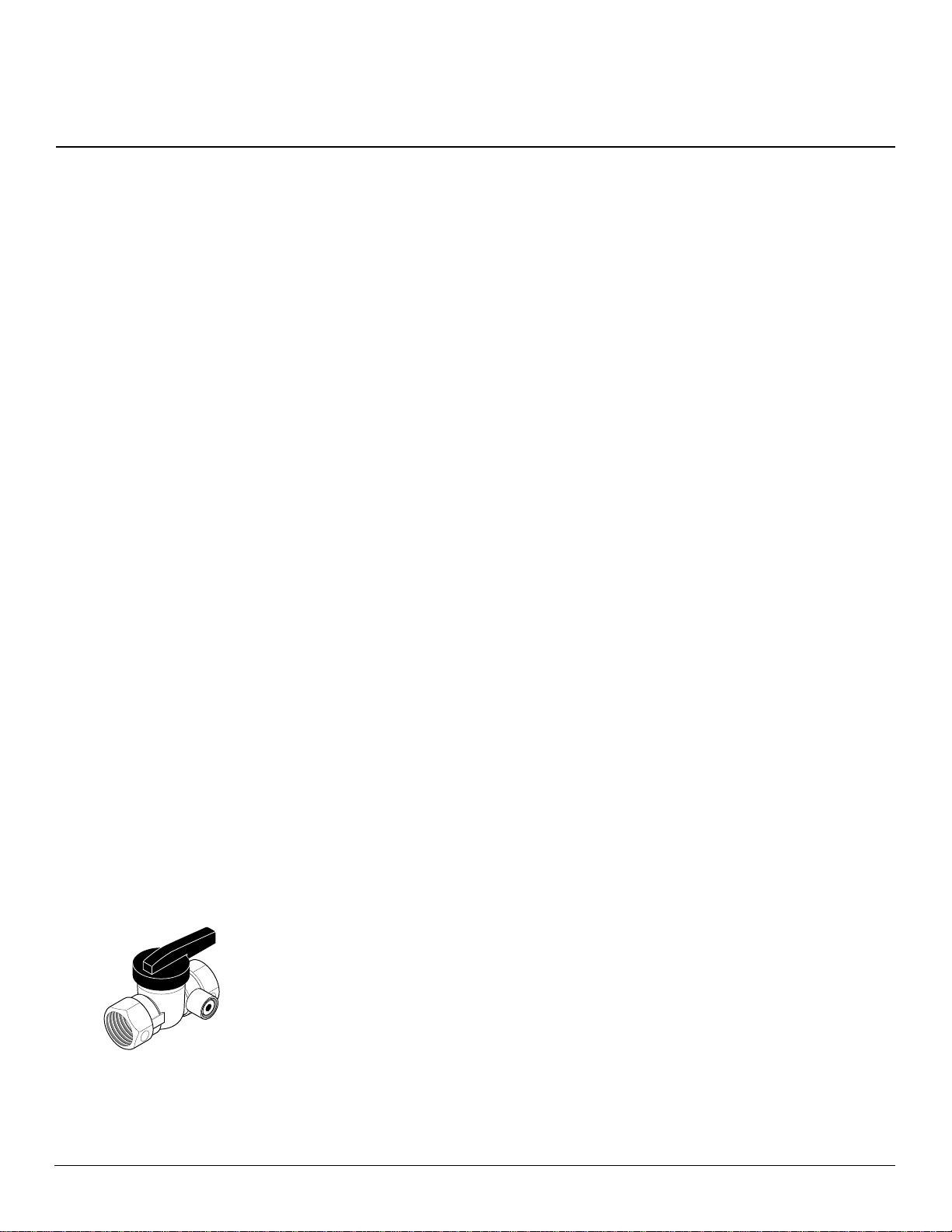

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak. Correct all leaks at once.

3. Pressurize supply piping system by either using compressed air or opening propane/LP supply tank valve.

4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 20).

2. Pressurize supply piping system by either using compressed air or opening propane/ LP supply tank valve.

3. Check all joints from gas meter to equipment shutoff valve (see Figure 21). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Open

POSI

Equipment Shutoff Valve

Closed

Figure 20- Equipment Shutoff Valve

Equipment Shutoff Valve

Pressure Testing Heater Gas Connections

1. Open equipment shutoff valve (see Figure 20).

2. Open propane/LP supply tank valve.

3. Make sure control knob of heater is in the OFF position.

4. Check all joints from equipment shutoff valve to control valve (see Figure 21). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operating Heater, page 13). Check all other internal joints for leaks.

7. Turn off heater (see To Turn Off Gas to Appliance, page 13).

CAUTION: Make sure external regulator has been installed between propane/LP supply and heater. See guidelines under

necting to Gas Supply

Con-

, page 11.

Pressure Testing Gas Supply Piping System

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

Propane/LP Supply Tank

Figure 21 - Checking Gas Joints

Control Valve Location

104464

Page 13

OWNER’S MANUAL

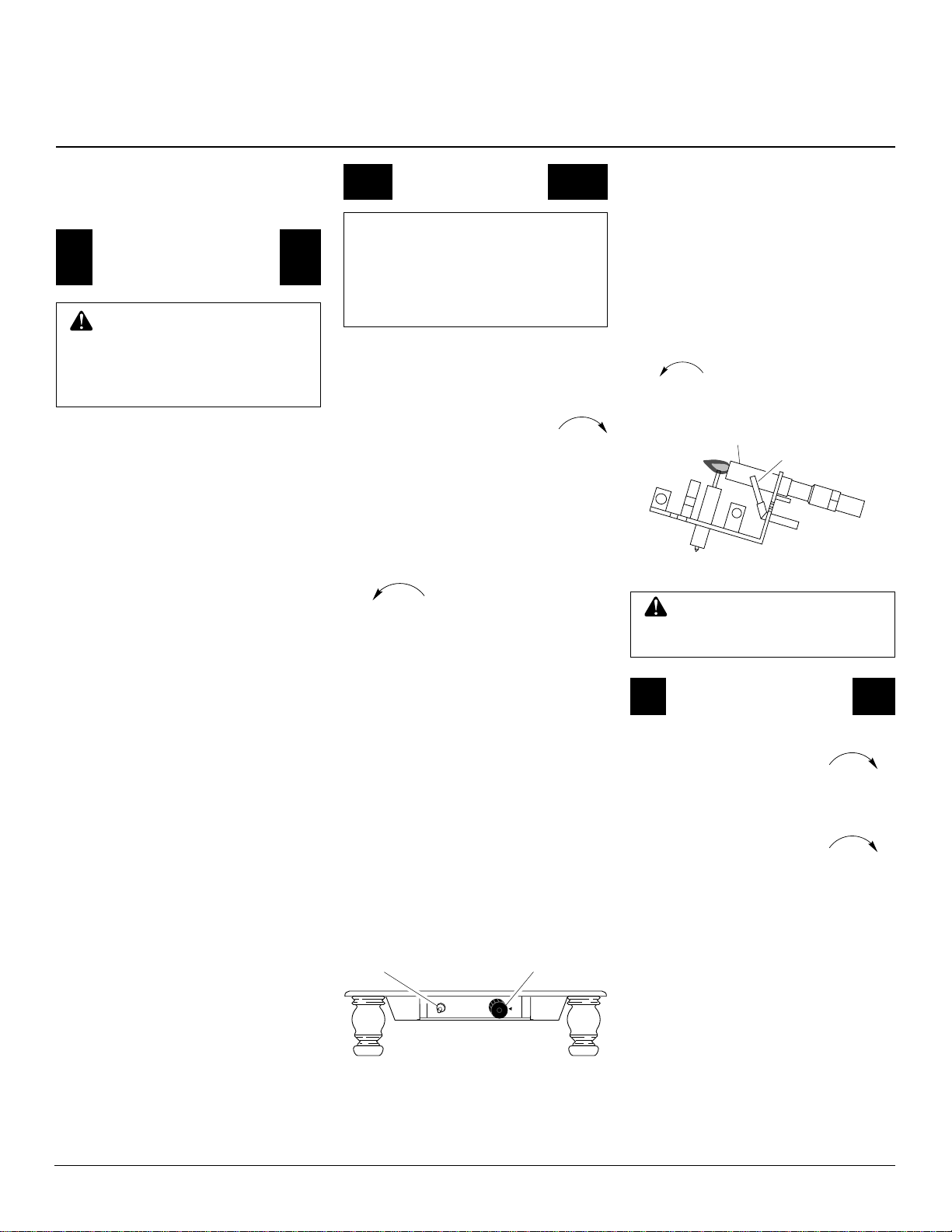

OPERATING HEATER

FOR YOUR SAFETY

READ BEFORE

LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must

be lighted by hand. When lighting the pilot, follow these instructions exactly .

B. BEFORE LIGHTING smell all

around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call y our gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn

the gas control knob. Ne ver use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part

has been under water . Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange flame will also be present. Open a window to vent smell. This will only last a few hours.

1. STOP! Read the safety information, column 1.

2. Make sure equipment shutoff valve is fully open.

3. Tur n control knob clockwise to the OFF position.

4. Wait f ive (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you don’t smell gas, go to the next step.

5. T urn contr ol knob counterclockwise

to the PILOT position.

C-clockwise

Press in control knob for f ive (5) seconds (see Figure 22).

Note:

You may be running this heater for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or less. This will allo w air to bleed from the gas system.

6. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, con-

tact a qualified service person or gas supplier for repairs. Until repair s are made, light pilot with match. T o light pilot with match, see Manual Light- ing Procedure, page 14.

Ignitor Button

Control Knob

Clockwise

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when

released, contact a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps 3

through 7. This heater has a safety inter lock system. W ait one (1) minute for system to reset before lighting pilot again.

8. Turn control knob counterclockwise

C-clockwise

to desired heating level. The burners should light. Set control knob to any heat level between HI and LO.

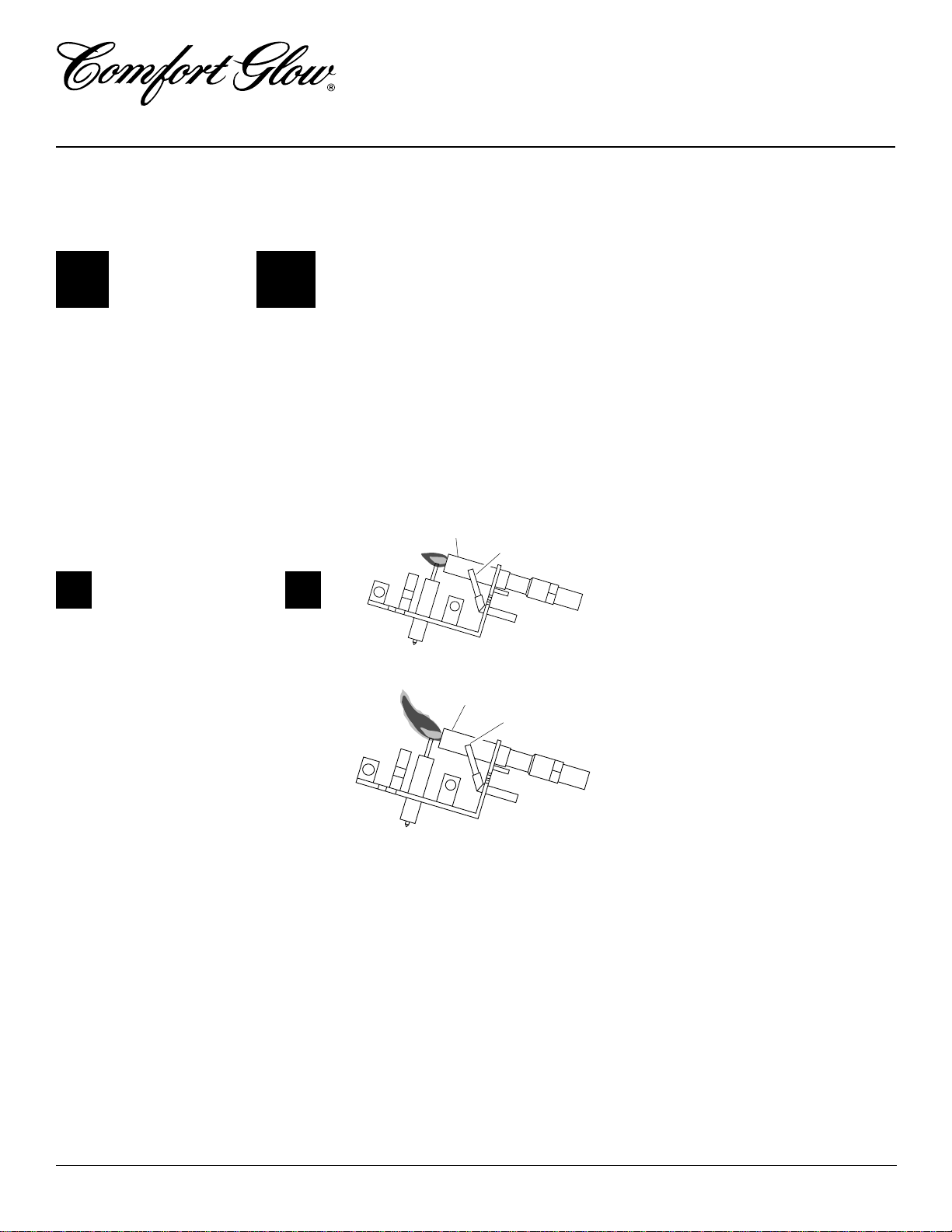

Pilot Burner

Thermocouple

Figure 23 - Pilot

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Heater

Turn control knob clockwise the OFF position.

Shutting Off Burners Only (pilot stays lit)

Turn control knob clockwise the PILOT position.

Clockwise

104464

Figure 22- Control Knob and Ignitor Button Location

Continued

Page 14

VENT-FREE PROPANE/LP GAS STOVE HEATER

OPERATING HEATER

Continued

THERMOSTAT

CONTROL

OPERATION

The thermostat control knob can be set to any comfort level between Hi and Lo. The thermostat will gradually modulate the heat output and flame height from higher to lower settings, or pilot, in order to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

Note:

Selecting the Hi setting with the control knob will cause the burner to remain fully on, without modulating down in most cases.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 5 under Light-

ing Instructions, page 13.

2. Depress control knob and light pilot

with match.

3. Keep control knob pressed in for 30

seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 8 in Lighting Instructions, page 13.

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 24 shows a correct pilot flame pattern. Figure 25 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.

If pilot flame pattern is incorrect, as shown in Figure 25

• turn heater off (see To Turn Off Gas to Appliance, page 13)

• see Troubleshooting, pages 16 through 18

Pilot Burner

Thermocouple

Figure 24 - Correct Pilot Flame Pattern

Pilot Burner

Thermocouple

Figure 25 - Incorrect Pilot Flame Pattern

SPECIFICATIONS

Btu (Variable) 16,000/30,000 Type Gas Propane/LP Only Ignition Piezo Pressure Manifold 8" W.C. Inlet Gas Pressure (in. of water)

Maximum 14"

Minimum* 11" Shipping Weight 28 lbs. * For input adjustment

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specified heat

When Gas Quality Is Bad

• pilot will not stay lit

• burners will produce flames and soot

• heater will backfire when lit You may feel your gas pressure is too low or

gas quality is bad. If so, contact your local propane/LP gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting.

If so, contact DESA International’s Technical Service Department at 1-800-DESA LOG (1-800-337-2564).

You can also visit DESA International’s technical service web site at

www.desatech.com.

104464

Page 15

OWNER’S MANUAL

CLEANING AND MAINTENANCE

WARNING: Turn off heater

and let cool before cleaning.

CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, pet hair, etc.

CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, and lint. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly. and top grates of your stove will make cleaning easier.

1. Shut off the unit, including the pilot.

2. Inspect burner, pilot, and primary air

3. Blow air through the ports/slots and

Note:

Removing the rear panel

Allow the unit to cool for at least thirty minutes.

inlet holes on injector holder for dust and dirt (see Figure 26).

holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 27). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

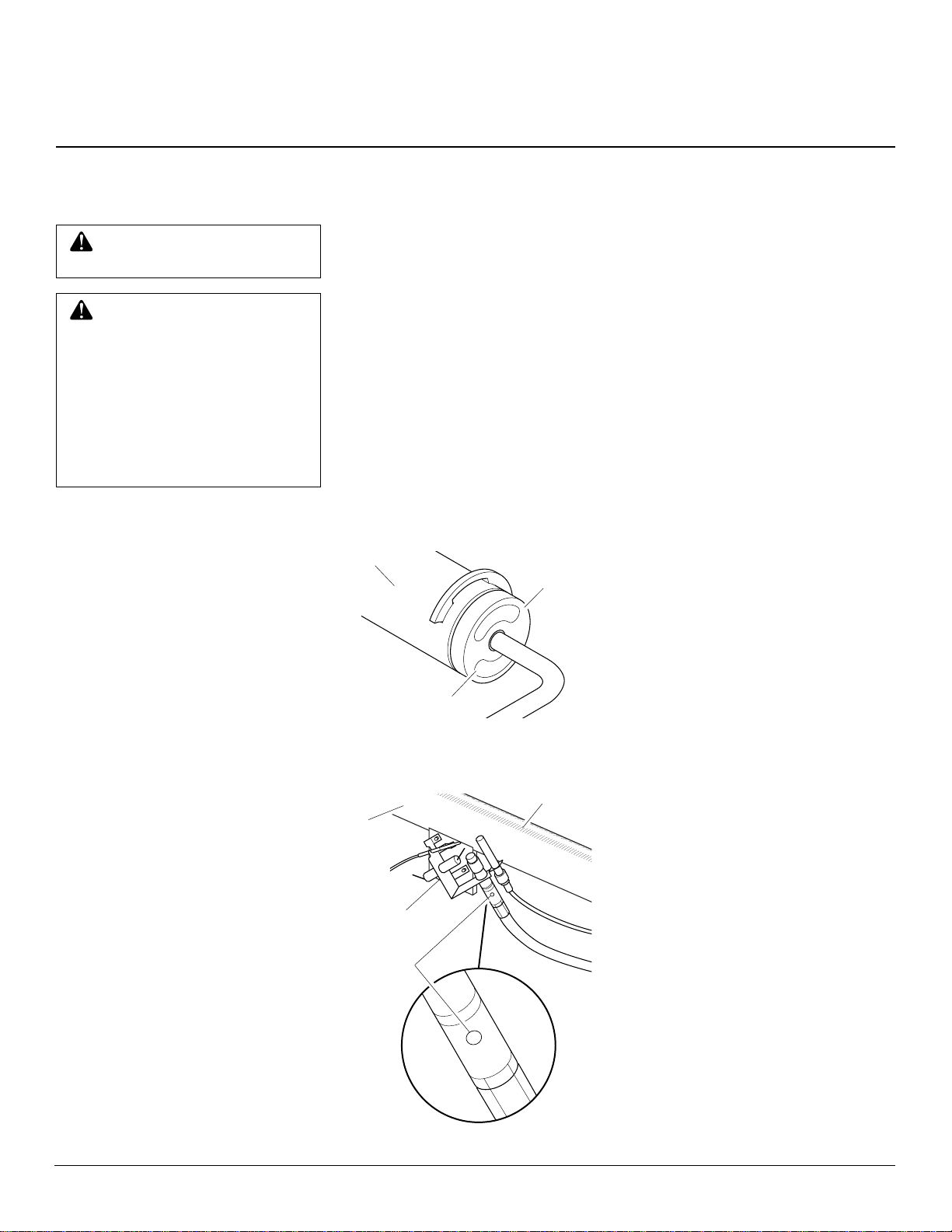

Injector Holder

Burner Tube

Primary Air Inlet Holes (Shape of Holes May Vary by Model)

Figure 26 - Injector Holder On Outlet Burner Tube

Burner Tube

Pilot Assembly

Pilot Air Inlet Hole

Figure 27 - Pilot Inlet Air Hole

(May Be Brass or Aluminum Depending on Model)

Ports/Slots

LOGS

• If you remove logs for cleaning, refer to

Installing Gas Log Heater into Stove,

page 10, to properly replace logs.

• Replace log(s) if broken or chipped (dime-sized or larger).

MAIN BURNER

Periodically inspect all burner flame holes with the heater running. All slotted burner flame holes should be open with yellow flame present. All round burner flame holes should be open with a small blue flame present. Some burner flame holes may become blocked by debris or rust, with no flame present. If so, turn off heater and let cool. Either remove blockage or replace burner. Blocked burner flame holes will create soot.

Review your video included with your heater for additional cleaning instructions.

104464

Page 16

VENT-FREE PROPANE/LP GAS STOVE HEATER

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s Technical Service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater.

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Broken ignitor cable

4. Bad piezo ignitor

5. Ignitor electrode broken

6. Ignitor electrode positioned wrong

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. ODS/pilot is clogged

6. Gas regulator setting is not correct

7. Depleted gas supply

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Replace ignitor cable

4. Replace piezo ignitor

5. Replace piezo ignitor

6. Replace piezo ignitor

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Clean ODS/pilot (see Cleaning and Maintenance, page 15) or replace ODS/ pilot assembly

6. Replace gas control

7. Contact local propane/LP gas company

ODS/pilot lights but flame goes out when control knob is released

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Equipment shutoff valve not fully open

4. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

5. Thermocouple connection loose at control valve

6. Thermocouple damaged

7. Control valve damaged

www.desatech.com

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Fully open equipment shutoff valve

4. A) Contact local propane/LP gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 15) or replace ODS/ pilot assembly

5. Hand tighten until snug, then tighten 1/4 turn more

6. Replace thermocouple

7. Replace control valve

104464

Page 17

TROUBLESHOOTING

Continued

OWNER’S MANUAL

OBSERVED PROBLEM

Burner does not light after ODS/pilot is lit

Delayed ignition burner

Burner backfiring during combustion

Slight smoke or odor during initial operation

Moisture/condensation noticed on windows

Heater produces a whistling noise when burner is lit

POSSIBLE CAUSE

1. Burner orifice clogged

2. Inlet gas pressure is too low

3. Burner orifice diameter is too small

1. Manifold pressure is too low

2. Burner orifice clogged

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Not enough air

2. Gas regulator defective

3. Residues from manufacturing processes and logs curing

1. Not enough combustion/ventilation air

1. Turning control knob to HI position when burner is cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orifice

REMEDY

1. Clean burner (see Cleaning and Maintenance, page 15) or replace burner orifice

2. Contact local propane/LP gas company

3. Replace burner orifice

1. Contact local propane/LP gas company

2. Clean burner (see Cleaning and Mainte- nance, page 15) or replace burner orifice

1. Clean burner (see Cleaning and Mainte- nance, page 15) or replace burner orifice

2. Replace damaged burner

3. Replace gas control

1. Check burner for dirt and debris. If found, clean burner (see Cleaning and Maintenance, page 15)

2. Replace gas control

3. Problem will stop after a few hours of operation

1. Refer to Air for Combustion and Venti- lation requirements (page 4)

1. Turn control knob to LO position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas line checked by local propane/LP gas company

3. Observe minimum installation clearances (see page 7)

4. Clean burner (see Cleaning and Mainte- nance, page 15) or replace burner orifice

Dark residue on logs or inside of fireplace

White powder residue forming within burner box or on adjacent walls or furniture

104464

1. Improper log placement

2. Drafts or other air currents affecting flame pattern

3. Air holes at burner inlet blocked

4. Burner flame holes blocked

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. turn into white powder residue

www.desatech.com

1. Properly locate logs (see Installing Gas Log Heater Into Stove, page 10)

2. Eliminate source of drafts around heater

3. Clean out air holes at burner inlet. Periodically repeat as needed

4. Remove blockage or replace burner

1. Turn heater off when using furniture polish, wax, carpet cleaners, or similar products

Continued

Page 18

VENT-FREE PROPANE/LP GAS STOVE HEATER

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT:

Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

Heater produces a clicking/ticking noise just after burner is lit or shut off

Heater produces unwanted odors

Heater shuts off in use (ODS operates)

Gas odor even when control knob is in OFF position

Operating heater where impurities in air exist may create odors.

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Heater burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See ment above)

2. Gas leak. See W arning statement at

top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

1. Gas leak. See W arning statement at

top of page

2. Control valve defective

IMPORTANT

state-

REMEDY

1. This is common with most heaters. If noise is excessive, contact qualified service person

1. Open window and ventilate room. Stop using odor causing products while heater is running

2. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

1. Open window and/or door for ventilation

2. Contact local propane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 15)

1. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

2. Replace control valve

Gas odor during combustion

1. Foreign matter between control valve and burner

2. Gas leak. See W arning statement at

top of page

www.desatech.com

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

104464

Page 19

OWNER’S MANUAL

PARTS CENTRALS

Baltimore Electric

1348 Dixwell Avenue Hamden, CT 06514-0322 1-800-397-7553 203-248-7553 Parts Department

Portable Heater Parts

342 N. County Rd. 400 East Valparaiso, IN 46383-9704 All States 219-462-7441 1-800-362-6951 [email protected] [email protected]

FBD

1349 Adams Street Bowling Green, KY 42103-3414 270-846-1199 1-800-654-8534 Fax: 1-800-846-0090 [email protected]

Master Parts Dist.

1251 Mound Ave NW Grand Rapids, MI 49504-2672 616-791-0505 1-800-446-1446 Fax: 616-791-8270 www.nbmc.com

These Parts Centrals are privately owned businesses. They have agreed to support our customer’s needs by providing original replacement parts and accessories.

Washer Equipment Co.

1715 Main Street Kansas City, MO 64108-2195 KS, MO, AR 816-842-3911 www.washerparts.com

East Coast Energy Products

707 Broadway W. Long Branch, NJ 07764-1542 732-870-8809 1-800-755-8809 www.njplaza.com/ecep

Tarantin Tank Co.

P.O. Box 6129 Freehold, NJ 07728-6129 908-780-9340 1-800-922-0724 www.tarantin.com

Heater & Fireplace Store

58 Halbe Lane Cape May Court, NJ 08210-1110 609-390-1100 Parts Department

Dayton Hardware

P.O. Box 275 North Dayton Station Dayton, OH 45404-0275 All States 937-258-3721 OH 1-800-762-3426

Halco Enterprises

208 Carter Drive, Unit 21 West Chester, PA 19382-4500 610-430-7717 1-800-368-0803 www.halcoenterprises.com

LA Porte’s Parts & Service

2444 N. 5th Street Hartsville, SC 29550-7704 803-332-0191 Parts Department

Cans Unlimited, Inc.

P.O. Box 645 Taylor, SC 29687-0013 All States 803-879-3009 1-800-845-5301 [email protected]

ACCESSORIES

Purchase these heater accessories from your local dealer. If they can not supply these accessories, call DESA International’s Parts Department at 1-800-972-7879 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap. Fits 1/2" NPT pipe.

104464

CLEANING KIT - CCK

(Not Shown)

Your vent-free gas appliance requires regular cleaning and maintenance to prevent performance problems. This kit gives you the tools and instructions to make it easy to clean all critical areas of your appliance.

Page 20

VENT-FREE PROPANE/LP GAS STOVE HEATER

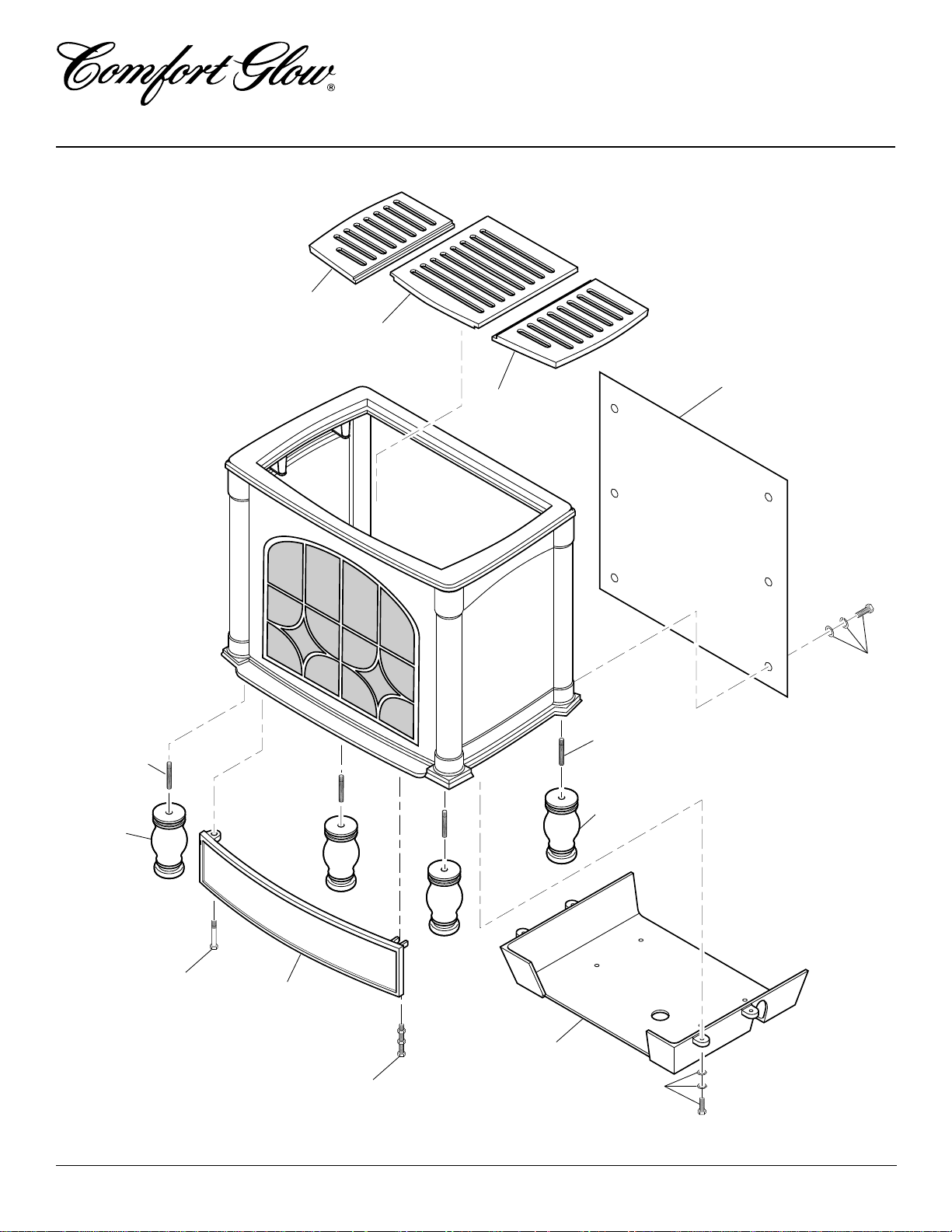

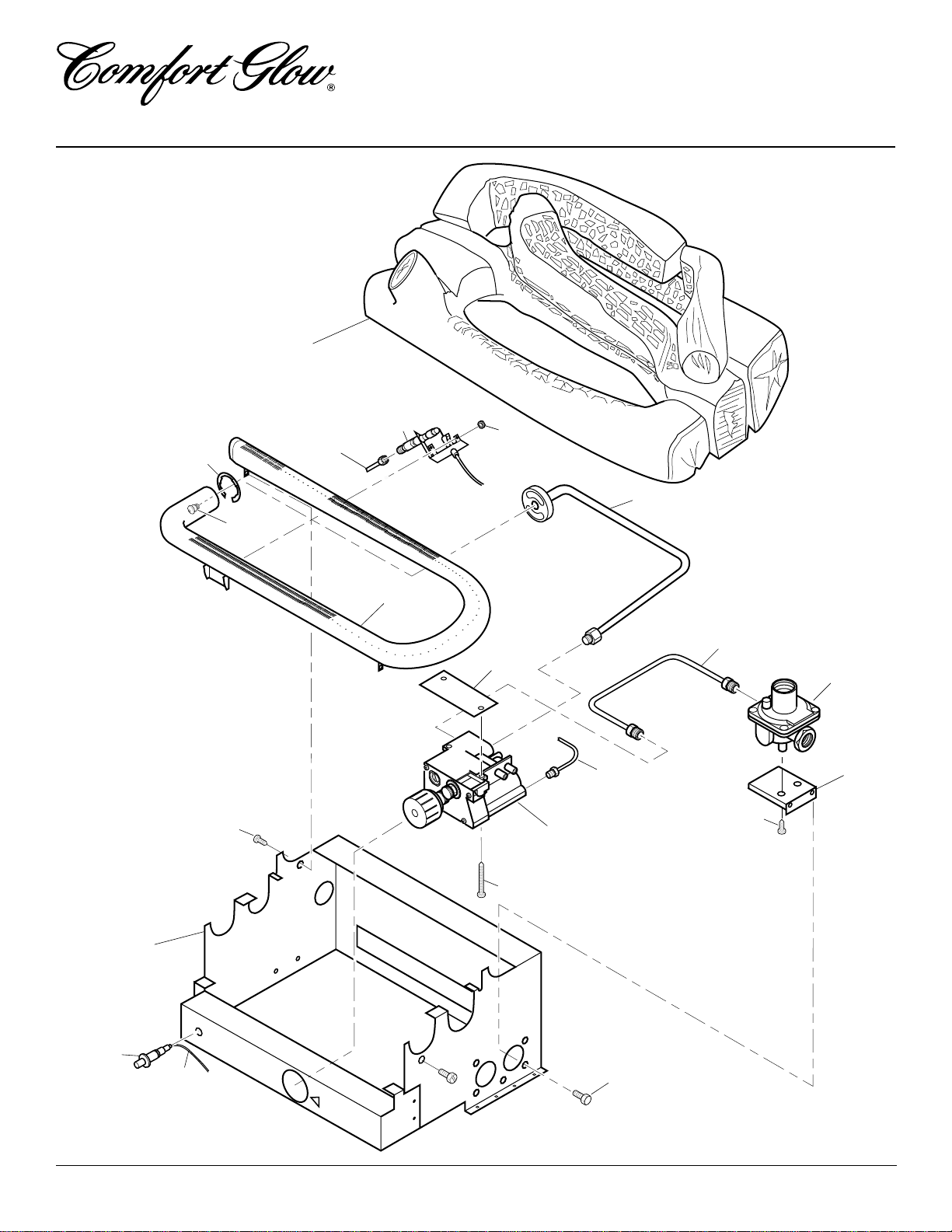

ILLUSTRATED PARTS BREAKDOWN

SL30PT

104464

Page 21

OWNER’S MANUAL

PARTS LIST

SL30PT

This list contains replaceable parts used in your stove. For replacement parts see Parts Central on page 19 of this manual.

KEY PART NO. NO. DESCRIPTION QTY.

1 104459-01 Stove Log 1 2 098249-01 Nut, M5 2 3 104384-03 Painted Base Assembly 1 4 104454-01 Bracket, Regulator 1 5 098867-10 Gas Regulator 1 6 104425-01 Inlet Tube 1 7 104422-02 Outlet Burner Tube 1 8 099056-19 Burner Orifice Injector 1 9 102843-01 Burner Clip 1 10 102980-01 Burner 1 11 101329-22 Control Valve 1 12 104472-01 Bracket 1 13 099211-01 Screw 2 14 102445-01 Piezo Ignitor 1 15 099387-13 Pilot Tube 1 16 098271-07 Ignitor Cable 1 17 104286-01 ODS Pilot (LP) 1 18 M11084-38 Screw, Hex Head (#8-18 x .38) 7

PARTS AVAILABLE — NOT SHOWN

100563-01 Warning Plate 1 101054-01 Lighting Instructions Plate 1 100565-01 Warning Plate Fastener 1 101137-04 Hardware Kit 1 104310-04 Information Video 1

104464

Page 22

VENT-FREE PROPANE/LP GAS STOVE HEATER

ILLUSTRATED PARTS BREAKDOWN

CISC CISG

5-4

5-1

5-4

5-2

5-3

104464

Page 23

OWNER’S MANUAL

PARTS LIST

CISC CISG

KEY PART NO. NO. DESCRIPTION QTY.

1L 104171-06 Top Grate with Screen - Left (Black Only) 1 1C 104171-05 Top Grate with Screen - Center (Black Only) 1 1R 104171-07 Top Grate with Screen - Right (Black Only) 1 2 104969-01 Bottom Door (Charcoal) 1

3 104174-03 Stove Dropped Bottom 1 4 104970-01 One Leg (Charcoal) (4 Total Per Stove) 1

5 104971-01 Hardware Kit 1 5-1 * Door Hinge Step Bolt With Shoulder (1 Per Unit) 1 5-2 * Door Catch Bolt M8 x 1.25 - 55mm Long With Two M8

5-3 * Bottom Floor Bolts M6 x 1 - 25mm Long With Flat Washer

5-4 * Leg Attachment Stud, Headless, Slotted,

6 104178-01 Back Panel Bolts M6 x 1 - 20mm Long With Flat Washer

7 104968-01 Stove Back Panel (Black Only) 1

This list contains replaceable parts used in your stove. For replacement parts see Parts Central on page 19 of this manual.

104969-02 Bottom Door (Forest Green) 1

104970-02 One Leg (Forest Green) (4 Total Per Stove) 1

Hex Nuts (1 Per Unit) 1

And Lock Washer (4 Per Unit) 1

M10 x 1.5 - 40mm Long 4

And Lock Washer (6 Per Unit) 1

104108-08 Touch-up Spray Paint 12 oz Can (Charcoal) 1 104108-05 Touch-up Spray Paint 12 oz Can (Forest Green) 1

* Included In Hardware Kit

PARTS AVAILABLE — NOT SHOWN

104464

Page 24

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written

warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

VENT-FREE PROPANE/LP GAS LOG HEATERS AND EMPIRE STOVE CHASSIS

DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers only the cost of part(s) required to restore this heater to proper operating condition. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

INTERNATIONAL

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

104464 01

NOT A UPC

104464-01 Rev. C 02/00
