B-VENT FREESTANDING
FIREPLACE HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
®
SBVBN(A), SBVBP(A)
REMOTE READY
IMPORTANT: This fireplace must be installed into approved Vanguard cast iron stove bodies,
models SCIVF series and PSCIVF series ONLY. See page 3 of this manual.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or
property damage. Refer to
this manual for correct installation and operational
procedures. For assistance
or additional information
consult a qualified installer,
service agency, or the gas
supplier.
— Installation and service
must be performed by a
qualified installer, service
agency, or the gas supplier.
This appliance may be installed in an aftermarket* manufactured (mobile) home, where not prohibited by
state or local codes.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
Save this manual for future reference.
®
B-VENT FREESTANDING FIREPLACE
SAFETY
INFORMATION
WARNINGS
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can
cause serious injury or death from
burns, fire, explosions, electrical
shock, and carbon monoxide
poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
This fireplace is a vented product. This
fireplace will not produce any gas leakage
into your home if properly installed. This
fireplace must be properly installed by a
qualified service person. The glass door
must be properly seated and sealed. If this
unit is not properly installed by a qualified
service person with glass door properly
seated and sealed, gas leakage can occur.
Carbon Monoxide Poisoning: Early
signs of carbon monoxide poisoning resemble
the flu, with headaches, dizziness, or nausea.
If you have these signs, the fireplace may not
have been installed properly. Get fresh air
at once! Have fireplace inspected and serviced by a qualified service person. Some
people are more affected by carbon monoxide than others. These include pregnant
women, people with heart or lung disease or
anemia, those under the influence of alcohol,
and those at high altitudes.
Propane/LP gas and natural gas are both
odorless. An odor-making agent is added to
each of these gases. The odor helps you
detect a gas leak. However, the odor added
to these gases can fade. Gas may be present
even though no odor exists.
Make certain you read and understand all
Warnings. Keep this manual for reference.
It is your guide to safe and proper operation
of this fireplace.
WARNING: Any change to
this fireplace or its controls can
be dangerous.
1. This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit
is used.
2. For propane/LP fireplace, do not place
propane/LP supply tank(s) inside any
structure. Locate propane/LP supply
tank(s) outdoors. To prevent performance problems, do not use propane/LP
fuel tank of less than 100 lbs. capacity.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do
not use any phone in your building
• immediately call your gas supplier
from a neighbor’s phone. F ollow the
gas supplier’s instructions
• if you cannot reach you gas supplier ,
call the fire department.
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or
other flammable objects are less than
42" from the front, top, or sides of
the fireplace
• in high traffic areas
• in windy or drafty areas
5. This fireplace reaches high temperatures. Keep children and adults away
from hot surfaces to avoid burns or
clothing ignition. Fireplace will remain
hot for a time after shut-down. Allow
surfaces to cool before touching.
6. Carefully supervise young children
when they are in the room with fireplace.
7. Do not modify this fireplace under any
circumstances. Any parts removed for
servicing must be replaced prior to operating fireplace.
8. Turn fireplace off and let cool before
servicing, installing, or repairing. Only
a qualified service person should install, service, or repair this fireplace.
Have fireplace inspected annually by a
qualified service person.
9. You must keep control compartments,
burners, and circulating air passages
clean. More frequent cleaning may be
needed due to excessive lint and dust
from carpeting, bedding material, pet
hair, etc. Turn off the gas v alve and pilot light before cleaning fireplace.
10. Have venting system inspected annually by a qualified service person. If
needed, have venting system cleaned
or repaired. See Cleaning and Mainte-
nance, page 21.
11. Keep the area around your fireplace
clear of combustible materials, gasoline, and other flammable vapor and
liquids. Do not run fireplace where
these are used or stored. Do not place
items such as clothing or decorations
on or around fireplace.
12. Do not use this fireplace to cook food
or burn paper or other objects.
13. Never place anything on top of freestanding fireplace.
14. Do not use any solid fuels (wood, coal,
paper, cardboard, etc.) in this fireplace.
Use only the gas type indicated on fireplace nameplate.
15. This appliance, when installed, must be
electrically grounded in accordance
with local codes or, in the absence of
local codes, with the National Electri-
cal Code, ANS/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
16. Do not obstruct the flow of combustion and ventilation air in any way . Provide adequate clearances around air
openings into the combustion chamber
along with adequate accessibility clearance for servicing and proper operation.
17. Do not install fireplace directly on carpeting, vinyl tile, or any combustible
material other than wood. The fireplace
must set on a metal or wood panel extending the full width and depth of the
fireplace.
18. Do not use fireplace if any part has been
exposed to or under water . Immediately
call a qualified service person to arrange for replacement of the unit.
19. Do not operate fireplace if any log is
broken.
20. Do not use a blower insert, heat exchanger insert, or other accessory not
approved for use with this fireplace.
21. Do not operate fireplace with glass door
removed, cracked, or broken.
22. This heater must be properly connected
to a vent system. This heater is equipped
with a vent safety shutoff system.
2
105500
OWNER’S MANUAL
PRODUCT
IDENTIFICATION
Cast Iron
Stove Body
Log Set
ON/OFF
Switch
ON
OFF
AUTO
Piezo Ignitor
O
H
L
I
P
I
L
OFF
O
T
ON
Control Valve
LOCAL CODES
Install and use fireplace with care. Follow
all local codes. In the absence to local codes,
use the current National Fuel Gas Code
ANS Z223.1, also known as NFPA 54*
(USA) or the current CAN/CGA-B149[.1 or
.2] Installation Codes (Canada).
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT
FEATURES
OPERATION
This B-vent freestanding fireplace is clean
burning and vents vertically. Heat is generated by both realistic flames and glowing
embers. When used without the blower accessory, the fireplace requires no electricity
making it ideal for emergency backup heat.
Venting
System
Cast Iron
Stove Body
Rear Cover
Draft Hood
Relief
Opening
Pilot Assy
Burners
Glass Door
Blower with
Adjustment
(Optional
Installation)
Assy
Lava Rock
Lava Rock
Plate
Glowing Embers
Grate Assembly
Figure 1 - Vanguard B-Vent Freestanding Fireplace Shown Installed in Approved
Vanguard Cast Iron Stove Body Models SCIVF Series and PSCIVF Series Only
PIEZO IGNITOR
This fireplace has a piezo ignitor. This system requires no matches, batteries, or other
sources to light fireplace.
105500
3
®
29"
Must Maintain
a Minimum
of 1" Clearance
to Combustibles
B-VENT FREESTANDING FIREPLACE
PRE-INSTALLA TION
PREPARA TION
WARNING: A qualified service person must install fireplace.
Follow all local codes.
CAUTION: This fireplace creates warm air currents. These currents move heat to wall surfaces
next to fireplace. Installing fireplace next to vinyl or cloth wall
coverings or operating fireplace
where impurities (such as tobacco smoke, aromatic candles,
cleaning fluids, oil or kerosene
lamps, etc.) in the air exist, may
discolor walls.
LOCATION AND SPACE
REQUIREMENTS
On Wall with Vertical
Termination Through
Ceiling
Figure 2 - Common Freestanding
Fireplace Locations
Corner Installation
with Vertical
Termination
Through Ceiling
Ceiling
42"
Determine the safest and most efficient location for your Vanguard B-vent freestanding fireplace. Make sure that rafters and
wall studs are not in the way of the venting
system. Choose a location where the heat
output is not affected by drafts, air conditioning ducts, windows, or doors. Figure 2
shows some common locations. Read all
venting information in this manual. Be aware
of all restrictions and precautions before
deciding the exact location for your fireplace.
When deciding the location of your fireplace, follow these rules:
1. Do not connect this fireplace to a chimney flue serving a separate solid-fuel
burning fireplace or appliance.
2. Due to high temperatures, do not locate this fireplace in high traffic areas
or near furniture or draperies.
3. Proper clearances must be maintained,
see Figure 3 and Figure 4 on page 5.
4. This stove is a freestanding unit designed to set directly on the floor. If
your fireplace is to be installed directly
on carpeting, vinyl tile, or any combustible material other than wood, it must
be installed on a metal or wood panel
extending the full width and depth of
the fireplace. See Figure 5, page 5.
36"
from
Front
Floor
Figure 3 - Clearances for Standard Installation
4"
Back
Wall
6
"
Front
4
"
4
105500
OWNER’S MANUAL
PRE-INSTALLA TION
PREPARA TION
Continued
4"
Figure 4 - Clearance for Corner Installation
26"
Front
25"
4"
FREESTANDING
FIREPLACE
ASSEMBLY
STOVE BODY ASSEMBLY
1. Lift off corrugated box enclosing stove
body crating.
2. Remove all screws fastening the wood
frame enclosure. Spread wood frame open
and lift away from plastic-bagged stove
body. The bottom pieces of pallet wood
will remain bolted to the stove body.
3. Remove plastic bag from stove body.
4. Remove back panel from stove (see
Figure 6). Use an adjustable wrench or
a 10 mm socket. Remove six (6) bolts
and washers. Keep bolts and washers
to reattach back panel later.
5. Remove all contents from inside stove
cavity. Contents include:
(1) - Stove bottom
(4) - Legs with leg leveler bolts
(1) - Bottom door
(1) - Top grate
(1) - Hardware kit bag with fasteners
6. Carefully lay stove body on back to attach bottom components to stove body
(see Figure 7). Rest stove on drop cloth or
blanket to avoid scratching stove edges.
7. Remove remaining pallet wood attached to bottom of stove body (see
Figure 8). Use an adjustable wrench to
remove bolts.
8. Fasten each leg to stove with four (4)
M8 x 1.25 - 20mm bolts. Use a flat
washer and lock washer with each bolt.
Tighten bolts into threaded holes on
stove body (see Figures 9 and 10, page
6). Use an adjustable wrench or a
12mm socket.
9. Fasten stove bottom to stove with four
(4) M6 x 1 - 25mm bolts. Use a flat
washer and lock washer with each bolt.
Tighten bolts into threaded holes on
stove body (see Figure 9 and 11, page
6). Use an adjustable wrench or a
10mm socket.
Pallet
Bolt
Figure 8 - Removing Pallet Wood From
The Bottom of The Stove
Front
Pallet Wood
Wood
Bottom Of
Stove Unit
Figure 5 - Freestanding Fireplace Bottom
Dimensions
105500
Bolt
Back
Stove
Panel
Figure 6 - Removing Back Panel
Top of Stove Unit
Front of
Stove
Unit
Drop
Cloth/
Blanket
Figure 7 - Laying Down Stove On Side
Product
Identification
Label
Pallet
Wood
Bolted to
Bottom of
Stove
Body
5
Front of
Stove Unit
Top of
Stove
Unit
Continued
®
L
O
H
I
P
I
L
O
T
OFF
ON
B-VENT FREESTANDING FIREPLACE
FREESTANDING
FIREPLACE
ASSEMBLY
Continued
Door Catch Bolt
Door Hinge Step
Bolt Hole
Leg
Hole
Bottom Of
Stove Unit
Figure 9 - Locating Threaded Holes for
Stove Bottom, Legs, and Door Attachment
With Adjustable
Hex Nuts Hole
Front
Stove
Bottom
Hole
Leg Hole
Leg
Hole
10. Attach stove door by inserting step bolt
through door hinge pivot hole and into
threaded hole in stove body (see Figures 9 and 12). Use an adjustable
wrench or a 12mm socket to fasten step
bolt. Tighten step bolt until snug. Make
sure door moves freely.
11. Install door catch bolt (M8 x 1.2555mm with two M8 hex nuts) into
threaded hole on stove body (see Figure 9). Use an adjustable wrench or a
12mm socket. The catch bolt has two
hex nuts attached to it (see Figure 13).
The top nut is a bolt stop and the bottom nut is for door leveling adjustment.
12. Check general catch bolt alignment
with door claw . Make f inal adjustment
and door leveling after stove is in normal standing position.
13. Carefully lift stove back up on its four
attached legs.
14. Set top grate into stove top.
Bolt Stop
Adjusting Nut
Door Claw
Catch Bolt
Door
Figure 13 - Catch Bolt and Door Claw
Orientation
INSTALLING FIREPLACE
INTO STOVE BODY
1. Carefully lift firebox and place into
stove body from the rear of stove.
2. Using screws provided, attach firebox
to back of stove.
Screw
Insert
Assembly
Washers
Bolt
Bottom Of
Stove Unit
Leg
Figure 10 - Attaching Stove Legs
Washers
Bolt
Stove Bottom
Bottom Of
Stove Unit
Figure 11 - Attaching Stove Bottom
Stove
Door
Threaded
Hole
Door
Hinge
Step
Bolt
Bolt
Shoulder
Stove Bottom
Figure 12 - Attaching Stove Door
Cast Iron
Stove Body
Figure 14 - Installing Firebox Into Cast
Iron Stove Body
6
105500
OWNER’S MANUAL
FREEST ANDING
FIREPLACE
ASSEMBL Y
Continued
INSTALLING OPTIONAL
BLOWER ACCESSORY
NOTICE: If installing blower in an
existing fireplace with gas connections, shut off gas supply and
disconnect heater from gas supply. Contact a qualified service
person to do this.
Attaching Thermal Switch to
DA3610T Thermostatically
Controlled Blower
When installing the DA3610T thermostatically controlled blower accessory, you must
first secure the thermal switch to the blower.
1. Remove the two hex head screws on the
blower assembly as shown in Figure 15.
2. Place the green wire between the bottom hole on the thermal switch bracket
and the bottom hole on the blower assembly. Insert one of the hex screws
into all three pieces and tighten.
3. Insert the top screw through the thermal switch bracket and into the blower
assembly. Tighten screw.
4. Connect the blue wire on the blower
assembly to the right side of the thermal switch.
5. Connect the black wire to the left side
of the thermal switch.
Black
Wire
Thermal
Switch
with
Bracket
Figure 15 - Attaching Thermal Switch to
DA3610T Thermostatically Controlled
Blower Accessory
105500
White Wire
Blower
Assembly
Green
Wire
Blue Wire
Hex Head
Screws
Installing GA3700/DA3610T
Blowers
1. Align the holes in the top mounting tabs
of blower with holes in wall of rear
cover (see Figure 16). Using the 4
screws provided, mount blower and
tighten screws securely.
Note:
For DA3610T , make sure the ther mal switch has been properly installed
to fit against the back of the firebox.
2. Make sure all wire connections to terminals on blower motor (and thermal
switch where applicable) are securely
attached and that the screw retaining
the green ground wire is tight.
3. Place speed control on left inside of rear
cover and push the plastic control shaft
through opening (see Figure 16).
4. While supporting speed control, secure
control shaft with lock nut by pushing and
turning lock nut with pliers clockwise
WARNING: Never touch the
blower wheel while in operation.
7. Peel off the backing paper and stick the
supplied wiring diagram decal on the
inside of rear cover on right side opposite control.
WARNING: Failure to position
the parts in accordance with supplied diagrams or failure to use
only parts specifically approved
with this heater may result in damage or personal injury.
8. Connect or reconnect gas supply to fireplace per Connecting Fir eplace to Gas
Supply on page 13 of this manual.
WARNING: A qualified service person must connect fireplace to gas supply. Follow all
local codes.
until tight against the side of rear cover.
Place control knob provided onto shaft
(see Figure 16).
5. Plug in blower power cord.
6. Check to make sure that the power cord
is completely clear of the blower wheel
and that there are no other foreign objects in blower wheel. Turn blower on
and check for operation. Turn blower
off by rotating knob fully counterclockwise before continuing.
Blower
Control Knob
Lock
Nut
White
Wire
Blue
Wire
Figure 16 - Installing Optional Blower Accessory (Thermostat Model DA3610T Shown)
Black
Wire
Green
Ground Wire
Control
Shaft
Speed Control
Power Cord
Mounting Screws
(Included in
Hardware Pack)
Wiring
Diagram
Decal
Blower
7
Rear Cover
Continued
®
B-VENT FREESTANDING FIREPLACE
FREESTANDING
FIREPLACE
ASSEMBLY
Continued
INSTALLING REAR COVER
1. Lift rear panel over vent pipe connection on firebox. Rear cover will rest on
the bottom ledge of the stove body.
2. Using screws provided, attach rear
cover to back of stove body. See F igure 17.
IMPORTANT:
securely in place before venting pipes
are installed.
Figure 17 - Installing Rear Cover
This rear cover must be
Rear
Cover
VENTING
INSTALLATION
WARNING: Read all instructions completely and thoroughly
before attempting installation.
Failure to do so could result in
serious injury, property damage,
or loss of life. Operation of improperly installed and maintained
venting system could result in
serious injury, property damage,
or loss of life.
NOTICE: Failure to follow these
instructions will void the warranty.
Firebox
Installed In Cast
Iron Stove Body
Screw
INSTALLATION PRECAUTIONS
Consult local building codes before beginning the installation. Only a qualified service person should install venting system.
The installer must follow these safety rules:
• Wear gloves and safety glasses for protection
• Use extreme caution when using ladders
or when on roof tops
• Be aware of electrical wiring locations
in walls and ceilings
The following actions will void the warranty on your venting system:
• Installation of any damaged venting
component
• Unauthorized modification of the venting system
• Installation of any component part not
manufactured or approved by DESA
International
• Installation other than as instructed by
these instructions
Your fireplace is approved for use with any
listed gas vent. A listed gas vent is a factory
made and listed system designed, and installed exclusively for removing products
of combustion, excess air, and dilution air
resulting from burning fuel gas. Metal vents,
the most common type of vent, employ
double wall construction enclosing an insulating air space. This air space both helps
keep flue gases warm and reduce heat transferred to nearby combustibles. This appliance is equipped with a safety control system designed to protect against improper
venting of combustion products.
It is very important that the venting system
maintain its balance between the combustion air intake and the flue gas exhaust.
Certain limitations apply to vent configurations and must be strictly followed.
WARNING: This gas fireplace
and vent assembly must be vented
directly to the outside. The venting
system must NEVER be attached
to a chimney serving a separate
solid fuel burning appliance.
8
105500
OWNER’S MANUAL
VENTING
INSTALLATION
Continued
TYPE B-VENT INSTALLATION
(Listed B-0 or Greater)
Before beginning installation be sure that the
overall height and gas vent size conform to
building code requirements. Gas vents extending through pitched roofs can extend a
minimum height of at least 600 mm (2')
higher than any obstruction within 3m (10').
Gas vents extending through flat roofs are
required to extend at least 600 mm (2') above
the roof and at least 600 mm (2') higher than
any portion of the building or adjoining building within 3m (10') of the gas vent.
• Venting instruction contained in this
manual may or may not appy to your
area. Consult your local authority for requirement in your area.
• Where the gas vent extends through accessible spaces, it should be enclosed to
avoid personal contact and damage. Enclosure walls should have a fire rating
equal to or greater than the floors through
which the gas vent passes except in single
or two-family dwellings.
• Situate the gas vent in the structure so
that it can be installed without cutting
joists, sills, plates, or major load bearing
partitions or members. It is also important to locate the base of the gas vent as
near as possible to the heating appliance.
• This heater must be properly connected to
a venting system. This heater is equipped
with a vent safety shutoff system.
• Use only vents labeled "FOR EXTERIOR USE" above the roofline.
• Consult the authority having jurisdiction to
select the correct gas vent diameter. Avoid
using a larger than necessary diameter .
Round Top
Storm Collar
Flashing
Firestop
Spacer
Enclosure
Wall
Gas Vent
Length
Support
Plate
Adjustable
Length
Figure 18 - Typical B-Vent Installation
Keep Electrical
Wires and Building
Insulation Away
from Gas Vent and
Out of the Required
Air Space
Roof Suport
25mm (1")
Clearance to
Combustible
Material
25mm (1")
Clearance to
Combustibles
INSTALLATION OF LISTED
B-1 VENT
WARNING: Installation should
only be made by qualified persons who are familiar with the
safety procedures required for
the installation of the product,
who are equipped with the proper
tools and testing instruments,
and who have achieved proper
certification of licensing. Installations made by unqualified persons can result in the risk of injury or electrical shock which can
be serious or even fatal.
Figure 19 - Vertical Venting Through
Ceiling Using Two 90
Figure 20 - Vertical Venting Configuration
Through Chimbey
º
Elbows
105500
Figure 19, 20 and 21 show other options for
the gas vent. When venting through a side
wall your vent pipe must have the proper
temperature rating (see Figure 21).
Manufacturer's clearances must also be
maintained. Consult the authority having
jurisdiction in your area regarding venting
through side wall.
9
Figure 21 - Venting Through a Side Wall
Continued
®
B-VENT FREESTANDING FIREPLACE
VENTING
INSTALLATION
Continued
INSTALLING VENT SYSTEM
IN A CHASE
A chase is a vertical box-like structure built
to enclose venting that runs along the outside of a building. A chase is not required for
such venting.
NOTICE: Treatment of firestops
and construction of the chase
may vary from building type to
building type. These instructions
are not substitutes for the requirements of local building
codes. You must follow all local
building codes.
Note:
When installing in a chase, you should
insulate the chase as you would the outside
walls of your home. This is especially important in cold climates. Minimum clearance between vent pipes and combustible
materials such as insulation is 1".
CHIMNEYS
• Complete familiarity with chimney condition, height, size, clearance to combustibles and other factors is essential.
NOTICE: Consult the authority
having jurisdiction in your area
regarding masonry chimney venting applications.
NOTICE: A complete chimney
inspection by a qualified person
should be performed.
• Appliances using B-vent connectors to
vent into a masonry or factory-built
chimney should not exceed 1 1/2 feet in
length for every inch of connector diameter (3" vent connector has a maximum
4 1/2 foot length; 5" connector has maximum 7 1/2 foot length).
• Oversized chimneys should be relined
with appropriate listed relining systems.
• Cleanout access may be required.
RELINING SYSTEMS
• Suitability and approval of relining materials should be determined.
• Condition, size, height, and termination
of the chimney to be relined must be determined.
• No substitution of components should be
made.
• Joints and connectors should be made
according to manufacturer’ s instructions.
NOTICE: Consult the authority
having jurisdiction in your area
regarding listed chimney liner
venting applications.
WARNING: Operation of improperly installed and maintained
venting system could result in
serious injury, property damage,
or loss of life.
CHECKING VENT CAPACITY
Complete all gas piping, electrical, and vent
connections. After adjusting the fireplace
and lighting the main burners, allow a couple
of minutes for warm-up. Hold a lighted
match just under the rim of the draft hood
relief opening. Proper venting will draw the
flame toward or into the draft hood. Improper venting, indicated by escape or spillage of burned gas, will cause match to
flicker or go out. Smoke from a cigarette
will also be pulled into the draft hood if the
vent is drawing properly.
Figure 22 - Test for Proper Venting
Figure 23 - Straight Installation into
Masonry Chimney
Figure 24 - Typical Straight Installation
with Listed Chimney Liner
10
105500
OWNER’S MANUAL
VENTING
INSTALLATION
Continued
HIGH ALTITUDE
INSTALLATION
Your Vanguard B-vent freestanding fireplace
heater has been AGA tested and approved for
elevations from 0-2000 feet and CGA certified for elevations from 0-4500 feet.
When installing this fireplace at an elevation above 2000 feet (in the USA), you may
need to decrease the input rating by changing the existing burner orifice to a smaller
size. Reduce input 4% for each 1000 feet
above sea level. Check with your local gas
company for proper orifice size identification and proper orifice for your location.
When installing this fireplace at an elevation above 4500 feet (in Canada), check
with local authorities.
For assistance with any high altitude installation contact DESA International’s Technical Service Department at 1-800-DESALOG (1-800-337-2564).
TROUBLESHOOTING
VENTING
PROBLEMS
Most venting problems are caused by incorrect vent sizing, improper installation, or
inadequate air supply. A preliminary check
for a field problem might include:
• Using a draft meter to determine if venting system draft meets manufacturer’s
specifications
• Checking the vent sizing according to
manufacturer’s specif ications, appliance
input, and venting configuration
• Examining the entire venting system for
faults such as disconnected joints for
damaged vent sections
• Making sure vent and air openings are
not obstructed
If these procedures do not reveal the source of
the problem, troubleshooting may include
attention to common venting problems.
FLUE GAS SPILLAGE
Spillage occurs when flue gases cannot exit
the vent system and back up into the dwelling. A primary symptom of appliances
equipped with a Vent Safety Shutoff System
(flue spill switch) is unexplained appliance
shutoffs. Other symptoms of flue gas spillage
at the draft hood include condensation on
walls and windows and/or noticeable odors.
Spillage may also result in the release of
carbon monoxide, a colorless, odorless, highly
toxic gas. A simple spillage test can be conducted if spillage is suspected. See Checking
Gas Connection, pages 13 and 14.
CAUSES OF SPILLAGE AND
CORRECTIVE ACTION
Incorrect Vent Sizing
If the vent is too small or too short, spillage
may occur. If the vent is too large, excessive
dilution air may cool flue gases and reduce
draft, causing spillage. The vent cap size
should also be checked. Check
manufacturer’s instructions, appliance input rating, and appropriate sizing tables.
Venting Condition
Loose joints can affect draft and cause spillage. “Mashed” vent sections and damaged
vent caps can restrict flow and cause spillage. Examine and replace as needed.
Obstructions
Small animals or birds may get into and
block the vent or draft hood outlet. Dust,
lint, and foreign objects may obstruct air
inlets. Remove obstructions and clean openings.
Lateral Run
Lengthy hoizontal or non-vertical runs cause
resistance to flow and may reduce draft
enough to cause spillage. The pitch of lateral runs can also be a problem; lateral runs
should be pitched 1/4" rise per foot of horizontal run from the appliance to the vent.
Elbows
Too many elbows cause excessive restriction of flow and may result in spillage.
Usually, two 90º turns can be tolerated in a
properly sized venting system. More than
two may cause problems and necessitate
changing the system.
Negative Pressure in the
Dwelling
An extremely tight house may not supply
adequate combustion and venting air. Use
of mechanical exhaust such as a dryer vent
or range vent may worsen the problem. An
air exchange system must be installed in the
dwelling to correct this problem.
Flue Gas Cooling
Venting exposed to extremely cold temperatures or venting of single wall construction loses heat needed to maintain draft;
massive masonry chimneys absorb needed
heat. If the flue gases cool excessively, draft
is reduced and spillage may result. Use
proper materials, insulate and protect properly, reline when necessary.
Down Drafts
In certain wind conditions and in certain
relationships with nearby structures and
objects, high pressure conditions may affect
draft negatively. Relocate the vent cap, raise
its height, or use an approved high wind cap.
105500
11
®
B-VENT FREESTANDING FIREPLACE
FIREPLACE
INSTALLATION
NOTICE: This heater is intended
for use as supplemental heat. Use
this heater along with your primary heating system. Do not install this heater as your primary
heat source. If you have a central
heating system, you may run
system’s circulating blower while
using heater. This will help circulate the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.
CHECK GAS TYPE
Use proper gas type for the fireplace unit
you are installing. If you have conflicting
gas types, do not install fireplace. See dealer
where you purchased the fireplace for proper
fireplace according to your gas type.
INSTALLING GAS PIPING TO
FIREPLACE LOCATION
WARNING: A qualified service person must connect fireplace to gas supply. Follow all
local codes.
CAUTION: For propane/LP
units, never connect heater directly to the propane/LP supply.
This heater requires an external
regulator (not supplied). Install the
external regulator between the
heater and propane/LP supply.
Installation Items Needed
Before installing fireplace, make sure you
have the items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• manual shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved flexible gas line with gas connector (if allowed by local codes) (not
provided)
* An A.G.A. design-certified manual shutoff
valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Purchase the A.G.A. design-certified manual
shutoff valve from your dealer.
For propane/LP connections only, the installer must supply an external regulator.
The external regulator will reduce incoming
gas pressure. You must reduce incoming
gas pressure to between 11 and 14 inches of
water. If you do not reduce incoming gas
pressure, heater regulator damage could
occur. Install external regulator with the
vent pointing down as shown in Figure 25.
Pointing the vent down protects it from
freezing rain or sleet.
CAUTION: Use only new,
black iron or steel pipe. Internally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of 1/2"
diameter or greater to allow
proper gas volume to fireplace. If
pipe is too small, undue loss of
pressure will occur.
Installation must include a manual shutoff
valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge
hook up. NPT tap must be upstream from
fireplace (see Figure 26, page 13).
Check your building codes for any special
requirements for locating manual shutoff
valve to fireplaces.
Apply pipe joint sealant lightly to male
threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe
could result in clogged fireplace valves.
CAUTION: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
Install sediment trap/drip leg in supply line
as shown in Figure 26, page 13. Locate
sediment trap/drip leg where it is within
reach for cleaning. Locate sediment trap/
drip leg where trapped matter is not likely to
freeze. A sediment trap traps moisture and
contaminants. This keeps them from going
into fireplace gas controls. If sediment trap/
drip leg is not installed or is installed wrong,
fireplace may not run properly.
Propane/LP
Supply
Tank
External
Regulator
Vent
Pointing
Down
Figure 25 - External Regulator with Vent
Pointing Down (Propane/LP Only)
12
105500
OWNER’S MANUAL
FIREPLACE
INSTALLATION
Continued
Approved Flexible
Gas Line
3" Minimum
Cap Pipe Nipple Tee Joint
* The A.G.A. design-certified manual shutoff valve may be supplied with the appliance or
you can purchase it from your dealer.
Figure 26 - Gas Connection
CONNECTING FIREPLACE
TO GAS SUPPLY
Installation Items Needed
• 5/16" hex socket wrench or nut-driver
• sealant (resistant to propane/LP gas, not
provided)
1. Open lower door panel.
2. Route flexible gas line (provided by
installer) from manual shutoff valv e to
fireplace. Route flexible gas supply line
through slot in stove bottom and attach
to valve.
To Fireplace
Gas Valve
Flare Union
A.G.A. DesignCertified Manual
Shutoff Valve with
1/8" NPT Tap*
Natural - From Gas
Meter (5" W.C. to 10.5"
W.C. Pressure )
LP - From External
Regulator (11" W.C. to
14" W.C. Pressure)
Sediment Trap/Drip Leg
3. Attach a 45° flare union gas connector
to flexible gas line from gas supply (see
Figure 27). Connect flare union to flexible gas line attached to gas regulator
of fireplace (see Figure 27).
4. Check all gas connections for leaks. See
Checking Gas Connections.
Manual Shutoff Valve
CHECKING GAS
CONNECTIONS
WARNING: Test all gas piping and connections for leaks
after installing or servicing. Correct all leaks at once.
WARNING: Never use an open
flame to check for a leak. Apply
commercial leak test solution to
all gas joints. Bubbles forming
show a leak. Correct all leaks at
once.
Pressure Testing Gas Supply
Piping System
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1.
Disconnect fireplace and its individual
manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2
psig (3.5 kPa) will damage fireplace gas
regulator .
2. Cap off open end of gas pipe where
manual shutoff valve was connected.
3. Pressurize supply piping system by either opening propane/LP supply tank
valve for propane/LP gas fireplace or
opening main gas valve located on or near
gas meter for natural gas fireplace,
using compressed air.
4. Check all joints of gas supply piping
system. Apply commercial leak test
solution to all gas joints. Bubbles forming show a leak. Correct all leaks at
once.
5. Reconnect fireplace and manual shutoff
valve to gas supply . Check reconnected
fittings for leaks.
or
Flexible Gas Line from
Fireplace Gas Valve
Provided with Fireplace
Figure 27 - Attaching Flexible Gas Lines Together
105500
Flexible Gas Line from
Manual Shutoff Valve
Provided by Installer
To Gas Supply
(Natural)
To External
Regulator
(Propane/LP)
Continued
13
®
ON
POSITION
OFF
POSITION
B-VENT FREESTANDING FIREPLACE
FIREPLACE
INSTALLATION
Continued
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close manual shutoff valve (see Figure 28).
2. Pressurize supply piping system by either opening propane/LP supply tank
valve for propane/LP gas fireplace or
opening main gas valve located on or near
gas meter for natural gas fireplace,
using compressed air.
3. Check all joints from propane/LP supply tank or gas meter to manual shutoff
valve (see Figure 29 for propane/LP or
Figure 30 for natural). Apply commer cial leak test solution to all gas joints.
Bubbles forming show a leak. Correct
all leaks at once.
Pressure Testing Fireplace Gas
Connections
1. Open manual shutoff valve (see Figure 28).
2. Open propane/LP supply tank valve for
propane/LP fireplace or main gas valve
located on or near gas meter for natural gas fireplace.
3. Make sure control knob of fireplace is
in the OFF position.
4. Check all joints from manual shutoff
valve to thermostat gas valve (see Figure 29 for propane/LP or Figure 30 for
natural). Apply commercial leak test solution to all gas joints. Bubbles forming
show a leak. Correct all leaks at once.
5. Light fireplace (see Lighting Instruc-
tions, page 18). Check all other internal joints for leaks.
6. Turn off f ireplace (see To Turn Off Gas
to Appliance, page 18).
or
Open
Manual
Shutoff
Valve
Closed
Figure 28 - Manual Shutoff Valve
Manual
Shutoff
Valve
Gas Valve
Figure 29 - Checking Gas Joints for Propane/LP Gas Freestanding Fireplace
Manual
Shutoff
Valve
Gas Meter
Gas Valve
Propane/
LP Supply
Tank
Figure 30 - Checking Gas Joints for Natural Gas Freestanding Fireplace
14
105500
OWNER’S MANUAL
FIREPLACE
INSTALLATION
Continued
INSTALLING OPTIONAL
WALL MOUNTED
THERMOSTAT - GWMT1
WARNING: Installation must
be done by a qualified installer
familiar with low voltage wiring
procedures.
WARNING: Do not connect
this thermostat to any electrical
source! Electrical shock and/or
fire hazard will occur.
1. Open lower door panel. The valve is
attached to the underside of the firebox assembly.
2. Disconnect from the valve the wires
running from the ON/OFF switch.
3. Connect one terminal of the wire for
the wall thermostat to the THTP terminal on the valve. Connect remaining
wire terminal to the TH terminal on the
valve. Make sure that the wire terminals are in the positions on the unit as
pictured in Figure 31. If wires are not
connected as shown the thermostat will
not work.
4. Route the wire to a convenient location to mount your thermostat (no outside wall).
must not exceed 25 feet in length.
The thermostat should be mounted 54"
above the floor in a location where
there is good air circulation. Avoid
heat sources such as lamps, direct sunlight, fireplace, or heat and air conditioning ducts.
IMPORTANT:
The wire
5. Gently remove the cover of the thermostat from the base. Grasp the sides
of the cover firmly and pull to separate
from the base.
6. Feed the electrical wires through the
rectangular slots (from the back) on
each side of the base (see Figure 32).
WARNING: Do not connect
this thermostat to a power
source. Electrical shock and/or
fire hazard will occur.
7. Connect one bare wire end to each terminal (“W” and “R”) of the thermostat
base (see Figure 33).
8. Install the base to the wall with screws
provided with thermostat.
9. Move the temperature adjustment back
and forth to insure the bi-metal is free
from restrictions.
10. Replace the cover onto the base. (Upon
installation, the thermostat must be allowed to stabilize at room temperature
for a minimum of 30 minutes for proper
operation.)
11. Set the temperature adjustment to the
desired setting. This thermostat has
been electronically calibrated at the
factory. No adjustment or leveling is
necessary.

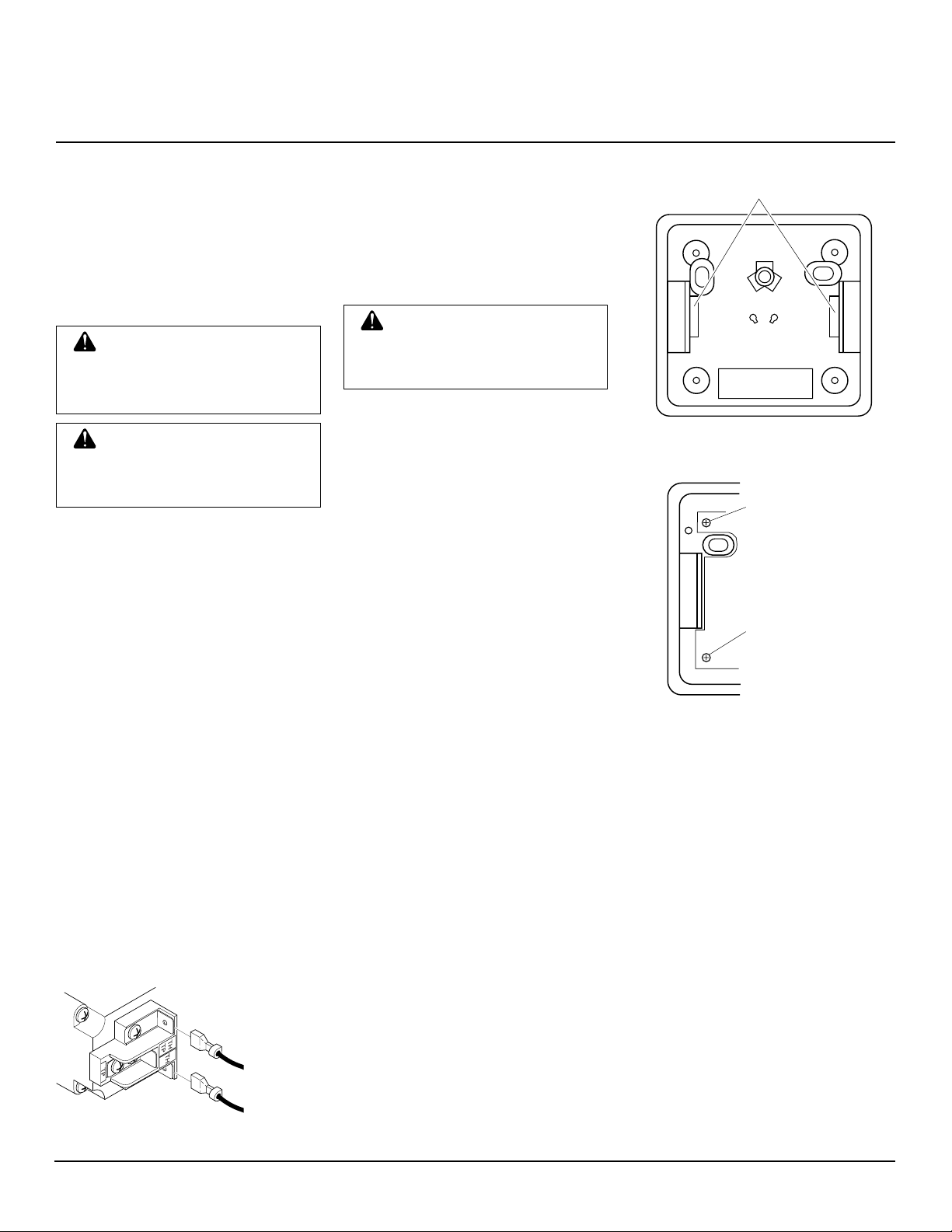

Feed wires through
rectangular slots
Figure 32 - Back View of Thermostat Base
Terminal "W"
W
Terminal "R"
R
Figure 33 - Thermostat Base Terminal
"W" and "R"
To Control
Switch or
Optional
Accessory
Figure 31 - Control Valve Terminals
105500
Continued
15
®
B-VENT FREESTANDING FIREPLACE
FIREPLACE
INSTALLATION
Continued
INSTALLING OPTIONAL
WIRELESS HAND-HELD
REMOTE CONTROL
ACCESSORIES - GHRC AND
GHRCT SERIES
Installing Remote Receiver
1. Open bottom door on stove body and
locate the switch plate on the left of the
valve bracket.
2. Unscrew switch plate (see Figure 34).
3. Disconnect wires from THTP and TH
on control valve that lead to the switch
(see Figure 31, page 15). Discard
switch plate, screws, and nuts.
4. Install battery into receiver battery clip
and connect to terminals (see Figure 35).
5. Place receiver into valve bracket and
align holes (see Figure 36).
6. Use push-in fasteners included with
receiver to secure to bracket.
7. Connect the wires from the receiver to
the valve at TH and THTP (see Figure
31, page 15).
O
L
H
I
P
I
OFF
L
O
ON
T
Figure 36 - Installing Remote Receiver
Installing 9-Volt Battery in HandHeld Remote Control Unit
1. Remove battery cover on back of remote control unit
2. Attach terminal wires to a 9-volt battery (not included). Place battery into
the battery housing.
3. Replace battery cover onto remote control unit.
Remote
Control Unit
Battery Housing
Terminal
Wires
9-Volt
Battery
Battery
Cover
2. Remove the screws from the 2 tabs at
the top of the glass door while holding
door securely keeping it from falling
forward (see Figure 39).
3. Grasp door by both sides and ease it
upward off of the lower bracket (see
Figure 39).
4. T o replace glass door, follo w the above
instructions in reverse.
Bolt
Bolt
Stove Front Panel
Figure 38 - Removing Front Panel from
Stove
O
L
H
I
P
I
OFF
L
O
ON
T
Figure 34 - Removing Switch Plate
Receiver
Terminal
Wires
Battery
Clip
9-Volt Battery
Figure 35 - Installing Battery in Receiver
Figure 37 - Installing Battery in HandHeld Remote Control Unit
REMOVING/REPLACING
GLASS DOOR
You must remove glass door to install logs,
lava rock, and ember material. To remove
glass door, you must first remove the front
panel on stove body.
CAUTION: Do not operate this
fireplace with a broken glass door
panel or without the glass door
panel securely in place. For replacement part information see
Replacement Parts
1. Remove 2 bolts from bottom of stove
and one from the top of stove to remove
front panel (see Figure 38).
, page 25.
16
Screw
Glass
Door
Figure 39 - Removing Glass Door from
Firebox Insert
105500
OWNER’S MANUAL
FIREPLACE
INSTALLATION
Continued
INSTALLING LOGS, LAVA
ROCK AND GLOWING
EMBERS
WARNING: Failure to position
the parts in accordance with these
diagrams or failure to use only
parts specifically approved with
this heater may result in property
damage or personal injury.
Each log is marked with a number. These
numbers will help you identify the log when
installing. It is very important to install
these logs exactly as instructed. Do not
modify logs. Only use logs supplied with
freestanding fireplace.
1. Remove glass door . See Removing/Re-
placing Glass Door, page 16.
2. Place log #1 (back log) on top of grate.
Make sure the notches in the bottom of
the log fit over the grate (see Figure 40).
2. Rest log #2 (large front log) on the pins on
the front part of the grate (see Figure 41).
3. Place log #3 (crossover log) onto the
rear and front logs. Make sure it is seated
properly into the notch on the front log
and over the raised triangular portion of
the rear log as shown in Figure 42.
4. Place log #4 (small log) onto the front
left part of the grate making sure the
notches fits over the prong of the grate.
See Figure 43.
2
Figure 41 - Installing Log No. 2
3
Figure 42 - Installing Log No. 3
5. Lava rock may be placed along sides
and front inside firebox bottom. This
may not be visible when you have replaced the front of the stove. It is not
necessary to use all of the lava rock
provided.
NOTICE: Do not put lava rock on
burner or under burner. Placing
lava rock on burner could cause
performance problems.
6. Pull ember material apart into pieces
no larger than a dime. Place these
pieces loosely and sparingly directly
onto the exposed section of the front
burner and along the space between the
burner and grate prongs (see Figure 44).
This will create the glowing ember appearance as the flame touches the ember material. Do not block air slots by
using too much ember material in one
area. It is not necessary to use all of the
ember material provided.
7. Replace the glass door and stove front.
See Removing/Replacing Glass Door,
page 16.
8. Place lava rock plate in space between
the front of the cast iron stove and the
glass front of the insert. Place lava rock
on the plate for a decorative appearance. It is not necessary to use all of
the lava rock provided.
WARNING: The glass door
must be securely in place before
running this fireplace. Do not run
this fireplace if glass is missing
or broken.
1
Figure 40 - Installing Log No. 1
105500
4
Figure 43 - Installing Log No. 4
17
Figure 44 - Placing Ember Material on
Burner
®
L
O
H
I
OFF
ON
P
I
L
O
T
B-VENT FREESTANDING FIREPLACE
OPERATING
FIREPLACE
FOR YOUR SAFETY
READ BEFORE
LIGHTING
WARNING: If you do not follow these instructions exactly, a
fire or explosion may result causing property damage, personal
injury or loss of life.
A. This appliance has a pilot which must
be lighted by hand. When lighting the
pilot, follow these instructions exactly .
B. BEFORE LIGHTING smell all
around the appliance area for gas. Be
sure to smell next to the floor because
some gas is heavier than air and will
settle on the floor.
WHA T TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
C. Use only your hand to push in or turn
the gas control knob. Ne ver use tools.
If the knob will not push in or turn
by hand, don't try to repair it, call a
qualified service technician. For ce or
attempted repair may result in a f ire
or explosion.
D. Do not use this appliance if any part
has been under water. Immediately
call a qualified service technician to
inspect the appliance and to replace
any part of the control system and
any gas control which has been under water.
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information
in column one.
2. Open lower panel.
3. Turn ON/OFF switch to “OFF”.
4. Turn off all electric power to the
fireplace.
5. Push in gas control knob slightly and
turn clockwise to “OFF”.
6. Wait f ive (5) minutes to clear out any
gas. Then smell for gas, including
near the floor. If you smell gas,
STOP! Follow “B” in the safety information in column one. If you don't
smell gas, go to the next step.
7. The pilot is located by the main
burner and should not require accessing for lighting.
8. Turn knob on gas control counterclockwise to “PILOT”.
9. Push in control knob all the way and
hold. Immediately light the pilot by
repeatedly depressing the piezo
spark ignitor until a flame appears.
Continue to hold for about one (1)
minute after the pilot is lit. Release
knob and it will pop back. Pilot
should remain lit. If it goes out, repeat steps 5 through 8.
•
If knob does not pop up when released, stop and immediately call your
service technician or gas supplier.
• If the pilot will not stay lit after sev-
eral tries, turn the gas control knob
to “OFF” and call your service
technician or gas supplier.
10. Turn gas control counterclockwise
to “ON”.
11. Turn on all electric power to the
fireplace.
12. Turn the ON/OFF switch to ON
position.
13. This valve is equipped with a HI/LO
feature. Set fir eplace input as desired.
14. Close lower panel.
TO TURN OFF GAS
TO APPLIANCE
1. Open lower louver panel.
2a. Set selector switch in the “OFF”
position.
2b. If Using Optional Hand-Held Re-
mote: Set selector switch in the OFF
position to prevent draining battery.
3. Turn off all electrical power to the
appliance if service is to be performed.
4. Push in gas control knob slightly and
turn clockwise to “OFF”.
5. Close lower panel.
Shutting Off Burners Only (pilot
stays lit)
You may shut off the burners and keep
the pilot lit by doing one of the following:
1. Turn control knob clockwise
to the PILOT position.
2. Set selector switch in the OFF position.
Variable
Control Knob
Piezo Ignitor
Figure 45 - Control Valve
Gas Control
Knob
MANUAL LIGHTING
PROCEDURE
1. Remove glass door (see Removing/
Replacing Glass Door, page 16).
2. Follow steps 1 through 8 under Lighting Instructions.
3. Depress control knob and light pilot
with match.
4. Keep control knob pressed in for 30
seconds after lighting pilot. After 30
seconds, release control knob. Now
follow steps 10 through 14, column 2.
5. Replace glass door (see Removing/
Replacing Glass Door, page 16).
18
105500
OWNER’S MANUAL
OPERATING
FIREPLACE
Continued
OPTIONAL REMOTE
OPERATION
Note:
All remote control accessories must
be purchased separately (See Accessories
on page 27). Follow instructions included
with the remote control.
Thermostat Control Operation
(Optional GHRCT Only) The thermostat
control setting on the remote control unit
can be set to any comfort level between HI
and LO. The burners will turn on and off
automatically to maintain the comfort level
you select. The ideal comfort setting will
vary by household depending upon the
amount of space to be heated, the output of
the central heating system, etc.
NOTICE: You must light the pilot
before using the hand-held remote control unit. See
Instructions,
page 18 .
1. After lighting, let pilot flame burn for
about one minute. Turn control knob
on the control valve to ON position.
Turn flame adjustment knob anywhere between HI and LO. Slide the
selector switch to the REMOTE position.
Note:
The burners may light if
hand-held remote ON button was on
when selector switch was last turned
off. You can now turn the burners on
and off with either optional hand-held
remote control unit.
IMPORTANT:
Do not leave the selector switch in the REMOTE position when the pilot is not lit. This will
drain the battery.
IMPORTANT:
Be sure to press the
ON/OFF buttons on the hand-held
remote control unit for up to 3 seconds to assure proper operation.
Lighting
Selector Switch in Remote
Position (GHRC Optional
Remote Control)
REMOTE OFF ON
Control Knob in
On Position
O
H
L
I
ON
T
O
OFF
L
I
P
Flame Adjustment Knob
Figure 46 - Setting the (GHRC) Remote
Control Selector Switch, Valve Control
Knob, and Flame Adjustment Knob for
Remote Operation
Selector Switch in
Remote Position
(GHRCT Optional
Remote Control)
ON
OFF
REMOTE
Control Knob
in On Position
O
H
L
I
ON
T
O
OFF
L
I
P
Flame Adjustment Knob
Figure 47 - Setting the (GHRCT) Selector
Switch, control Knob, and Flame
Adjustment Knob for Remote Operation
GHRC Series Operation:
2a. Press the ON/OFF button to turn the
burners on and off. When turning
burners off, the pilot will remain lit.
GHRCT Series Operation:
2b. Select the MAN (manual) or AUTO
button on the hand-held remote control unit (see Figure 48).
• In manual mode, turn burners on
or off by pressing the ON or OFF
buttons on the hand-held remote
control unit.
Shows Temperature
Setting
Allows Burners to be
Turned On and Off
with the Hand-Held
Remote Unit
The Heater will
Automatically Cycle
Between Pilot and
the Heat Setting that
has been Selected
HI
TEMP
LO
MAN ON
AUTO OFF
STATUS
• In auto mode, the room temperature is controlled by the thermostat in the hand-held remote control unit. To increase the room temperature, press the top arrow of the
TEMP button. To lower the room
temperature, press the bottom arrow of the TEMP b utton. At higher
settings the heater will run more.
IMPORTANT:
This remote control
has been specially engineered to take
an air temperature sample every 5.5
minutes in auto mode. It will not respond immediately to the temperature setting being turned up or down.
IMPORT ANT :
The hand-held remote
control unit must be near the heater
but not extremely close to it. The
thermostat on the hand-held remote
control unit will heat up too quickly
and turn the heater off.
3. Use the ST A TUS button on the handheld remote control unit to see the
operation mode being used and the
temperature setting selected. A red
light will come on beside the operation mode being used.
4. To turn the burners off when operating in the manual mode, press the OFF
button. If operating in the auto mode,
press the MAN button, then press the
OFF button. The pilot will remain lit.
IMPORTANT:
To turn the pilot off,
manually turn the control knob on the
heater to the OFF position.
Increases Room
Temperature
Decreases Room
Temperature
Turns Burners On
and Off
Shows Current
Operation Mode
105500
Figure 48 - Hand-Held Thermostat Remote Control Unit Selections
(GHRCT Only)
19
Continued
®
B-VENT FREESTANDING FIREPLACE
OPERATING
FIREPLACE
Continued
OPERATING
OPTIONAL GWMT1
WALL MOUNTED
THERMOSTAT
WARNING: Do not connect
the thermostat to a power source.
Electrical shock and/or a fire hazard will occur.
Light the fireplace as instructed in Lighting Instructions on page 18. Set wall ther-
mostat to desired temperature.
This thermostat has been electronically
calibrated at the factory and requires no
adjustment or leveling.
OPERATING
OPTIONAL BLOWER
ACCESSORY
Locate the blower controls by opening
the lower louver panel on the fireplace.
Blower controls are located on the left
side of the switch bracket to the left just
inside the louver panel.
Both the GA3700 manual blower and the
DA3610T thermostatically-controlled
blower have an ON setting and an OFF
setting. The blower will only run when the
switch is in the ON position. In the OFF
position, the blower will not operate.
Note for DA3610T Only:
using DA3610T blower with optional
themostat (wall mount or remote control) for the fireplace, your fireplace and
blower will not turn on and off at the
same time. The fireplace may run for
several minutes before the blower turns
on. After the heater modulates to the pilot
position, the blower will continue to run.
The blower will shut off after the firebox
temperature decreases.
The blower helps distribute heated air
from the fireplace. Periodically check the
louvers of the firebox and remove any
dust, dirt, or other obstructions that will
hinder the flow of air.
If you are
Upon installation, the thermostat must
be allowed to stabilize at room temperature for a minimum of 30 minutes for
proper operation.
To turn the fireplace off, adjust thermostat to the lowest setting and turn the gas
control knob back to PILOT. The pilot
will remain lit.
IMPORTANT:
the control knob on the heater to the OFF
position.
To turn the pilot off, turn
INSPECTING
BURNERS
Check pilot flame pattern and burner flame
patterns often.
PILOT ASSEMBLY
The pilot assembly is factory preset for the
proper flame height. Alterations may have
occurred during shipping and handling. Call
a qualified service person to readjust the
pilot if necessary.
The height of the thermopile must be 3/8" to
1/2" above the pilot flame as shown in Figure
49. The flame from the pilot burner must
extend beyond the thermopile.
If your pilot assembly does not meet these
requirements:
• turn fireplace off (see To Turn Off Gas to
Appliance, page 18)
• see Tr oubleshooting, pages 22 through 24
Thermopile
3/8" to 1/2"
Pilot Burner
Piezo Ignitor
Figure 49 - Pilot Assembly
BURNER FLAME PATTERN
Burner flames will be steady; not lifting or
floating. Flame patterns will be different
from unit to unit and will vary depending on
installation type and weather conditions.
If the vent configuration is installed incorrectly, the flames will lift or “ghost”. This
can be dangerous. Inspect the flames after
installation to ensure proper installation and
performance.
Figure 50 shows a typical flame pattern. If
burner flame pattern differs from that
described:
• turn fireplace off (see To Turn Off Gas to
Appliance, page 18)
• see Tr oubleshooting, pages 22 through 24
Figure 50 - Typical Flame Pattern
20
105500
OWNER’S MANUAL
CLEANING AND
MAINTENANCE
WARNING: Turn off fireplace
and let cool before cleaning.
CAUTION: You must keep control areas, burners, and circulating air passageways of fireplace
clean. Inspect these areas of fireplace before each use. Have fireplace inspected yearly by a qualified service person. Fireplace may
need more frequent cleaning due
to excessive lint from carpeting,
bedding material, pet hair, etc.
GLASS DOOR
WARNING: Handle glass door
panel with care. Do not strike,
slam or otherwise abuse glass.
Do not operate fireplace with the
glass door removed, cracked, or
broken.
WARNING: Do not use abrasive cleaners as this may damage
glass. Use a non-abrasive household glass cleaner to clean glass.
Do not clean glass when hot.
Glass must be cleaned periodically. During
start-up it is normal for condensation to
form on the inside of the glass causing lint,
dust, and other airborne particles to cling to
the glass surface. During initial start-up a
slight film may form on the glass due to
paint curing. The glass should be cleaned
several times with a non-amonia, non-abrasive household cleaner and warm water
after the first two weeks of operation. Thereafter, clean the glass two or three times
during each heating season, depending on
the usage and circumstances present. Refer
to Removing/Replacing Glass Door on page
16 of this manual when removing glass door
for cleaning.
WARNING: Only parts supplied by the manufacturer should
be used when replacing broken
or damaged glass door panel (see
Replacement Parts
glass door panel is a complete
unit. No substitute materials may
be used.
CAUTION: Wear gloves and
safety glasses while handling or
removing broken glass. Do not
remove if glass is hot. Keep children and pets away from glass.
If glass has been broken, carefully remove
glass door (see Removing/Replacing Glass
Door, page 16). Vacuum all glass pieces
with a shop vac.
CAUTION: Do not vacuum if
pieces are hot.
Use only the ceramic glass door replacement intended for this fireplace (see Re-
placement Parts, page 25 for details on
ordering). No substitutions may be made.
See Removing/Replacing Glass Door, page
16 for instructions for replacing glass door.
WARNING: Do not operate
fireplace with the glass door removed, cracked, or broken.
, page 25). This
PILOT AND BURNERS
• Remove ember material before cleaning
burners and replace when cleaning is
complete.
• Burner and controls should be cleaned
with compressed air to remove dust, dirt,
or lint.
• Use a vacuum cleaner or small, soft
bristled brush to remove excess dust, dirt,
or lint.
LOGS
• If you remove logs for cleaning, refer to
Installing Logs, Lava Rock, and Glowing
Embers, page 17, to properly replace logs.
• Use a vacuum cleaner to remove an y carbon build-up on logs.
• Replace log(s) if broken. See Replace-
ment Parts on page 25.
• Replace ember material periodically as
needed. See Replacement P arts on page 25.
VENTING SYSTEM
Conduct annual inspection of the venting
system following these guidelines:
1. Check areas of venting system that are
exposed to the weather for corrosion (rust
spots or streaks and, in extreme cases,
holes). Have these items replaced immediately by a qualified service person.
2. Remove the vent cap and shine a flash-
light into the vent. Remove any foreign
material.
3. Check for evidence of excessive con-
densation. Continuous condensation
can cause corrosion of caps, pipes, and
fittings and can be caused by having
excessive lateral runs, too many elbows, or exterior portions of the system being exposed to cold weather.
4. Inspect joints to verify that no pipe sec-
tion or fitting has been disturbed and
loosened. Check mechanical supports
such as wall straps for rigidity.
105500
21
®
B-VENT FREESTANDING FIREPLACE
TROUBLESHOOTING
Note:
For additional help, visit DESA
International’s Technical Service web
site at www.desatech.com.
Note:
All troubleshooting items are listed in
order of operation.
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at pilot
When ignitor button is pressed, there is
spark at pilot but no ignition
WARNING: Turn off heater
and let cool before servicing. Only
a qualified service person should
service and repair heater.
POSSIBLE CAUSE
1. Ignitor electrode not connected to ignitor cable
2. Ignitor cable pinched or wet
3. Piezo ignitor nut is loose
4. Broken ignitor cable
5. Bad piezo ignitor
6. Ignitor electrode broken
7. Ignitor electrode positioned wrong
1. Gas supply turned off or manual shutoff
valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. Depleted gas supply (propane/LP models only)
6. Pilot is clogged
7. Gas regulator setting is not correct
CAUTION: Never use a wire,
needle, or similar object to clean
pilot. This can damage pilot unit.
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Tighten nut holding piezo ignitor. Nut
is located behind the mounting bracket.
4. Replace ignitor cable
5. Replace piezo ignitor
6. Replace pilot assembly
7. Replace pilot assembly
1. Turn on gas supply or open manual
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holding down control knob.
Repeat igniting operation until air is
removed
5. Contact local propane/LP gas company
6. Clean pilot (see Cleaning and Mainte-
nance, page 21) or replace pilot assembly
7. Replace gas control
Pilot lights but flame goes out when control
knob is released
1. Control knob not fully pressed in
2. Control knob not pressed in long enough
3. Manual shutoff valve not fully open
4. Control valve damaged
www.desatech.com
22
1. Press in control knob fully
2. After pilot lights, keep control knob
pressed in 30 seconds
3. Fully open manual shut-off valve
4. Replace control valve
105500
TROUBLESHOOTING
Continued
OWNER’S MANUAL
OBSERVED PROBLEM
Burner does not light after pilot is lit
Delayed ignition burner
Burner backfiring during combustion
Slight smoke or odor during initial operation
Heater produces a whistling noise when
burner is lit
POSSIBLE CAUSE
1. Burner orifice clogged
2. Inlet gas pressure is too low
3. Thermopile leads disconnected or improperly connected
4. Thermopile is defective
1. Manifold pressure is too low
2. Burner porting or orifice clogged
1. Burner orifice is clogged or damaged
2. Damaged burner
3. Gas regulator defective
1. Residues from manufacturing processes
and logs curing
1. Turning control knob to HI position
when burner is cold
2. Air in gas line
3. Dirty or partially clogged burner orifice
REMEDY
1. Clean burner (see Cleaning and
Maintenance, page 21) or replace burner
orifice
2. Contact local propane/LP or natural gas
company
3. Reconnect leads (see Wiring Diagram,
page 25)
4. Replace thermopile
1. Contact local propane/LP or natural gas
company
2. Clean burner (see Cleaning and Main-
tenance, page 21) or replace burner orifice
1. Clean burner (see Cleaning and
Maintenance, page 21) or replace burner
orifice
2. Replace damaged burner
3. Replace gas control
1. Problem will stop after a few hours of
operation
1. Turn control knob to LO position and
let warm up for a minute
2. Operate burner until air is removed from
line. Have gas line checked by local propane/LP or natural gas company
3. Clean burner (see Cleaning and
Maintenance, page 21) or replace burner
orifice
Glass soots
Fireplace produces a clicking/ticking noise
just after burners are lit or shut off
Remote does not function
105500
1. Flame impingement on logs
2. Debris around burner air mixer
1. Metal expanding while heating or contracting while cooling
1. Battery is not installed or battery power
is low
www.desatech.com
23
1. Adjust the log set so that the flame does
not excessively impinge on it
2. Inspect the opening at the base of the
burner to see that it is NOT packed with
any type of material
1. This is common. If noise is excessive,
contact qualified service person
1. Replace 9-volt batteries in receiver and
remote control
Continued
®
B-VENT FREESTANDING FIREPLACE
TROUBLESHOOTING
Continued
WARNING: If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
IMPORTANT:
paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These
fumes may mix with combustion air and create odors. These odors will disappear over time.
Operating fireplace where impurities in air exist may create odors. Cleaning supplies,
OBSERVED PROBLEM
Fireplace produces unwanted odors
Fireplace shuts off in use
Gas odor even when control knob is in OFF
position
POSSIBLE CAUSE
1. Gas leak. See Warning statement
above
1. High or gusting winds
2. Low line pressure
3. Pilot is partially clogged
4. Inner vent pipe leaking exhaust gasses
into system
5. Glass too loose and air tight gasket leaks
in corners after usage
6. Bad thermopile
7. Improper vent cap installation
1. Gas leak. See Warning statement
above
2. Control valve defective
REMEDY
1. Locate and correct all leaks (see Checking Gas Connections, page 13)
1. Fireplace has been tested for up to
40mph winds. However, extreme conditions may occur. See Lighting Instruc-
tions on page 18.
2. Contact local propane/LP or natural gas
company
3. Clean pilot (see Cleaning and Mainte-
nance, page 21)
4. Locate and correct all leaks (see Check-
ing Gas Connections, page 13)
5. Tighten glass
6. Replace faulty component
7. Check for proper installation and freedom from debris or blockage
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 13)
2. Replace control valve
Gas odor during combustion
Dark residue on logs or inside of fireplace
1. Gas leak. See Warning statement
above
1. Improper log placement
2. Air holes at burner inlet blocked
3. Burner flame holes blocked
www.desatech.com
24
1. Locate and correct all leaks (see Checking Gas Connections, page 13)
1. Properly locate logs (see Installing Logs,
Lava Rock, and Glowing Embers, page 17)
2. Clean out air holes at burner inlets. Periodically repeat as needed
3. Remove blockage or replace burner
105500
OWNER’S MANUAL
REPLACEMENT
PARTS
Note:
Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product.
If they can not supply original replacement
part(s), call DESA International’s Technical Service Department at 1-800-DESA
LOG (1-800-337-2564).
When calling DESA International, have ready
• your name
• your address
• model and serial numbers of your fireplace
• how fireplace was malfunctioning
• type of gas used (propane/LP or natural
gas)
• purchase date
Usually, we will ask you to return the defective part to the factory.
PARTS NOT UNDER
WARRANTY
Contact authorized dealers of this product.
If they can not supply original replacement
part(s), call DESA International’s Parts Department at 1-800-972-7879 for referral information.
When calling DESA International, have ready
• model number of your fireplace
• the replacement part number
TECHNICAL
SERVICE
You may have further questions about installation, operation, or troubleshooting. If
so, contact DESA International’s Technical
Service Department at 1-800-DESA LOG
(1-800-337-2564).
You can also visit DESA International’s
Technical Service web site at
www.desatech.com.
WIRING DIAGRAM
CAUTION: Label all wires prior
to disconnection when servicing
controls. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.
Variable
Fan Switch
1
Off
110/115
V.A.C.
Figure 51 - Blower Wiring Diagram for Thermostat-Controlled Models
Black
White
Green
2
Black
On
Fan Switch
(N.O.)
Blue
Blower
Motor
SERVICE HINTS
When Gas Pressure is Too Low:
• pilot will not stay lit
• burners will have delayed ignition
• fireplace will not produce specified heat
• propane/LP gas supply might be low
(propane/LP units only)
When Gas Quality is Bad:
• pilot will not stay lit
• burners will produce flames and soot
• fireplace will backfire when lit
If you feel your gas pressure is too low or gas
quality is bad, contact your local natural or
propane/LP gas supplier.
105500
25
®
B-VENT FREESTANDING FIREPLACE
SPECIFICATIONS
SBVBN(A) SBVBP(A)
17,000-24,000 Btu/h 16,000-22,000 Btu/h
Gas Type Natural Propane/LP
Ignition Piezo Piezo
Manifold Pressure 3.5" w.c. 10.0" w.c.
Minimum Inlet Supply Pressure 4.5" w.c. 11.0" w.c.
Thermal Efficiency 70% 70%
Dimension, Inches/mm (HxWxD)
Fireplace* 27" x 26" x 25" 27" x 26" x 25"
685.8 x 660.4 x 635mm 685.8 x 660.4 x 635mm
Carton (Insert Only) 23" x 33" x 23" 23" x 33" x 23"
584.2 x 838.2 x 584.2mm 584.2 x 838.2 x 584.2mm
Weight, lbs/kg
Fireplace 70 lbs/31.8 kg 70 lbs/31.8 kg
Shipping 75 lbs/34 kg 75 lbs/34 kg
* When installed in Amity cast iron stove body (SCIVF Series and PSCIVF Series).
26
105500
OWNER’S MANUAL
ACCESSORIES
Purchase these fireplace accessories from
your local dealer. If they can not supply
these accessories, call DESA International’s
Sales Department at 1-800-432-2382. for
information. You can also write to the address listed on the back page of this manual.
MANUAL BLOWER KIT
GA3700
Manual-variable control blower accessory for
both the SBVBN(A) and SBVBP(A) Series
fireplaces.
RECEIVER AND HAND-HELD
REMOTE CONTROL KIT
GHRC
For all models. Allows the heater to be
turned on and off conveniently.
HI
TEMP
MAN
AUTO
ONLO
OFF
STATUS
WALL MOUNTED
THERMOSTAT CONTROL KIT
GWMT1 (Not Shown)
Allows easy wall access to the operation of
your fireplace. This will allow you thermostatic control with the convenience of a wall
switch.
WALL MOUNTED ON/OFF
SWITCH - GWMS2
(Not Shown)
Allows heater to be turned on and off with a
wall switch.
THERMOSTATICALLYCONTROLLED BLOWER KIT
DA3610T
Provides better heat distribution. Blower
turns off and on automatically, as needed.
Complete installation and operation instructions included in this manual.
RECEIVER AND HAND-HELD
THERMOSTAT REMOTE
CONTROL KIT - GHRCT
Allows the fireplace to be operated in a
manually or thermostatically controlled
mode. You can adjust your heat settings and
turn the heater on or off without leaving the
comfort of your easy chair. (Requires part
no. 103284-04 wire harness included with
fireplace.)
105500
27
®
B-VENT FREESTANDING FIREPLACE
ILLUSTRATED
PARTS
BREAKDOWN
SBVBN(A)
SBVBP(A)
26
3
23-4
23-3
23-2
29
14
4
23 -1
17
21
24
4
22
18
19
9
11
10
4
8
1
25
28
12
4
27
6
5
16
2
20
15
O
L
H
I
13
20
P
I
L
OFF
O
T
ON
7
28
105500
OWNER’S MANUAL
PARTS LIST
SBVBN(A)
SBVBP(A)
This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions
listed under Replacement Parts on page 25 of this manual.
KEY
NO. PART NUMBER DESCRIPTION QTY.
1 105479-01BR Firebox Assembly 1
2 M11084-26 Screw, Hex 2
3 105484-01CK Rear Cover 1
4 M11084-39 Screw, Hex 12
5 103587-02CK Switch Plate 1
6 099998-01 Fan Switch 1
7 103284-04 Wire Harness 1
8 103284-06 Wire Harness 1
9 105812-01BR Baffle 1
10 105494-01 Spillswitch 1
11 M11084-43 Switch Screw 2
12 105468-01 Valve Bracket 1
13 105489-01 Valve, Natural 1
105489-02 Valve, Propane/LP 1
14 105488-01 Pilot Assembly, Natural 1
105488-02 Pilot Assembly, Propane/LP 1
15 102445-01 Ignitor, Piezo 1
16 102334-01 Palnut Fastener 1
17 105523-01 Burner, Natural 1
105523-02 Burner, Propane/LP 1
18 104506-03 Orifice, Natural 1
104506-04 Orifice, Propane/LP 1
19 104507-01 Brass Elbow 1
20 104508-01 Brass Fitting 2
21 105493-01 Aluminum Tubing Assy 1
22 105325-01 Air Deflector 1
23 105491-01 Log Set 1
23-1 105774-01 Rear Log 1
23-2 105774-02 Front Log 1
23-3 105774-03 Crossover Log 1
23-4 105774-04 Log Piece 1
24 M10908-2 Screw 2
25 M12461-50 Screw 3
26 M12461-62 Screw 2
27 104555-03CJ Grate Assembly 1
28 105483-01 Burner Bracket 1
29 105795-01 Glass Door Assy 1
PARTS AVAILABLE - NOT SHOWN
105476-01 Lava Rock Plate 1
GA6060 Lava Rock 1
104529-01 Ember Material 1
M11084-3 Hex Screw for Blower Bracket 4
105500
29
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written
warranty. We make no other warranty, expressed or implied.
LIMITED WARRANTY
B-VENT FREESTANDING FIREPLACE
DESA International warrants this product to be free from defects in materials and components for four (4) years from the date of first
purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions.
To make a claim under this warranty the Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater
to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST
be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts.
Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance
with all local codes and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become
damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost,
labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT;
THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE;
AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND
DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential
damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write:
INTERNATIONAL
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
105500 01
NOT A UPC
105500-01
Rev. A
04/99
Loading...
