Desa RM100LP User Manual

PROPANE

CONSTRUCTION

HEATERS

OWNER’S MANUAL

RM100LP

IMPORTANT: Read and understand this manual before assem­bling, starting, or servicing heater. Improper use of heater can
cause serious injury. Keep this manual for future reference.

!

GENERAL HAZARD WARNING:

FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUC­TIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH,
SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE
FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION,
CARBON MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.

ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE
INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER.

IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS
AN INSTRUCTIONS MANUAL, LABELS, ETC. CONTACT THE
MANUFACTURER.

®

100,000 Btu/Hr
PROPANE CONSTRUCTION HEATER

SAFETY
INFORMATION

WARNINGS

WARNING: FIRE, BURN, IN­HALATION, AND EXPLOSION
HAZARD. KEEP SOLID COMBUS­TIBLES, SUCH AS BUILDING MA­TERIALS, PAPER OR CARD­BOARD, A SAFE DISTANCE
AWAY FROM THE HEATER AS
RECOMMENDED BY THE IN­STRUCTIONS. NEVER USE THE
HEATER IN SPACES WHICH DO
OR MAY CONTAIN VOLATILE OR
AIRBORNE COMBUSTIBLES, OR
PRODUCTS SUCH AS GASO­LINE, SOLVENTS, PAINT THIN­NER, DUST PARTICLES OR UN­KNOWN CHEMICALS.

WARNING: NOT FOR HOME
OR RECREATIONAL VEHICLE
USE.

The heater is designed for use as a construc­tion heater in accordance with ANSI Z83.7/
CGA 2.14. Other standards govern the use
of fuel gases and heating products for spe­cific uses. Your local authority can advise
you about these. The primary purpose of
construction heaters is to provide temporary
heating of buildings under construction, al­teration or repair. Properly used, the heater
provides safe economical heating. Products
of combustion are vented into the area being
heated.

We cannot foresee every use which may be
made of our heaters. Check with your local

fire safety authority if you have questions
about heater use.

Other standards govern the use of fuel gases
and heat producing products for specific
uses. Your local authorities can advise you
about these.

Carbon Monoxide Poisoning: Some
people are more affected by carbon monox­ide than others. Early signs of carbon mon­oxide poisoning resemble the flu, with head­aches, dizziness, and/or nausea. If you have
these signs, the heater may not be working
properly. Get fresh air at once! Check for
proper ventilation and have heater serviced.

Propane Gas: Propane gas is odorless.
An odor-making agent is added to propane
gas. The odor helps you detect a propane gas
leak. However, the odor added to propane
gas can fade. Propane gas may be present
even though no odor exists.

Make certain you read and understand all
Warnings. Keep this manual for reference.
It is your guide to safe and proper operation
of this heater.

• Install and use heater with care. Follow
all local ordinances and codes. In the
absence of local ordinances and codes,
refer to the Standard for Storage and

Handling of Liquefied Petroleum Gas,
ANSI/NFPA 58 and the Propane
Installation Code, CAN/CGA B149.2.

This instructs on the safe storage and
handling of propane gases.

• Use only the electrical voltage and
frequency specified on model plate. The
electrical connections and grounding of
the heater shall follow the National

Electric Code, ANSI/NFPA 70 or the
Canadian Electrical Code, Part 1.

• Electrical grounding instructions — This
appliance is equipped with a three-prong
(grounding) plug for your protection
against shock hazard and should be
plugged directly into a properly grounded
three-prong receptacle or extension cord.

• Approved by the New York City Fire
Department under Certificate of
Approval #4953. To be used only at
construction site with applicable New
York City Codes, Regulations, Rules,
Directives, Permits, etc.

• This product has been approved for use
in the Commonwealth of Massachusetts.

• This heater produces carbon monoxide,
which is listed by the State of California as
a reproductive toxin under Proposition 65.

• Use only the hose and factory preset
regulator provided with the heater.

• Use only propane gas set up for vapor
withdrawal.

• Provide adequate ventilation. Before
using heater, provide at least a three­square-foot opening of fresh, outside air
for each 100,000 Btu/Hr of rating.

• For indoor use only. Do not use heater
outdoors.

• Do not use heater in occupied dwellings
or in living or sleeping quarters.

• Do not use heater in basement or below
ground level. Propane gas is heavier than
air. If a leak occurs, propane gas will sink
to the lowest possible level.

• Keep appliance area clear and free from
combustible materials, gasoline, paint
thinner, and other flammable v apors and
liquids.

• Do not use heater in areas with high dust
content. Dust is combustible.

• Minimum heater clearances from
combustible materials:

Outlet: 8 Ft. Sides: 2 Ft.
Top: 6 Ft. Rear: 2 Ft.

• Keep heater at least six feet from propane
tank(s). Do not point heater at propane
tank(s) within 20 feet.

• Keep propane tank(s) below 100° F.

• Check heater for damage before each use.
Do not use a damaged heater.

• Check hose before each use of heater. If
highly worn or cut, replace with hose
specified by manufacturer before using
heater.

• Locate heater on stable and level surface
if heater is hot or operating.

• Never block air inlet (rear) or air outlet
(front) of heater.

• Keep heater away from strong drafts,
wind, water spray , rain, or dripping water .

• Do not leave heater unattended.

• Keep children and animals away from
heater.

• Never move, handle, or service a hot or
operating heater. Se vere burns may result.
You must wait 15 minutes after turning
heater off.

• To prevent injury, wear gloves when
handling heater.

• Never attach duct work to heater.

• Do not alter heater. Keep heater in its
original state.

• Do not use heater if altered.

• Turn off propane supply to heater when
not in use.

• Use only original replacement parts. This
heater must use design-specific parts. Do
not substitute or use generic parts.
Improper replacement parts could cause
serious or fatal injuries.

2

105342

OWNER’S MANUAL

PRODUCT IDENTIFICATION UNPACKING

Hot Air Outlet
(Front)

Control
Knob

Inlet
Connector

Handle

Fan Guard

Motor
Mount

Power Cord

1. Remove all packing items applied to

heater for shipment. Keep plastic cover
caps (attached to inlet connector and
hose/regulator assembly) for storage.

2. Remove all items from carton.

3. Check all items for shipping damage.

If heater is damaged, promptly inform
dealer where you bought heater.

Figure 1 - 100,000 Btu/Hr Model

THEORY OF
OPERATION

The Fuel System: The hose/regulator
assembly attaches to the propane gas sup­ply. The propane gas moves through the
automatic control valve and out the nozzle.

The Air System: The motor turns the fan.
The fan pushes air into and around the
combustion chamber. This air is heated and
provides a stream of clean, hot air.

The Ignition System: The spark trans-
former and ignitor lights the main burner.

The Safety Control System: This sys­tem causes the heater to shut down if the
flame goes out.

Note:

Some parts are located differently on

some models.

Hose /Regulator
Assembly

Combustion
Chamber

Clean
Heated
Air Out
(Front)

Air For Combustion
And Heating

Figure 2 - Cross Section Operational View

Nozzle

Fan

Fuel

Cool Air In
(Back)

Power
Cord

Hose/Regulator
Assembly

105342

3

100,000 Btu/Hr
PROPANE CONSTRUCTION HEATER

PROPANE SUPPLY

Propane gas and propane tank(s) are to be
furnished by the user.

Use this heater only with a propane vapor
withdrawal supply system. See Chapter 5 of
the Standard for Storage and Handling of

Liquefied Petroleum Gas, ANSI/NFPA 58
and the Propane Installation Code CAN/
CGA B149.2. Your local library or fire de-

partment will have this booklet.
The amount of propane gas ready for use

from propane tanks varies. Two factors de­cide this amount:

1. The amount of propane gas in tank(s)

2. The temperature of tank(s)
The chart below shows the number of 100

pound tanks needed to run this heater.

Temperature(°F) Number of tanks,
at Tank 100,000 Btu/Hr

32° 2
20° 2
10° 3
0° 3

-10° (Use larger tank)

-20° (Use larger tank)

INSTALLATION

WARNING: Review and un-

derstand the warnings in the

Safety Information

2. They are needed to safely op­erate this heater. Follow all local
codes when using this heater.

WARNING: Test all gas pip­ing and connections for leaks
after installing or servicing. Never
use an open flame to check for a
leak. Apply a mixture of liquid
soap and water to all joints.
Bubbles forming show a leak.
Correct all leaks at once.

1. Provide propane supply system (see
Propane Supply above).

2. Connect fuel gas connector fitting on
hose/regulator assembly to propane
tank(s). Turn counterclockwise into
threads on tank valve. Tighten firmly
using wrench.
regulator with vent pointing down.
Pointing vent down protects regulator
from weather damage.

section, page

IMPORTANT:

Tighten

3. Connect hose to inlet connector.
Tighten firmly using a wrench.

IMPORTANT:

may be used if needed. Install extra
hose or piping between hose/regulator
assembly and propane tank. You must
use the regulator supplied with heater .

4. Open propane supply valve on propane
tank(s) slowly.
slowly, excess-flow check valve on
propane tank will stop gas flow. If this
happens, close propane supply valve
and open again slowly.

5. Check all connections for leaks.

6. Close propane supply valve.

100,000 Btu/Hr
Model Shown

Inlet
Connector

Extra hose or piping

Note:

If not opened

Hose

Figure 4 - Hose and Inlet Connector

Less gas is vaporized at lower temperatures.
You may need two or more 100 pound tanks
or one larger tank in colder weather. Your
local propane gas dealer will help you select
the proper supply system. The minimum
surrounding air temperature rating for each
heater is -20°F (-29°C).

Supply
Valve

Propane
Tank

Figure 3 - Regulator With Vent Pointing
Down

Hose

Regulator
Vent

(pointing
down)

Fuel Gas
Connector

VENTILATION

WARNING: Follow the mini­mum fresh, outside air ventila­tion requirements. If proper fresh,
outside air ventilation is not pro­vided, carbon monoxide poison­ing can occur. Provide proper
fresh, outside air ventilation be­fore running heater.

Provide a fresh air opening of at least three
square feet for each 100,000 Btu/Hr rating.
Provide extra fresh air if more heaters are
being used.

4

105342

OPERATION

WARNING: Follow the mini­mum fresh, outside air ventila­tion requirements. If proper fresh,
outside air ventilation is not pro­vided, carbon monoxide poison­ing can occur. Provide proper
fresh, outside air ventilation be­fore running heater.

WARNING: Review and under­stand the warnings in the

Information

are needed to safely operate this
heater. Follow all local codes
when using this heater.

section, page 2. They

TO START HEATER

1. Follow all installation, ventilation and
safety information.

2. Locate heater on stable and level
surface. Make sure strong drafts do not
blow into front or rear of heater.

3. Make sure the control knob is in the
OFF position.

4. Plug power cord of heater into a
three-prong, grounded extension
cord. Extension cord must be at least
six feet long, UL/CSA listed, and of
a proper size.

Extension Cord Size Requirement

Up to 100 feet long, use 16 AWG rated
cord.

101 to 200 feet long, use 14 AWG rated
cord.

5. Plug extension cord into a 120 volt/60
hertz, 3-hole, grounded outlet. Motor
will start. Fan will turn, forcing air out
front of heater.

6. Open propane supply valve on propane
tank(s) slowly.
slowly, excess-flow check valve on
propane tank will stop gas flow you may
hear a click inside the regulator assembly .
If this happens, reset the excess-flow
check valve by closing propane supply
valve and open again slo wly.

7. Press and hold in control knob. Turn
counterclockwise to the LOW position.
Heater should ignite within a few
seconds.

Note:

Safety

If not opened

OWNER’S MANUAL

Note:

If heater fails to ignite, hose may

have air in it. If so, keep control knob
pressed and wait 20 seconds. Release
automatic control valve button and wait
20 seconds for
heater. Repeat step 7.

8. After heater ignites, wait 30 seconds.
This activates the automatic control
system. Release the control knob.

9. When burner remains lit, set heater at
the desired heat level by turning the
control valve counterclockwise. If
burner goes out, turn off gas. Turn
control knob fully clockwise to the
lowest position. Check fuel supply. If
adequate fuel is available, restart heater
beginning at step 1.

TO STOP HEATER

1. Tightly close propane supply valve on
propane tank(s).

2. Wait a few seconds. Heater will burn
gas left in supply hoses.

3. Turn control knob to the OFF position.

4. Unplug heater.

STORAGE

CAUTION: Disconnect heater

from propane supply tank(s).

1. Store propane tank(s) in safe manner.
See Chapter 5 of Standard for Stora ge

and Handling of Liquefied Petroleum
Gases, ANSI/NFP A 58 and the Propane
Installation Code CAN/CGA B149.2.

Follow all local codes. Always store
propane tanks outdoors.

2. Place plastic cover caps over brass
fittings on inlet connector and hose/
regulator assembly.

3. Store in dry, clean, and safe place. Do
not store hose/regulator assembly
inside heater combustion chamber.

4. When taking heater out of storage,
always check inside of heater. Insects
and small animals may place foreign
objects in heater. K eep inside of heater
free from combustible and foreign
objects.

unburned fuel to exit

MAINTENANCE

WARNINGS

• Never service heater while it is
plugged in, connected to pro­pane supply, operating, or hot.
Severe burns and electrical
shock can occur.

• Keep heater clear and free from
combustible materials, gaso­line, and other flammable va­pors and liquids.

• Do not block the flow of com­bustion or ventilation air.

1. Keep heater clean. Clean heater
annually or as needed to remove dust
and debris. If heater is dirty or dusty,
clean heater with a damp cloth. Use
household cleaners on difficult spots.

2. Inspect heater before each use. Check
connections for leaks. Apply mixture
of liquid soap and water to connections.
Bubbles forming show a leak. Correct
all leaks at once.

3. Inspect hose/regulator assembly before
each use. If hose is highly worn or cut,
replace with hose specified by
manufacturer.

4. Have heater inspected yearly by a
qualified service agency.

5. Keep inside of heater free from
combustible and foreign objects.
Remove motor and other internal parts
if needed to clean inside of heater (see
Service Procedures, page 7).

6. Clean fan blades each season or as
needed (see Fan, page 7).

105342

5

100,000 Btu/Hr
PROPANE CONSTRUCTION HEATER

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s Technical Service web
site at www.desatech.com.

WARNING: Never service heater while it is plugged in, connected to
propane supply, operating, or hot. Severe burns and electrical shock can
occur.

OBSERVED FAULT POSSIBLE CAUSE REMEDY

Fan does not turn when heater is
plugged in.

Heater will not ignite

1. No electrical power to heater

2. Fan hitting inside of heater shell

3. Fan blades bent

4. Defective motor

1. User did not follow installation or
operation instructions properly

2. No spark at ignitor. To test for spark,
follow step 8 under Ignitor, page 8. If
you see spark at ignitor, have heater
serviced by qualified service person.
If no spark seen:
A) Loose or disconnected ignitor wire
B) Wrong spark gap
C) Bad ignitor electrode
D) Bad spark transformer

1. Check voltage to electrical outlet. If voltage is
good, check heater power cord for breaks.

2. Adjust motor/fan mount to keep fan from hitting
inside of heater shell. Bend fan mount if necessary .

3. Replace fan. See Fan, page 7.

4. Replace motor. See Motor, page 7.

1. Repeat installation and operation instructions. See
Installation, page 4 and Operation, page 5.

2. A) Check ignitor wire. Tighten or reattach loose
ignitor wire. See Figure 10, page 8 for ignitor wire
location.
B) Set gap between ignitor electrode and target
plate to .13"/.15".
C) Replace ignitor electrode. See Ignitor , pa ge 8.
D) Replace spark transformer. See Spark
Transformer, page 8.

Heater shuts down while running.

1. Propane supply may be inadequate

2. High surrounding air temperature
causing thermal limit device to shut
down heater.

3. Restricted air flow

4. Damaged fan

5. Excessive dust or debris in surrounding
area

www.desatech.com

1. A) Refill tank.
B) Provide additional and/or larger tanks. See
Propane Supply, page 4.

2. This can happen when running heater in
temperatures above 85°F. Run heater in cooler
temperatures.

3. Check heater inlet and outlet. Remove any
obstructions.

4. Replace fan. See Fan, page 7.

5. Clean heater. See Maintenance, page 5.

WARNING: Use only in areas free of

high dust content.

6

105342

OWNER’S MANUAL

FAN LP-PFA/P 023

SERVICE
PROCEDURES

WARNING: Never service
heater while it is plugged in, con­nected to propane supply, oper­ating, or hot. Severe burns and
electrical shock can occur.

MOTOR

1. While on heaters side Remove base
tray.

2. Access ground screw through
underside of heater base. Remove
ground screw. Disconnect the green
motor wire and the green power cord wire
from underside of shell (see Figure 5).

3. Remove black and white motor wires
from terminal board (see Figure 5).

4. Carefully push motor wires through
hole in bottom of shell.

5. Remove screws holding motor mount
to shell. Use nut-driver (see Figure 6).

Transformer

Ground
Screw

Motor
Green
Lead

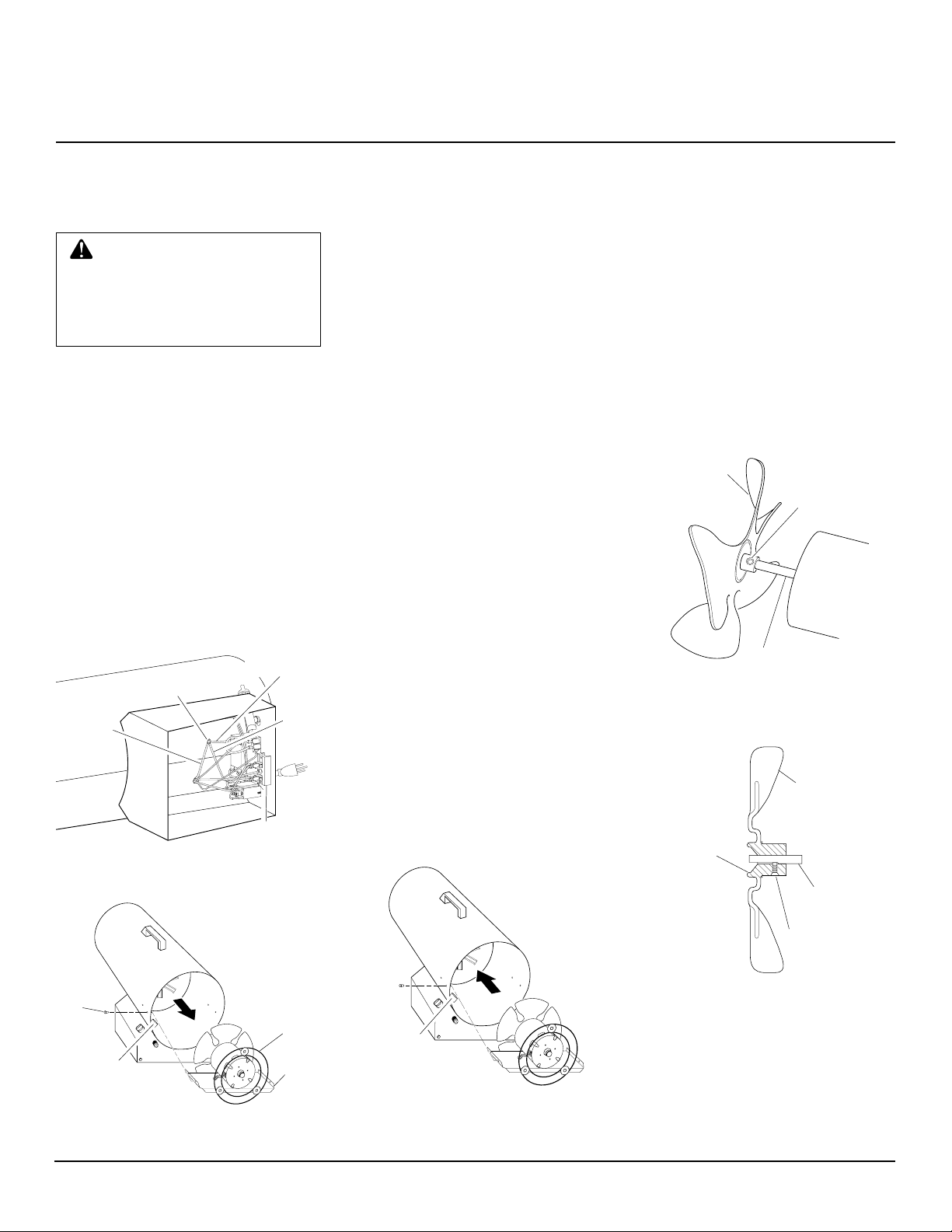

Figure 5 - Location of Ground Screw

Green Lead

Power
Cord
Green
Lead

Terminal
Board

6. Carefully pull motor and fan out of
shell.

IMPORTANT:

Be careful not to
damage fan. Do not set motor and fan
down with the weight resting on fan.
This could damage fan pitch.

7. Use hex wrench to loosen setscrew
which holds fan to motor shaft.

8. Remove fan. Be careful not to damage
the fan blade pitch.

9. Use nut driver to remov e tw o nuts that
attach motor to motor mount.

10. Discard old motor.

11. Attach motor to motor mount with two
nuts. Tighten nuts firmly.

12. Replace fan on motor shaft. Make sure
set screw contacts flat surface on motor
shaft.

13. Tighten set screw firmly (40-50 inch­pounds).

14. Carefully route motor wires through
hole in shell (see Figure 7). Place motor,
motor mount, and fan guard into rear
of heater shell.

15. Insert screws through heater shell and
into motor mount. Tighten screws
firmly.

16. Turn heater on its side to access
opening in bottom of base. Connect
green wires from motor, transformer,
and power cord to heater shell using
ground nut (see Figure 5).

17. Attach black and white wires to

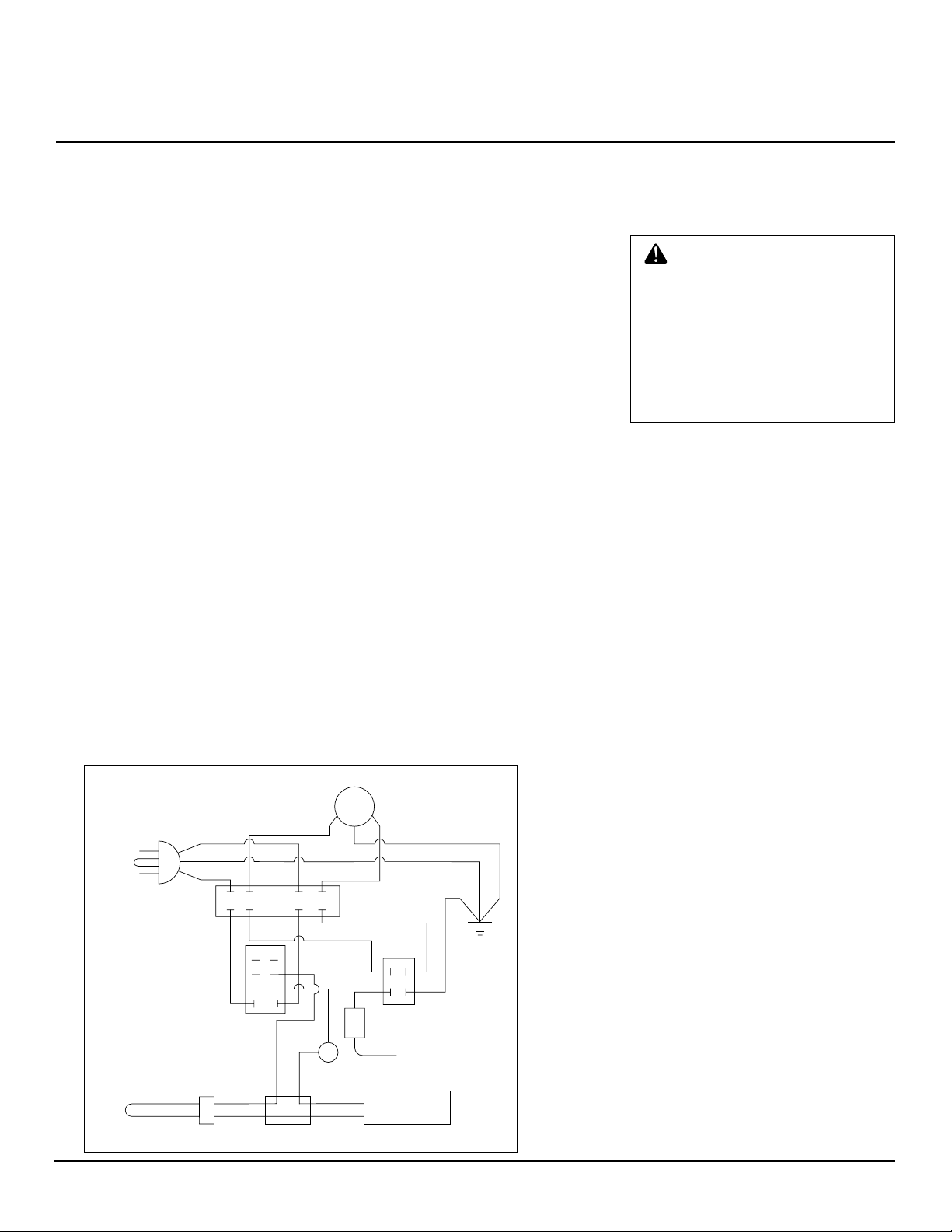

terminal board (see Wiring Diagram,
page 9, for correct locations) .

18. Replace base tray.

FAN

1 Remove motor, motor mount, and fan

(see Motor, steps 1 through 8) .

2. Clean fan using soft cloth moistened
with kerosene or solvent.

3. Dry fan thoroughly.

4. Replace fan on motor shaft. Make sure
setscrew is touching back of flat
surface on motor shaft (see Figure 8).

5. Place setscrew on flat of shaft. T ighten
setscrew firmly (40-50 inch-pounds).

6. Place motor, motor mount, and fan
guard into rear of heater shell (see
Motor, steps 14 through 18).

Fan

Setscrew

Motor shaft

Figure 8 - Fan, Motor Shaft, and
Setscrew Location

Fan

Hub

Motor

Motor
Mount
Screw

Hole in
Shell
for Wires

Figure 6 - Removing Motor, Motor Mount,
and Fan Guard from Heater

105342

Fan
Guard

Motor
Mount

Setscrew

FAN CROSS SECTION LP-PFA/P 013

Figure 9 - Fan Cross Section

Hole in
Shell

Figure 7 - Replacing Motor, Motor Mount,
and Fan Guard into Heater

Continued

7

100,000 Btu/Hr
PROPANE CONSTRUCTION HEATER

SERVICE
PROCEDURES

Continued

SPARK TRANSFORMER

1. Remove base tray.

2. Locate and disconnect white, black, and
orange wires from spark transformer.

3. Remove two screws holding spark
transformer to base. Remove sheet
metal nuts on transformer and install
on new transformer. Discard spark
transformer.

4. Install new spark transformer . Position
new spark transformer in same manner
as old transformer.

5. Connect white, black, and orange wires
to new spark transformer. Connect
wires to correct terminals as noted in
step 2.

6. Replace base tray.

4. Remove ignitor from rear head.

5. Install new ignitor. Attach ignitor to rear
head with ignitor mounting screw.

6. Attach ignitor wire.

7. Check gap between ignitor electrode
and nozzle to .13"/.15" (see Figure 12).

8. Test for spark.

WARNING: Make sure heater
is disconnected from propane
supply. Heater could ignite caus­ing severe burns.

Plug into extension cord and watch for
spark between ignitor electrode and
nozzle.

9. Place motor, motor mount, and fan
guard into rear of heater shell (see
Motor, page 7, steps 14 through 18).

Ignitor
Mounting
Screw

ACCESSORIES

Purchase accessories and parts from your
nearest dealer or service center. If your
dealer or service center can not supply an
accessory or part, either contact your near­est Parts Central (listed in the separate Au­thorized Service Center booklet) or call
DESA International’s Parts Department at
1-800-972-7879 for referral information.
You can also write to the address listed on
the back page of this manual.

Hose: LPA1000 - For 100,000
Btu/Hr Model

A 10 foot hose for locating heater further
away from propane tank(s).

Regulator: LPA2150 - For
100,000 Btu/Hr Model

Hose and Regulator Assembly:
LPA3100 - For 100,000 Btu/Hr
Model

Ignitor
Wire

Bushing

Figure 10 - Removing Ignitor Wire from
Spark Transformer

IGNITOR

1. Remove motor, motor mount, and fan
guard (see Motor, page 7, steps 1
through 6) .

2. Remove orange ignitor wire from
ignitor.

3. Remove ignitor mounting screw from
rear head using nut-driver or standard
screwdriver (see Figure 11).

Ignitor

Rear Head

Figure 11 - Removing Ignitor Mounting
Screw and Ignitor

Burner
Nozzle

Ignitor
Electrode

Gap
Area

Figure 12 - Clearance between Ignitor
Electrode and Target Plate

Fuel Gas Connector: LPA4020 ­For All Models

A POL adapter with excess-flow

TECHNICAL
SERVICE

You may have further questions about this
heater. If so, contact DESA International’s
Technical Service Department at 1-800­323-5190.

You can also visit DESA International’s
Technical Service web site at

www.desatech.com.

8

105342

OWNER’S MANUAL

SPECIFICA TIONS

Output Rating (Btu/Hr) 65,000 85,000 100,000
Fuel Consumption

Gallons/Hour 0.7 .93 1.1

Pounds/Hour 3.0 3.9 4.6
Fuel Propane Vapor Only
Supply Pressure To Regulator

Minimum (for purposes

of input adjustment) 10 psi

Maximum Tank Pressure
Regulator Outlet Pressure (Factory Preset)
Manifold Pressure 10" WC
Hot Air Output (CFM Approx) 475
Motor 3,200 RPM
Electric Input 120 V/60 Hz
Amperage 2.9
Ignition Continuous
Ignitor Gap (Inches) .13/.15
Weight (Pounds)

Heater 18

Shipping 24
Size - L x W x H (Inches)

Carton 28.25x12x17

Product 26.25x9x15.5

WIRING DIAGRAM

100,000 Btu/Hr Model

REPLACEMENT
PARTS

WARNING: Use only original
replacement parts. This heater
must use design-specific parts.
Do not substitute or use generic
parts. Improper replacement
parts could cause serious or
fatal injuries. This will also pro­tect your warranty coverage for
parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), either contact your nearest Parts
Central or call DESA International’s Tech­nical Service Department at 1-800-323-

5190. When calling DESA International,
have ready:

• your name

• your address

• model number of your heater

• how heater was malfunctioning

• purchase date
In most cases, we will ask you to return the

defective part to the factory.

105342

Power

Cord

Thermocouple

Black
Green
White

White

White

Terminal Board

12
34
56

Relay

Blue

Black

87

Blue

Blue

Motor

Black

Black

White

Ignition
Control

Orange

Ignitor

Thermal Switch

Auto Control

Valve

Green
Green

Green

PARTS NOT UNDER
WARRANTY

Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), either contact your nearest Parts
Central or call DESA International’s Parts
Department at 1-800-972-7879 for referral
information. When calling DESA Interna­tional, have ready:

• model number of your heater

• the replacement part number

9

100,000 Btu/Hr
PROPANE CONSTRUCTION HEATER

ILLUSTRATED
PARTS
BREAKDOWN

100,000 Btu/Hr

8

21

19

4

20

11

10

9

18

2

5

26

7

12

13

16

2

6

14

21

2

11

24

32

31

17

3

33

30

32

27

25

27

28

34

28
31

35

26

15

29

33

23

22

2

1

NOTE: Screws are standard
hardware items

10

105342

OWNER’S MANUAL

PARTS LIST

100,000 Btu/Hr

KEY PART
NO. NUMBER DESCRIPTION QTY.

1 102362-01 BaseTray 1
2 M11084-26 HexTPG Screw, 10-16X 38 15
3 103917-01AA Base 1
4 099138-02 Nozzle 1
5 098511-216 Shell Kit 1
6 M11084-29 Hex TPG Screw,10-16 X .75 2
7 M51104-01 Handle 1
8 098512-61 Combustion Chamber Kit 1
9 099538-01 Thermocouple 1
10 099237-01 Thermocouple Clip 1
1 1 099334-02 Fuel Tube Kit 1
12 M51 153-01 Fan 1
13 102366-01 Motor 1
14 102380-01 Motor Bracket 1
15 NTC-4C Hex Lock Nut, 1/4-20 2
16 102315-02 Fan Guard 1
17 099393-03 Control Knob 1
18 101732-04 Thermal Switch Kit (Incl. Wire Assemblies) 1
19 102487-01 lgnitor Electrode 1
20 097806-02 lgnitor Cable 1
21 M11084-38 Screw, Hex TPG, 8-18 X .38 2
22 098219-17 Power Cord 1
23 M11143-1 Strain Relief Bushing 1
24 103846-01 V alve Kit 1
25 102601-01 Ignition Control 1
26 079010-30 Wire Assembly (Relay) 1
27 079010-19 Wire Assembly (Relay) 1
28 097951-14 Wire Assembly (Relay) 1
29 103847-01 Relay Kit 1
30 102602-01 U-Clip Nut, #6 X .12 2
31 M9900-170 Wire Assembly (lgnition Control) 1
32 M16841-56 Wire Assembly (lgnition Control) 1
33 M16841-68 Wire Assembly (lgnition Control) 1
34 099125-11 Terminal Board 1
35 099157-01 Break Mandrel Rivet, 3/16 1

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed
under Replacement Parts on page 9 of this manual.

PARTS AVAILABLE—NOT SHOWN

105342-01 Owners Manual 1
079231-01 Service Center List 1
097941-32 Tradename Decal 2
105350-01 Operation Decal 1
105351-01 Warning Decal 1
102599-01 Electrical Decal 1
LPA3100 Regulator and Hose Assembly 1

105342

11

WARRANTY AND REPAIR SERVICE

KEEP THIS WARRANTY

LIMITED WARRANTY

DESA International warrants this product and any parts thereof, to be free from defects in materials and workmanship for one (1)
year from the date of first purchase when operated and maintained in accordance with instructions. This warranty is extended only
to the original retail purchaser, when proof of purchase is provided.

This warranty covers only the cost of parts and labor required to restore the product to proper operating condition. Transportation
and incidental costs associated with warranty repairs are not reimbursable under this warranty.

Warranty service is available only through authorized dealers and service centers.
This warranty does not cover defects resulting from misuse, abuse, negligence, accidents, lack of proper maintenance, normal

wear, alteration, modification, tampering, contaminated fuels, repair using improper parts, or repair by anyone other than an
authorized dealer or service center. Routine maintenance is the responsibility of the owner.

THIS EXPRESS WARRANTY IS GIVEN IN LIEU OF ANY OTHER WARRANTY EITHER EXPRESSED OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

DESA International assumes no responsibility for indirect, incidental or consequential damages. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or limitations or exclusions may not apply to you. This Limited
Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written
warranty. We make no other warranty, expressed or implied.

WARRANTY SERVICE

Should your heater require service, return it to your nearest authorized service center. Proof of purchase must be presented with
the heater. The heater will be inspected. A defect may be caused by faulty materials or workmanship. If so, DESA International
will repair or replace the heater without charge.

REPAIR SERVICE

Return your heater to your nearest authorized service center. Repairs not covered by the warranty will be billed at standard prices.
Each Service Center is independently owned and operated. We reserve the right to amend these specifications at any time without
notice.

Model
Serial No.
Date of Purchase

INTERNATIONAL

2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004

www.desatech.com

For information, write: DESA International, P.O. Box 90004

Bowling Green, Kentucky 42102-9004 ATTN: Customer Service Department

When writing, always include model number and serial number.

105342 01

NOT A UPC

105342-01
Rev. A

04/99
