Brentwood

Models LCF18 and LCF24

VENTED DECORATIVE NATURAL GAS LOGS

OWNER’S OPERATION AND

INSTALLATION MANUAL

RGA 2-72

APPROVED

TESTED AND

LISTED BY

WARNING: If the information in this manual is not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other ﬂ ammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁ re department.

— Installation and service must be performed by

a qualiﬁ ed installer, service agency, or the gas supplier.

WARNING: This is a gas-ﬁ red appliance. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to the National Fuel Gas Codes, ANSI Z233.1/NFPA 54, Section 5.3, Air for Combustion and Ven-

tilation.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualiﬁ ed installer, service agency, or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built ﬁ replace, constructed of noncombustible material, and connected to a working ﬂ ue. (See page 7 for minimum ﬂ ue opening.)

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference

TABLE OF CONTENTS SAFETY INFORMATION

2

TABLE OF CONTENTS

SAFETY INFORMATION ..............................................................2

PRODUCT IDENTIFICATION ......................................................3

LOCAL CODES ............................................................................3

UNPACKING ................................................................................3

OPTIONAL PRODUCT FEATURES ............................................. 3

INSTALLATION ...........................................................................4

OPERATING APPLIANCE ..........................................................10

CLEANING AND MAINTENANCE .............................................. 11

SERVICE HINTS ........................................................................ 11

TECHNICAL SERVICE ..............................................................11

REPLACEMENT PARTS ............................................................ 11

TROUBLESHOOTING ...............................................................12

ACCESSORIES .........................................................................15

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ........16

OWNER’S REGISTRATION FORM ...........................................17

WARRANTY INFORMATION ...................................... Back Cover

SAFETY INFORMATION

WARNINGS

WARNING: This product contains and/or generates

chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

WARNING: Keep ﬂ ue open when operating unit.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this log set. Improper use of this log set can cause serious injury or death from burns, ﬁ re, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead

to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the ﬂ u, with headaches, dizziness, or nausea. If you have these signs, the log set may not be working properly. Get fresh air at once! Have log set serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the inﬂ uence of alcohol, and those at high altitudes.

Natural Gas: Natural gas is odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this log set.

WARNING: Any change to this log set or its controls

can be dangerous.

1. This appliance, as supplied, is only for use with the type of gas indicated on the rating plate.

2. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in your building

• immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call the ﬁ re department

3. Never install the log set

• in a recreational vehicle

• where curtains, furniture, clothing, or other ﬂ ammable objects are less than 42 inches from the front, top, or sides of the log set

• in high trafﬁ c areas

• in windy or drafty areas

4. Before installing in a solid fuel burning ﬁ replace, the chimney ﬂ ue and ﬁ rebox must be cleaned of soot, creosote, ashes and loose paint by a qualiﬁ ed chimney cleaner. Creosote will ignite if highly heated. Inspect chimney ﬂ ue for damage. If damaged, repair ﬂ ue before operating heater.

5. You must operate this log set with a ﬁ replace screen in place. Make sure ﬁ replace screen is closed before running log set.

6. This log set is designed to be smokeless. If logs ever appear to smoke, turn off appliance and call a qualiﬁ ed service person. Note: During initial operation, slight smoking could occur due to log curing and the burning of manufacturing residues. You may wish to add more ventilation by opening a window.

7. To reduce the creation of soot, follow the instructions in Clean- ing and Maintenance, page 11.

8. Do not allow fans to blow directly into the ﬁ replace. Avoid any drafts that alter burner ﬂ ame patterns. Ceiling fans can create drafts that alter burner ﬂ ame patterns. Altered burner patterns can increase sooting.

9. Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this log set.

10. The installation and provisions for combustion and ventilation air must conform with the National Fuel Gas Code, ANSI Z233.1/ NFPA 54, Section 5.3, Air for Combustion and Ventilation.

For more information, visit www.desatech.com

115043-01

SAFETY INFORMATION

PRODUCT IDENTIFICATION

LOCAL CODES

UNPACKING

OPTIONAL PRODUCT FEATURES

3

SAFETY INFORMATION

Continued

11. Do not run log set

• where ﬂ ammable liquids or vapors are used or stored

• under dusty conditions

12. Do not burn solid fuel in the ﬁ replace after installing the log set. Do not use this log set to cook food or burn paper or other objects.

13. Log set becomes very hot when in use. Keep children and adults away from hot surface to avoid burns or clothing ignition. Log set will remain hot for a time after shutdown. Allow surface to cool before touching.

14. Carefully supervise young children when they are in the room with log set.

15. Do not use appliance if any part has been exposed to or under water. Immediately call a qualiﬁ ed service technician to inspect the room appliance and to replace any part of the control system (if using GA9050A or GA9150A) and any gas control which has been under water.

16. To help prevent breakage, new logs must be broken-in (see Curing Logs page 10).

17. Turn log set off and let cool before servicing, installing, or repairing. Only a qualiﬁ ed service person should install, service, or repair log set.

18. Provide adequate clearances around air openings.

LOCAL CODES

Install and use log set with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

UNPACKING

CAUTION: Do not remove the data plates from the burner pan. The data plates contain important product information.

1. Remove logs, hearth kit, pan materials, and hardware from carton.

2. Remove all protective packaging applied to logs and base for shipment.

3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought the product.

PRODUCT IDENTIFICATION

Grate Steps

Grate

Burner Pan

Figure 1 - Product Identiﬁ cation (Dual Burner Shown)

Hearth Kit Model _________________________

Serial Number ___________________________

Log Set Model ___________________________

Burner Clamp

Burner Manifold

Burner Inlet Fitting

OPTIONAL PRODUCT FEATURES

ON/OFF SAFETY VALVE/PILOT KIT AND PROPANE/LP CONVERSION

An optional valve/safety pilot kit with a piezo ignitor is available for this appliance. This system requires no matches, batteries, or other sources to light. You must use this optional system for LP conversion. See Accessories, page 15.

REMOTE CONTROL READY (MILLIVOLT) SAFETY VALVE/PILOT KIT

An optional millivolt valve/safety pilot kit with a piezo ignitor is available for this appliance. This system requires no matches, batteries, or other sources to light. This system may be connected to a wall switch or hand-held wireless remote control. See Accessories, page 15.

REMOTE CONTROL ACCESSORIES

There is an optional hand-held ON/OFF remote control that can be purchased separately for this log set. You must use the millivolt valve/safety pilot kit to use remote accessories with this appliance. See Accessories, page 15.

A wall switch is also available for this appliance. You must use the millivolt valve/safety pilot kit to use the wall switch with this appliance. See Accessories, page 15.

115043-01

For more information, visit www.desatech.com

INSTALLATION

Flue Opening Speciﬁ cations Check Gas Type

4

Venting Speciﬁ cations for Installation Installing Damper Clamp

INSTALLATION

CAUTION: Do not remove the data plates attached to the burner pan. The data plates contain important warranty information.

WARNING: Before installing in a solid fuel burning ﬁ replace, the chimney ﬂ ue and ﬁ rebox must be cleaned of soot, creosote, ashes and loose paint by a qualiﬁ ed chimney cleaner. Creosote will ignite if highly heated. A dirty chimney ﬂ ue may create and distribute soot within the house. Inspect chimney ﬂ ue for damage. If damaged, repair ﬂ ue before operating heater.

NOTICE: Installation, service, and repair of this appliance must be performed by a qualiﬁ ed installer, service agency, company or gas supplier experienced with this type of gas appliance. Only factory authorized components listed in these instructions may be used in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Any modiﬁ cations to this kit, or use of unauthorized components or accessory items will void the manufacturer’s warranty, and may result in a hazardous condition.

FLUE OPENING SPECIFICATIONS

Note: This vented appliance must be installed only in a solid-fuel burning ﬁ replace with a working ﬂ ue and constructed of noncombustible material.

The charts in Figure 2 indicate technical information regarding the installation of your gas log set. Please make sure that all of the speciﬁ cations shown are applicable before installation is attempted.

The ﬁ replace must include a working ﬂ ue and venting system with the minimum openings shown in the Figure 2.

CHECK GAS TYPE

Use only natural gas. If your gas supply is not natural gas, you must install ON/OFF Safety Valve/Pilot Kit (see Accessories, page 15). Call dealer where you bought log set.

If the ﬁ replace does not have a gas supply shutoff valve, one must be installed.

VENTING SPECIFICATIONS FOR INSTALLATION

The ﬁ replace chimney ﬂ ue and vent must be drafting properly. To check the vent for proper drafting: Light a tightly rolled newspaper on one end and place it at the inside front edge of the ﬁ replace. Observe the smoke and be sure the vent is properly drawing it up the chimney. If the smoke spills out into the room, extinguish the ﬂ ame and remove any obstruction until proper venting is achieved.

The chimney ﬂ ue must remain open a minimum of 3" at all times during the operation of this log set.

Model

LCF18 18" Dual 55,000 8"

LCF24 24" Dual 60,000 8"

Model

LCF18 28" 18" 14" 16"

LCF24 29.75" 17" 15.5" 18"

* At depth Indicated

Fuel Inlet Pressure

Speciﬁ cations (W.C.)

Min. Max.

N.G. 5.5" 10.5"

Figure 2 - Technical Information Charts

Burner

Description

Minimum Fireplace Dimensions

Front

Width

Log Size

18" .120 31

24" .129 30

BTU Input

(Natural Gas)

Back

Width*

Burner Oriﬁ ce Sizing

Minimum Vent

Depth Height

Natural Gas

In. Num.

Opening

INSTALLING DAMPER CLAMP

Secure the damper stop clamp provided to the leading edge of the damper as shown in Figure 3. If for any reason this clamp doesn't work on your ﬁ replace, another suitable clamp or permanent stop must be installed, or the damper blade must be cut or removed.

Damper Clamp

Damper

Masonry Fireplace

Figure 3 - Attaching Damper Clamp

Manufactured Fireplace

Damper

Damper Clamp

Damper

For more information, visit www.desatech.com

115043-01

INSTALLATION

Continued

Connecting to Gas Supply

INSTALLATION

Checking Gas Connections

5

CONNECTING TO GAS SUPPLY

WARNING: A qualiﬁ ed service person must connect log set to gas supply. Follow all local codes.

Installation Items Needed

Before installing log set, make sure you have the items listed below.

• piping (check local codes)

• sealant (resistant to Propane/LP gas)

• equipment shutoff valve

• test gauge connection

• adjustable (crescent) wrench or pliers

• sediment trap

• tee joint

• pipe wrench

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to log set. If pipe is too small, undue loss of volume will occur.

Installation must include a equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from log set (see Figure 4).

IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in a clogged burner injector.

WARNING: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 4. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into log set controls. If sediment trap is not installed or is installed wrong, log set may not run properly.

Approved Flexible Gas Hose (if allowed by local codes)

CSA Design-Certiﬁ ed Equipment Shutoff Valve With 1/8" NPT Tap*

3" Minimum

Cap

Pipe Nipple

Figure 4 - Gas Connection

* Purchase the optional CSA design-certiﬁ ed equipment shutoff valve from your dealer. See Accessories, page 15.

** Minimum inlet pressure for purpose of input adjustment.

Sediment Trap

From Gas Meter (5" W.C.** to 10.5" W.C. Pressure)

Tee Joint

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections, internal and external to unit, for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open ﬂ ame to check for a leak. Apply a noncorrosive leak detection ﬂ uid to all joints. Bubbles forming show a leak. Correct all leaks at once.

Pressure Testing Gas Supply Piping System

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect log set and its individual equipment shutoff valve from gas supply piping system.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either using compressed air or opening main gas valve located on or near gas meter.

4. Check all joints of gas supply piping system. Apply noncorrosive leak detection ﬂ uid to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect log set and equipment shutoff valve to gas supply. Check reconnected ﬁ ttings for leaks.

115043-01

For more information, visit www.desatech.com

INSTALLATION

Hearth Kit Assembly and Installation

6

INSTALLATION

Continued

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 5).

2. Pressurize supply piping system by either using compressed air or opening main gas valve located on or near gas meter.

3. Check all joints from gas meter to equipment shutoff valve (see Figure 5). Apply noncorrosive leak detection ﬂ uid to gas joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Equipment Shutoff Val ve

Gas Meter

Figure 5 - Checking Gas Joints

Nut

Burner Manifold

Knockout Plugs

Burner Pan (Front)

Figure 6 - Installing Burner

Burner Clamp

Burner Inlet

Screw

DUAL-FLAME

Fitting

Installation and Gas Connection

1. Place the burner pan assembly in the center of the ﬁ replace ﬂ oor. Make sure the front of pan faces forward.

2. Thread the gas supply ﬁ tting to the ﬁ replace gas supply pipe. Use thread sealant.

3. Install adapter ﬁ tting onto the burner inlet ﬁ tting using thread sealant on male threads of burner inlet ﬁ tting (see Figure 7). Adjust to most convenient position.

4. Install the gas connector tube to the gas supply ﬁ tting. Carefully shape tube to attach to adapter ﬁ tting. Be careful not to cause kinks in tube.

HEARTH KIT ASSEMBLY AND INSTALLATION

Kit Assembly - Dual-Flame Burner

1. Determine which side the gas line will be coming into the ﬁ replace.

2. Using a hammer and screw driver, remove knockout plug from the side of the pan that corresponds to the gas line (see Figure 6).

3. Unscrew burner inlet ﬁ tting from burner manifold.

4. Place burner manifold in pan with threaded opening facing open knockout plug.

5. Using thread sealant (resistant to the action of propane/LP gas) on larger end of ﬁ tting, screw the burner inlet ﬁ tting through hole and into burner manifold (see Figure 6). Tighten using a wrench.

6. Using burner clamp, screw, and nut provided, assemble clamp to pan (“U” style and triple burners only). This will hold the burner manifold in place.

For more information, visit www.desatech.com

Gas Connector

Tube

Adapter

Burner Pan Assembly (Facing Front of Fireplace)

Figure 7 - Connecting Gas to Appliance

Fitting

OPTIONAL GA9050A ON/OFF SAFETY VALVE/ PILOT KIT ASSEMBLY

For additional convenience and safety, or for propane/LP conversion, an optional ON/OFF safety valve/pilot kit is available. See Accessories, page 15.

WARNING: You must use a ON/OFF safety valve/

pilot kit for propane/LP conversion.

115043-01

INSTALLATION

Continued

Hearth Kit Assembly and Installation (Cont.)

INSTALLATION

Optional GA9050A ON/OFF Safety Valve/Pilot Kit Assembly

7

Natural Gas Installation

1. Thread the gas control valve onto the burner inlet ﬁ tting (see Figure 8). Use thread sealant on the male threads of the burner inlet ﬁ tting. Hold the burner inlet ﬁ tting with a wrench to prevent overtightening the connection to the burner. Make sure the control rod is facing the front (see Figure 8).

2. Attach the pilot gas line to the pilot outlet of the gas control valve and tighten. Connect the thermocouple to the rear of the gas control valve. See Figure 9. Do not overtighten. If using propane/LP gas, see Changing Pilot Oriﬁ ce, page 8.

3. Install the inlet ﬁ tting into the inlet opening of the gas control valve (see Figure 10). Use thread sealant on the male pipe threads.

4. Place the burner pan assembly in the center of the ﬁ replace ﬂ oor. Make sure the front of pan faces forward.

5. Thread the gas supply ﬁ tting to the ﬁ replace gas supply pipe. Adjust to most convenient position.

6.

Install the gas connector tube to the gas supply ﬁ tting. Carefully shape tube to attach to adapter ﬁ tting. Be careful not to cause kinks in tube.

7. Test for leaks following instructions under Testing Burner for Leaks, page 9.

8.

Retighten and adjust the location of the gas control as necessary. The gas control should be level, with the control rod to the front.

9. Install cover to burner pan using screws provided.

10. Install thermocouple, pilot, and ignitor onto valve cover as shown in Figure 11. Use the provided screws.

11. Push the control rod extension onto the “D” shaped control rod through the center hole in the cover.

12. Install the position decal and control knob making sure to align the marks with the correct stop positions of the gas control. Pilot position will allow the knob to push in about 1/2". Align the decals in the pilot position.

Thermocouple and Line

Pilot and Line

Gas Control Valve

Figure 9 - Gas Control Valve with Thermocouple and Pilot

Gas Connector Tube

Gas Inlet

Gas Control Valve

Figure 10 - Installing Inlet Fitting and Gas Connector Tube

Inlet Opening

Screw

Ignitor

Fitting

Thermocouple

Burner Inlet Fitting

Burner Pan Assembly

Figure 8 - Installing Gas Control Valve

For more information, visit www.desatech.com

115043-01

Gas Control Valve

Control Rod

Pilot

Valve Cover

Piezo Ignitor

Control Rod

Control Knob

Figure 11 - Installing Cover, Control Knob, and Piezo Ignitor

Extension

8

INSTALLATION

Continued

TESTING BURNER FOR LEAKS

1. Generously apply noncorrosive leak detection ﬂ uid to all connections.

WARNING: Never check for gas leaks with

open ﬂ ame.

2. Light the burner with the shutoff valve no more than half open and holding a match slightly in front of the pan (see Lighting Instructions, page 10).

3. Inspect all connections for bubbles, raw gas odor, or ﬂ ame from any area other than the burner (leaks). If leaks are detected, shut off the gas valve immediately. Tighten, or reassemble the loose connection(s) using pipe joint compound until burner system is leak free.

4. When the burner is tested and leak free, observe the individual tongues of ﬂ ame on the burner. Note: The burner design includes more ports on the outside of the bar. Make sure that all ports are clear and producing ﬂ ame evenly across the burner. If any ports appear blocked, clear them by removing the burner manifold and reaming the ports with a modiﬁ ed paper clip or other suitable tool.

5. When ﬁ nished testing, turn the gas shutoff valve OFF to extinguish all ﬂ ames.

Testing Burner for Leaks

INSTALLATION

Adding Pan Material

Installing the Grate and Logs

2. Slide the two rear log grate steps over the two outer horizontal supports on the grate as shown in Figure 15.

3. Place the back log on the grate onto the grate steps (see Figure 16).

4. Place the front log(s) on the grate and slide forward against the front bars on the grate (see Figure 16).

5. Place the smaller top logs onto the bottom logs (see Figure 17). Leave as much open space between logs as possible to minimize ﬂ ame impingement and sooting. Note: Logs may chip if they are handled roughly or if hit together while being placed.

ADDING PAN MATERIAL

1. Open the bag of ash bed material (vermiculite) and spread it evenly across the burner pan to the top. You may overﬂ ow the front and sides of the pan to cover the entire pan and connecting hardware. Do not cover GA9050A or GA9150A valve.

2. Open the glowing embers and evenly cover the ash bed material (vermiculite) in the burner pan.

INSTALLING THE GRATE AND LOGS

1. Place the grate over the burner pan where the two outer horizontal supports on the grate ﬁ t into the two pan positioning notches in the rear vertical edge of the pan.

Grate Steps

Grate

Figure 15 - Installing Grate (Pan Material Not Shown)

Figure 16 - Installing Front and Back Logs (Number and style of your logs may vary)

Figure 17 - Placement of Top Logs

For more information, visit www.desatech.com

115043-01

OPERATING APPLIANCE

For Your Safety Read Before Lighting Lighting Instructions Gas Shutoff Valve Operation Curing Logs Operating Instructions for GA9050A

OPERATING APPLIANCE

9

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: Keep ﬂ ue open when operating unit.

WARNING: If you do not follow these instructions exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor because some gas is heavier than air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁ re department.

LIGHTING

INSTRUCTIONS

1. STOP! Read the safety information, above.

2. Turn the gas shutoff valve to OFF.

3. Wait ﬁ ve (5) minutes to clear out any gas. If you then smell

gas STOP! Follow the safety information above. If you don't smell gas, go on to the next step.

4. Light a match and lay it on top of the pan material about 2"

from the end of the supply side of the pan

5. Slowly turn the gas shutoff valve ON until the burner ignites.

If the burner doesn’t ignite within 10 seconds with the match burning, turn the shutoff valve OFF and repeat steps 1 through 4 again.

CURING

LOGS

During the 2-3 hour appliance break-in period, you may detect an odor from the appliance as the various paints and compounds used in the manufacturing of this log set cure. This is a normal and temporary situation that is not cause for alarm. However, you may want to provide extra ventilation to the room during this time.

To ensure proper curing of the logs:

• Ignite a 2" ﬂ ame and maintain it for 1 hour.

• Burn the logs in consecutive 1 hour periods raising the ﬂ ame an additional 2" to full ﬂ ame height for a total of three hours.

OPERATING INSTRUCTIONS

FOR GA9050A

Note: Operation instructions for GA9150A Remote Ready Valve/ Pilot Kit will be included with the kit.

1. STOP! Read the safety information, column one this page.

2. Make sure equipment shutoff valve is fully open.

3. Press in and turn control knob clockwise to the OFF

position.

4. Wait ﬁ ve (5) minutes to clear out any gas. Then smell for gas

around log set and near ﬂ oor. If you smell gas, STOP! Refer to the National Fuel Gas Codes, ANSI Z233.1/NFPA 54, Section

5.3, Air for Combustion and Ventilation. If you don’t smell gas, go to the next step.

5. Turn control knob counterclockwise to the PILOT

position and press in. Keep control knob pressed in for ﬁ ve (5) seconds.

Note: You may be running this log set for the ﬁ rst time after

hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds. This will allow air to bleed from the gas system.

• If control knob does not pop up when released, contact a qualiﬁ ed service person or gas supplier for repairs.

GAS SHUTOFF

VALVE OPERATION

Flame Adjustment

Adjust the ﬂ ame ON/OFF by turning the gas shutoff valve counterclockwise

to open or clockwise to close, as

necessary.

Shutting Off Appliance

Turn gas shutoff valve clockwise to the OFF position.

For more information, visit www.desatech.com

115043-01

Control Knob

Ignitor

ON

FROM "PILOT" POSITION

SLIGHT PUSH TO

On

TURN OFF

SLIGHT PUSH TO

FROM "PILOT" POSITION

ON OFF

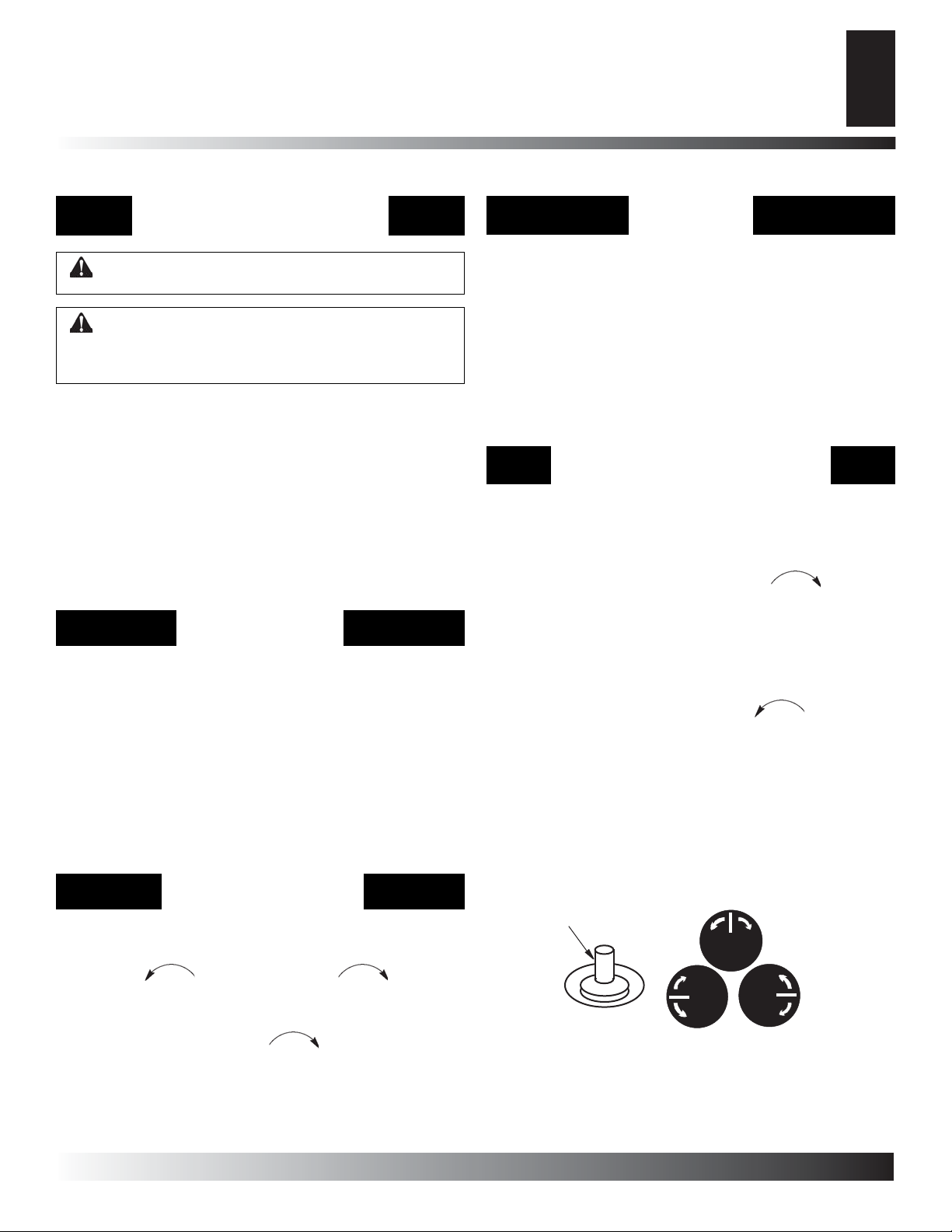

Figure 18 - Ignitor and Control Knob

Pilot

TURN OFF

PULL PUSH

OFF

PULL PUSH

FROM "PILOT" POSITION

SLIGHT PUSH TO

TURN OFF

Off

ON

OFF

10

Operating Instructions for GA9050A (Cont.)

OPERATING APPLIANCE

To Turn Off Gas to Appliance

CLEANING AND MAINTENANCE

SERVICE HINTS

TECHNICAL SERVICE

REPLACEMENT PARTS

OPERATING APPLIANCE

Continued

6. With control knob pressed in, push down and release ignitor button. This will light pilot. The pilot is attached to the rear of the front burner. If needed, keep pressing ignitor button until pilot lights.

Note: If pilot does not stay lit, contact a qualiﬁ ed service person

or gas supplier for repairs. Until repairs are made, light pilot with match.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

Note: If pilot goes out, repeat steps 3 through 7, pages 10 and

11.

8. Turn control knob counterclockwise to the ON position. Burner should light. If burner does not light, call a qualiﬁ ed service person.

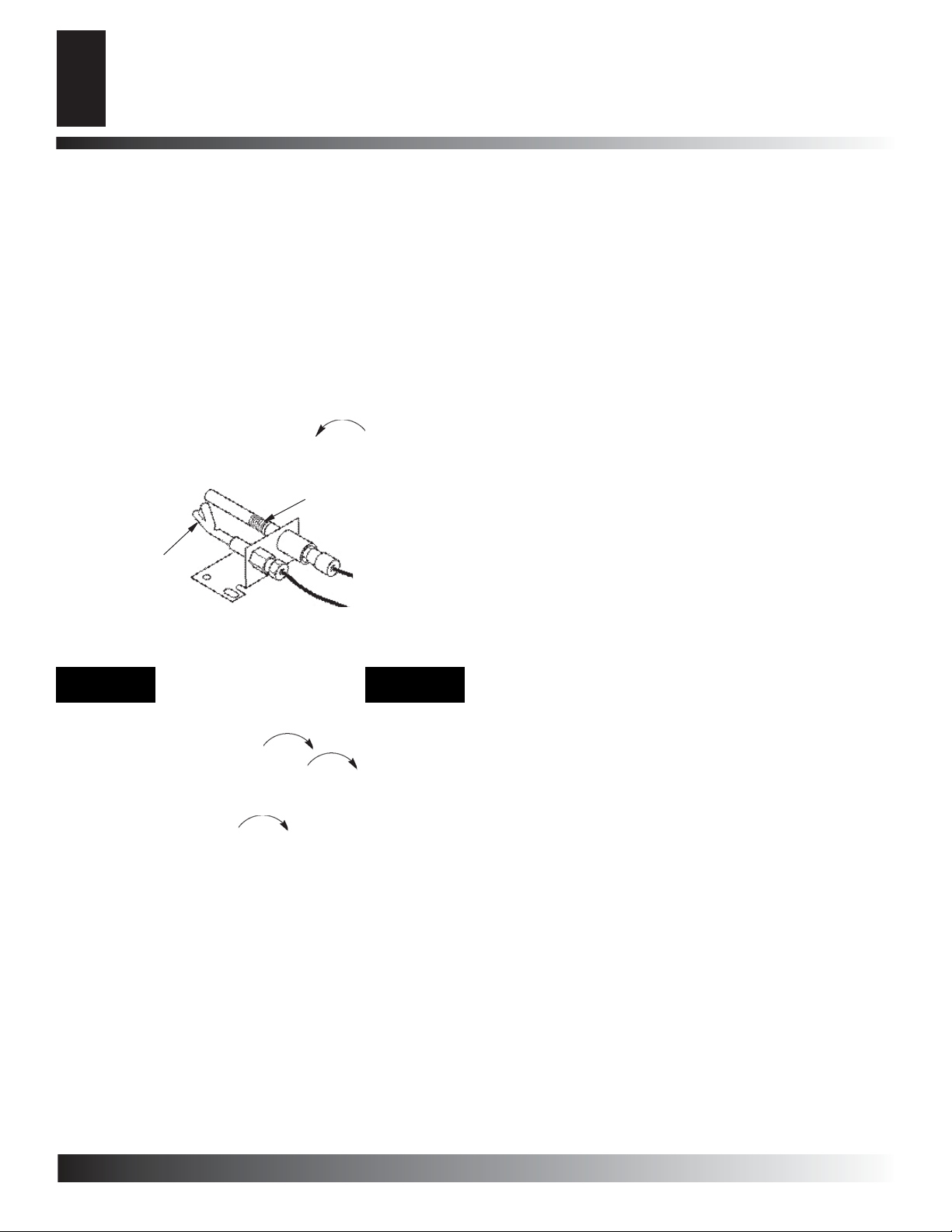

Thermocouple

Pilot Burner

Figure 19 - Thermocouple and Pilot

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Appliance

1. Turn control knob clockwise to the PILOT position.

2. Press in and turn control clockwise to the OFF position.

Shutting Off Burner Only (pilot stays lit)

Turn control knob clockwise to the PILOT position.

SERVICE HINTS

When Gas Pressure is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce speciﬁ ed heat

You may feel your gas pressure is too low. If so, contact your local natural gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA’s Technical Service Department at 1-866-672-6040. When calling please have your model and serial numbers of your heater ready.

You can also visit DESA’s technical services web site at www.

desatech.com.

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA’s Technical Service Department at 1-866-672-6040. When calling DESA, have ready:

• your name and address

• model and serial numbers of your log set

• how log set was malfunctioning

• type of gas used (natural gas)

• purchase date

Usually, we will ask you to return the part to the factory.

CLEANING AND MAINTENANCE

• Keep the area around the log set clean and clear of debris.

• Occasionally, you may use a soft bristle brush to clean logs.

• Once every year a qualiﬁ ed agency or certiﬁ ed chimney sweep

should examine and clean the venting system of the ﬁ replace.

For more information, visit www.desatech.com

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA at 1-866-672-6040 for referral information. When calling DESA, have ready

• model number of your log set

• the replacement part number

115043-01

TROUBLESHOOTING

WARNING: Turn off log set and let cool before

servicing. Only a qualiﬁ ed service person should service and repair log set.

Note: All troubleshooting items are listed in order of operation.

11

OBSERVED PROBLEM

Log set is smoking/sooting excessively (Note: It is natural and unavoidable for vented gas log sets to produce moderate levels of carbon (soot) where ﬂ ames contact the logs.

Burner is excessively noisy (Note: The movement and combustion of gas will create low, unavoidable levels of noise.)

Burner ﬂ ame is too low or too high

When ignitor button is pressed, there is no spark at pilot (GA9050A Only)

POSSIBLE CAUSE

1. Poor fuel quality

2. Fireplace venting system not drafting properly

3. Excessive flame impingement or blockage

4. Improper fuel/air mixture

5. Excessive gas supply/pressure

1. Passage of air/gas across irregular surfaces

1. Incorrect gas supply or pressure

2. Blocked burner oriﬁ ce or burner manifold ports

3. Improper burner oriﬁ ce size

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Bad ground on piezo ignitor

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode broken

7. Ignitor electrode positioned wrong

REMEDY

1. Contact local natural or propane/LP gas company

2. Adjust damper wide open and/or have fireplace and venting professionally cleaned and checked

3. Separate the logs to allow more ﬂ ame passage

4. Remove any foreign items from the ﬂ ame pattern and/or check for proper oriﬁ ce sizing

5. Preheat ﬂ ue in very cold weather

1. Relieve any tight bends or kinks in gas supply line

1. Check for proper gas supply pressure

2. Free burner oriﬁ ce and manifold ports of any burrs, paint, or other blockage

3. Verify proper burner oriﬁ ce sizing (see Figure 2, page 4)

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Scrape away paint on bracket for better contact with ground on piezo ignitor

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace electrode

7. Reposition electrode

115043-01

For more information, visit www.desatech.com

12

TROUBLESHOOTING

Continued

TROUBLESHOOTING

OBSERVED PROBLEM

When ignitor button is pressed, there is spark at pilot but no ignition (GA9050A Only)

Pilot lights but ﬂ ame goes out when control knob is released (GA9050A Only)

POSSIBLE CAUSE

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Pilot adjustment screw closed

6. Pilot is clogged

7. Low gas pressure

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Equipment shutoff valve not fully open

4. Pilot ﬂ ame not touching thermocouple, which allows thermocouple to cool, causing pilot ﬂ ame to go out. This problem could be caused by one or both of the following:

A) Low gas pressure B) Dirty or partially clogged pilot

5. Thermocouple connection loose at control valve

6. Thermocouple damaged

7. Control valve damaged

REMEDY

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Adjust pilot ﬂ ame for approximately 2" blue ﬂ ame

6. Clean pilot (see Cleaning and Maintenance, page 11) or replace pilot assembly

7. Replace gas control

1. Press in control knob fully

2. After pilot lights, keep control knob pressed in 30 seconds

3. Fully open equipment shutoff valve

4. A) Contact local natural gas company

B) Clean pilot (see Cleaning and Main-

tenance, page 11) or replace pilot assembly

5. Hand tighten until snug, then tighten 1/4 turn more

6. Replace thermocouple

7. Replace control valve

Burner does not light after pilot is lit (GA9050A Only)

Delayed ignition burner (GA9050A Only)

For more information, visit www.desatech.com

1. Burner oriﬁ ce clogged

2. Inlet gas pressure is too low

3. Thermocouple leads disconnected or improperly connected

1. Pilot ﬂ ame needs adjusting

2. Wrong pilot oriﬁ ce

1. Clean burner oriﬁ ce

2. Contact local natural gas company

3. Reconnect leads

1. Adjust pilot ﬂ ame for approximately 2" blue ﬂ ame

2. Replace pilot oriﬁ ce set

115043-01

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁ re department.

IMPORTANT: Operating log set where impurities in air exist may create odors. Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

13

OBSERVED PROBLEM

Log Set produces a clicking/ticking noise just after burner is lit or shut off

Log Set produces unwanted odors

Gas odor even when control knob is in OFF position

Gas odor during combustion

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Log Set burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See IMPORTANT statement above)

2. Gas leak. See Warning statement at top of page

1. Gas leak. See Warning statement at top of page

2. Control valve defective

1. Gas leak. See Warning statement at top of page

REMEDY

1. This is common with most log sets. If noise is excessive, contact qualified service person

1. Open ﬂ ue to maximum. Stop using odor causing products while log set is running

2. Locate and correct all leaks (see Checking Gas Connections, page 6)

1. Locate and correct all leaks (see Checking Gas Connections, page 6)

2. Replace control valve

2. Locate and correct all leaks (see Check-

115043-01

For more information, visit www.desatech.com

14

ACCESSORIES

Purchase these log set accessories from your local dealer. If they can not supply these accessories, call DESA at 1-866-672-6040 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE - GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap. Fits

1/2" NPT pipe.

ACCESSORIES

unit.

INDIVIDUAL SPLIT LOG - GA9550A

(Not Shown)

For decorative purposes only. Not to be used as additional logs on unit.

PINE CONES - GA9650A

(Not Shown)

For all models. Use for additional decoration only. (3 pine cones

per box).

ASH BED MATERIAL (Vermiculite) - GA9750A

(Not Shown)

For all models. Use for ﬁ rebox decoration only.

RECEIVER AND HAND-HELD ON/OFF REMOTE CONTROL KIT - GHRCB Series

For all models. Allows the gas log set to be turned on and off by

using the hand-held remote control. Valve/Pilot Kit GA9150A must be purchased to use this remote.

WALL-MOUNT ON/OFF SWITCH - GWMS2

(Not Shown)

For all models. Allows the gas log set to be turned on and off with

a wall switch. Valve/Pilot Kit GA9150A must be purchased to use this remote.

MANUAL CONTROL ON/OFF SAFETY VALVE/ PILOT KIT - GA9050A

(Not Shown)

For all models. Contains components for propane/LP conver-

sion.

REMOTE CONTROL READY ON/OFF SAFETY VALVE/PILOT KIT - GA9150A

(Not Shown)

For all models. Required for remote control operation. Contains

components for propane/LP conversion.

INDIVIDUAL ROUND LOG - GA9450A

(Not Shown)

For decorative purposes only. Not to be used as additional logs on

GLOWING EMBERS - GA9950A

(Not Shown)

For all models. Use for ﬁ rebox decoration only.

SILICA SAND - GA9850A

(Not Shown)

For all models. Use for ﬁ rebox decoration only.

LAVA ROCK - GA6067A

(Not Shown)

For all models. Use for ﬁ rebox decoration only.

DECORATIVE ASH BED CONTROL COVER CDABKA (Not Shown)

An attractive way to cover control knob and piezo ignitor.

18" ORNAMENTAL GRATE ENHANCER GA9350A (Not Shown)

For 18" models only. Additional decoration for front grate.

24" ORNAMENTAL GRATE ENHANCER GA9360A (Not Shown)

For 24" models only. Additional decoration for front grate.

30" ORNAMENTAL GRATE ENHANCER GA9370A (Not Shown)

For 30" models only. Additional decoration for front grate.

FIRE CRACKLE - CF6-A

(Not Shown)

For all models. Creates the sound of a real burning ﬁ re.

For more information, visit www.desatech.com

115043-01

Models LCF18 and LCF24

PAR TS LI ST

PARTS LIST AND ILLUSTRATED PARTS BREAKDOWN

This list contains replaceable parts used in your log set. When ordering parts, follow the instructions listed under Replacement Parts on page 11 of this manual.

9

15

10

7

12

11

13

KEY PART NUMBER

NO. LCF18 LCF24 DESCRIPTION QTY.

1 901058-01 901058-01 3/8 FLR x 1/2 FPT Adapter 1 2 901059-01 901059-01 3/8 FLR x 3/8 FPT Adapter 1 3 901066-01 901066-01 Brass Air Mixer - Natural Gas 1 4 901064-02 901064-03 Natural Gas Injector 1 5 901207-01 901207-01 Burner Manifold 1 6 901137-01 901137-02 Burner Pan 1 7 901242-01 901242-01 Damper Clamp - Std. Assy 1 8 101628-01 101628-01 Gas Line - 10" Flex 1 9 901431-01 901431-01 Grate Steps 2 10 901246-01 901246-02 Log Grate 1 11 901681-01 901681-01 Burner Strap 1 12 901078-01 9010787-01 Nut #8/32 1 13 901076-01 901076-01 Screw #8/32 x 3/8 1 14 115049-01 115052-01 Front Bottom Log 1 15 901111-01 901111-02 Rear Bottom Log 1 16 115050-01 115050-01 Top Log 1 17 115051-01 115051-01 Top Log 1 18 901090-01 901090-01 Top Log 1 19 901126-01 901126-01 Top Log 1 20 901094-01 Top Log 1

901156-01 901156-01 .125# Bag Embers 1 901155-01 901155-01 1.5# Bag Ash Bed Material (Vermiculite) 1

9

16

15

5

1

6

4

2

PARTS AVAILABLE — NOT SHOWN

8

3

14

19

20

18

17

115043-01

For more information, visit www.desatech.com

OWNER'S REGISTRATION FORM

In order to provide better customer service for this and future purchases, we recommend that you register your product with us. You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner's

16

Registration Form and mail to the address on the back of this owner's manual. Please provide the following product information:

Brand: (Comfort Glow, Vanguard, etc.) Model: (EFP33PR, VTGH33NR, etc.) Date Purchased: Note: Keep receipt for warranty verification. Serial Number: 7 or 9 digit number located on product or identification tag. First Name: Last Name: Address: City: State: Zip: Country: Home Phone: ( ) - E-Mail:

Please answer the following questions to register your product with DESA:

1. Where will the product be used?

m Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other

2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

3. Who selected the product? ❍ Male ❍ Female ❍ Both

4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000

❍ 100,000 to 250,000 ❍ Over 250,000

5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other

6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other

7. Cost of product excluding sales tax? $___________________

8. Cost to install product? $____________________

9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder's Supply

❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other

10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project

❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other

11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________

12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School

13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

14. Buyer's total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999

❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

15. Store where product was purchased:

Name: ______________________________________

City: _______________________ State: __________

16. In choosing this product, how important were the following:

Availability Price Brand Name Overall Quality Heat Output Made in USA Warranty Local Service Value for Price Prior Brand Experience Controls Location Thermostat, Remote, or Manual Operation Ease of Operation Special Features Salesperson's Recommendation Friend/Relative's Recommendation Portability Quiet Operation

For more information, visit www.desatech.com

Not Important Somewhat Important Very Important

❍

115043-01

TAPE

17

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

Postage

Required

115043-01

For more information, visit www.desatech.com

TAPE

18

NOTES

___________________________________________________________________________________________________________

For more information, visit www.desatech.com

115043-01

19

NOTES

___________________________________________________________________________________________________________

For more information, visit www.desatech.com

115043-01

20

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these speciﬁ cations at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY - VENTED GAS LOGS

DESA warrants this product to be free from defects on burner system for four (4) years and logs for a lifetime from the date of ﬁ rst purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this log set to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The log set MUST be installed by a qualiﬁ ed installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective log set will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON BURNER SYSTEM AND A LIFETIME ON LOGS FROM THE DATE OF FIRST PURCHASE; AND DESA’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you speciﬁ c legal rights, and you may also have other rights that vary from state to state.

For information about this warranty write:

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

115043 01

NOT A UPC

For more information, visit www.desatech.com

115043-01 10/04

115043-01

Desa RGA 2-72 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
