Page 1

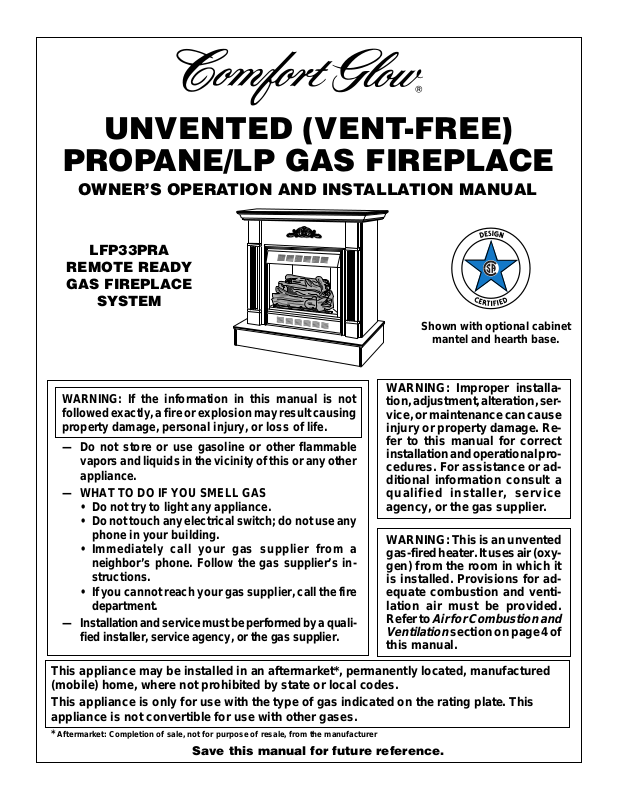

UNVENTED (VENT-FREE)

PROPANE/LP GAS FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

LFP33PRA REMOTE READY GAS FIREPLACE

SYSTEM

Shown with optional cabinet

mantel and hearth base.

WARNING: Improper installa-

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a quali-

fied installer, service agency, or the gas supplier.

tion, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Ventilation

this manual.

Air for Combustion and

section on page 4 of

This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile) home, where not prohibited by state or local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

Page 2

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of

carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the fireplace may not be working properly. Get fresh air at once! Have fireplace serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane/LP Gas: Propane/LP gas is odor-

less. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this heater.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Fireplace front and screen becomes very hot when running fireplace. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

Carefully supervise young children when they are in the room with heater. When using the handheld remote accessory, keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this fireplace with the fireplace screen and hood in place. Make sure fireplace screen and hood are in place before running fireplace.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/ LP supply tank(s) outdoors.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do

not use any phone in your building

• immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier,

call the fire department

4. This fireplace shall not be installed in a bedroom or bathroom.

5. Do not use this fireplace as a woodburning fireplace. Use only the logs provided with the fireplace.

6. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool. Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into the control area of fireplace.

7. This fireplace is designed to be smokeless. If logs ever appear to smoke, turn off fireplace and call a qualified service person. eration, slight smoking could occur due to log curing and fireplace burning manufacturing residues.

8. T o prevent the creation of soot, follow the instructions in Cleaning and Main- tenance, page 18.

9. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

10. This fireplace needs fresh air ventilation to run properly . This fireplace has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the fireplace if not enough fresh air is available. See Air for Combus- tion and Ventilation, pages 4 through

6. If fireplace keeps shutting off, see Troubleshooting, pages 19 through 21.

11. Do not run fireplace

• where flammable liquids or vapors

are used or stored

• under dusty conditions

12. Do not use this fireplace to cook food or burn paper or other objects.

13. Do not use fireplace if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the fireplace and to replace any part of the control system and any gas control which has been under water.

14. Do not operate fireplace if any log is broken. Do not operate fireplace if a log is chipped (dime-sized or larger).

15. Turn fireplace off and let cool before servicing. Only a qualified service person should service and repair fireplace.

Note:

During initial op-

107064

Page 3

OWNER’S MANUAL

SAFETY INFORMATION

Continued

16. Operating fireplace above elevations of 4,500 feet could cause pilot outage.

17. To prevent performance problems, do not use propane/LP fuel tanks of less than 100 lbs. capacity.

PRODUCT IDENTIFICATION

Control Knobs

Piezo Ignitor Remote Selector

Switch (Optional)

Figure 1 - Log Base Assembly

Top Louvered Hood

Log Set

Optional Remote Control

Top Outer Casing

LOCAL CODES

Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code, ANS Z223.1, also known as NFPA 54*.

*Available from: American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

UNPACKING

1. With utility knife, cut the carton all the way around above the staples on the bottom tray. Lift the carton off the heater. Remove packing.

Note:

The hood is located in the packing on the right hand side of the heater front. Lift the heater off the bottom tray.

2. Locate two screws above top corners of the fireplace screen. Remove and discard these screws. Lift fireplace screen up and pull out to remove.

3. Remove protective packaging applied to logs, log base assembly, and fireplace.

4. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought fireplace.

REMOTE CONTROL

Firebox Support

Screen Assembly

Figure 2 - Fireplace

107064

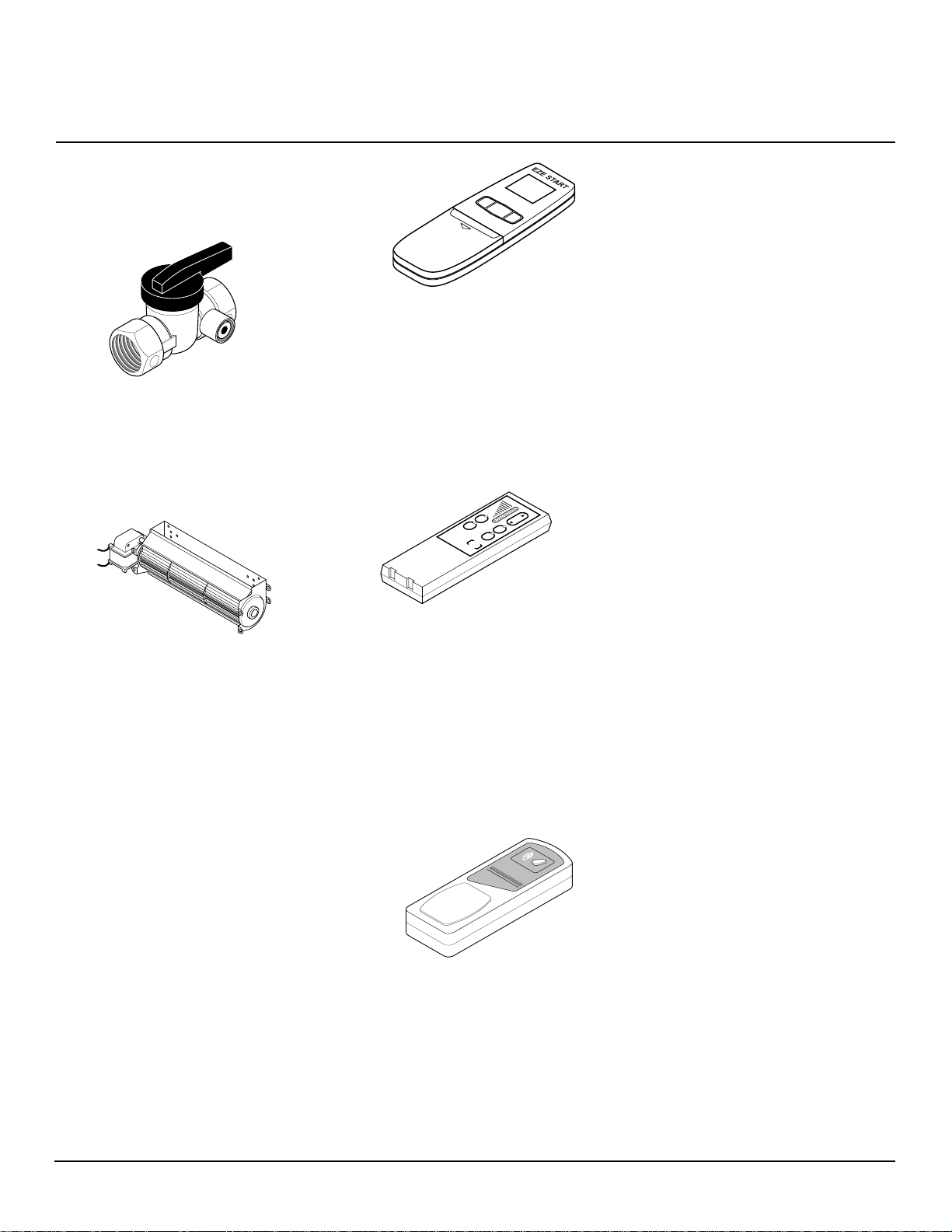

ACCESSORIES

The optional remote controls that can be purchased separately for this log heater are hand held remotes. See Accessories, pages 24 and 25.

Rear Access Door

Bottom Louver Assembly

Page 4

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

PRODUCT FEATURES

OPERATION

This vent-free fireplace is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by both realistic flames and glowing embers. When used without the blower, the fireplace requires no electricity making it ideal for emergency backup heat.

SAFETY DEVICE

This fireplace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free room heaters. The ODS system shuts off the fireplace if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This fireplace has a piezo ignitor. This system requires no matches, batteries, or other sources to light fireplace.

BLOWER ASSEMBLY (GA3750 & GA3650T SERIES)

This fireplace accepts an optional blower assembly. The GA3750 blower has a manual variable control. The GA3650T blower operates thermostatically. The blower circulates heated air from the fireplace into the room. Use of blower is optional. See Accessories, pages 24 and 25.

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuelburning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space The information on pages 4 through 6 will

help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of

unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings exposed to the

outside atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 per pa-sec-m2) or less with openings gasketed or sealed

b. weather stripping has been

added on openable windows and doors

c. caulking or sealants are applied

to areas such as joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

From Outdoors

If your home does not meet all of the three criteria above, proceed to

mining Fresh-Air Flow for Fireplace Location

and

, page 6

on page 5.

Ventilation Air

and

Deter-

-11

Confined Space and Unconfined Space

The National Fuel Gas Code, ANS Z223.1

defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

107064

Page 5

OWNER’S MANUAL

AIR FOR COMBUSTION AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR FIREPLACE LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install fireplace plus any adjoining rooms with doorless passageways or ventilation grills

between the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height = _________________cu. ft. (volume of space)

Example:

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.

_________________ (volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr the space can support)

Example:

3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free fireplace ____________________ Btu/Hr Gas water heater* ____________________ Btu/Hr Gas furnace ____________________ Btu/Hr Vented gas heater ____________________ Btu/Hr Gas fireplace logs ____________________ Btu/Hr Other gas appliances* + ____________________ Btu/Hr Total = ____________________ Btu/Hr * Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_________________ Btu/Hr (maximum the space can support) _________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework work sheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-

ing room or add ventilation grills between rooms. See Ventilation Air from Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air from Outdoors, page 6. C. Install a lower Btu/Hr fireplace, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

Space size 22 ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) = 3168 cu. ft. (volume of space)

3168 cu. ft. (volume of space) ÷ 50 cu. ft. = 63.3 or 63,300 (maximum Btu/Hr the space can support)

Example:

Gas water heater Vent-free fireplace + Total =

63,300 Btu/Hr (maximum the space can support)

73,000 Btu/Hr (actual amount of Btu/Hr used)

40,000 33,000 73,000

Btu/Hr Btu/Hr Btu/Hr

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

107064

National Fuel Gas Code, ANS Z223.1, Section 5.3

or applicable local codes.

Continued

Page 6

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

AIR FOR COMBUSTION AND

12"

VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 3). You can also remove door into adjoining room (see option 3, Figure 3). Follow the National Fuel

Gas Code, NFPA 54/ANS Z223.1, Section

5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

WARNING: Rework worksheet, adding the space of the adjoining unconfined space. The combined spaces must have enough fresh air to supply all appliances in both spaces.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, NFPA 54/ANS Z223.1, Section 5.3, Air for Combustion and Ventilation for required size of ventilation

grills or ducts.

IMPORTANT:

inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Do not provide openings for

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 3 - Ventilation Air from Inside Building

Outlet Air

Inlet Air

Figure 4 - Ventilation Air from Outdoors

Remove Door into Adjoining

Room, Option

12"

Outlet Air

Inlet Air

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilated Attic

Ventilated

Crawl Space

To Attic

Crawl

Space

107064

Page 7

OWNER’S MANUAL

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must install fireplace. Follow all local codes.

WARNING: Never install the fireplace

• in a bedroom or bathroom

• in a recreational vehicle

• where curtains, furniture,

clothing, or other flammable objects are less than 42 inches from the front, top, or sides of the fireplace

• in high traffic areas

• in windy or drafty areas

CAUTION: This fireplace creates warm air currents. These currents move heat to wall surfaces next to fireplace. Installing fireplace next to vinyl or cloth wall coverings or operating fireplace where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.

Note:

Your Comfort Glow fireplace is designed to be used in zero clearance installations. Wall or framing material can be placed directly against any exterior surface on the rear, sides, or top of your fireplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your fireplace, these spacers can be placed directly against wall or framing materials.

Use the dimensions shown for rough openings to create the easiest installation (see Built-In Fireplace Installation, page 9).

IMPORTANT:

ture to the air. Although this is beneficial, installing fireplace in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Com- bustion and Ventilation, pages 4 through 6.

IMPORTANT:

level. If fireplace is not level, log set will not work properly.

Vent-free heaters add mois-

Make sure the fireplace is

CHECK GAS TYPE

Use only propane/LP gas. If your gas supply is not propane/LP gas, do not install fireplace. Call dealer where you bought fireplace for proper type fireplace.

ELECTRICAL HOOKUP

(Optional GA3750 Blower Accessory )

This fireplace accepts a blower assembly with an electrical cord. The electrical cord is five feet in length. You must locate fireplace within reach of a 120 volt grounded electrical outlet. If not, you must install an electrical outlet within reach of fireplace power cord.

ASSEMBLING AND ATTACHING OPTIONAL BRASS TRIM (Included with Mantel Accessory)

IMPORTANT:

box in a wall, do not attach brass trim at this time. See page 9.

Note:

The instructions below show assem-

bling and attaching brass trim to fireplace.

1. Remove packaging from three pieces of brass trim.

2. Locate four brass screws, two adjusting plates with set screws, and two shims in the hardware packet.

3. Align shim under adjusting plate as shown in Figure 5.

4. Slide one end of adjusting plate/shim in slot on mitered edge of top brass trim (see Figure 5).

5. Slide other end of adjusting plate/shim in slot on mitered edge of side brass trim (see Figure 5).

If you are recessing the fire-

6. While firmly holding edges of brass trim together, tighten both set screws on the adjusting plate with slotted screwdriver.

7. Repeat steps 1 through 6 for other side.

8. Tighten trim hanging screws (#10 x

6.25 shoulder) into holes in cabinets. Place the assembled trim onto fireplace cabinet. Align hanging notches on trim with hanging screws on side of fireplace (see Figure 6). Push trim firmly into place, sliding hanging notches over hanging screws.

Set Screws

Side Brass Trim

Figure 5 - Assembling Brass Trim

Figure 6 - Attaching Brass Trim to Fireplace

Adjusting Plate

Mitered Edge

Slot

Assembled Brass Trim

Shim

Slot

Top Brass Trim

Trim Hanging Screws

Hanging Notches on Trim

Continued

107064

Page 8

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

INSTALLATION

Continued

INSTALLATION CLEARANCES

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.

Carefully follow the instructions below. This will ensure safe installation.

Minimum Clearances For Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the fire-

place cabinet to any combustible material and wall should follow diagram in Figure 7.

Example:

shelf, etc. is made of combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the fireplace cabinet (see Figure 7).

B. Clearances from the top of the fireplace

opening to the ceiling should not be less than 42 inches.

FIREBOX

*Minimum 16 inches from Side Wall

Figure 7 - Minimum Clearance for Combustible to Wall

The face of a mantel, book-

Example

.5 2

1 4 6 8 10 12 14 16

INCHES

121/ 101/

8 7 51/ 31/ 1 7/8 7/16

CONVENTIONAL FIREPLACE INSTALLATION

Conventional installation of this fireplace involves installing fireplace along with the corner, face, or cabinet mantel with hearth base accessories against a wall in your home. Follow the instructions below to install the fireplace in this manner.

Note:

The instructions below show installa-

tion using the cabinet mantel and hearth base accessories (see Accessories on pages 24 and 25). The hearth base accessory shown is optional for this installation. You can install fireplace and cabinet mantel directly on the floor. The corner mantel accessory cannot be installed with hearth bases. You must install corner and face mantel directly on the floor.

1. Assemble cabinet mantel, hearth base, and trim accessories. Assembly instructions are included with each accessory .

2. When installing blower, install a properly grounded, 120 volt three-prong electrical outlet at fireplace location if an outlet is not there. If possible, locate outlet so cabinet mantel will cover it when installed (see Figure 8).

3. Install gas piping to fireplace location. This installation includes an approved flexible gas line (if allowed by local codes) after the equipment shutoff valve. The flexible gas line must be the last item installed on the gas piping. See

Installing Gas Piping to Fireplace Location, page 10.

INCHES

4. Place hearth base accessory against wall at installation location. Cut an access hole in hearth top to run flexible gas line to fireplace (see Figure 8). Make sure to locate access hole so cabinet mantel will cover it when installed.

Note:

You can secure base to floor using wood screws. Countersink screw heads and putty over.

5. Route flexible gas line through access hole in hearth base.

6. Center cabinet mantel on hearth base (see Figure 9). Make sure mantel is flush against wall.

7. Break off nailing flanges (see Figure 10, page 9) with hammer or pliers.

8. Place cardboard or other protective material on top of hearth base. Carefully set fireplace on protective material, with back of fireplace inside mantel opening.

9. Attach flexible gas line to fireplace gas regulator. See Connecting Fir eplace to Gas Supply, page 11.

10. If blower is installed, route blower electrical cord through access holes in either side of fireplace.

Note:

Bushing may be moved if necessary. Plug electrical cord into electrical outlet.

Gas

Hearth Base

Figure 8 - Placing Hearth Base Accessory Against Wall

Figure 9 - Installing Cabinet Mantel

Flexible Gas Line

Electrical Outlet

Line Access Hole

Cabinet Mantel

107064

Page 9

OWNER’S MANUAL

35 1/2"

/4"

33"

39 3/8"

27 7/8"

55 5/8"

35 1/2"

INSTALLATION

Continued

11. Carefully insert fireplace into cabinet mantel. Be careful not to scratch or damage hearth base, cabinet mantel, or any laminate trim on hearth base. Remove protective material from top of hearth base and from front of fireplace (if any). to hearth or floor. Open lower louver. Locate screw holes in bottom of base. Tighten wood screws through these holes and into hearth or floor.

12. Check all gas connections for leaks. See Checking Gas Connections, page 12.

Figure 10 - Location of Nailing Flanges

Figure 11 - Inserting Fireplace Into Cabinet Mantel

Note:

You can secure fireplace

Nailing Flanges

BUILT-IN FIREPLACE INSTALLATION

Built-in installation of this fireplace involves installing fireplace into a framed-in enclosure. This makes the front of fireplace flush with wall. If installing a mantel above the fireplace, you must follow the clearances shown in Figure 15, page 10. Follow the instructions below to install the fireplace in this manner.

Actual Framing

Height 32 Front Width 34 Depth 16

1. Frame in rough opening. Use dimensions shown in Figure 12 for the rough opening.

If installing in a corner, use dimensions shown in Figure 13 for the rough opening. The height is 33" which is the same as the wall opening above.

2. If using blower, install and properly ground GA3555, three-prong 120 volt electrical outlet, in fireplace. Follow instructions included in kit (see Acces- sories, pages 24 and 25).

Installing Gas Piping to Fireplace Location, page 10.

4. Carefully set fireplace in front of rough opening with back of fireplace inside wall opening.

5. Attach flexible gas line to gas supply. See Connecting Fireplace to Gas Sup- ply, page 11.

6. Plug electrical cord into electrical outlet installed in step 2.

7. Carefully insert fireplace into rough opening.

8. Attach fireplace to wall studs using nails or wood screws through holes in nailing flange (see Figure 14).

/8" 33"

/16" 35 1/2"

/16" 17 3/4"

9. Check all gas connections for leaks. See Checking Gas Connections, page 12.

10. Install brass trim after final finishing and/or painting of wall (see Figure 6, page 7).

Figure 12 - Rough Opening for Installing in Wall

Figure 13 - Rough Opening for Installing in Corner

Nails or Wood Screws

Nailing Flanges

Figure 14 - Attaching Fireplace to Wall Studs

107064

Continued

Page 10

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

INSTALLATION

Continued

Mantel Clearances for Built-In Installation

If placing mantel above built-in fireplace, you must meet minimum clearance between mantel shelf and top of fireplace opening.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• raise the mantel to an acceptable height

• remove the mantel

Wall board or facing material (above firebox) may be of combustible material, including decorative mantel ornaments or other similar projections off of the facing material.

Framing Material

Firebox

10" 8" 6"

Noncombustible Material May Project Off this Surface above the Firebox Hood

INSTALLING GAS PIPING TO FIREPLACE LOCATION

WARNING: A qualified service person must connect fireplace to gas supply. Follow all local codes.

CAUTION: Never connect heater directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and propane/LP supply.

Installation Items Needed

Before installing fireplace, make sure you have the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

• approved flexible gas line with gas connector (if allowed by local codes) (not provided)

Mantel Shelf

13" 16" 19" 21"

* A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, pages 24 and 25.

The installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure

16. Pointing the vent down protects it from freezing rain or sleet.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to fireplace. If pipe is too small, undue loss of pressure will occur.

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from fireplace (see Figure 16, page 10).

IMPORTANT:

Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Propane/LP Supply

External Regulator

Tank

Note:

Wire-mesh Screen

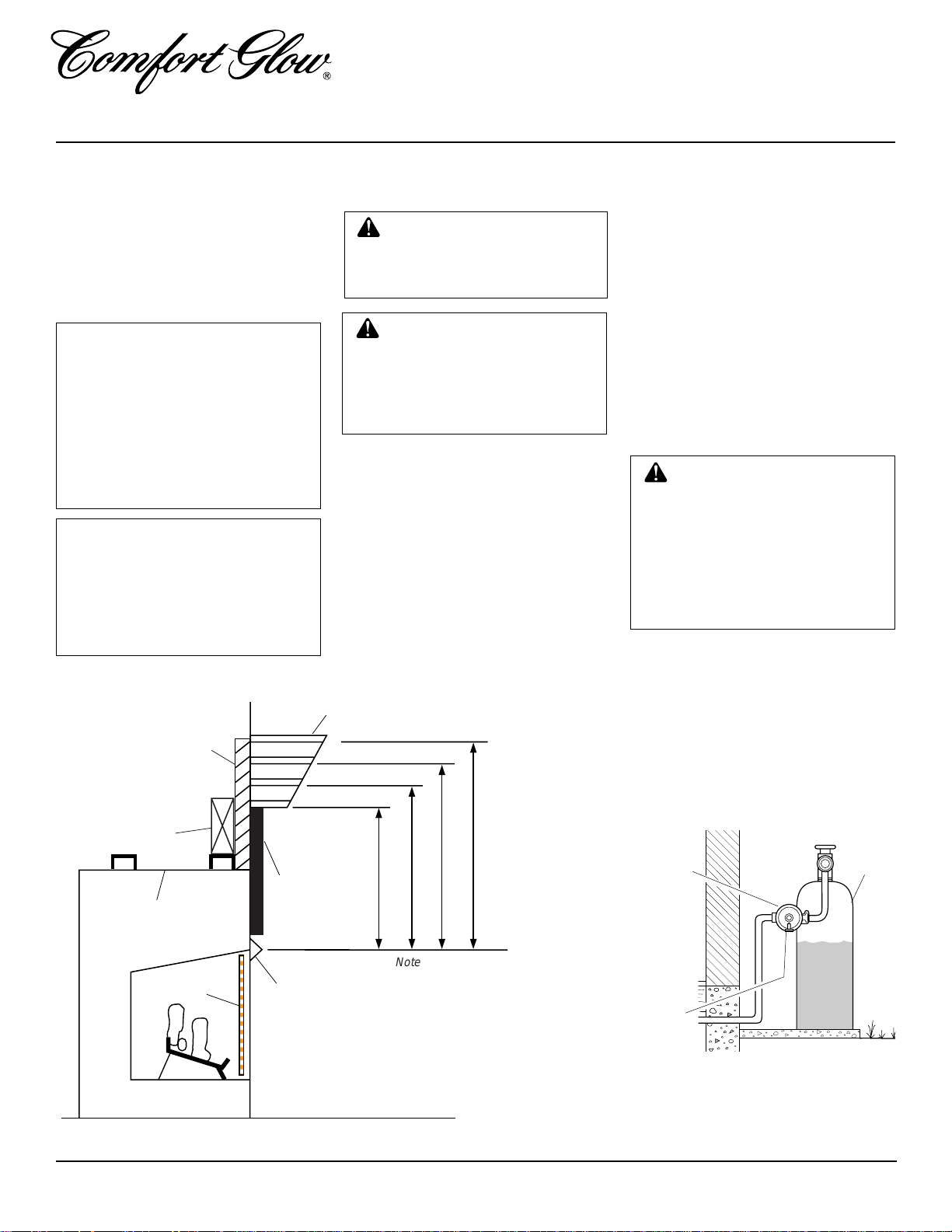

Figure 15 - Minimum Mantel Clearances for Built-In Installation

Supplied Firebox Hood Must Be Used at All Times

All vertical measurements are from top of fireplace hood opening to bottom of mantel shelf. These minimum clearances replace any other recommended clearances supplied with your ANS Z21.11.2 approved gas logs.

Vent Pointing Down

Figure 16 - External Regulator with Vent Pointing Down

107064

Page 11

OWNER’S MANUAL

INSTALLATION

Continued

Check your building codes for any special requirements for locating equipment shutoff valve to fireplaces.

Apply pipe joint sealant lightly to male threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged fireplace valves.

CAUTION: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 17. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into fireplace gas controls. If sediment trap is not installed or is installed wrong, fireplace may not run properly.

CONNECTING FIREPLACE TO GAS SUPPLY

Installation Items Needed

• 5/16" hex socket wrench or nut-driver

• Phillips screwdriver

• sealant (resistant to propane/LP gas, not provided)

1. Remove fireplace screen. Remove two

screws that hold fireplace screen in place for shipping. These screws are located near top of screen. Discard screws. Lift fireplace screen up and pull out to remove.

2. Remove screws that attach log base

assembly to fireplace (see Figure 18). Carefully lift up log base assembly and remove from fireplace (see Figure 18).

CAUTION: Do not pick up log base assembly by burners. This could damage burners. Only handle base by grates.

3. Route gas line (provided by installer) from equipment shutoff valve to fireplace. Route flexible gas supply line through one of the access holes.

NOTICE: Most building codes do not permit concealed gas connections. A flexible gas line is provided to allow accessibility from the fireplace (see Figure 19). The flexible gas supply line connection to the equipment shutoff valve should be accessible.

4. Attach the flexible gas line to gas supply (see Figure 19). Check tightness of flexible gas line attached to gas regulator of fireplace (see Figure 19).

5. Check all gas connections for leaks. See Checking Gas Connections, page 12.

6. Replace log base assembly back into fireplace. Feed flexible gas line into fireplace base area while replacing log base assembly. Make sure the entire flexible gas line is in fireplace base area. Reattach log base assembly to fireplace with screws removed in step 2.

CSA DesignCertified Equipment Shutoff Valve With 1/8" NPT Tap*

From External Regulator (11" W.C. to

3" Minimum

Pipe Cap Tee Nipple Joint

Sediment Trap

14 " W.C. Pressure

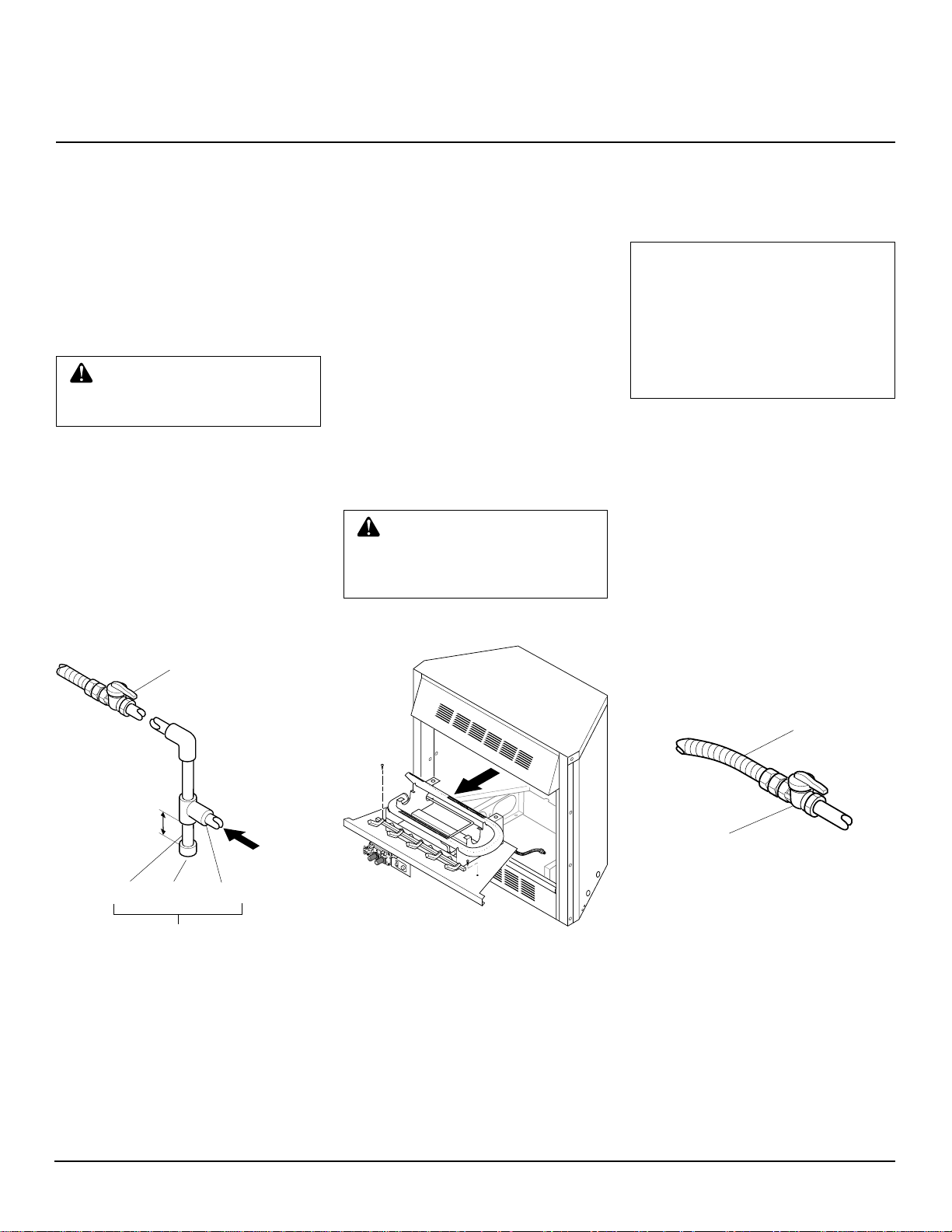

Figure 17 - Gas Connection

* Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, pages 24 and 25.

Figure 18 - Removing Log Base Assembly From Fireplace

To Fireplace Gas Regulator

➞

Equipment Shutoff Valve Provided by Installer

Flexible Gas Line from Fireplace Gas Regulator

➞

To External Regulator

Figure 19 - Attaching Gas Lines Together

107064

Continued

Page 12

LFP33PRA

POSITION

OFF

POSITION

UNVENTED PROPANE/LP GAS FIREPLACE

INSTALLATION

Continued

CHECKING GAS CONNECTIONS

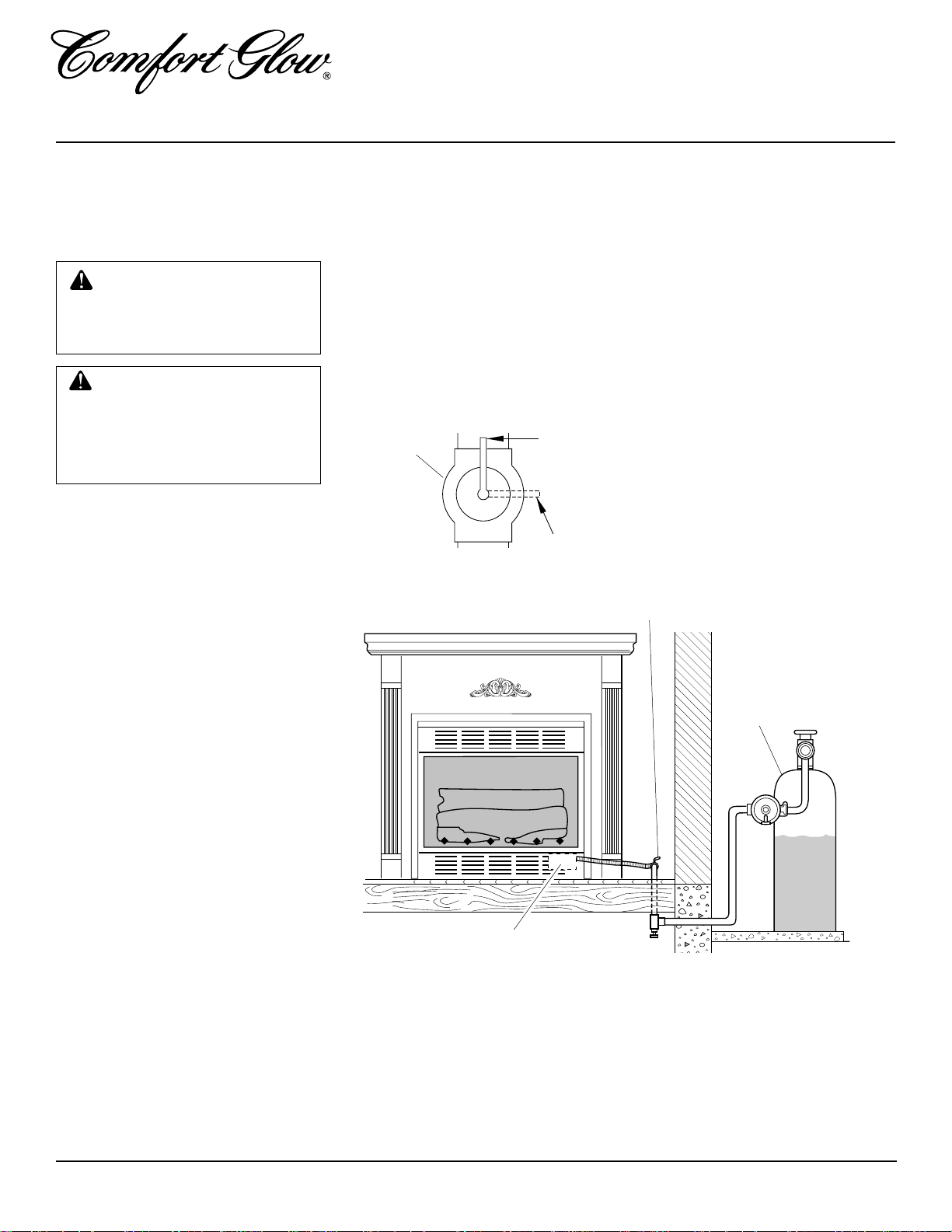

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles forming show a leak. Correct all leaks at once.

Pressure Testing Gas Supply Piping System

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage fireplace gas regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either using compressed air or opening propane/LP supply tank valve.

4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect fireplace and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 20).

2. Pressurize supply piping system by either using compressed air or opening propane/LP supply tank valve.

3. Check all joints from propane/LP supply to equipment shutoff valve (see Figure 21). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Open

Equipment Shutoff Valve

Closed

Figure 20 - Equipment Shutoff Valve

Equipment Shutoff Valve

Manual Gas Valve

Pressure Testing Fireplace Gas Connections

1. Open equipment shutoff valve (see Figure 20).

2. Open propane/LP supply tank valve.

3. Make sure control knob of fireplace is in the OFF position.

4. Check all joints from equipment shutoff valve to thermostat gas valve (see Figure 21). Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light fireplace (see Operating Fire- place, pages 16 and 17). Check all other internal joints for leaks.

7. Turn off fireplace (see To Turn Off Gas to Appliance, page 17).

Propane/LP Supply Tank

Figure 21 - Checking Gas Joints

107064

Page 13

OWNER’S MANUAL

INSTALLATION

Continued

INSTALLING LOGS

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

CAUTION: Do not remove the warning and instruction labels attached to the heater base assembly. These markings contain important warranty information.

WARNING: After installation and periodically thereafter, check to ensure that no flame comes in contact with any log. With the heater set to High, check to see if flames contact any log. If so, reposition logs according to the log installation instructions in this manual. Flames contacting logs will create soot.

Middle Log (#1)

"U"-shaped Cutout in Base

Burner

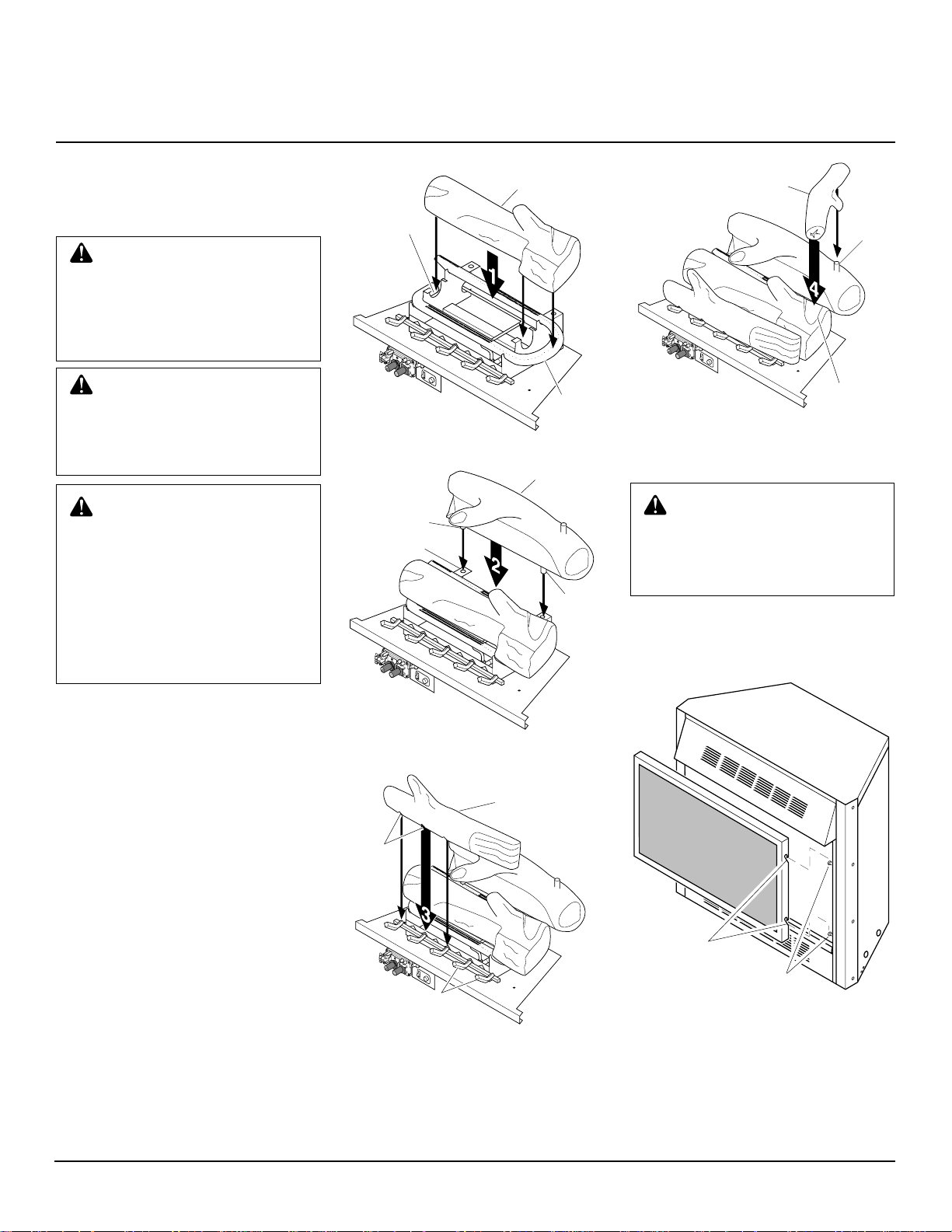

Figure 22 - Installing Middle Log (#1)

Back Log (#2)

Peg

Hole in Base

Peg

Crossover Log (#4)

Peg

Recess

Figure 25 - Installing Crossover Log (#4)

INSTALLING SCREEN

WARNING: You must operate this fireplace with the fireplace screen in place. Make sure fireplace screen is in place before running fireplace.

Install fireplace screen by slipping notches of fireplace screen over screws on front of fireplace (see Figure 26).

Each log is marked with a number. These numbers will help you identify the log when installing. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

1. Place the base of the middle log (#1) in the U-shaped slots of the grate base. The cutout on the right of the middle log should fit over the burner (see Figure 22). Make sure the front of the middle log is resting on the tabs of the grate base and the cutout area is centered over the burner “U” bend.

2. Locate pegs on the bottom of back log (#2). Slide these pegs into the holes in the grate base behind the burner (see Figure 23).

3. Locate the notches in the bottom of the front log (#3). Place the front log on the grate fingers. Make sure the notches of the front log line up with the grate fingers (see Figure 24).

4. Place crossover log (#4) onto the pin (right) on back log (#2) and into the recess of the middle log (#1) (see Figure 25).

Figure 23 - Installing Back Log (#2)

Front Log (#3)

Notches

Grate Fingers

Figure 24 - Installing Front Log (#3)

Notches

Screws for Mounting Screen

Figure 26 - Installing Fireplace Screen

Continued

107064

Page 14

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

INSTALLATION

Continued

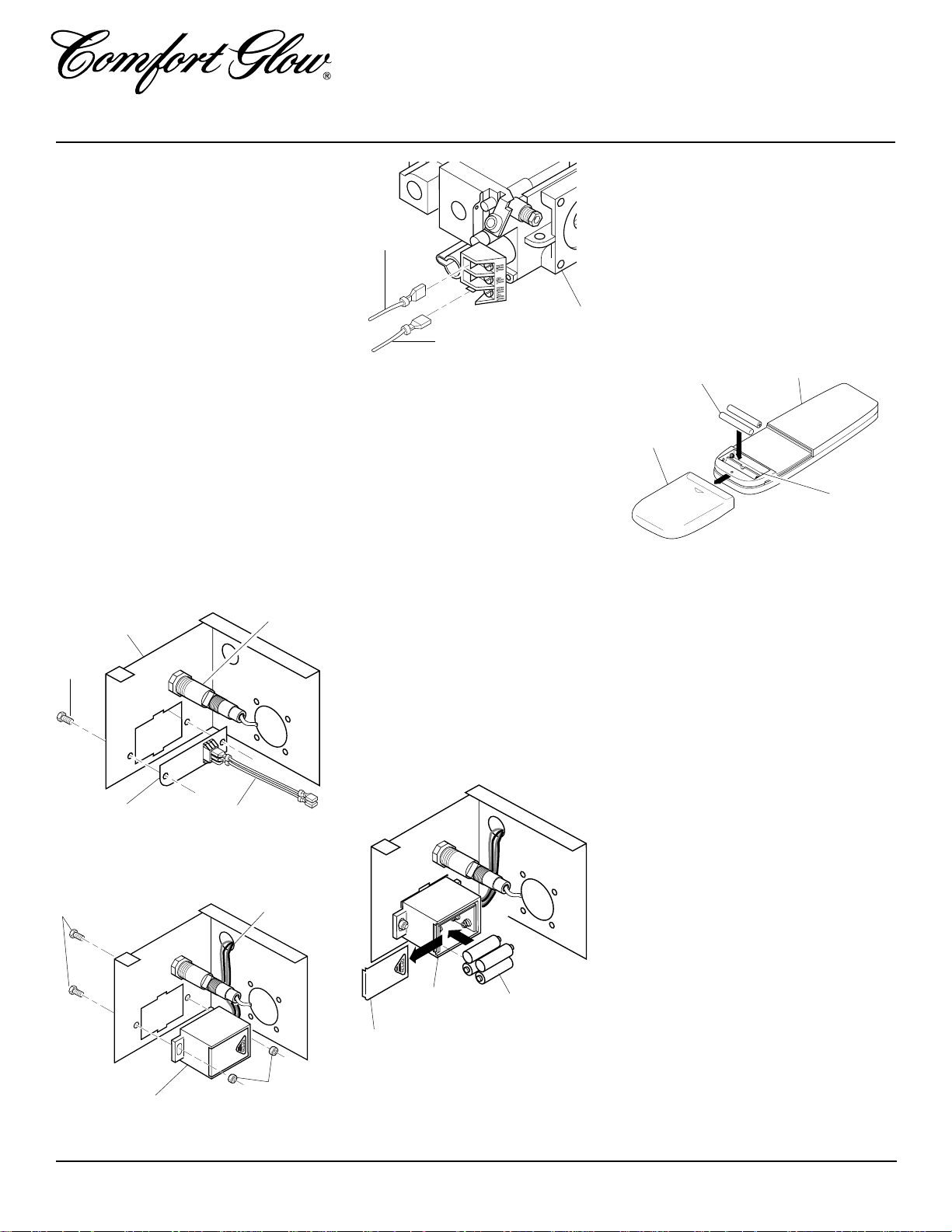

OPTIONAL WIRELESS HANDHELD REMOTE CONTROL ACCESSORY RM4

Installing Remote Receiver Unit

1. Disconnect switch wires from the control valve.

2. Remove screws and nuts attaching switchplate. Save screws and nuts to attach receiver.

3. Remove switch plate (see Figure 27). Discard after removing.

4. Install remote receiver unit onto remote switch bracket using screws and nuts removed in step 2. See Figure 28.

5. Route wires through hole in the upper portion of the switch plate (Figure 28). Connect wires as shown in Figure 29. (Black and blue wires are not used for this application.)

Remote Switch Bracket

Screw

Ignitor

White Wire From Receiver

Valve

Red Wire From Receiver

Figure 29 - Connecting Wires

INSTALLING BATTERIES FOR RM4

Four AA and two AAA batteries (not included) are required to operate this heater with the wireless hand held remote control set. AA batteries must be installed in the receiver and AAA batteries in the hand-held remote control unit. line batteries.

Installing Batteries in Receiver

1. Locate back of receiver behind the remote switch bracket under the firebox bottom.

2. Slide the battery door off of the receiver in the direction of the arrow on the door.

3. Insert the four AA batteries according to Figure 30.

4. Slide the battery door back into position.

Note:

Only use alka-

Installing Batteries in Hand-Held Remote Control Unit

1. Remove battery cover on front of remote control unit following direction of arrow.

2. Insert two AAA batteries following diagram in battery housing area.

3. Replace battery cover onto remote control unit.

Remote Control Unit

Battery Housing

AAA Batteries

Battery Cover

Figure 31 - Installing Battery in HandHeld Remote Control Unit

Switch Plate

Figure 27 - Switch Plate and Wiring Harness

Screws

Remote Receiver

Figure 28 - Installing Remote Receiver

Wires

Terminal Wires

Nuts

Remote Receiver

Battery Door

Figure 30 - Installing Battery in Remote Receiver

AA Batteries

107064

Page 15

OWNER’S MANUAL

INSTALLATION

Continued

OPTIONAL WIRELESS HANDHELD REMOTE CONTROL ACCESSORY CGHRC and CGHRCT SERIES

Installing Remote Receiver Unit

1. Disconnect switch wires from the control valve.

2. Remove screws attaching switchplate.

3. Remove switch plate (see Figure 32). Discard after removing.

4. Install remote receiver unit onto gas log heater base using mounting clips.

5. Push clips firmly into place (see Figure 33).

6. Connect wires as shown in Figure 34.

Remote Switch Bracket

Screw

Ignitor

White Wire From Receiver

Valve

Red Wire From Receiver

Figure 34 - Connecting Wires

INSTALLING BATTERIES FOR CGHRC AND CGHRCT SERIES

Two 9-volt batteries (not included) are required to operate this heater with the wireless hand held remote control set. Install one battery in the receiver and one in the handheld remote control unit. alkaline batteries.

Installing Battery in Receiver

1. Locate back of receiver under front burner of heater.

2. Locate the battery clip mounted on the back of the receiver.

3. Slide a 9-volt battery through the clip.

4. Attach the terminal wires to the battery.

Note:

Only use

Installing Battery in Hand-Held Remote Control Unit

1. Remove battery cover on back of remote control unit.

2. Attach terminal wires to the battery. Place battery into the battery housing.

3. Replace battery cover onto remote control unit.

Terminal Wires

9-Volt Battery

Figure 36 - Installing Battery in HandHeld Remote Control Unit

Battery Cover

Remote Control Unit

Battery Housing

Switch Plate

Figure 32 - Switch Plate and Wiring Harness

Mounting Clips

Remote Receiver

Figure 33 - Installing Remote Receiver

107064

Wires

Remote Receiver

Terminal Wires

Battery Clip

9-Volt Battery

Figure 35 - Installing Battery in Remote Receiver

Page 16

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

Note:

OPERATING FIREPLACE

FOR YOUR SAFETY

READ BEFORE

LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly .

B. BEFORE LIGHTING smell all

around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

•

Do not touch any electric switch; do not use any phone in your building .

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn

the gas control knob. Ne ver use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part

has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

WARNING: You must operate this fireplace with the fireplace screen in place. Make sure fireplace screen is installed before running fireplace.

NOTICE: During initial operation of new fireplace, burning logs will give off a paper-burning smell. Open damper or window to vent smell. This will only last a few hours.

1. STOP! Read the safety information, column 1.

2. Make sure equipment shutoff valve is fully open.

3. Set switch in OFF position.

WARNING: Burners will come on automatically within one minute when the selector switch is in the ON position after the pilot is lit.

4. Press in and turn control knob clockwise to the OFF position.

5. Wait f ive (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you don’t smell gas, go to the next step.

6. Press in and turn control knob counterclockwise to the PILOT position. Press in control knob for five (5) seconds (see Figure 37).

Ignitor Button

7. With control knob pressed in, press

8. Keep control knob pressed in for 30

9. Slightly push in and turn control

10. Wait one min ute and switch selector

11. Set flame adjustment knob to any

heating levels by using the manual shutoff valve.

You may be running this heater for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, contact a qualified service person or gas supplier for repairs. Until repair s are made, light pilot with match. T o light pilot with match, see Manual Light- ing Procedure on page 17.

seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out

when released, contact a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps

4 through 8.

knob counterclockwise to the ON position.

switch to the ON position to light burner.

level between HI and LO.

CAUTION: Do not try to adjust

AUTO ON OFF

Flame Adjustment Knob

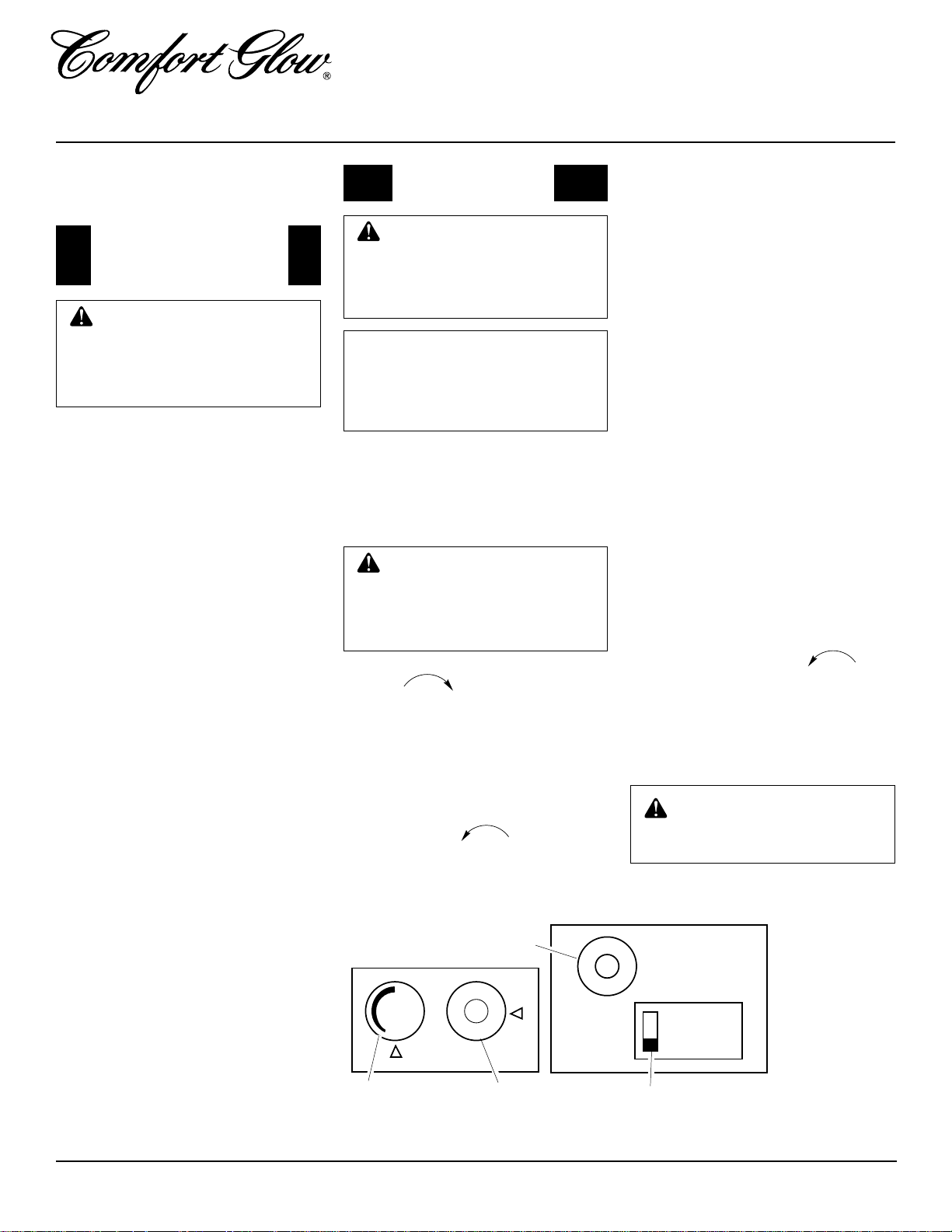

Figure 37 - Control Knob and Ignitor Button Location (Shown as Supplied, No Control Options)

Control Knob

Selector Switch in OFF Position

107064

Page 17

OWNER’S MANUAL

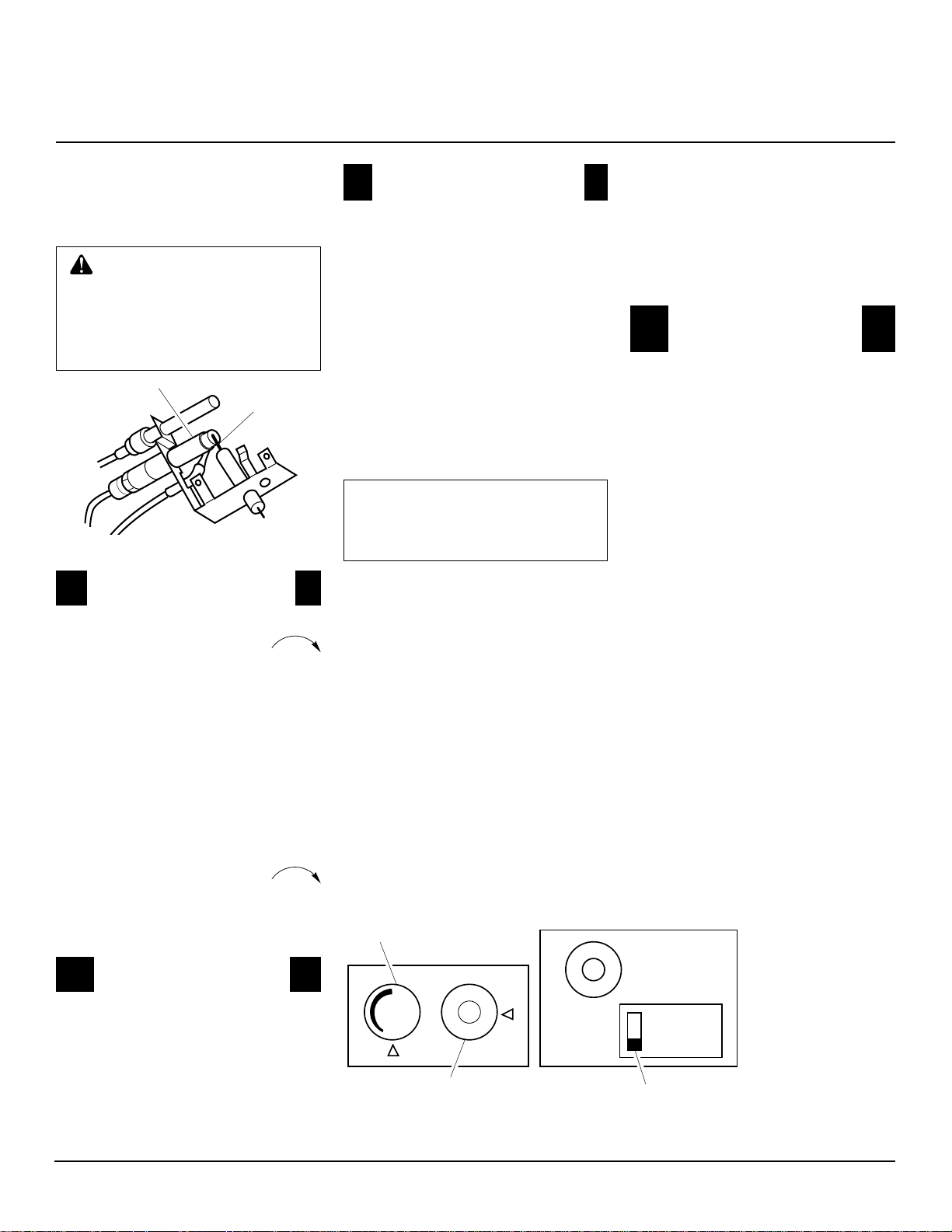

OPERATING FIREPLACE

Continued

WARNING: Make sure the selector switch is in the OFF position when you are away from home for long periods of time. Heater will come on automatically with selector switch in the ON position.

Pilot Burner

Figure 38- Pilot

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Heater

1. T urn control knob clockwise to the OFF position.

2a. Set selector switch in the OFF position. 2b. If Using Optional Hand-Held Re-

mote: Set selector switch in the OFF position to keep from draining the battery.

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

• Turn control knob clockwise

to the PILOT position.

• Use remote control manual OFF button.

• Set selector switch in the OFF position.

Ignitor Electrode

OPTIONAL REMOTE

OPERATION

Note:

The receiver and hand held remote control must be purchased separately (see Accessories, pages 24 and 25). Follow instructions included with the remote control.

Thermostat Control Operation

The thermostat control setting on the remote control unit can be set to any comfort level between HI and LO. The burners will turn on and off automatically to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

NOTICE: You must light the pilot before using the hand-held remote control unit. See

Instructions

on page 16.

After lighting, let pilot flame burn for about one minute. Turn control knob to ON position. Adjust flame adjustment knob anywhere between HI and LO. Slide the selector switch to the REMOTE position.

Note:

The burners may light if handheld remote ON button was on when selector switch was last turned off. You can now turn the burners on and off with the hand-held remote control unit. Follow instructions supplied with the remote control for additional features.

IMPORTANT:

Do not leave the selector switch in the REMOTE position when the pilot is not lit. This will drain the battery.

IMPORTANT:

Be sure to press the ON/ OFF buttons on the hand-held remote control unit for up to 3 seconds to assure proper operation.

Flame Adjustment Knob

Lighting

IMPORTANT:

The thermostat is built into the hand-held remote. The remote should be kept several feet from the fireplace and should be pointed towards the fireplace. If placed too close to the fireplace, the remote will sense the room is too hot and turn the fireplace off.

OPTIONAL BLOWER

OPERATION

Locate the blower switch by opening lower louver on fireplace. Blower switch is located at lower right inside louver door.

The GA3650TA Series thermostat-controlled blower has a variable speed control with an ON/OFF switch. The blower will start when the thermostat senses a sufficient increase in firebox temperature. The GA3750 Series variable speed blower also has an ON/OFF switch built into the variable speed control.

Note for GA3650TA Series Only:

you are using GA3650TA blower, your fireplace and blower will not turn on and off at the same time. The fireplace may run for several minutes before the blower turns on. After the heater modulates to the pilot position, the blower will continue to run. The blower will shut off after the firebox temperature decreases.

Note:

It is safe to operate fireplace with blower turned off. However, the blower helps distribute heated air from the fireplace.

Follow installation instructions included with the blower accessory.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 6 under Lighting Instructions, page 16.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 9, column 3, page 16.

107064

Control Knob in On Position

Figure 39 - Setting the Selector Switch, Control Knob, and Flame Adjustment Knob for Remote Operation

Selector Switch in Remote Position(Optional Remote Control)

ON OFF REMOTE

Continued

Page 18

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

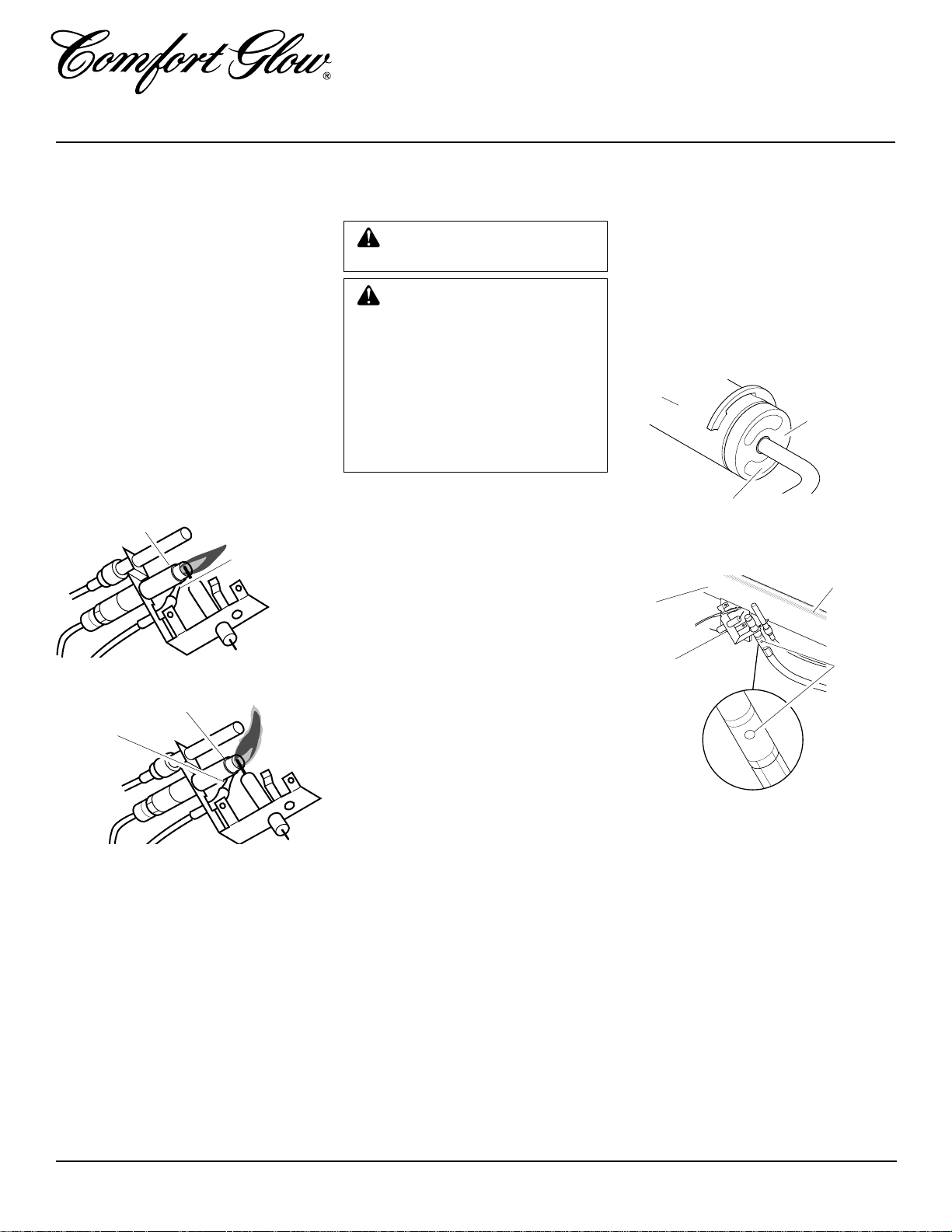

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 40 shows a correct pilot flame pattern. Figure 41 shows an incorrect pilot flame pattern. The incorrect pilot flame is not properly heating the thermocouple. When the thermocouple cools, the heater will shut down.

If pilot flame pattern is incorrect, as shown in Figure 41

• turn heater off (see To Turn Off Gas to

Appliance, page 17).

•

see Troubleshooting, pages 19 through 21.

Pilot Burner

Thermocouple

Figure 40 - Correct Pilot Flame Pattern

Pilot Burner

Thermocouple

Figure 41 - Incorrect Pilot Flame Pattern

MAIN BURNER

Periodically inspect all burner flame holes with the heater running. All slotted burner flame holes should be open with yellow flame present. All round burner flame holes should be open with a small blue flame present. Some burner flame holes may become blocked by debris or rust, with no flame present. If so, turn off heater and let cool. Either remove blockage or replace burner. Blocked burner flame holes will create soot.

CLEANING AND MAINTENANCE

WARNING: Turn off heater

and let cool before cleaning.

CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figure 42).

3. Blow air through the ports/slots and holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 43). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Burner Tube

Primary Air Inlet Holes (Shape of Holes May Vary by Model)

Figure 42 - Injector Holder On Outlet Burner Tube

Burner Tube

Pilot Assembly

Figure 43 - Pilot Inlet Air Hole

Injector Holder (May Be Brass or Aluminum Depending on Model)

Ports/Slots

Pilot Air Inlet Hole

LOGS

• If you remove logs for cleaning, refer to

Installing Logs, page 13, to properly replace logs.

• Replace log(s) if broken or chipped

(dime-sized or larger).

MAIN BURNER

107064

Page 19

OWNER’S MANUAL

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s technical service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

WARNING: Turn off heater and let cool before servicing. Only a qualified service person should service and repair heater.

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode broken

7. Ignitor electrode positioned wrong

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Tighten nut holding piezo ignitor to base panel of log set. Nut is located behind base panel

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace piezo ignitor

7. Replace piezo ignitor

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 18) or replace ODS/ pilot assembly

7. Replace gas control

ODS/pilot lights but flame goes out when control knob is released

107064

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Equipment shutoff valve not fully open

4. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

5. Thermocouple connection loose at control valve

6. Thermocouple damaged

7. Control valve damaged

www.desatech.com

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Fully open equipment shutoff valve

4. A) Contact local propane/LP gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 18) or replace ODS/ pilot assembly

5. Hand tighten until snug, then tighten 1/4 turn more

6. Replace thermocouple

7. Replace control valve

Continued

Page 20

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

Burner does not light after ODS/pilot is lit

Delayed ignition burner

Burner backfiring during combustion

Slight smoke or odor during initial operation

POSSIBLE CAUSE

1. Burner orifice clogged

2. Inlet gas pressure is too low

3. Burner orifice diameter is too small

4. Thermopile leads disconnected or improperly connected

5. Burners will not come on in remote position

1. Manifold pressure is too low

2. Burner orifice clogged

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Not enough air

2. Gas regulator defective

3. Residues from manufacturing processes and logs curing

REMEDY

1. Clean burner (see Cleaning and Maintenance, page 18) or replace burner orifice

2. Contact local propane/LP gas company

3. Replace burner orifice

4. Reconnect leads (see Wiring Diagram, page 22)

5. Replace battery in transmitter and receiver

1. Contact local propane/LP gas company

2. Clean burner (see Cleaning and Main- tenance, page 18) or replace burner orifice

1. Clean burner (see Cleaning and Maintenance, page 18) or replace burner orifice

2. Replace damaged burner

3. Replace gas control

1. Check burner for dirt and debris. If found, clean burner (see Cleaning and Maintenance, page 18)

2. Replace gas control

3. Problem will stop after a few hours of operation

Moisture/condensation noticed on windows

Heater produces a whistling noise when burner is lit

White powder residue forming within burner box or on adjacent walls or furniture

Remote does not function

1. Not enough combustion/ventilation air

1. Turning control knob to HI position when burner is cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orifice

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. turn into white powder residue

1. Battery is not installed. Battery power is low

www.desatech.com

1. Refer to Air for Combustion and Ventilation requirements (page 4)

1. Turn control knob to LO position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas line checked by local propane/LP gas company

3. Observe minimum installation clearances (see pages 8 through 10)

Clean burner (see Cleaning and Mainte- nance, page 18) or replace burner orifice

1. Turn heater off when using furniture polish, wax, carpet cleaners, or similar products

1. Replace 9-volt batteries in receiver and remote control

107064

Page 21

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

OWNER’S MANUAL

IMPORTANT:

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

Fireplace produces a clicking/ticking noise just after burners are lit or shut off

Fireplace produces unwanted odors

Fireplace shuts off in use (ODS operates)

Gas odor even when control knob is in OFF position

Operating heater where impurities in air exist may create odors. Cleaning

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Fireplace burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (see above)

2. Gas leak. See Warning statement

above

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

1. Gas leak. See Warning statement

above

2. Control valve defective

IMPORT ANT

statement

REMEDY

1. This is common with most fireplaces. If noise is excessive, contact qualified service person

1. Open window and ventilate room. Stop using odor causing products while fireplace is running

2. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

1. Open window and/or door for ventilation

2. Contact local propane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 18)

1. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

2. Replace control valve

Gas odor during combustion

Dark residue on logs or inside of fireplace

107064

1. Foreign matter between control valve and burner

2. Gas leak. See Warning statement

above

1. Improper log placement

2. Drafts or other air currents affecting flame pattern

3. Air holes at burner inlet blocked

4. Burner flame holes blocked

www.desatech.com

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, page 12)

1. Properly locate logs (see Installing Logs, page 13)

2. Eliminate source of drafts around heater

3. Clean out air holes at burner inlets. Periodically repeat as needed

4. Remove blockage or replace burner

Page 22

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

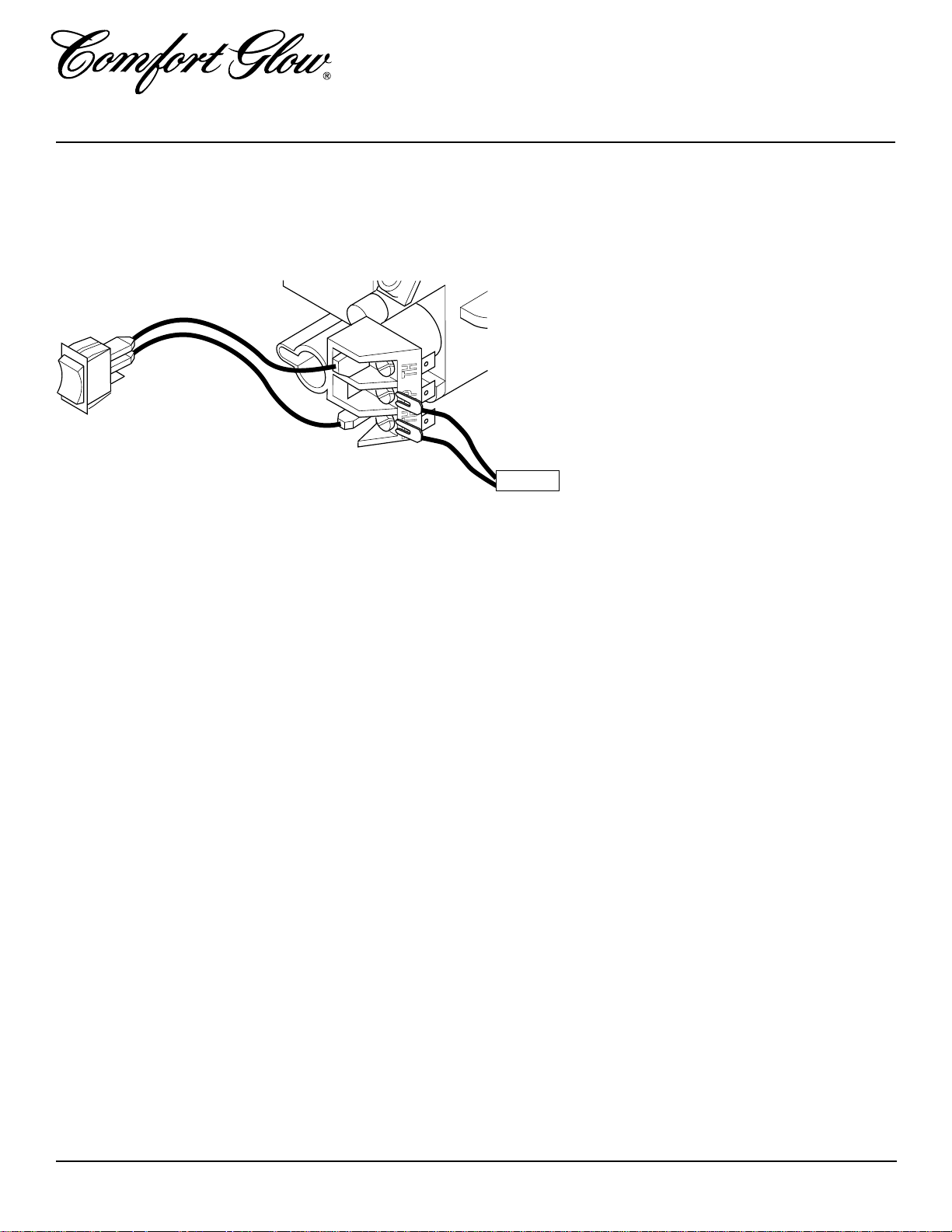

WIRING DIAGRAM

Note

: For proper operation of optional accessories, the wires from the switch to the control must be connected exactly as shown.

AUTO

OFF

SPECIFICATIONS

LFP33PR Remote Ready

Btu (Variable) 20,000/33,000 Type Gas Propane/LP Only Ignition Piezo Pressure Manifold 8.0" W.C. Inlet Gas Pressure (in. of water)

Maximum 14" Minimum* 11"

Shipping Weight 30 lbs. (24")/32 lbs.

(30")/34 lbs. (36”)

* For input adjustment

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specified heat

• propane/LP gas supply may be low

When Gas Quality Is Bad

• pilot will not stay lit

• burners will produce flames and soot

• heater will backfire when lit You may feel your gas pressure is too low or

gas quality is bad. If so, contact your local propane/LP gas supplier.

Thermopile

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting.

If so, contact DESA International’s Technical Service Department at 1-800-DESA LOG (1-800-337-2564).

You can also visit DESA International’s technical service web site at

www.desatech.com.

107064

Page 23

OWNER’S MANUAL

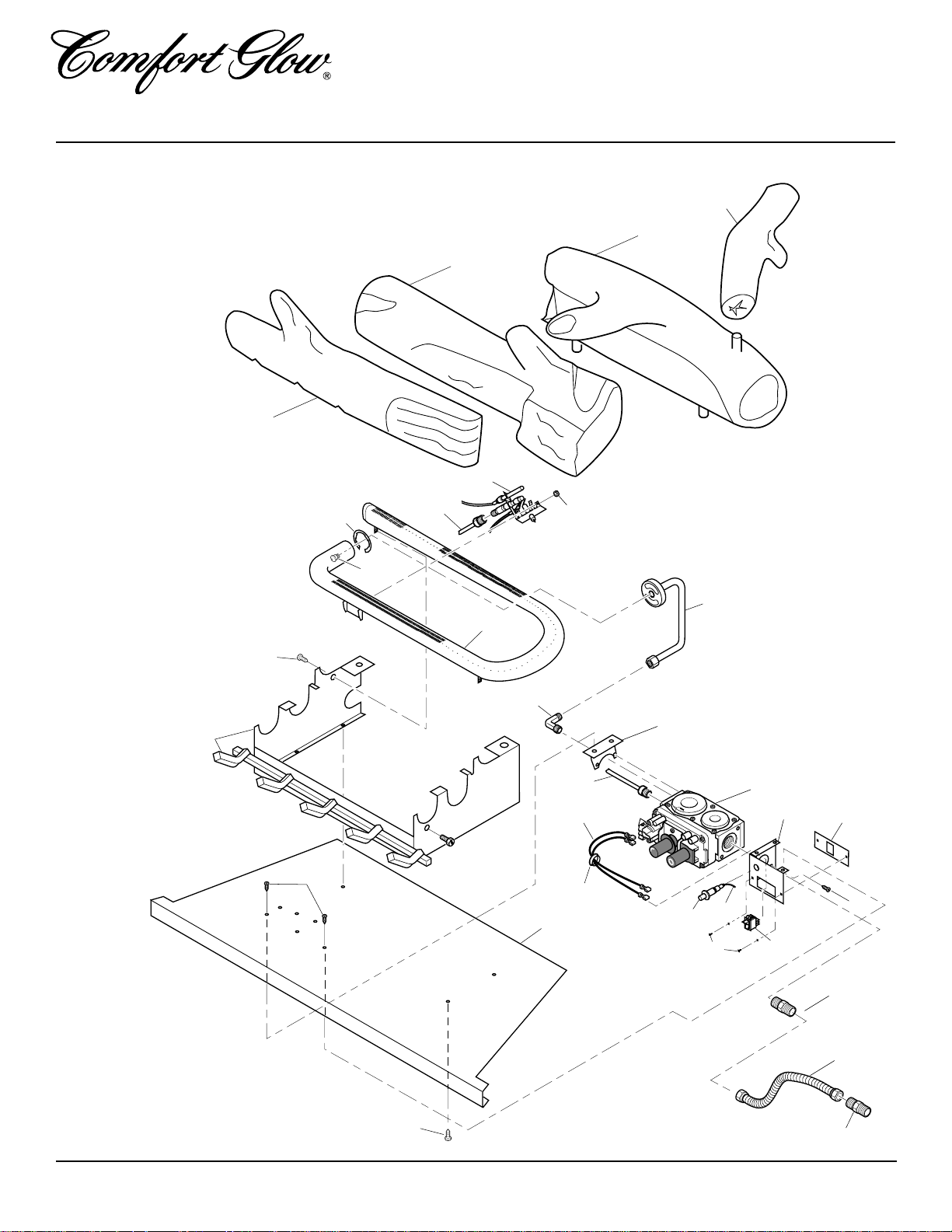

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA International’s Technical Service Department at 1-800-DESA LOG (1-800337-2564).

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• type of gas used (propane/LP or natural

gas)

• purchase date Usually, we will ask you to return the defec-

tive part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product or Parts Central. If they can’t supply original replacement part(s), call DESA International’s Parts Department at 1-800972-7879 for referral information.

When calling DESA International, have ready

• model number of your fireplace

• the replacement part number

PARTS CENTRAL

These Parts Centrals are privately owned businesses. They have agreed to support our customer’s needs by providing original replacement parts and accessories.

Baltimore Electric

1348 Dixwell Avenue Hamden, CT 06514-0322 1-800-397-7553 203-248-7553 Parts Department

Portable Heater Parts

342 N. County Rd. 400 East Valparaiso, IN 46383-9704 All States 219-462-7441 1-800-362-6951 [email protected] [email protected]

FBD

1349 Adams Street Bowling Green, KY 42103-3414 270-846-1199 1-800-654-8534 Fax: 1-800-846-0090 [email protected]

Master Parts Dist.

1251 Mound Ave NW Grand Rapids, MI 49504-2672 616-791-0505 1-800-446-1446 Fax: 616-791-8270 www.nbmc.com

Washer Equipment Co.

1715 Main Street Kansas City, MO 64108-2195 KS, MO, AR 816-842-3911 www.washerparts.com

East Coast Energy Products

707 Broadway W. Long Branch, NJ 07764-1542 732-870-8809 1-800-755-8809 www.njplaza.com/ecep

Tarantin Tank Co.

P.O. Box 6129 Freehold, NJ 07728-6129 908-780-9340 1-800-922-0724 www.tarantin.com

Heater & Fireplace Store

58 Halbe Lane Cape May Court, NJ 08210-1110 609-390-1100 Parts Department

Dayton Hardware

P.O. Box 275 North Dayton Station Dayton, OH 45404-0275 All States 937-258-3721 OH 1-800-762-3426

Halco Enterprises

208 Carter Drive, Unit 21 West Chester, PA 19382-4500 610-430-7717 1-800-368-0803 www.halcoenterprises.com

LA Porte’s Parts & Service

2444 N. 5th Street Hartsville, SC 29550-7704 803-332-0191 Parts Department

Cans Unlimited, Inc.

P.O. Box 645 Taylor, SC 29687-0013 All States 803-879-3009 1-800-845-5301 [email protected]

107064

Page 24

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

ACCESSORIES

Purchase these fireplace accessories from your local dealer or Parts Central. If they can not supply these accessories, call DESA International’s Sales Department at 1-800458-2472 for referral information. You can also write to the address listed on the back page of this manual.

CABINET MANTEL ACCESSORY WITH FIREPLACE PERIMETER BRASS TRIM

HEARTH BASE (for Use with Cabinet Mantel)

GC3333F Series - Walnut Finished Hardwood Veneer

GC3334U Series - Unfinished Hardwood Veneer

GC3335F Series - Medium Stained Oak Veneer

The hearth base creates a handsome riser for the fireplace. Dimensions (H xW xD): 6 1/2" x 58" x 28 9/16"

LOWE’S EXCLUSIVE CABINET MANTEL AND BASE ACCESSORY WITH FIREPLACE PERIMETER TRIM

GMC8CU Series - Unfinished Birch Veneer, Ready to Stain or Paint

GMC9CF Series - Walnut Stained Birch Veneer

GMC10CF Series - Stained Oak Veneer

Mantel and base feature moldings, fluted sides, and medallion.

Mantel Dimensions (H xW xD): 44 3/4" x 53" x 20 3/4"

Base Dimensions (H xW xD): 3 3/4" x 48 1/4" x 23 3/4"

GMC11F Series - Walnut Finished Hardwood Veneer

GMC12U Series - Unfinished Hardwood Veneer, Ready to Stain or Paint

GMC13F Series - Medium Stained Oak Veneer

Mantel features moldings, fluted sides, and medallion. Shown with optional base accessory.

Dimensions (H xW xD): 44" x 57 3/4" x 22 7/8"

CORNER MANTEL ACCESSORY WITH FIREPLACE PERIMETER BRASS TRIM (Not Shown)

GMC36F Series - Walnut Finished Birch Veneer

GMC37U Series - Unfinished Birch Veneer, Ready to Stain or Paint.

Space saving corner mantels feature moldings, fluting and medallion.

Dimensions (H xW xD): 48 3/4" x 60 7/8" x 34 3/4"

107064

Page 25

OWNER’S MANUAL

ACCESSORIES

Continued

EQUIPMENT SHUTOFF VALVE GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap. Fits 1/2" NPT pipe.

HAND-HELD REMOTE CONTROL - RM4

For remote control operation. Installation and limited operation instructions included in this manual. Extended operation instructions included with remote. Hand-held re-

mote control is available at Lowe's and is not supplied by Comfort Glow.

TEMP

MAN

AUTO

ONLO

OFF

STATUS

CLEANING KIT - CCK (Not Shown)

Your vent-free gas appliance requires regular cleaning and maintenance to prevent performance problems. This kit gives you the tools and instructions to make it easy to clean all critical areas of your appliance.

BLOWER ACCESSORY GA3750 SERIES AND GA3650T SERIES

Manual variable control and automatic thermostat variable control. A blower will increase air flow to maximize heat distribution.

DUPLEX OUTLET KIT GA3555 (Not Shown)

Use for built-in installations when hard wiring a blower.

BRASS TRIM ACCESSORY GA7090 (Not Shown)

Optional with built-in installation. Provides a finished appearance covering rough and/or unfinished mantel or wall opening, edges, etc.

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT CGHRCT SERIES

Allows the gas log heater to be operated in a manually or thermostatically controlled mode. You can turn the gas log heater on and off without ever leaving the comfort of your easy chair.

RECEIVER AND HANDHELD REMOTE CONTROL KIT - CGHRC SERIES

Allows the gas log heater to be turned on and off by using a hand-held remote control.

107064

Page 26

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

ILLUSTRATED PARTS

BREAKDOWN

REMOTE READY MODEL LFP33PRA

107064

Page 27

OWNER’S MANUAL

PARTS LIST

REMOTE READY MODEL LFP33PRA

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 23 of this manual.

KEY NO. PART NUMBER DESCRIPTION QTY.

1 104937-01 Log #1, Middle 1 2 104938-01 Log #2, Back 1 3 104936-01 Log #3, Front 1 4 104939-01 Log #4, Crossover 1 5 103778-01 ODS Pilot (LP) 1 6 098249-01 ODS Nut 2 7 099387-03 Pilot Tube 1 8 104229-02 Burner Outlet Tube 1 9 102843-01 Burner Clip 1 10 099056-19 Burner Orifice Injector 1 11 102772-01 Burner 2 12 M11084-38 Screw, #8 x .38 2 13 104236-01CK Painted Base Assy 1 14 M12461-26 Screw, #10 x .32 4 15 104238-01CK Firebox Bottom 1 16 103284-03 Wiring Harness 1 17 098265-02 Elbow, Male 1 18 103782-01 Valve Bracket 1 19 103781-02 Gas Control Valve 1 20 098271-03 Ignitor Cable 1 21 102445-01 Piezo Ignitor 1 22 098304-01 Pan Head Screw #10 10 23 099998-01 Switch 1 24 104241-01 Remote Switch Bracket 1 25 103587-02CK Switch Plate 1 26 097809-02 Male Connector 1 27 101628-03 Flexible Connector (Hose) 1 28 M50104-02 Bushing 1 29 M11084-26 Screw, #10 x .38 4 30 901256-01 Fitting 3/8" Flare to 1/2"NPT 1

PARTS AVAILABLE — NOT SHOWN

107064

100639-01 Caution Decal 1 101416-43 Information Video 1

Page 28

LFP33PRA

UNVENTED PROPANE/LP GAS FIREPLACE

ILLUSTRATED PARTS BREAKDOWN

FIREPLACE LFP33PRA

107064

Page 29

OWNER’S MANUAL

PARTS LIST

FIREPLACE LFP33PRA

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 23 of this manual.

KEY NO. PART NUMBER DESCRIPTION QTY.

1 101357-01 Top Outer Casing 1 2 103207-01 Outer Casing 1 3 102758-02CK Right Front Side 1 4 102759-02CK Left Front Side 1 5 101514-01CK Cover 1 6 101784-01 Snap-in Magnet 2 7 103411-01CK Louver Hood 1 8 101838-03CK Firebox Wrapper 1 9 103412-01CK Louver Door 1 10 101727-02 Screen Assembly 1 11 101348-01 Firebox Support 2 12 103207-01 Outer Base 1 13 099230-02 Shoulder Screw 6 14 098304-01 Phillips Pan Head Screw, #10 15 15 101872-03 Firebox Top 1 16 M11084-26 Hex Screw, #10 45 17 101746-01 Handle 1 18 100587-01 Brass Screw, #6-20x3/8" 3

PARTS AVAILABLE — NOT SHOWN

102307-01 Strike Plate 2 101386-02 Hinge 2 104355-06 AGA Information Decal 1 104356-01 Warning Decal 1 19724000 Cable Tie 1 103411-03CK Front Fireplace Assy 1

107064

Page 30

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written

warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

COMFORT GLOW VENT-FREE PROPANE/LP GAS FIREPLACE

DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

INTERNATIONAL

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

107064 01

NOT A UPC

107064-01 Rev. B 04/00
