Page 1

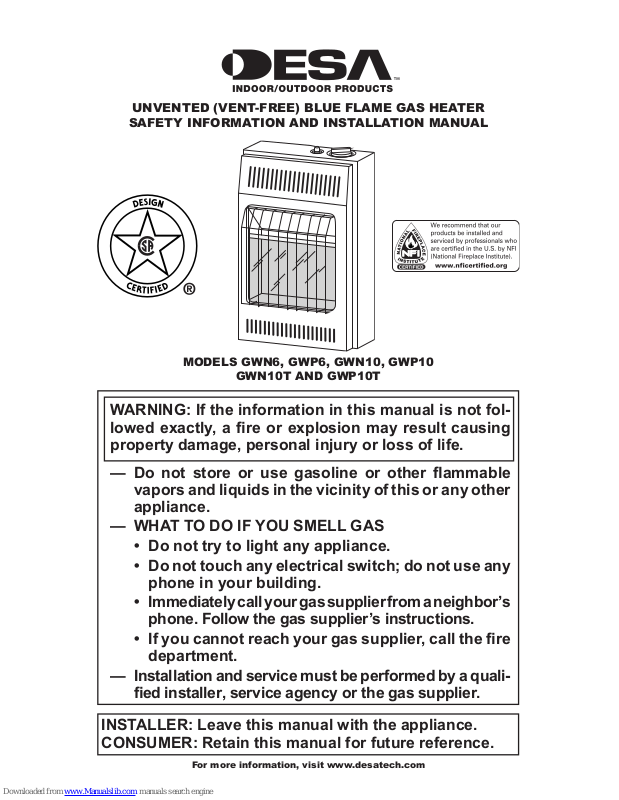

UNVENTED (VENT-FREE) BLUE FLAME GAS HEATER

SAFETY INFORMATION AND INSTALLATION MANUAL

MODELS GWN6, GWP6, GWN10, GWP10

GWN10T AND GWP10T

For more information, visit www.desatech.com

WARNING: If the information in this manual is not fol-

lowed exactly, a re or explosion may result causing property damage, personal injury or loss of life.

— Do not store or use gasoline or other ammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

— Installation and service must be performed by a quali-

ed installer, service agency or the gas supplier.

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

Page 2

www.desatech.com

117001-01B2

SAFETY INFORMATION

WARNING: Improper installation, adjustment, al-

teration, service or mainte-

nance can cause injury or property damage. Refer to

this manual for correct in-

stallation and operational procedures. For assis-

tance or additional infor-

mation consult a qualied installer, service agency or the gas supplier.

WARNING: This is an

unvented gas-red heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided.

Refer to Air for Combustion and Ventilation section on

page 5 of this manual.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

This appliance may be in-

stalled in an aftermarket,*

pe rm an en tly lo ca te d, manufactured (mobile) home, where not prohibited by local codes.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

WARNING: This product con-

tains and/or generates chemicals

known to the State of California

to cause cancer or birth defects or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock and carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon

monoxide poisoning resemble the u, with headaches, dizziness or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the inuence of alcohol and those at high altitudes.

TABLE OF CONTENTS

Safety Information ............................................... 2

Local Codes......................................................... 4

Unpacking............................................................ 4

Product Identication ........................................... 4

Product Features ................................................. 4

Air For Combustion and Ventilation ..................... 5

Installation ........................................................... 7

Operating Heater ............................................... 12

Inspecting Heater .............................................. 14

Cleaning and Maintenance ................................ 15

Troubleshooting ................................................. 16

Illustrated Parts Breakdown and Parts List........ 20

Specications .................................................... 24

Accessories ....................................................... 25

Service Hints ..................................................... 25

Technical Service............................................... 25

Service Publications .......................................... 25

Replacement Parts ............................................ 25

Parts Central...................................................... 26

Warranty Information ...........................Back Cover

Page 3

www.desatech.com

3117001-01B

Natural and Propane/LP Gas: Natural and Pro-

pane/LP gases are odorless. An odor-making agent is added to these gases. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to

this heater or its controls can

be dangerous.

WARNING: Do not use a

blower insert, heat exchanger insert or other accessory not approved for use with this heater.

Due to high temperatures, the appliance should be located out of trafc and away from furniture and draperies.

Do not place clothing or other ammable material on or near the appliance. Never place any objects on the heater.

Surface of heater becomes very hot when running heater. Keep

children and adults away from

hot surface to avoid burns or clothing ignition. Heater will

remain hot for a time after shut-

down. Allow surface to cool before touching.

Carefully supervise young chil-

dren when they are in the same

room with heater.

Make sure grill guard is in place before running heater.

Keep the appliance area clear and free from combustible materials, gasoline and other ammable vapors and liquids.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors.

3. Do not install 10,000 Btu/hr units in a bathroom (6,000 Btu/hr heaters are allowed in a bathroom).

4. If you smell gas

• Shut off gas supply

• Do not try to light any appliance

• Do not touch any electrical switch; do not

use any phone in your building

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions

• If you cannot reach your gas supplier, call

the re department

5. This heater needs fresh, outside air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, page 5.

6. Keep all air openings in the front and bottom of heater clear and free of debris. This will insure enough air for proper combustion.

7. If heater shuts off, do not relight until you provide fresh, outside air. If heater keeps shutting off, have it serviced.

8. Do not run heater

• where ammable liquids or vapors are used

or stored

• under dusty conditions

9. Do not use heater if any part has been under water. Immediately call a qualied service

technician to inspect the room heater and to replace any part of the control system and any

gas control which has been under water.

10. Turn off heater and let cool before servicing. Only a qualied service person should service and repair heater.

11. Operating heater above elevations of 4,500 feet (1,371 m) could cause pilot outage.

12. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. (45 kg) capacity.

SAFETY INFORMATION

Continued

Page 4

www.desatech.com

117001-01B4

13. Before using furniture polish, wax, carpet cleaner or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

14. Provide adequate clearances around air openings.

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the lat-

est edition of The National Fuel Gas Code, ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

State of Massachusetts: The installation must be made by a licensed plumber or gas tter in the Commonwealth of Massachusetts.

Sellers of unvented propane or natural gas-red supplemental room heaters shall provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

Vent-free gas products are prohibited for bed-

room and bathroom installation in the Com-

monwealth of Massachusetts.

UNPACkING

1. Remove heater from carton.

2. Remove all protective packaging applied to heater for shipment.

3. Check heater for any shipping damage. If heater is damaged, promptly return to where you bought heater.

SAFETY INFORMATION

Continued

Figure 1 - Vent-Free Gas Heater

Control Knob

Ignitor Button

Glass Panel

Grill Guard

Front Panel

Heater Cabinet

PRODUCT

IDENTIFICATION

PRODUCT FEATURES

SAFETY DEVICE

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches, batteries or other sources to light heater.

THERMOSTATIC HEAT CONTROL

(Thermostat Models Only)

Thermostat models have a thermostat sensing bulb and a control valve. This results in the greatest heater comfort. This can also result in lower gas bills.

Page 5

www.desatech.com

5117001-01B

AIR FOR COMBUSTION

AND VENTILATION

WARNING: This heater shall

not be installed in a conned space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efcient than ever. New materials, increased insulation and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efcient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, replaces, clothes dryers and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classications:

1. Unusually Tight Construction

2. Unconned Space

3. Conned Space

The information on pages 5 through 7 will help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is dened as construction where:

a. walls and ceilings exposed to the outside

atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10

-11

per pa-sec-m2) or less with openings gasketed or sealed and

b. weather stripping has been added on openable

windows and doors and

c. caulking or sealants are applied to areas such

as joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical and gas lines and at other openings.

If your home meets all of these three criteria, you must provide additional fresh air. See Ventilation Air From Outdoors, page 7.

If your home does not meet all of the three criteria above, proceed to Determining Fresh-Air Flow For Heater Location, page 6.

Conned and Unconned Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 denes a conned space as a space whose

volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input

rating of all appliances installed in that space and

an unconned space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconned space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

Page 6

www.desatech.com

117001-01B6

The space in the above example is a conned space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an

adjoining room. If the extra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From Inside Building.

B. Vent room directly to the outdoors. See Ventila-

tion Air From Outdoors, page 7.

C. Install a lower Btu/Hr heater, if lower Btu/Hr size

makes room unconned.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconned space. You will need no additional fresh air ventilation.

WARNING: If the area in

which the heater may be operated is smaller than that dened as an unconned space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described

in the National Fuel Gas Code, ANSI Z223.1/NFPA 54 Section 5.3

or applicable local codes.

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconned space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" (30.5 cm) of the ceiling and one within 12" (30.5 cm) of the oor on the wall connecting the two spaces (see options 1 and 2, Figure 2, page 7). You can also remove door into adjoining room (see option 3, Figure 2, page 7). Follow the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of

ventilation grills or ducts.

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Conned or Unconned Space

Use this work sheet to determine if you have a conned or unconned space.

Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height =__________cu. ft.

(volume of space)

Example: Space size 20 ft. (6.1 m) (length) x 16

ft. (4.88 m) (width) x 8 ft. (2.44 m) (ceiling height) = 2560 cu. ft. (72.49 m3) (volume of space)

If additional ventilation to adjoining room is

supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maxi-

mum Btu/Hr the space can support)

Example: 2,560 cu. ft. (72.49 m3) (volume of

space) x 20 = 51,200 (maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free heater ___________ Btu/Hr Gas water heater* ___________ Btu/Hr Gas furnace ___________ Btu/Hr Vented gas heater ___________ Btu/Hr Gas replace logs ___________ Btu/Hr Other gas appliances* + __________ Btu/Hr Total = __________ Btu/Hr * Do not include direct-vent gas appliances. Di-

rect-vent draws combustion air from the outdoors and vents to the outdoors.

Example:

Gas water heater ___________ Btu/Hr Vent-free heater + __________ Btu/Hr Total = __________ Btu/Hr

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

__________Btu/Hr (maximum the space can support)

__________Btu/Hr (actual amount of Btu/Hr used) Example: 51,200 Btu/Hr (maximum the space

can support)

60,000 Btu/Hr (actual amount of

Btu/Hr used)

AIR FOR COMBUSTION

AND VENTILATION

Continued

50,000 10,000 60,000

Page 7

www.desatech.com

7117001-01B

AIR FOR COMBUSTION

AND VENTILATION

Continued

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" (30.5 cm) of the ceiling and one within 12" (30.5 cm) of the oor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of

ventilation grills or ducts. IMPORTANT: Do not provide openings for inlet

or outlet air into attic if attic has a thermostatcontrolled power vent. Heated air entering the attic will activate the power vent.

Figure 2 - Ventilation Air from Inside

Building

Figure 3 - Ventilation Air from Outdoors

INSTALLATION

NOTICE: This heater is intended

for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualied service person must install heater. Follow all local codes.

CHECK GAS TYPE

Use only the correct type of gas (natural or propane/LP). If your gas supply is not the correct gas type, do not install heater. Call dealer where you bought heater for proper type heater.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

WARNING: This appliance is equipped for (natural or propane/LP) gas. Field conversion is not permitted.

INSTALLATION ITEMS

Before installing heater, make sure you have the items listed below.

• for propane/LP gas, external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• ground joint union

• sediment trap

• tee joint

• pipe wrench

• for natural gas, test gauge connection*

* A CSA design-certied equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. The optional CSA designcertied equipment shutoff valve can be purchased from your dealer. See Accessories, page 25.

Remove

Door into

Adjoining

Room,

Option 3

Ventilation Grills

Into Adjoining Room,

Option 2

12"

Ventilation

Grills

into Adjoining

Room,

Option 1

Outlet Air

Ventilated Attic

Outlet

Inlet Air

Ventilated

Crawl Space

Crawl

Space

To Attic

Page 8

www.desatech.com

117001-01B8

LOCATING HEATER

This heater is designed to be mounted on a wall.

WARNING: Maintain the

minimum clearances shown

in Figure 4. If you can, provide greater clearances from oor, ceiling and joining wall.

WARNING: Never install the

heater

• in a bathroom (10,000 Btu/hr only. 6,000 Btu/hr models are allowed in a bathroom. Check local codes.)

• in a recreational vehicle

• where curtains, furniture,

clothing or other ammable objects are less than 36" (91.5 cm) from the front, top

or sides of the heater

• as a replace insert

• in high trafc areas

• in windy or drafty areas

INSTALLATION

Continued

36" (91.5 cm)

3" (7.7 cm)

CEILING

Minimum

(15.3 cm)

Minimum From Sides Of Heater

Right Side

Left Side

Minimum To Top Surface Of Carpeting, Tile Or Other Combustible Material

Figure 4 - Mounting Clearances As

Viewed From Front of Heater

CAUTION: If you install the

heater in a home garage

• heater pilot and burner must be at least 18" (45.7 cm) above oor

• locate heater where moving

vehicle will not hit it

CAUTION: This heater cre-

ates warm air currents. These

currents move heat to wall sur-

faces next to heater. Installing

heater next to vinyl or cloth wall

coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning uids, oil or kerosene lamps, etc.) in

the air exist, may discolor walls

or cause odors.

IMPORTANT: Vent-free heaters add moisture to the air. Although this is benecial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, page 5. If high humidity is experienced, a dehumidier may be used to help lower the water vapor content in the air.

For convenience and efciency, install heater

• where there is easy access for operation, inspection and service

• in coldest part of room

THERMOSTAT SENSING BULB

(Thermostat Models Only)

The thermostat sensing bulb is located inside the heater. Do not move this bulb during installation or operation of the heater.

INSTALLING HEATER TO WALL

Marking Screw Locations

1. Determine where you will locate heater.

WARNING: Maintain mini-

mum clearances shown in Figure 5, page 9. If you can, provide greater clearances from oor and joining wall.

2. Mark two mounting screw locations on wall

(see Figure 5, page 9).

Page 9

www.desatech.com

9117001-01B

Installing Two Mounting Screws

Note: Wall anchors and mounting screws are in hardware package. The hardware package is provided with heater.

Attaching to wall stud method

For attaching mounting screw to wall stud

1. Drill hole at marked location using 9/64" drill bit.

2. Insert mounting screw into wall stud.

3. Tighten screw until 1/16" (1.6 mm) space (thickness of penny) is between screwhead and wall.

Attaching to wall anchor method

Follow instructions below to attach mounting screws to hollow walls (wall areas between studs) or solid walls (concrete or masonry).

1. Drill holes at marked locations using 5/16" drill bit. For solid walls (concrete or masonry), drill at least 1 1/4" (3.2 cm) deep.

2. Fold wall anchor (see Figure 6).

3. Insert wall anchor (wings rst) into hole. Tap anchor ush to wall.

4. For thin walls [1/2" (1.3 cm) or less], insert red key into wall anchor. Push red key to “pop” open anchor wings (see Figure 7).

IMPORTANT: Do not hammer key! For thick

walls [over 1/2" (1.3 cm) thick] or solid walls, do not pop open wings.

5. Tighten two screws until 1/16" (1.6 mm) space (thickness of penny) is between screwheads and wall (see Figure 8).

INSTALLATION

Continued

Figure 6 - Folding

Anchor

Figure 7 - Popping

Open Anchor Wings

For Thin Walls

Figure 5 - Mounting Screw Locations

Mounting

Screw

Locations

8 7/8"

(22.5 cm)

Minimum To

Maintain 6"

(15.3 cm) Clearance From Wall

FLOOR

JOINING WALL

Removing Front Panel Of Heater

1. Remove two screws near bottom corners of front panel. See Figure 10.

2. Lift straight up on grill guard until it stops. Grill guard will slide up about 1/4" (6.4 mm).

3. Pull bottom of front panel forward, then down.

Figure 8 - Tightening Anchors

Thin or Thick Wall (thick wall shown)

Solid Wall

1/16" (1.6 mm) Space

Figure 9 - Location Of Keyhole Slots On

Back Panel Of Heater

Keyhole Slots

Placing Heater On Mounting Screws

1. Locate two keyhole slots on back panel of heater (see Figure 9).

2. Place large openings of slots over screwheads. Slide heater down until screws are in small portion of slots.

Figure 10 - Removing Front Panel Of

Heater

7 3/4"

(14.7 cm)

20 1/4"

(51.4 cm)

Minimum To

Maintain 3"

(7.7 cm)

Clearance

From Floor

Page 10

www.desatech.com

117001-01B10

WARN ING: F or na tural

gas, never connect heater to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

IMPORTANT: For natural gas, check gas line pressure before connecting heater to gas line. Gas line pressure must be no greater than 10.5 inches of water. If gas line pressure is higher, heater regulator damage could occur.

CAUTION: For propane/LP gas, never connect heater directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and propane/LP supply.

For propane/LP gas, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install the external regulator with the vent pointing down as shown in Figure 12. Pointing the vent down protects it from freezing rain or sleet.

CAUTION: Use only new,

black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of large enough diameter to allow proper gas volume to heater. If pipe is too small, undue loss of volume will occur.

INSTALLATION

Continued

Figure 12 - External Regulator With Vent

Pointing Down (Propane/LP only)

External Regulator

Propane/LP Supply Tank

Vent Pointing Down

Figure 11 - Installing Bottom Mounting

Screw

Installing Bottom Mounting Screw

1. Locate bottom mounting hole. This hole is near bottom on back panel of heater (see Figure 11).

2. Mark screw location on wall.

3. Remove heater from wall.

4. If installing bottom mounting screw into hollow or solid wall, install wall anchor. Follow steps 1 through 5 under Attaching To Wall Anchor Method, page 9. If installing bottom mounting screw into wall stud, drill hole at marked location using 9/64" drill bit.

5. Replace heater on wall.

6. Insert bottom anchor screw through back panel into bottom anchor or drilled hole (see Figure 11).

7. Tighten screw until heater is rmly secured to wall. Do not over tighten.

Note: Do not replace front panel at this time.

Replace front panel after making gas connections and checking for leaks (see pages 10 through 12).

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 3/8" NPT (National Pipe Thread) inlet connection to the pressure regulator.

WARNING: A qualied service person must connect heater to gas supply. Follow all local codes.

Page 11

www.desatech.com

11117001-01B

Cap Pipe Tee Nipple Joint

Tee Joint

Reducer Bushing to 1/8" NPT

1/8" NPT Plug Tap

* A CSA design-certied equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certied equipment shutoff valve from your dealer. See Accessories, page 25.

Figure 13 - Gas Connection

Pressure Regulator

Test Gauge Connection*

Heater Cabinet

Sediment Trap

Equipment Shutoff Valve *

3" Min.

Ground Joint Union

3/8" NPT Pipe Nipple

Natural Gas

From Gas Meter (7" W.C. to 10.5" W.C. Pressure)

Propane/LP

From External Regulator (11" W.C. to 14" W.C. Pressure)

INSTALLATION

Continued

IMPORTANT: Hold the pressure regulator with wrench when connecting it to gas piping and/or ttings. Do not over tighten pipe connection to regulator. The regulator body could be damaged.

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping

and connections, internal and external to unit, for leaks after

installing or servicing. Correct all leaks at once.

WARNING: Never use an

open ame to check for a leak. Apply a noncorrosive leak detection uid to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: For propane/LP gas, make sure external regulator has been installed between propane/LP supply and heater. See guidelines under Connect- ing to Gas Supply, page 10.

PRESSURE TESTING GAS SUPPLY PIPING SYSTEM

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

4. Check all joints of gas supply piping system. Apply a noncorrosive leak detection uid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected ttings for leaks.

Installation must include equipment shutoff valve, union and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figure 13).

IMPORTANT: Install an equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

WARNING: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

Install sediment trap in supply line as shown in Figure 13. Locate sediment trap where it is within reach for cleaning. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not installed or is installed wrong, heater may not run properly.

Page 12

www.desatech.com

117001-01B12

INSTALLATION

Continued

Figure 16 - Checking Gas Joints for

Propane/LP Gas

Equipment Shutoff Valve

Propane/LP Supply Tank

Figure 15 - Checking Gas Joints for

Natural Gas

Equipment Shutoff Valve

Gas Meter

Control Valve Location

OPERATING HEATER

FOR YOUR SAFETY READ

BEFORE LIGHTING

WARNING: If you do not fol-

low these instructions exactly,

a re or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be

lighted by hand. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the

appliance area for gas. Be sure to smell next

to the oor because some gas is heavier than air and will settle on the oor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor ’s ph one. Fol low the gas supplier’s instructions.

• If you cannot reach your gas supplier, call

the re department.

C. Use only your hand to push in or turn the

gas control knob. Never use tools. If the

knob will not push in or turn by hand,

don’t try to repair it, call a qualied service

technician. Force or attempted repair may

result in a re or explosion.

D. Do not use this appliance if any part has

been under water. Immediately call a

qualied service technician to inspect the

appliance and to replace any part of the control system and any gas control which has been under water.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 14).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

3. Check all joints from gas meter for natural gas (see Figure 15) or propane/LP supply tank for propane/LP gas, to equipment shutoff valve (see Figure 16). Apply a noncorrosive leak detection uid to all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

PRESSURE TESTING HEATER GAS CONNECTIONS

1. Open equipment shutoff valve (see Figure 14).

2. For natural gas open main gas valve located on or near gas meter. For propane/LP gas open propane/LP supply tank valve.

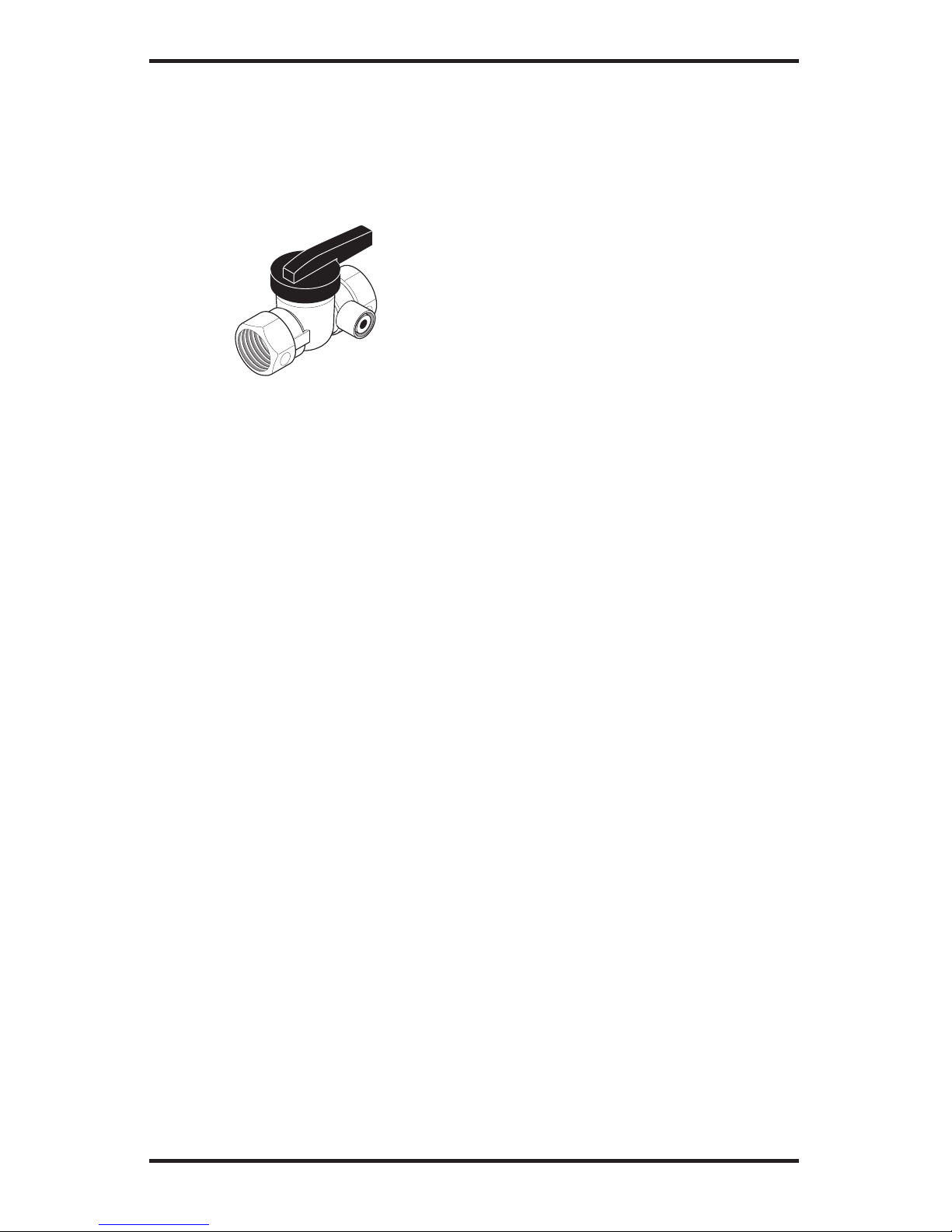

Figure 14 - Equipment Shutoff Valve

Open

Closed

Equipment Shutoff Valve

3. Make sure control knob of heater is in the OFF position.

4. Check all joints from equipment shutoff valve to thermostat gas valve (see Figure 15 or 16). Apply a noncorrosive leak detection uid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operating Heater). Check all other internal joints for leaks.

7. Turn off heater (see To Turn Off Gas to Appli- ance, page 13).

8. Replace front panel.

Page 13

www.desatech.com

117001-01B

Figure 19 - Pilot

LIGHTING

INSTRUCTIONS

1. STOP! Read the safety information, page 12.

2. Make sure equipment shutoff valve is fully open.

3. Turn off any electric power to the appliance if service is to be performed.

4. Turn control knob clockwise to the OFF position.

5. Wait ve minutes to clear out any gas. Then smell for gas, including near the oor. If you smell gas, STOP! Follow “B” in the safety information, page 12. If you don’t smell gas, go to the next step.

6. Thermostat Models: Turn control knob coun- terclockwise to the PILOT position. Press in control knob for ve (5) seconds.

Manual Models: Press in and turn control

knob counterclockwise to the PILOT position. Keep control knob pressed in for ve (5) seconds.

7. With control knob pressed in, push down and release ignitor button. This will light pilot. The pilot is attached to the front of burner. Note: You may be running this heater for the rst time after hooking up to gas supply. If so, you may need to press in control knob for 30 seconds or more. This will allow air to bleed from the gas system. If needed, keep pressing ignitor button until pilot lights. If ignitor does not light pilot, refer to Troubleshooting, page 16 or contact a qualied service person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure, page 14.

8. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop up when re-

leased, contact a qualied service person or gas supplier for repairs.

Note: If pilot goes out, repeat steps 4 thru 7.

Thermostat models have a safety interlock system. Wait one (1) minute before lighting pilot again.

9. Turn control knob counterclockwise to desired heating level. The main burner should light. Manual control heaters should be used in locked positions.

Figure 17 - Control Knob In The OFF

Position for Manual Control Models

Figure 18 - Control Knob In The OFF

Position for Thermostat Models

Control Knob

Ignitor Button

OPERATING HEATER

Continued

Ignitor Button

Control Knob

WARNING: Always operate

manual control heaters at the

locked positions. Operation between these positions may create a possible health hazard if used in a poorly ventilated room. Read owner’s manual for complete instructions.

CAUTION: Do not try to ad-

just heating levels by using the equipment shutoff valve.

Thermocouple

Pilot Burner

Ignitor Electrode

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Heater

1. Turn control knob clockwise to the OFF position.

2. Turn off all electric power to the appliance if service is to be performed.

Shutting Off Burner Only (pilot stays lit)

Turn control knob clockwise to the PILOT position.

Page 14

www.desatech.com

117001-01B14

INSPECTING HEATER

Check pilot ame pattern and burner ame pattern often.

PILOT FLAME PATTERN

Figure 20 shows a correct pilot ame pattern. Figure 21 shows an incorrect pilot ame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.

If pilot ame pattern is incorrect, as shown in Figure 21

• turn heater off (see To Turn Off Gas to Appli- ance, page 13)

• see Troubleshooting, page 16

OPERATING HEATER

Continued

BURNER FLAME PATTERN

Figure 22, page 15, shows a correct burner ame pattern. Figure 23, page 15, shows an incorrect burner ame pattern. The incorrect burner ame pattern shows yellow tipping of the ame. It also shows the ame higher than 1/2 the glass panel height.

WARNING: If yellow tipping

occurs, your heater could pro-

duce increased levels of car-

bon monoxide. If burner ame pattern shows yellow tipping, proceed with the following instructions.

NOTICE: Do not mistake orange ames with yellow tipping. Dust or other ne particles enter the heater and burn causing brief patches of orange ame.

If burner ame pattern is incorrect, as shown in Figure 23, page 15,

• turn heater off (see To Turn Off Gas to Appli- ance, page 13)

• see Troubleshooting, page 16

Thermocouple

Pilot Burner

Thermocouple

Blue Flame

Yellow Flame

Figure 20 - Correct Pilot Flame Pattern

Figure 21 - Incorrect Pilot Flame Pattern

Note: The pilot ame on natural gas units will have a slight curve, but ame should be blue and have no yellow or orange color.

THERMOSTAT CONTROL

OPERATION

The thermostatic control used on these models differs from standard thermostats. Standard thermostats simply turn on and off the burner. The thermostat used on this heater senses the room temperature. At times the room may exceed the set temperature. If so, the burner will shut off. The burner will cycle back on when room temperature drops below the set temperature. The control knob can be set to any heat level between 1 and 5. This adjusts the amount of gas ow to the burner that increases or decreases the burner ame height.

Note: The thermostat sensing bulb measures the temperature of air near the heater cabinet. This may not always agree with room temperature (depending on housing construction, installation location, room size, open air temperatures, etc.) Frequent use of your heater will let you determine your own comfort levels.

MANUAL LIGHTING

PROCEDURE

1. Remove front panel (see Figure 10, page 9).

2. Follow steps 1 through 7 under Lighting Instructions, page 13.

3. With control knob pressed in, strike match. Hold match to pilot until pilot lights.

4. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 9, under Light- ing Instructions, page 13.

5. Replace front panel.

Page 15

www.desatech.com

15117001-01B

1/2 GLASS HEIGHT

CORRECT FLAME PATTERN

AT HIGH POSITION

1/2 GLASS HEIGHT

Figure 22 - Correct Burner Flame Pattern

Yellow Tipping

Figure 23 - Incorrect Burner Flame

Pattern

(Models GWN6 and GWP6 will be lower due to

lower input rating)

CLEANING AND

MAINTENANCE

WARNING: Turn off heater

and let cool before cleaning.

CAUTION: You must keep control areas, burner and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualied service person. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.

ODS/PILOT AND BURNER

Use a vacuum cleaner, pressurized air or small, soft bristled brush to clean.

BURNER PILOT AIR INLET

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning ame. Keep these holes clear of dust, dirt and lint. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualied service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store or home center may carry compressed air in a can. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot for dust and dirt.

3. Blow air through the ports/slots and holes in the burner.

4. Never insert objects into the pilot tube.

Clean the pilot assembly also. A yellow tip on the pilot ame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet about two inches from where the pilot ame comes out of the pilot assembly (see Figure 24). With the unit off, lightly blow air through the air inlet. You may blow through a drinking straw if compressed air is not available.

Figure 24 - Pilot Air Inlet Hole

Pilot Assembly

Pilot Air Inlet

CABINET

Air Passageways

Use pressurized air to clean.

Exterior

Use a soft cloth dampened with a mild soap and water mixture. Wipe the cabinet to remove dust.

INSPECTING HEATER

Continued

Page 16

www.desatech.com

117001-01B16

TROUBLESHOOTING

WARNING: Turn off and unplug heater and let cool before servicing.

Only a qualied service person should service and repair heater.

CAUTION: Never use a wire, needle or similar object to clean

ODS/pilot. This can damage ODS/pilot unit.

Note: All troubleshooting items are listed in order of operation.

POSSIBLE CAUSE

1. Ignitor electrode positioned wrong

2. Ignitor electrode broken

3. Ignitor electrode not connected

to ignitor cable

4. Ignitor cable pinched or wet

5. Broken ignitor cable

6. Bad piezo ignitor

7. Piezo ignitor nut is loose

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT

position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines whe n in-

stalled

5. Depleted gas supply (propane/ LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not

correct

REMEDY

1. Replace pilot assembly

2. Replace pilot assembly

3. Reconnect ignitor cable

4. Free ignitor cable if pinched by any metal or tubing. Keep

ignitor cable dry

5. Replace ignitor cable

6. Replace piezo

7. Tighten nut holding piezo ignitor. Nut is located inside

heater cabinet at top

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT

position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas

company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 15) or

replace ODS/pilot assembly

7. Replace gas regulator

OBSERVED PROBLEM

When ignitor button is pressed in, there is no spark at ODS/

pilot

When ignitor button is pressed in, there is a spark at ODS/Pilot but no ignition

Page 17

www.desatech.com

17117001-01B

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Equipment shutoff valve not fully open

4. Thermoc ouple co nnectio n loose at control valve

5. Pilot ame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following:

A) Low gas pressure B) Dirty or partially clogg ed

ODS/pilot

6. Thermocouple damaged

7. Control valve damaged

1. Burner orice is clogged

2. Inlet gas pressure is too low

1. Manifold pressure is too low

2. Burner orice is clogged

1. Burner orice is clogged or

damaged

2. Burner damaged

3. Gas regulator defective

REMEDY

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30

seconds

3. Fully open equipment shutoff valve

4. Hand tighten until snug, then tighten 1/4 turn more

5. A) Contact local natural or propane/LP gas company

B) Clean ODS/p i l o t (see

Cleaning and Maintenance, page 15) or replace ODS/pilot

assembly

6. Replace pilot assembly

7. Replace control valve

1. Clean burner orice (see Clean- ing and Maintenance, page 15) or replace burner orice

2. Contact local natural or propane/LP gas company

1. Contact local natural or propane/LP gas company

2. Clean burner orice (see Clean- ing and Maintenance, page 15) or replace burner orice

1. Clean burner orice (see Clean- ing and Maintenance, page 15) or replace burner orice

2. Replace burner

3. Replace gas regulator

OBSERVED PROBLEM

ODS/pilot lights but flame goes out when control knob is

released

Burner does not light after ODS/pilot is lit

Delayed ignition of burner

Burner backring during combustion

Page 18

www.desatech.com

117001-01B18

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Not enough air

2. Inlet gas pressure is too low

3. Gas regulator defective

1. Residues from manufacturing

processes

Turning control knob to highest position when burner is

cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orice

1. Metal expanding while heating or contracting while cooling

1. When heated, vapors from furniture polish, wax, carpet cleaner, etc., may turn into white powder residue

REMEDY

1. Check burner for dirt and debris. If found, clean burner (see Cleaning and Maintenance, page 15)

2. Contact local natural or propane/LP gas company

3. Replace gas regulator

1. Problem will stop after a few hours of operation

1. Turn control knob to lowest position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas checked by local natural or propane/LP gas company

Observe minimum installation clearances (see Figure 4, page 8)

4. Clean burner (see Cleaning and Maintenance, page 15) or replace burner orice

1. This is normal with most heaters. If noise is excessive, contact qualied service person

1. Turn heater off when using furniture polish, wax, carpet cleaners or similar products

OBSERVED PROBLEM

Yellow flame during burner combustion

Slight smoke or odor during

initial operation

Heater produces a whistling noise when burner is lit

Heater produces a clicking/ticking noise just after burner is lit or shut off

White powder residue forming within burner box or on adjacent walls or furniture

Page 19

www.desatech.com

117001-01B

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

Heater burning vapors from paint, hair spray, glues, etc. See IMPORTANT statement above

2. Low fuel supply (propane/LP gas only)

3. G as leak. See Warning

statement at top of page

1. Not enough fresh air is available

2. Low line pressure

3. O D S /p il o t i s pa r t i a l l y

clogged

1. G as leak. See Warning statement at top of page

2. Control valve defective

1. Foreign matter between control valve and burner

2. G as leak. See Warning

statement at top of page

1. Not enough combustion/ventilation air

REMEDY

1. Ventilate room. Stop using odor causing products while heater is running

2. Rell supply tank

3. Locate and correct all leaks (see Checking Gas Connec- tions, page 11)

1. Open window and/or door for ventilation

2. Contact local natural or propane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 15)

1. Locate and correct all leaks (see Checking Gas Connec- tions, page 11)

2. Replace control valve

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Checking Gas Connec- tions, page 11)

1. Refer to Air for Combustion and Ventilation requirements (page 5)

OBSERVED PROBLEM

Heater produces unwanted

odors

Heater shuts off in use (ODS operates)

Gas odor even when control knob is in OFF position

Gas odor during combustion

Moisture/condensation noticed on windows

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

•

Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors.

Page 20

www.desatech.com

117001-01B20

ILLUSTRATED PARTS BREAkDOWN

MODELS GWP6, GWN6, GWP10 AND GWN10

11-1

ODS/Pilot

Page 21

www.desatech.com

117001-01B

PARTS LIST

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 25 of this manual.

KEY NO. PART NO. DESCRIPTION QTY

1 098304-01 Screw, #10 x 3/8" • • • • 2 2 099467-07 Front Panel • • • • 1 3 099318-04 Grill Guard • • • • 1 4 101108-01 Grill Guard Clip • • • • 2 5 102017-02 Bottom Glass Retainer • • • • 1 6 098260-11 Glass Panel • • • • 1 7 099319-02 Top Glass Retainer • • • • 1 8 099317-02 Deector Unit • • • • 1 9 098271-09 Ignitor Cable • • • • 1 10 098249-01 Nut, M5 • • • • 2 11 110803-01* ODS/Pilot Assembly • • 1

110803-02* ODS/Pilot Assembly • • 1 11-1 110186-01 Thermocouple Kit • • • • 1 12 104263-03 Burner • • • 1

104263-02 Burner • 1 13 099387-17 Pilot Tubing • • • • 1 14 104259-01 Injector, 1 piece • 1

104259-02 Injector, 1 piece • 1

104259-03 Injector, 1 piece • 1

104259-04 Injector, 1 piece • 1 15 NJF-8C Hex Nut • • • • 1 16 099415-17 Pressure Regulator • • 1

099415-18 Pressure Regulator • • 1 17 099462-01 Burner Tubing • • • • 1 18 099391-02 Regulator Tubing • • • • 1 19 099413-01 Control Valve • • 1

099413-02 Control Valve • • 1 20 ** Cabinet Assembly • • • • 1 21 097159-04 Piezo Ignitor • • • • 1 22 099393-02 Control Knob • • • • 1 23 098508-01 Valve Retainer Nut • • • • 1 24 099818-01 Internal Tooth Washer • • • • 1

PARTS AVAILABLE - NOT SHOWN

100642-02 Assembly, Hardware • • • • 1

** Not a eld replaceable part.

* If replacing ODS pilot and your model is pre 2002, your part number will be 100701-03 for natural gas models, 099059-03 for propane/LP models. The thermocouple part number will be 098514-01 for both gases. The electrode part number will be 098594-01 for both gases.

GWN10

GWP10

GWN6

GWP6

Page 22

www.desatech.com

117001-01B22

ILLUSTRATED PARTS BREAkDOWN

MODELS GWP10T AND GWN10T

11-1

ODS/Pilot

Page 23

www.desatech.com

23117001-01B

PARTS LIST

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 25 of this manual.

KEY NO. PART NO. DESCRIPTION QTY.

1 098304-01 Screw, #10 x 3/8" • • 2 2 099467-07 Front Panel Assembly • • 1 3 099318-04 Grill Guard • • 1 4 101108-01 Grill Guard Clip • • 2 5 102017-02 Bottom Glass Retainer • • 1 6 098260-11 Glass Panel • • 1 7 099319-02 Top Glass Retainer • • 1 8 099317-02 Deector Unit • • 1 9 098271-09 Ignitor Cable • • 1 10 098249-01 Nut, M5 • • 2 11 110803-01* ODS/Pilot Assembly • 1

110803-02* ODS/Pilot Assembly • 1 11-1 110186-01 Thermocouple Kit • • 1 12 104263-03 Burner • • 1 13 099387-11 Pilot Tubing • • 1 14 104259-05 Injector, 1 Piece • 1

104259-06 Injector, 1 Piece • 1 15 NJF 8C Hex Nut • • 1 16 099415-17 Pressure Regulator • 1

099415-18 Pressure Regulator • 1 17 104261-01 Burner Tubing • • 1 18 104264-01 Regulator Tubing • • 1 19 098522-11 Thermostat Gas Valve • 1

098522-18 Thermostat Gas Valve • 1 20 ** Cabinet Assembly • • 1 21 097159-04 Piezo Ignitor • • 1

PARTS AVAILABLE - NOT SHOWN

100642-02 Assembly, Hardware • • 1

** Not a eld replaceable part.

GWN10T

GWP10T

Page 24

www.desatech.com

117001-01B24

SPECIFICATIONS

GWN10

• 5,000/10,000 Btu/hr (Variable)

• Natural Gas

• Piezo Ignition

• Pressure Regulator Setting: 3" W.C.

• Inlet Gas Pressure (inches of water): Maximum - 10.5", Minimum - 5"

• Heater Dimensions (H x W x D):

21.5" x 13.5" x 7" (54.6 x 34.3 x 17.8 cm)

• Carton Dimensions (H x W x D): 25" x 16.75" x 7.75" (63.5 x 42.5 x 19.7 cm)

• Heater Weight: 12.5 lb (5.7 kg)

• Heater Shipping Weight: 14 lb (6.4 kg)

GWP10T

• 5,000/10,000 Btu/hr (Variable)

• Propane/LP Gas

• Piezo Ignition

• Pressure Regulator Setting: 8" W.C.

• Inlet Gas Pressure (inches of water): Maximum - 14", Minimum - 11"

• Heater Dimensions (H x W x D): 22" x 13.5" x 7" (55.9 x 34.3 x 17.8 cm)

• Carton Dimensions (H x W x D): 25" x 16.75" x 7.75" (63.5 x 42.5 x 19.7 cm)

• Heater Weight: 13.5 (6.1 kg)

• Heater Shipping Weight: 15 lb (6.8 kg)

GWN10T

• 5,000/10,000 Btu/hr (Variable)

• Natural Gas

• Piezo Ignition

• Pressure Regulator Setting: 3" W.C.

• Inlet Gas Pressure (inches of water): Maximum - 10.5", Minimum - 5"

• Heater Dimensions (H x W x D): 22" x 13.5" x 7" (55.9 x 34.3 x 17.8 cm)

• Carton Dimensions (H x W x D): 25" x 16.75" x 7.75" (63.5 x 42.5 x 19.7 cm)

• Heater Weight: 13.5 (6.1 kg)

• Heater Shipping Weight: 15 lb (6.8 kg)

GWP6

• 4,400/6,000 Btu/hr (Variable)

• Propane/LP Gas

• Piezo Ignition

• Pressure Regulator Setting: 8" W.C.

• Inlet Gas Pressure (inches of water): Maximum - 14", Minimum - 11"

• Heater Dimensions (H x W x D):

21.5" x 13.5" x 7" (54.6 x 34.3 x 17.8 cm)

• Carton Dimensions (H x W x D) 25" x 16.75" x 7.75" (63.5 x 42.5 x 19.7 cm)

• Heater Weight: 12.5 lb (5.7 kg)

• Heater Shipping Weight: 14 lb (6.4 kg)

GWN6

• 4,400/6,000 Btu/hr (Variable)

• Natural Gas

• Piezo Ignition

• Pressure Regulator Setting: 3" W.C.

• Inlet Gas Pressure (inches of water): Maximum - 10.5", Minimum - 4"

• Heater Dimensions (H x W x D):

21.5" x 13.5" x 7" (54.6 x 34.3 x 17.8 cm)

• Carton Dimensions (H x W x D): 25" x 16.75" x 7.75" (63.5 x 42.5 x 19.7 cm)

• Heater Weight: 12.5 lb (5.7 kg)

• Heater Shipping Weight: 14 lb (6.4 kg)

GWP10

• 5,000/10,000 Btu/hr (Variable)

• Propane/LP Gas

• Piezo Ignition

• Pressure Regulator Setting: 8" W.C.

• Inlet Gas Pressure (inches of water): Maximum - 14", Minimum - 11"

• Heater Dimensions (H x W x D):

21.5" x 13.5" x 7" (54.6 x 34.3 x 17.8 cm)

• Carton Dimensions (H x W x D): 25" x 16.75" x 7.75" (63.5 x 42.5 x 19.7 cm)

• Heater Weight: 12.5 lb (5.7 kg)

• Heater Shipping Weight: 14 lb (6.4 kg)

Page 25

www.desatech.com

117001-01B

ACCESSORIES

Purchase this heater accessory from your local dealer. If they can not supply this accessory, either contact your nearest Parts Central (page 26) or call DESA Heating Products at 1-866-672-6040 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE

GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap.

ELECTRONIC IGNITOR KIT - GA435 Not Shown

For all piezo ignitor models. Provides easier lighting of the pilot.

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burner will have delayed ignition

• heater will not produce specied heat

• propane/LP gas supply may be low You may feel your gas pressure is too low. If so, con-

tact your local natural or propane/LP gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation or troubleshooting. If so, contact DESA Heating Products’ Technical Service Department at 1-866-672-6040. When calling please have your model and serial numbers of your heater ready.

You can also visit DESA Heating Products’ technical service web site at www.desatech.com.

SERVICE PUBLICATIONS

You can purchase a service manual from the address listed on the back page of this manual. Send a check for $5.00 payable to DESA Heating Products.

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA Heating Products’ Technical Service Department at 1-866-672-6040.

When calling DESA Heating Products, have

ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date Usually, we will ask you to return the part to the

factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), either contact your nearest Parts Central (see page 26) or call DESA Heating Products at 1-866-672-6040 for referral information.

When calling DESA Heating Products, have

ready

• model number of your heater

• the replacement part number

Page 26

www.desatech.com

117001-01B

______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________

_____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________

NOTES

Page 27

117001 01

kEEP THIS WARRANTY

WARRANTY INFORMATION

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004 www.desatech.com

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these specications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTIES FOR NEW AND FACTORY

RECONDITIONED PRODUCTS

New Products: DESA Heating Products warrants this heater and any parts thereof, to be free of defects in materials

and workmanship for two (2) years from the date of rst purchase, when operated and maintained in accordance with the manufacturer's instructions. These warranties are extended only to the original retail purchaser, when proof of purchase is provided.

Factory Reconditioned Heaters: DESA Heating Products warrants this factory reconditioned heater and any parts

thereof, to be free of defects in materials and workmanship for thirty (30) days from the date of rst purchase, when operated and maintained in accordance with the manufacturer's instructions. These warranties are extended only to the original retail purchaser, when proof of purchase is provided.

This warranty is extended only to the original retail purchaser. This warranty covers only the cost of part(s) required to restore this heater to proper operating condition. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA Heating Products who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualied installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS FROM THE DATE OF FIRST PURCHASE; AND DESA HEATING PRODUCTS’ LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA HEATING PRODUCTS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties or exclusion or limitation on damages may not apply to you.

This warranty gives you specic legal rights and you may also have other rights that vary from state to state.

For information about this warranty write:

NOT A UPC

Patent Pending

117001-01 Rev. B 03/06

Model

Serial No.

Date Purchased
