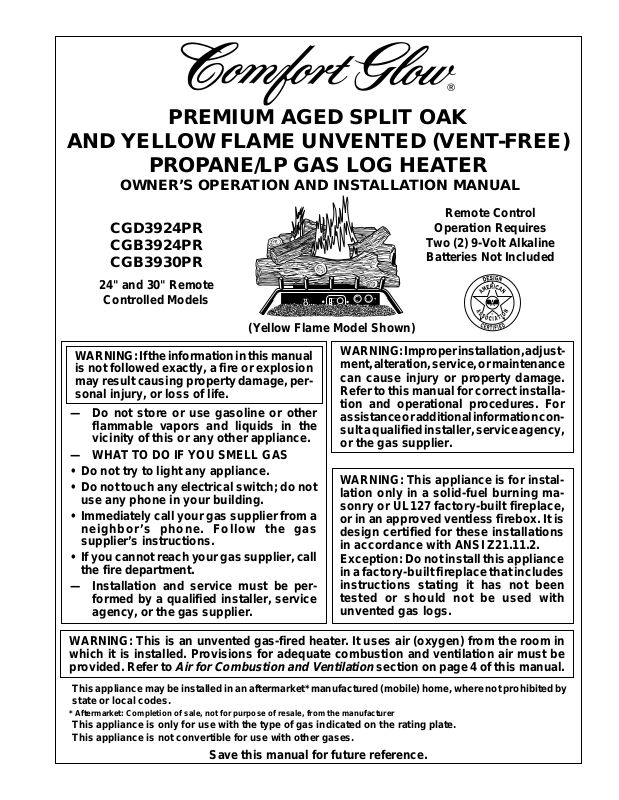

Desa CGB3930PR, CGD3924PR, CGB3924PR User Manual

PREMIUM AGED SPLIT OAK

REMOTE

OFF

AND YELLOW FLAME UNVENTED (VENT-FREE)

PROPANE/LP GAS LOG HEATER

OWNER’S OPERATION AND INSTALLATION MANUAL

Remote Control

CGD3924PR CGB3924PR CGB3930PR

24" and 30" Remote

Controlled Models

(Yellow Flame Model Shown)

Operation Requires Two (2) 9-Volt Alkaline Batteries Not Included

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

assistance or additional information consult a qualified installer, service agency, or the gas supplier.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be per-

formed by a qualified installer, service agency, or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built fireplace, or in an approved ventless firebox. It is design certified for these installations in accordance with ANSI Z21.11.2. Exception: Do not install this appliance in a factory-built fireplace that includes instructions stating it has not been tested or should not be used with unvented gas logs.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Air for Combustion and Ventilation

section on page 4 of this manual.

This appliance may be installed in an aftermarket* manufactured (mobile) home, where not prohibited by state or local codes.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

Save this manual for future reference.

CGD3924PR, CGB3924PR and CGB3930PR

UNVENTED PROPANE/LP GAS LOG HEATER

SAFETY INFORMATION

WARNINGS

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early

signs of carbon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane Gas: Propane gas is odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all Warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its controls can be dangerous.

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane supply tank(s) inside any structure. Locate propane supply tank(s) outdoors.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do

not use any phone in your building

• immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call the fire department

4. This heater shall not be installed in a bedroom or bathroom.

5. Never install the heater

• in a recreational vehicle

• where curtains, furniture, clothing, or

other flammable objects are less than 36 inches from the front, top, or sides of the heater

• in high traffic areas

• in windy or drafty areas

6. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.

7. If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

8. You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

9. This log heater is designed to be smokeless. If logs ever appear to smoke, turn off heater and call a qualified service person.

Note:

During initial operation, slight smoking may occur due to log curing and heater burning manufacturing residues.

10. Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans may create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

11. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

12. Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this heater.

13. This heater needs fresh, outside air ventilation to run properly . This heater has an oxygen depletion sensor (ODS) pilot light safety system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, pages 4 through 6. If heater keeps shutting off, see Trouble- shooting, pages 18 through 20.

14. Do not run heater

• where flammable liquids or vapors

are used or stored

• under dusty conditions

15. Do not use this heater to cook food or burn paper or other objects.

16. Never place any objects on the heater.

17. Heater base assembly becomes very hot when running heater. Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutpdown. Allow surface to cool before touching.

18. Carefully supervise young children when they are in the room with heater. When using the hand-held remote accessory, keep remote selector switch in the OFF position to prevent children from turning on burners with hand-held remote control unit.

19. Do not use heater if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

20. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sized or larger).

21. Turn heater off and let cool before servicing, installing, or repairing. Make sure the remote selector switch is in the OFF position. Only a qualified service person should install, service, or repair heater.

22. Make sure the remote selector switch is in the OFF position when you are away from home for long periods of time.

23. This heater must not be connected to any external electrical source.

24. Operating heater above elevations of 4,500 feet may cause pilot outage.

25. T o prevent performance problems, the use of a propane fuel tank of less than 100 lb. capacity is not recommended.

104307

OWNER’S MANUAL

PRODUCT IDENTIFICATION

Crossover Log

Front Log

Remote Control

TEMP

MAN

AUTO

ONLO

OFF

STATUS

Piezo Ignitor

Figure 1 - Vent-Free Gas Log Heater (Logs May Vary By Model)

Remote Selector Switch

Flame Adjustment Knob

Control Knob

Back Log

Middle Log

Base Grate

Burner

PRODUCT FEATURES

Operation

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by realistic dancing, yellow flames. This heater is designed for vent-free operation with flue damper closed. State and local codes in some areas prohibit the use of vent-free heaters.

Safety Pilot

This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS). The ODS/pilot is a required feature for ventfree room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

Piezo Ignition System

This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANSI Z223, also known as NFPA 54*.

*Available from: American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

UNPACKING

1. Remove logs and heater base assembly from carton. heater base assembly by burners. This could damage heater. Always handle base assembly by grate.

2. Remove all protective packaging applied to logs and heater for shipment.

3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought heater.

Note:

Do not pick up

104307

CGD3924PR, CGB3924PR and CGB3930PR

UNVENTED PROPANE/LP GAS LOG HEATER

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuelburning appliances.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings e xposed to the

outside atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 per pa-sec-m2) or less with openings gasketed or sealed

b. weather stripping has been

added on openable windows and doors

c. caulking or sealants are applied

to areas such as joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

From Outdoors

If your home does not meet all of the three criteria above, proceed to

and

Ventilation Air

, page 6.

termining Fresh-Air Flow For Heater Location

, page 5.

and

-11

De-

Confined Space and Unconfined Space

The National Fuel Gas Code (ANSI Z2123.1, 1992 Section 5.3) defines a confined space

as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

PROVIDING ADEQUATE VENTILATION

The following is exerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1, Section

5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Contruction

2. Unconfined Space

3. Confined Space The information on pages 4 through 6 will

help you classify your space and provide adequate ventilation.

104307

OWNER’S MANUAL

AIR FOR COMBUSTION AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between

the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height = _________________cu. ft. (volume of space)

Example:

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space can support.

_________________ (volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr the space can support)

Example:

3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater __________________Btu/Hr Gas water heater* __________________Btu/Hr Gas furnace __________________Btu/Hr Vented gas heater __________________Btu/Hr Gas fireplace logs __________________Btu/Hr Other gas appliances* + __________________Btu/Hr Total = __________________Btu/Hr * Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_____________________Btu/Hr (maximum the space can support) _____________________Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the extra space provides an unconfined space, remove door to adjoin-

ing room or add ventilation grills between rooms. See Ventilation Air From Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 6. C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) = 2560 cu. ft. (volume of space)

2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum Btu/Hr the space can support)

Example:

Gas water heater Vent-free heater + Total =

51,200 Btu/Hr (maximum the space can support)

79,000 Btu/Hr (actual amount of Btu/Hr used)

40,000 39,000 79,000

Btu/Hr Btu/Hr Btu/Hr

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

104307

National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3

or applicable local codes.

Continued

CGD3924PR, CGB3924PR and CGB3930PR

UNVENTED PROPANE/LP GAS LOG HEATER

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow the National Fuel

Gas Code NFPA 54/ANSI Z223.1, Section

5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

WARNING: Rework worksheet, adding the space of the adjoining unconfined space. The combined spaces must have enough fresh air to supply all appliances in both spaces.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces.

IMPORTANT:

inlet or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Do not provide openings for

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 2 - Ventilation Air from Inside Building

Remove Door into Adjoining

Room, Option

12"

Outlet Air

Ventilation Grills

Into Adjoining Room,

Ventilated Attic

Outlet Air

Inlet Air

Figure 3 - Ventilation Air from Outdoors

12"

Option 2

To Attic

Crawl

Space

Ventilated

Crawl Space

104307

OWNER’S MANUAL

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

NOTICE: A qualified service person must install heater. Follow all local codes.

NOTICE: State or local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes.

WARNING: Make sure the remote selector switch is in the OFF position before installing heater.

WARNING: Never install the

heater

• in a bedroom or bathroom

• in a recreational vehicle

• where curtains, furniture, clothing, or other flammable objects are less than 36 inches from the front, top, or sides of the heater

• in high traffic areas

• in windy or drafty areas

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls.

IMPORTANT:

ture to the air. Although this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Com- bustion and Ventilation, pages 4 through 6.

Vent-free heaters add mois-

LOG SIZING REQUIREMENTS

Minimum Firebox Size

Rear

Width

Log Front At 14"

Size Height Depth Width Depth

24" 17" 14" 28" 21" 30" 17" 14" 34" 24"

Carefully follow the instructions below. This will ensure safe installation into a masonry fireplace or factory-built U.L. 127 listed vent-free firebox.

Minimum Wall and Ceiling Clearances (see Figure 4)

A. Clearances from the side of the fire-

place opening to any combustible wall should not be less than 16 inches.

B. Clearances from the top of the fireplace

opening to the ceiling should not be less than 42 inches.

42"

WARNING: Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. A dirty chimney flue may create and distribute soot within the house. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.

WARNING: Seal any fresh air vents or ash clean-out doors located on floor or wall of fireplace. If not, drafting may cause pilot outage or sooting. Use a heatresistant sealant. Do not seal chimney flue damper.

104307

CHECK GAS TYPE

Use only propane/LP gas. If your gas supply is not propane/LP gas, do not install heater. Call dealer where you bought heater for proper type heater.

INSTALLATION AND CLEARANCES (Vent-Free Operation Only)

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.

MINIMUM FIREPLACE

CLEARANCE TO

COMBUSTIBLE MATERIALS

Log Size Side Wall Ceiling

24" 16" 42"

16"

Left and

Right Sides

Figure 4 - Minimum Clearance to Wall and Ceiling

Continued

CGD3924PR, CGB3924PR and CGB3930PR

UNVENTED PROPANE/LP GAS LOG HEATER

INSTALLATION

Continued

Minimum Non-Combustible Material Clearances

If Not Using Mantel

Note:

If using a mantel, proceed to If Using

Mantel. If not using a mantel, follow the

information below. You must have non-combustible material(s)

above the fireplace opening. Non-combustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have non-combustible material behind it. Non-combustible material must extend at least 8" up (for all models). If non-combustible material is less than 12", you must install the fireplace hood accessory (24" and 30" models only). See Figure 5 for minimum clearances.

IMPORTANT:

minimum clearances, you must operate heater with chimney flue damper open.

If Using Mantel

You must have non-combustible material(s) above the fireplace opening. Non-combustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have non-combustible material behind it. Non-combustible material must extend at least 8 inches up (for all models). If non-combustible material is less than 12", you must install the fireplace hood accessory (24" and 30" models only). Even if non-combustible material is more than 12", you may need the hood accessory to deflect heat away from your mantel shelf. See Figure 5 and Figures 6 and 7on page 9 for minimum clearances.

IMPORTANT:

minimum clearances, you must operate heater with chimney flue damper open.

If you cannot meet these

Non-Combustible Requirements for Material Distance (A) Safe Installation

12" or more Non-combustible material okay. Between 8" and 12" Install fireplace hood accessory (GA6050, GA6052,

or GA6053, see

Less than 8" Non-combustible material must be extended to at

least 8". See cannot extend material, you must operate heater with flue damper open.

Accessories,

Between 8" and 12",

page 21).

above. If you

Heat Resistant Material

(A)

Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace

104307

OWNER’S MANUAL

Hearth

5" Min.

Combustible Material

INSTALLATION

Continued

MANTEL CLEARANCES

If you meet minimum clearance between mantel shelf and top of fireplace opening, a hood is not required (see Figure 6).

If minimum clearances in Figure 6 are not met, you must have a hood. When using a hood there are still certain minimum mantel clearances required. Follow minimum clearances shown in Figure 7 when using hood.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• operate the logs only with the flue damper open

• raise the mantel to an acceptable height

• remove the mantel.

Floor Clearances

A. If installing appliance on the floor level,

you must maintain the minimum distance of 14" to combustibles (see Figure 8).

B. If combustible materials are less than

14" to the fireplace, you must install appliance at least 5" above the combustible flooring (see Figure 9).

Mantel Shelf

18" 20" 22" 24"

Distances to Underside of Mantel

Underside of Mantel Shelf

All minimum distances are in inches

Log Set

24"/30" Models

Top of Fireplace Opening

Minimum NonCombustible Material

10" 8" 6"

(A)

12"

Minimum NonCombustible Material Height

Figure 6 - Minimum Mantel Clearances Without Using Hood

8" Min.

Mantel Shelf

12" 15" 18"

Distances to Underside of Mantel

Underside of Mantel Shelf

All minimum distances are in inches

Log Set

18", 24", 30"

20"

All Models

Models

Top of Fireplace Opening

Minimum NonCombustible Material

12" 10" 8" 6"

Hood (GA6050, GA6052)

104307

Figure 7 - Minimum Mantel Clearances When Using Hood

Combustible

Material

14"

14" Min.

Min.

Non-Combustible Material

Non-Combustible

Material

Figure 9 - Minimum Fireplace Clearances

Figure 8 - Minimum Fireplace Clearances

Above Combustible Flooring

If Installed at Floor Level

Hearth

Combustible Material

5" Min.

Continued

+ 19 hidden pages
