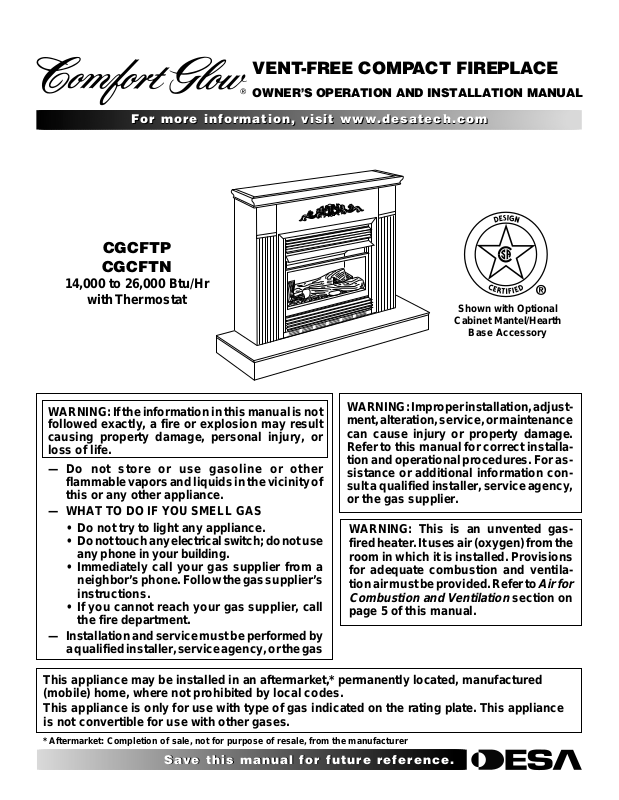

Page 1

For more information, visit www.desatech.com

CGCFTP

CGCFTN

14,000 to 26,000 Btu/Hr

with Thermostat

VENT-FREE COMPACT FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

Shown with Optional

Cabinet Mantel/Hearth

Base Accessory

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by

a qualified installer, service agency, or the gas

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This is an unvented gasfired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Combustion and Ventilation

page 5 of this manual.

Air for

section on

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

Page 2

TABLE OF CONTENTS SAFETY INFORMATION

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

LOCAL CODES........................................................................... 3

PRODUCT IDENTIFICATION ..................................................... 3

PRODUCT FEATURES .............................................................. 4

UNPACKING............................................................................... 4

ASSEMBLY................................................................................. 4

AIR FOR COMBUSTION AND VENTILATION ........................... 5

INSTALLATION ........................................................................... 7

OPERATING FIREPLACE ........................................................ 17

INSPECTING BURNER ............................................................ 18

CLEANING AND MAINTENANCE ............................................ 19

SAFETY INFORMATION

WARNINGS

WARNING ICON G 001

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the fireplace may not be working properly. Get fresh air at once! Have fireplace serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Natural and Propane/LP Gas: Natural and propane/LP gases are

odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.

TROUBLESHOOTING .............................................................. 20

SPECIFICATIONS .................................................................... 23

REPLACEMENT PARTS .......................................................... 23

SERVICE HINTS....................................................................... 23

TECHNICAL SERVICE ............................................................. 23

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 24

PARTS CENTRALS .................................................................. 26

OWNER’S REGISTRATION FORM.......................................... 27

ACCESSORIES ........................................................................ 29

WARRANTY INFORMATION ...................................... Back Cover

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this fireplace.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Fireplace front and screen becomes very hot when running fireplace. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

Carefully supervise young children when they are in same room with fireplace.

You must operate this fireplace with the fireplace screen in place. Make sure fireplace screen is in place before running fireplace.

WARNING: Any change to this fireplace or its

controls can be dangerous.

For more information, visit www.desatech.com

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

111044-01C

Page 3

SAFETY INFORMATION

Continued

SAFETY INFORMATION

LOCAL CODES

PRODUCT IDENTIFICATION

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors (propane/LP units only).

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in

your building

• immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call the fire department

4. This fireplace shall not be installed in a bedroom or bathroom.

5. Do not use this fireplace as a wood-burning fireplace. Use only the logs provided with the fireplace.

6. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool. Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into the control area of fireplace.

7. This fireplace is designed to be smokeless. If logs ever appear to smoke, turn off fireplace and call a qualified service person.

Note:

During initial operation, slight smoking could occur due

to log curing and fireplace burning manufacturing residues.

8. To prevent the creation of soot, follow the instructions in Clean- ing and Maintenance, page 19.

9. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

10. This fireplace needs fresh air ventilation to run properly . This fireplace has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the fireplace if not enough fresh air is available. See Air for Combustion and Ventilation, pages 5 through 7. If fireplace keeps shutting off, see Trouble- shooting, pages 20 through 22.

11. Do not run fireplace

• where flammable liquids or vapors are used or stored.

• under dusty conditions.

12. Do not use this fireplace to cook food or burn paper or other objects.

13. Never place any objects in the fireplace or on logs.

14. Do not use fireplace if any part has been under water. Immediately call a qualified service technician to inspect the room fireplace and to replace any part of the control system and any gas control which has been under water.

15. Turn off and unplug fireplace and let cool before servicing. Only a qualified service person should service and repair fireplace.

16. Operating fireplace above elevations of 4,500 feet could cause pilot outage.

17. Do not operate fireplace if any log is broken. Do not operate fireplace if a log is chipped (dime-sized or larger).

18. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity (propane/LP units only).

19. Provide adequate clearances around air openings.

LOCAL CODES

Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

PRODUCT IDENTIFICATION

Fireplace Cabinet

Screen

Log Set

Control Knob

Ignitor Button

Figure 1 - Vent-Free Gas Compact Fireplace

111044-01C

For more information, visit www.desatech.com

Page 4

PRODUCT FEATURES

UNPACKING ASSEMBLY

Assembling Fireplace

PRODUCT FEATURES

SAFETY PILOT

This fireplace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for ventfree room fireplaces. The ODS/pilot shuts off the fireplace if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This fireplace has a piezo ignitor. This system requires no matches, batteries, or other sources to light fireplace.

THERMOSTATIC HEAT CONTROL

This fireplace has a thermostat sensing bulb and a control valve. The thermostat will automatically modulate the heat output to maintain a consistent room temperature. This results in greater fireplace comfort. This can also result in lower gas bills.

UNPACKING

1. Remove log box and fireplace from carton. fireplace hood is inside the cardboard protective end wrap on the left side of fireplace (as viewed from front). A decal is on the outside of the cardboard end wrap stating hood is enclosed (see Figure 2).

2. Remove hood from cardboard protective end wrap as shown in Figure 2.

3. Remove all protective packaging applied to fireplace for shipment.

4. Make sure your fireplace includes one hardware packet.

5. Check fireplace for any shipping damage. If fireplace is damaged, promptly inform dealer where you bought fireplace.

IMPORTANT:

Hood Enclosed Decal

THIS PACKAGE CONTAINS A FIREPLACE HOOD. UNWRAP

CARTON AND REMOVE HOOD

BEFORE DISCARDING

PROTECTIVE PACKAGING.

IMPORTANT:

The

ASSEMBLY

WARNING: Always have branch support and screen in place before operating fireplace. This prevents excessive temperatures on fireplace surfaces.

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this fireplace may result in property damage or personal injury.

ASSEMBLING FIREPLACE

Tools Required:

• Phillips screwdriver

• 5/16" hex wrench

• slotted screwdriver

• scissors

Installing Log

1. Lift screen up and pull out to remove.

2. Cut two plastic straps to remove the log from the firebox cavity.

3. An optional blower is available. See Accessories, page 29. Install optional blower now . Follow installation instructions provided with blower.

4. Remove log packaging material and discard packaging. Gently place log set on burner support (see Figure 3). The log should fit flat against top of burner support and log locator tabs fit into the slots under the log. Do not allow log to contact flame. If flame contacts log, soot will be created.

5. Reattach screen by placing the notches in the screen frame over the shoulder screws and pushing down.

Log

Shoulder Screw

Burner Support with Log Locator Tabs

Figure 2 - Removing Fireplace Hood

For more information, visit www.desatech.com

Cardboard Protective Fireplace End Wrap

Hood

Screen

Branch Support

Figure 3 - Assembling Fireplace

111044-01C

Page 5

ASSEMBLY

Continued

Assembling Fireplace (Cont.)

ASSEMBLY

AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation

Assembling Hood

1. Locate four black phillips sheet metal screws from the hardware packet.

2. Rotate hood as shown in Figure 4. Make sure hood tabs point toward fireplace.

3. Insert hood tabs between baffle and louvers (see Figure 4).

4. Gently rotate hood to upright position. Make sure hood tabs are behind louvers and hood is resting on firebox top (see Figure 4).

5. Align screw holes on hood with screw holes on firebox top.

6. Insert screws as shown in Figure 4. Tighten screws firmly.

Hood Tabs

Hood

Louver

Hood Tab

Baffle

Sheet Metal Screws

Firebox Top

Figure 4 - Assembling Hood

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuelburning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space The information on pages 5 through 7 will help you classify your

space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings e xposed to the outside atmosphere

have a continuous water vapor retar der with a rating of one perm (6 x 10 openings gasketed or sealed

b. weather stripping has been added on openable win-

dows and doors

c. caulking or sealants are applied to areas such as

joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations f or plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

From Outdoors

If your home does not meet all of the three criteria above, proceed to

Location

, page 6.

, page 7

Determining Fresh-Air Flow For Fireplace

-11

kg per pa-sec-m2) or less with

and

Ventilation Air

111044-01C

For more information, visit www.desatech.com

Page 6

AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation (Cont.) Determining Fresh-Air Flow for Heater Location

AIR FOR COMBUSTION AND VENTILATION

Continued

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining

rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height =___________ cu. ft. (volume of space)

Example:

height) = 2560 cu. ft. (volume of space) If additional ventilation to adjoining room is supplied with grills or open-

ings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maximum Btu/Hr the space

Example:

Btu/Hr the space can support)

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling

can support)

2560 cu. ft. (volume of space) x 20 = 51,200 (maximum

3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater _____________ Btu/Hr Gas water heater* _____________ Btu/Hr Gas furnace _____________ Btu/Hr Vented gas heater _____________ Btu/Hr Gas fireplace logs _____________ Btu/Hr Other gas appliances* + _____________ Btu/Hr Total = _____________ Btu/Hr

* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

Example:

Gas water heater _____________ Btu/Hr Vent-free heater + _____________ Btu/Hr Total = _____________ Btu/Hr

4. Compare the maximum Btu/Hr the space can support with the actual

amount of Btu/Hr used.

__________________ Btu/Hr (maximum the space can support) __________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/ Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the

extra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See V entilation Air Fr om Inside Building, page 7.

B. Vent room directly to the outdoors. See Ventilation Air From Out-

doors, page 7.

C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room

unconfined.

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

51,200 Btu/Hr (maximum the space can support) 56,000 Btu/Hr (actual amount of Btu/Hr used)

30,000 26,000 56,000

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

National Fuel Gas Code, ANSI Z223.1/NFPA 54 Section 5.3

For more information, visit www.desatech.com

or applicable local codes

111044-01C

Page 7

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

AIR FOR COMBUSTION AND VENTILATION

Ventilation Air

INSTALLATION

Check Gas Type

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 5). You can also remove door into adjoining room (see option 3, Figure 5). Follow the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

IMPORTANT:

if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Ventilation

Grills

into Adjoining

Room,

Option 1

Do not provide openings for inlet or outlet air into attic

12"

Ventilation Grills

Into Adjoining Room,

Remove Door into Adjoining

Room,

Option 3

12"

Option 2

Outlet Air

Inlet Air

Figure 6 - Ventilation Air from Outdoors Shown with Optional Mantel

Ventilated Attic

To Attic

Crawl

Space

Ventilated

Crawl Space

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must in-

stall fireplace. Follow all local codes.

Note:

Your Comfort Glow fireplace is designed to be used in zero clearance installations. Wall or framing material can be placed directly against any exterior surface of your fireplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your fireplace, these spacers can be placed directly against wall or framing materials.

Use the dimensions shown for rough openings to create the easiest installation (see Built-In Fireplace Installation, page 9)

Figure 5 - Ventilation Air from Inside Building Shown with Optional Mantel

For more information, visit www.desatech.com

111044-01C

CHECK GAS TYPE

Use the correct gas type (natural or propane/LP) for your unit. If your gas supply is not correct, do not install fireplace. Call dealer where you bought fireplace for proper type fireplace.

Page 8

INSTALLATION

Installation Items Locating Fireplace

INSTALLATION

Continued

INSTALLATION ITEMS

Before installing fireplace, make sure you have the items listed below.

• external regulator - propane/LP only (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• ground joint union

• sediment trap

• tee joint

• pipe wrench * A CSA design-certified equipment shutoff valve with 1/8" NPT tap

is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 29.

Note:

If desired, purchase a four-sided brass trim kit for built-in

installations. See Accessories, page 29.

LOCATING FIREPLACE

WARNING: Maintain the minimum clearances shown in Figures 7 and 8. If you can, provide greater clearances from floor, ceiling, and joining wall.

You can recess firebox into the wall. You can also position fireplace in the optional cabinet or corner mantels. optional cabinet or corner mantels specified in this manual. Purchase the optional mantel from your dealer (see Accessories, page 29).

WARNING: Never install the fireplace

• in a bedroom or a bathroom

• in a recreational vehicle

• where curtains, furniture, clothing, or other flam-

mable objects are less than 36 inches from the front, top, or sides of the fireplace

• as a fireplace insert

• in high traffic areas

• in windy or drafty areas

IMPORTANT:

Only use

MPORTANT:

Vent-free fireplaces add moisture to the air. Although this is beneficial, installing fireplace in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, pages 5 through 7.

Note:

When installing fireplace directly on carpeting, tile or other combustible material, other than wood flooring, the fireplace shall be installed on a metal or wood panel extending the full width and depth of the fireplace

CAUTION: If you install the fireplace in a home garage

• fireplace pilot and burner must be at least 18 inches above floor.

• locate fireplace where moving vehicle will not hit it.

CEILING

36" Minimum

6" Minimum From Sides Of Fireplace

Left Side

FLOOR

Figure 7 - Mounting Clearances As Viewed From Front of Fireplace Shown Built In The Wall

CEILING

Top Of Mantel Can Be Flush With Wall

Right Side

36"

Minimum

0" Minimum To Top Surface Of Carpeting, Tile Or Other Combustible Material

CAUTION: This fireplace creates warm air currents. These currents move heat to wall surfaces next to fireplace. Installing fireplace next to vinyl or cloth wall coverings or operating fireplace where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

For more information, visit www.desatech.com

Left Side

Right Side

0" Minimum To Top Surface Of Carpeting, Tile Or Other Combustible Material

Figure 8 - Mounting Clearances As Viewed From Front of Fireplace Shown with Optional Mantel

111044-01C

Page 9

INSTALLATION

Continued

Locating Fireplace (Cont.)

INSTALLATION

Built-In Fireplace Installation

For convenience and efficiency, install fireplace

• where there is easy access for operation, inspection, and service.

• in coldest part of room An optional blower kit is available from your dealer. See Accesso-

ries, page 29. If planning to use blower, locate fireplace near an electrical outlet.

BUILT-IN FIREPLACE INSTALLATION

Built-in installation of this fireplace involves installing fireplace into a framed-in enclosure. This makes the front of fireplace flush with wall. An optional brass trim kit accessory is available (see Accesso- ries, page 29). Brass trim will extend past sides of fireplace approximately 1/2 inch. This will cover the rough edges of the wall opening. If installing a built-in mantel above the fireplace, you must follow the clearances shown in Figure 12, page 10. Follow the instructions below to install the fireplace in this manner. Glow fireplace is designed to be used in zero clearance installations. Wall or framing material can be placed directly against any exterior surface on the rear, sides, or top of your fireplace.

Actual Framing Height 26" 26 7/8" Front Width 26 3/4" 26 7/8" Depth 9 1/2" 10 1/2" Bottom

/4"

1. Frame in rough opening. Use dimensions shown in Figure 9 for the rough opening.

If installing in a corner, use dimensions shown in Figure 10 for the rough opening. The height is 26 7/8" which is the same as the wall opening above.

2. If installing GA3450T blower accessory, do so at this time. Follow instructions included with blower accessory. installing blower accessory, you may wish to run electrical wir ing to your fireplace for future blower installation (see Accesso- ries, page 29). Use only approved three-wire electrical wiring.

Note:

A qualified installer should make all electrical connections.

Note:

/4"

Your Comfort

Note:

If not

3. Install gas piping to fireplace location. This installation includes an approved flexible gas line (if allowed by local codes) after the equipment shutoff valve. The flexible gas line must be the last item installed on the gas piping.

4. If you have not assembled firebox, follow instructions on page 4.

5. Carefully set fireplace in front of rough opening with back of fireplace inside wall opening.

6. Attach flexible gas line to fireplace gas regulator. See Con- necting to Gas Supply, page 14.

7. Bend four nailing flanges on outer casing with pliers (see Figure 11).

8. Attach fireplace to wall studs using nails or wood screws through holes in nailing flange.

9. Check all gas connections for leaks. See Checking Gas Con- nections, page 16.

10. If using optional brass trim kit, install the trim after final finishing and/or painting of wall. See instructions included with brass trim accessory for attaching brass trim.

IMPORTANT:

When finishing your firebox, combustible materials such as wall board, gypsum board, sheet rock, drywall, plywood, etc. may be butted up next to the sides and top of the firebox. Combustible materials should never overlap the firebox front facing.

3/4" Off

Figure 9 - Rough Opening for Installing in Wall

The Floor Minimum

Figure 10 - Rough Opening for Installing in Corner

WARNING: If pre-wiring, do not connect wiring to

any electrical source at this time. Install fireplace electrical outlet and connect wiring

to outlet before connecting to electrical source. The fireplace electrical outlet is included with the GA3450T blower accessory.

Only use the fireplace electrical outlet supplied with the GA3450T blower accessory.

For more information, visit www.desatech.com

111044-01C

For more information, visit www.desatech.com

Nails or Wood Screws

Nailing Flanges

Figure 11 - Attaching Fireplace to Wall Studs

Page 10

INSTALLATION

Built-In Fireplace Installation (Cont.) Mantel Clearances for Built-In Installation Optional Mantel Installation

INSTALLATION

Continued

WARNING: Do not allow any combustible materi-

als to overlap the firebox front facing.

IMPORTANT:

Noncombustible materials such as brick, tile, etc. may overlap the front facing, but should never cover any necessary openings like louvered slots.

WARNING: Do not allow noncombustible materials

to cover any necessary openings like louvered slots.

WARNING: Never modify or cover the louvered

slots on the front of the firebox.

WARNING: Use only noncombustible mortar or adhesives when overlapping the front facing with noncombustible facing material.

MANTEL CLEARANCES FOR BUILT-IN INSTALLATION

If placing mantel above built-in fireplace, you must meet minimum clearance between mantel shelf and top of fireplace opening.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• raise the mantel to an acceptable height

• remove the mantel

Note:

All vertical

Side of Firebox

All vertical measurements are from top of fireplace opening to bottom of mantel shelf. All measurements are in inches.

Note:

measurements are from top of fireplace opening to bottom of mantel shelf. All measurements are in inches.

Figure 12 - Minimum Mantel Clearances for Built-In Installation

10" 8" 6" 2 1/2"

Mantel Shelf

13"

16"

19"

21"

OPTIONAL MANTEL INSTALLATION

Note:

Refer to instructions provided with the mantel for assembly instructions. Refer to instructions below for system installation. Refer to instructions on page 4 for firebox assembly. Blower accessory should be installed if it is being used (see Installing Blower Accessory GA3450T, pages 11 through 13).

1. Unscrew four brass screws that attach top louver to fireplace.

Remove louver from fireplace and set aside.

2. Place fireplace on wood base.

3. Place mantel around fireplace/base assembly.

4. Assemble brass trim kit. See Assembling Brass T r im, page 1 1.

5. Firmly snap brass trim kit on shoulder screws. Shoulder screws

are located on fireplace cabinet (see Figure 13).

Shoulder Screws

Hole for 3" Wood Screw for Attaching Fireplace to Mantel

Assembled Brass Trim

Figure 13 - Attaching Brass Trim to Fireplace

For more information, visit www.desatech.com

Hole for 3" Wood Screw for Attaching Fireplace to Wooden Base

111044-01C

Page 11

INSTALLATION

Continued

Optional Mantel Installation (Cont.)

INSTALLATIONS

Assembling Brass Trim

Installing Blower Accessory - GA3450T

6. Align brass trim kit for flush fit around opening.

7. Use two 3" wood screws provided and attach fireplace base to wooden base (see Figure 13, page 10).

8. Remove brass trim kit and mantel. Be careful not to damage wall or mantel.

9. Place wood base next to wall at installation location.

10.

Attach wood base to floor with two 1 3/4" black screws provided (see Figure 14). If the floor is concrete use anchor method (see Attaching Wood Base to Solid Floor, page 14).

11. Install gas line. See Connecting To Gas Supply, page 14.

12. Check for leaks. See Checking Gas Connections, page 16.

13. Place mantel around fireplace. Be careful not to damage wall or mantel.

14. Place brass trim kit on the shoulder screws located on the side and top of the fireplace. Firmly snap the brass trim over the shoulder screws on fireplace (see Figure 13).

15. Adjust assembly to remove any gaps. Attach remaining two 3" wood screws from hardware pack through openings inside of fireplace sides into the mantel. The openings are located at top behind the area for the louvers (see Figure 13, page 10).

16. Reinstall top louvers.

1 3/4" Screw

Set Screws

Shim

Adjusting Plate

Slot

Figure 15 - Assembling Brass Trim

Slot

Top Brass Trim

Mitered Edge

Side Brass Trim

INSTALLING BLOWER ACCESSORY GA3450T

Removing Upper Louver Assembly

To install the blower accessory, you must first remove the upper louver assembly.

1. Lift screen off heater.

2. Remove 4 screws from louver assembly (see Figure 16). Save these screws.

3. Pull louver assembly straight out from the cabinet. Be careful not to scratch the paint. Set louver assembly and screws aside.

Blower Bracket Mounting Holes

Wood Base

Figure 14 - Attaching Wood Base to Floor

ASSEMBLING BRASS TRIM (Brass trim shipped with mantel)

1. Remove packaging from three remaining pieces of brass trim.

2. Locate two adjusting plates with set screws, and two shims in the hardware packet.

3. Align shim under adjusting plate as shown in Figure 15.

4. Slide one end of adjusting plate/shim in slot on mitered edge of top brass trim (see Figure 15).

5. Slide other end of adjusting plate/shim in slot on mitered edge of side brass trim (see Figure 15).

6. While firmly holding edges of brass trim together, tighten both set screws on the adjusting plate with slotted screwdriver.

7. Repeat steps 1 through 6 for other corner.

8. Set brass assembly aside for later installation.

For more information, visit www.desatech.com

111044-01C

Upper Louver Assembly

Screws

Figure 16 - Removing Upper Louver Assembly

Page 12

INSTALLATION

Installing Blower Accessory - GA3450T (Cont.)

INSTALLATION

Continued

Removing Valve Cover Shield

1. Open bottom louver assembly by swinging the assembly down (see Figure 17).

2. Using short Phillips screwdriver, remove the screw under the center of the branch support. Rotate valve cover shield clockwise and slide out.

IMPORTANT:

Do not remove shoulder screw on the left side of valve cover shield. Slide the valve cover shield off of the shoulder screw (see Figure 17).

Note:

If you do not have a short Phillips screwdriver, the screen, log set, and branch support must be removed so a longer screwdriver may be used. See Connecting Equipment Shutoff Valve to Heater Control, page 15, steps 1 and 2.

Branch Support

Shoulder Screw

Remove Screw

Valve Cover Shield

3. Note the wire locations on back of AUTO/OFF/ON switch. The terminals on back of switch are numbered 1, 2, and 3. Carefully remove red wire from terminal 1 and blue wire from terminal 3. Black wire can remain on middle terminal 2 (see Figure 18).

4. Carefully disconnect green and white wires at their insulated connectors.

5. In top of the heater cabinet, locate the four mounting holes on the outer casing. Align these four holes with those on the blower bracket assembly. Attach blower bracket assembly to the outer casing with 4 #10 screws provided (see Figure 18).

6. Route the wire harness through the hole in left side of baffle. Pull wire harness through lower opening above where the valve shield was removed. (see Figure 18).

7. Insert the 4 wire harness into one of the round holes in the rear of the valve cover shield and through the rectangular hole in the front of shield (see Figure 18).

8. Reconnect red wire to switch position 3. Reconnect blue wire to switch position 1. Reconnect green and white wires.

Blower Bracket

Screw

Assembly

Wire Harness

Wiring Routing Hole in Baffle

Baffle

Snap Bushings

Figure 17 - Removing Valve Cover Shield

Installing Blower Assembly

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

CAUTION: Verify proper operation after servicing.

Note:

If you are using a mantel with your heater, use the following

instructions. If your heater is built-in, see For Built-In Installation on page 13.

1. Install snap bushings found in hardware kit into both holes in rear of valve cover shield.

2. Make sure the wire harness is firmly connected to the terminals on the blower bracket assembly .

Bottom Louver Assembly

Switch

3 2 1

Switch Plate

Valve Cover Shield

Figure 18 - Installing Blower Bracket Assembly

Blue

Power Cord

Red

Box Cover

Wire Harness

For more information, visit www.desatech.com

111044-01C

Page 13

INSTALLATION

Continued

INSTALLATION

Installing Blower Accessory - GA3450T (Cont.)

9. Install the switch plate on the valve cover shield with 2 #10 screws provided (see Figure 19). Reinstall the valve cover shield. Route power cord out of the cabinet by inserting it through the bushing on the outer casing (see Figure 18, page

12). Plug fan kit into 120-Volt grounded power supply and test operation.

Note:

When switch is in the AUTO position, the fan will start after the heater has run for a few moments. The fan will continue to run for several moments after the heater has been turned off. When switch is in the ON position, the fan will run until turned to OFF . Reinstall upper louver assembly and hood if previously removed, (see Figure 16, page 11). Close lower louver door.

Valve Cover Shield

Switch Plate

Screw

Figure 19 - Installing Switch Plate to Valve Cover Shield

For Built-In Installation

5. Plug power cord to the outlet receptacle (not provided) as shown in Figure 21. Wind the extra cable in power cord and and tie it up with the plastic wire strap (see Figure 21). Set the cable bundle between the burner bracket and outer casing, away from the burner.

6. Reinstall valve cover shield.

7. Test to make sure the blower is working properly.

8. Reinstall upper louver assembly and hood if previously removed, (see Figure 16, page 11). Close lower louver door .

Fan Switch

(Auto/Off/On)

Off

110/115

V.A.C.

Black

White

Green

Figure 20 - Wiring Diagram For Blower Accessory Built-In Installation

Blower Bracket Assembly

Wire Harness

Screw

Auto

Red

Blue

Thermostat

Switch

(N.O.)

Blue

Red

White

Green

Blower

Motor

WARNING: A licensed electrician must connect the wiring harness to electrical supply following all local codes. Electrician must provide a clamp on the box cover to secure the wiring. Wiring should be routed through the bushing in the hole on the outer casing of heater.

Follow instructions in Removing Valve Cover Shield, page 12, then

1. Install a snap bushing found in hardware kit into one of the holes found on rear of valve cover shield. The other hole is for a strain relief clamp (not supplied) to secure incoming electrical supply.

2. Follow steps 2 through 6 in Installing Blower Assembly, beginning on page 12. Also remove black wire from middle switch terminal 2.

3. Remove black plastic strain relief and power cord from switch plate. The power cord supplied will not be used in built-in installations. Pop in the plastic snap bushing found in hardware kit into the hole left by supply cord/strain relief.

4. A licensed electrician must follow the wiring diagram to connect incoming electrical supply to fan kit wiring harness (see Figure 20).

For more information, visit www.desatech.com

111044-01C

Switch

Power Cord

3 2 1

Blue

Red

Outlet Receptacle

Switch Plate

Plastic Wire Strap

Valve Cover Shield

Box Cover

Clamp Connector

Wire Harness

(not included)

Figure 21 - Installing Blower Bracket Assembly

Page 14

INSTALLATION

Installing Blower Accessory - GA3450T (Cont.) Attaching Wood Base to Solid Floor Connecting to Gas Supply

INSTALLATION

Continued

Extension Cord

Use extension cord if needed. The cord must have a three-prong, grounding plug and a three-hole receptacle. Make sure cord is in good shape. It must be heavy enough to carry the current needed. An undersized cord will cause a drop in line voltage. This will result in loss of power and overheating. Use a No. 16 AWG cord for lengths less than 50 feet.

ATTACHING WOOD BASE TO SOLID FLOOR

For attaching base to solid floors (concrete or masonry)

Note:

Floor anchors and mounting screws are in hardware package.

The hardware package is provided with fireplace.

1. Drill holes at marked locations using 5/16" drill bit. For solid floors (concrete or masonry), drill at least 1" deep.

2. Fold floor anchor as shown in Figure 22.

3. Insert floor anchor (wings first) into hole. Tap anchor flush to floor.

4. Insert mounting screws through base and into floor anchors.

5. Tighten screws until base is firmly fastened to floor.

For propane/LP units, installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, fireplace regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 23. Pointing the vent down protects it from freezing rain or sleet.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" or greater diameter to allow proper gas volume to fireplace. If pipe is too small, undue loss of volume will occur.

Propane/LP Supply Tank

External Regulator

Figure 22 - Folding Anchor

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 45° male flare fitting 5/8"-18 UNF (Unified National Fine Thread) inlet connection and the flexible gas line provided.

WARNING: A qualified service person must connect fireplace to gas supply. Follow all local codes.

CAUTION: Never connect propane/LP fireplace directly to the propane/LP supply. This fireplace requires an external regulator (not supplied). Install the external regulator between the fireplace and propane/LP supply.

WARNING: Never connect natural gas fireplace to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

Vent Pointing Down

Figure 23 - External Regulator with Vent Pointing Down

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from fireplace (see Figure 24).

IMPORTANT:

location. The equipment shutoff valve is for turning on and shutting off the gas to the appliance.

Check your building codes for any special requirements for locating equipment shutoff valve to fireplaces.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged fireplace valves.

WARNING: Use pipe joint sealant that is resistant

to liquid petroleum (LP) gas.

Install an equipment shutoff valve in an accessible

For more information, visit www.desatech.com

111044-01C

Page 15

Connecting Equipment Shutoff Valve to Heater Control

INSTALLATION

Continued

We recommend that you install a sediment trap in supply line as shown in Figure 24. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and fireplace. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into fireplace controls. If sediment trap is not installed or is installed wrong, fireplace may not run properly.

CSA Design-Certified Equipment Shutoff Valve With 1/8" NPT Tap*

PROPANE/LP

From External Regulator

3" Minimum

Pipe Cap Tee

Nipple Joint

Sediment Trap

Figure 24 - Gas Connection

* Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 29.

(11" W.C. to 14" W.C. Pressure)

NATURAL From Gas Meter (5" W.C. to 10.5" W.C. Pressure)

Connecting to Gas Supply (Cont.)

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings.

4. Apply pipe joint sealant lightly to male threads of gas connector attached to flexible gas line/equipment shutoff valve (see Figure 26).

5. Check all gas connections for leaks. See Checking Gas Con- nections, page 16.

6. Replace branch support back into fireplace. Feed flexible gas line into fireplace base area while replacing branch support. Make sure the entire flexible gas line is in fireplace base area. Reattach branch support to fireplace with screws removed in step 2.

Branch Support

Screen Shipping Screw

INSTALLATION

Shoulder Screw

Flexible Gas Line

CONNECTING EQUIPMENT SHUTOFF VALVE TO HEATER CONTROL

Installation Items Needed

• Phillips screwdriver

• sealant (resistant to propane/LP gas, not provided)

1. Remove fireplace screen. Remove two screws that hold fireplace screen in place for shipping. These screws are located near top of screen. Discard screws. Lift fireplace screen up and pull out to remove.

2. Remove screws that attach branch support to fireplace (see Figure 25). Carefully lift up branch support and remove from fireplace (see Figure 25).

3. Route flexible gas line, included, from fireplace control to equipment shutoff valve through side or rear access holes in outer casing.

NOTICE: Most building codes do not permit concealed gas connections. A flexible gas line is provided to allow accessibility from the fireplace (see Figure 25). The flexible gas supply line connection to the equipment shutoff valve should be accessible.

For more information, visit www.desatech.com

111044-01C

Screen

Figure 25 - Removing Log Base Assembly From Fireplace

To Fireplace Gas Regulator

Flexible Gas Line from Fireplace Gas Regulator Provided with Fireplace

Figure 26 - Attaching Flexible Gas Line to Equipment Shutoff Valve

➞

Equipment Shutoff Valve Provided by Installer

PROPANE/LP

To External Regulator

➞

NATURAL To Gas Supply

Page 16

POSITION

OFF

POSITION

INSTALLATION

Checking Gas Connections

INSTALLATION

Continued

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections, internal and external to unit, for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and fireplace. See guidelines under page 14.

Pressure Testing Gas Supply Piping System

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/ LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

4. Check all joints of gas supply piping system. Apply a noncor rosive leak detection fluid to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 27).

2. Pressurize supply piping system by either opening propane/ LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

3. Check all joints from gas meter for natural or propane/LP supply to equipment shutoff valve (see Figures 28 and 29). Apply a noncorrosive leak detection fluid to gas joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Connecting to Gas Supply

Pressure Testing Fireplace Gas Connections

1. Open equipment shutoff valve (see Figure 27).

2. Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3. Make sure control knob of fireplace is in the OFF position.

4. Check all joints from equipment shutoff valve to thermostat gas valve (see Figures 28 and 29). Apply a noncorrosive leak detection fluid to gas joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light fireplace (see Operating Fireplace, pages 17 and 18). Check all other internal joints for leaks.

7. Turn off fireplace (see To Turn Off Gas to Appliance, page 18).

8. Replace front panel.

Equipment Shutoff Valve

Figure 27 - Equipment Shutoff Valve

Equipment

Propane/LP Supply Tank

Figure 28 - Checking Gas Joints Shown with Optional Mantel (Propane/LP Gas)

Gas Meter

Shutoff Valve

Equipment Shutoff Valve

Open

Closed

Figure 29 - Checking Gas Joints Shown with Optional Mantel (Natural Gas)

For more information, visit www.desatech.com

111044-01C

Page 17

OPERATING FIREPLACE

For Your Safety Read Before Lighting

OPERATING FIREPLACE

Lighting Instructions

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance ar ea

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

5. Turn control knob counterclockwise to the PILOT position. Press in control knob for five (5) seconds (see Figure 30).

Note:

You may be running this fireplace for the first time after hooking up to gas supply . If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

• If control knob does not pop up when released, contact a

qualified service person or gas supplier for repairs.

6. With control knob pressed in, push down and release ignitor button. This will light pilot. The pilot is attached to the front of burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, refer to T roubleshooting, pages 20 through 22. Also contact a qualified service person or gas supplier for repairs. Until r epairs are made, light pilot with match. To light pilot with match, see Manual Lighting Pro- cedure, page 18.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

Note:

If pilot goes out, repeat steps 3 through 7. This fireplace has a safety interlock system. Wait one (1) minute before lighting pilot again.

8. Turn control knob counterclockwise to desired heating level. The main burner should light. Set control knob to any heat level between HI and LO.

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

LIGHTING

INSTRUCTIONS

WARNING: You must operate this fireplace with the fireplace screen in place. Make sure fireplace screen is installed before running fireplace.

NOTICE: During initial operation of new fireplace, burning logs will give off a paper-burning smell. Orange flame will also be present. Open window to vent smell. Operate fireplace on HI position to burn off odor. This will only last a few hours.

1. STOP! Read the safety information above.

2. Make sure equipment shutoff valve is fully open.

3. T urn control knob clockwise to the OFF position.

4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above. If you don’t smell gas, go to the next step.

For more information, visit www.desatech.com

111044-01C

Ignitor Button

Figure 30 - Control Knob In The OFF Position

Pilot Burner

Ignitor Electrode

Figure 31 - Pilot

Thermocouple

Control Knob

Page 18

OPERATING FIREPLACE

To Turn Off Gas To Appliance Thermostat Control Operation Manual Lighting Procedure

INSPECTING BURNER

Pilot Flame Pattern Burner Flame Pattern

OPERATING FIREPLACE

Continued

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Fireplace

1. T ur n contr ol knob clockwise

2. Turn off all electric power to the appliance if service is to be performed.

Shutting Off Burner Only (pilot stays lit)

Turn control knob clockwise

Clockwise

THERMOSTAT

CONTROL OPERATION

The thermostatic control used on this fireplace differs from standard thermostats. Standard thermostats simply turn on and off the burner. The thermostat used on this fireplace senses the room temperature. The thermostat adjusts the amount of gas flow to the burner. This increases or decreases the burner flame height. At times the heater will cycle back on when room temperature drops below the set temperature.

The control knob can be set to any heat level between HI and LO.

Note:

The thermostat sensing bulb measures the temperature

of air near the fireplace cabinet. This may not always agree with room temperature (depending on housing construction, installation location, room size, open air temperatures, etc.). Frequent use of your fireplace will let you determine your own comfort levels.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 5 under Lighting Instructions, page 17.

2. With control knob pressed in, strik e match. Hold match to pilot until pilot lights.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 8 under Lighting Instructions, page 17.

to the OFF position.

Clockwise

to the PILOT position.

INSPECTING BURNER

Check pilot flame pattern and burner flame pattern often.

PILOT FLAME PATTERN

Figure 32 shows a correct pilot flame pattern. Figure 33 shows an incorrect pilot flame pattern. The incorrect pilot flame is not properly heating the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the fireplace will shut down.

If pilot flame pattern is incorrect, as shown in Figure 33

• turn fireplace off (see To Turn Off Gas to Appliance)

• see Troubleshooting, pages 20 through 22

Note:

The pilot flame on natural gas units will have a slight curve,

but flame should be blue and have no yellow or orange color.

Pilot Burner

Figure 32 - Correct Pilot Flame Pattern (Propane/LP Shown)

Thermocouple

Figure 33 - Incorrect Pilot Flame Pattern (Propane/LP Shown)

BURNER FLAME PATTERN

Figure 34 shows a correct burner flame pattern. Figure 35 shows an incorrect burner flame pattern. The incorrect burner flame pattern shows sporadic, irregular flame tipping. The flame should not be dark or have an orange/reddish tinge.

Note:

When using the fireplace the first time, the flame will be

orange for approximately one hour until the log cures. If burner flame pattern is incorrect, as shown in Figure 35

• turn fireplace off (see To Turn Off Gas to Appliance)

• see Troubleshooting, pages 20 through 22

Pilot Burner

Thermocouple

Figure 34 - Correct Burner Flame Pattern

Figure 35 - Incorrect Burner Flame Pattern

For more information, visit www.desatech.com

111044-01C

Page 19

CLEANING AND MAINTENANCE

Cleaning Burner Injector Holder and Pilot Air Inlet Hole

CLEANING AND MAINTENANCE

Cabinet

WARNING: Turn off fireplace and let cool before

cleaning.

CAUTION: You must keep control areas, burner, and circulating air passageways of fireplace clean. Inspect these areas of fireplace before each use. Have fireplace inspected yearly by a qualified service person. Fireplace may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.

CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figure 36).

3. Blow air through the ports/slots and holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 37). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Ports/Slots

Burner Tube

Primary Air Inlet Holes

Figure 36 - Injector Holder On Outlet Burner Tube

Pilot Assembly

Figure 37 - Pilot Inlet Air Hole (Propane/LP Shown)

Injector Holder

Pilot Air Inlet Hole

CABINET

Air Passageways

• Use a vacuum cleaner or pressurized air to clean.

Exterior

• Use a soft cloth dampened with a mild soap and water mixture. Wipe the cabinet to remove dust.

111044-01C

For more information, visit www.desatech.com

Page 20

TROUBLESHOOTING

Note:

For additional help, visit DESA

Heating Products’ technical service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

WARNING: Turn off and unplug fireplace and let cool before servicing. Only a qualified service person should service and repair fireplace.

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

ODS/pilot lights but flame goes out when control knob is released

POSSIBLE CAUSE

1. Ignitor cable pinched or wet

2. Ignitor electrode not connected to ignitor cable

3. Broken ignitor cable

4. Bad piezo ignitor

5. Ignitor electrode broken

6. Ignitor electrode positioned wrong

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (propane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Safety interlock system has been triggered

4. Equipment shutoff valve not fully open

5. Thermocouple connection loose at control valve

6. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

7. Thermocouple damaged

8. Control valve damaged

REMEDY

1. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

2. Reconnect ignitor cable

3. Replace ignitor cable

4. Replace piezo ignitor

5. Replace pilot assembly

6. Replace pilot assembly

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 19) or replace ODS/ pilot assembly

7. Replace gas regulator

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. W ait one minute for safety interlock system to reset. Repeat ignition operation

4. Fully open equipment shutoff valve

5. Hand tighten until snug, then tighten 1/4 turn more

6. A) Contact local propane/LP or natur al gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 19) or replace ODS/ pilot assembly

7. Replace pilot assembly

8. Replace control valve

For more information, visit www.desatech.com

111044-01C

Page 21

TROUBLESHOOTING

Continued

TROUBLESHOOTING

OBSERVED PROBLEM

Burner does not light after ODS/pilot is lit

Delayed ignition of burner

Burner backfiring during combustion

Yellow flame during burner combustion

Slight smoke or odor during initial operation

POSSIBLE CAUSE

1. Burner orifice is clogged

2. Inlet gas pressure is too low

1. Manifold pressure is too low

2. Burner orifice is clogged

1. Burner orifice is clogged or damaged

2. Burner damaged

3. Low inlet gas pressure

4. Gas regulator defective

1. Not enough air

2. Gas regulator defective

1. Residues from manufacturing processes

REMEDY

1. Clean burner (see Cleaning and maintenance, page 19) or replace burner orifice

2. Contact local propane/LP or natural gas company

1. Contact local propane/LP or natural gas company

2. Clean burner (see Cleaning and Mainte- nance, page 19) or replace burner orifice

1. Clean burner (see Cleaning and Mainte- nance, page 19) or replace burner orifice

2. Replace burner pressure

3. Contact local propane/LP or natural gas company

4. Replace gas regulator

1. Check burner for dirt and debris. If found, clean burner (see Cleaning and Maintenance, page 19)

2. Replace gas regulator

1. Problem will stop after a few hours of operation

Fireplace produces a whistling noise when burner is lit

White powder residue forming within burner box or on adjacent walls or furniture

1. Turning control knob to HI position when burner is cold

2. Air in gas line

3. Air passageways on fireplace blocked

4. Dirty or partially clogged burner orifice

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. may turn into white powder residue

1. Turn control knob to LO position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas line checked by local propane/LP gas company

3. Observe minimum installation clearances (see Figures 7 and 8, page 8)

4. Clean burner (see Cleaning and Mainte- nance, page 19) or replace burner orifice

1. Turn heater off when using furniture polish, wax, carpet cleaners, or similar products

111044-01C

For more information, visit www.desatech.com

Page 22

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT:

supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors.

Operating fireplace where impurities in air exist may create odors. Cleaning

OBSERVED PROBLEM

Fireplace produces a clicking/ticking noise just after burner is lit or shut off

Fireplace produces unwanted odors

Fireplace shuts off in use (ODS operates)

Gas odor even when control knob is in OFF position

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Fireplace burning vapors from paint, hair spray, glues, etc. (see statement above)

2. Low fuel supply

3. Gas leak. See W arning statement at

top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

1. Gas leak. See W arning statement at

top of page

2. Control valve defective

IMPORTANT

REMEDY

1. This is common with most fireplaces. If noise is excessive, contact qualified service person

1. Ventilate room. Stop using odor causing products while fireplace is running

2. Refill supply tank

3. Locate and correct all leaks (see Check- ing Gas Connections, page 16)

1. Open window and/or door for ventilation

2. Contact local propane/LP or natural gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 16)

1. Locate and correct all leaks (see Check- ing Gas Connections, page 16)

2. Replace control valve

Gas odor during combustion

Moisture/condensation noticed on windows

For more information, visit www.desatech.com

1. Foreign matter between control valve and burner

2. Gas leak. See W arning statement at

top of page

1. Not enough combustion/ventilation air

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, page 16)

1. Refer to Air for Combustion and Venti- lation requirements (page 5)

111044-01C

Page 23

SPECIFICATIONS

CGCFTP CGCFTN

Btu (Variable) 14,000/26,000 14,000/26,000 Type Gas Propane/LP Only Natural Only Ignition Piezo Piezo Pressure Regulator Setting 8" W.C. 3" W.C. Inlet Gas Pressure (in. of water)*

Maximum 14" 10.5" Minimum 11" 5"

Dimensions, Inches (H x W x D)

Fireplace 25 7/8 x 26 13/16 x 9 3/8 25 7/8 x 26 13/16 x 9 3/8 Carton 32 5/8 x 27 3/16 x 11 5/8 32 5/8 x 27 3/16 x 11 5/8

Weight, pounds

Fireplace 44 1/2 lbs. 44 1/2 lbs. Shipping 48 lbs. 48 lbs.

* For purposes of input adjustment

SPECIFICATIONS

REPLACEMENT PARTS

SERVICE HINTS

TECHNICAL SERVICE

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s) call DESA Heating Products’ Technical Service Department at 1-866-672-6040 for referral information.

When calling DESA Heating Products, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product or Parts Central (see page

26). If they can’t supply original replacement part(s) call DESA Heating Products at 1-866-672-6040 for referral information.

When calling DESA Heating Products, have ready:

• model number of your fireplace

• the replacement part number

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burner will have delayed ignition

• fireplace will not produce specified heat

• propane/LP gas supply may be low (propane/LP only) You may feel your gas pressure is too low. If so, contact your local

propane/LP or natural gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA Heating Products’ Technical Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.

You can also visit DESA Heating Products’ technical service web site at www.desatech.com.

111044-01C

For more information, visit www.desatech.com

Page 24

ILLUSTRATED PARTS BREAKDOWN

Models CGCFTP and CGCFTN

ILLUSTRATED PARTS BREAKDOWN

MODELS CGCFTP AND CGCFTN

12-1

7 8

For more information, visit www.desatech.com

111044-01C

Page 25

PARTS LIST

Models CGCFTP and CGCFTN

PARTS LIST

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 23 of this manual.

KEY PART NUMBER NO. CGCFTP CGCFTN DESCRIPTION QTY.

1 102633-02 102633-02 Outer Casing Top 1 2 102624-02 102624-02 Outer Casing 1 3 099230-02 099230-02 Shoulder Screw 14 4 098304-01 098304-01 Screw, #10 x 3/8" 16 5 109824-05 109824-05 Burner 1 6 103209-01 103209-01 Louvered Door 1 7 102635-02 102635-02 Left and Right Side Front 2 8 M11084-26 M11084-26 Hex Head Screw, #10 x 3/8" 28 9 103209-05 103209-05 Top Louver 1 10 104281-02CK 104281-02CK Firebox Hood 1 11 102638-01 102638-01 Firebox Top 1 12 104286-01 104285-01 ODS/Pilot Assembly 1 13 ** ** Firebox Wrapper 1 14 099211-01 099211-01 Control Bracket Screw 2 15 103963-01 103963-01 Inlet Tube 1 16 102834-01 102834-01 Outlet Tube 1 17 101629-02 101629-02 Bushing 1 18 098303-02 098303-02 Regulator Screw 2 19 ** ** Outer Shell Base 1 20 102649-02 102649-02 Branch Support 1 21 099415-09 099415-10 Gas Regulator 1 22 102875-01 102875-01 Regulator Bracket 1 23 101381-01 101381-01 Valve Cover and Piezo 1 24 099387-11 099387-11 Pilot Tube 1 25 098271-06 098271-06 Ignitor Cable 1 26 107186-01 107186-02 Injector 1 27 101629-01 101629-01 Bushing 1 28 098249-01 098249-01 Nut, M5 2 29 098522-26 098522-23 Gas Valve 1 30 102639-01 102639-01 Baffle 1 31 101628-01 101628-01 Flexible Connector 1 32 102869-01 102869-01 Control Bracket 1 33 102731-01 102731-01 Control Shield 1 34 103295-03CK 103295-03CK Screen Assembly 1 35 107154-01 107154-01 Log Set 1 36 104313-01 104313-01 Hinge, Right 1 37 104313-02 104313-02 Hinge, Left 1 38 M10908-2 M10908-2 Hinge Screws 4 39 103734-01 103734-01 Burner Support 2 40 097809-03 097809-03 41 101006-02 101006-02 Bracket, Pilot 1 42 098304-03 098304-03 Screw, #8 x 3/8" 4 43 44 M10908-75 M10908-75 Hex wsr head tapping screw 1

___

107634-02 NG Conversion Plate 1

3/8" NPT x 3/8" Flare Brass Fitting

111044-01C

PARTS AVAILABLE — NOT SHOWN

101054-01 101054-01 Lighting Instructions Plate 1 100563-01 100563-01 Warning Plate 1 103470-01 103470-01 Hardware Package 1

** Part not available for field replacement.

For more information, visit www.desatech.com

Page 26

PARTS CENTRALS

These Parts Centrals are privately owned businesses. They have agreed to support our customer’s needs by providing original replacement parts and accessories.

Baltimore Electric

1348 Dixwell Avenue Hamden, CT 06514-0322 1-800-397-7553 203-248-7553 Parts Department

Portable Heater Parts

342 N. County Rd. 400 East Valparaiso, IN 46383-9704 All States 219-462-7441 1-800-362-6951 Parts Department sales@portableheaterparts.com techservice@portableheaterparts.com

FBD

1349 Adams St. Bowling Green, KY 42103-3413 270-846-1199 1-800-654-8534 Fax: 1-800-846-0090 franktalk@aol.com

Master Parts Distributors

1251 Mound Ave. NW Grand Rapids, MI 49504-2672 616-791-0505 1-800-446-1446 Fax: 616-791-8270 www.nbmc.com

Washer Equipment Co.

1715 Main Street Kansas City, MO 64108-2195 KS, MO, AR 816-842-3911 www.washerparts.com

East Coast Energy Products

707 Broadway W. Long Branch, NJ 07764-1542 732-870-8809 1-800-755-8809 www.njplaza.com/ecep

Laportes Parts & Service

2444 N. 5th Street Hartsville, SC 29550-7704 803-332-0191 Parts Department

Cans Unlimited, Inc.

P.O. Box 645 Taylor, SC 29687-0013 All States 803-879-3009 1-800-845-5301 cuisales@aol.com

For more information, visit www.desatech.com

111044-01C

Page 27

OWNER'S REGISTRATION FORM

In order to provide better customer service for this and future purchases, we recommend that you register your product with us. You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner’s Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information:

Brand: Model: Date Purchased: Serial Number: First Name: Last Name: Address: City: State: Zip: Country: Home Phone: ( ) - E-Mail:

Please answer the following questions to register your product with DESA Heating Products:

1. Where will the product be used? ❍ Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other

2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

3. Who selected the product? ❍ Male ❍ Female ❍ Both

4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000 ❍ 100,000 to 250,000 ❍ Over 250,000

5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other

6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other

7. Cost of product excluding sales tax? $___________________

8. Cost to install product? $____________________

9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Supply ❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other

10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project ❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other

11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________

12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School

13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

14. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999 ❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

15. Store where product was purchased: Name: ______________________________________ City: _______________________ State: __________

16. In choosing this product, how important were the following:

Availability Price Brand Name Overall Quality Heat Output Made in USA Warranty Local Service Value for Price Prior Brand Experience Controls Location Thermostat, Remote, or Manual Operation Ease of Operation Special Features Salesperson’s Recommendation Friend/Relative’s Recommendation Portability

111044-01C

Quiet Operation

For more information, visit www.desatech.com

Not Important Somewhat Important Very Important

(Comfort Glow, Vanguard, etc.) (EFP33PR, VTGH33NR, etc.)

Note:

Keep receipt for warranty verification.

7 or 9 digit number located on product or identification tag.

❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍

Page 28

TAPE

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

Postage

Required

For more information, visit www.desatech.com

TAPE

111044-01C

Page 29

ACCESSORIES

Purchase these fireplace accessories from your local dealer or Parts Central (see page 26). If they cannot supply these accessories call DESA Heating Products’ Sales Department at 1-866-672-6040 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE - GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap.

ACCESSORIES

CABINET MANTEL WITH FULL HEARTH BASE

Stained Oak Veneer - GMC60F Unfinished Birch Veneer GMC61U

The hardwood mantel and full hearth base feature fluted legs and crown molding. Available in medium stained oak, white lacquer finish, and unfinished hardwood, ready to stain or paint. Complete assembly instructions included. Three-sided brass trim kit included.

BRASS TRIM KIT - GA6095

Optional four-sided brass trim kit for built-in installations. Provides a finished appearance covering rough edges of wall opening.

THERMOSTATICALLYCONTROLLED BLOWER KIT - GA3450T

For all models. Provides better heat distribution. Blower turns off and on automatically, as needed. Complete installation and operating instructions included.

CLEANING KIT - CCK

(Not Shown)

For all models. Your vent-free gas appliance requires regular cleaning and maintenance to prevent performance problems. This kit gives you the tools and instructions to make it easy to clean all critical areas of your appliance.

CORNER MANTEL WITH FULL HEARTH BASE

Stained Oak Veneer - GMC64F Unfinished Birch Veneer GMC63U

Space-saving mantel and full hearth base corner design offers classic styling. Available in stained oak or unfinished hardwood, ready to stain or paint. Complete assembly instructions included. Three-sided brass trim kit included.

INFORMATION VIDEO - 108917-01

For all models. A care and maintenance video is available by calling 1-866-672-6040. You may also email your request to

productsupport@desaint.com.

111044-01C

For more information, visit www.desatech.com

Page 30

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make

no other warranty, expressed or implied.

LIMITED WARRANTY

VENT-FREE COMPACT FIREPLACE

DESA Heating Products warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this fireplace to proper operating condition and an allowance for labor when provided by a DESA Heating Products Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA Heating Products who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The fireplace MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective fireplace will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA HEATING PRODUCTS’ LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA HEATING PRODUCTS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

2701 Industrial Drive P.O. Box 90004

Bowling Green, KY 42102-9004 www.desatech.com

111044 01

NOT A UPC

For more information, visit www.desatech.com

111044-01 Rev. C 06/03

111044-01C
