UNVENTED (VENT-FREE) GAS

COMPACT CLASSIC HEARTH® FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

Patent Pending

Shown with Optional Cabinet

Mantel/Hearth Base Accessory

THERMOSTAT MODELS:

VMH10TNC, VMH10TPC, EFS10TPA AND EFS10TNA

REMOTE-READY MODELS:

VMH10RNC, VMH10RPC, EFS10RPA, EFS10RNA, CGCF10NR

AND CGCF10PR

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a quali-

fied installer, service agency, or the gas supplier.

Save this manual for future reference.

For more information, visit www.desatech.com

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Ventilation

section on page 7 of this manual.

Air for Combustion and

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

TABLE OF CONTENTS

Safety Information ............................................... 3

Local Codes ........................................................ 4

Product Identification .......................................... 5

Unpacking ........................................................... 5

Product Features ................................................ 5

Optional Remote Control Accessories ................ 5

Assembly ............................................................ 6

Air for Combustion and Ventilation ...................... 7

Installation ........................................................... 9

Operating Fireplace .......................................... 23

Inspecting Burners ............................................ 29

www.desatech.com 112462-01C

Cleaning and Maintenance ............................... 30

Troubleshooting ................................................. 31

Specifications .................................................... 35

Wiring Diagram ................................................. 35

Service Hints ..................................................... 35

Technical Service .............................................. 35

Replacement Parts ........................................... 35

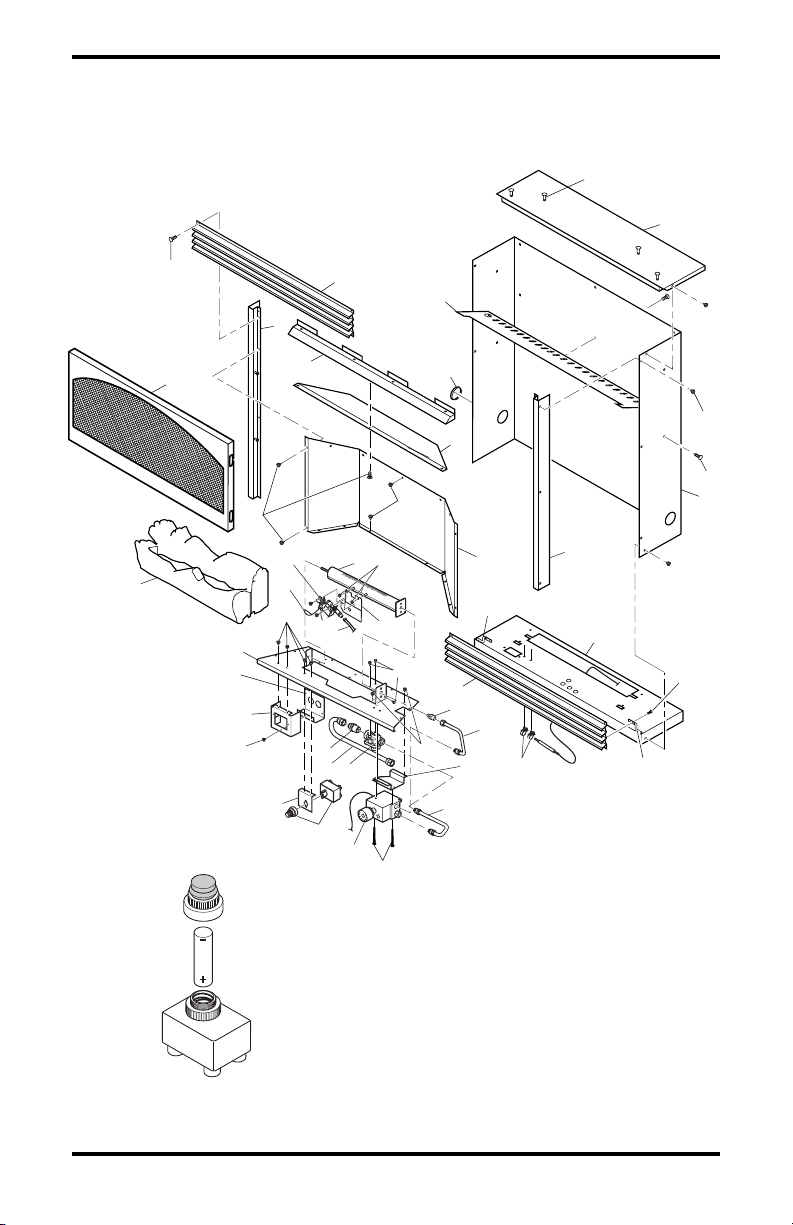

Illustrated Parts Breakdown and Parts List ....... 36

Accessories ....................................................... 40

Warranty Information.......................... Back Cover

SAFETY INFORMATION

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

DANGER: Carbon monoxide

poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of car-

bon monoxide poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the fireplace may not be working properly. Get fresh air at once! Have fireplace serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Natural and Propane/LP Gas: Natural and propane/

LP gases are odorless. An odor-making agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this fireplace.

WARNING: Any change to this fireplace or its controls can be dangerous.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this fireplace.

Fireplace front and screen become very hot when running heater. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

Carefully supervise young children when they are in the room with fireplace. When using the hand-held remote accessory (Remote-Ready Models Only), keep selector switch in the OFF position to prevent children from turning on burners with remote.

You must operate this fireplace with the fireplace screen in place. Make sure fireplace screen is closed before running fireplace.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

112462-01C 3

www.desatech.com

SAFETY INFORMATION

Continued

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not

use any phone in your building

• immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call

the fire department

4. This fireplace shall not be installed in a bathroom.

5. Do not use this fireplace as a wood-burning fireplace. Use only the logs provided with the fireplace.

6. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool. Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into the control area of fireplace.

7. This fireplace is designed to be smokeless. If logs ever appear to smoke, turn off fireplace and call a qualified service person. ing initial operation, slight smoking could occur due to log curing and fireplace burning manufacturing residues.

8. To prevent the creation of soot, follow the instructions in Cleaning and Maintenance, page 30.

9. Before using furniture polish, wax, carpet cleaner, or similar products, turn fireplace off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

10. This fireplace needs fresh air ventilation to run properly. This fireplace has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the fireplace if not enough fresh air is available. See Air for Combustion and Ventilation, page 7. If fireplace keeps shutting off, see Troubleshooting, page 31.

11. Keep all air openings in front and at bottom of heater clear and free of debris. This will insure enough air for proper combustion.

Note:

Dur-

12. Do not run fireplace

• where flammable liquids or vapors are used or stored.

• under dusty conditions.

13. Do not use this fireplace to cook food or burn paper or other objects.

14. Never place any objects in the fireplace or on logs.

15. Do not use fireplace if any part has been under water. Immediately call a qualified service technician to inspect the room fireplace and to replace any part of the control system and any gas control which has been under water.

16. Turn off and unplug fireplace and let cool before servicing. Only a qualified service person should service and repair fireplace.

17. Operating fireplace above elevations of 4,500 feet could cause pilot outage.

18. Do not operate fireplace if any log is broken. Do not operate fireplace if a log is chipped (dime-sized or larger).

19. To prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.

20. Provide adequate clearances around air openings.

LOCAL CODES

Install and use fireplace with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

www.desatech.com 112462-01C

PRODUCT

IDENTIFICATION

Fireplace Cabinet

Logs

Electronic Ignitor Button

Control Knob

Screen

Logs

Flexible Gas Line

Remote Selector Switch (Optional)

Control Knob

Remote Control (Optional)

Figure 1 - Vent-Free Compact Classic

Electronic Ignitor Button

Hearth® Fireplace

Flexible Gas Line

Fireplace Cabinet

Screen

UNPACKING

1. Remove fireplace and hood from carton. Log is wrapped and inside fireplace. Do not remove at this time.

2. Remove all protective packaging applied to fireplace for shipment.

3. Make sure your fireplace includes one hardware packet.

4. Check fireplace for any shipping damage. If fireplace is damaged, promptly inform dealer where you bought fireplace.

PRODUCT FEATURES

SAFETY PILOT

This fireplace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free room fireplaces. The ODS/pilot shuts off the fireplace if there is not enough fresh air.

ELECTRONIC IGNITOR

This heater has an electronic ignitor to light heater fuel supply.

THERMOSTATIC HEAT CONTROL FOR THERMOSTAT-CONTROLLED MODELS

Thermostat-Controlled models have a thermostat sensing bulb and a control valve. The thermostat will automatically modulate the heat output to maintain a consistent room temperature. This results in greater fireplace comfort. This can also result in lower gas bills.

OPTIONAL REMOTE

CONTROL ACCESSORIES

(For Remote-Ready Models Only)

There are four optional remote controls that can be purchased separately for Remote-Ready Models only:

• wall switch

• hand-held ON/OFF remote

• wall thermostat

• hand-held thermostat remote

See Accessories, page 40.

112462-01C 5

www.desatech.com

ASSEMBLY

WARNING: Always have screen in place before operating fireplace. This prevents excessive temperatures on fireplace surfaces.

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this fireplace may result in property damage or personal injury.

ASSEMBLING FIREPLACE

Tools Required:

• Phillips screwdriver

• 5/16" hex wrench

• slotted screwdriver

• scissors

1. Remove two screws that hold fireplace screen in place for shipping. These screws are located near top of screen. Discard screws. Lift fireplace screen up and pull out to remove (see Figure 2). Set screen aside until installation has been completed.

2. Cut two plastic straps to remove the log from the firebox cavity.

3. An optional blower is available. See Acces- sories, page 40. Install optional blower now. Follow installation instructions provided with blower. See Installing Optional Blower Ac- cessory GA3450T on page 14.

4. Locate four black phillips sheet metal screws from the hardware packet.

5. Rotate hood as shown in Figure 3. Make sure hood tabs point toward fireplace.

6. Insert hood tabs between baffle and louvers (see Figure 3).

7. Gently rotate hood to upright position. Make sure hood tabs are behind louvers and hood is resting on firebox top (see Figure 3).

8. Align screw holes on hood with screw holes on firebox top.

9. Insert screws as shown in Figure 3. Tighten screws firmly.

Hood Tabs

Hood

Louver

Hood Tab

Baffle

Sheet Metal Screws

Firebox Top

Figure 3 - Assembling Hood

Shoulder Screw

Screen

Figure 2 - Removing Screen

www.desatech.com 112462-01C

AIR FOR COMBUSTION

VENTILATION

WARNING: This fireplace shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code. ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space

The information on pages 7 through 9 will help you classify your space and provide adequate ventilation.

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings exposed to the out-

side atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 or less with openings gasketed or sealed and

b. weather stripping has been added on

openable windows and doors and

c. caulking or sealants are applied to ar-

eas such as joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of these three criteria, you must provide additional fresh air. See

doors

, page 8

If your home does not meet all of the three criteria above, proceed to

mining Fresh-Air Flow For Fireplace Location,

page 8.

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space whose vol-

ume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

-11

kg per pa-sec-m2)

Ventilation Air From Out-

Deter-

112462-01C 7

www.desatech.com

AIR FOR COMBUSTION

AND VENTILATION

Continued

DETERMINING FRESH-AIR FLOW FOR FIREPLACE LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space.

Space: Includes the room in which you will install fireplace plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height =__________cu. ft. (volume of space)

Example:

(width) x 8 ft. (ceiling height) = 1792 cu. ft. (volume of space)

If additional ventilation to adjoining room is supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maxi-

mum Btu/Hr the space can support)

Example:

35,840 (maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free fireplace _________ Btu/Hr

Gas water heater* _________ Btu/Hr

Gas furnace _________ Btu/Hr

Vented gas heater _________ Btu/Hr

Gas fireplace logs _________ Btu/Hr

Other gas appliances* + _________ Btu/Hr

Total = _________ Btu/Hr

* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

Example:

Gas water heater _________ Btu/Hr

Vent-free fireplace + _________ Btu/Hr

Total = _________ Btu/Hr

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

________

Example:

Space size 16 ft. (length) x 14 ft.

1792 cu. ft. (volume of space) x 20 =

30,000 10,000 40,000

Btu/Hr (maximum the space can support)

Btu/Hr (actual amount of Btu/Hr used)

35,840 Btu/Hr (maximum the space can support)

40,000 Btu/Hr (actual amount of Btu/Hr used)

The space in the example is a confined space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoin-

ing room. If the extra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air From Inside Building.

B. Vent room directly to the outdoors. See Ventila-

tion Air From Outdoors.

C. Install a lower Btu/Hr fireplace, if lower Btu/Hr

size makes room unconfined.

If the actual Btu/Hr used is less than the maximum Btu/ Hr the space can support, the space is an unconfined space. You will need no additional fresh air ventilation.

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

National Fuel Gas Code,

ANSI Z223.1/NFPA 54 Section

5.3

or applicable local codes

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 4, page 9). You can also remove door into adjoining room (see option 3, Figure 4, page 9). Follow the National Fuel Gas Code,

ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of ventila-

tion grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

www.desatech.com 112462-01C

AIR FOR COMBUSTION

AND VENTILATION

Continued

IMPORTANT:

or outlet air into attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Ventilation

Grills

into Adjoining

Room,

Option 1

Figure 4 - Ventilation Air from Inside

Outlet Air

Inlet Air

Figure 5 - Ventilation Air from Outdoors

Do not provide openings for inlet

12"

Ventilation Grills

Into Adjoining Room,

Or Remove Door into Adjoining

Room,

Option 3

Option 2

12"

Building

Outlet Air

Inlet Air

Ventilated Attic

Crawl Space

Ventilated

To Attic

Crawl

Space

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must install fireplace. Follow all local codes.

WARNING: Never install the fireplace

• in a bathroom

• in a recreational vehicle

• where curtains, furniture,

clothing, or other flammable objects are less than 36 inches from the front, top, or sides of the fireplace

• as a fireplace insert

• in high traffic areas

• in windy or drafty areas

CAUTION: This fireplace creates warm air currents. These currents move heat to wall surfaces next to fireplace. Installing fireplace next to vinyl or cloth wall coverings or operating fireplace where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

112462-01C 9

www.desatech.com

INSTALLATION

Continued

IMPORTANT:

to the air. Although this is beneficial, installing fireplace in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, page 7.

Note:

clearance installations. Wall or framing material can be placed directly against any exterior surface on the rear, sides, or top of your fireplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your fireplace, these spacers can be placed directly against wall or framing materials.

Note:

peting, tile or other combustible material, other than wood flooring, the fireplace shall be installed on a metal or wood panel extending the full width and depth of the fireplace.

Use the dimensions shown for rough openings to create the easiest installation (see Built-In Fire- place Installation, page 11).

CHECK GAS TYPE

Use the correct gas type (natural or propane/LP) for your unit. If your gas supply is not correct, do not install fireplace. Call dealer where you bought fireplace for proper type fireplace.

WARNING: This appliance is equipped for (natural or propane/LP) gas. Field conversion is not permitted.

INSTALLATION ITEMS

Before installing fireplace, make sure you have the items listed below.

• external regulator (supplied by installer, for propane/LP units only)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection*

• ground joint union

• sediment trap

• tee joint

• pipe wrench

* A CSA design-certified equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 40.

Vent-free fireplaces add moisture

Your fireplace is designed to be used in zero

When installing fireplace directly on car-

FIREPLACE CLEARANCES

WARNING: Maintain the minimum clearances shown in Figure 6. If you can, provide greater clearances from floor, ceiling, and joining wall.

NOTICE: If you install the fireplace in a bedroom (Thermostat-Controlled Models only), some building codes require that the fireplace/mantel system be secured to (or within) a wall. You can position fireplace in an optional cabinet or corner mantel. You can also recess fireplace into the wall.

If your fireplace is to be used with an optional mantel, the installation instructions included with your mantel shows an CSA approved method of attaching the fireplace/mantel system to a wall.

IMPORTANT:

ner mantels specified in this manual. Purchase the optional mantel from your dealer (see Accesso- ries, page 40).

If your fireplace is to be recessed into the wall, see Built-In Fireplace Installation on page 11 to secure your fireplace into the wall.

Only use optional cabinet or cor-

CAUTION: If you install the fireplace in a home garage

• fireplace pilot and burner must

be at least 18 inches above floor.

• locate fireplace where moving

vehicle will not hit it.

For convenience and efficiency, install fireplace

• where there is easy access for operation, inspection, and service

• in coldest part of room

An optional blower kit is available from your dealer. See Accessories, page 40. If planning to use blower, follow instructions provided with blower for power source.

www.desatech.com 112462-01C

INSTALLATION

3/4" Off The Floor Minimum

Continued

Minimum Clearances For Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the fireplace cabi-

net to any combustible material and wall should follow diagram in Figure 6.

Example: The face of a mantel, bookshelf, etc. is made of combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the fireplace opening (see Figure 6).

B. Clearances from the top of the fireplace

opening to the ceiling should not be less than 36 inches.

C. For mantel clearances, see Figure 10 on

page 12.

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS

Top Left and Bottom

Right Sides and Rear

36" 6" 0"

Example

*Minimum 16 inches from Side Wall

Figure 6 - Minimum Clearance for

Combustible to Wall

Actual Framing Height 26" 26 7/8" Front Width 26 3/4" 26 7/8" Depth 9 1/2" 10 1/2" Bottom 3/4" 3/4"

1. Frame in rough opening. Use dimensions shown in Figure 7 for the rough opening. If installing in a corner, use dimensions shown in Figure 8 for the rough opening. The height is 26 7/8" which is the same as the wall opening above.

2. If installing GA3450T blower accessory, do so at this time. Follow instructions included with blower accessory.

Note:

If not installing blower accessory, you may wish to run electrical wiring to your fireplace for future blower installation (see Ac- cessories, page 40). Use only approved threewire electrical wiring.

WARNING: If pre-wiring, do not connect wiring to any electrical source at this time.

Install fireplace electrical outlet and connect wiring to outlet before connecting to electrical source. The fireplace electrical outlet is included with the GA3450T blower accessory.

Only use the fireplace electrical outlet supplied with the GA3450T blower accessory.

Note:

A qualified installer should make all elec-

trical connections.

BUILT-IN FIREPLACE INSTALLATION

Built-in installation of this fireplace involves installing fireplace into a framed-in enclosure. This makes the front of fireplace flush with wall. An optional trim kit accessory is available (see Ac- cessories, page 40). Trim will extend past sides of fireplace approximately 1/2 inch. This will cover the rough edges of the wall opening. If installing a built-in mantel above the fireplace, you must follow the clearances shown in Figure 10, page

11. Follow the instructions below to install the fireplace in this manner.

112462-01C 11

www.desatech.com

Figure 7 - Rough Opening for Installing

in Wall

Figure 8 - Rough Opening for Installing

in Corner

INSTALLATION

Continued

3. Install gas piping to fireplace location. This installation includes an approved flexible gas line (if allowed by local codes) after the equipment shutoff valve. The flexible gas line must be the last item installed on the gas piping.

4. If you have not assembled firebox, follow instructions on page 6.

5. Carefully set fireplace in front of rough opening with back of fireplace inside wall opening.

6. Attach flexible gas line to fireplace gas regulator. See Connecting Fireplace to Gas Sup- ply, page 19.

7. Bend four nailing flanges on outer casing with pliers (see Figure 9).

8. Attach fireplace to wall studs using nails or wood screws through holes in nailing flange.

9. Check all gas connections for leaks. See Checking Gas Connections, page 19.

10. If using optional trim kit, install the trim after final finishing and/or painting of wall. See instructions included with trim accessory for attaching trim.

IMPORTANT:

bustible materials such as wall board, gypsum board, sheet rock, drywall, plywood, etc. may be butted up next to the sides and top edge of the firebox. Combustible materials should never overlap the firebox front facing.

When finishing your firebox, com-

Wall Studs

WARNING: Do not allow any combustible materials to overlap the firebox front facing.

IMPORTANT:

brick, tile, etc. may overlap the front facing, but should never cover any necessary openings like louvered slots.

Noncombustible materials such as

WARNING: Do not allow noncombustible materials to cover any necessary openings like louvered slots.

WARNING: Never modify or cover the louvered slots on the front of the firebox.

WARNING: Use only noncombustible mortar or adhesives when overlapping the front facing with noncombustible facing material.

Mantel Clearances for Built-In Installation

If placing mantel above built-in fireplace, you must meet minimum clearance between mantel shelf and top of fireplace opening.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

Nailing

Nails or

Flanges

Wood Screws

Figure 9 - Attaching Fireplace to Wall

Studs

www.desatech.com 112462-01C

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• raise the mantel to an accept-

able height

• remove the mantel

INSTALLATION

Continued

Mantel Shelf

Note:

All vertical measurements are from top of fireplace opening to bottom of mantel shelf. All measurements are in inches.

Figure 10 - Minimum Mantel Clearances

for Built-In Installation

OPTIONAL MANTEL INSTALLATION

Note:

Refer to instructions provided with the mantel for assembly instructions. Refer to the following instructions for system installation. Refer to instructions on page 5 for fireplace assembly. Blower accessory should be installed if it is being used (see Installing Blower Accessory GA3450T, page 14).

1. Unscrew four screws that attach top louver to

fireplace. Remove louver from fireplace and set aside.

2. Place fireplace on wood base.

3. Place mantel around fireplace/base assembly.

4. Assemble trim kit. See Assembling Trim,

page 14.

5. Firmly snap trim kit on shoulder screws.

Shoulder screws are located on fireplace cabinet (see Figure 11).

6. Align trim kit for flush fit around opening.

7. Use two 3" wood screws provided and attach

fireplace base to wooden base. There are holes provided on each side and floor of firebox (see Figure 11).

8. Place base assembly next to wall at installa-

tion location.

9. Remove trim kit and mantel. Be careful not

to damage wall or mantel.

10"

2 1/2"

Side of Firebox

13"

16"

19"

21"

10. Attach wood base to floor with two 1 3/4" black screws provided (see Figure 12). If the floor is concrete use anchor method (see Attaching Wood Base to Solid Floor, page 17).

11. Install gas line. See Connecting To Gas Sup- ply, page 17.

12. Check for leaks. See Checking Gas Connec- tions, page 19.

13. Place mantel around fireplace. Be careful not to damage wall or mantel.

14. Place trim kit on the shoulder screws located on the side and top of the fireplace. Firmly snap the trim over the shoulder screws on fireplace (see Figure 11).

15. Adjust assembly to remove any gaps. Attach remaining two 3" wood screws from hardware pack through openings inside of fireplace sides into the mantel. The openings are located at top behind the area for the louvers (see Figure 11).

16. Reinstall top louvers.

Shoulder Screws

Hole for Attaching Fireplace to Mantel

Assembled Trim

Shoulder Screws

Figure 11 - Attaching Trim to Fireplace

1 3/4" Screw

Wood Base

Figure 12 - Attaching Wood Base to

Floor

112462-01C 13

www.desatech.com

INSTALLATION

Continued

Assembling Trim (Trim shipped with mantel)

1. Remove packaging from three remaining pieces of trim.

2. Locate two adjusting plates with set screws, and two shims in the hardware packet.

3. Align shim under adjusting plate as shown in Figure 13.

4. Slide one end of adjusting plate/shim in slot on mitered edge of top trim (see Figure 13).

5. Slide other end of adjusting plate/shim in slot on mitered edge of side trim (see Figure 13).

6. While firmly holding edges of trim together, tighten both set screws on the adjusting plate with slotted screwdriver.

7. Repeat steps 1 through 6 for other corner.

8. Set assembly aside for later installation.

Top Trim

Adjusting Plate

Set Screws

Slot

Mitered Edge

Shim

Side Trim

Figure 13 - Assembling Trim

INSTALLING OPTIONAL BLOWER ACCESSORY GA3450T

Removing Upper Louver

To install the blower accessory, you must first remove the upper louver.

1. Lift screen off fireplace and remove log set if installed.

2. Remove 4 screws from upper louver (see Figure 14). Save these screws.

3. Pull upper louver straight out from the cabinet. Be careful not to scratch the paint. Set louver and screws aside.

4. Open lower louver door by swinging door down (see Figure 15, page 15).

Blower Bracket Mounting Holes

Upper Louver

Figure 14 - Removing Upper Louver

Installing Blower Accessory

Note: If you are using a mantel with your fireplace, use the following instructions. If your fireplace is built-in, see For Built-In Installation, page 16.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

CAUTION: Verify proper operation after servicing.

1. Locate fan switch cover. Remover bottom screw to remove back portion of the cover.

2. Install snap bushings found in hardware kit into both holes in rear of fan switch cover.

3. Make sure the wire harness is firmly connected to the terminals on the blower bracket assembly.

4. Note the wire locations on back of AUTO/ OFF/ON switch. The terminals on back of switch are numbered 1, 2, and 3. Carefully remove red wire from terminal 3 and blue wire from terminal 1. Black wire can remain on middle terminal 2 (see Figure 15, page 15).

5. Carefully disconnect green and white wires at their insulated connectors (see Figure 16, page 15).

www.desatech.com 112462-01C

Blower Bracket Assembly

Screw

Switch

Power Cord

3 2 1

INSTALLATION

Continued

Wire Harness

Wiring Routing Hole in Baffle

Baffle

Blower Mounting Holes

Snap Bushing

Switch Plate

Blue

Black

Red

Wire Harness

Front Fan Switch Cover

Rear Fan Switch Cover

Lower Louver Door

Figure 15 - Installing Blower (Thermostat Unit Shown)

6. In top of the fireplace cabinet, locate the four mounting holes on the outer casing. Align these four holes with those on the blower bracket assembly. Attach blower bracket assembly to the outer casing with 4 #10 screws provided (see Figure 15).

7. Route the wire harness through the hole in left side of baffle. Pull wire harness through lower opening of firebox (see Figure 15).

8. Insert the 4 wire harnesses into one of the round holes in the rear of the fan switch cover and through the rectangular hole on front of the fan switch cover (see Figure 15).

8. Reconnect red wire to switch position 3. Reconnect blue wire to switch position 1. Reconnect green and white wires.

9. Install the switch plate on front of fan switch cover with 2 #10 screws provided (see Figure 17, page 16). Using screw removed in step one, reconnect front and rear of fan switch cover.

Fan Switch

(Auto/Off/On)

Auto

Off

110/115

V.A.C.

Black

White

Green

Red

Blue

Thermostat

Switch

(N.O.)

Blue

Red

White

Green

Blower

Motor

Figure 16 - Wiring Diagram For Blower

Accessory Standard Installation

112462-01C 15

www.desatech.com

INSTALLATION

Red

Fan Switch

(Auto/Off/On)

Blue

Thermostat

Switch

(N.O.)

Green

White

Green

White

110/115

V.A.C.

Blower

Motor

Black

Off

Auto

Continued

10. Route power cord out of the cabinet by inserting it through the bushing on the outer casing (see Figure 15, page 15). Plug fan kit into 120-Volt grounded power supply and test operation.

Note:

position, the fan will start after the fireplace has run for a few moments. The fan will continue to run for several moments after the fireplace has been turned off. When switch is in the ON position, the fan will run until turned to OFF. Reinstall upper louver (see Figure 14, page 14). Close lower louver door.

When switch is in the AUTO

5. Install the switch plate on front of fan switch cover with 2 #10 screws provided (see Figure 17). Using screw removed in step one, reconnect front and rear of fan switch cover.

6. Plug power cord to the outlet receptacle (not provided) as shown in Figure 19, page 17. Wind extra cable of power cord and tie it up with the plastic wire strap (see Figure 19, page 17). Set the cable bundle between the fan switch box and outer casing, away from the burner.

7. Test to make sure the blower is working properly.

8. Reinstall upper louver (see Figure 14, page

14) and close lower louver.

Switch Plate

Screw

Switch Cover Screw

Front - Fan Switch Cover

Figure 17 - Installing Switch Plate to Fan

Switch Cover

For Built-In Installation

WARNING: A licensed electrician must connect the wiring harness to electrical supply following all local codes. Electrician must provide a clamp on the box cover to secure the wiring. Wiring should be routed through the bushing in the hole on the outer casing of fireplace.

1. Locate fan switch cover. Remove bottom

2. Install a snap bushing found in hardware kit

3. Follow steps 3 through 7 in Installing Blower

4. A licensed electrician must follow the wiring

screw to remove back portion of the cover (see Figure 17).

into one of the holes on rear of fan switch cover. The other hole is for a strain relief clamp (not supplied) to secure incoming electrical supply.

Accessory, page 14.

diagram to connect incoming electrical supply to fan kit wiring harness (see Figure 18).

Rear Fan Switch Cover

Figure 18 - Wiring Diagram For Blower

Accessory Built-In Installation

Extension Cord

Use extension cord if needed. The cord must have a three-prong, grounding plug and a three-hole receptacle. Make sure cord is in good shape. It must be heavy enough to carry the current needed. An undersized cord will cause a drop in line voltage. This will result in loss of power and overheating. Use a No. 16 AWG cord for lengths less than 50 feet.

www.desatech.com 112462-01C

Blower Bracket Assembly

Screw

Switch

Switch Plate

Red

Black

INSTALLATION

Continued

Wire Harness

Power Cord

3 2 1

Blue

Plastic Wire Strap

Wire Harness

Figure 19 - Installing Blower (Thermostat Unit Shown)

Outlet Receptacle (not included)

Clamp Connector (not included)

Lower Louver Door

ATTACHING WOOD BASE TO SOLID FLOOR

For attaching base to solid floors (concrete or masonry)

Note:

Floor anchors and mounting screws are in hardware package. The hardware package is provided with fireplace.

1. Drill holes at marked locations using 5/16"

drill bit. For solid floors (concrete or masonry), drill at least 1" deep.

2. Fold floor anchor as shown in Figure 20.

3. Insert floor anchor (wings first) into hole. Tap

anchor flush to floor.

4. Insert mounting screws through base and into

floor anchors.

5. Tighten screws until base is firmly fastened

to floor.

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 45° male flare fitting 5/8"18 UNF (Unified National Fine Thread) inlet connection and the flexible gas line provided.

WARNING: A qualified service person must connect fireplace to gas supply. Follow all local codes.

WARNING: Never connect natural gas fireplace to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

Figure 20 - Folding Anchor

112462-01C 17

www.desatech.com

INSTALLATION

Continued

IMPORTANT:

pressure before connecting fireplace to gas line. Gas line pressure must be no greater than 14 inches of water. If gas line pressure is higher, heater regulator damage could occur.

CAUTION: Never connect propane/LP fireplace directly to the propane/LP supply. This fireplace requires an external regulator (not supplied). Install the external regulator between the fireplace and propane/LP supply.

For propane/LP units, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, fireplace regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 21. Pointing the vent down protects it from freezing rain or sleet.

For natural gas, check gas line

WARNING: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 22, page 18. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into fireplace controls. If sediment trap is not installed or is installed wrong, fireplace may not run properly.

Propane/LP Supply Tank

External Regulator

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" or greater diameter to allow proper gas volume to fireplace. If pipe is too small, undue loss of volume will occur.

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figures 22).

IMPORTANT:

accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special requirements for locating equipment shutoff valve to fireplaces.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged fireplace valves.

Install equipment shutoff valve in an

www.desatech.com 112462-01C

Vent Pointing Down

Figure 21 - External Regulator With Vent

CSA DesignCertified Equipment Shutoff Valve With 1/8" NPT Tap*

Approved Flexible Gas Line

3" Minimum

Pointing Down

Propane/LP

From External Regulator (11" W.C.** to 14" W.C. Pressure)

NATURAL

From Gas Meter (5" W.C.** to

10.5" W.C. Pressure)

Pipe Nipple Cap Tee Joint

Sediment Trap

Figure 22 - Gas Connection

* Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Ac- cessories, page 40.

INSTALLATION

Continued

CONNECTING FIREPLACE TO GAS SUPPLY

Installation Items Needed

• Phillips screwdriver

• sealant (resistant to propane/LP gas, not provided)

NOTICE: Most building codes do not permit concealed gas connections. A flexible gas line is provided to allow accessibility from the fireplace (see Figure 1, page 5). The flexible gas supply line connection to the equipment shutoff valve should be accessible.

1. Route flexible gas line, included, from fireplace control to equipment shutoff valve through side or rear access holes in outer casing (see Figure 1, page 5).

2. Apply pipe joint sealant lightly to male threads of gas connector attached to flexible gas line/ equipment shutoff valve (see Figure 23).

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings (Thermostat-Controlled Models Only).

CAUTION: Avoid damage to gas control. Hold gas control with wrench when connecting it to gas piping and/or fittings (Remote-Ready Models Only).

To Gas Regulator (Thermostat-Controlled Models) or Control Valve (Remote-Ready Models)

➞

Flexible Gas Line from Fireplace Gas Regulator Provided With Fireplace

Figure 23 - Attaching Flexible Gas Line

to Equipment Shutoff Valve

CHECKING GAS CONNECTIONS

Equipment Shutoff Valve

PROPANE/LP

To External Regulator

➞

NATURAL

To Gas Supply

WARNING: Test all gas piping and connections, internal and external to unit, for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and fireplace. See guidelines under

ply

Connecting to Gas Sup-

, page 17.

3. Check all gas connections for leaks. See Checking Gas Connections.

4. Feed flexible gas line into fireplace base area while replacing branch support. Make sure the entire flexible gas line is in fireplace base area.

112462-01C 19

www.desatech.com

PRESSURE TESTING GAS SUPPLY PIPING SYSTEM

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

INSTALLATION

Continued

3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

4. Check all joints of gas supply piping system. Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect fireplace and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 24).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas, or using compressed air.

3. Check all joints from gas meter to equipment shutoff valve for natural gas or propane/LP supply to equipment shutoff valve for propane/LP (see Figures 25 or 26). Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Equipment Shutoff Valve

Figure 24 - Equipment Shutoff Valve

Equipment

Shutoff Valve Propane/LP Supply Tank

Open

POSITION

OFF

Closed

POSITION

Gas Regulator or Gas Control Valve

Gas Regulator or

Equipment

Gas Control Valve

Shutoff Valve

Gas Meter

Figure 26 - Checking Gas Joints (Natural

Gas Only)

PRESSURE TESTING FIREPLACE GAS CONNECTIONS

1. Open equipment shutoff valve (see Figure 24).

2. Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3. Make sure control knob of fireplace is in the OFF position.

4. Check all joints from equipment shutoff valve to gas regulator (Thermostat-Controlled Models), or to gas control valve (Remote-Ready Models) (see Figures 25 or 26). Apply noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light fireplace (see Operating Fireplace, page 23). Check all other internal joints for leaks.

7. Turn off fireplace (see To Turn Off Gas to Ap- pliance, page 25 for Thermostat-Controlled Models or page 27 for Remote-Ready Models).

Figure 25 - Checking Gas Joints

(Propane/LP Only)

www.desatech.com 112462-01C

INSTALLATION

Continued

OPTIONAL WIRELESS HAND-HELD REMOTE CONTROL ACCESSORIES

Remote-Ready Models Only (GHRCB Series & GHRCTB Series)

Installing Receiver

1. Disconnect jumper wire from control valve (see Figure 27).

2. Locate battery clip mounted on back of receiver (see Figure 28).

3. Slide 9-volt battery (not included) through clip.

4. Attach terminal wires to battery (see Figure 29).

5. Connect wires from remote receiver to control valve as shown in Figure 29.

6. Install remote receiver unit onto remote/ blower bracket using screws provided (see Figure 29).

Control Valve

Jumper Wire

Remote Receiver

White Wire to TH Terminal on Control Valve

Red Wire to TPTH Terminal on Control Valve

Figure 29 - Installing Remote Receiver

Installing 9-Volt Battery in Hand-Held Remote Control Unit

1. Remove battery cover on back of remote control unit.

2. Attach terminal wires to the battery (not included). Place battery into the battery housing.

3. Replace battery cover onto remote control unit.

Terminal Wires

Battery Cover

Figure 27 - Disconnecting Wires From

Control Valve

Receiver

9-Volt Battery

Remote Control

Unit Battery Housing

Figure 30 - Installing Battery in Hand-

Held Remote Control Unit (GHRCB and

CGHRCB Series)

9-Volt Battery

Battery Clip

Terminal Wires

Figure 28 - Attaching Battery to Receiver

Terminal

Wires 9-Volt Battery

Battery Housing

Remote Control Unit

Battery Cover

Figure 31 - Installing Battery in Hand-

Held Remote Control Unit (GHRCTB and

CGHRCTB Series)

112462-01C 21

www.desatech.com

INSTALLATION

Continued

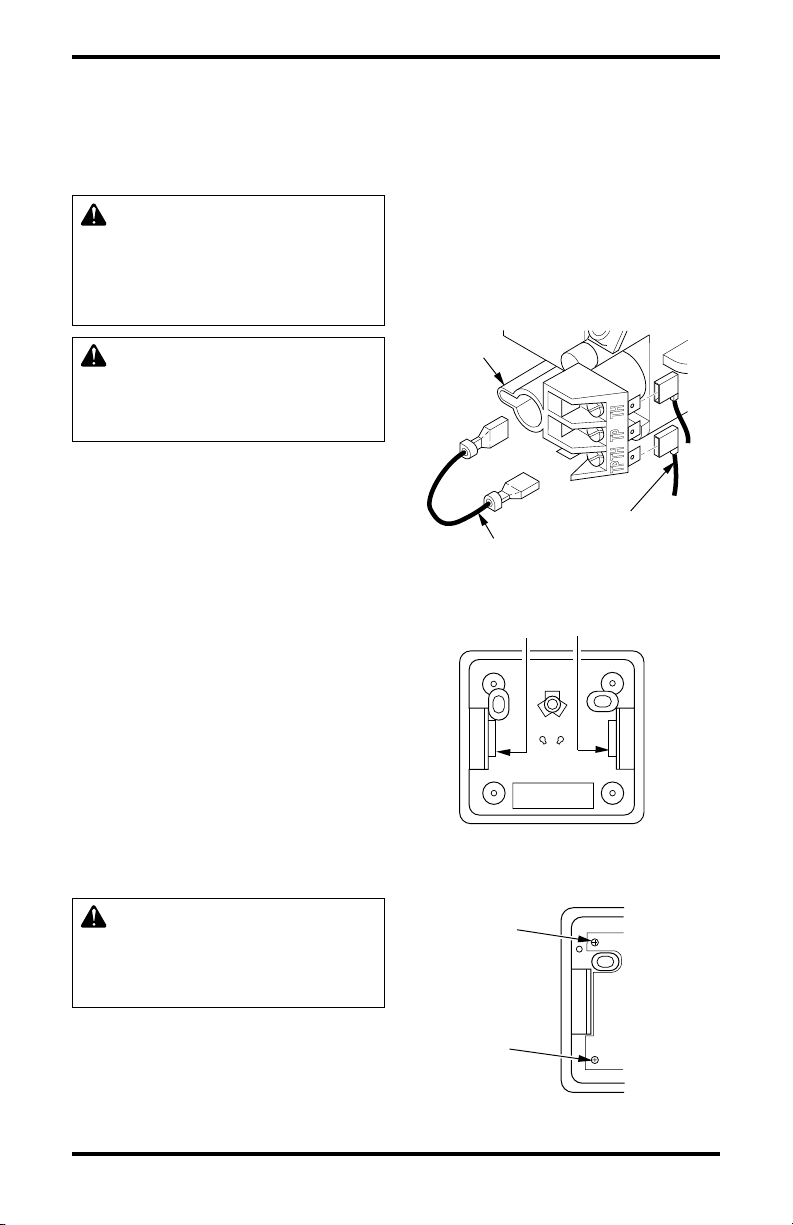

OPTIONAL WALL MOUNTED THERMOSTAT - GWMT1 (Remote-Ready Models Only)

WARNING: Read and follow installation instructions. Installation should be done by a qualified installer familiar with lowvoltage wiring procedures.

WARNING: Do not connect this thermostat to any electrical source! Electrical shock and/or fire hazard will occur.

1. Disconnect jumper wire from control valve (see Figure 32).

2. Connect one terminal of 25 ft. wire to "TPTH" terminal on control valve (see Figure 32).

3. Connect remaining wire terminal to the “TH” terminal on the control valve. Make sure that wire terminals are in the positions on your unit as pictured in Figure 32.

4. Route the 25 ft. wire to a convenient location to mount your thermostat (no outside wall).

IMPORTANT:

must not be lengthened.

The thermostat should be mounted 54" above the floor in a location where there is good air circulation. Avoid heat sources such as lamps, direct sunlight, fireplace, or heat and air conditioning ducts.

5. Gently remove the cover of the thermostat from the base. Grasp the sides of the cover firmly and pull to separate from the base.

6. Feed the electrical wires through the rectangular slots on each side of the base (see Figure 33).

The wire may be shortened but

8. Move the temperature adjustment back and forth to insure the bimetal is free from restrictions.

9. Replace the cover onto the base. (Upon installation, the thermostat must be allowed to stabilize at room temperature for a minimum of 30 minutes for proper operation).

10. Set switch on fireplace to Auto position.

11. Set the temperature adjustment to the desired setting. This thermostat has been electronically calibrated at the factory. No adjustment or leveling is necessary.

Control Valve

One terminal

Jumper Wire

Figure 32 - Connecting Wire Terminals

Feed wires through rectangular slots

Figure 33 - Back View of Thermostat

of 25 ft. wire

Base

WARNING: Do not connect the thermostat to a power source. Electrical shock and/or a fire hazard will occur.

6. Connect one bare wire end to each terminal (“W” and “R”) of the thermostat base (see Figure 34).

7. Install the base onto the wall with the provided screws.

www.desatech.com 112462-01C

Terminal “W”

Terminal “R”

Figure 34 - Thermostat Base Terminals

“W” and “R”

INSTALLATION

Continued

OPTIONAL WALL SWITCH - GWMS2 (Remote-Ready Models Only)

WARNING: Read and follow installation instructions. Installation should be done by a qualified installer familiar with lowvoltage wiring procedures.

Shoulder Screw

Log

WARNING: Do not connect this switch to any electrical source! Electrical shock and/or fire hazard will occur.

1. Connect one terminal of 25 ft. wire to "TPTH" terminal on control valve (see Figure 32, page 22).

2. Connect remaining wire terminal to the “TH” terminal on the control valve. Make sure that wire terminals are in the positions on your unit as pictured in Figure 32, page 22. If wires are not “crossed” the thermostat will not work.

3. Route the 25 ft. wire to a convenient location to mount your wall switch (no outside walls).

WARNING: Do not connect the switch to a power source. Electrical shock and/or fire hazard will occur.

IMPORTANT:

must not be lengthened.

4. Connect one bare wire end to each of the terminals of the provided wall switch.

5. Install the wall switch and cover in the wall.

INSTALLING LOG SET AND SCREEN

1. Remove log packaging material and discard packaging. Gently place log over the burner (see Figure 35). Do not allow log to contact flame. If flame contacts log, soot will be created.

2. Reattach screen by placing the notches in the screen frame over the shoulder screws and pushing down.

The wire may be shortened but

Screen

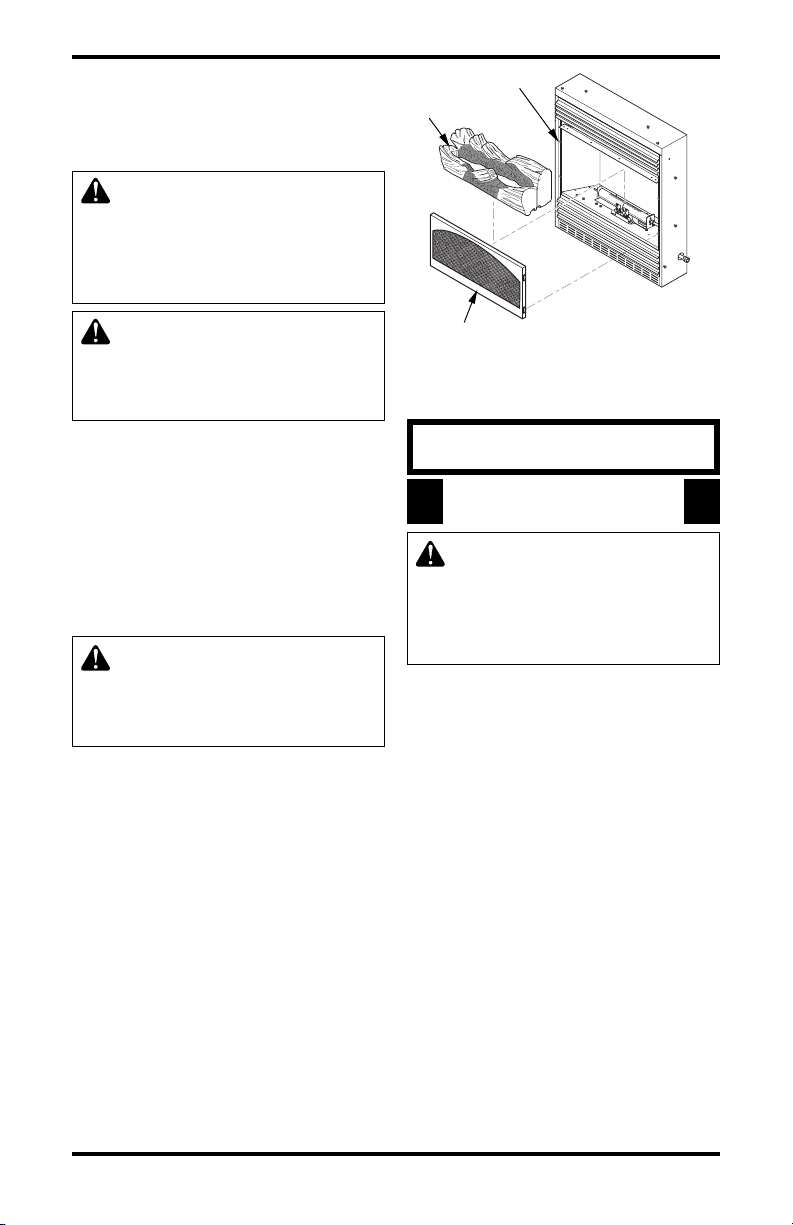

Figure 35 - Installing Log and Screen

OPERATING FIREPLACE

THERMOSTAT-CONTROLLED

MODELS

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be

lighted by hand. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the

appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the

gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

112462-01C 23

www.desatech.com

OPERATING FIREPLACE

C-clockwise

Continued

D. Do not use this appliance if any part has

been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

WARNING: You must operate this fireplace with the screen in place. Make sure fireplace screen is installed before running fireplace.

NOTICE: During initial operation of new fireplace, burning logs will give off a paper-burning smell. Open window to vent smell. Operate fireplace on HI position to burn off odor. This will only last a few hours.

1. STOP! Read the safety information above.

2. Make sure equipment shutoff valve is fully open.

3. Turn control knob clockwise OFF position.

4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information above. If you don’t smell gas, go to the next step.

5. Turn control knob counterclockwise to the PILOT position. Press in control knob for five (5) seconds (see Figure 36).

Note:

You may be running this fireplace for the first time after hooking up to gas supply. If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

• If control knob does not pop out when

released, contact a qualified service person or gas supplier for repairs.

6. With control knob pressed in, press and release ignitor button (see Figure 36). This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Clockwise

to the

C-clockwise

Note:

If pilot does not stay lit, refer to

Troubleshooting, page 31. Also, contact a qualified service person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure on page 25.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

Note:

If pilot goes out, repeat steps 3 through 7. This fireplace has a safety interlock system. Wait one (1) minute for system to reset before lighting pilot again.

8. Turn control knob counterclockwise to desired heating level. The burner

should light. Set control knob to any heat level between 5 (high) and 1 (low).

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

Electronic Ignitor Button

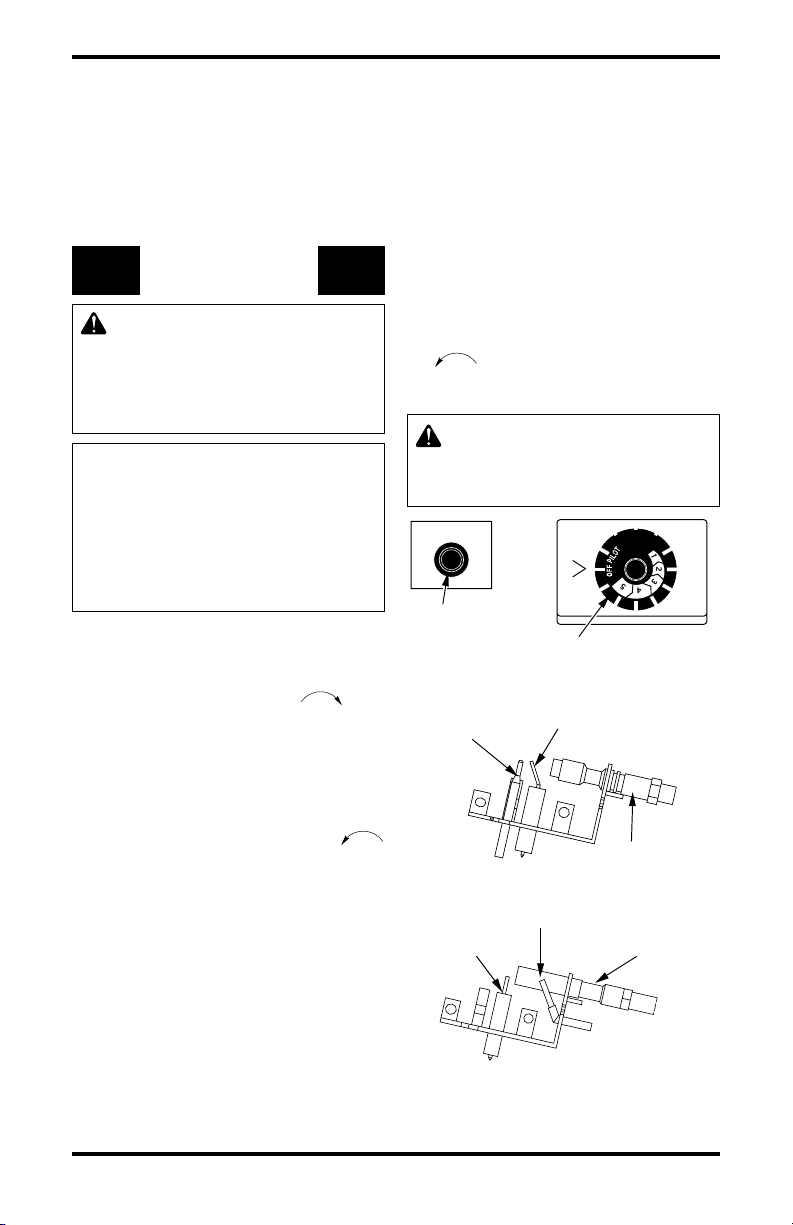

Figure 36 - Control Knob In The OFF

Thermocouple

Figure 37 - Natural Gas Pilot

Ignitor Electrode

Figure 38 - Propane/LP Gas Pilot

Control Knob

Position

Ignitor Electrode

Pilot Burner

Thermocouple

Pilot Burner

www.desatech.com 112462-01C

OPERATING FIREPLACE

Continued

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Fireplace

1. Turn control knob clockwise OFF position.

2. Turn off all electric power to the appliance (if applicable) if service is to be performed.

Shutting Off Burners Only (pilot stays lit)

Turn control knob clockwise LOT position.

Clockwise

THERMOSTAT CONTROL

OPERATION

The thermostat used on this fireplace senses the room temperature. At times the room may exceed the set temperature. If so, the burner will shut off. The burner will cycle back on when room temperature drops below the set temperature.

The control knob can be set to any heat level between 1 and 5.

Note:

The thermostat sensing bulb measures the air near the fireplace cabinet. This may not always agree with room temperature (depending on housing construction, installation location, room size, open air temperatures, etc.). Frequent use of your fireplace will let you determine your own comfort levels.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 5 under Lighting In-

structions, page 24.

2. With control knob pressed in, strike match.

Hold match to pilot until pilot lights.

3. Keep control knob pressed in for 30 sec-

onds after lighting pilot. After 30 seconds, release control knob. Now follow step 8 under Lighting Instructions, page 24.

OPERATING

BLOWER

This blower has three settings: ON, OFF, and AUTO. In the ON position, the blower will operate constantly. In the OFF position, the blower will not operate. In the AUTO position, the blower will start when the thermostat senses a sufficient increase in firebox temperature.

Note:

Your fireplace and thermostat blower will not turn on and off at the same time. The fireplace may run for several minutes before the blower turns on. After the heater modulates

to the

Clockwise

to the PI-

to the pilot position, the blower will continue to run. The blower will shut off after the firebox temperature decreases.

Note:

It is safe to operate fireplace with blower turned off. However, the blower helps distribute heated air from the fireplace.

AUTO/OFF/ ON Switch

Figure 39 - AUTO/OFF/ON Blower Switch

REMOTE-READY MODELS

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be

lighted by hand. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the

appliance area for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the

112462-01C 25

www.desatech.com

OPERATING FIREPLACE

Continued

D. Do not use this appliance if any part has

been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

WARNING: You must operate this fireplace with the fireplace screen in place. Make sure fireplace screen is installed before running fireplace.

light pilot. The pilot is attached to the front of the burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, contact a qualified service person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure, page 27.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when re-

leased, contact a qualified service person or gas supplier for repairs.

Note:

If pilot goes out, repeat steps 4

through 8.

8. Slightly push in and turn control knob counterclockwise

to the ON position.

C-clockwise

NOTICE: During initial operation of new fireplace, burning logs will give off a paper-burning smell. Open window to vent smell. This will only last a few hours.

WARNING: Burner will come on automatically within one minute when control valve is in the ON position after the pilot is lit.

1. STOP! Read the safety information above.

2. Make sure equipment shutoff valve is fully open.

3. Press in and turn control knob clockwise

4. Wait five (5) minutes to clear out any gas.

5. Press in and turn control knob counter-

6. With control knob pressed in, press and re-

to the OFF position (see Figure 40).

Clockwise

Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, column 2, page 25. If you don’t smell gas, go to the next step.

clockwise

to the PILOT position.

C-clockwise

Press in control knob for five (5) seconds (see Figure 40).

Note:

lease electronic ignitor button. This will

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

Control Knob

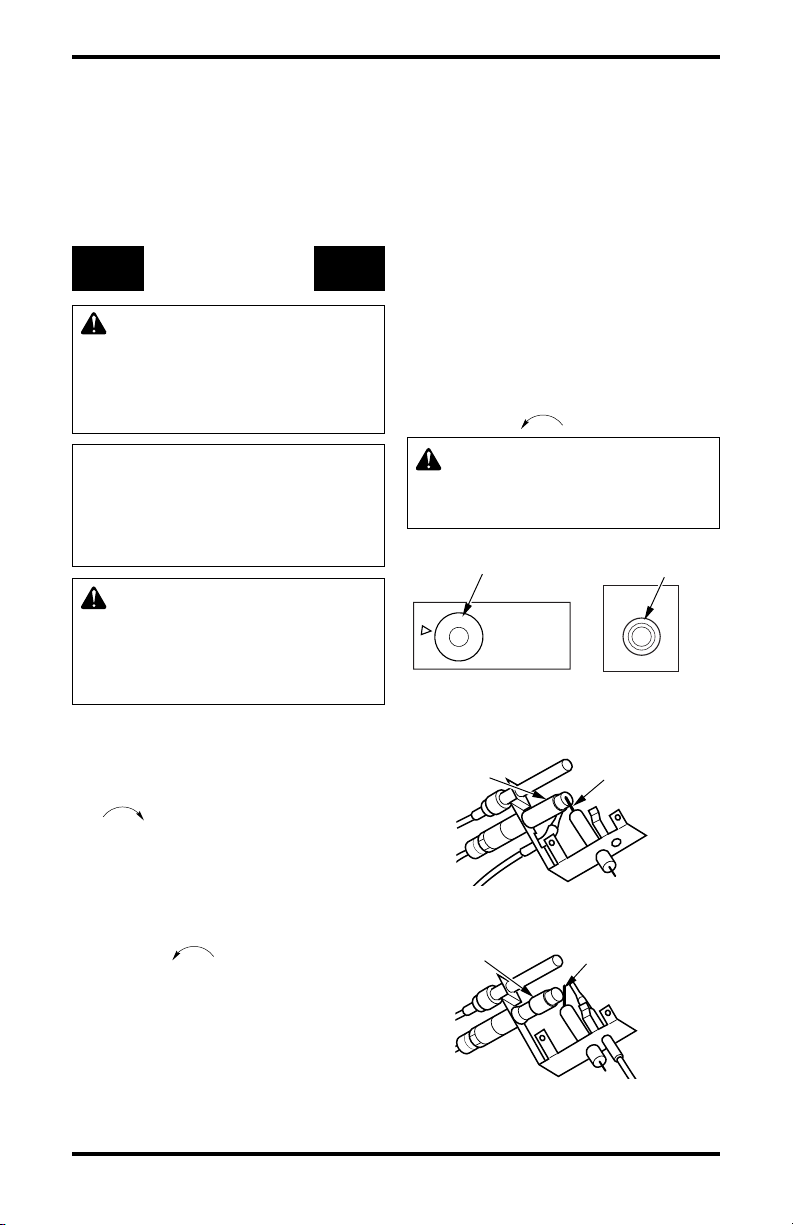

Figure 40 - Control Knob and Ignitor

Button Location (Shown as Supplied -

No Control Options)

Pilot Burner

Figure 41 - Propane/LP Gas Pilot

Pilot Burner

Figure 42 - Natural Gas Pilot

Electronic Ignitor

Ignitor Electrode

www.desatech.com 112462-01C

OPERATING FIREPLACE

Continued

TO TURN OFF GAS

TO APPLIANCE

Shutting Off Fireplace

1. Turn control knob clockwise OFF position.

2. If Using Optional Hand-Held Remote: Set remote switch to the OFF position to prevent draining battery.

Shutting Off Burner Only (pilot stays lit)

You may shut off the burner and keep the pilot lit by doing one of the following:

1. Turn control knob clockwise PILOT position.

2. If Using Optional Hand-Held Remote: Use remote control manual OFF button.

Clockwise

to the

1. After lighting, let pilot flame burn for about one minute. Turn control knob to ON position. Slide the remote selector switch to the REMOTE position (see Figure 43).

Note:

The burner may light if hand-held remote was on when the remote selector switch was last turned off. You can now turn the burner on and off with the hand-held remote control unit.

IMPORTANT:

Do not leave the selector switch in the REMOTE or ON position when the pilot is not lit. This will drain the battery.

Selector Switch in REMOTE Position (Optional Hand-Held Remote Control)

Control Knob

Electronic

Ignitor

WARNING: Make sure remote sensor selector switch is in the OFF position when you are away from home for long periods of time.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 5 under Lighting Instructions, page 26.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 8 under Lighting Instructions, page 26.

OPTIONAL HAND-HELD

REMOTE OPERATION

Note:

All remote control accessories must be

purchased separately (see Accessories, page

40). Follow instructions included with the re-

mote control.

NOTICE: You must light the pilot before using the hand-held remote control unit. See

ing Instructions

on page 26.

Light-

OFF ON REMOTE

Figure 43 - Setting the Selector Switch

and Control Knob for Hand-Held Remote

Operation

ON/OFF SERIES (MODEL GHRCB)

Hold the control button on the hand-held remote until burner turns on. Hold the control button again until burner turns off (see Figure 44).

TO LOCK press both buttons on hand-held re-

mote control until light stops flashing. Handheld remote control is now locked. If the fire is on it will be turned off automatically. In the locked state, the light will not light up when any button is pressed.

TO UNLOCK press both buttons together on

hand-held remote control until the light stops flashing. The hand-held remote is now unlocked.

Control Button Turns Burners On and Off

Figure 44 - On/Off Hand-Held Remote

Control Unit (GHRCB)

112462-01C 27

www.desatech.com

OPERATING FIREPLACE

Continued

THERMOSTAT SERIES (MODEL GHRCTB)

The hand-held remote can be operated using either the manual mode (MANU) or thermostatic mode (AUTO) (see Figure 45). To select Fahrenheit/Centigrade mode display, carefully press the ˚C/˚F mode button with the end of a paper clip or similar blunt object.

Manual Mode

1. Press the POWER and LOCK buttons together to turn on the hand-held remote control.

2. Press the MANU button to turn on the fireplace.

3. Press the POWER and LOCK buttons together to turn off the fireplace.

Auto (Thermostatic) Mode

1. Press the POWER and LOCK buttons together to turn on the hand-held remote control.

2. Press AUTO button to select this mode.

3. Set the desired room temperature by pressing the TEMP + or - buttons.

4. Press the POWER and LOCK buttons together to turn off the fireplace

Note:

Do not leave the hand-held remote in the AUTO mode close to the fireplace. The radiant heat from the fireplace will turn off the fireplace. Ideally, place the hand-held remote in the center of the room facing towards the fireplace.

Note:

Do not hold the hand-held remote for a long time. Body temperature will affect its operation in the AUTO mode.

Safety Features

When away from home for an extended period of time or as a child safety feature to prevent accidental ignition of the fireplace, receiver ON/OFF/ REMOTE switch should be in the OFF position.

Auto Shutoff Feature

1. If the average room temperature exceeds 82

degrees Fahrenheit (28 degrees Centigrade), the hand-held remote control will perform a safety override and shut the fireplace off. This feature is not available in the MANU mode.

2. The receiver continuously receives signals

from the hand-held remote to control the room temperature. If the hand-held remote is misplaced, obstructed, or for any reason cannot transmit to the receiver, the receiver will shut off the fireplace after 8 minutes.

www.desatech.com 112462-01C

Key Pad Lock Feature

This feature allows the user to lock/unlock the keypad on the hand-held remote in the MANU or AUTO mode to prevent inadvertent operation (i.e. children operating the hand-held remote control, etc.). The keypad is locked in either on or off. Press the POWER and LOCK buttons together to turn the unit on or off.

Turns HandDigital Display Shows Temperature and Settings

Turns Burners On or Off

Decreases Room Temperature in AUTO Mode

Locks System to Prevent Accidental Ignition

Held Remote

On or Off

and Allows

You to

Choose the

Manual

Setting

Selects Auto

Setting

Increases

Room

Temperature

in AUTO

Mode

Figure 45 - Thermostat Hand-Held

Remote Control Unit (GHRCTB)

GWMT1 WALL MOUNTED

THERMOSTAT (OPTIONAL)

Make sure the heater switch is on REMOTE and set the temperature adjustment on wall thermostat to the desired setting. The thermostat has been electronically calibrated at the factory and requires no adjustment or leveling.

Upon installation, the thermostat must be allowed to stabilize at room temperature for a minimum of 30 minutes for proper operation. See installation instructions on page 22 of this manual.

GWMS2 WALL MOUNTED

SWITCH (OPTIONAL)

Make sure the heater switch is on REMOTE. This wall switch works just like the conventional light switch. Flip the switch up for on and down for off.

Note: Make sure that this switch is not in a position to be mistaken for a light switch. This may result in the fireplace being inadvertently turned on without the proper precautions being taken. See installation instructions on page 23 of this manual.

OPERATING FIREPLACE

Pilot Burner

Continued

OPERATING

BLOWER

Note:

Your fireplace and thermostat blower will not turn on and off at the same time. The fireplace may run for several minutes before the blower turns on. After the heater modulates to the pilot position, the blower will continue to run. The blower will shut off after the firebox temperature decreases.

Note:

It is safe to operate fireplace with blower turned off. However, the blower helps distribute heated air from the fireplace.

Figure 47 - Correct Pilot Flame Pattern

(Propane/LP Remote-Ready Shown)

Pilot Burner

Figure 48 - Incorrect Pilot Flame Pattern

AUTO/OFF/ ON Switch

Figure 46 - AUTO/OFF/ON Blower Switch

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 47 shows a correct pilot flame pattern. Figure 48 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the fireplace will shut down.

If pilot flame pattern is incorrect, as shown in Figure 48

• turn fireplace off (see To Turn Off Gas to Appli-

ance, page 25 for Thermostat-Controlled Models or page 27 for Remote-Ready Models)

• see Troubleshooting, page 31

Note:

The correct pilot flame on natural gas units will have a slight curve, but flame should be blue and have no yellow or orange color.

112462-01C 29

www.desatech.com

(Propane/LP Remote-Ready Shown)

BURNER FLAME PATTERN

Figure 49 shows a correct burner flame pattern. Figure 50 shows an incorrect burner flame pattern. The incorrect burner flame pattern shows sporadic, irregular flame tipping. The flame should not be dark or have an orange/reddish tinge.

Note:

When using the fireplace the first time, the flame will be orange for approximately one hour until the log cures.

If burner flame pattern is incorrect, as shown in Figure 50

• turn fireplace off (see To Turn Off Gas to Ap-

pliance, page 25 for Thermostat-Controlled Models or page 27 for Remote-Ready Models)

• see Troubleshooting, page 31

Figure 49 - Correct Burner Flame Pattern

Figure 50 - Incorrect Burner Flame

Pattern

Thermocouple

CLEANING AND

MAINTENANCE

WARNING: Turn off fireplace

and let cool before cleaning.

CAUTION: You must keep control areas, burner, and circulating air passageways of fireplace clean. Inspect these areas of fireplace before each use. Have fireplace inspected yearly by a qualified service person. Fireplace may need more frequent cleaning due to excessive lint from carpeting, pet hair, bedding material, etc.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figures 52 or 53 depending on model). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Ports/Slots

Injector Holder

WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.

BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have fireplace inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figure 51).

3. Blow air through the ports/slots and holes in the burner.

www.desatech.com 112462-01C

Primary Air Inlet Holes

Burner Tube

Figure 51 - Injector Holder On Outlet

Burner Tube

Pilot Air Inlet Hole

Pilot Assembly

Figure 52 - Pilot Inlet Air Hole

(Propane/LP Gas)

Pilot Air Inlet Hole

Pilot Assembly

Figure 53 - Pilot Inlet Air Hole

(Natural Gas)

LOG SET

• If you remove one-piece log set for cleaning, refer to Installing Log Set and Screen, page 23, for placement instructions.

• Replace log set if broken or chipped (dime-sized or larger).

CABINET

Air Passageways

• Use a vacuum cleaner or pressurized air to clean.

Exterior

• Use a soft cloth dampened with a mild soap and water mixture. Wipe the cabinet to remove dust.

TROUBLESHOOTIING

WARNING: Turn off and unplug fireplace and let cool before servicing. Only a qualified service person should service and repair fireplace.

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit.

Note:

All troubleshooting items are listed in order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Broken ignitor cable

4. Bad ignitor

5. Ignitor electrode positioned wrong

6. Ignitor electrode broken

7. Battery not installed, battery power low, or battery not installed correctly

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (propane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Replace ignitor cable

4. Replace ignitor

5. Replace pilot assembly

6. Replace pilot assembly

7. Install new alkaline battery in electronic ignitor. Verify battery is installed correctly

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 30) or replace ODS/pilot assembly

7. Replace gas regulator

112462-01C 31

www.desatech.com

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

ODS/pilot lights but flame goes out when control knob is released

Burner does not light after ODS/ pilot is lit

POSSIBLE CAUSE

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Safety interlock system has been triggered

4. Equipment shutoff valve not fully open

5. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

6. Thermocouple connection loose at control valve

7. Thermocouple damaged

8. Control valve damaged

1. Inlet gas pressure is too low

2. Burner orifice is clogged

3. Thermopile leads disconnected or improperly connected (Remote-Ready Models Only)

4. Burners will not come on in remote position (RemoteReady Models Only)

REMEDY

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Wait one minute for safety interlock system to reset. Repeat ignition operation

4. Fully open equipment shutoff valve

5. A) Contact local natural or propane/LP gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 30) or replace ODS/pilot assembly

6. Hand tighten until snug, then tighten 1/4 turn more

7. Replace pilot assembly

8. Replace control valve

1. Contact local natural or propane/LP gas company

2. Clean burner (see Cleaning and Maintenance, page 30) or replace burner orifice

3. Reconnect leads (see Wiring Diagram, page 35)

4. Replace battery in hand-held remote and receiver

Delayed ignition of burner

Burner backfiring during combustion

1. Manifold pressure is too low

2. Burner orifice is clogged

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

4. Inlet gas pressure is too low

www.desatech.com 112462-01C

1. Contact local natural or propane/LP gas company

2. Clean burner (see Cleaning and Maintenance, page 30) or replace burner orifice

1. Clean burner (see Cleaning and Maintenance, page 30) or replace burner orifice

2. Replace damaged burner

3. Replace gas regulator

4. Contact local natural or propane/LP gas company

TROUBLESHOOTING

Continued

OBSERVED PROBLEM

Slight smoke or odor during initial operation

Fireplace produces a whistling noise when burner is lit

White powder residue forming within burner box or on adjacent walls or furniture

Moisture/condensation noticed on windows

POSSIBLE CAUSE

1. Residues from manufacturing processes and log curing

2. Not enough air

3. Gas regulator defective

1. Turning control knob to HI position when burner is cold

2. Air in gas line

3. Air passageways on fireplace blocked

4. Dirty or partially clogged burner orifice

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. may turn into white powder residue

1. Not enough combustion/ventilation air

REMEDY

1. Problem will stop after a few hours of operation

2. Check burner for dirt and debris. If found, clean burner (see Cleaning and Mainte- nance, page 30)

3. Replace gas regulator

1. Turn control knob to LO position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas line checked by local natural gas company

3. Observe minimum installation clearances (see pages 10 through 13)

4. Clean burner (see Cleaning and Maintenance, page 30) or replace burner orifice

1. Turn fireplace off when using furniture polish, wax, carpet cleaners, or similar products

1. Refer to Air for Combustion and Ventilation requirements (page 7)

112462-01C 33

www.desatech.com

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT:

paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

Remote does not function (Remote-Ready Models Only)

Fireplace produces a clicking/ ticking noise just after burners are lit or shut off

Fireplace produces unwanted odors

Fireplace shuts off in use (ODS operates)

Operating fireplace where impurities in air exist may create odors. Cleaning supplies,

POSSIBLE CAUSE

1. Battery is not install. Battery power is low

1. Metal expanding while heating or contracting while cooling

1. Fireplace burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See statement above)

2. Low fuel supply (propane/LP only)

3. Gas leak. See Warning

statement at top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

IMPORTANT

REMEDY

1. Replace 9-volt batteries in receiver and remote control

1. This is common with most fireplaces. If noise is excessive, contact qualified service person

1. Open window to ventilate room. Stop using odor causing products while fireplace is running

2. Refill supply tank (propane/LP only)

3. Locate and correct all leaks (see Checking Gas Connec- tions, page 19)

1. Open window and/or door for ventilation

2. Contact local natural or propane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 30)

Gas odor even when control knob is in OFF position

Gas odor during combustion

1. Gas leak. See Warning statement at top of page

2. Control valve defective

1. Foreign matter between control valve and burner

2. Gas leak. See Warning

statement at top of page

www.desatech.com 112462-01C

1. Locate and correct all leaks (see Checking Gas Connec- tions, page 19)

2. Replace control valve

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Checking Gas Connec- tions, page 19)

SPECIFICATIONS

CGCF10PR CGCF10NR VMH10TPC VMH10RPC VMH10TNC VMH10RNC EFS10TPA EFS10RPA EFS10TNA EFS10RNA

Btu/Hr 10,000 10,000 10,000 10,000

Type Gas Propane/LP Propane/LP Natural Natural

Ignition Electronic Ignitor Electronic Ignitor Electronic Ignitor Electronic Ignitor

Manifold Pressure 8.5" W.C. 8" W.C. 3" W.C. 3.5" W.C.

Inlet Gas Pressure

(in. of water)

Maximum 14" 14" 10.5" 10.5"

Minimum* 11" 11" 5" 5"

Dimensions, inches (HxWxD)

Fireplace 25 7/8 x 26 13/16 x 9 3/8

(including hood and screws)

Carton 32 5/8 x 27 13/16 x 11 5/8

Weight, pounds

Fireplace 44 1/2 lbs. 44 1/2 lbs. 44 1/2 lbs. 44 1/2 lbs.

Shipping 48 lbs. 48 lbs. 48 lbs. 48 lbs.

* For purpose of input adjustment

WIRING DIAGRAM

(REMOTE-READY MODELS ONLY)

Jumper Wire

TPTH TH

Gas Control

TPTH

Thermopile

Red

White

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• fireplace will not produce specified heat

• for propane/LP units, propane/LP gas supply may be low

You may feel your gas pressure is too low. If so, contact your local natural or propane/LP gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA Heating Products’ Technical Service Department at 1-866-672-6040. When calling, please have your model and serial numbers of your heater ready.

You can also visit DESA Heating Products’ technical services web site at www.desatech.com.

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA Heating Products’ Technical Service Department at 1-866-672-6040.

When calling DESA Heating Products, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), call DESA Heating Products at 1-866-672-6040 for referral information.

When calling DESA Heating Products, have ready

• model number of your fireplace

• the replacement part number

112462-01C 35

www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

THERMOSTAT-CONTROLLED MODELS VMH10TPC, VMH10TNC (SHOWN), EFS10TPA AND EFS10TNA

40 30

AAA

Battery

Negative

Install Battery

According To

This Illustration

www.desatech.com 112462-01C

PARTS LIST

THERMOSTAT-CONTROLLED MODELS

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 35 of this manual.

PART NUMBERS

KEY VMH10TPC VMH10TNC NO. EFS10TPA EFS10TNA DESCRIPTION QTY.

1 102633-02 102633-02 Outer Casing Top 1 2 102624-02 102624-02 Outer Casing 1 3 099230-02 099230-02 Shoulder Screw 14 4 098304-01 098304-01 Screw, #10-16 x 3/8" 4 5 112066-01 112066-01 Burner 1 6 103209-05 103209-05 Extruded Louver 2 7 102635-02 102635-02 Left and Right Side Front 2 8 M11084-26 M11084-26 Hex Head Screw, #10-16 x 3/8" 39 9 111725-03 111725-03 Pilot Bracket 1 10 104281-01CK 104281-01CK Firebox Hood 1 11 102638-01 102638-01 Firebox Top 1 12 104286-01 104285-01 ODS/Pilot Assembly 1 13 ** ** Firebox Wrapper 1 14 099211-01 099211-01 Control Bracket Screw 2 15 112070-01 112070-01 Inlet Tube 1 16 112071-01 112071-01 Burner Tube 1 17 112067-01 112067-01 Electronic Ignitor Bracket 1 18 M11084-38 M11084-38 Screw #8-18 x 3/8 3 19 104335-01CK 104335-01CK Outer Shell Base 1 20 ** ** Firebox Floor 1 21 099415-04 099415-10 Gas Regulator 1 22 099123-01 099123-01 Thermobulb Clip 2 23 111435-01 111435-01 Electronic Ignitor 1 24 099387-13 099387-13 Pilot Tube 1 25 098271-10 098271-10 Ignitor Cable 1 26 098249-01 098249-01 Nut, M5 2 27 101004-13 101004-12 Injector 1 28 098522-27 098522-27 Gas Valve 1 29 102639-01 102639-01 Baffle 1 30 101628-03 101628-03 Flexible Connector 1 31 102869-01 102869-01 Control Bracket 1 32 100587-01 100587-01 Screw, 6-20 x .38 4 33 103295-06CK 103295-06CK Screen Assembly 1 34 112750-01 112750-01 Log Set 1 35 104313-01 104313-01 Hinge Pin (Right) 1 36 104313-02 104313-02 Hinge Pin (Left) 1 37 M10908-2 M10908-2 Hinge Screws 4 38 112068-01 112068-01 Fan Switch Box 1 39 112069-01 112069-01 Fan Switch Cover 1 40 097809-03 097809-03 3/8" NPT x 3/8" Flare Brass Fitting 1 41 101629-02 101629-02 Bushing 1

PARTS AVAILABLE — NOT SHOWN

101054-01 101054-01 Lighting Instructions Plate 1 100563-01 100563-01 Warning Plate 1 103470-01 103470-01 Hardware Package 1

** Part not available for field replacement.

112462-01C 37

www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

TPTH

REMOTE-READY MODELS VMH10RPC, VMH10RNC (SHOWN), EFS10RPA, EFS10RNA, CGCF10PR AND CGCF10NR

TPTH

AAA

Battery

Negative

Install Battery According To This Illustration

www.desatech.com 112462-01C

PARTS LIST

REMOTE-READY MODELS

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on page 35 of this manual.

KEY VMH10RPC VMH10RNC NO. EFS10RPA EFS10RNA CGCF10PR CGCF10NR DESCRIPTION QTY.

1 102633-02 102633-02 102633-02 102633-02 Outer Casing Top 1 2 102624-02 102624-02 102624-02 102624-02 Outer Casing 1 3 099230-02 099230-02 099230-02 099230-02 Shoulder Screw 14 4 098304-01 098304-01 098304-01 098304-01 Screw, #10-16 x 3/8" 4 5 112066-01 112066-02 112066-01 112066-02 Burner 1 6 103209-05 103209-05 103209-05 103209-05 Extruded Louvered 2 7 102635-02 102635-02 102635-02 102635-02 Left and Right Side Front 2 8 100587-01 100587-01 100587-01 100587-01 Screw, 6-20 x 3/8" 4 9 104281-01CK 104281-01CK 104281-01CK 104281-01CK Firebox Hood 1 10 102638-01 102638-01 102638-01 102638-01 Firebox Top 1 11 103778-01 103779-01 103778-01 103779-01 ODS/Pilot Assembly 1 12 ** ** ** ** Firebox Wrapper 1 13 112415-01 112415-01 112415-01 112415-01 Burner Tube 1 14 104335-01CK 104335-01CK 104335-01CK 104335-01CK Outer Shell Base 1 15 112067-01 112067-01 112067-01 112067-01 Electronic Ignitor

16 111435-01 111435-01 111435-01 111435-01 Electronic Ignitor 1 17 — 099918-02 — 099918-02 Regulator, Pilot 1 18 098271-10 098271-10 098271-10 098271-10 Ignitor Cable 1 19 101004-13 101004-12 101004-13 101004-12 Injector 1 20 M11084-26 M11084-26 M11084-26 M11084-26 Screw, Hex Head,

21 108135-02 108135-02 108135-02 108135-02 Valve Bracket 2 22 103781-04 103781-03 103781-04 103781-03 Gas Valve 1 23 102639-01 102639-01 102639-01 102639-01 Baffle 1 24 101628-01 101628-01 101628-01 101628-01 Flexible Connector 1 25 098249-01 098249-01 098249-01 098249-01 Nut, M5 2 26 103295-06CK 103295-06CK 103295-03BR 103295-03BR Screen Assembly 1 27 112750-01 112750-01 112750-01 112750-01 Log Set 1 28 104313-01 104313-01 104313-01 104313-01 Right Hinge 1 29 104313-02 104313-02 104313-02 104313-02 Left Hinge 1 30 M10908-2 M10908-2 M10908-2 M10908-2 Hinge Screws 4 31 M11084-38 M11084-38 M11084-38 M11084-38 Hex Screw,

32 M12461-26 M12461-26 M12461-26 M12461-26 Screw, 10-32 x 3/8" 4 33 099058-04 099058-04 099058-04 099058-04 Connector, Male 1 34 ** ** ** ** Firebox Floor 1 35 101629-02 101629-02 101629-02 101629-02 Bushing 1 36 112068-01 112068-01 112068-01 112068-01 Fan Switch Box 1 37 112069-01 112069-01 112069-01 112069-01 Fan Switch Cover 1 38 097809-03 097809-03 097809-03 097809-03 Male Fitting 1 39 — 100609-01 — 100609-01 Pilot Tube to Regulator 1 40 099387-13 099387-15 099387-13 099387-15 Pilot Tube to Control

41 111725-03 111725-03 111725-03 111725-03 Pilot Bracket 1

101054-01 101054-01 101054-01 101054-01 Lighting Instructions Plate 1 100563-01 100563-01 100563-01 100563-01 Warning Plate 1 103470-01 103470-01 103470-01 103470-01 Hardware Package 1

** Part not available for field replacement.

112462-01C 39

PART NUMBERS

Bracket 1

#10-16 x 3/8" 36

AB 8-18 x 3/8" 1

Valve 1

PARTS AVAILABLE — NOT SHOWN

www.desatech.com

ACCESSORIES

NOTICE: All accessories may not be available for all fireplace models.

Purchase these fireplace accessories from your local dealer. If they can not supply these accessories, call DESA Heating Products at 1-866-672-6040 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE GA5010

For all models. Equipment shutoff valve with 1/ 8" NPT tap. Fits 1/2" NPT pipe.

BRASS TRIM KIT - GA6095

For all models. Optional four-sided brass trim kit for recessed built-in installations (when unit is raised off of the floor). Provides a finished appearance by covering rough edges of wall opening.

BRASS TRIM KIT - GA6094 (Not Shown)

For all models. Optional three-sided brass trim kit for custom and recessed installations (when unit is on the floor). Provides a finished appearance by covering rough edges of wall opening.

PLATINUM TRIM KIT - GAP6094 (Not Shown)

For all models. Optional three-sided platinum trim kit for custom and recessed installations (when unit is on the floor). Provides a finished appearance by covering rough edges of wall opening.

BLACK TRIM KIT - GAB6094 (Not Shown)

For all models. Optional three-sided black trim kit for custom and recessed installations (when unit is on the floor). Provides a finished appearance by covering rough edges of wall opening.

THERMOSTAT-CONTROLLED BLOWER KIT GA3450T SERIES

For all models. Provides better heat distribution. Makes fireplace more efficient. Automatically turns off and on as needed.

BRASS EXTRUDED LOUVER KIT GA9092

For all models. These louvers will give your fireplace the elegant look of brass and allows you to customize your fireplace. They easily replace the standard black louvers by screwing into place.

PLATINUM EXTRUDED LOUVER KIT GAP9092

For all models. These louvers will give your fireplace the elegant look of platinum and allows you to customize your fireplace. They easily replace the standard black louvers by screwing into place.

CABINET MANTEL WITH BUILT-IN HEARTH BASE AND ROUNDED LEG STYLING

CMA200F Series - Oak Finished GMC61U Series - Unfinished GMC60F Series - Oak Finished GMC65W Series - White Lacquer

Finished (Appearance May Differ by Model)

For all models. A mantel and hearth base offers compact styling and completes the fireplace look. Available in an oak stained or an unfinished birch, ready to stain or paint. Complete assembly instructions included. Three-sided trim kit included.

www.desatech.com 112462-01C

ACCESSORIES

Continued

CORNER MANTEL WITH FULL HEARTH BASE

CMA209U Series - Unfinished GMC63U Series - Unfinished GMC64F Series - Oak Stain Finished GMC83F Series - Oak Stain Finished

For all models. Space-saving mantel and hearth base corner design features clean, classic lines. Available in a stained oak, white lacquer or an unfinished hardwood, ready to stain or paint. Complete assembly instructions included. Three-sided trim kit included.

WALL-MOUNT THERMOSTAT SWITCH GWMT1 (Not Shown)

For all Remote-Ready Models. The desired comfort setting can be selected on the wall thermostat and the fireplace will automatically cycle from pilot to the heat setting selected.

WALL-MOUNT ON/OFF SWITCH GWMS2 (Not Shown)

For all Remote-Ready Models. Allows the fireplace to be turned on and off with a wall switch.

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT - GHRCTB

For all Remote-Ready Models. Allows the fireplace to be operated in a manually or thermostatically controlled mode. You can turn the fireplace on and off without ever leaving the comfort of your easy chair.

RECEIVER AND HAND-HELD REMOTE CONTROL KIT - GHRCB

For all Remote-Ready Models. Allows the fire-

CABINET MANTEL AND FULL HEARTH BASE

GMC80F Series - Oak Finished GMC81U Series - Unfinished Birch GMC82F Series - Cherry Finished Birch

For all models. Mantel features columns, moldings, fluting and medallion. Dimensions (WxHxD): 56" x 50" x 24"

CLEANING KIT - GCK (Not Shown)

For all models. Your vent-free gas appliance requires regular cleaning and maintenance to prevent performance problems. This kit gives you the tools and instructions to make it easy to clean all critical areas of your appliance.

112462-01C 41

www.desatech.com

place to be turned on and off by using a hand-held remote control.

INFORMATION VIDEO - 108917-01

For all models. A care and maintenance video is available by calling 1-866-672-6040.

You may also email your request to www.productsupport@desaint.com.

FIRE CRACKLE - CF6A (Not Shown)

For all models. Creates the sound of a real burning fire.

NOTES

___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________

www.desatech.com 112462-01C

NOTES

112462-01C 43

www.desatech.com

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model _________________________________

Serial No. ______________________________

Date Purchased _________________________

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

VENT-FREE COMPACT CLASSIC HEARTH® FIREPLACE

DESA Heating Products warrants this product to be free from defects in materials and components for four (4) years and five (5) years on stainless steel burners from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this fireplace to proper operating condition and an allowance for labor when provided by a DESA Heating Products Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA Heating Products who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The fireplace MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective fireplace will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON ALL COMPONENTS AND FIVE (5) YEARS ON STAINLESS STEEL BURNERS FROM THE DATE OF FIRST PURCHASE; AND DESA HEATING PRODUCTS’ LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA HEATING PRODUCTS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

112462 01

NOT A UPC

112462-01 Rev. C 05/04

Desa EFS10RPA, VMH10RNC, CGCF10NR, EFS10RNA, CGCF10PR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY INFORMATION

LOCAL CODES

UNPACKING

PRODUCT FEATURES

ASSEMBLY

INSTALLATION

OPERATING FIREPLACE

INSPECTING BURNERS

TROUBLESHOOTIING

SPECIFICATIONS

WIRING DIAGRAM

SERVICE HINTS

TECHNICAL SERVICE

REPLACEMENT PARTS

ACCESSORIES

WARRANTY INFORMATION
