UNVENTED (VENT-FREE)
PROPANE/LP GAS LOG HEATER
Variably Control Models Also Designed Certified as V ented Decorative Appliance)
This appliance may be installed in an aftermarket* manufactured (mobile) home,
where not prohibited by state or local codes.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
OWNER’S OPERATION AND INSTALLATION MANUAL
LO
PILOT
OFF
HI
CG3324PT, CG3630PT, CG2618PV, CG3324PV, and CG3630PV
Thermostat and V ariably-Controlled Models
®
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
WARNING: Improper installation, adjustment, alteration, service, or maintenance
can cause injury or property damage.
Refer to this manual for correct installation and operational procedures. For
assistance or additional information consult a qualified installer, service agency,
or the gas supplier.
WARNING: This gas log set is for installation in a masonry solid fuel burning
fireplace, a U.L. listed manufactured
solid fuel burning fireplace or an AGA
design certified vent-free firebox listed
for use with these gas log models.
WARNING: This is an unvented gasfired heater. It uses air (oxygen) from
the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to
“Air for Combustion and Ventilation”
section in this manual.
Save this manual for future reference.
CONTENTS
SECTION PAGE
Safety Information................................................................................... 2
Product Identification .............................................................................. 4
Local Codes ............................................................................................. 4
Unpacking................................................................................................ 4
Product Features ...................................................................................... 4
Air for Combustion and Ventilation........................................................ 5
Installing .................................................................................................. 8
Check Gas Type ............................................................................... 8
Installation and Clearances (Vent-Free Operation Only)................. 9
Installing Damper Clamp Accessory for Vented Operation ............ 13
Installing Heater Base Assembly ..................................................... 14
Connecting to Gas Supply................................................................ 15
Checking Gas Connections .............................................................. 17
Installing Logs.................................................................................. 19
Operating Heater ..................................................................................... 20
Inspecting Burners................................................................................... 22
Cleaning and Maintenance ...................................................................... 23
Troubleshooting....................................................................................... 23
Optional Positioning of Thermostat Sensing Bulb .................................. 27
Technical Service .................................................................................... 29
Specifications .......................................................................................... 29
Service Hints ........................................................................................... 29
Replacement Parts ................................................................................... 30
Accessories .............................................................................................. 31
Illustrated Parts Lists ............................................................................... 32-35
Warranty Information .............................................................................. Back Cover
SAFETY
INFORMATION
2
W ARNINGS
IMPORTANT: Read this owner’s manual carefully and completely before
trying to assemble, operate, or service this heater. Improper use of this
heater can cause serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble
the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not
be working properly. Get fresh air at once! Have heater serviced. Some people are more
affected by carbon monoxide than others. These include pregnant women, people with
heart or lung disease or anemia, those under the influence of alcohol, and those at high
altitudes.
Propane/LP Gas: Propane/LP gas is odorless. An odor-making agent is added to the gas.
The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may
be present even though no odor exists.
Make certain you read and understand all Warnings. Keep this manual for reference. It is
your guide to safe and proper operation of this heater.
Safety Information continues on next page
101992
SAFETY
INFORMATION
Continued
101992
WARNINGS
WARNING: Any change to this heater or its controls can be dangerous.
1. This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases.
2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply
tank(s) outdoors.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building
• immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call the fire department
4. This heater shall not be installed in a bedroom or bathroom.
5. Never install the heater
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less than 36 inches
from the front, top, or sides of the heater
• in high traffic areas
• in windy or drafty areas
6. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be
cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote
will ignite if highly heated. Inspect chimney flue for damage. If damaged, operate heater
with flue damper closed.
7. If fireplace has glass doors, never operate this heater with glass doors closed. If you operate
heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if
fireplace opening has vents at the bottom, you must open the vents before operating heater.
8. You must operate this heater with a fireplace screen in place. Make sure fireplace screen
is closed before running heater.
9. This log heater is designed to be smokeless. If logs ever appear to smoke, turn off heater
and call a qualified service person.
occur due to log curing and heater burning manufacturing residues.
10. Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner
flame patterns. Ceiling fans may create drafts that alter burner flame patterns. Altered
burner patterns can cause sooting.
11. Do not use a blower insert, heat exchanger insert or other accessory not approved for use
with this heater.
12. This heater needs fresh, outside air ventilation to run properly. This heater has an oxygen
depletion sensor (ODS) pilot light safety system. The ODS shuts down the heater if not
enough fresh air is available. See Air for Combustion and Ventilation, pages 5 through 8.
If heater keeps shutting off, see Troubleshooting, pages 23 through 26.
13. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
14. Do not use this heater to cook food or burn paper or other objects.
15. Never place any objects on the heater.
16. Heater base assembly becomes very hot when running heater. Keep children and adults
away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time
after shut-down. Allow surface to cool before touching.
17. Carefully supervise young children when they are in the room with heater.
18. Do not use heater if any part has been exposed to or under water. Immediately call a
qualified service technician to inspect the room heater and to replace any part of the control
system and any gas control which has been under water.
19. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dimesized or larger).
20. Turn heater off and let cool before servicing. Only a qualified service person should
service and repair heater.
21. Operating heater above elevations of 4,500 feet may cause pilot outage.
Note:
Continued
During initial operation, slight smoking may
3
PRODUCT
Front Log
Rear Log
IDENTIFICATION
LOCAL CODES
Front
Burner
Left
Branch
Rear
Burner
Piezo
Ignitor
Right
Branch
Control Knob
Figure 1 - Vent-Free Gas Log Heater
Install and use heater with care. Follow all local codes. In the absence of local
codes, use the latest edition of The National Fuel Gas Code ANSI Z223, also
known as NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
Base Assembly
UNPACKING
PRODUCT
FEATURES
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
Note:
1. Remove logs and heater base assembly from carton.
2. Remove all protective packaging applied to logs and heater for shipment.
3. Check all items for any shipping damage. If damaged, promptly inform dealer
Operation
This heater is clean burning. It requires no outside venting. There is no heat loss out a
vent or up a chimney. Heat is generated by both realistic flames and glowing coals. This
heater is designed for vent-free operation with flue damper closed. State and local
codes in some areas prohibit the use of vent-free heaters. You can operate heater as a
vented product by opening flue damper.
Safety Device
This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room heaters. The ODS/pilot shuts
off the heater if there is not enough fresh air.
Where listed vented decorative logs are required, thermostat operation is
not permitted.
Note:
Do not pick up heater
base assembly by burners. This could damage heater. Always handle base
assembly by grate.
where you bought heater.
Piezo Ignition System
This heater has a piezo ignitor. This system requires no matches, batteries, or other
4
sources to light heater.
101992
AIR FOR
W ARNING
COMBUSTION
AND
VENTILATION
This heater shall not be installed in a confined space unless
provisions are provided for adequate combustion and ventilation
air. Read the following instructions to insure proper fresh air for
this and other fuel-burning appliances in your home.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out
and the warm air in. During heating months, home owners want their homes as
airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. All fuel-burning appliances need fresh air for
proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from
the house to operate. You must provide adequate fresh air for these appliances.
This will insure proper venting of vented fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following is exerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Contruction; 2. Unconfined Space; 3. Confined Space.
The information on pages 5 through 7 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for
combustion and ventilation. However, in buildings of unusually tight construction,
you must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm or less with open-
ings gasketed or sealed
b. weather stripping has been added on openable windows and doors
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air. See
If your home does not meet all of the three criteria above, proceed to page 6.
Ventilation Air From Outdoors
and
, page 7
and
.
101992
Unconfined Space
The National Fuel Gas Code, ANSIZ223.1, 1992, Section 5.3 defines uncon-
fined space as having a minimum air volume of 50 cubic feet (127 cubic cm) for
each 1000 Btu/Hr input rating of all appliances in the space (cubic feet equals
length x width x height of space). Include adjoining rooms only if there are
doorless passageways or ventilation grills between the rooms.
Confined Space
The National Fuel Gas Code, ANSIZ223.1, 1992, Section 5.3 defines confined
space as having an air volume of less than 50 cubic feet (127 cubic cm) for each
1000 Btu/Hr input rating of all appliances in the space (cubic feet equals length
x width x height of space). Include adjoining rooms only if there are doorless
passageways or ventilation grills between the rooms.
Continued
5
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING AIR FLOW FOR HEATER LOCATION
Determining if You Have a Confined or Unconfined Space
Use this work sheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install heater plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example:
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum Btu/Hr the space
can support.
____________ (volume of space) ÷ 50 cu. ft. = (Maximum Btu/Hr
the space can support)
Example:
Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Example:
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr
used.
_________________ Btu/Hr (maximum the space can support)
_________________ Btu/Hr (actual amount of Btu/Hr used)
Example:
The space in the above example is a confined space because the actual Btu/Hr used is more
than the maximum Btu/Hr the space can support. You must provide additional fresh air.
Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 7.
B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 7.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined.
If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support, the space
is an unconfined space. You will need no additional fresh air ventilation.
Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =
2560 cu. ft. (volume of space)
2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum
Vent-free heater ___________________ Btu/Hr
Gas water heater* ___________________ Btu/Hr
Gas furnace ___________________ Btu/Hr
Vented gas heater ___________________ Btu/Hr
Gas fireplace logs ___________________ Btu/Hr
Other gas appliances* + ___________________ Btu/Hr
Total = ___________________ Btu/Hr
Gas water heater 40,000 Btu/Hr
Vent-free heater + 33,000 Btu/Hr
Total = 73,000 Btu/Hr
51,200 Btu/Hr (maximum the space can support)
73,000 Btu/Hr (actual amount of Btu/Hr used)
6
101992
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
W ARNING
If the area in which the heater may be operated is smaller than
that defined as an unconfined space, provide adequate combustion and ventilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1, 1992, Section 5.3.
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an
adjoining unconfined space, you must provide two permanent openings: one within 12" of the
ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and
2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2). Follow
the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and
Ventilation for required size of ventilation grills or ducts.
W ARNING
Rework worksheet, adding the space of the adjoining unconfined
space.
appliances in both spaces.
The combined spaces must have enough fresh air to supply all
12"
Ventilation
Grills
Into Adjoining
Room,
Option 1
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
Figure 2 - Ventilation Air from Inside Building
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these
items directly to the outdoors or spaces open to the outdoors. These spaces include attics
and crawl spaces.
IMPORTANT:
stat-controlled power vent. Heated air entering the attic will activate the power vent.
Do not provide openings for inlet or outlet air into attic if attic has a thermo-
Ventilated
Attic
To Attic
Outlet
Air
Outlet
Air
101992
To
Crawl
Inlet
Air
Inlet Air
Ventilated
Crawl Space
Space
Figure 3 - Ventilation Air from Outdoors
7
INSTALLING
NOTICE
A qualified service person must install heater. Follow all local codes.
NOTICE
State or local codes may only allow operation of this appliance in a
vented configuration. Check your state or local codes.
W ARNING
Before installing in a previously-used wood-burning fireplace, clean
chimney flue and firebox. Make sure flue is free of any creosote.
Creosote will ignite if highly heated. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.
W ARNING
Seal any fresh air vents or ash clean-out doors located on floor or wall
of fireplace. If not, drafting may cause pilot outage or sooting. Use a
heat-resistant sealant. Do not seal chimney flue damper.
W ARNING
Never install the heater
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are
less than 36 inches from the front, top, or sides of the heater
• in high traffic areas
• in windy or drafty areas
CAUTION
This heater creates warm air currents. These currents move heat
to wall surfaces next to heater. Installing heater next to vinyl or
cloth wall coverings or operating heater where impurities in the air
(such as tobacco smoke) exist, may discolor walls.
IMPORTANT:
installing heater in rooms without enough ventilation air may cause mildew to form
from too much moisture. See Air for Combustion and Ventilation, pages 5 through 7.
CHECK GAS TYPE
Use only propane/LP gas. If your gas supply is not propane/LP, do not install
heater. Call dealer where you bought heater for proper type heater.
8
Vent-free heaters add moisture to the air. Although this is beneficial,
101992
INSTALLING
INSTALLATION AND CLEARANCES (Vent-Free Operation Only)
Continued
WARNING
Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.
MINIMUM FIREPLACE CLEARANCE
TO COMBUSTIBLE MATERIALS
Log Size Side Wall Ceiling Floor
18", 24", 30" 16" 42" 5"
LOG SIZING REQUIREMENTS
Log Minimum Firebox Size
Size Height Depth Front Width Rear Width
18" 17" 14" 20" 14"
24" 17" 14" 26" 18"
30" 17" 14" 32" 22"
Carefully follow the instructions below. This will ensure safe installation into a
masonry or U.L. listed manufactured fireplace.
Minimum Wall and Ceiling Clearances (see Figure 4)
A. Clearances from the side of the fireplace opening to any combustible wall
should not be less than 16 inches.
B. Clearances from the top of the fireplace opening to the ceiling should not be
less than 42 inches.
42"
16"
Left and
Right Sides
101992
Figure 4 - Minimum Clearance to Wall and Ceiling
Continued
9
INSTALLING
NOTICE
Continued
Manual control heaters may be used as a vented
product. If so, you must always run heater with
chimney flue damper open. If running heater with
damper open, non-combustible material above
fireplace opening is not needed. Go to
Installing
Damper Clamp Accessory for Vented Operation,
page 13.
Minimum Non Combustible Material Clearances
If Not Using Mantel
Note:
If using a mantel, go to page 11. If not using a mantel, follow the information
on this page.
You must have non combustible material(s) above the fireplace opening. Non
combustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch
thick. With sheet metal, you must have non combustible material behind it. Non
combustible material must extend at least 8" up (for all models). If non combustible
material is less than 12", you must install the fireplace hood accessory (24" and 30"
models only). See chart below and Figure 5 for minimum clearances.
IMPORTANT:
If you cannot meet these minimum clearances, you must operate
heater with chimney flue damper open. Go to Installing Damper Clamp Accessory
for Vented Operation, page 13.
Non-Combustible Requirements for
Material Distance (A) Safe Installation
12" or more Non combustible material OK.
Between 8" and 12" 24" or 30" Models: Install fireplace hood
acessory (GA6050 or GA6052, see
Accessories,
18" Model: Non combustible material OK.
Less than 8" Non combustible material must be
extended to at least 8". See
and 12",
material, you must operate heater with
flue damper open.
Heat Resistant
Material
page 31).
Between 8"
above. If you cannot extend
(A)
10
Figure 5 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace
101992
INSTALLING
Continued
Minimum Non Combustible Material Clearances
If Using Mantel
You must have non combustible material(s) above the fireplace opening. Non
combustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch
thick. With sheet metal, you must have non combustible material behind it. Non
combustible material must extend at least 8 inches up (for all models). If non
combustible material is less than 12", you must install the fireplace hood accessory
(24" and 30" models only). Even if non combustible material is more than 12", you
may need the hood accessory to deflect heat away from your mantel shelf. See
chart below and Figures 6 and 7 for minimum clearances.
IMPORTANT:
If you cannot meet these minimum clearances, you must operate
heater with chimney flue damper open. Go to Installing Damper Clamp Accessory
for Vented Operation, page 13.
Non Combustible Requirements for
Material Distance (A) Safe Installation
12" or more Non combustible material OK.
Between 8" and 12" 24" or 30" Models: Install fireplace hood
acessory (GA6050 or GA6052, see
Accessories,
page 31).
18" Model: Non combustible material OK.
Less than 8" Non combustible material must be
extended to at least 8". See
and 12",
above. If you cannot extend
Between 8"
material, you must operate heater with
flue damper open.
Mantel Clearances
If you meet minimum clearance between mantel shelf and top of fireplace opening,
a hood is not required (see Figure 6).
Mantel Shelf
10"
8"
6"
2
1
"
/2
Underside of
Mantel Shelf
101992
All minimum
distances are
in inches
Minimum NonCombustible
Material
Figure 6 - Minimum Mantel Clearances Without Using Hood
(A)
12"
8"
Minimum NonCombustible
Material Height
20"
14"
1
24
/2
"
27
3
16
Distances to
Underside of
Mantel
18
/4
"
1
/2
"
30"
1
20"
/2
"
Log Set
24"/30" Models
18" Model
Top of Fireplace
Opening
If above minimum clearances are not met, you must have a hood. Follow
minimum clearances shown in Figure 7 when using hood.
Continued
11
Mantel Shelf
INSTALLING
Continued
Minimum NonCombustible
Material
12"
10"
8"
6"
1
"
/2
2
8"
Min.
Hood
(GA6050, GA6052)
12" 15" 18"
Distances to
Underside of
Mantel
Underside of
Mantel Shelf
All minimum
distances are
in inches
Log Sets
18", 24",
20"
& 30" Models
Top of Fireplace
Opening
Figure 7 - Minimum Mantel Clearances When Using Hood
If your installation does not meet the above minimum clearances, you must:
• operate the logs only with the flue damper open, OR
• raise the mantel to an acceptable height, OR
• remove the mantel.
Floor Clearances
A. If installing appliance on the floor level, you must maintain the minimum
distance of 14" to combustibles (see Figure 8).
Combustible
14"
Min.
Material
Non-Combustible
Material
Figure 8 - Minimum Fireplace Clearances If Installed at Floor Level
B. If combustible materials are less than 14" to the fireplace, you must install
appliance at least 5" above the combustible flooring (see Figure 9).
Hearth
5"
Min.
Combustible
Material
12
Figure 9 - Minimum Fireplace Clearances Above Combustible Flooring
101992
INSTALLING
Continued
INSTALLING DAMPER CLAMP ACCESSORY FOR
VENTED OPERATION
Note:
When used as a vented heater, appliance must be installed only in a solid-
fuel burning fireplace with a working flue and constructed of non combustible
material.
If your heater is a manually controlled model, you may use this heater as a vented
product. There are three reasons for operating your heater in the vented mode.
1. The fireplace does not meet the clearance to combustibles requirements for
vent-free operation.
2. State or local codes do not permit vent-free operation.
3. You prefer vented operation.
If reasons number 1 or 2 above apply to you, you must permanently open chimney flue
damper. You must install the damper clamp accessory (to order, see Accessories, page
31). This will insure vented operation (see Figure 10). The damper clamp will keep
damper open. Installation instructions are included with clamp accessory.
See chart below for minimum permanent flue opening you must provide. Attach
damper clamp so the minimum permanent flue opening will be maintained at all times.
Chimney Minimum Permanent
Height (ft.) Flue Opening (sq. ins.)
6' to 15' 39 sq. inches
15' to 30' 29 sq. inches
Area of Various Standard Round Flues
Diameter (ins.) Area (sq. ins.)
5" 20 sq. inches
6" 29 sq. inches
7" 39 sq. inches
8" 51 sq. inches
Damper
Clamp
Damper
Damper
Clamp
Damper
Damper
101992
Manufactured FireplaceMasonry Fireplace
Figure 10 - Attaching Damper Clamp
13
INSTALLING
INSTALLING HEATER BASE ASSEMBLY
Continued
W ARNING
You must secure this heater to fireplace floor. If not, heater will move
when you adjust controls. Moving heater may cause a gas leak.
W ARNING
If installing in a sunken fireplace, special care is needed. You
must raise the fireplace floor to allow access to heater control
panel. This will insure adequate air flow and guard against sooting. Raise fireplace floor with non-combustible material. Make
sure material is secure.
CAUTION
Do not pick up heater base assembly by burners. This could
damage heater. Only handle base assembly by grates.
IMPORTANT:
not work properly. For thermostat models, avoid damage to thermostat bulb. Avoid
nicks or sharp bends in thermostat bulb wire. Keep thermostat bulb in mounting
bracket.
Installation Items Needed
• hardware package (provided with heater)
• approved flexible gas hose (not provided) (if allowed by local codes)
• sealant (resistant to LP gas, not provided)
• electric drill with 3/16" drill bit
Make sure the heater burners are level. If heater is not level, heater will
1. Apply pipe joint sealant lightly to male threads of gas regulator. Connect approved
flexible gas hose to gas regulator of heater (see Figure 11).
IMPORTANT:
2. Locate mounting brackets, bolts, and nuts in hardware package. Attach mounting
brackets to heater base (see Figure 12). Attach nuts finger tight.
3. Position heater base assembly in fireplace.
4. Mark screw locations through holes in mounting brackets. If installing in a brickbottom fireplace, mark screw locations in mortar joint of bricks.
5. Remove heater base from fireplace. Remove mounting brackets from heater base.
6. Drill holes at marked locations using 3/16" drill bit.
Attach mounting brackets to fireplace floor using masonry screws (in hardware package).
7.
8. Reattach heater base to mounting brackets. Tighten nuts firmly.
9. Connect to gas supply. See Connecting To Gas Supply, page 15.
Flexible Gas Hose (if
allowed by local codes)
Figure 11 - Attaching Flexible Gas Hose to Heater Gas Regulator
Hold gas regulator with wrench when connecting flexible gas hose.
Heater Gas
Regulator
14
101992
INSTALLING
Continued
Masonry Screw
Mounting
Bracket
Figure 12 - Attaching Mounting Brackets to Heater
CONNECTING TO GAS SUPPLY
NOTICE
A qualified service person must connect heater to gas supply.
Follow all local codes.
CAUTION
Never connect heater directly to the propane/LP supply. This heater
requires an external regulator (not supplied). Install the external
regulator between the heater and propane/LP supply.
Installation Items Needed
Before installing heater, make sure you have the items listed below.
• external regulator (supplied by
installer, see page 16)
• piping (check local codes)
• sealant (resistant to LP gas)
• manual shutoff valve *
* An A.G.A. design-certified manual shutoff valve with 1/8" NPT tap is an acceptable
alternative to test gauge connection. Purchase the optional A.G.A. design-certified manual
shutoff valve from your dealer. See Accessories, page 31.
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
Continued
101992
15
INSTALLING
Continued
The installer must supply an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas pressure to between 11 and
14 inches of water. If you do not reduce incoming gas pressure, heater regulator
damage could occur. Install external regulator with the vent pointing down as
shown in Figure 13. Pointing the vent down protects it from freezing rain or sleet.
Propane/LP
Supply Tank
External
Regulator
Vent Pointing
Down
Figure 13 - External Regulator With Vent Pointing Down
W ARNING
Never connect heater to private (non-utility) gas wells. This gas is
commonly known as well-head gas.
CAUTION
Use only new, black iron or steel pipe. Internally-tinned copper
tubing may be used in certain areas. Check your local codes. Use
pipe of 1/2" diameter or greater to allow proper gas volume to
heater. If pipe is too small, undue loss of pressure will occur.
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from heater (see Figure 14, page 17).
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged heater valves.
CAUTION
Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.
Install sediment trap in supply line as shown in Figure 14, page 17. Locate sediment trap where it is within reach for cleaning. Locate sediment trap where trapped
matter is not likely to freeze. A sediment trap traps moisture and contaminants. This
keeps them from going into heater controls. If sediment trap is not installed or is
installed wrong, heater may not run properly.
16
101992
INSTALLING
Continued
CAUTION
Avoid damage to regulator. Hold gas regulator with wrench when
connecting it to gas piping and/or fittings.
A.G.A. Design-Certified
Manual Shutoff Valve
From
External Regulator
(11" W.C.** to
14" W.C.
Pressure)
Tee Joint
With 1/8" NPT Tap*
Approved Flexible
Gas Hose (if allowed
by local codes)
Gas
Regulator
Pipe
Nipple
Cap
Sediment
Trap
* Purchase the optional A.G.A. design-certified manual shutoff valve from your dealer.
See Accessories, page 31.
** Minimum inlet pressure for purpose of input adjustment.
3" Minimum
Figure 14 - Gas Connection
CHECKING GAS CONNECTIONS
W ARNING
Test all gas piping and connections for leaks after installing or
servicing. Correct all leaks at once.
W ARNING
Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak.
Correct all leaks at once.
101992
CAUTION
Make sure external regulator has been installed between propane/
LP supply and heater. See guidelines under
Supply
, page 15.
Pressure Testing gas Supply Piping system
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect heater and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
Connecting to Gas
Continued
17
ON
POSITION
OFF
POSITION
INSTALLING
Continued
3. Pressurize supply piping system by either using compressed air or
opening propane/LP supply tank valve.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and water to
gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Re-connect heater and manual shutoff valve to gas supply. Check re-connected fittings
for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 15).
2. Pressurize supply piping system by either using compressed air or opening propane/LP
supply tank valve.
3. Check all joints from propane/LP supply tank to manual shutoff valve (see Figure 16).
Apply mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Pressure Testing Heater Gas Connections
1. Open manual shutoff valve (see Figure 15).
2. Open propane/LP supply tank valve.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from manual shutoff valve to thermostat gas valve (thermostat-controlled models) or control valve (variably-controlled models) (see Figure 16). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, pages 20 through 21). Check all other internal
joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 21).
Propane/LP
Supply Tank
Manual
Shutoff
Valve
Open
Closed
Figure 15 - Manual Shutoff Valve
Manual
Shutoff
Valve
Thermostat Gas Valve or
Control Valve Location
18
Figure 16 - Checking Gas Joints
101992
INSTALLING
INSTALLING LOGS
Continued
WARNING
Failure to position the parts in accordance with these diagrams or
failure to use only parts specifically approved with this heater may
result in property damage or personal injury.
Each log is marked with a number. These numbers will help you identify the log when
installing. It is very important to install these logs exactly as instructed. Do not modify logs.
Only use logs supplied with heater.
1. Slide front log (#1) into place behind front burner. Make sure tabs at bottom of log are
behind front burner (see Figure 17).
2 . Slide rear log (#2) into place behind rear burner (see Figure 18).
3. Place left front branch (#4) and right front branch (#5) (24" and 30" models) or front
branch (#4) (18" model) into place (see Figure 19). Make sure notches on bottom rest on
grates.
4. Add lava rock around base of heater.
Front Log (#1)
Tab
101992
Figure 17 - Installing Front Log
Rear Log (#2)
Figure 18 - Installing Rear Log
Left Branch (#4)
Right Branch (#5)
Figure 19 - Installing Rear Log
19
OPERATING
FOR YOUR SAFETY READ BEFORE LIGHTING
HEATER
W ARNING
If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell
next to the floor because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob
will not push in or turn by hand, don’t try to repair it, call a qualified service
technician or gas supplier. Force or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a
qualified service technician to inspect the appliance and to replace any part of the
control system and any gas control which has been under water.
LIGHTING INSTRUCTIONS
W ARNING
• If fireplace has glass doors, never operate this heater with glass doors
closed. If you operate heater with doors closed, heat buildup inside
fireplace will cause glass to burst. Also if fireplace opening has vents at the
bottom, you must open the vents before operating heater.
• You must operate this heater with a fireplace screen in place. Make sure
fireplace screen is closed before running heater.
20
NOTICE
During initial operation of new heater, burning logs will give off a paperburning smell. Orange flame will also be present. Open damper or window
to vent smell. This will only last a few hours.
Note:
Homeowners generally prefer to operate their heater with the chimney damper
closed. This will put all the heat into the room. However there may be times you will
desire the full flames of the Hi heat setting but will find the heat output excessive. You
can open the chimney damper (if you have one) fully or partially to release some of the
heat. WARNING: Damper handle will be hot if heater has been running.
1. STOP! Read the safety information above.
2. Make sure manual shutoff valve is fully open.
3. Turn control knob clockwise to the OFF position.
Ignitor Button
HI
PILOT
OFF
LO
Figure 20 - Control Knob and Ignitor Button Location
4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the
floor. If you smell gas, STOP! Follow “B” in the safety information above. If you
don’t smell gas, go to the next step.
Control Knob
101992
OPERATING
HEATER
Continued
5. Turn control knob counterclockwise to the PILOT position. Press in
control knob for five (5) seconds (see Page 20).
Note:
You may be running this heater for the first time after hooking up to gas
supply. If so, the control knob may need to be pressed in for 30 seconds or less.
This will allow air to bleed from the gas system.
• If control knob does not pop out when released, contact a qualified service
person or gas supplier for repairs.
6. With control knob pressed in, press and release ignitor button. This will light pilot.
The pilot is attached to the front burner. If needed, keep pressing ignitor button
until pilot lights.
Note:
If pilot does not stay lit, contact a qualified service person or gas supplier
for repairs. Until repairs are made, light pilot with match. To light pilot with
match, see Manual Lighting Procedure, below.
7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds,
release control knob.
Note:
If pilot goes out, repeat steps 3 through 7. This heater has a safety inter-
lock system. Wait one (1) minute for system to reset before lighting pilot again.
Thermocouple
Ignitor Electrode
Pilot Burner
Figure 21 - Pilot
8. Turn control knob counterclockwise to desired heating level. The burners
should light. Set control knob to any heat level between HI and LO.
CAUTION
Do not try to adjust heating levels by using the manual shutoff valve.
TO TURN OFF GAS TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise to the OFF position.
Shutting Off Burners Only (pilot stays lit)
1. Turn control knob clockwise to the PILOT position.
THERMOSTA T CONTROL OPERATION
(Thermostat-Controlled Models Only)
The thermostat control knob can be set to any comfort level between Hi and Lo. The
thermostat will gradually modulate the heat output and flame height from higher to
lower settings, or pilot, in order to maintain the comfort level you select. The ideal
comfort setting will vary by household depending upon the amount of space to be
heated, the output of the central heating system, etc.
Note:
Selecting the Hi setting with the control knob will cause the burner to remain
fully on, without modulating down in most cases.
101992
VARIABLE CONTROL OPERATION
The variable control valve can be set to any heat setting and flame height desired, by
simply turning the control knob until that setting is attained. Even the lowest setting
provides realistic flames and glowing embers from two burners. Selecting higher
settings produces greater heat output. This results in increased heating comfort.
21
INSPECTING
BURNERS
Check pilot flame pattern and burner flame patterns often.
PILOT FLAME PATTERN
Figure 22 shows a correct pilot flame pattern. Figure 23 shows an incorrect pilot flame
pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the
thermocouple to cool. When the thermocouple cools, the heater will shut down.
Thermocouple
Figure 22 - Correct Pilot
Flame Pattern
If pilot flame pattern is incorrect, as shown in Figure 23
• turn heater off (see To Turn Off Gas to Appliance, page 21)
• see Troubleshooting, pages 23 through 26
Pilot Burner
Thermocouple
Figure 23 - Incorrect Pilot
Flame Pattern
Pilot Burner
FRONT BURNER FLAME PATTERN
Figure 24 shows correct front burner flame pattern. Figure 25 shows incorrect front
burner flame pattern. The incorrect burner flame pattern shows yellow tipping at top of
blue flame.
W ARNING
If yellow tipping occurs, your heater could produce increased levels
of carbon monoxide. If front burner flame pattern shows yellow
tipping, follow instructions at bottom of this page. Yellow flame on rear
burner is normal.
22
NOTICE
Do not mistake orange flames with yellow tipping. Dirt or other fine
particles are burned by heater, causing brief patches of orange flame.
CORRECT FLAME PATTERN AT HIGH POSITION
Figure 24 - Correct Front Burner Flame Pattern
Yellow
Tipping
At Top
of Blue
Flame
INCORRECT FLAME PATTERN AT HIGH POSITION
Figure 25 - Incorrect Front Burner Flame Pattern
If front burner flame pattern is incorrect, as shown in Figure 25
• turn heater off (see To Turn Off Gas to Appliance, page 21)
• see Troubleshooting, pages 23 through 26
101992
CLEANING
AND
MAINTENANCE
W ARNING
Turn off heater and let cool before cleaning.
CAUTION
You must keep control areas, burners, and circulating air passageways of heater clean. Inspect these areas of heater before each
use. Have heater inspected yearly by a qualified service person.
Heater may need more frequent cleaning due to excessive lint from
carpeting, bedding material, etc.
ODS/PILOT AND BURNERS
• Use a vacuum cleaner or small, soft bristled brush to clean.
LOGS
• If you remove logs for cleaning, refer to Installing Logs, page 19, to properly
replace logs.
• Replace log(s) if broken or chipped (dime-sized or larger).
TROUBLE-
SHOOTING
Note: All troubleshooting
items are listed in order of
operation.
W ARNING
Turn off and unplug heater and let cool before servicing. Only a
qualified service person should service and repair heater.
CAUTION
Never use a wire, needle, or similar object to clean ODS/pilot. This
can damage ODS/pilot unit.
OBSERVED
PROBLEM
When ignitor button
is pressed, there is no
spark at ODS/pilot
POSSIBLE
CAUSE
1. Ignitor electrode not connected to ignitor cable
2. Ignitor cable pinched or
wet
3. Piezo ignitor nut is loose
4. Broken ignitor cable
5. Bad piezo ignitor
6. Ignitor electrode broken
7. Ignitor electrode positioned wrong
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if
pinched by any metal or
tubing. Keep ignitor
cable dry
3. Tighten nut holding
piezo ignitor to base
panel of log set. Nut is
located behind base
panel.
4. Replace ignitor cable
5. Replace piezo ignitor
6. Replace piezo ignitor
7. Replace piezo ignitor
101992
Continued
23
TROUBLE-
SHOOTING
Continued
OBSERVED
PROBLEM
When ignitor button
is pressed, there is
spark at ODS/pilot
but no ignition
POSSIBLE
CAUSE
1. Gas supply turned off or
manual shutoff valve
closed
2. Control knob not in
PILOT position
3. Control knob not
pressed in while in
PILOT position
4. Air in gas lines when
installed
5. Depleted gas supply
6. ODS/pilot is clogged
7. Gas regulator setting is
not correct
REMEDY
1. Turn on gas supply or
open manual shutoff
valve
2. Turn control knob to
PILOT position
3. Press in control knob
while in PILOT position
4. Continue holding down
control knob. Repeat
igniting operation until
air is removed
5. Contact local propane/
LP gas company
6. Clean ODS/pilot (see
Cleaning and Maintenance, page 23) or
replace ODS/pilot
assembly
7. Replace gas regulator
ODS/pilot lights but
flame goes out when
control knob is
released
1. Control knob not fully
pressed in
2. Control knob not
pressed in long enough
3. Safety interlock system
has been triggered
(thermostat models
only)
4. Manual shutoff valve
not fully open
5. Pilot flame not touching
thermocouple, which
allows thermocouple to
cool, causing pilot flame
to go out. This problem
could be caused by one
or both of the following:
A) Low gas pressure
B) Dirty or partially
clogged ODS/pilot
6. Thermocouple connection loose at control
valve
7. Thermocouple damaged
8. Control valve damaged
1. Press in control knob
fully
2. After ODS/pilot lights,
keep control knob
pressed in 30 seconds
3. Wait one minute for
safety interlock system
to reset. Repeat ignition
operation
4. Fully open manual shutoff valve
5. A) Contact local propane/LP gas company
B) Clean ODS/pilot (see
Cleaning and Maintenance, page 23) or
replace ODS/pilot
assembly
6. Hand tighten until snug,
then tighten 1/4 turn
more
7. Replace thermocouple
8. Replace control valve
24
101992
TROUBLE-
SHOOTING
Continued
OBSERVED
PROBLEM
One or both burners
do not light after
ODS/pilot is lit
POSSIBLE
CAUSE
1. Burner orifice(s)
clogged
2. Inlet gas pressure is
too low
3. Mislocated crossover
tube
4. Burner orifice(s)
diameter is too small
REMEDY
1. Clean burner(s) (see
Cleaning and Maintenance, page 23) or
replace burner orifice(s)
2. Contact local propane/
LP gas company
3. Contact qualified service
person
4. Replace burner orifice(s)
Delayed ignition of
one or both burners
Burner backfiring
during combustion
Yellow flame in front
burner during burner
combustion
Slight smoke or odor
during initial operation
1. Manifold pressure is
too low
2. Burner orifice(s)
clogged
3. Mislocated crossover
tube
1. Burner orifice is
clogged or damaged
2. Damaged burner
3. Gas regulator defective
1. Not enough air
2. Gas regulator defective
1. Residues from manufacturing processes
and logs curing
1. Contact local propane/
LP gas company
2. Clean burner(s) (see
Cleaning and Maintenance, page 23) or
replace burner orifice(s)
3. Contact qualified service
person
1. Clean burner (see
Cleaning and Maintenance, page 23) or
replace burner orifice
2. Replace damaged burner
3. Replace gas regulator
1. Check burner(s) for dirt
and debris. If found,
clean burner(s) (see
Cleaning and Maintenance, page 23)
2. Replace gas regulator
1. Problem will stop after a
few hours of operation
101992
Moisture/condensation
noticed on windows
Heater produces a
whistling noise when
burners are lit
1. Not enough combustion/ventilation air
1. Turning control knob
to HI position when
burners are cold
2. Air in gas line
3. Air passageways on
heater blocked
4. Dirty or partially
clogged burner
orifice(s)
1. Refer to Air for Com-
bustion and Ventilation
requirements (page 5)
1. Turn control knob to LO
position and let warm up
for a minute
2. Operate burners until air
is removed from line.
Have gas line checked
by local propane/LP gas
company
3. Observe minimum
installation clearances
(see pages 9-12)
4. Clean burners (see
Cleaning and Maintenance,
page 23) or replace
burner orifice(s)
Continued
25
TROUBLE-
SHOOTING
Continued
W ARNING
If you smell gas
• Shut off gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
IMPORTANT:
Operating heater where impurities in air exist may create odors.
Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air and
create odors. These odors will disappear over time.
OBSERVED
PROBLEM
Heater produces a
clicking/ticking noise
just after burners are lit
or shut off
Heater produces
unwanted odors
Heater shuts off in use
(ODS operates)
POSSIBLE
CAUSE
1. Metal expanding while
heating or contracting
while cooling
1. Heater burning vapors
from paint, hair spray,
glues, cleaners, chemicals, new carpet, etc. (See
IMPORTANT
above)
2. Low fuel supply
3. Gas leak. See Warning
statement at top of
page
1. Not enough fresh air is
available
2. Low line pressure
3. ODS/pilot is partially
clogged
statement
REMEDY
1. This is common with
most heaters. If noise is
excessive, contact
qualified service person
1. Open window to ventilate
room. Stop using odor
causing products while
heater is running
2. Refill supply tank
3. Locate and correct all leaks
(see Checking Gas Con-
nections, page 17)
1. Open window and/or door
for ventilation
2. Contact local propane/LP
gas company
3. Clean ODS/pilot (see
Cleaning and Maintenance, page 23)
26
Gas odor even when
control knob is in OFF
position
Gas odor during
combustion
Log set cycles to pilot,
but room temperature
drops to a lower than
ideal level before log
set comes back on
1. Gas leak. See Warning
statement at top of
page
2. Control valve defective
1. Foreign matter between
control valve and burner
2. Gas leak. See Warning
statement at top of
page
1. Thermostat sensing bulb
needs to be repositioned
1. Locate and correct all leaks
(see Checking Gas Con-
nections, page 17)
2. Replace control valve
1. Take apart gas tubing and
remove foreign matter
2. Locate and correct all leaks
(see Checking Gas Con-
nections, page 17)
1. Reposition thermostat
sensing bulb (see Instruc-
tions for Optional Positioning of Thermostat Sensing
Bulb, page 27)
101992

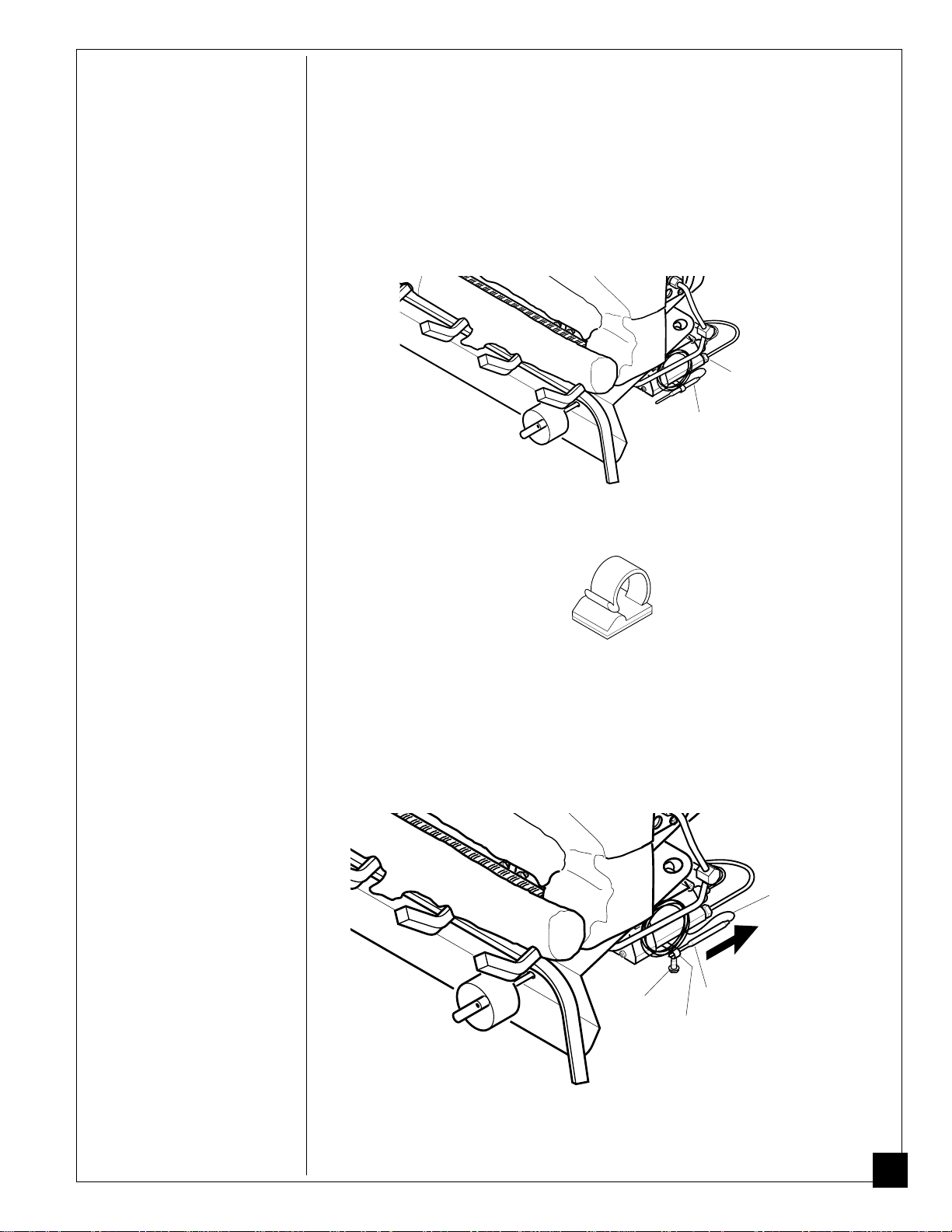

OPTIONAL
POSITIONING
OF THERMOST AT
SENSING BULB
For Masonry and
Factory-built
Metal Fireplace
If your log set cycles to pilot, but the room temperature drops to a lower than
ideal comfort level before the log set comes back on, you may want to reposition the thermostat sensing bulb.
The thermostat sensing bulb is located on the gas valve assembly. This location allows the
thermostat to keep the room temperature at an ideal comfort level for most fireplace
applications. For positioning the thermostat sensing bulb elsewhere, an adhesive-backed
mounting clip has been provided.
T ools needed: 5/16" hex driver or socket
1. Locate the gas valve assembly and thermostat sensing blub (see Figure 26).
Gas V alve
Assembly
Thermostat
Sensing Bulb
Figure 26 - Location of Gas Valve Assembly and Thermostat Sensing Bulb
2. The adhesive-backed mounting clip (see Figure 27) is attached to the thermostat sensing
bulb. Remove the adhesive-backed mounting clip.
101992
Figure 27 - Adhesive-backed Mounting Clip
3. With 5/16" hex driver or socket, loosen the thermostat screw. Carefully slide the thermostat sensing bulb out of the retaining clamp (see Figure 28).
Note:
Do not remove the screw . Make sure you tighten the screw after removing the
thermostat sensing bulb.
IMPORT ANT:
capillary will not allow thermostat to operate properly. It cannot be repaired, the valve
must be replaced.
4. The thermostat sensing bulb may be located to the lower right front side of fireplace.
Determine location of sensing bulb, but do not mount sensing bulb until step 5. If you
have a masonry fireplace, see Figure 29 for location.
Do not force or bend the thermostat sensing bulb or capillary. A crimped
Capillary
Screw
Retaining Clamp
Figure 28 - Removing Thermostat Sensing Bulb
Thermostat Sensing Bulb
27
OPTIONAL
POSITIONING
OF THERMOST AT
SENSING BULB
For Masonry and
Factory-built
Metal Fireplace
Thermostat
Sensing Bulb
Adhesive-backed
Mounting Clip
Figure 29 - Locating Thermostat Sensing Bulb on Masonry Fireplace
If you have a factory-built metal fireplace, see Figure 29 for location.
Continued
Thermostat
Sensing Bulb
Adhesive-backed
Mounting Clip
Figure 30 - Locating Thermostat Sensing Bulb on Factory-built Metal Fireplace
If your fireplace has glass doors, position sensing bulb directly behind door gap on right
bottom side (see Figure 31).
Thermostat
Sensing Bulb
Adhesive-backed
Mounting Clip
Glass
Doors
28
Figure 31 - Installing Thermostat Sensing Bulb behind Glass Doors
5. The mounting clip must be a minimum of 3" from bottom of fireplace to prevent
crimping of capillary. Once you have decided on a location, clean the area
thoroughly. Remove the paper backing from the adhesive on back of mounting
clip. Press the clip into the new location so that the thermostat sensing bulb will
be positioned vertically with the capillary at the bottom (see Figure 32). Slide
the thermostat sensing bulb into the clip.
IMPORTANT:
Figure 32 - Positioning the Thermostat Sensing Bulb in the Vertical Position
Do not crimp capillary .
Capillary
Do Not Crimp Capillary
with the Capillary at the Bottom
Thermostat
Sensing Bulb
Adhesive-backed
Mounting Clip
101992
TECHNICAL
SERVICE
You may have further questions about installation, operation, or troubleshooting.
If so, contact DESA International’s Technical Service Department at
1-800-DESA LOG (1-800-337-2564).
SPECIFICATIONS
CG3324PT CG3630PT
B.T.U (Variable) 20,000/33,000 21,500/36,000
Type Gas Propane/LP Only Propane/LP Only
Ignition Piezo Piezo
Manifold Pressure 7.9" W.C. 7.9" W.C.
Inlet Gas
Pressure (in. of water)
Maximum 14" 14"
Minimum* 11" 11"
* For purpose of input adjustment
Shipping Weight 38 lbs. 40 lbs.
CG2618PV CG3324PV CG3630PV
B.T.U (Variable) 16,000/26,000 20,000/33,000 21,500/36,000
Type Gas Propane/LP Only Propane/LP Only Propane/LP Only
Ignition Piezo Piezo Piezo
SERVICE
HINTS
Manifold Pressure 7.9" W.C. 7.9" W.C. 7.9" W.C.
Inlet Gas
Pressure (in. of water)
Maximum 14" 14" 14"
Minimum* 11" 11" 11"
* For purpose of input adjustment
Shipping Weight 36 lbs. 38 lbs. 40 lbs.
When gas pressure is too low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specified heat
• propane/LP gas supply may be low
When gas quality is bad
• pilot will not stay lit
• burners will produce flames and soot
• heater will backfire when lit
You may feel your gas pressure is too low or gas quality is bad. If so, contact your
local propane/LP gas supplier.
101992
29
REPLACEMENT
PARTS
Note:
Use only original replacement parts. This will protect your warranty cover-
age for parts replaced under warranty.
Parts Under Warranty
Contact authorized dealers of this product. If they can’t supply original replacement
part(s), call DESA International’s Technical Service Department at 1-800-323-5190.
When calling DESA International, have ready
• your name
• your address
• model number of your heater
• how heater was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the defective part to the factory.
Parts Not Under Warranty
Contact authorized dealers of this product. If they can’t supply original replacement
part(s), call DESA International’s Parts Department at 1-800-972-7879 for referral
information.
When calling DESA International, have ready
• model number of your heater
• the replacement part number
30
PARTS
CENTRALS
These Parts Centrals are privately owned businesses. They have agreed to support
our customer’s needs by providing original replacement parts and accessories.
When calling a Parts Central, ask for the Parts Department.
Baltimore Electric
1348 Dixwell Avenue
Hamden, CT 06514
1-800-397-7553
203-248-7553
Parts Department
Portable Heater Parts
342 N. County Rd. 400 East
Valparaiso, IN 46383
All States
219-462-7441
1-800-362-6951
Parts Department
Four Flags Power Products
1115 Stateline Road
Niles, MI 49120
616-684-2697
Parts Only
Master Parts Distributors
1184 Wilson Ave. NW
Walker, MI 49504
616-791-0505
US 1-800-446-1446
Fax: 616-791-8270
Parts Department
Washer Equipment Co.
1715 Main Street
Kansas City, MO 64108
KS, MO, AR
816-842-3911
Parts Department
East Coast Energy
Products
707 Broadway
W. Long Branch, NJ
07764
908-870-8809
1-800-755-8809
Parts Department
Tarantin Tank Co.
P.O. Box 6129
Freehold, NJ 07728
908-780-9340
1-800-922-0724
Parts Department
Albany Ladder
1586-90 Central Avenue
Albany, NY 07728
NY, MA, VT
1-800-354-7368
518-869-5335
Parts Department
Dayton Hardware
P.O. Box 275
North Dayton Station
Dayton, OH 45404
All States
513-258-3721
OH 1-800-762-3426
Parts Department
Halco Enterprises
208 Carter Drive, Unit 21
West Chester, PA 19382
610-430-7717
US 1-800-368-0803
Parts Department
LA Porte's Parts & Service
2444 North 5th Street
Hartsville, SC 29550
803-332-0191
Parts Department
Cans Unlimited, Inc.
P.O. Box 645
Taylor, SC 29687
All States
803-879-3009
1-800-845-5301
Parts Department
101992

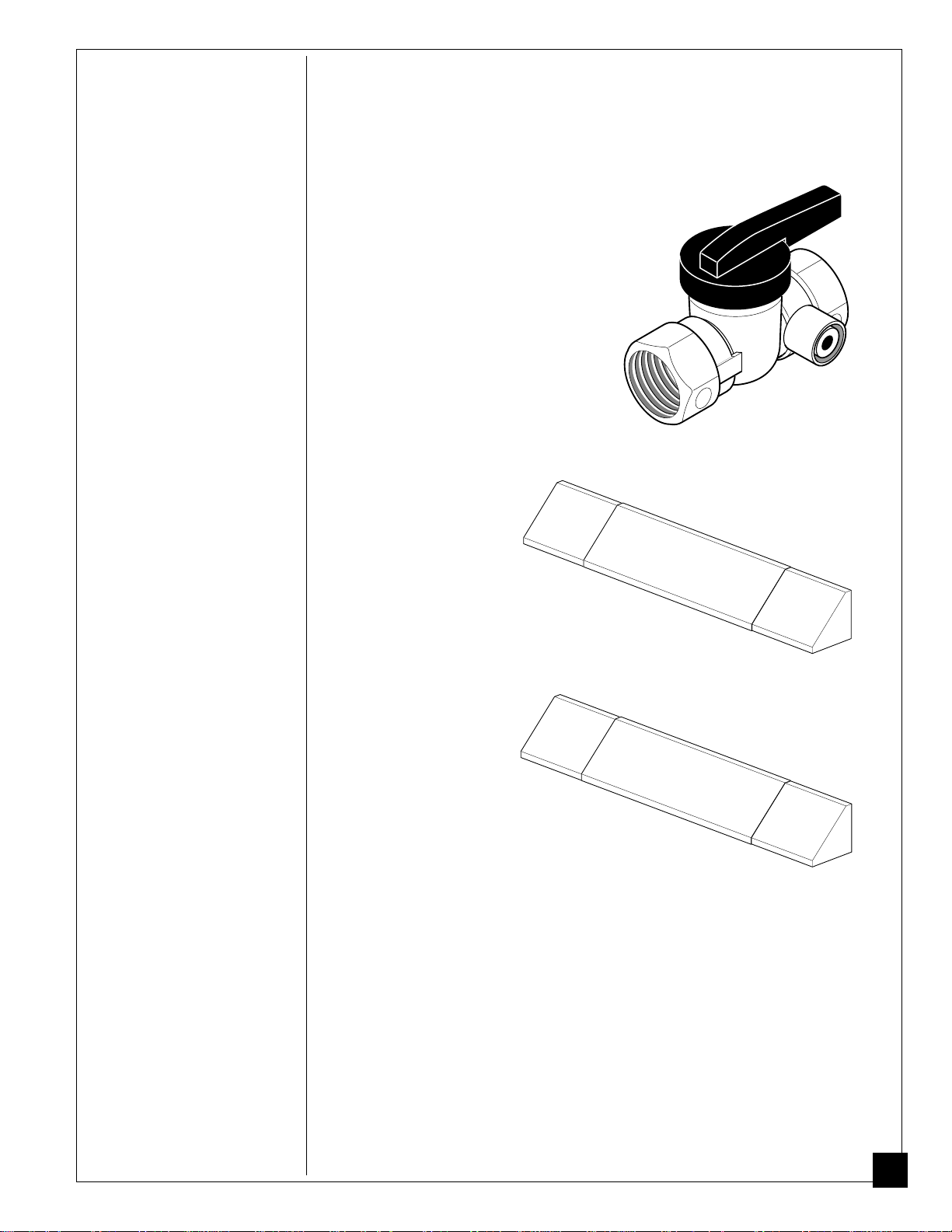

ACCESSORIES
Purchase these heater accessories from your local dealer. If they can not supply
these accessories, call DESA International’s Parts Department at 1-800-972-7879
for information. You can also write to the address listed on the back page of this
manual.
MANUAL SHUTOFF
VALVE - GA5010
For all models. Manual shutoff valve
with 1/8" NPT tap. Fits 1/2" NPT
pipe.
BLACK FIREPLACE
HOOD - GA6050
For all models. Helps
deflect heat away from
mantel or wall above
fireplace.
101992
BRASS FIREPLACE
HOOD - GA6052
For all models. Helps
deflect heat away from
mantel or wall above
fireplace.
DAMPER CLAMP - GA6080
For variably controlled models.
Permanently opens chimney flue
damper for vented operation.
LAVA ROCK - GA6060
For all models. Order when additional
rock is desired. (3 lb. bag)
31
ILLUSTRATED
3
29
28
6
7
8
28
28
25
10
9
10
11
12
13
1
14
16
20
22
23
29-1
29-2
25
19
18
24
17
2
1
7-1
7-2
26
4
5
27
3
P ARTS BREAK-
DOWN
Variably Controlled
Models
32
101992
P ARTS LIST
Variably Controlled
Models
KEY PART NUMBER FOR
NO. CG2618PV CG3324PV CG3630PV DESCRIPTION QTY.
1 102230-01 102230-02 102230-03 Front Log (#1) 1
2 102231-01 102231-02 102231-03 Rear Log (#2) 1
3 M11084-26 M11084-26 M11084-26 Screw 5
4 101333-02 101332-01 101332-02 Left Front Branch (#4) 1
5 –– 101333-01 101333-01 Right Front Branch (#5) 1
6 101006-01 101006-01 101006-01 Pilot Bracket 1
7 101330-01 101330-05 101330-06 Front Burner Assembly 1
7-1 101008-01 101008-01 101008-01 Gasket, Crossover Burner 1
7-2 101007-01 101007-01 101007-01 Crossover Burner 1
8 100999-01 100999-02 100999-03 Rear Burner Assembly 1
9 101331-05 101331-06 101331-07 Base Assembly (with decals) 1
10 098271-06 098271-06 098271-06 Ignitor Cable 1
11 097159-02 097159-02 097159-02 Piezo Ignitor 1
12 098867-08 098867-08 098867-08 Gas Regulator 1
13 M11084-38 M11084-38 M11084-38 Screw 2
14 100996-01 100996-02 100996-03 Pipe Nipple 1
15 098354-01 098354-01 098354-01 Control Knob 1
16 102013-01 102013-01 102013-01 Control Rod 1
17 100000-01 100000-01 100000-01 Cotter Pin 1
18 101053-01 101053-01 101053-01 Adapter 1
19 099211-01 099211-01 099211-01 Screw 1
20 101329-12 101329-10 101329-13 Gas Valve Assy. 1
21 100994-01 100994-01 100994-01 Valve Bracket 1
22 101004-10 101004-01 101004-02 Rear Burner Injector 1
23 101004-10 101004-02 101004-06 Front Burner Injector 1
24 101012-01 101012-01 101012-01 Burner Tube 1
25 099387-09 099387-09 099387-09 Pilot Tube 1
26 102255-01 102255-01 102255-01 Strap 1
27 102764-01 102764-01 102764-01 Shield, Heat 1
28 098249-01 098249-01 098249-01 Nut 4
29 099059-02 099059-02 099059-02 O.D.S. Pilot 1
29-1 098594-01 098594-01 098594-01 Ignitor 1
29-2 098593-01 098593-01 098593-01 Thermocouple 1
This list contains replaceable parts used in your heater. When ordering parts, follow
the instructions listed under Replacement Parts on page 30 of this manual.
101992
PARTS AVAILABLE — NOT SHOWN
100563-01 100563-01 100563-01 Warning Plate 1
101054-01 101054-01 101054-01 Lighting Instructions Plate 1
100565-01 100565-01 100565-01 Chain 1
100639-01 100639-01 100639-01 Caution Decal 1
101137-01 101137-01 101137-01 Hardware Kit 1
101416-07 101416-07 101416-07 Information Video 1
GA6060 GA6060 GA6060 Lava Rock 1
33
ILLUSTRATED
3
29
30
6
7
8
30
30
26
10
9
10
11
12
13
15
14
16
21
23
2
29-1
29-2
26
19
20
18
25
17
2
1
7-1
7-2
4
5
27
30
3
P ARTS BREAK-
DOWN
Thermostat-
Controlled Models
34
101992
P ARTS LIST
Thermostat-
Controlled Models
KEY PART NUMBER FOR
NO. CG3324PT CG3630PT DESCRIPTION QTY.
1 102230-02 102230-03 Front Log (#1) 1
2 102231-02 102231-03 Rear Log (#2) 1
3 M11084-26 M11084-26 Screw 5
4 101332-01 101332-02 Left Front Branch (#4) 1
5 101333-01 101333-01 Right Front Branch (#5) 1
6 101006-01 101006-01 Pilot Bracket 1
7 101330-05 101330-06 Front Burner Assembly 1
7-1 101008-01 101008-01 Gasket, Crossover Burner 1
7-2 101007-01 101007-01 Crossover Burner 1
8 100999-02 100999-03 Rear Burner Assembly 1
9 101331-06 101331-07 Base Assembly (with decals) 1
10 098271-06 098271-06 Ignitor Cable 1
11 097159-02 097159-02 Piezo Ignitor 1
12 098867-08 098867-08 Gas Regulator 1
13 M11084-38 M11084-38 Screw 2
14 100996-02 100996-03 Pipe Nipple 1
15 098354-01 098354-01 Control Knob 1
16 102013-01 102013-01 Control Rod 1
17 100000-01 100000-01 Cotter Pin 1
18 101053-01 101053-01 Adapter 1
19 099211-01 099211-01 Screw 1
20 098544-01 098544-01 Thermostat Clamp 1
21 101329-07 101329-06 Thermostat Gas Valve Assy. 1
22 100994-01 100994-01 Thermovalve Bracket 1
23 101004-01 101004-02 Rear Burner Injector 1
24 101004-02 101004-06 Front Burner Injector 1
25 101012-01 101012-01 Thermostat Burner Tube 1
26 099387-09 099387-09 Pilot Tube 1
27 102255-01 102255-01 Strap 1
28 102764-01 102764-01 Shield, Heat 1
29 099059-02 099059-02 O.D.S. Pilot 1
29-1 098594-01 098594-01 Ignitor 1
29-2 098593-01 098593-01 Thermocouple 1
30 098249-01 098249-01 Nut 4
This list contains replaceable parts used in your heater. When ordering parts, follow
the instructions listed under Replacement Parts on page 30 of this manual.
101992
PARTS AVAILABLE — NOT SHOWN
100563-01 100563-01 Warning Plate 1
101054-01 101054-01 Lighting Instructions Plate 1
100565-01 100565-01 Chain 1
100639-01 100639-01 Caution Decal 1
101137-01 101137-01 Hardware Kit 1
101416-07 101416-07 Information Video 1
GA6060 GA6060 Lava Rock 1
35
WARRANTY INFORMATION
KEEP THIS WARRANTY
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard
written warranty. We make no other warranty, expressed or implied.
LIMITED WARRANTY
VENT-FREE PROPANE/LP GAS LOG HEATERS
DESA International warrants this product to be free from defects in materials and components for one (1) year from the date
of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all
applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this
heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center.
Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will provide
original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST
be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or
become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation.
Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be
the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE
PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND
LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO ONE (1) YEAR FROM THE DATE OF FIRST
PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF
THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or
consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply
to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write:
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
101992-01
Rev. D
02/96
Loading...
