Desa CF26NRA, CF26PRA User Manual

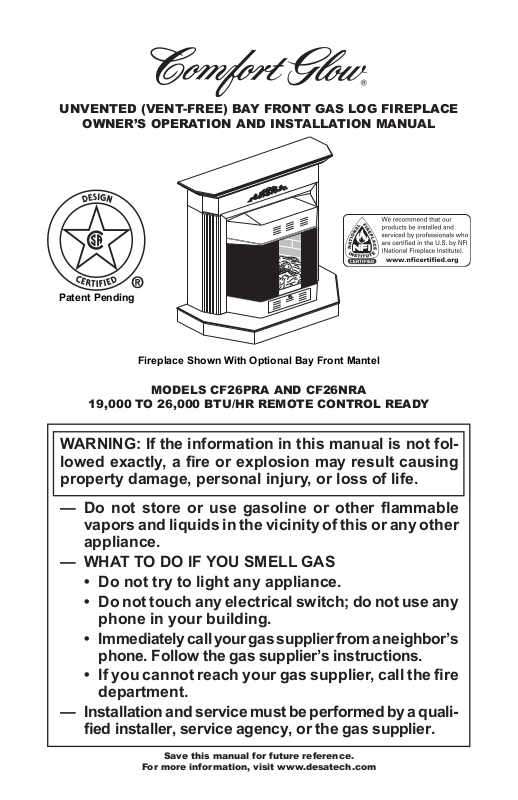

UNVENTED (VENT-FREE) BAY FRONT GAS LOG FIREPLACE

A
U
T
O

O
F
F

O
N

OWNER’S OPERATION AND INSTALLATION MANUAL

Patent Pending

Fireplace Shown With Optional Bay Front Mantel

MODELS CF26PRA AND CF26NRA

19,000 TO 26,000 BTU/HR REMOTE CONTROL READY

WARNING: If the information in this manual is not fol­lowed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other
appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any
phone in your building.

• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire
department.

— Installation and service must be performed by a quali-

fied installer, service agency, or the gas supplier.

Save this manual for future reference.

For more information, visit www.desatech.com

WARNING: Improper installation, adjustment, altera­tion, service, or maintenance can cause injury or prop­erty damage. Refer to this manual for correct installation
and operational procedures. For assistance or addi­tional information consult a qualified installer, service
agency, or the gas supplier.

WARNING: This is an unvented gas-fired heater. It uses
air (oxygen) from the room in which it is installed. Provi­sions for adequate combustion and ventilation air must
be provided. Refer to Air for Combustion and Ventilation
section on page 5 of this manual.

This appliance may be installed in an aftermarket,* per­manently located, manufactured (mobile) home, where
not prohibited by local codes.

This appliance is only for use with the type of gas indi­cated on the rating plate. This appliance is not convert­ible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

TABLE OF CONTENTS

Safety Information ............................................... 3

Local Codes ........................................................ 4

Unpacking ........................................................... 4

Product Identification ...........................................

Product Features ................................................. 5

Remote Control Accessories ............................... 5

Air For Combustion and Ventilation ..................... 5

Installation ........................................................... 8

Operating Fireplace ........................................... 20

Inspecting Burners ........................................... 23

Cleaning and Maintenance ................................ 23

www.desatech.com

Troubleshooting ................................................. 25

Specifications ....................................................

Wiring Diagram .................................................. 29

5

Illustrated Parts Breakdown and Parts List ....... 30

Replacement Parts ............................................ 34

Service Hints ..................................................... 34

Technical Service ..............................................

Parts Central ..................................................... 34

Accessories ....................................................... 35

Warranty Information .........................................

113897

29

34

36

-01A2

SAFETY INFORMATION

WARNING: This product con­tains and/or generates chemicals
known to the state of California
to cause cancer or birth defects,
or other reproductive harm.

IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op­erate, or service this fireplace.
Improper use of this fireplace
can cause serious injury or death
from burns, fire, explosion,
electrical shock, and carbon
monoxide poisoning.

DANGER: Carbon monoxide
poisoning may lead to death!

Carbon Monoxide Poisoning:

monoxide poisoning resemble the flu, with head
aches, dizziness, or nausea. If you have these signs,
the heater may not be working properly. Get fresh
air at once! Have heater serviced. Some people
are more affected by carbon monoxide than others.
These include pregnant women, people with heart
or lung disease or anemia, those under the influence
of alcohol, and those at high altitudes.

Natural and Propane/LP Gas: Natural and pro-

pane/LP gases are odorless. An odor-making agent
is added to the gas. The odor helps you detect a gas
leak. However, the odor added to the gas can fade.
Gas may be present even though no odor exists.

Make certain you read and understand all warn
ings. Keep this manual for reference. It is your
guide to safe and proper operation of this heater.

Early signs of carbon

WARNING: Do not allow fans
to blow directly into the fireplace.
Avoid any drafts that alter burner
flame patterns. Ceiling fans can
create drafts that alter burner
flame patterns. Altered burner
patterns can cause sooting.

Due to high temperatures, the
appliance should be located out
of traffic and away from furniture
and draperies.

Do not place clothing or other
flammable material on or near the
appliance. Never place any ob­jects in the fireplace or on logs.

Fireplace front and screen be­come very hot when running fire
place. Keep children and adults

-

away from hot surfaces to avoid
burns or clothing ignition. Fire
place will remain hot for a time
after shutdown. Allow surfaces
to cool before touching.

Carefully supervise young chil­dren when they are in the room
with fireplace. When using the
hand-held remote accessory,
keep selector switch in the OFF
position to prevent children

-

from turning on burners with
remote.

-

-

WARNING: Any change to
this heater or its controls can
be dangerous.

You must operate this fireplace
with a fireplace screen in place.
Make sure fireplace screen is
closed before running heater.

WARNING: Do not use a
blower insert, heat exchanger
insert, or other accessory not ap­proved for use with this heater.

-01A 3

113897

www.desatech.com

Keep the appliance area clear
and free from combustible ma
terials, gasoline, and other flam
mable vapors and liquids.

-

-

SAFETY INFORMATION

Continued

1. This appliance is only for use with the type
of gas indicated on the rating plate. This ap
pliance is not convertible for use with other
gases.

2. Do not place propane/LP supply tank(s) in
side any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use

any phone in your building

• immediately call your gas supplier from a

neighborʼs phone. Follow the gas supplierʼs
instructions

• if you cannot reach your gas supplier, call

the fire department

4. This fireplace shall not be installed in a bed
room or bathroom.

5. Do not use this fireplace as a wood-burning
fireplace. Use only the logs provided with the
fireplace.

6. Do not add extra logs or ornaments such as
pine cones, vermiculite, or rock wool. Using
these added items can cause sooting. Do not
add lava rock around base. Rock and debris
could fall into the control area of fireplace.

7. This fireplace is designed to be smokeless. If
logs ever appear to smoke, turn off fireplace
and call a qualified service person. Note:
During initial operation, slight smoking could
occur due to log curing and fireplace burning
manufacturing residues.

8. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance
page 23.

9. Before using furniture polish, wax, carpet
cleaner, or similar products, turn heater off.
If heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.

10. This fireplace needs fresh air ventilation to run
properly. This fireplace has an Oxygen Deple
tion Sensing (ODS) safety shutoff system. The
ODS shuts down the fireplace if not enough
fresh air is available. See Air for Combustion
and Ventilation, page 5. If fireplace keeps
shutting off, see Troubleshooting, page 25.

11. Do not run fireplace

• where flammable liquids or vapors are used
or stored.

• under dusty conditions.

-

12. Do not use this fireplace to cook food or to
burn paper or other solid fuels.

13. Do not use fireplace if any part has been under

­water. Immediately call a qualified service

technician to inspect the room fireplace and
to replace any part of the control system and
any gas control which has been under water.

14. Turn off and unplug fireplace and let cool
before servicing. Only a qualified service
person should service and repair fireplace.

15. Operating fireplace above elevations of 4,500
feet could cause pilot outage.

16. Do not operate fireplace if any log is broken.
Do not operate fireplace if a log is chipped
(dime-sized or larger).

17. To prevent performance problems, do not use

­propane/LP fuel tank of less than 100 lbs.

capacity (propane/LP units only).

18. Prov id e adequate clearances aro un d air
openings.

LOCAL CODES

Install and use fireplace with care. Follow all local
codes. In the absence of local codes, use the lat
est edition of The National Fuel Gas Code, ANSI

Z223.1/NFPA 54

*Available from:

American National Standards Institute, Inc.

National Fire Protection Association, Inc.

,

*.

1430 Broadway

New York, NY 10018

Batterymarch Park

Quincy, MA 02269

UNPACKING

1. Remove and fireplace from carton.

2. Remove all protective packaging applied to
fireplace for shipment.

3. Make sure your fireplace includes one hard
ware packet.

4. Check fireplace for any shipping damage. If

­fireplace is damaged, promptly inform dealer

where you bought fireplace.

-

-

www.desatech.com

113897

-01A4

PRODUCT

IDENTIFICATION

Fireplace
Cabinet

Brick
Liner

Logs

Heater Controls
(Inside Door)

Figure 1 - Vent-Free Propane/LP Gas

Screen

Compact Fireplace

PRODUCT FEATURES

SAFETY PILOT

This fireplace has a pilot with an Oxygen Deple­tion Sensing (ODS) safety shutoff system. The
ODS/pilot is a required feature for vent-free room
fireplaces. The ODS/pilot shuts off the fireplace if
there is not enough fresh air.

PIEZO IGNITION SYSTEM

This fireplace has a piezo ignitor. This system
requires no matches, batteries, or other sources
to light fireplace.

REMOTE CONTROL

ACCESSORIES

There are two optional remote controls that can be
purchased separately for this log heater:

• hand-held ON/OFF remote

• hand-held thermostat remote

See Accessories, page 35.

AIR FOR COMBUSTION

AND VENTILATION

WARNING: This heater shall
not be installed in a confined
space or unusually tight con
struction unless provisions are
provided for adequate combus
tion and ventilation air. Read the
following instructions to insure
proper fresh air for this and
other fuel-burning appliances
in your home.

Todayʼs homes are built more energy efficient than
ever. New materials, increased insulation, and
new construction methods help reduce heat loss
in homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.

While it is good to make your home energy effi
cient, your home needs to breathe. Fresh air must
enter your home. All fuel-burning appliances need
fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.

PROVIDING ADEQUATE
VENTILATION

The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54 Section 5.3, Air
for Combustion and Ventilation.

All spaces in homes fall into one of the three fol
lowing ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space

The information on pages 5 through 7 will help
you classify your space and provide adequate
ventilation.

-

-

-

-

-01A 5

113897

www.desatech.com

AIR FOR COMBUSTION

AND VENTILATION

Continued

Unusually Tight Construction

The air that leaks around doors and windows
may provide enough fresh air for combustion and
ventilation. However, in buildings of unusually
tight construction, you must provide additional
fresh air.

Unusually tight construction is defined as
construction where:

a. walls and ceilings exposed to the out

side atmosphere have a continuous
water vapor retarder with a rating of
one perm (6 x 10
less with openings gasketed or sealed
and

b. weather stripping has been added on

openable windows and doors and

c. caulking or sealants are applied to

areas such as joints around window
and door frames, between sole plates
and floors, between wall-ceiling joints,
between wall panels, at penetrations
for plumbing, electrical, and gas lines,
and at other openings.

If your home meets all of the three criteria
above, you must provide additional fresh
air. See Ventilation Air From Outdoors,
page 7.

If your home does not meet all of the three
criteria above, proceed to Determining

Fresh-Air Flow For Fireplace Location

below.

Confined and Unconfined Space

The National Fuel Gas Code, ANSI Z223.1 defines
a confined space as a space whose volume is less
than 50 cubic feet per 1,000 Btu per hour (4.8 m
per kw) of the aggregate input rating of all appli­ances installed in that space and an unconfining
space as a space whose volume is not less than
50 cubic feet per 1,000 Btu per hour (4.8 m3 per
kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating
directly with the space in which the appliances
are installed*, through openings not furnished
with doors, are considered a part of the uncon­fined space.

* Adjoining rooms are communicating only if
there are doorless

-11

kg per pa-sec-m2) or

DETERMINING FRESH-AIR FLOW
FOR FIREPLACE LOCATION

Determining if You Have a Confined or
Unconfined Space

Use this work sheet to determine if you have a
confined or unconfined space.

Space: Includes the room in which you will
install heater plus any adjoining rooms with door
less passageways or ventilation grills between
the rooms.

1. Determine the volume of the space (length x
width x height).

-

Length x Width x Height =__________cu. ft.

(volume of space)

Example: Space size 20 ft. (length) x 16 ft.

(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)

If additional ventilation to adjoining room is

supplied with grills or openings, add the volume
of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maxi-

mum Btu/Hr the space can support)

Example: 2560 cu. ft. (volume of space) x 20 =

51,200 (maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in
the space.

Vent-free fireplace ___________

Gas water heater* ___________

Gas furnace ___________

Vented gas heater ___________

Gas fireplace logs ___________

,

Other gas appliances* + ___________

Total = ___________

* Do not include direct-vent gas appliances. Di

rect-vent draws combustion air from the outdoors
and vents to the outdoors.

3

Example:

Gas water heater

Vent-free fireplace + ________

Total = ________

4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.

_________

_________
Example: 51,200 Btu/Hr (maximum the space

56,000 Btu/Hr (actual amount of

Btu/Hr (maximum the space can support)

Btu/Hr (actual amount of Btu/Hr used)

can support)

Btu/Hr used)

30,000

__________ Btu/Hr

26,000

56,000

-

Btu/Hr

Btu/Hr

Btu/Hr

Btu/Hr

Btu/Hr

Btu/Hr

Btu/Hr

-

Btu/Hr

Btu/Hr

www.desatech.com

113897

-01A6

AIR FOR COMBUSTION

Or
Remove
Door into

Adjoining

Room,

Option

3

Ventilation Grills

Into Adjoining Room,

Option 2

12"

12"

Ventilation

Grills

into Adjoining

Room,

Option 1

Outlet
Air

Ventilated
Attic

Outlet

A

ir

Inlet
Air

Inlet Air

Ventilated

Crawl Space

To Attic

To
Crawl
Space

AND VENTILATION

Continued

The space in the above example is a confined space
because the actual Btu/Hr used is more than the maxi­mum Btu/Hr the space can support. You must provide
additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoin-

ing room. If the extra space provides an unconfined
space, remove door to adjoining room or add
ventilation grills between rooms. See Ventilation

Air From Inside Building.

B. Vent room directly to the outdoors. See Ventila

tion Air From Outdoors.

C. Install a lower Btu/Hr fireplace, if lower Btu/Hr

size makes room unconfined.

If the actual Btu/Hr used is less than the maximum
Btu/Hr the space can support,
confined space. You will need no additional fresh
air ventilation.

WARNING: If the area in
which the heater may be oper­ated is smaller than that defined
as an unconfined space or if the
building is of unusually tight
construction, provide adequate
combustion and ventilation air
by one of the methods described
in the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 Section 5.3
or applicable local codes.

the space is an un-

-

Figure 2 - Ventilation Air from Inside

Building Shown with Optional Mantel

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12” of the ceiling and one within 12”
of the floor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the

National Fuel Gas Code ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

IMPORTANT:

Do not provide openings for inlet

or outlet air into attic if attic has a thermostat­controlled power vent. Heated air entering the attic
will activate the power vent.

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining un
confined space. When ventilating to an adjoining
unconfined space, you must provide two perma
nent openings: one within 12” of the ceiling and
one within 12” of the floor on the wall connecting
the two spaces (see options 1 and 2, Figure 2). You
can also remove door into adjoining room (see
option 3, Figure 2). Follow the National Fuel Gas

Code ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of

ventilation grills or ducts.

113897

-01A 7

-

-

Figure 3 - Ventilation Air from Outdoors

Shown with Optional Mantel

www.desatech.com

INSTALLATION

NOTICE: This heater is intended
for use as supplemental heat.
Use this heater along with your
primary heating system. Do not
install this heater as your pri
mary heat source. If you have a
central heating system, you may
run system’s circulating blower
while using heater. This will help
circulate the heat throughout the
house. In the event of a power
outage, you can use this heater
as your primary heat source.

WARNING: A qualified ser­vice person must install fire
place. Follow all local codes.

Note: Your Comfort Glow fireplace is designed
to be used in zero clearance installations. Wall or
framing material can be placed directly against
any exterior surface of your fireplace, except
where standoff spacers are integrally attached.
If standoff spacers are attached to your fireplace,
these spacers can be placed directly against wall
or framing materials.

Use the dimensions shown for rough openings to
create the easiest installation (see Built-In Fire
place Installation, page 9).

CHECK GAS TYPE

Use the correct gas type (natural or propane/LP)
for your unit. If your gas supply is not correct, do
not install fireplace. Call dealer where you bought
fireplace for proper type fireplace.

WARNING: This appliance
is equipped for (natural or pro
pane/LP) gas. Field conversion
is not permitted.

LOCATING FIREPLACE

WARNING: Maintain the mini­mum clearances shown in Figure
4, page 9. If you can, provide
greater clearances from floor,
ceiling, and joining wall.

-

-

-

You can recess firebox into the wall. You can also
position fireplace in the optional cabinet mantels.
IMPORTANT: Only use optional cabinet mantels
specified in this manual. Purchase the optional man­tel from your dealer (see Accessories, page 35).

WARNING: Never install the

fireplace

• in a bedroom or a bathroom

• in a recreational vehicle

• where curtains, furniture,
clothing, or other flammable
objects are less than 42 inches
from the front, top, or sides of
the fireplace

• as a fireplace insert

• in high traffic areas

• in windy or drafty areas

CAUTION: This fireplace cre­ates warm air currents. These
currents move heat to wall sur­faces next to fireplace. Installing
fireplace next to vinyl or cloth
wall coverings or operating
fireplace where impurities (such
as, but not limited to, tobacco
smoke, aromatic candles, clean-

-

ing fluids, oil or kerosene lamps,
etc.) in the air exist, may discolor
walls or cause odors.

IMPORTANT: Vent-free fireplaces add moisture
to the air. Although this is beneficial, installing fire
place in rooms without enough ventilation air may
cause mildew to form from too much moisture. See

Air for Combustion and Ventilation

, page 5.

CAUTION: If you install the
fireplace in a home garage

•

fireplace pilot and burner must be
at least 18 inches above floor.

• locate fireplace where moving

vehicle will not hit it.

For convenience and efficiency, install fireplace

• where there is easy access for operation, inspec
tion, and service.

• in coldest part of room.

-

-

www.desatech.com

113897

-01A8

INSTALLATION

36

5

/8

"

25

7

/8

"

51

3

/

4

"

26

7

/8

"

26

7

/

8

"

26

7

/

8

"

3/4" Off
The Floor
Minimum

10

1

/

2

"

Continued

An optional blower kit is available from your
dealer. See Accessories, page 35. If planning to use
blower, locate fireplace near an electrical outlet.

Minimum Clearances For Side Combustible
Material, Side Wall, and Ceiling

A. Clearances from the side of the fireplace

cabinet to any combustible material and wall
should follow diagram in Figure 4.

Example: The face of a mantel, bookshelf,

etc. is made of combustible material and
protrudes 3
tible material must be 4" from the side of the
fireplace opening (see Figure 4).

B. Clearances from the top of the fireplace open

ing to the ceiling should not be less than 42
inches.

*Minimum 16 inches from Side Wall

Figure 4 - Minimum Clearance for

1

/2" from the wall. This combus-

Example

Combustible to Wall

*

1. Frame in rough opening. Use dimensions shown

in Figure 5 for the rough opening.

If installing in a corner, use dimensions shown

in Figure 6 for the rough opening. The height

1

/8" which is the same as the wall opening

is 26
above.

2. An optional blower accessory is available (see

Accessories, page 35). There are two options
for connecting blower to electrical source.

Option one: Have a licensed electrician install

a properly grounded, three-prong 120-volt
electrical outlet at fireplace location. Locate
outlet inside the framed enclosure. Blower
power cord will plug into this outlet.

Option two: Have a licensed electrician con-

nect blower to electrical source at junction box

-

inside fireplace.

If using option one, have electrical outlet in

stalled at this time. If using option two, do not
connect blower to electrical source at junction
box until step 6.

3. Install gas piping to fireplace location. This

installation includes an approved flexible gas
line (if allowed by local codes) after the equip
ment shutoff valve. The flexible gas line must
be the last item installed on the gas piping.

4. Carefully set fireplace in front of rough opening

with back of fireplace inside wall opening.

5. Attach flexible gas line to fireplace gas regula

tor. See Connecting Fireplace to Gas Supply
page 16.

-

-

­,

BUILT-IN FIREPLACE
INSTALLATION

Built-in installation of this fireplace involves in­stalling fireplace into a framed-in enclosure. This
makes the front of fireplace flush with wall. Follow
the instructions below to install the fireplace in this
manner. If installing a built-in mantel above the
fireplace, you must follow the clearances shown
in Figure 8, page 11.

Note: If desired, purchase a four-sided trim kit for
built-in installations. See Accessories, page 35.

Actual Framing
Height 26" 26
Front Width 26
Depth 9 1/2" 10 1/2"
Bottom 3/4" 3/4"

-01A 9

113897

3

/4" 26 7/8"

Figure 5 - Rough Opening for Installing

7

/8"

Figure 6 - Rough Opening for Installing

www.desatech.com

in Wall

in Corner

INSTALLATION

Continued

6. If the optional blower has been installed con­nect blower to electrical source.

Option one: Route blower electrical cord

through side or rear access door of fireplace.
Plug electrical cord into electrical outlet.

Option two: Have a licensed electrician con-

nect blower to electrical source at junction box
inside fireplace.

7. Bend four nailing flanges on outer casing with
pliers (see Figure 7).

8. Attach fireplace to wall studs using nails
or wood screws through holes in nailing
flange.

9. Check all gas connections for leaks. See
Checking Gas Connections, page 17.

IMPORTANT: When finishing your firebox,
combustible materials such as wall board, gyp
sum board, sheet rock, drywall, plywood, etc.
may be butted up next to the sides and top of
the firebox. Combustible materials should never
overlap the firebox front facing. Firebox should
not be placed on top of carpet or other kinds of
fibrous material.

WARNING: Do not allow any
combustible materials to overlap
the firebox front facing.

IMPORTANT: Noncombustible materials such as
brick, tile, etc. may overlap the front facing, but
should never cover any necessary openings like
louvered slots.

WARNING: Do not allow non­combustible materials to cover
any necessary openings like
louvered slots.

WARNING: Never modify or
cover the louvered slots on the
front of the firebox.

Nails or
Wood
Screws

Figure 7 - Attaching Fireplace to Wall

Mantel Clearances for Built-In Installation

-

NOTICE: Surface temperatures

Studs

of adjacent walls and mantels
become hot during operation.
Walls and mantels above the
firebox may become hot to
the touch. If installed properly,
these temperatures meet the
requirement of the national
product standard. Follow all
minimum clearances shown in
this manual.

If placing mantel above built-in fireplace, you must
meet minimum clearance between mantel shelf and
top of fireplace opening.

NOTICE: If your installation does
not meet the minimum clear­ances shown, you must do one
of the following:

• raise the mantel to an accept­able height

• remove the mantel

Nailing
Flanges

WARNING: Use only non­combustible mortar or adhe­sives when overlapping the front
facing with noncombustible
facing material.

www.desatech.com

113897

-01A10

13"

16"

19"

21"

2 1/2"

6"

8"

10"

Minimum Non­Combustible
Material

Note: All vertical
measurements
are from top
of fireplace
opening to
bottom of
mantel shelf.

REMOVING BRICK LINER
RETAINER

1. Using Phillips screw driver, remove 2 screws

2. Remove brick liner retainers and discard.

ASSEMBLING TRIM

(Trim shipped with mantel)

1. Remove packagi ng from three pieces of

2. Locate two adjusting plates with set screws,

3. Align shim under adjusting plate as shown in

4. Slide one end of adjusting plate/shim in slot

5. Slide other end of adjusting plate/shim in slot

6. While firmly holding edges of trim together,

7. Repeat steps 1 through 6 for other corner.

8. Set trim assembly aside for later installation.

INSTALLATION

Continued

Mantel Shelf

Figure 8 - Minimum Mantel Clearances

for Built-In Installation

attaching brick liner retainers to vertical
sides.

Replace 2 screws into vertical sides.

trim.

and two shims in the hardware packet.

Figure 9.

on mitered edge of top trim (see Figure 9).

on mitered edge of side trim (see Figure 9).

tighten both set screws on the adjusting plate
with slotted screwdriver.

Set Screws

Top
Trim

Slot

Shim

Mitered
Edge

Side

Adjusting

Trim

Plate

Slot

Figure 9 - Assembling Trim

OPTIONAL MANTEL INSTALLATION

Note: Refer to instructions provided with the man-
tel for assembly instructions. Refer to instructions
below for system installation. If using blower ac
cessory (see Accessories, page 35), see installation
instructions on pages 12 through 15.

1. Choose location for fireplace and install gas
supply line.

2. Remove screen from fireplace by removing
screws in each end of screen rod (see Figure

10). Hold screen rod cover while removing
five hex head screws underneath hood (see
Figure 11). Carefully lift and pull out hood
(see Figure 12, page 12).

Figure 10 - Removing Screen

Hood

Screen Rod
Cover

Screw

Figure 11 - Removing Hood Screws

-

-01A 11

113897

www.desatech.com

INSTALLATION

Continued

3. Assemble trim kit. See Assembling Trim,
page 11.

4. Place trim on the shoulder screws located on
the side and top of the fireplace. Firmly snap
the trim over the shoulder screws on fireplace
(see Figure 13).

5. Place mantel base close to wall in desired
fireplace location.

6. Install gas line. See Connecting To Gas Sup
ply, page 15

7. Carefully place fireplace on mantel base and
center left to right. Check for gas leaks. See
Checking Gas Connections, page 17.

8. Refer to instructions provided with the mantel
for permanent attachment to wall.

9. Slide mantel around fireplace. Be careful not
to damage wall or mantel.

10. Adjust assembly to remove any gaps. From
back side of fireplace, attach two 2" wood
screws through base mounting blocks at
tached to bottom sides of mantel into base
(see instructions provided with mantel).

11. Attach remaining two 3" wood screws from
hardware pack through openings inside of
fireplace sides into the mantel. See Figure 12
for screw hole location.

Mantel
Screw
Location

Figure 12 - Removing Hood

Shoulder
Screws

INSTALLING BLOWER ASSEMBLY
GA3450T

CAUTION: Label all wires
prior to disconnection when
servicing controls. Wiring errors
can cause improper and danger­ous operation.

-

-

CAUTION: Verify proper op­eration after servicing.

Note: If you are using a mantel with your heater,
use the following instructions. If your heater is
built-in, see For Built-In Installation on page 14.

1. Screen and hood should be removed from
fireplace (see page 11). Remove log set and
set aside.

2. Install snap bushings found in hardware kit
into both holes in rear of blower control shield
(see Figure 14).

3. Make sure the wire harness is firmly con
nected to the terminals on the blower bracket
assembly.

4. Note the wire locations on back of AUTO/
OFF/ON switch. Carefully remove red wire
from the AUTO terminal and blue wire from
the ON terminal. Black wire can remain on
the middle or OFF terminal (see Figure 15,
page 13).

5. Carefully disconnect green and white wires
from power cord harness at their insulated
connectors.

6. In top of the heater cabinet, locate the four
mounting holes on the outer casing. Align
these four holes with those on the blower
bracket assembly. Attach blower bracket as
sembly to the outer casing with 4 - #10 screws
provided (see Figure 15, page 13).

7. Route the wire harness through the hole to the
left side of heat deflector. Pull wire harness
through lower opening to the left of the blower
control shield. (see Figure 15, page 13).

Blower
Control
Shield

Snap
Bushing

-

-

Assembled
Trim

Figure 13 - Attaching Trim to Fireplace

www.desatech.com

Figure 14 - Installing Snap Bushings

113897

-01A12

INSTALLATION

Continued

8. Insert the 4 wire harness into one of the round
holes in the rear of the blower control shield
and through the rectangular hole in the front
of shield (see Figure 15).

9. Reconnect red wire to the AUTO switch posi
tion. Reconnect blue wire to the ON switch
position. Reconnect green and white wires to
the power cord.

10. Install the switch plate on the blower control
shield with 2 - #10 screws provided (see Fig

Blower Bracket
Assembly

Screw

Switch

Wire Harness
Power

Cord

Red

Blue

Switch Plate

Blower
Control
Shield

Wire
Harness

ure 16). Route power cord out of the cabinet
by inserting it through the bushing on the
outer casing (see Figure 15). Plug fan kit into
120-Volt grounded power supply and test
operation. Note: When switch is in the AUTO
position, the fan will start after the heater has
run for a few moments. The fan will continue

-

to run for several moments after the heater
has been turned off. When switch is in the
ON position, the fan will run until turned to
OFF. Reinstall hood assembly and close lower
louver door.

-

Wiring Routing
Hole

Heat
Deflector

Shield Cover

Figure 15 - Installing Blower Bracket Assembly

Blower Control
Shield

Switch Plate

Screw

Figure 16 - Installing Switch Plate to Blower Control Shield

-01A 13

113897

www.desatech.com

INSTALLATION

Continued

For Built-In Installation

WARNING: A licensed elec­trician must connect the wiring
harness to electrical supply
following all local codes. Electri
cian must provide a clamp on the
box cover to secure the wiring.
Wiring should be routed through
the bushing in the hole on the
outer casing of heater.

WARNING: ELECTRICAL
GROUNDING INSTRUCTIONS
This appliance is equipped with a
three-prong (grounding) plug for
your protection against shock
hazard and should be plugged
directly into a properly grounded
three-prong receptacle.

Blower Bracket
Assembly

1. Install a snap bushing found in hardware kit
into one of the holes found on rear of blower
control shield. The other hole is for a strain
relief clamp (not supplied) to secure incoming
electrical supply.

2. Follow steps 2 through 6 in Installing Blower
Assembly, page 12. Also remove black wire
from middle/OFF switch terminal.

-

3. Remove black plastic strain relief and power
cord from switch plate (see Figure 17). The
power cord supplied will not be used in built­in installations. Pop in the plastic snap bushing
found in hardware kit into the hole left by
supply cord/strain relief.

4. A licensed electrician must follow the wiring
diagram in Figure 18, page 15 to connect
incoming electrical supply to fan kit wiring
harness.

5. Test to make sure the blower is working
properly.

6. Reinstall hood assembly (see page 12) and
close lower louver door.

7. Place log set back into unit.

Screw

Switch

Switch
Plate

Strain
Relief

Blue

Blower
Control
Shield

Red

Clamp
Connector (not
included)

Figure 17 - Installing Blower Bracket Assembly

Wire
Harness

Power
Cord

Outlet
Receptacle

Shield
Cover

Wire
Harness

www.desatech.com

113897

-01A14

Red

Red

Fan Switch

(Auto/Off/On)

Blue

Blue

Thermostat

Switch

(N.O.)

Green

White

Green

White

On

11

0/115

V.

A.C.

Blower

Motor

Black

Off

1

2

3

Auto

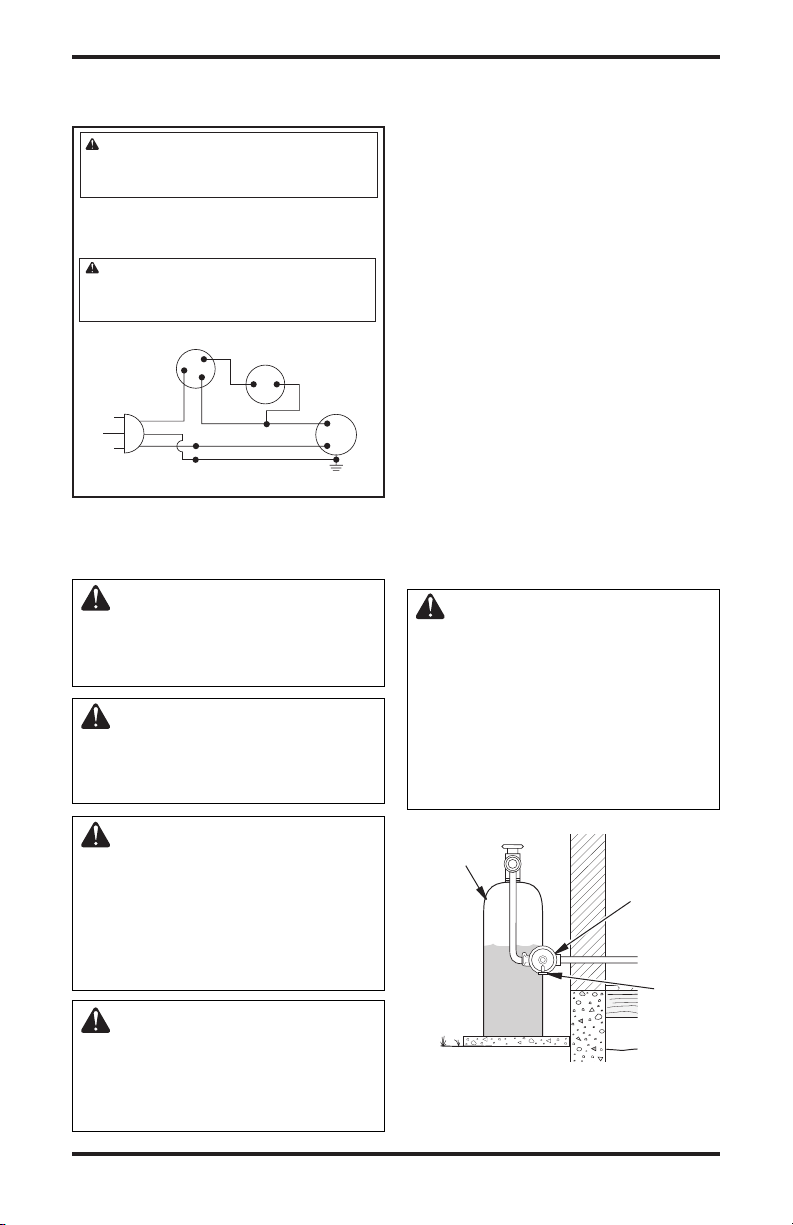

INSTALLATION

Continued

WARNING: Never attempt to service heater while
it is plugged in, operating, or hot. Burns and elec
trical shock could result. Only a qualified service
person should service or repair heater.

If any of the original wire as supplied with the appliance must
be replaced, original replacements must be used. DESA part
no. 104015-01 (105°C) for power cord, and DESA part no.
103968-01 (200°C) for wire harness.

WARNING: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation. Verify proper
operation after servicing.

120 Vac. 60 Hz. .30 Amps
DESA Heating Products, Bowling Green, KY

Figure 18 - Wiring Diagram For Fan

Accessory Built-In Installation

CONNECTING TO GAS SUPPLY

101584-06

Installation Items Needed

Before installing fireplace, make sure you have
the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

-

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• ground joint union

• sediment trap

• tee joint

• pipe wrench

• test gauge connection *

* A CSA design-certified equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certified equipment shutoff valve from your
dealer. See

Accessories, page 35.

For propane/LP units, the installer must supply
an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce
incoming gas pressure to between 11 and 14 inches
of water. If you do not reduce incoming gas pres
sure, heater regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 19. Pointing the vent down
protects it from freezing rain or sleet.

-

WARNING: This appliance
requires a 1/2" NPT (National
Pipe Thread) inlet connection
to the pressure regulator.

CAUTION: Use only new,
black iron or steel pipe. In­ternally-tinned copper tubing
may be used in certain areas.
Check your local codes. Use

WARNING: A qualified ser­vice person must connect heater
to gas supply. Follow all local
codes.

CAUTION: Never connect pro­pane/LP fireplace directly to the
propane/LP supply. This fireplace

pipe of 1/2" diameter or greater
to allow proper gas volume to
heater. If pipe is too small, undue
loss of volume will occur.

Propane/LP
Supply Tank

External
Regulator

requires an external regulator
(not supplied). Install the external
regulator between the fireplace
and propane/LP supply.

WARNING: Never connect

Vent
Pointing
Down

natural gas fireplace to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.

113897

-01A 15

www.desatech.com

Figure 19 - External Regulator With Vent

Pointing Down

INSTALLATION

A
U
T
O

O
F
F

O
N

Continued

Installation must include an equipment shutoff
valve, union, and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up. NPT
tap must be upstream from heater (see Figure 20).

IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment shutoff
valve is for turning on or shutting off the gas to
the appliance.

Check your building codes for any special re
quirements for locating equipment shutoff valve
to fireplaces.

Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in clogged heater valves.

WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.

We recommend that you install a sediment trap in
supply line as shown in Figure 20. Locate sediment
trap where it is within reach for cleaning. Install
in piping system between fuel supply and heater.
Locate sediment trap where trapped matter is not
likely to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going into
heater controls. If sediment trap is not installed or
is installed wrong, heater may not run properly.

CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*

Gas
Control

Approved Flexible
Gas Hose

3" Minimum

Figure 20 - Gas Connection

* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer. See
Accessories, page 35.

** Minimum inlet pressure for purpose of input
adjustment.

Propane/LP

From External
Regulator
(11" W.C.** to
14" W.C.
Pressure)
Natural From
Gas Meter
(5" W.C.**
to 10.5" W.C.
Pressure)

Cap Pipe Tee
Nipple Joint

Sediment Trap

www.desatech.com

CONNECTING FIREPLACE TO GAS
SUPPLY

Installation Items Needed

• Phillips screwdriver

•

sealant (resistant to propane/LP gas, not provided)

1. Route flexible gas line (provided by installer)
from equipment shutoff valve into fireplace
through side or rear access holes in outer
casing (see Figure 21).

NOTICE: Most building codes

-

do not permit concealed gas
connections. A flexible gas line
is provided to allow accessibility
from the fireplace (see Figure 22).
The flexible gas supply line con­nection to the equipment shutoff
valve should be accessible.

2. Apply pipe joint sealant lightly to male threads
of gas connector attached to flexible gas line
(see Figure 22). Connect flexible gas line
to flexible gas line attached to gas valve of
fireplace (see Figure 22).

Outer
Casing

Equipment
Shut Off
Valve

Figure 21 - Routing Flexible Gas Line

To Fireplace

Equipment
Shutoff

Gas
Connector

Valve

Flexible Gas
Line from

To Gas
Supply

Equipment
Shutoff Valve
Provided by
Installer

Figure 22 - Attaching Flexible Gas Lines

Together

Gas Valve

Flexible Gas
Line from
Fireplace Gas
Valve Provided
with Fireplace

113897

-01A16

INSTALLATION

Continued

3. Check all gas connections for leaks. See
Checking Gas Connections.

4. Feed flexible gas line into fireplace base area.
Make sure the entire flexible gas line is in
fireplace mantel base area.

CAUTION: Avoid damage to
regulator. Hold gas regulator
with wrench when connecting it
to gas piping and/or fittings.

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.

WARNING: Never use an
open flame to check for a leak.
Apply a noncorrosive leak detec
tion fluid to all joints. Bubbles
forming show a leak. Correct all
leaks at once.

CAUTION: Make sure exter­nal regulator has been installed
between propane/LP supply and
heater. See guidelines under Con
necting to Gas Supply, page 15.

-

-

4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection fluid to all
joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6.

Reconnect heater and equipment shutoff valve to
gas supply. Check reconnected fittings for leaks.

Test Pressures Equal To or Less Than 1/2
PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 23).

2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas,
or using compressed air.

3. Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP sup
ply to equipment shutoff valve for propane/LP
(see Figures 24 and 25). Apply noncorrosive
leak detection fluid to all joints. Bubbles form
ing show a leak.

4. Correct all leaks at once.

Equipment
Shutoff
Valve

Figure 23 - Equipment Shutoff Valve

Equipment Shutoff Valve

Open

Closed

Propane/LP
Supply Tank

-

-

PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM

Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)

1. Disconnect appliance with its appliance main
gas valve (control valve) and equipment
shutoff valve from gas supply piping system.
Pressures in excess of 1/2 psig will damage
heater regulator.

2. Cap off open end of gas pipe where equipment
shutoff valve was connected.

3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas,
or using compressed air.

-01A 17

113897

www.desatech.com

Figure 24 - Checking Gas Joints Propane/LP

Gas (Shown with Optional Mantel)

Figure 25 - Checking Gas Joints Natural

Gas (Shown with Optional Mantel)

Equipment
Shutoff Valve

Gas Meter

INSTALLATION

A

U
T
O

O
F
F

O

N

Front

Back

Continued

PRESSURE TESTING HEATER GAS
CONNECTIONS

1. Open equipment shutoff valve (see Figure 23,
page 17).

2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP
supply tank valve.

3. Make sure control knob of heater is in the OFF
position.

4. Check all joints from equipment shutoff valve to
thermostat gas valve (see Figures 24 and 25, page

17). Apply noncorrosive leak detection fluid to all
joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operating Heater, page 20).
Check all other internal joints for leaks.

7. Turn off heater (see To Turn Off Gas to Appli
ance, page 21).

8. Replace front panel.

INSTALLING LOGS

WARNING: Failure to posi­tion the parts in accordance
with these diagrams or failure
to use only parts specifically
approved with this heater may
result in property damage or
personal injury.

CAUTION: After installa­tion and periodically thereafter,
check to ensure that no flame
comes in contact with any log.
With the heater set to HI, check
to see if flames contact any log. If
so, reposition logs according to
the log installation instructions
in this manual. Flames contact­ing logs will create soot.

It is very important to install the logs exactly as
instructed. Do not modify logs. Only use logs
supplied with heater.

Place one-piece log set on grate to fit as illustrated
in Figure 26. Make sure back section of log set is
seated into “U”-shaped cutout in center of chassis
(see Figure 26). IMPORTANT: Make sure log does
not cover any burner ports (see Figure 27).

Chassis

Figure 26 - Installing One-Piece Log Set

-

Figure 27 - Installing One-Piece Log set

OPTIONAL WIRELESS HAND-HELD
REMOTE CONTROL ACCESSORIES

(CGHRCB & CGHRCTB Series)

Installing Receiver

1. Disconnect switch wires from the control
valve.

2. Remove screws and nuts.

3. Remove switch plate (see Figure 28). Discard
after removing.

Screw

Figure 28 - Switch Plate and Wiring

Harness (Switch Plate and Orientation

May Vary Depending On Model)

www.desatech.com

Burner
Ports

Front

(Top View)

Nut

One Piece
Log Set

Burner

“U”-shaped
Cutout in
Chassis

One Piece Log Set

Back

Nut

Wires

113897

-01A18

INSTALLATION

Front

Back

Continued

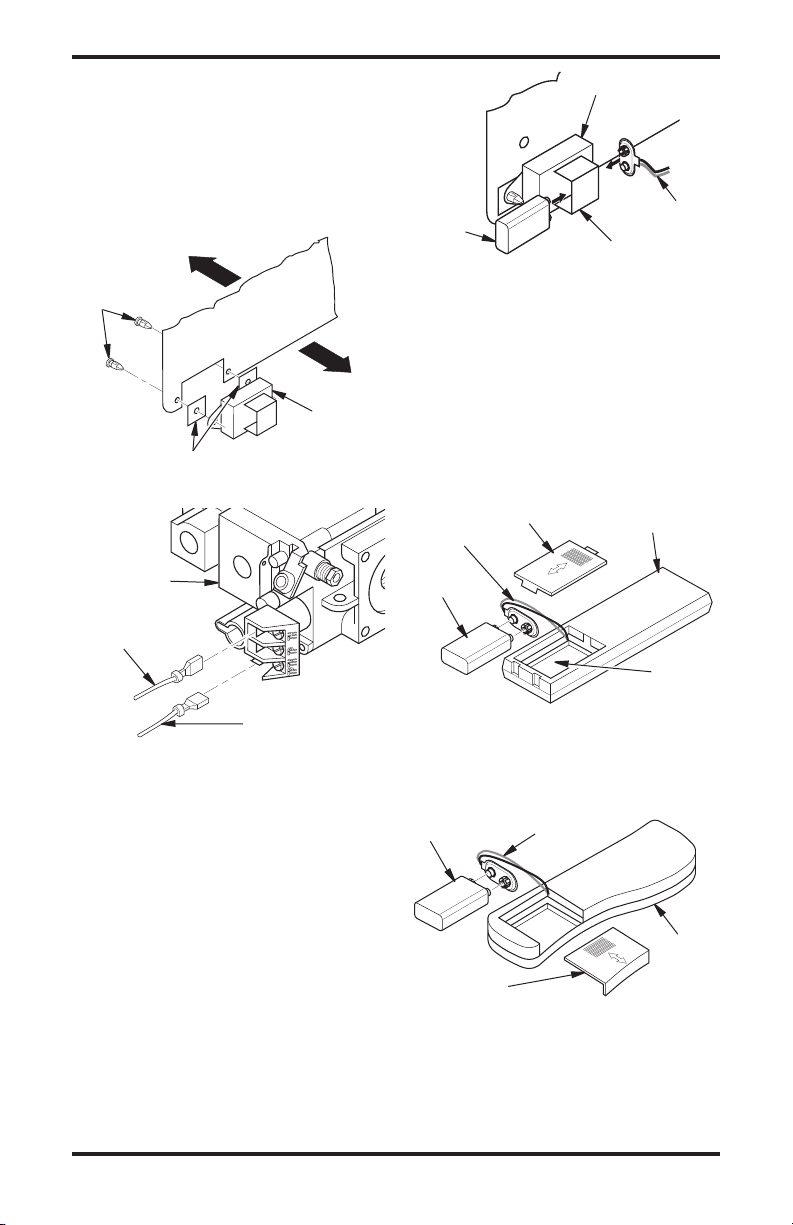

4. Install remote receiver unit onto gas log heater
base using clips (2) and insulating washers
provided.

5. Push clips firmly into place (see Figure 29).

6. Connect wires as shown in Figure 30.

Front

Mounting
Clips

Back

Remote
Receiver

Insulating Washers

Figure 29 - Installing Remote Receiver

Valve

White Wire
From Receiver

Red Wire From
Receiver

Figure 30 - Connecting Wires

Receiver

9-Volt
Battery

Terminal
Wires

Battery Clip

Figure 31 - Installing Receiver on the

Back of the Base

Installing 9-Volt Battery (Not Included) in
Hand-Held Remote Control Unit

1. Remove battery cover on back of remote
control unit.

2. Attach terminal wires to the battery. Place
battery into the battery housing.

3. Replace battery cover onto remote control
unit.

Terminal
Wires

Battery
Cover

Remote
Control Unit

9-Volt
Battery

Battery
Housing

Figure 32 - Installing Battery in Hand-Held

Remote Control Unit (CGHRCB Series)

INSTALLING WIRELESS REMOTE
CONTROL ACCESSORY

9-Volt
Battery

Terminal
Wires

Two 9-volt alkaline batteries (not included) are
required to operate this heater with the wireless
hand held remote control set. One battery must
be installed in the receiver and one in the hand­held remote control unit.

Note: Only use alkaline

batteries.

Installing 9-Volt Battery in Receiver

1. Locate back of receiver under front burner of
heater.

2. Locate the battery clip mounted on the back
of the receiver.

Battery
Cover

Figure 33 - Installing Battery in Hand-Held

Remote Control Unit (CGHRCTB Series)

3. Slide a 9-volt battery through the clip.

4. Attach the terminal wires to the battery.

-01A 19

113897

www.desatech.com

Remote
Control
Unit

OPERATING FIREPLACE

O

F

F

P

I

L

O

T

O

N

L

O

I

H

AUTO

OFF

ON

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not fol­low these instructions exactly,
a fire or explosion may result
causing property damage, per­sonal injury or loss of life.

A. This appliance has a pilot which must be

lighted by hand. When lighting the pilot,
follow these instructions exactly.

B. BEFORE LIGHTING smell all around the

appliance area for gas. Be sure to smell next
to the floor because some gas is heavier than
air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not
use any phone in your building.

• Immediately call your gas supplier from
a neig hbor ʼs phon e. Fo llo w the gas
supplierʼs instructions.

• If you cannot reach your gas supplier, call
the fire department.

C. Use only your hand to push in or turn the

gas control knob. Never use tools. If the
knob will not push in or turn by hand, donʼt
try to repair it, call a qualified service tech
nician or gas supplier. Force or attempted
repair may result in a fire or explosion.

D. Do not use this appliance if any part has

been under water. Immediately call a
qualified service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.

LIGHTING

INSTRUCTIONS

NOTICE: During initial operation
of new heater, burning logs will
give off a paper-burning smell.
Open a window to vent smell.
This will only last a few hours.

1. STOP! Read the safety information above.

2. Make sure equipment shutoff valve is fully
open.

3. Set switch in OFF position.

www.desatech.com

WARNING: Burner will come
on automatically within one
minute when the selector switch
is in the ON position after the
pilot is lit.

4. Press in and turn control knob clockwise

5. Wait five (5) minutes to clear out any gas.

6. Press in and turn control knob counter

Note: You may be running this heater for

7. With control knob pressed in, press and

Note: If pilot does not stay lit, contact a

-

8. Keep control knob pressed in for 30 seconds

Note: If pilot goes out, repeat steps 4

9. Slightly push in and turn control knob coun-

Ignitor Button

Button Location (Shown as Supplied, No

to the OFF position.

Then smell for gas, including near the floor.
If you smell gas, STOP! Follow “B” in the
safety information, column 1. If you donʼt
smell gas, go to the next step.

clockwise

to the PILOT position.
Press in control knob for five (5) seconds
(see Figure 34).

the first time after hooking up to gas sup
ply. If so, the control knob may need to be
pressed in for 30 seconds or more. This will
allow air to bleed from the gas system.

release ignitor button. This will light pilot.
The pilot is attached to the front burner. If
needed, keep pressing ignitor button until
pilot lights.

qualified service person or gas supplier for
repairs. Until repairs are made, light pilot
with match. To light pilot with match, see
Manual Lighting Procedure, page 21.

after lighting pilot. After 30 seconds, release
control knob.

• If control knob does not pop out when

released, contact a qualified service person
or gas supplier for repairs.

through 8.

terclockwise

Selector Switch

to the ON position.

Flame
Adjustment Knob

Control Knob

Figure 34 - Control Knob and Ignitor

Control Options)

113897

-

-

-01A20

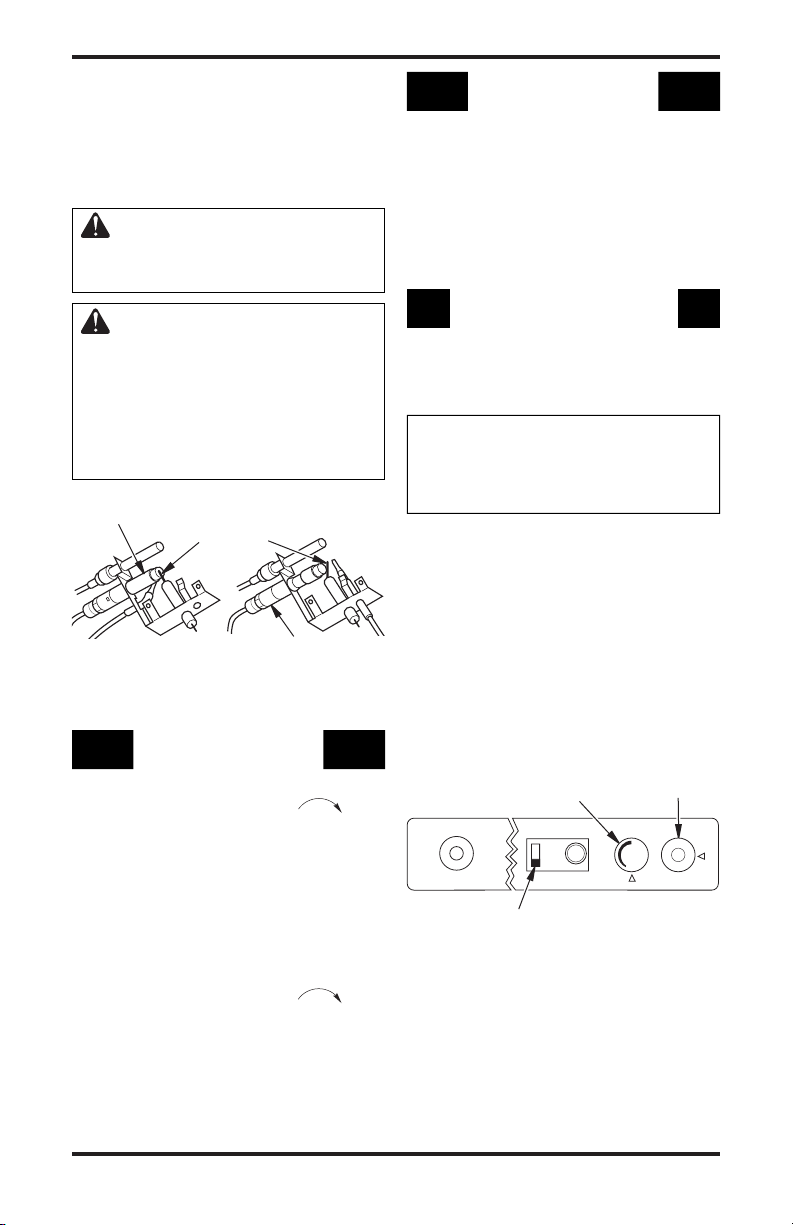

OPERATING FIREPLACE

ON
OFF
REMOTE

O

F

F

P

I

L

O

T

O

N

L

O

I

H

Continued

10. Wait one minute and switch selector switch
to the ON position to light burner.

11. Set flame adjustment knob to any level
between HI and LO.

CAUTION: Do not try to ad­just heating levels by using the
equipment shutoff valve.

WARNING: Make sure the
selector switch is in the OFF
position when you are away from
home for long periods of time.
Heater will come on automati
cally with selector switch in the
ON position.

Pilot Burner

Propane/LP

Shutting Off Heater

1. Turn control knob clockwise to the
OFF position.

2a. Set selector switch in the OFF position
2b. If Using Optional Hand-Held Remote: Set

selector switch in the OFF position to keep
from draining battery.

Shutting Off Burner Only (pilot stays lit)

You may shut off the burner and keep the pilot
lit by doing one of the following:

1. Turn control knob clockwise
PILOT position.

2. Use remote control manual OFF button.

3. Set selector switch in the OFF position.

Ignitor
Electrode

Pilot Burner

Natural Gas

Figure 35 - Pilot

TO TURN OFF GAS

TO APPLIANCE

-

to the

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 6 under Lighting
Instructions, page 20.

2. Depress control knob and light pilot with
match.

3. Keep control knob pressed in for 30 seconds
after lighting pilot. After 30 seconds, release
control knob. Now follow steps 9 through
11 under

Lighting Instructions, page 20.

OPTIONAL HAND-HELD

REMOTE OPERATION

Note: All remote control accessories must be
purchased separately (see Accessories, pages

35). Follow instructions included with the re

mote control.

NOTICE: You must light the pilot
before using the hand-held re­mote control unit. See Lighting
Instructions on page 20.

After lighting, let pilot flame burn for about one
minute. Turn control knob to ON position. Adjust
flame adjustment knob anywhere between HI and
LO. Slide the selector switch to the REMOTE
position (see Figure 3
light if hand-held remote was on when selector
switch was last turned off. You can now turn the
burner on and off with the hand-held remote
control unit.

IMPORTANT:

in the REMOTE or ON position when the pilot
is not lit. This will drain the battery.

Flame
Adjustment Knob

Selector Switch in Remote Position
(Optional Remote Control)

Figure 36 - Setting the Selector Switch,

Control Knob, and Flame Adjustment

Knob for Remote Operation

6). Note: The burner may

Do not leave the selector switch

Control Knob
in On Position

-

-01A 21

113897

www.desatech.com

OPERATING FIREPLACE

Continued

ON/OFF SERIES (MODEL CGHRCB)

Hold the control button on the hand-held remote
until burner turns on. Hold the control button
again until burner turns off (see Figure 37).

TO LOCK

remote control until light stops flashing. Hand­held remote control is now locked. If the fire is
on it will be turned off automatically. In the
locked state, the light will not light up when
any button is pressed.

TO UNLOCK

on hand-held remote control until the light
stops flashing. The hand-held remote is now
unlocked.

THERMOSTAT SERIES (MODEL
CGHRCTB)

The hand-held remote can be operated using
either the manual mode (MANU) or thermo­static mode (AUTO) (see Figure 38). To select
Fahrenheit/Centigrade mode display, carefully
press the ˚C/˚F mode button with the end of a
paper clip or similar blunt object.

Digital
Display
Shows
Temperature
and Settings

Turns
Burners On
or Off

Decreases
Room
Temperature
in AUTO
Mode

press both buttons on hand-held

press both buttons together

Control Button
Turns Burners
On and Off

Figure 37 - On/Off Hand-Held Remote

Control Unit (CGHRCB)

Turns
Hand-Held
Remote On
or Off and
Allows You
to Choose
the Manual
Setting

Selects Auto
Setting

Increases
Room
Temperature

Locks System to
Prevent Accidental
Ignition

Figure 38 - Thermostat Hand-Held

Remote Control Unit (CGHRCTB)

in AUTO
Mode

Manual Mode

1. Press the POWER and LOCK buttons
together to turn on the hand-held remote
control.

2. Press the MANU button to turn on the
fireplace.

3. Press the POWER and LOCK buttons
together to turn off the fireplace.

Auto (Thermostatic) Mode

1. Press the POWER and LOCK buttons
together to turn on the hand-held remote
control.

2. Press AUTO button to select this mode.

3. Set the desired room temperature by press
ing the TEMP + or - buttons.

4. Press the POWER and LOCK buttons
together to turn off the fireplace

Note: Do not leave the hand-held remote in the
AUTO mode close to the fireplace. The radiant
heat from the fireplace will turn off the fireplace.
Ideally, place the hand-held remote in the center
of the room facing towards the fireplace.

Note: Do not hold the hand-held remote for
a long time. Body temperature will affect its
operation in the AUTO mode.

Safety Features

When away from home for an extended period
of time or as a child safety feature to prevent
accidental ignition of the fireplace, the receiver
ON/OFF/REMOTE switch should be in the
OFF position.

Auto Shutoff Feature

1. If the average room temperature exceeds
82 degrees Fahrenheit (28 degrees Centi­grade), the hand-held remote control will
perform a safety override and shut the
fireplace off. This feature is not available
in the MANU mode.

2. The receiver continuously receives signals
from the hand-held remote to control the
room temperature. If the hand-held remote
is misplaced, obstructed, or for any reason
cannot transmit to the receiver, the receiver
will shut off the fireplace after 8 minutes.

Key Pad Lock Feature

This feature allows the user to lock/unlock
the keypad on the hand-held remote in the
MANU or AUTO mode to prevent inadvertent
operation (i.e. children operating the hand-held
remote control, etc.). The keypad is locked in
either on or off. Press the POWER and LOCK
buttons together to turn the unit on or off.

-

www.desatech.com

113897

-01A22

INSPECTING BURNERS

Check pilot flame pattern and burner flame pat­terns often.

PILOT FLAME PATTERN

Figure 39 shows a correct pilot flame pattern.
Figure 40 shows an incorrect pilot flame pattern.
The incorrect pilot flame is not properly heating
the thermocouple. When the thermocouple cools,
the heater will shut down.

If pilot flame pattern is incorrect, as shown in
Figure 40

• turn heater off (see To Turn Off Gas to Appli
ance, page 21)

•

see Troubleshooting, page 25

Note: The correct pilot flame on natural gas units
will have a slight curve, but flame should be blue
and have no yellow or orange color.

Pilot Burner

Figure 39 - Correct Pilot Flame Pattern

(propane/LP ignitor shown)

Pilot Burner

Thermocouple

Thermocouple

Approx. 3-6"
Above Top
of Logs

Figure 41 - Correct Flame Pattern with

Control Knob Set to High Flame

More Than
8" Above
Top of Logs

-

Figure 42 - Incorrect Flame Pattern with

Control Knob Set to High Flame

BURNER PRIMARY AIR HOLES

Air is drawn into the burner through the holes in
the fitting at the burner entrance. These holes may
become blocked with dust or lint. Periodically
inspect these holes for any blockage and clean if
needed. Blocked air holes will create soot.

MAIN BURNER

Periodically inspect all burner flame holes with the
heater running. All slotted burner flame holes should
be open with yellow flame present. All round burner
flame holes should be open with a small blue flame
present. Some burner flame holes may become
blocked by debris or rust, with no flame present. If
so, turn off heater and let cool. Remove blockage.
Blocked burner flame holes will create soot.

CLEANING AND

MAINTENANCE

WARNING: Turn off heater

Figure 40 - Incorrect Pilot Flame Pattern

(propane/LP ignitor shown)

BURNER FLAME PATTERN

Figure 41 shows a correct burner flame pattern.
Figure 42 shows an incorrect burner flame pattern.
If burner flame pattern is incorrect,

• turn heater off (see To Turn Off Gas to Appli
ance, page 21)

, page

• see Troubleshooting

-01A 23

113897

25

www.desatech.com

and let cool before cleaning.

CAUTION: You must keep
control areas, burner, and circu­lating air passageways of heater
clean. Inspect these areas of
heater before each use. Have

-

heater inspected yearly by a
qualified service person. Heater
may need more frequent clean­ing due to excessive lint from
carpeting, bedding material, pet
hair, etc.

CLEANING AND

MAINTENANCE

Continued

WARNING: Failure to keep
the primary air opening(s) of
the burner(s) clean may result in
sooting and property damage.

BURNER INJECTOR HOLDER AND
PILOT AIR INLET HOLE

The primary air inlet holes allow the proper
amount of air to mix with the gas. This provides
a clean burning flame. Keep these holes clear of
dust, dirt, lint, and pet hair. Clean these air inlet
holes prior to each heating season. Blocked air
holes will create soot. We recommend that you
clean the unit every three months during operation
and have heater inspected yearly by a qualified
service person.

We also recommend that you keep the burner
tube and pilot assembly clean and free of dust and
dirt. To clean these parts we recommend using
compressed air no greater than 30 PSI. Your local
computer store, hardware store, or home center
may carry compressed air in a can. You can use a
vacuum cleaner in the blow position. If using com
pressed air in a can, please follow the directions on
the can. If you donʼt follow directions on the can,
you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow
the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet
holes on injector holder for dust and dirt (see
Figure 43).

3. Blow air through the ports/slots and holes in
the burner.

4. Check the injector holder located at the end
of the burner tube again. Remove any large
particles of dust, dirt, lint, or pet hair with a
soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the
injector holder.

6. In case any large clumps of dust have now been
pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the
pilot flame indicates dust and dirt in the pilot as
sembly. There is a small pilot air inlet hole about
two inches from where the pilot flame comes out
of the pilot assembly (see Figure 44). With the unit
off, lightly blow air through the air inlet hole. You
may blow through a drinking straw if compressed
air is not available.

www.desatech.com

CABINET

Air Passageways

Use a vacuum cleaner o r pressurized air to
clean.

Exterior

Use a soft cloth dampened with a mild soap and
water mixture. Wipe the cabinet to remove dust.

Injector Holder (May
Be Brass or Aluminum
Depending on Model)

Burner
Tube

Primary Air Inlet Holes
(Shape of Holes May
Vary by Model)

Figure 43 - Injector Holder On Outlet

Burner Tube

Ports/Slots

-

Burner
Tube

Pilot
Assembly

Pilot
Air Inlet
Hole

-

Figure 44 - Pilot Inlet Air Hole

113897

-01A24

TROUBLESHOOTING

WARNING: Turn off heater and let cool before servicing. Only a

qualified service person should service and repair heater.

CAUTION: Never use a wire, needle, or similar object to clean

ODS/pilot. This can damage ODS/pilot unit.

Note: All troubleshooting items are listed in order of operation.

OBSERVED PROBLEM

When ignitor button is pressed,
there is no spark at ODS/pilot

When ignitor button is pressed,
there is spark at ODS/pilot but
no ignition

POSSIBLE CAUSE

1. Ignit or ele ct rode not con­nected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode positioned
wrong

7. Ignitor electrode broken

1. Gas supply turned off or equip
ment shutoff valve closed

2. Control knob not in PILOT
position

3. Control knob not pressed in
while in PILOT position

4. Air in gas li nes whe n in
stalled

5. Depleted gas supply (propane/
LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not
correct

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched
by any metal or tubing. Keep
ignitor cable dry

3. Tighten nut holding piezo ignitor
to base panel of log set. Nut is
located behind base panel

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace pilot assembly

7. Replace pilot assembly

1. Turn on gas supply or open

­equipment shutoff valve

2. Turn control knob to PILOT
position

3. Press in control knob while in
PILOT position

4. Continue holding down con

­trol knob. Repeat igniting op­eration until air is removed

5. Contact local propane/LP gas
company

6. Clean ODS/pilot (see
ing and Maintenance, page

23) or replace ODS/pilot as
sembly

7. Replace gas control

-

Clean-

-

-01A 25

113897

www.desatech.com

OBSERVED PROBLEM

ODS /pilot ligh ts but fl ame
goes out when control knob is
released

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1.

Control knob not fully pressed in

2. Control knob not pressed in
long enough

3. Equipment shutoff valve not
fully open

4. Pilot flame not touching ther
mocouple, which allows ther
moc ouple to cool, causing
pilot flame to go out. This
problem could be caused by
one or both of the following:

A) Low gas pressure
B) Dirty or partially clogged

ODS/pilot

5. The rmoco upl e conne ction
loose at control valve

6. Thermocouple damaged

7. Control valve damaged

-

-

REMEDY

1. Press in control knob fully

2.

After ODS/pilot lights, keep con­trol knob pressed in 30 seconds

3. Fully open equipment shutoff
valve

4. A) Contact local natural or
propane/LP gas company

B) Cle a n OD S/pi l ot (see

Cleaning and Maintenance

page 23) or replace ODS/pilot
assembly

5. Hand tighten until snug, then
tighten 1/4 turn more

6. Replace pilot assembly

7. Replace control valve

,

Burner does not light after
ODS/pilot is lit

Delayed ignition of burner

Burner backfiring during com
bustion

Slight smoke or odor during
initial operation

1. Inlet gas pressure is too low

2. Burner orifice(s) clogged

3. Thermopile leads disconnected
or improperly connected

4. Burners will not come on in
remote position

1. Manifold pressure is too low

2. Burner orifice(s) clogged

1. Burner orifice is clogged or

­damaged

2. Damaged burner

3. Gas regulator defective

1. Not enough air

2. Gas regulator defective

3. Residues from manufacturing
processes and logs curing

1. Contact local natural or pro
pane/LP gas company

2. Clean burner(s) (see Cleaning
and Maintenance, page 23) or
replace burner orifice

3. Reconnect leads (see Wiring
Diagram, page 29)

4. Replace battery in transmitter
and receiver

1. Contact local natural or pro
pane/LP gas company

2. Clean burner(s) (see Cleaning
and Maintenance, page 23) or
replace burner orifice

1. Clean burner (see Cleaning
and Maintenance, page 23)
or replace burner orifice

2. Replace damaged burner

3. Replace gas control

1. Check burner for dirt and
debris. If found, clean burner
(see Cleaning and Mainte
nance, page 23)

2. Replace gas control

3. Problem will stop after a few
hours of operation

-

-

-

www.desatech.com

113897

-01A26

OBSERVED PROBLEM

Moisture/condensation noticed
on windows

Heater produces a whistling
noise when burners are lit

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Not enough combustion/ven­tilation air

1. Turning control knob to HI po
sition when burners are cold

2. Air in gas line

3. Air passageways on heater
blocked

4. Dirty or par tiall y clog ge d
burner orifice(s)

-

REMEDY

1. Refer to Air for Combustion
and Ventilation requirements

(page 5)

1. Turn control knob to LO position
and let warm up for a minute

2. Operate burners until air is
removed from line. Have gas
line checked by local natural
or propane/LP gas company

3. Observe minimum installation
clearances (see page 9)

4. Clean burners (see Cleaning
and Maintenance, page 23)
or replace burner orifice

White powder residue forming
within burner box or on adjacent
walls or furniture

Remote does not function

Heater produces a clicking/tick
ing noise just after burners are
lit or shut off

1. When heated, vapors from
furniture polish, wax, carpet
cleaners, etc. may turn into
white powder residue

1. Battery is not installed. Bat
tery power is low

-

1. Metal expanding while heating
or contracting while cooling

1. Turn heater off when using
furniture polish, wax, carpet
cleaners, or similar products

-

1. Replace 9-volt batteries in
receiver and hand held-remote
control

1.

This is common with most
heaters. If noise is excessive,
co nta ct qu ali fie d ser vic e
person

-01A 27

113897

www.desatech.com

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your
building.

• Immediately call your gas supplier from a neighbor’s phone. Fol­low the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint,
paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These

OBSERVED PROBLEM

Heat er pr odu ce s u nwant ed
odors

Heater shuts off in use (ODS
operates)

Gas odor even when control
knob is in OFF position

Gas odor during combustion

POSSIBLE CAUSE

1. Heater burning vapors from
paint, hair spray, glues, clean
ers, chemicals, new carpet,
etc. (See IMPORTANT state-
ment above)

2. Low fuel supply (propane/LP
only)

3. Gas le ak. Se e War n i ng

statement at top of page

1. Not enough fresh air is avail
able

2. Low line pressure

3. O D S/ p il ot i s p a rt ia ll y
clogged

1. Gas le ak. Se e War n i ng

statement at top of page

2. Control valve defective

1. Foreign matter between con
trol valve and burner

2. Gas le ak. Se e War n i ng

statement at top of page

REMEDY

1. Op en window to ven ti late
room. Stop using odor caus

­ing products while heater is
running

2. Refill supply tank (propane/LP
only)

3. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 17)

1. Open window and/or door for

­ventilation

2. Contact local natural or pro
pane/LP gas company

3. Clean ODS/pilot (see Cleaning
and Maintenance, page 23)

1. Locate and correct all leaks
(see Checking Gas Connec
tions, page 17)

2. Replace control valve

1. Take apart gas tubing and

­remove foreign matter

2. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 17)

-

-

-

www.desatech.com

113897

-01A28

SPECIFICATIONS

Switch

Black

Auto

Off
On

Red

Red

White

Thermopile

Gas Control

TPTH TH

TH

TPTH

TP

TP

CF26PRA CF26NRA

Btu (Variable) 19,000/26,000 19,000/26,000

Type Gas Propane/LP Natural

Ignition Piezo Piezo

Manifold Pressure 8" W.C. 3.5" W.C.

Inlet Gas Pressure (in. of water) *
Maximum 14" 10.5"
Minimum 11" 5"

Dimensions (H x W x D)
Fireplace 25
Carton 28" x 26

Weight, pounds
Fireplace 44.5 lbs. 44.5 lbs.
Shipping 55 lbs. 55 lbs.

* For purposes of input adjustment

7

/8" x 27" x 13 3/4" 25 7/8" x 27" x 13 3/4"

13

/16" x 16 1/2" 28" x 26 13/16" x 16 1/2"

WIRING DIAGRAM

-01A 29

113897

www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

10

24

25

O

F

F

P

I

L

O

T

O

N

H

I

L

O

O

F

F

P

I

L

O

T

O

N

H

I

L

O

16

15

19

8

19

20

21

17

18

14

13

23

12

22

13

4

7

6

9

5

11

10

3

2

1

MODELS CF26PRA AND CF26NRA

www.desatech.com

113897

-01A30

PARTS LIST

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions
listed under Replacement Parts on page 34 of this manual.

KEY PART NUMBER
NO. CF26PRA CF26NRA DESCRIPTION QTY.

1 113342-01 113342-01 Log Set 1
2 103778-01 103779-01 ODS Pilot 1
3 098249-01
4 104422-04
5 098264-02
6 111124-01 111124-01 Burner Retainer Spring 1
7 099056-21
8 099998-01
9 102980-01
10 099387-13
11 103781-02
12 103345-02
13 M11084-38 M11084-38 Screw, #8 x .38 7
14 104384-04
15 098271-10
16 102445-01
17 103587-02
18 104099-01
19 098304-01
20 103784-02
21 103784-01
22 M12461-26
23 103284-02

____

24

____

25

100563-01 100563-01 Warning Plate 1
103877-01

098249-01 ODS Nut 2
104422-03 Burner Outlet Tube 1
098264-02 Male Connector 1

099056-27 Burner Orifice Injector 1
099998-01 Switch 1
102980-01 Burner 1
099387-15 Pilot Tube 1
103781-01 Gas Control Valve 1
103345-02 Lower Bracket 1

104384-04 Base Assy 1
098271-10 Ignitor Cable 1
102445-01 Piezo Ignitor 1
103587-02 Plate, Switch 1
104099-01 Heat Shield 1
098304-01 Screw 2
103784-02 Flame Adjustment Knob 1
103784-01 Off-Pilot-On Knob 1
M12461-26 Screw, Hex Slt Wsr 10-32 x .38 4

103284-02 Wiring Harness 1
099918-02 Pilot Regulator 1
100609-01 Pilot Tube 1

PARTS AVAILABLE — NOT SHOWN

103877-01 Lighting Instructions Plate 1

-01A 31

113897

www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

5

8

15

17

13

14

11-2

11-1

19

4

12

16

10

6

5

9

1

2

18

7

20-2

20-3

20-1

18

18

16

21

3

18

16

3

21

MODELS CF26PRA AND CF26NRA

www.desatech.com

-01A32

113897

PARTS LIST

MODELS CF26PRA AND CF26NRA

This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions
listed under Replacement Parts on page 34 of this manual.

KEY PART
NO. NUMBER DESCRIPTION QTY.

1 102633-02 Outer Casing Top 1
2 102624-02 Outer Casing 1
3 099230-02 Shoulder Screw 12
4 105631-01CK Assy. Hood Weldment 1
5 105258-01CK Vertical Front, Left and Right Sides 2
6 105259-01 Firebox Top 1
7 ** Firebox Wrapper 1
8 105255-01 Bayfront Base 1
9 105421-01 Heat Deflector 1
10 105409-01 Fan Control Shield 1
11-1 105401-01 Screen Rod 1
11-2 105440-01 Screen Assembly 1
12 101386-02 Hinge 2
13 099194-11 Rivets 8
14 105262-01CK Louvered Door 1
15 ** Firebox Floor 1
16 098304-01 Screw, #10 x 3/8” 21
17 105256-01CK Bayfront Bottom Panel 1
18 M11084-26 Hex Head Screws #10 x .38 26
19 105513-01CJ Cover, Screen Rod 1
20-1 105525-01 Fiber Brick, Left 1
20-2 105524-01 Fiber Brick, Rear 1
20-3 105526-01 Fiber Brick, Right 1
21 105987-01 Brick Liner Retainer 2

PARTS AVAILABLE — NOT SHOWN

103877-01 Lighting Instructions Plate 1
100563-01 Warning Plate 1
103470-01 Hardware Package 1

**Not a field replacement part.

-01A 33

113897

www.desatech.com

REPLACEMENT PARTS

Note: Use only original replacement parts. This
will protect your warranty coverage for parts
replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If
they canʼt supply original replacement part(s),
call DESA Heating Productsʼ Technical Service
Department at 1-866-672-6040.

When calling DESA Heating Products, have
ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the part to the
factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they
canʼt supply original replacement part(s), call
DESA Heating Products at 1-866-672-6040 for
referral information.

When calling DESA Heating Products, have
ready

• model number of your heater

• the replacement part number

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specified heat

• for propane/LP units, propane/LP gas supply
may be low

You may feel your gas pressure is too low. If so, con
tact your local propane/LP or natural gas supplier.

TECHNICAL SERVICE

You may have further questions about installation,
operation, or troubleshooting. If so, contact DESA
Heating Productsʼ Technical Service Department
at 1-866-672-6040. When calling please have your
model and serial numbers of your heater ready.

You can also visit DESA Heating Productsʼ techni
cal services web site at www.desatech.com.

PARTS CENTRAL

These Parts Centrals are privately owned businesses.
They have agreed to support our customerʼs needs by
providing original replacement parts and accessories.

Tool and Equipment, Co.

1348 Dixwell Avenue
Hamden, CT 06514-0322
1-800-397-7553
203-248-7553
Parts Department

Portable Heater Parts

342 N. County Rd. 400 East
Valparaiso, IN 46383-9704
All States
219-462-7441
1-888-619-7060
[e-mail]
[e-mail]

FBD

1349 Adams Street
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
Fax: [phone]
[e-mail]

Master Parts Dist.

1251 Mound Ave NW
Grand Rapids, MI 49504-2672
616-791-0505
1-800-446-1446
Fax: [phone]
www.nbmc.com

Washer Equipment Co.

1715 Main Street
Kansas City, MO 64108-2195
KS, MO, AR
816-842-3911
www.washerparts.com

East Coast Energy Products

707 Broadway
W. Long Branch, NJ 07764-1542

-

732-870-8809
1-800-755-8809
www.njplaza.com/ecep

Laporte’s Parts & Service

2444 N. 5th Street
Hartsville, SC 29550-7704
843-332-0191
Parts Department

Cans Unlimited, Inc.

-

P.O. Box 645
Taylor, SC 29687-0013
All States
803-879-3009
1-800-845-5301
[e-mail]

www.desatech.com

113897

-01A34

ACCESSORIES

A
U
T

O

O
F

F

O
N

Purchase these heater accessories from your local
dealer or Parts Central (see page 34). If they can
not supply these accessories, call DESA Heating
Products at 1-866-672-6040 for referral informa­tion. You can also write to the address listed on
the back page of this manual.

BRASS ACCENT TRIM - GA7092
(Not Shown)

Optional two piece trim kit for the Bayfront Fire­place. Easily screws to fireplace front. Provides an
upscale appearance.

EQUIPMENT SHUTOFF VALVE
GA5010

For all models. Equipment shutoff valve with 1/8"

BRASS ACCENT TRIM - GA6095

Optional four-sided trim kit for built-in installa­tions. Provides a finished appearance covering
rough edges of wall opening.

NPT tap. Fits 1/2" NPT pipe.

THERMOSTATICALLY CONTROLLED
BLOWER KIT - GA3450T

Provides better heat distribution. Blower turns off
and on automatically, as needed. Complete instal
lation and operating instructions included.

-

CABINET MANTEL WITH BUILT-IN
HEARTH BASE

Medium Stained Oak Veneer - GMC45F

For use with fireplace. A hardwood mantel and
hearth base offers compact styling and completes
the fireplace look. Available in a white lacquer
finish, medium stained oak, or an unfinished

RECEIVER AND HAND-HELD
THERMOSTAT REMOTE CONTROL
KIT - CGHRCTB

For all Remote-Ready Models. Allows the gas
log heater to be operated in a manually or thermo
statically controlled mode. You can turn the gas log
heater on and off without ever leaving the comfort
of your easy chair.

hardwood, ready to stain or paint. Complete as­sembly instructions included. Three-sided trim
kit included.

CLEANING KIT - GCK

-

(Not Shown)

For all models. Your vent-free gas appliance re
quires regular cleaning and maintenance to prevent
performance problems. This kit gives you the tools
and instructions to make it easy to clean all critical
areas of your appliance.

INFORMATION VIDEO - 108917-01

For all models. A care and maintenance video is

RECEIVER AND HAND-HELD
REMOTE CONTROL KIT - CGHRCB

For all Remote-Ready Models. Allows the gas log
heater to be turned on and off by using a hand-held
remote control.

-01A 35

113897

www.desatech.com

available by calling 1-866-672-6040. You may also
email your request to

[e-mail].

-

113897 01

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our
standard written warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

VENT-FREE GAS BAY FRONT FIREPLACE

DESA International warrants this product to be free from defects in materials and components for two (2) years
from the date of first purchase, provided that the product has been properly installed, operated and maintained
in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled
check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to
restore this fireplace to proper operating condition and an allowance for labor when provided by a DESA Autho
rized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA
International who will provide original factory replacement parts. Failure to use original factory replacement parts
voids this warranty. The fireplace MUST be installed by a qualified installer in accordance with all local codes
and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts
that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by
improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to
repairing a defective fireplace will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE
OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED
WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2)
YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONALʼS
LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNA
TIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of
incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on
damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

For information about this warranty write:

-

-

2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com

NOT A UPC

113897-01
Rev. A
05/04
