Operating Instruction Booklet

Pneumatic Screwdriver

346-138U 396188 A
346-238U 396188 B
346-738U 396188 C
346-338U 396188 D
346-438U 396188 E

MINIMAT

2

Dear Customer:

This tool is the result of more than 75 years of experience in the design and

manufacturing of pneumatic tools for the industrial market.

We kindly ask that you read these operating instructions carefully so that you

will be able to use this tool safely and for many years to come.

If you need additional information, please contact your DEPRAG

Representative, one of our international support offices or us direct at

DEPRAG. We will be happy to answer any questions.
Please visit our web site: www.deprag.com

Content

1 SAFETY TIPS................................................................................................................3

1.1 General Safety Tips.....................................................................................................3

1.2 General Safety Tips for Pneumatic Screwdriver Spindles...........................................4

1.3 Owner Obligation.........................................................................................................5

1.4 Operator Obligation.....................................................................................................5

1.5 Warranty and Liability..................................................................................................5

1.6 Symbol Description......................................................................................................6

1.7 Observe Environmental Regulations...........................................................................7

2 DESIGNATED EQUIPMENT USE.................................................................................8

3 INSTALLATION..............................................................................................................8

4 OPERATION................................................................................................................10

4.1 Range and Exchange of Clutch Spring......................................................................11

4.2 Torque Adjustment....................................................................................................14

5 HANDLING...................................................................................................................15

6 ASSEMBLY - DISASSEMBLY......................................................................................16

6.1 Spare Parts Drawing..................................................................................................18

6.2 Dimensional Drawing.................................................................................................28

7 MAINTENANCE AND UPKEEP...................................................................................29

7.1 Wear Parts.................................................................................................................29

8 TROUBLE SHOOTING................................................................................................30

9 DELIVERY CAPACITY.................................................................................................32

10 ACCESSORIES - OPTIONAL EQUIPMENT..............................................................32

11 STORAGE..................................................................................................................34

12 TECHNICAL DATA.....................................................................................................35

13 DISPOSAL..................................................................................................................36

14 CONFORMITY DECLARATION.................................................................................37

15 SERVICE LOCATIONS AND AUTHORIZED PARTNERS.........................................38

3

1 Safety Tips

1.1 General Safety Tips

Before operating tool make sure to carefully read and
observe this operating instruction.

Generally, the operator of the equipment and/or machinery is responsible for

the equipment’s perfect condition and operation, while observing all necessary

safety regulations. The equipment and/or machinery has been constructed in
accordance with the newest level of technology while recognizing all
necessary safety-related requirements. Nevertheless, while operating the
equipment and/or machinery there is a risk of bodily harm to the operator as
well as damage to equipment and/or machinery and other property.
Operate the equipment and/or machinery only if equipment/machinery

· Is used for the task it was designed for

· is in perfect working condition and safe to use.

It is important to observe the technical data of the equipment, especially in
regards to the environmental temperatures. The designated area of use for this
equipment is clearly described in chapter Designated Equipment Use and
those requirements have to be observed as well. Prerequisite for the safe
conduct and the uninterrupted operation of the equipment, is the knowledge of
the basic safety tips and the safety regulations. Additionally, all current
regulations for a safe operational area, for accident-prevention guidelines of
electrical and mechanical installations, as well as noise suppression demands
must be observed. During any maintenance or repair work, a clean work
surface is recommended. Also, it is not recommended to either eat or smoke
during repair or maintenance. Arbitrary changes made to the equipment, which
alters its designated use, voids the warranty and cancels the manufacturers
liability.

· The tool is not insulated to protect against an electrical power surge.

· It is not recommended to use this tool in explosive hazardous

environments, unless it was specifically designed for such a use.
The operating instruction booklet, especially the safety symbols and safety tips
attached to the equipment or included in the documentation, must be observed
at all times by all persons getting into contact with the equipment.

4

1.2 General Safety Tips for Pneumatic Screwdriver Spindles

·

Disconnect the tool from the air supply, when changing bits or
when readjusting clutch.

· Do not wear wide clothing or jewelry, for they can be seized by
movable parts. Wear a hairnet if operator has long hair.

· Keep hands off the installed bit or socket.

· Injury is possible, if the driver reacts with an unexpected motion or when

driver is used with a broken bit.

· Keep hands away from holding fixture (if used). This applies especially when
loosening screws in a tight area. There is a risk of squeezing fingers b

etween

holding bracket and tool. Make sure that any bracket used is correctly
installed.

· An unexpected motion of the bit or socket may create a dangerous situation.

· Especially, when operating an impact wrench, it is possible that an injury

occurs, if the bit breaks [flying splinters].

· When using tool with bit-adapter or bit-extension (i.e. Magnetic Bitholder),
make sure, that those items are in good condition and well suited for the
application with this tool.

· When using a screwdriver stand, make sure that the tool is
securely mounted. If no stand is used, make sure to have a solid
stance to absorb the tools’ torque reaction force.

· If you are not able to absorb the torque reaction force, use a
holding fixture or side handle on the screwdriver.

· After turning-off the tool, the bit will continue to rotate [inertia].

· Do not exceed the maximum allowable air pressure. A pressure regulator

has to be installed, which regulates the air pressure before it reaches the
tool.

· Avoid pressure to fall below the minimum allowable air pressure, because
the clutch cannot shut-off safely. This may cause an increased torque
reaction force, resulting in risks to operator, tool or product.

· In case of an interruption of the air supply, make sure to wait until tool has
come to a stand still, prior to reactivating tool.

5

1.3 Owner Obligation

The owner is obliged to only let persons operate the equipment, who

· are familiar with basic work environment safety rules and accident-

preventing regulations. Also, those persons must have been instructed in

the correct use of the equipment.

· have read and understood all safety and warning notifications in the
Operating Instruction Booklet, as well as all other documentation
pertaining to this equipment.

· check and confirm at regular intervals, that a safety oriented operation is
guaranteed.

Only qualified and authorized personnel is allowed to operate, maintain and
repair this equipment. A malfunction, which impairs operator safety, must be
immediately removed.

1.4 Operator Obligation

Personnel, who is engaged in the operation of the equipment, must always be

committed to

· observe the basic safety and accident preventing regulations,

· read and observe the safety and warning notifications of this operating

instruction booklet.

1.5 Warranty and Liability

Unless otherwise specified, our “General Sales and Delivery Conditions”

apply. Warranty and liability claims in regards to persons or equipment

damages are invalid, if one or several of the following causes apply:

· Use of the equipment in a non-designated application.

· Improper installation, operation, service or maintenance of the machine.

· Operation of the machine with either defective or removed safety and

protection devices.

· Non-

observance of the requirements stated in the operating instruction

booklet

, in regards to transportation, storage, mounting, installation,

operation, maintenance and service of the equipment.

· Structural change or adjustment on the equipment to a non-

designated

use.

· Inadequate supervision of wear parts.

· Improper repair, inspection or maintenance.

·

Catastrophic cases because of a war, acts of god or other reasons which

are beyond our control.

6

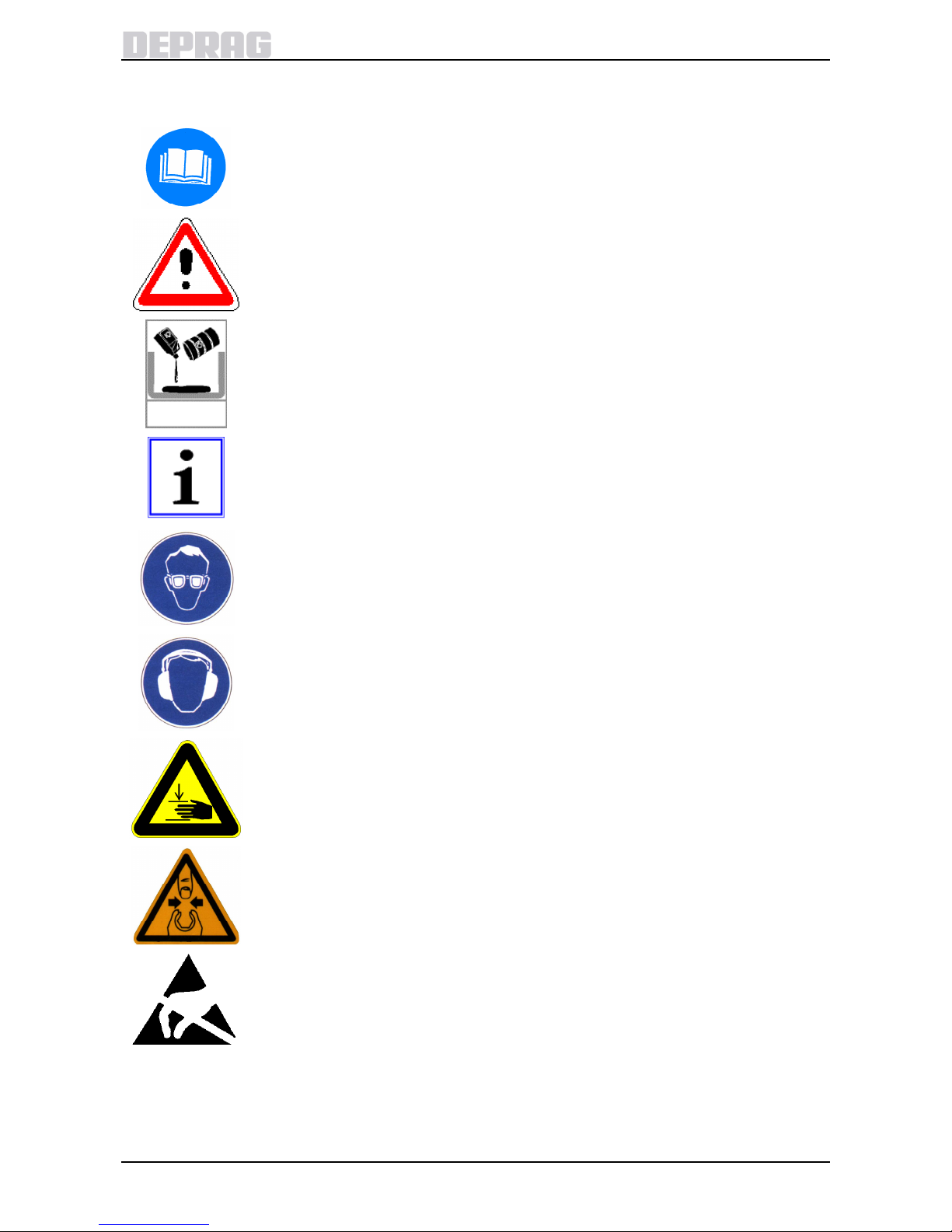

1.6 Symbol Description

Read and observe the Operating Instruction Booklet, prior
to and during operation of tool.

DANGER

Reference to an immediate danger to a person. May lead to
serious injuries or even death, if unobserved!

Properly recycle environmentally damaging grease, cooling
agents or detergents.

RECOMMENDATIONS
Important or additional information on the equipment or in the

documentation.

Use eye protection or wear safety goggles.

Wear hearing protection.

Warning against hand-injuries.
Attention: Keep away your hands from areas, which are marked

with this symbol!

Hands may be crushed, seized or otherwise injured.

ESD-protected area
Equipment may be damaged or destroyed by an electrostatic

discharge.

Waste Oil

7

Maintenance and repair on hydraulic and pneumatic equipment
may only be performed by specially trained personnel!
Disconnect equipment from air supply, prior to repair of
pneumatic or hydraulic equipment.

Provide regular preventive maintenance on hoses and airlines.
Exchange hose lines, even if there is no visible damage!
(Observe corresponding requirements of the manufacturer!)

After repair and maintenance, check the following items:

· make sure all detached and re-attached connections are
solid.

· confirm that removed covers, screens or filters were re­installed

· During disconnecting or reconnecting of an air-operated
equipment, injury may occur due to a whipping air-hose

After conclusion of maintenance or repair and prior to start of
operation, make sure to

· remove all materials, tools and other supplies needed for the
maintenance or repair from work area of the equipment

· remove leaking liquid or oils

· make sure all safety devices on the equipment work perfectly!

1.7 Observe Environmental Regulations

When working on or with the equipment, it is imperative to
observe all requirements in regards to waste-disposal and
proper recycling.
Especially during installation, repair or maintenance, water
damaging agents such as

· lubricating grease and oil

· hydraulic fluid

· cooling agents

· solvent-containing cleaning agents

must not leak into the ground or into the sewage system!
Such materials must be stored, transported, contained and
recycled in suitable containers.

8

2 Designated Equipment Use

DEPRAG MICROMAT / MINIMAT-Screwdrivers of straight shape are used for

manual torque

-

controlled assemblies, preferably for vertical applications.

3 Installation

·

Blow out air line and pressure hose, prior to connection it to the tool.

· Make sure, that all air lines have a sufficient cross-section (see technical
data) and hoses must be free of bends and kinks. The hose length should
not exceed 2 meters.

· All DEPRAG Screwdrivers, may be operated either with or without
lubricated air (see paragraph: Maintenance and Upkeep). Best results are
achieved, when machine is lubricated with 1 – 2 drops of oil per 1m3.
When operating with oilfree air, a performance reduction of up to 20%
occurs and maintenance requirements increases!

· Connect the equipment as follows:

a) for standard operation connect equipment to a maintenance unit,

consisting of Filter with condensation reservoir, Regulator and Oiler.
When choosing a maintenance unit, observe air consumption rate for
the tool (see Technical Data).

Air Consumption Thread Size

Part No.

0,05 - 0,5 m³/min ¼” 820454 A

0,15 – 1,5 m³/min

½” 820455 A

0,8 – 6,0 m³/min ¾” 821608 A

b) for the use with minimal lubrication connect to a filter-regulator

consisting of Filter with condensation reservoir and pressure regulator

Air Consumption Thread Size

Part No.

0,05 - 0,5 m³/min ¼” 822408 A

0,15 – 0,9 m³/min

3

¤8”

826981 A

0,5 – 1,5 m³/min ½” 822409 A
0,8 – 6,0 m³/min ¾” 826982 A

Each in connection with a Point-of-Use Oiler (Part No. 378077 A)

c) for oilfree operation, connect to Filter/Regulator, consisting of Filter

with condensation reservoir and Pressure Regulator.

Air Consumption Thread Size

Part No.

0,05 - 0,5 m³/min ¼” 822408 A

0,15 – 0,9 m³/min

3

¤8”

826981 A

0,5 – 1,5 m³/min ½” 822409 A
0,8 – 6,0 m³/min ¾” 826982 A

9

OUR RECOMMENDATION: The preferred lubricating method for the
screwdriver spindles mounted in fixtures, brackets, machines, etc., each in
connection with a controller, is method b) with Point-of-Use Oiler.

· Check pressure at directly on the machine. The Regulator needs to be

adjusted to an airflow between 5.0 (71 PSI) and 6.3 bar (90 PSI). A higher

pressure leads to increased wear and tear. A lower pressure may lead to
clutch not being able to correctly shut-off the motor.

In regards to air-quality according to ISO8573-1, we recommend:

CLASS RESIDUE

OF OIL

RESIDUE OF DUST RESIDUE OF WATER

Content

mg/m³

Particle

Size mm

Concentration

max. mg/m³

Dew Point

o

C

Pressure

Concentration

max. g/m³
Lubricated Air 4 5 15 8 +3 6
Dry Air 3 1 5 5 -20 0,88

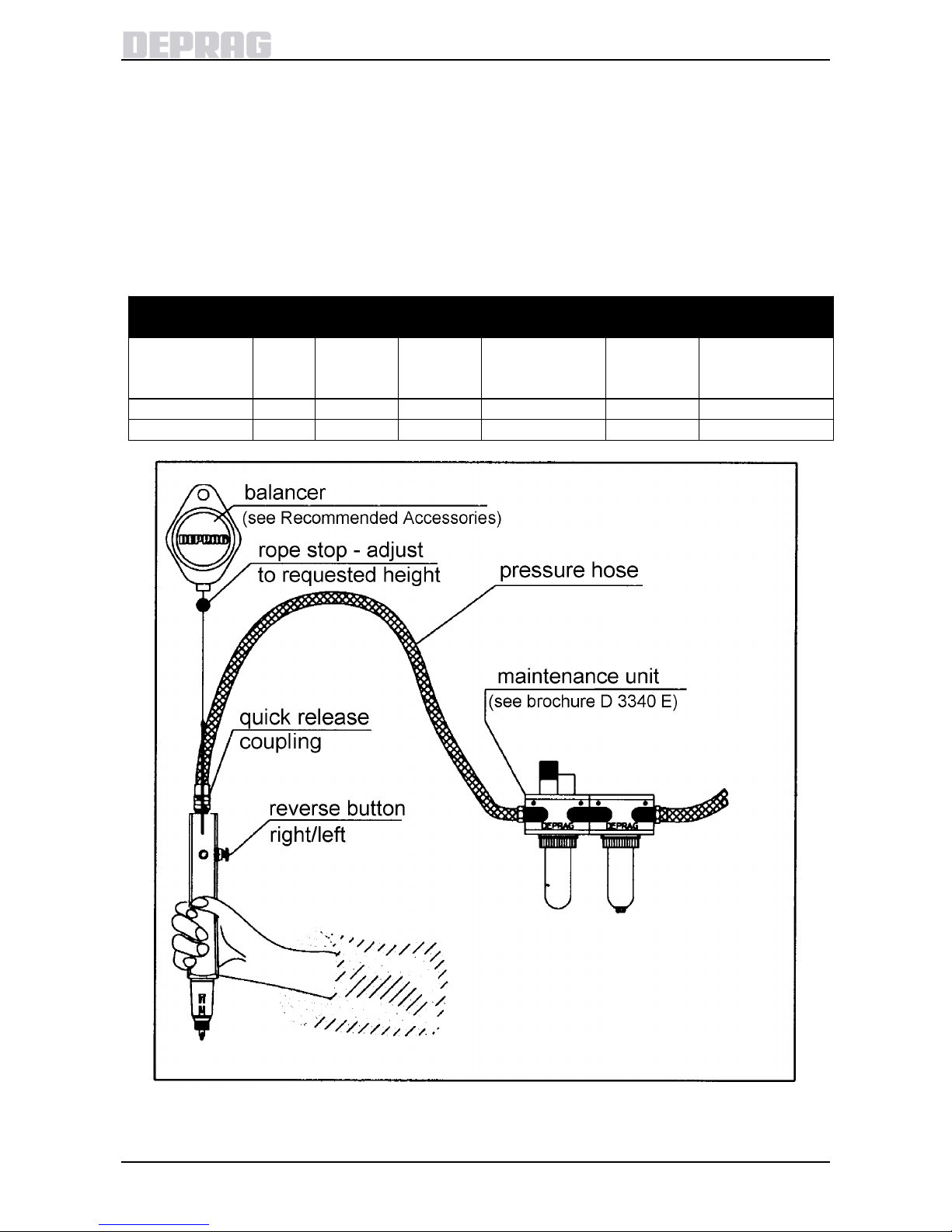

Picture: Connection of a MINIMAT-Screwdriver

10

Recommended Accessories

Balancer, spring loaded

WEIGHT CAPACITY

FROM –TO (kg)

MAX. CORD LENGTH

(m)

WEIGHT

(kg)

PART-NO.

0 – 0,5 1,6 0,5 827676 A

0,3 – 1,2 1,6 0,5 827677 A

1 – 2 1,6 0,5 827678 A
2 – 3 2 1,2 808690 A

Hose Balancer, spring loaded

WEIGHT CAPACITY

FROM - TO

(kg)

MAX. HOSE

LENGTH

(m)

HOSE

I.D.

(mm)

CONNECTION -

THREAD

WEIGHT

(kg)

PART-NO.

0,4 – 1,2 1,2 824069 A
1,2 – 2,2 1,3 824069 B
2,2 – 3,0

0,8

5

G ¼ i / G ¼ a

1,4 824069 C

Pneumatic Spiral Hose

AIR CONSUMPTION

FROM – TO

(m³/min)

HOSE

INNER-Æ

(mm)

OPERATING RANGE

(m)

PART NO.

0 – 0,1 4 0,8 – 2 346697 D
> 0,1 – 0,3 6 1 – 2,5 346697 E
> 0,3 – 0,5 6 1 – 2,5 346697 F

4 Operation

Unless otherwise requested the driver is preset to max. torque with the
strongest clutch spring installed on the clutch. Adjust clutch to the required
torque value. If necessary, exchange clutch spring. The required torque
adjustment can be checked, using a DEPRAG Torque Wrench or
Dynamometer (see DEPRAG catalogs D 3020 and D 3022). This equipment
can also be used to re-adjust the torque of the Screwdriver.

To operate the clutch, using a clutch spring which either
surpasses or falls below its specified torque range, leads to a
reduction of the torque accuracy.

Push – to start – screwdriver!
The flow pressure should not drop below 5 bar/71 PSI – reduced output!

11

Attention:
The screwdriver is furnished with a reversible motor and a
clutch torquing out in right-hand rotation (so that if you look

at the screwdriver from the air inlet side it rotates clockwise).

Attention:

Use the screwdriver 346-338U and 346-438U only with handle
or parallelogram stand.

4.1 Range and Exchange of Clutch Spring

The torque range of the DEPRAG Screwdriver is adjustable. Please see a

listing for the torque ranges of the color

-

coded springs below.

Type 346-138U, 346-238U and 346-738U

Torque Range of the individual clutch spring:

PART NO. WIRE-Æ COLOR

TORQUE "MIN." TORQUE "MAX."

353796 4,0 mm black appx . 3,5 Nm / 31 in.lbs appx. 8/9 Nm / 71/80 in.lbs
353795 3,2 mm blue appx. 2,0 Nm / 18 in.lbs. appx. 4,4 Nm / 39 in.lbs

All torque values are based on 90-PSI (6,3 bar) air pressure. Torque values
are estimated data which may differ – depending on the type of screw joint.

Type 346-338U and 346-438U

Torque Range of the individual clutch spring:

PART-NO. WIRE-Æ COLOR

TORQUE - MIN. TORQUE - MAX.

328562 5,6 mm white appx. 10,0 Nm / 89 in.lbs. appx. 24,0 Nm / 212 in.lbs.
328024 5,0 mm black appx. 6,0 Nm / 53 in.lbs. appx. 18,0 Nm / 159 in.lbs.
328025 3,2 mm blue appx. 3,0 Nm / 27 in.lbs. appx. 6,0 Nm / 53 in.lbs.
328026 2,5 mm green appx. 2,0 Nm / 18 in.lbs. appx. 4,0 Nm / 35 in.lbs.

All torque values are based on 90-PSI (6,3 bar) air pressure. Torque values

are estimated data w

hich may differ

–

depending on the type of screw joint.

To avoid loosing individual small parts, it is recommended to
only disassemble the machine on top of a flat work surface.

12

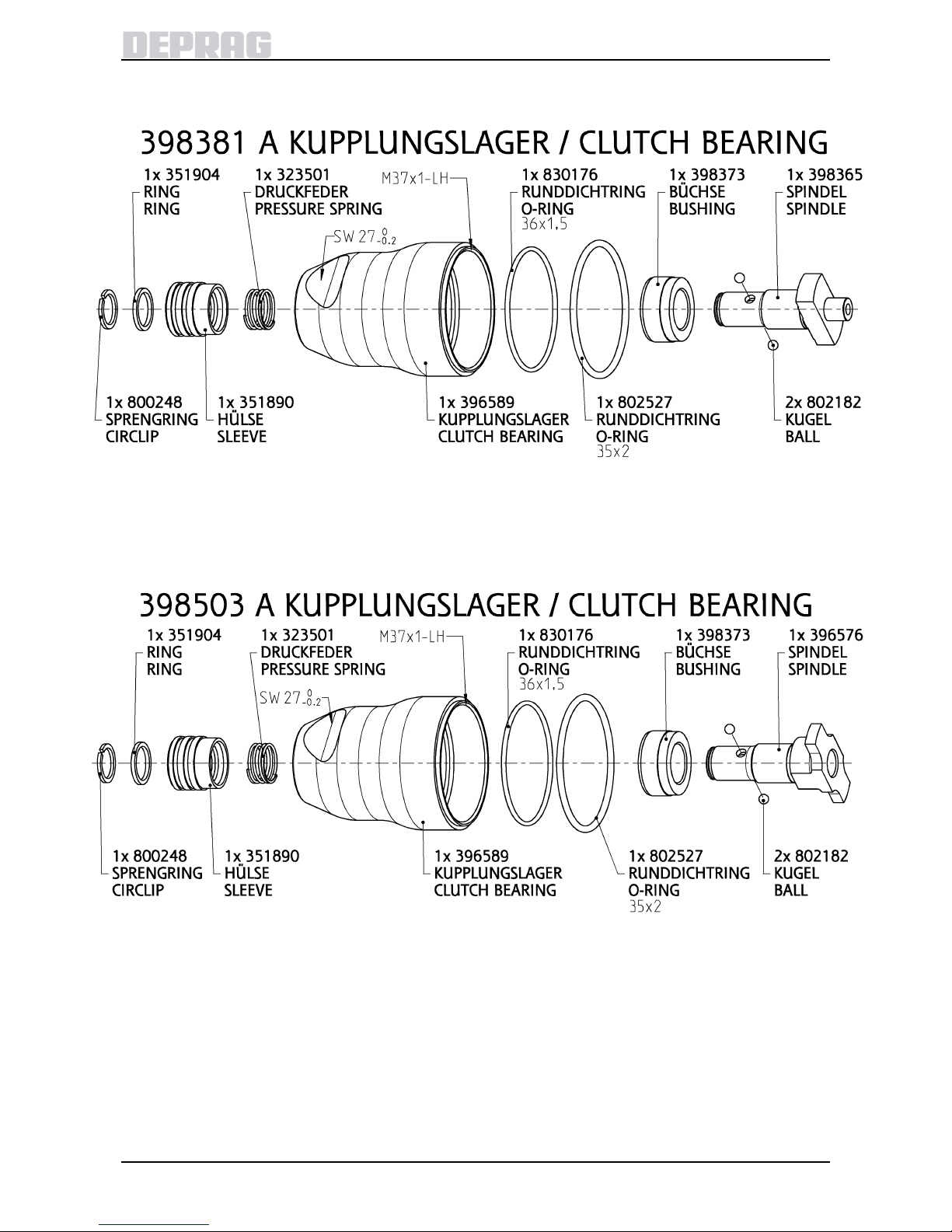

Exchange of clutch spring (see picture)

1. Disconnect screwdriver from air supply.

2. Unscrew the clutch bearing complete with the spring sleeve (Accessories ­Optional equipment) (left-hand thread).

3. Take out the complete clutch.

4. For screwdriver version 346-1/2/738U (clutch 389748 B/D): Insert the
supplied hand screwdriver 326240 into the half-round bore of the lock
ring and turn hand screwdriver clockwise, until the adjustment nut comes
off.
For screwdriver version 346-3/438U (clutch 396030 B): Slide the sup­plied spanner 805491 (AF 11) over the hex of the clutch shaft and un­screw the adjustment nut by means of spanner 800408 (AF 19).

5. Remove lock ring.

6. Exchange clutch spring and reassemble clutch in reverse order.

7. Insert clutch into the clutch bearing and tighten clutch bearing complete
with spring sleeve to the DEPRAG-Screwdriver (left-hand thread).

Attention:

The claw of the clutch must engage with the claw of the spindle
(in clutch bearing ).

The hex AF 11 of the clutch shaft must engage with the hex of
the spindle (in gearing).

Picture: Exchange of clutch spring - screwdriver type 346-1/2/738U (clutch 389748 B/D)

clutch spring half-

round

bore

adjustment nut

13

Picture: Exchange of clutch spring – screwdriver type 346-3/438U (clutch 396030 B)

8. An external torque adjustment of the clutch is again possible (see section
Torque Adjustment).

Make sure to screw adjustment (adjusting) nut onto clutch bearing

until one line of the thread is visible.

clutch spring

adjustment nut

hex of the
clutch shaft

14

4.2 Torque Adjustment

For an external torque adjustment use the following steps:

1. Disconnect screwdriver from air supply

2. For screwdriver version 346-1/2/738U (clutch 389748 B/D): Insert the
supplied hand screwdriver 326240 through the slot on the motor housing
into the half-round bore of the lock ring.
For screwdriver version 346-3/438U (clutch 396030 B): Push the sup­plied adjustment wrench 337691 through the slot on the motor housing
into the bore of the adjustment nut.

3. By turning the hand screwdriver resp. adjustment wrench clockwise (-),
the torque is reduced, and if turned counter-clockwise (+), the torque is
increased.

Picture: Torque Adjustment

Screwdriver version:
346-1/2/738U

Clutch:
389748 B/D:

half-round bore for
hand screwdriver 326240

Screwdriver version:
346-3/438U

Clutch:
396030 B:

bore for

15

5 Handling

The operation of the DEPRAG MINIMAT-Screwdriver is very simple. Grip the
Screwdriver as illustrated on the picture “Connection of a DEPRAG MINIMAT-
Screwdriver”.

As soon as you put the bit onto the screw and slightly push the screwdriver
down, it will start running. After reaching the preset torque, the automatic
clutch will disengage and turn off the Screwdriver. The Screwdriver will be
ready for the next operation after lifting it off the screw.

Although the reaction torque you will notice is rather low due to the
ergonomically shaped handle and the immediate effect of the torque-out clutch,
we highly recommend to use an additional torque support, if torque is higher
than 5 Nm (such as a linear stand or lateral handle as per brochure D 3340 E).

The operating direction of reversible Screwdriver models can be reversed by
actuating the reverse button, in order to loosen tightened screws. Tool will also
start after pushing it down. The clutch will be locked in the reverse direction. An
increased reaction torque may occur in the case of screws are hard to tighten
(such as screws with defective thread). The reverse button can be locked by
turning.

Picture: Reversal

· Always disconnect the Screwdriver from air supply prior to changing bits, to
avoid the unintentional start of the Screwdriver, which may result in injuries.

· The screwdriver is equipped with a quick change chuck.

· After pulling the sleeve, the bit may be removed or inserted.

· Make sure to use perfect bits with DIN 3126 – E6,3 (1/4”) external hexagon

end only.

ATTENTION:
Screwdriver will immediately start running once the bit is
pushed, and may cause severe injuries.

16

6 Assembly - Disassembly

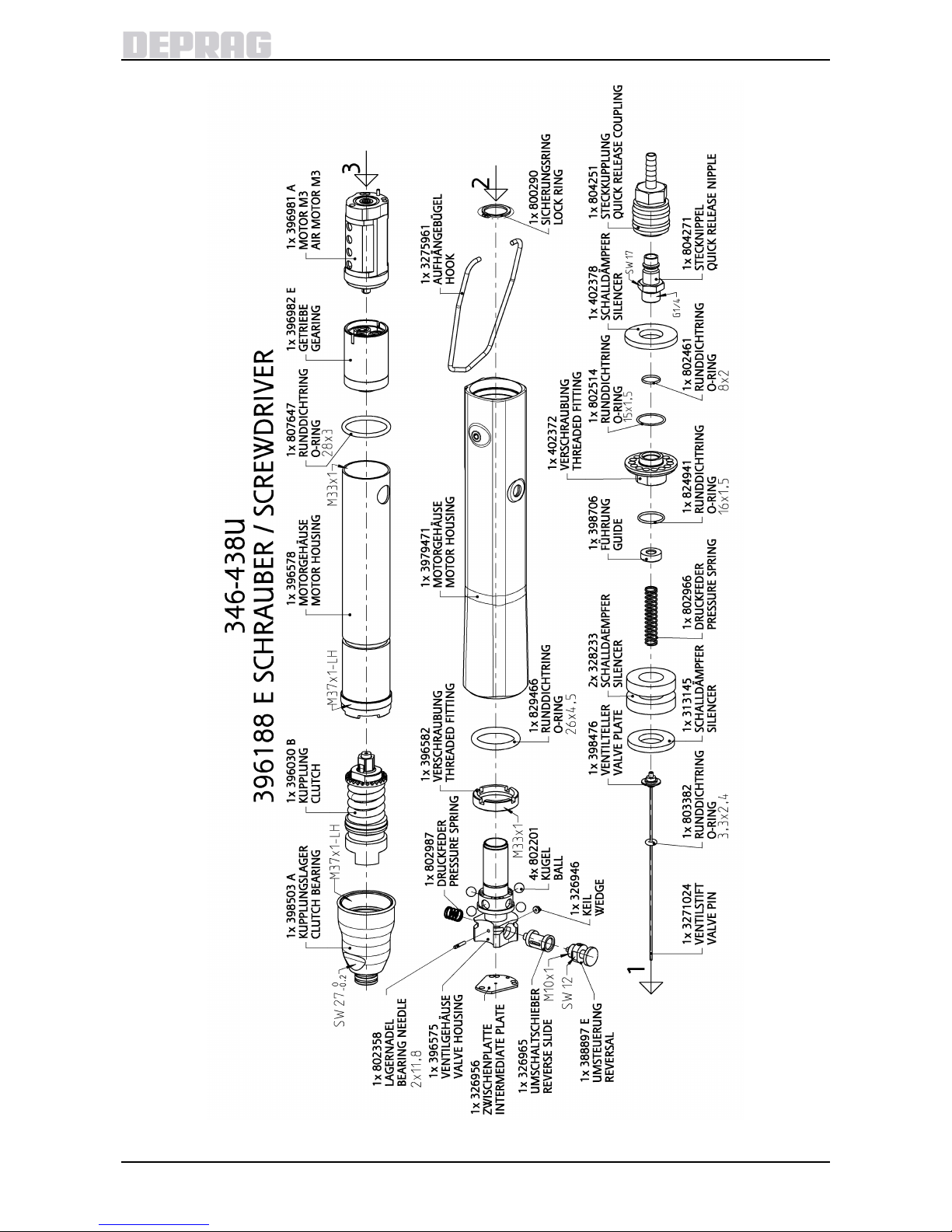

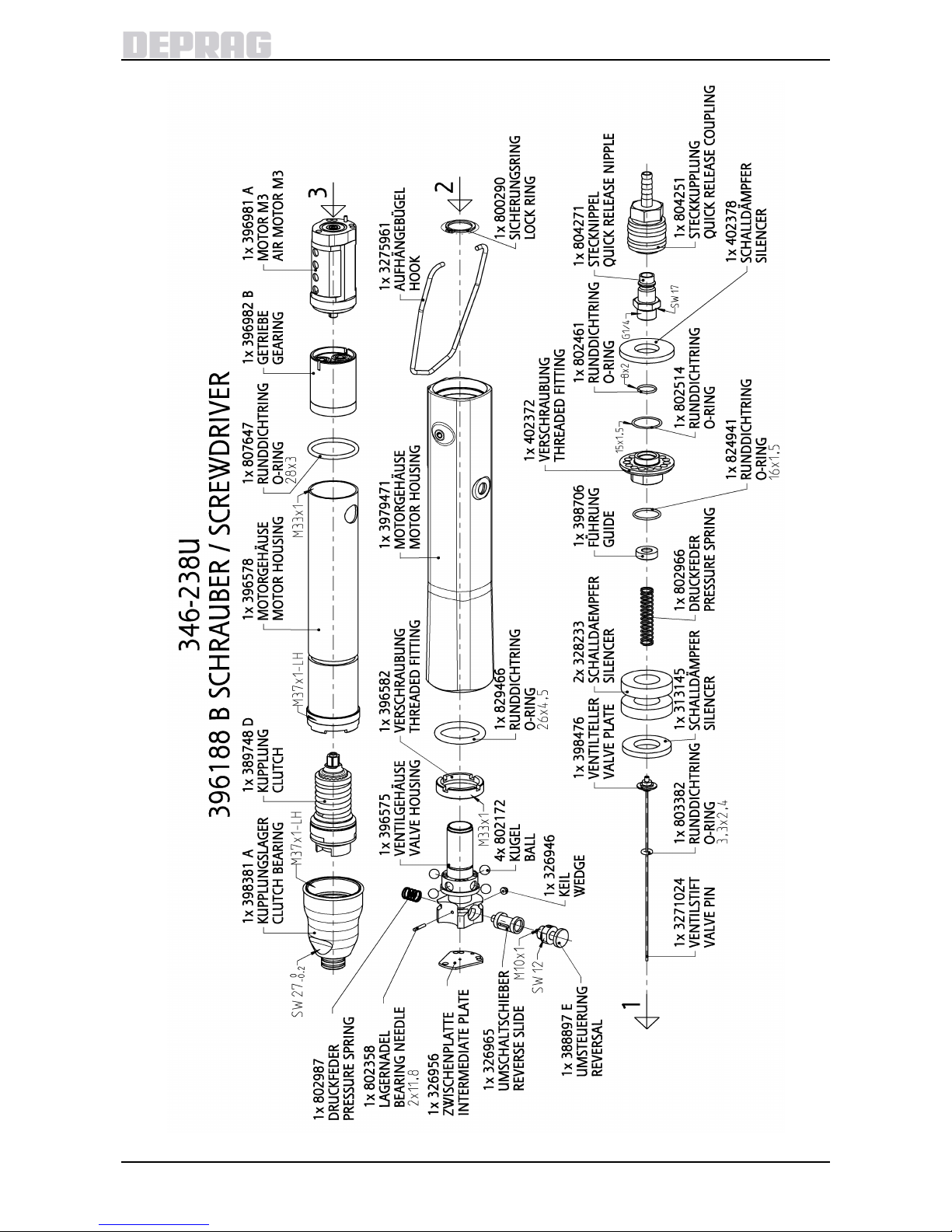

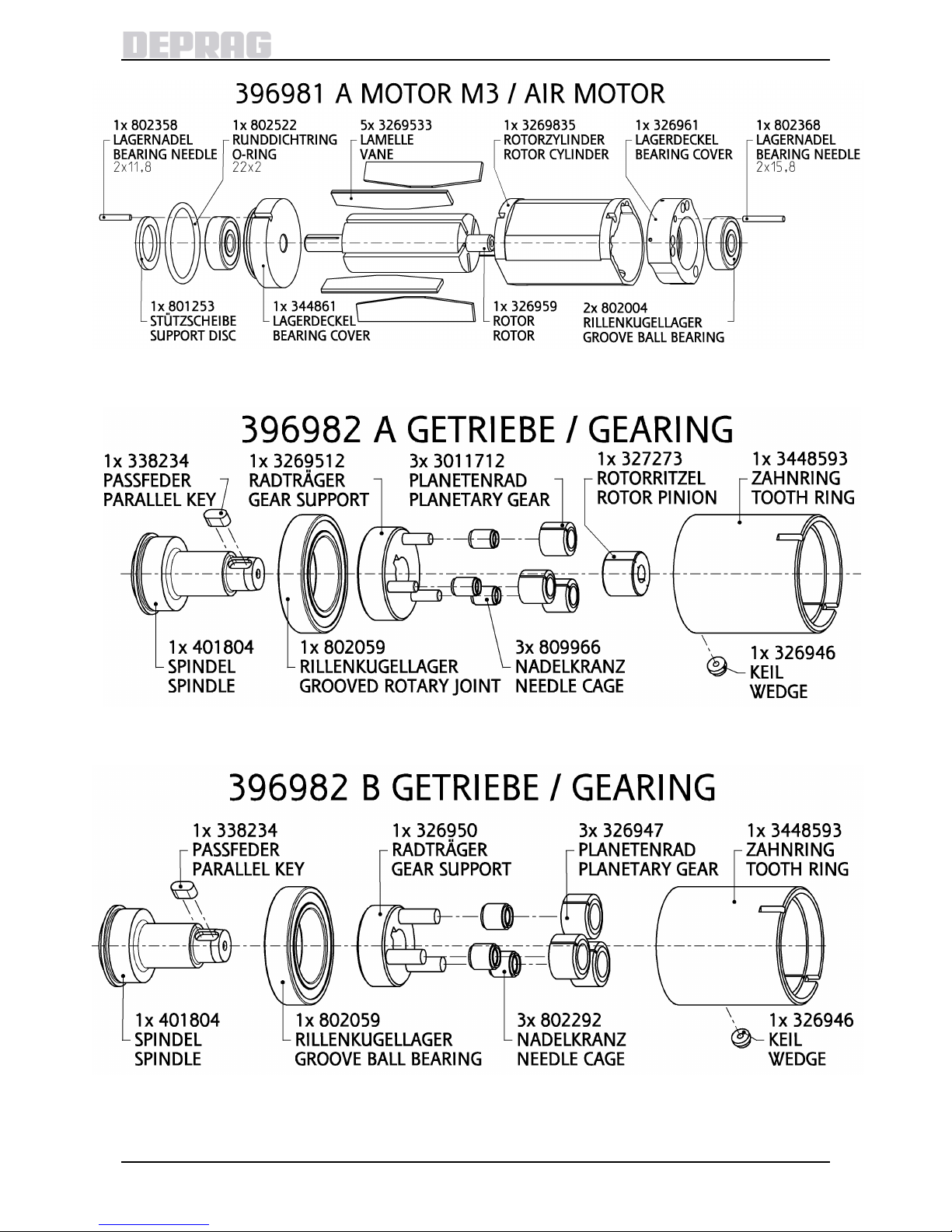

Disassembly: (see Spare Parts Drawing)

Prior to disassembly, disconnect equipment from air
supply! Only experienced maintenance personnel may
assemble or disassemble this equipment.

After repair or maintenance, verify that equipment runs to specification!

Principally, use only DEPRAG original spare parts. Otherwise, a reduction
in equipment power-output and an increased maintenance-requirement
occurs. If NON-DEPRAG parts are installed, DEPRAG is justified to void
any existing warranty and liability obligations.

Attention:

Never clamp motor housing into a vice, without the usage of the

protective chucking jaws, since damage to motor-housing and
internal parts is unavoidable.

Attention:

Motor- and gearing parts may be damaged if dropped!

For disassembly proceed in the sequence described below:

1. Disconnect the machine from air supply.

2. Unscrew clutch bearing (AF 27, left-hand thread) complete with spring
sleeve (Accessories - Optional equipment).

3. Take out the complete clutch.

4. Unscrew the quick release nipple 804271 (AF 17) and remove the o-ring
802514 and the silencer 402378.

5. Clamp the exterior motor housing 3979471 with chucking jaws 462506
into a vice.

6. Unscrew threaded fitting 402372 by means of pin wrench 462581.

7. Pull out the guide 398706 and the silencers 328233 and 313145.

8. Loosen the threaded fitting 384731 (AF 12) by means of key 462125 and
take off the complete reversal 388897 E.

9. Slide the complete motor- and gearing package out of the exterior motor
housing 3979471 in direction of the clutch.

10. Remove the 4 balls 802172 resp. 802201 from the valve housing 396575
and take off the o-ring 829466.

17

11. Unscrew threaded fitting 396582 from motor housing 396578 by means
of pin wrench 462325.

12. Remove both wedges 326946 from motor housing 396578 by means of
assembly pin 460744.

13. Slide the complete motor- and gearing package out of the motor housing
396578 in direction of the air inlet.

a. Clamp rotor cylinder into fixing device.
b. Pull off shaft-side bearing cover from rotor.
c. Remove rotor cylinder.

NOTE

Exchange only complete sets of vanes.

d. Remove vanes and check them thoroughly. Vanes that are too narrow

or damaged have to be replaced in sets.
e. Pull off air connecting-side bearing cover from rotor.
f. Press the two ball bearings from the bearing covers.

Minimum vanes width should be 8 mm.

Assembly:

Use the DEPRAG Grease 807293 (100-g tube) to grease the
ball bearing, needle bearing and gearing parts prior to
reassembly.

For assembly proceed logically in reverse order with reference to disassem­bly!

Special Repair Tools (Optional Equipment)

NAME PART NO.

Arbor (to disassemble bearing cover with groove ball bearing) 462330
Press-in device (for bearing cover + rotor) 462203
Assembly pin (for wedge 326946) 460744
Arbor (to assemble circlip 800248 onto spindle) 461292
Chucking jaws (for exterior motor housing 3979471) 462506
Pin wrench (for threaded fitting 396582) 462325
Pin wrench (for threaded fitting 402372) 462581
Key (for threaded fitting 384731) 462125
Assembly arbor
(for assembly of bearing needle 802332 in clutch shaft 331562)

460405

Fixing device (for rotor cylinder) 460475/1

18

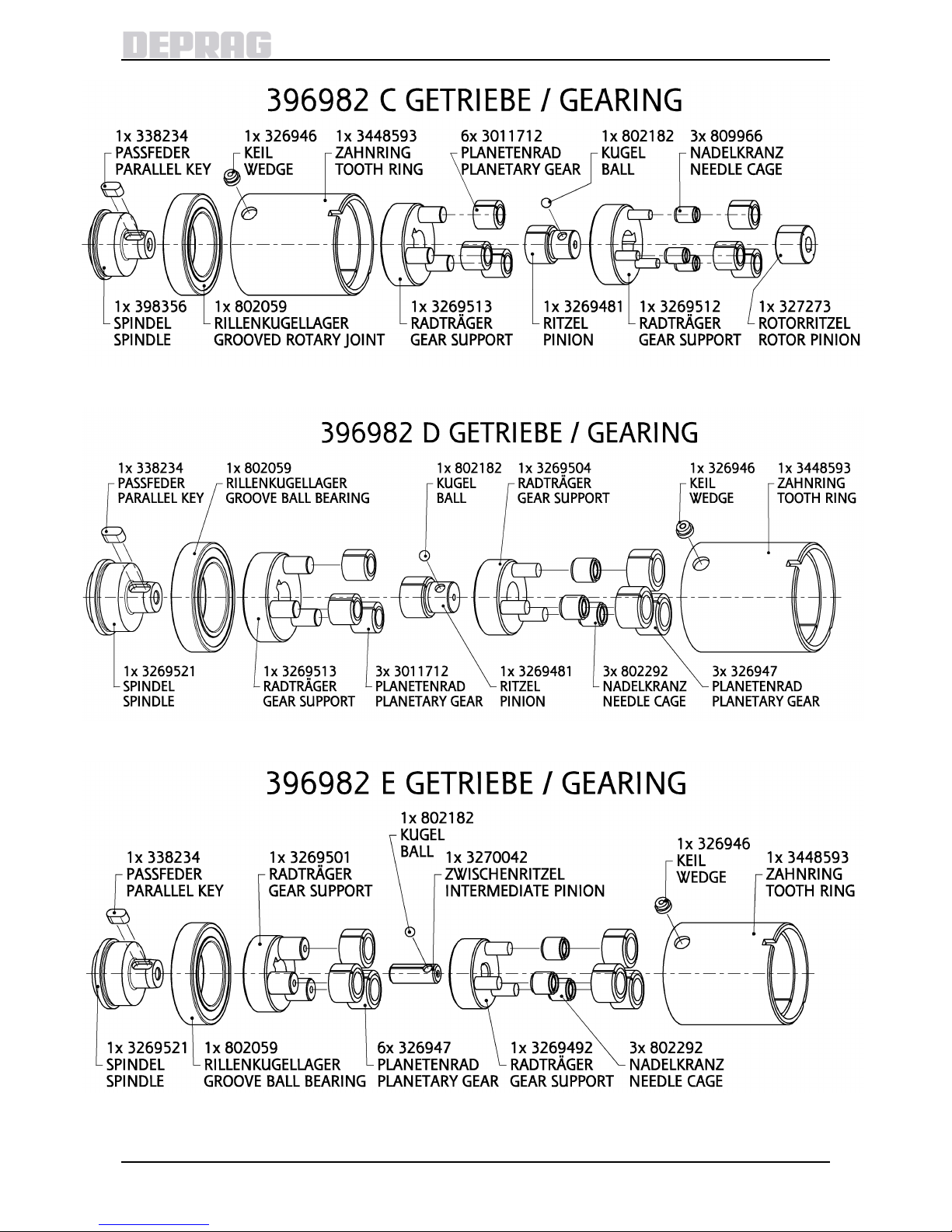

6.1 Spare Parts Drawing

19

20

21

22

23

24

25

26

27

28

6.2 Dimensional Drawing

29

7 Maintenance and Upkeep

Testing and maintenance can be provided by Operator, disassembly and re­assembly of the DEPRAG Screwdriver Spindle should be done by
experienced maintenance personnel. Incorrect assembly or disassembly can
lead to injury of an operator and damage of the tool.

The tool requires little maintenance. If the following service rules are
observed, the tool will have a long life expectancy and will remain in a safe
condition.

· Check tool on a regular basis for external damage.

· Check your maintenance unit on a regular basis, make sure that sufficient

oil is in the lubricator (if lubrication is used) and that the adjustment is
correct. We recommend for your lubricator DEPRAGOL, part 790081 E.

· After cleaning, the gearing parts have to be greased prior to re-assembly,
preferably with Grease, part 807293.

· After assembly fill 2 – 3 drops of DEPRAGOL into the air inlet nipple.

· If tool are being used with lubrication, we recommend to have tools tested

and cleaned every 12 months (single shift).

· If tools are being used without lubrication, we recommend to have tools
tested and cleaned every 6 months (single shift).

· Exchange broken or worn inserting tools immediately, for they can cause
injury to the Operator.

· If tool malfunctions, we recommend to send the machine to DEPRAG.

7.1 Wear Parts

QUANTITY NAME PART NO.

2 Silencer 328233
5 Vane 3269533

30

8 Trouble Shooting

In the case of a malfunction, check and observe all instructions contained in
this technical documentation. If necessary, adjust equipment as needed.

Possible faults and their causes are shown below:

ERROR REASON SOLUTION

Screwdriver does
not start

No air, Shut-Off valve
is closed

Open Shut-Off valve

Valve pin is too short

or missing

Test valve pin length according to
picture: Actual size of valve Pin
and replace valve pin, if
necessary

Clutch is not engaged Mount clutch correctly - refer to:

Range- and exchange of clutch

spring
Insufficient
Power

Air pressure too low Minimum air pressure should be

90 PSI for maximum performance
Restriction in air hose Remove bends or other

restrictions
Valve Pin too short Check required length of valve pin

according to picture: Actual Size

of Valve Pin. If needed, exchange

valve pin.
Hose I.D. is too small Use required hose I.D.
Screen Support /

Silencer clogged

Clean screen support / silencer or

exchange with new one
Vanes are worn Exchange vanes
Driver does not
shut-off or
ratchets

Air pressure is too low
for required torque
value

Maintain air pressure of 90 PSI

Valve Pin is too long Check length of valve pin, either

shorten or replace valve pin

(picture: Actual Size of Valve Pin)
If necessary, please send tool to DEPRAG for service.

31

Type 346-138U, 346-238U and 346-738U

Type 346-338U and 346-438U

Picture: Actual Size of Valve Pin

Attention:

When connecting to compressed air supply valve pin may be
catapulted out which may cause serious injuries.
When verifying the actual size of the valve pin, make sure
N O T to hold the screwdriver directed towards yourself or any
other person.

Verify the actual size only with compressed air connected!

32

9 Delivery Capacity

Please check the delivery capacity in regards to its completeness.

QUANTITY NAME PART NO.

1 Operating Instruction Booklet 012457EN
1 Screwdriver 396188 A/B/C/D/E
1 Spanner AF 11 805491 (only for type 346-3/438U)
1 Spanner AF 19 800409 (only for type 346-3/438U)
1 Adjustment wrench 337691 (only for type 346-3/438U)
1 Hand screwdriver 326240 (only for type 346-1/2/738U)
1 Quick release coupling 804251
1 set of Clutch spring See chapter: Range and Exchange

of Clutch Spring

10 Accessories - Optional equipment

NAME PART NO.

Spring sleeve cpl. (without screw suction) 364672 A
Spring sleeve cpl. (with screw suction) 364672 C
Exhaust hose 398703 A
Support ring 398704 A
Screwdriver adaption (for linear stand) 400833 A
Prism clamping device (for linear stand) 400833 E

Operating Screwdriver with a Finder:

Installation of the Finder (optional equipment):

·

Remove screw-cap (left-hand thread) from spring sleeve

·

Insert finder and spring into spring sleeve

·

Re-attach screw-cap onto spring sleeve (left-hand thread) and attach

complete spring sleeve package to Screwdriver

Picture: Spring sleeve cpl.364672 A with finder and bit

33

INFORMATION

Finder and bit are not included in the delivery capacity of the

spring sleeve.

You will find suitable inserting tools

· in our brochure D 3320 E or

· on the internet as follows: www.deprag.com ® Screwdriving

Technology® Selection program: Inserting tools

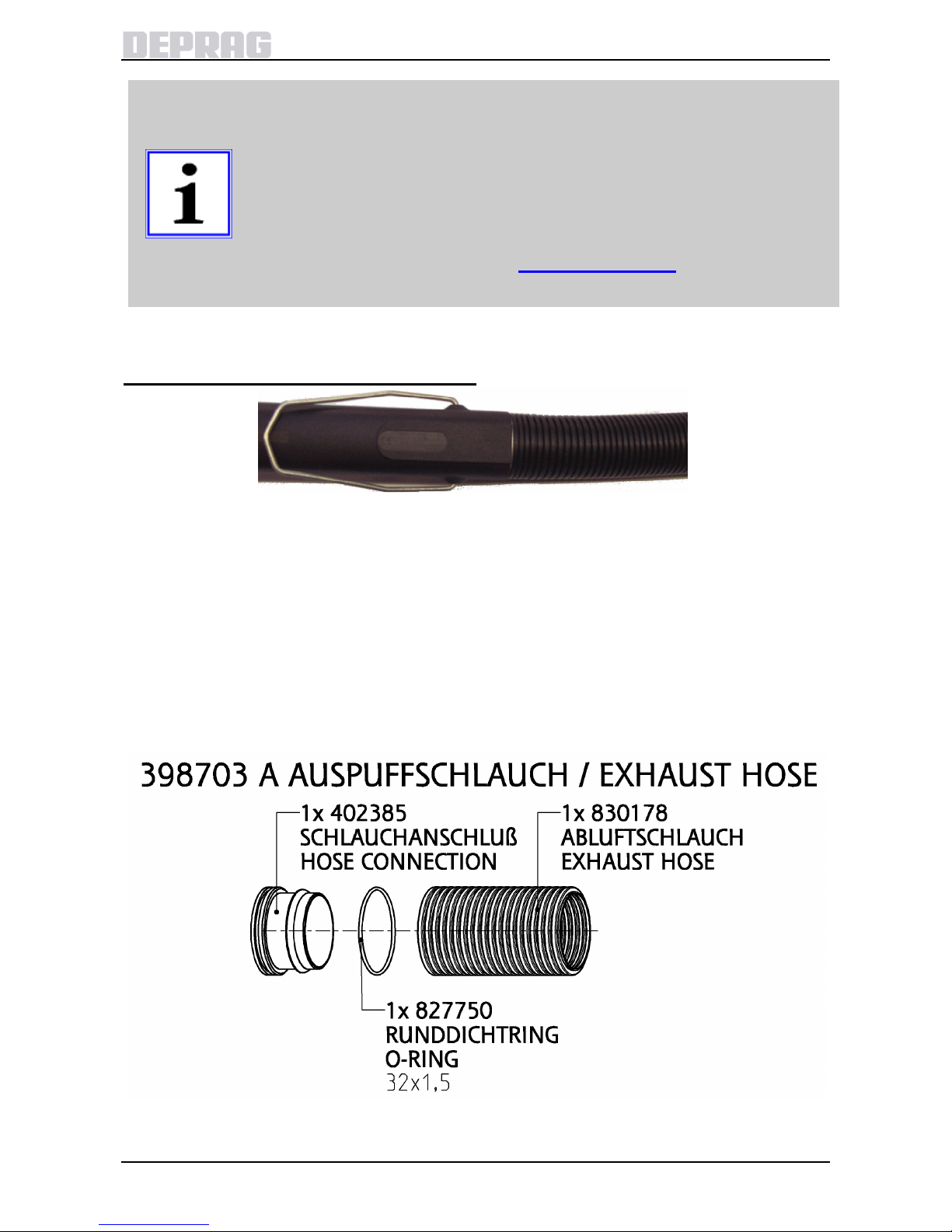

Assembly of exhaust hose 398703 A

A complete exhaust hose #

398703 A is available as an optional

item. Please

mount exhaust hose as follows:

1. Disconnect the screwdriver from air supply.

2. Remove the quick release nipple 804271 (with o-ring 802461) and the
silencer 402378.

3. Assemble the hose connection 402385 with o-ring 827750 onto the
screwdriver and tighten it with the quick release nipple 804271 (socket
wrench AF 17).

4.

Slide the exhaust hose over the hose connection

402385.

34

Assembly of support ring 398704 A

For better driver support and to allow an increased down-pressure force, the
support ring may be installed as follows:

1. Disconnect the screwdriver from air supply.

2. Unscrew the complete clutch bearing (left-hand thread).

3. Remove the o-ring from the clutch bearing.

4. Assemble the supplied o-ring 824932 into the groove of the support ring.

5. Mount the support ring and tighten the complete clutch bearing with the

support ring to the Screwdriver.

11 Storage

Unused machines should be stored in a dry, locked area.

35

12 Technical Data

Manufacturer DEPRAG SCHULZ GMBH u. CO.
Address Kurfürstenring 12 - 18 Postfach 1352
D-92224 Amberg D-92203 Amberg
Phone [phone]
Fax [phone]

Technical Data:

TYPE 346-138U 346-238U 346-738U

Part No.

396188 A 396188 B 396188 C

Screws (up to)

M4 M5 M6

Drive hex. female (DIN 3126)

F 6.3 (1/4")

Weight (kg/lbs)

1.36 / 3 1.36 / 3 1.5 / 3.3

Air pressure (bar/PSI)

6.3 / 90

Hose I.D. for air supply (mm/in.)

LW 6 / ¼“

Torque min. (Nm/in.lbs)

1 / 9 2 / 18 2 / 18

Torque, soft pull-up max.
(Nm/in.lbs)

3 / 27 4.5 / 40 7 / 62

Torque, hard pull-up max.
(Nm/in.lbs)

3 / 27 5.5 / 49 8 / 71

Speed, unloaded (rpm)

4200 2300 1200

Noise level (dB(A))

74

Vibration (m/s²)

< 2.5

Air Consumption (m³/min/cfm)

0.4 / 14

Quick change chuck, mounted

yes

TYPE 346-338U1) 346-438U1)

Part No.

396188 D 396188 E

Screws (up to)

M6 M8

Drive hex. female (DIN 3126)

F 6.3 (1/4")

Weight (kg/lbs)

1.5 / 3.3

Air pressure (bar/PSI)

6.3 / 90

Hose I.D. for air supply (mm/in.)

LW 6 / ¼“

Torque min. (Nm/in.lbs)

2 / 18

Torque, soft pull-up max. (Nm/in.lbs)

12 / 106 20 / 177

Torque, hard pull-up max. (Nm/in.lbs)

12 / 106 20 / 177

Speed, unloaded (rpm)

650 320

Noise level (dB(A))

74

Vibration (m/s²)

< 2.5

Air Consumption (m³/min/cfm)

0.4 / 14

Quick change chuck, mounted

yes

1

)Use screwdriver only with additional handle or parallelogram stand.

36

13 Disposal

Unused machines should be stored in a dry, locked area. Disassemble the
machine for the required disposal complete. Observe local and environmental
regulations for the separation and recycling of materials.

Recycle waste oil to avoid environmental contamination!

Waste Oil

37

14 Conformity Declaration

EC-Conformity Declaration according to the EC-Machine-Guidelines

98/37/EC, Amendment IIA

We,

DEPRAG SCHULZ GMBH & CO.
PO Box 1352
D-92203 Amberg

hereby confirm, that the design of the

screwdriver

346-138U

346-238U

346-738U

346-338U

346-438U

conforms to the following, relevant regulation:

- EC-Machine-Guidelines, Version 98/37/EC, Amendment No. 1 and No.

2.2.

Applicable Standard:

- EN ISO 12100-1 and 12100-2

Amberg,

19.10. 2007

38

15 Service Locations and Authorized Partners

ALGERIA

EP-Technology Trading S.U.A.R.L.

29 Rue Ahmed Tlili - ZI Borj Cedria
TN-2055 Bir el Bey Tunis - Tunisia
Tel.: +216/ 79 / 412.889
Fax: +216/ 79 / 412.966
e-mail: [e-mail]
www.ep-technologie.com

ARGENTINA

ERIN s.a.

Av. Constituyentes 5751
RA-1431 Buenos Aires
Tel./Fax: +54 (0) 11 / 4573.1313

AUSTRIA

Amersin Olschinsky GmbH

Kastnerweise 1
A-2441 Mitterndorf a.d. Fischa
Tel.: +43 (0)1 / 8 69 87 66
Fax: +43 (0)1 / 8 65 16 97
Internet: http://www.amersin.at
e-mail: [e-mail]

AUSTRALIA

ASSEMBLY TECHNOLOGIES P/L

Postal address

PO Box 4918
North Rocks, NSW 2119

Delivery address

Unit 32, 287 Victoria Rd.
Rydalmere, NSW 2116
Tel.: 0061 / 1300 76 92 90
Fax: 0061 / 2 / 8569 1721
e-mail: [e-mail]

BELGIUM

AWP

Parelhoenstraat 24
9080 Lochristi
BELGIUM
Tel.: [phone]
Mobil: [phone]
Fax: [phone]
Internet: http://www.awp-p.com
e-mail: [e-mail]

BRAZIL

METALFEMA Ltda.

Rua Saõ Pedro, 786
Saõ Leopoldo – RS –
BRAZIL
ZIP 93.010-260
Tel.: +55 (0) 51 / 3592.4050
Fax: +55 (0) 51 / 3590.1856
Internet: http://www.metalfema.com.br
e-mail: [e-mail]

PR CHINA

DEPRAG China

DEPRAG Assembly Technologies
(Suzhou) Co., Ltd.
No. 111, Hong Ye Rd, Blk. 4 Unit D
Suzhou 215001, P.R. China
Tel.: +86 (0) 512 – 6251 2500
Fax: +86 (0) 512 – 6251 2700
Internet: www.deprag.com.cn
e-mail: [e-mail]
e-mail: [e-mail]

CZECHIA/SLOWAKIA

DEPRAG CZ a.s.

ul. T.G. Masaryka 113
CZ -50781 Lázně Bělohrad
Tel.: +420 493 / 771 511
Fax: +420 493 / 771 623
Internet: http://www.deprag.com
e-mail: [e-mail]

DENMARK

Herstad + Piper K/S

Jernholmen 48C
DK-Hvidovre
Tel.: [phone]
Fax: [phone]
Internet: http://www.herstad-piper.dk
e-mail: [e-mail]

EGYPT

EP-Technology Trading S.U.A.R.L.

29 Rue Ahmed Tlili - ZI Borj Cedria
TN-2055 Bir el Bey Tunis - Tunisia
Tel.: +216/ 79 / 412.889
Fax: +216/ 79 / 412.966
e-mail: [e-mail]
www.ep-technologie.com

ESTONIA

Pneumacon OY

Kankurinkatu 4 – 6
FI-05800 Hyvinkää
Tel.: +358 (0) 10 / 7781 400
Fax: +358 (0) 10 / 7781 401
Internet: http://www.pneumacon.fi
e-mail: [e-mail]
e-mail: [e-mail]

Tallinn office:
PK 2841, Kose PK
EE-12001 Tallinn
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

FINLAND

Pneumacon OY

Kankurinkatu 4 – 6
FI-05800 Hyvinkää
Tel.: +358 (0) 10 / 7781 400
Fax: +358 (0) 10 / 7781 401
Internet: http://www.pneumacon.fi
e-mail: [e-mail]
e-mail: [e-mail]

FRANCE

DEPRAG S.A.R.L.

30 Z.I. du Ried
F-67590 SCHWEIGHOUSE sur Moder
Tel.: +33 388 / 06.14.17
Fax: +33 388 / 93.01.08
e-mail: [e-mail]

GERMANY

Werk Amberg

Kurfürstenring 12-18,
D-92224 Amberg
Postfach 1352,
D-92203 Amberg
Tel.: [phone] / 3 71-0
Fax: [phone] / 3 71-1 20
Internet: http://www.deprag.com
e-mail: [e-mail]

GREAT BRITAIN

DEPRAG Ltd.

Unit B4, Pegasus Court
Ardglen Industrial Estate
Whitchurch
Hants
RG28 7BP
Tel.: [phone]
Fax: [phone]
Internet: www.deprag.co.uk
e-mail: [e-mail]

HUNGARY

ADLER ‘91

Export/Import Kereskedelmi
Takarék u. 18/B
H-8800 Nagykanizsa
Tel./Fax: +36 (0) 93 / 314 633
e-mail: [e-mail]

Nóniusz Tool Trading House Ltd.

Köbányai út. 47/6
H-1101 Budapest
Tel.: +36 (0) 1 / 260 030 30
Fax: +36 (0) 1 / 260 060 83
Internet: http://www.noniusz.hu
e-mail: [e-mail]

INDIA

LEAPTECH Corporation
812 Cosmos, Sector – 11
CBD Belapur
New Mumbai – 400 614
Tel.: +91 / 22 / 2756.2822/2849
Fax: +91 / 22 / 2756.2881
Internet:www.leaptechcorp.com
e-mail: [e-mail]

DELHI office:
C-332, Sector – 10
Noida – 201 301
Tel.: +91 / 120 / 253.1393
Fax: +91 / 120 / 253.1060

BANGALORE office:
# 53, Anchor
Suddagundapalaya
C.V. Raman Nagar
Bangalore – 560 093
e-mail: [e-mail]

IRAN

FARA SANAT Co.

No. 117, Abzar & Yaragh passage
Postcode 1136748173
Tehran
Tel.: +98 (0) 21 / 673.2918 / 670.6340
Fax: +98 (0) 21 / 673.4757

NACCARSON AIR TOOLS Co., Ltd.

Azadi Ave. No. 625
IR-Tehran 14 588
Tel.: +98 (0) 21 / 66006602 + 66015656
Fax: +98 (0) 21 / 66009451

IRELAND

Production Equipment Ltd.

Riverside Commercial Estate
IRL-Galway
Tel.: +353 (0) 91 / 745 100
Fax: +353 (0) 91 / 751 299
e-mail: [e-mail]

39

ITALY

ATAX S.r.l.

Via Carolina Romani, 23
I-20091 Bresso/Mi
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
Internet: www.atax.it

JAPAN

NIPPON GESCO Ltd.

P.O. Box 255 Kyobashi Tokyo
Ginza Matsuyoshi Bldg.
17 – 8, 7-Chome, Ginza,
Chuo-Ku, Tokyo
Tel.: +81 (0) 3 / 3542.2400
Fax: +81 (0) 3 / 3542.2420
e-mail: [e-mail]

JORDAN

EP-Technology Trading S.U.A.R.L.

29 Rue Ahmed Tlili - ZI Borj Cedria
TN-2055 Bir el Bey Tunis - Tunisia
Tel.: +216/ 79 / 412.889
Fax: +216/ 79 / 412.966
e-mail: [e-mail]
www.ep-technologie.com

KOREA (South)

Handtools
DONG WON POWER-TECH.INC.

108-10 Moonjung-Dong
Songpa-Ku
Seoul, Korea
Tel.: +82 (0) 2 / 409.1344
Fax: +82 (0) 2 / 409.1345
e-mail: [e-mail]

Screwdriving / Assembly Technology
Fatec Co.Ltd.

#717 LG Palace B/D
165-8 Dongkyo-dong
Mapo-gu Seoul,
Korea
Tel.: +82 (0) 2 / 2 688.2152
Fax: +82 (0) 2 / 2 688.2893
Internet: www.fatec.co.kr
e-mail: [e-mail]

LITHUANIA

HIDROTEKA

Engineering Services
Chemijos 29E
LT- 51333 Kaunas
Tel.: 00370 / 37 / 452.969
Fax: 00370 / 37 / 760.500
Internet: http://www.hidroteka.lt
e-mail: [e-mail]

LUXEMBOURG

AWP

Parelhoenstraat 24
9080 Lochristi
BELGIUM
Tel.: [phone]
Mobil: [phone]
Fax: [phone]
Internet: http://www.awp-p.com
e-mail: [e-mail]

MALAYSIA

FI INNOVATION RESOURCES SDN.BHD

175, MK D Jalan Bahru
11000 Balik Pulau, Penang
MALAYSIA
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
e-mail: [e-mail]
Internet: www.geocities.com/farsberg

MOROCCO

EP-Technology Trading S.U.A.R.L.

29 Rue Ahmed Tlili - ZI Borj Cedria
TN-2055 Bir el Bey Tunis - Tunisia
Tel.: +216/ 79 / 412.889
Fax: +216/ 79 / 412.966
e-mail: [e-mail]
www.ep-technologie.com

NETHERLANDS

Zumpolle B.V.

Postbus 29
NL-5306 ZG
Brakel/Niederlande
Tel.: +31 (0) 4 18 / 67 18 16
Fax: +31 (0) 4 18 / 67 32 17
Internet: http://www.zumpolle.net
e-mail: [e-mail]

NORWAY

Deprag Scandinavia AB

Gap Sundins väg 3
SE-63346 Eskilstuna
Universal Import
Tel.: +47 (0) 2 / 2681.530
Fax: +47 (0) 2 / 2199.127

POLAND

INTEGRATOR - RHC

ul. Wielki Rów 40 B
87-100 Torun
Tel. +48 / 56 66 93 841
Fax +48 / 56 66 93 805
Internet: www.integrator-rhc.pl
e-mail: [e-mail]
e-mail: marek.sobocinski@rhc.

PORTUGAL

Anibal Pires Lda.

EN 1 – Mourisca do Vouga Ap. 23
P-3750-907 TROFA AGD
Tel.: [phone] / 690 080
Fax: [phone] / 690 090
Internet: http://www.anibalpires.pt
e-mail: [e-mail]

SLOVENIA

MB-NAKLO D.O.O.

Toma Zupana 16
SLO-4202 NAKLO
Tel.: +386 (0) 4 / 277 17 00
Fax: +386 (0) 4 / 277 17 17
e-mail: [e-mail]

SPAIN

ALCOTAN SISTEMAS S.A.

p° de la Direccion, nmro. 95,
local
E-28039 Madrid
Tel.: +34 91 / 311.17.84 + 311.18.01
Fax: +34 91 / 311.60.53
e-mail: [e-mail]

BARCELONA office:
Passeig de la Mare de Déu del
Coll, 122-124
E-08023 Barcelona
Tel.: +34 93 / 2 85 50 34

SWEDEN

DEPRAG Scandinavia AB

Gap Sundins Väg 3
S-633 46 Eskilstuna
Tel.: [phone]
Fax: [phone]
Internet: http://www.deprag.se
e-mail: [e-mail]

SWITZERLAND

AFAG AG

Business division LIMATEC
Burgunderstr. 13
CH-4562 Biberist
Tel.: +41 (0) 32 / 6542900
Fax: +41 (0) 32 / 6542901
Internet: http://www.limatec.ch
e-mail: [e-mail]

TAIWAN

I HEN MACHINE Co.Ltd.

6F-9, No. 12, Lane 609, Sec. 5
Chung-Hsin Road,
San-Chung City
241 Taipei Hsen
Tel.: +886 (0) 2 / 2999.6766
Fax: +886 (0) 2 / 2999.6236

TUNISIA

EP-Technology Trading S.U.A.R.L.

29 Rue Ahmed Tlili - ZI Borj Cedria
TN-2055 Bir el Bey Tunis - Tunisia
Tel.: +216/ 79 / 412.889
Fax: +216/ 79 / 412.966
e-mail: [e-mail]
www.ep-technologie.com

TURKEY

MEKA LTD. STI.

Tepecik Mah. Ziya Gokalp Cad. No:3
P.K 41135 KOSEKOY – IZMIT ­KOCAELI - TURKEY
Tel.: [phone]
Tel.: [phone]
Fax: [phone]
Internet: www.me-ka.com
e-mail: [e-mail]

USA, MEXICO, CANADA

DEPRAG INC.

640 Hembry St. / P.O. Box 1554
Lewisville, TX 75057-4726
Tel.: +1 / 972 / 221 – 8731
Fax: +1 / 972 / 221 – 8163
Toll Free: (800) 4 DEPRAG
Internet: http://www.deprag.com
e-mail: [e-mail]

VENEZUELA

Suministros Tecnicos SUMTEC C.A.

Av. Francisco de Mirando, Centro Plaza
Torre C, Piso 16, Officina C16 A-B
Urb. Los Palos Grandes
Caracas 1060
Tel.: +58 (0) 212 – 28 56 41 0
Fax.: +58 (0) 212 – 28 51 94 7

DEPRAG SCHULZ GMBH u. CO.

Postfach 1352, D-92203 Amberg
Kurfürstenring 12-18, D-92224 Amberg
( (09621) 371-0
Fax [phone]
Internet: http://www.deprag.com
e-mail: [e-mail]

Okt

-07 Änderungen vorbehalten / Technical alterations reserved
