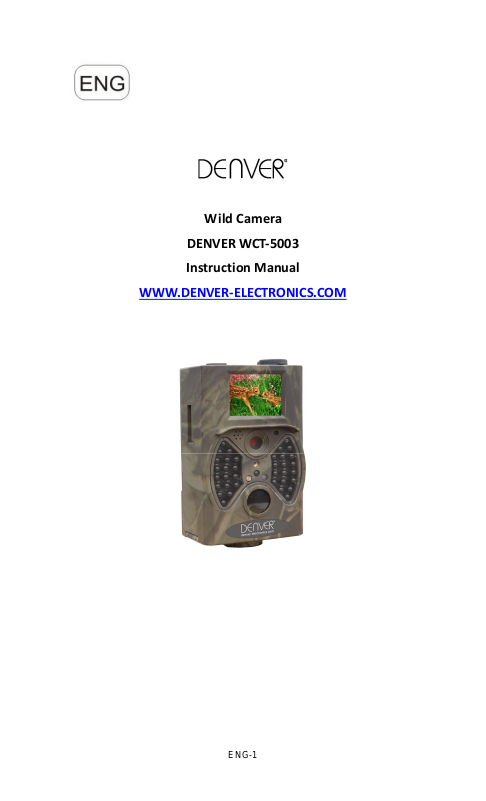

Denver WCT-5003 User Manual
Wild Camera
DENVER WCT-5003
Instruction Manual
WWW.DENVER-ELECTRONICS.COM
ENG-1
Table of Contents
1. Instructions .................................................................................................................. 3
1.1 General Description ........................................................................................... 3
1.2 Camera Body Interface ...................................................................................... 3
1.3 Camera components and features .................................................................... 3
1.4 Remote Control ................................................................................................. 3
1.4.1 Navigating ............................................................................................... 4
1.5 Shooting Information Display ............................................................................ 4
1.6 Supported Format ............................................................................................. 5
2. Cautions ....................................................................................................................... 5
3. Easy Operation ............................................................................................................. 6
3.1 Power Supply ..................................................................................................... 6
3.2 Insert the SD-card .............................................................................................. 6
3.3 Power on and Enter into the ON Mode ............................................................. 6
3.4 Enter into the TEST Mode .................................................................................. 7
3.4.1 Custom Settings ...................................................................................... 7
3.4.2 Manual Capturing ................................................................................... 7
3.4.3 View Images or Videos ........................................................................... 7
3.5 Power Off ........................................................................................................... 7
4. Advanced Operations ................................................................................................... 8
4.1 Settings Menu .................................................................................................... 8
4.1.1 Photo Setting ........................................................................................... 8
4.1.2 Video Setting ........................................................................................... 9
4.1.3 System Setting ......................................................................................... 9
4.1.4 Default ................................................................................................... 10
4.1.5 General Settings .................................................................................... 10
4.1.6 Set Camera Mode ................................................................................. 10
4.1.7 Format SD-Card ..................................................................................... 10
4.1.8 Set Photo Size ........................................................................................ 11
4.1.9 Set Video Size ........................................................................................ 11
4.1.10 Set Date and Time ................................................................................ 11
4.1.11 Set Multi ............................................................................................... 11
4.1.12 Set ISO .................................................................................................. 11
4.1.13 Set Video Length .................................................................................. 12
4.1.14 Set Video Sound ................................................................................... 12
4.1.15 Set Delay ............................................................................................... 12
4.1.16 Set Timer .............................................................................................. 12
4.1.17 Enter Password ..................................................................................... 12
4.2 Playback ........................................................................................................... 13
4.2.1 Viewing Photo or Video ........................................................................ 13
4.2.2 Delete Photo or Video .......................................................................... 13
4.3 File Numbering ................................................................................................ 13
4.4 Firmware Upgrade ........................................................................................... 13
Appendix Ⅰ: Technical Specifications ................................................................................. 14
Appendix Ⅱ: Parts List…………………………………………….………………………………………………14
ENG-2
1. Instructions
1.1 General Description
This digital trail camera is a surveillance camera working automatically. It can be
triggered at once by any movement of human (or animals) in a certain region of
interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and
then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD
video clips (WVGA or QVGA).
At sunrise the unit begins to take color photos and video until there is insufficient light
(dusk) when it begins to take infrared (monochrome) photos and video.
It is easy to use, there is a 2.0 inch colorful LCD display on camera. It is resistant against
water and snow for outside uses.
1.2 Camera Body Interface
The camera has the following I/O interfaces: USB connector, SD-card slot, TV output.
Take a few mo me nt s to fami li ari ze your se lf f ol lo wi ng t he ca me ra co nt ro ls a nd d is pl ay s. I t
is helpful to bookmark this section and refer to it as you read through the rest of the
manual.
1.3 Camera components and features
1) Bottom cover
2) SD-Card slot
3) USB connector
4) TV out connector
5) PIR
6) Infrared flash
7) Lens
1.4 Remote Control
The remote control is an input device of the camera and is primarily used for customer
settings and password input. This is an infrared type wireless remote control. The
maximum remote distance is 9 meters. There are fifteen buttons on the remote control.
(Note: Remote control is inside of the camera.)
8) 2 inch color LCD Display
9) Sound recorder
10) Lock
11) Power switch
12) Battery depot
13) Portable remote controller
ENG-3
1.4.1 Navigating
Press UP or DOWN to select or highlight the menu item, while press LEFT or RIGHT to
select the option of each item and press OK to make selection.
1.5 Shooting Information Display
When the camera is turned on (the power switch is slid to TEST position), the shooting
information will be displayed in the monitor.
ENG-4
1.6 Supported Format
Item Format
Photo JPG
Video AVI
File Format FAT32
Here are some important notices. You don’t need to concern about the file system
format of the camera unless you have problems with reading the SD-card by your other
equipment. If this happened, please format the SD-card in the camera or in a computer
at first and then reinsert the card into your camera to make a try.
2. Cautions
The working voltage of the camera is 6.0V. The camera is supplied by four or eight AA
batteries.
Please unlock the write-protect before inserting the SD-card.
Please insert the SD-card when the power switch is at OFF position before testing the
camera.
Please do not insert or take out the SD-card when the power switch is at ON position.
It is recommended to format the SD-card by the camera when used at the first time.
The camera will be in USB mode when connected to a USB port of a computer. In this
case, the SD-card functions as a removable disk.
Please ensure sufficient power when having firmware upgrade, otherwise the upgrade
process could be interrupted incorrectly. If any fault occurs after improper upgrading
process, the camera may stop function properly.
ENG-5
