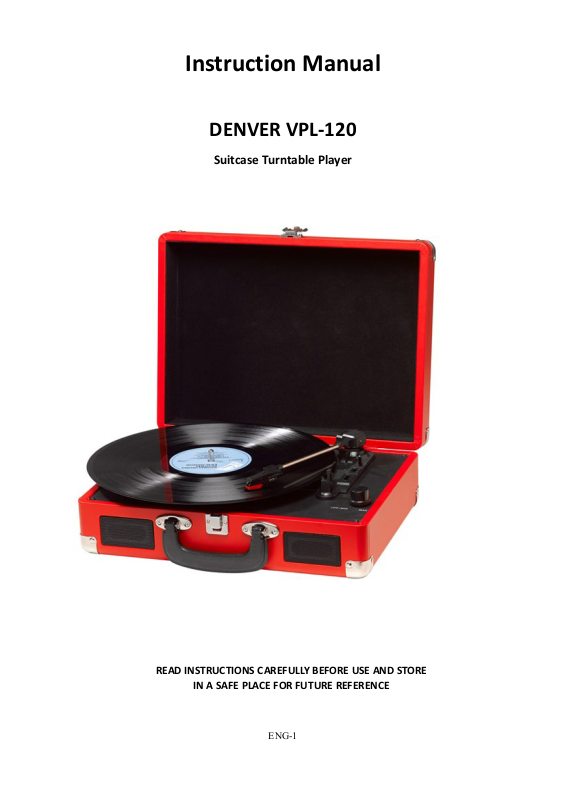

Denver VPL-120 User manual

Instruction Manual

DENVER VPL-120

Suitcase Turntable Player

READ INSTRUCTIONS CAREFULLY BEFORE USE AND STORE

IN A SAFE PLACE FOR FUTURE REFERENCE

ENG-1

DESCRIPTION

1. Lock catch

2. Dust cover

3. Adapter - Use this when playing 45rpm records with cut out centres.

4. Tone arm lift

5. Auto stop control

6. Speed selection - Three speed for choice: 33.3, 45, 78 rpm.

7. LED power indicator

8. Power switch / Volume control

9. Headphone jack

10. Tone arm

11. Speaker

12. Cartridge

13. Carrying handle

ENG-2

14. PC link connector

15. Aux in

16. Line out R channel

17. Line out L channel

18. DC power jack

INITIAL SET-UP

MAINS CONNECTION

Ensure that the mains voltage of your home corresponds to the operating voltage of the unit. Your
unit is ready to be connected to a mains voltage of 9V DC adaptor.

AMPLIFIER CONNECTION (if required)

Whilst you can listen to your new turntable using the built in speakers you may wish to connect it
to your existing Hi Fi system. Connect the audio plugs to the Line input on your mixer or amplifier
using an RCA cable (not supplied)

 Red plug into R/H channel input.
 White plug into L/H channel input.

Playing a record

- Place the record of your choice on the turntable. If required, do not forget to place the adaptor
on the record spindle.

- Choose the desired playing speed using the speed selection switch between 33.3, 45 and
78rpm.

- Turn on the Rotary Power Switch, note that this also controls volume.

- Release the tone arm lock.

- Raise the arm with your hand lightly.

- Place the stylus vertically over the first track of the record, the turntable will start turning

automatically.

- Put down the stylus slowly on to the record to play.

- When a record comes to the end, the turntable will stop automatically if the auto-stop switch

is in the ON position. If the switch is in the off position then it will keep revolving until the tone
arm is returned to the tone arm rest.

- Lift up the tone arm and put it on the rest when finished.

- Replace the protective cap on the stylus and close the tone arm lock.

- Turn off power at mains.

ENG-3

INSTALLING THE SOFTWARE

● Place the supplied CD into the drive of your computer, follow the instructions and the software will

automatically install as follows:

● Click ‘Next’

● Select ‘I accept’ option then click ‘Next’:
