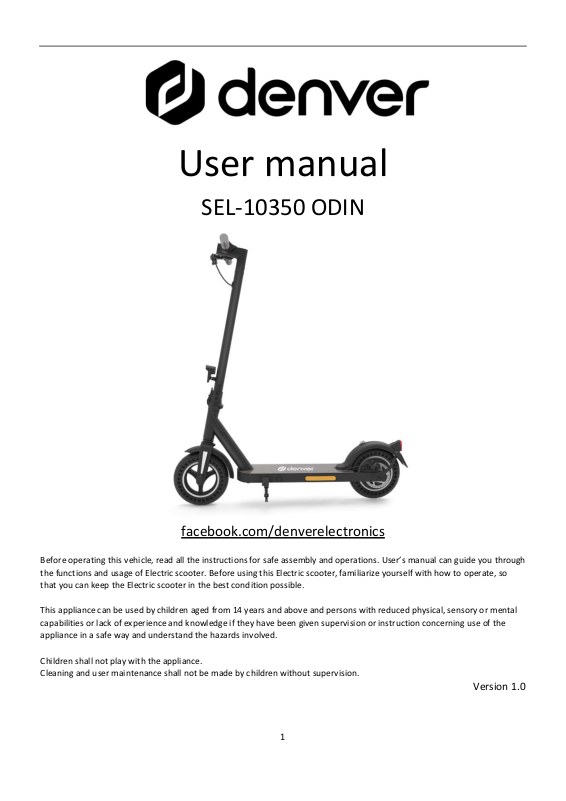

Denver SEL-10350 User guide

User manual

SEL-10350 ODIN

facebook.com/denverelectronics

Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through
the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.

This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

Version 1.0

1

Table of Contents

1 About the product .................................................................................................................................. 3

2 Product and Accessories ...................................................................................................................... 55

3 Unfolding and folding the scooter .......................................................................................................... 6

4 Assembling the device ............................................................................................................................ 7

5 Charging the scooter ............................................................................................................................... 9

6 Intended Use ......................................................................................................................................... 10

7 Safety Instruction .................................................................................................................................. 10

8 Maintenance ......................................................................................................................................... 11

9 Operational control ....................................................................................................................... 1415

10 Electric scooter riding ........................................................................................................................... 15

11 List of parameters ................................................................................................................................. 16

12 Electric scooter safe parking ................................................................................................................. 17

13 Safe transportation ............................................................................................................................... 17

14 Warnings ............................................................................................................................................... 17

2

1 About the product

Important!

This electric scooter must be charged and stored in a safe way.

For safety reason and protect battery life, never charge the electric scooter in temperatures below 5°C
or above 45°C. Equally, always disconnect the electric scooter with the power cable once fully charged.
Always use the supplied power adapter to charge the electric scooter.

Make sure that all screws are properly tightened to avoid unsafe situations.

In case you ride in rain or wet conditions then make sure to dry the pedal board with a cloth top and
bottom when done riding.

WARNING

● Please make sure to check that the steering system is correctly adjusted and that all connection

components are firmly secured and not broken before riding, refer to handlebar assembly and
safety instruction.

● Please read operation guide and warnings of correct techniques for use and braking

● Always wear shoes.

● When self-locking nuts and other self- locking fixings may lose their effectiveness.

● All parts and materials of electric scooter cannot be changed, modifications are not allowed.

1.1 Technical modifications

Avoid removal of components or any kind of technical modification to the scooter in order to preserve
the vehicle in approved condition. Specifically avoid modification of the following technical systems of
the scooter:

- Powertrain system

- Battery system

- Braking system

- Steering system

- Lightning system

- Electrical system

- Wheel equipment

- Tyre equipment

- Anti-slip equipment

3

- Frame structure

Always make sure that required maintenance is conducted professionally by certified agents.

1.2 Traffic rules

- Do not ride the scooter if you are below 14 years of age.

- Do not ride the scooter with more than 1 person at a time.

- Do not ride the scooter faster than 20 km/h.

- Do not ride the scooter without valid liability insurance.

- Do not ride the scooter under influence of drugs, alcohol, medicine or the likes.

- Do not ride the scooter when your physical or mental condition is inadequate.

- Always adhere to the applicable traffic rules.

- Always keep yourself informed about changes in traffic rules.

- Always be considerate of weaker road users.

- Always adapt driving speed to traffic conditions. (If necessary, adjust the speed to pedestrian traffic)

- Always adapt driving speed to road conditions.

- Never obstruct or endanger pedestrians.

- Do not ride the scooter on routes reserved exclusively for pedestrians or restricted for bicycles.

- Do not ride the scooter on routes reserved exclusively for cars/vans/trucks/motorcycles/etc. or

restricted for bicycles.

4

attachment x 4

2 Product and Accessories

Front K-light

Front shock absorption

10” wheel size

Bell

Disc Brake

Foldable

Throttle

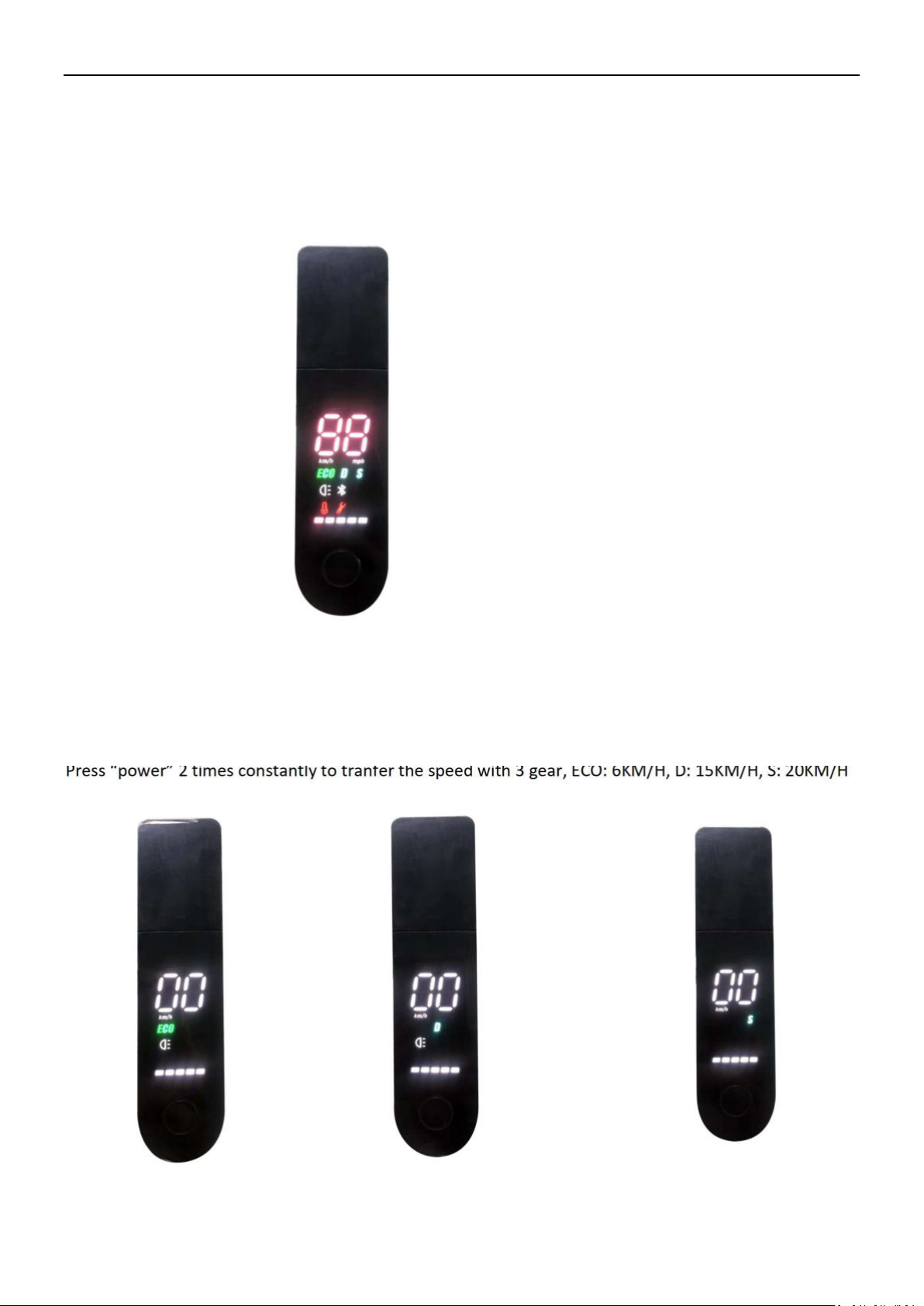

Display

Electric brake

Back K-light

charger

Screw for handlebar

5

Disc brake

Allen key x 4

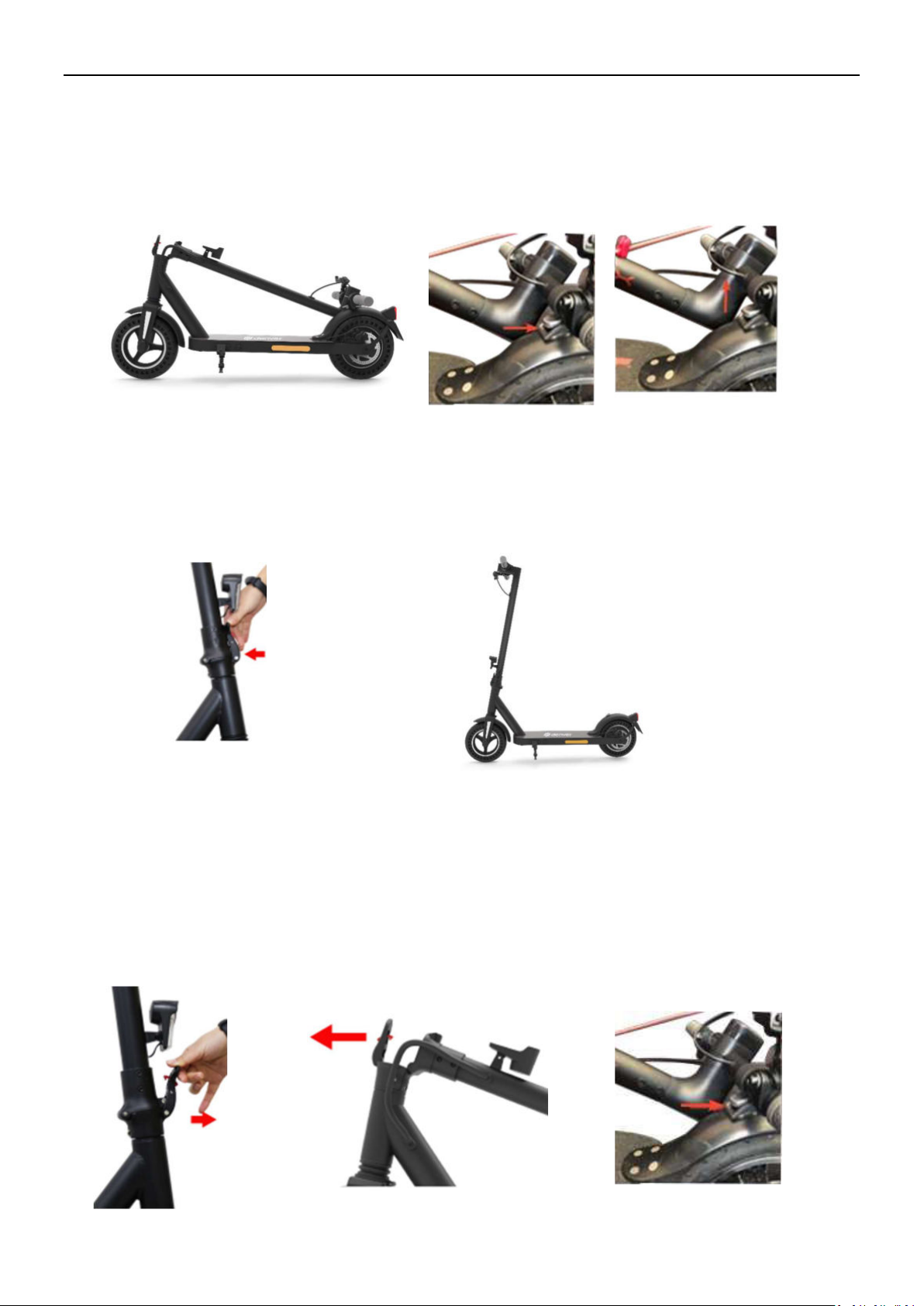

3 Unfolding and folding the scooter

Unfolding the scooter

1）Place the electric scooter on its wheels like below. Unlock the hook on the handlebar.

2) Pull up the handle in a gentle way. Raise the handle slowly.

Close the lock lever located on the lower part of the handlebar support tube.

3) The electric scooter is unfolded as soon as you hear the rod clicks into place.

Folding the scooter

1. Release the release lever located on the lower part of the support tube

of the handlebars.

2. Fully open the release lever.

3. Open the scooter by accompanying the handlebar tube downwards.

4. Hook the folded tube onto the appropriate support.

6

7

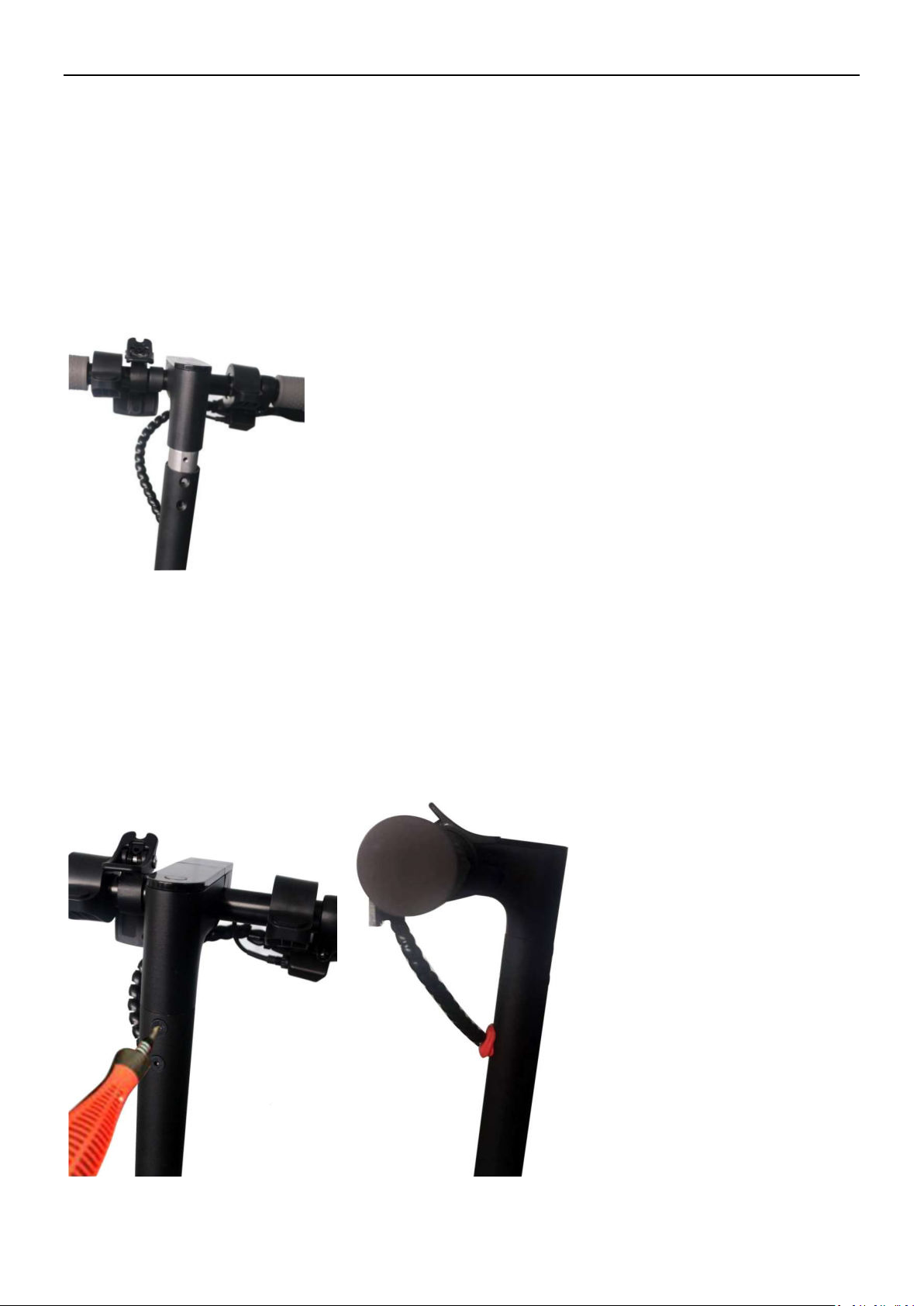

4 Assembling the device

Before using the scooter it is necessary to install the handlebar on the frame

main vehicle.

1). Insert the handlebar into the vehicle frame.

2). After matching the holes in the handlebar with those of the frame,

insert the screws and tighten them well; repeat the operation also in the side

opposite of the handlebar inserting a total of 4 screws.

8

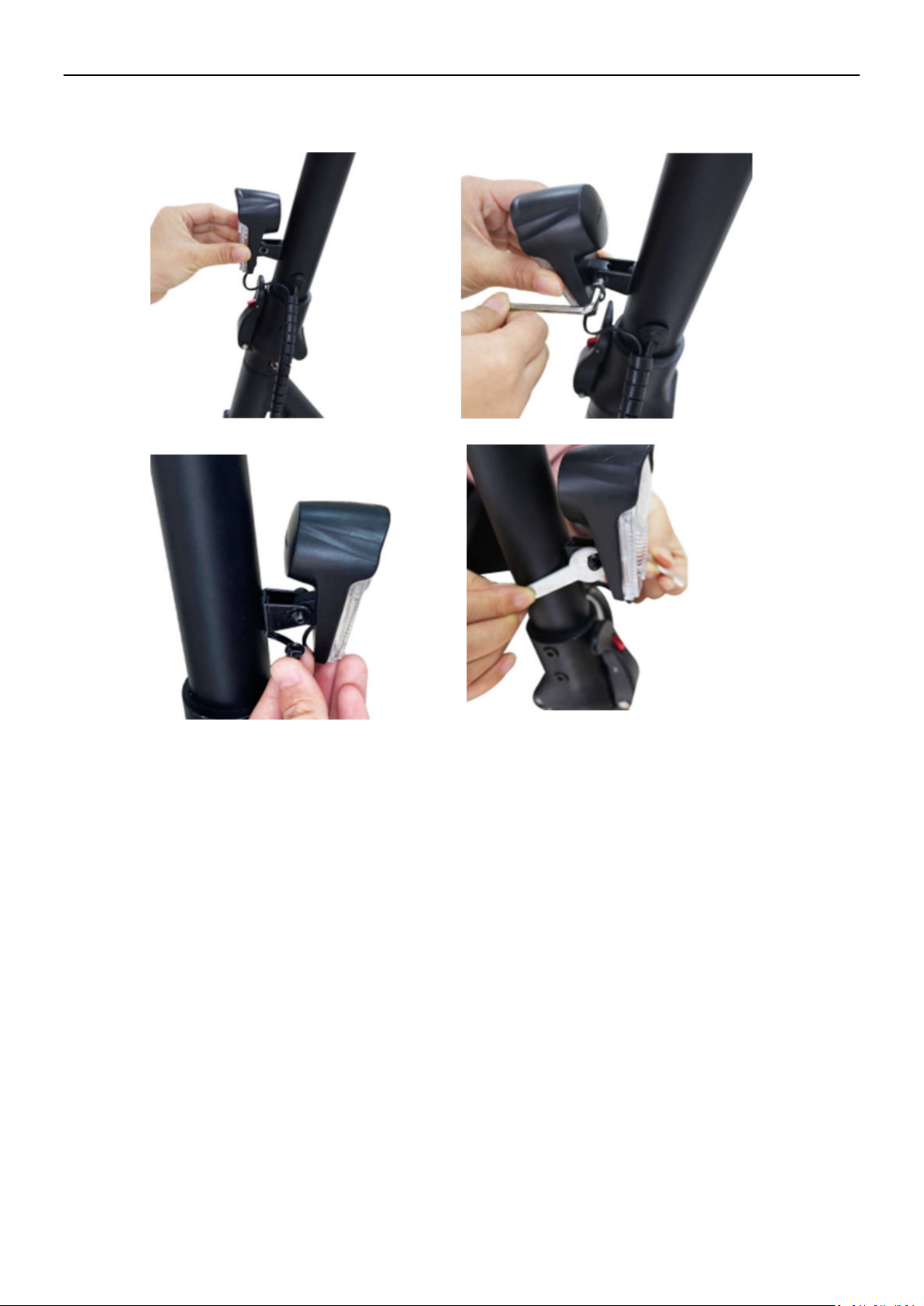

3). Mounting the front K-light

Please Install the K-Light into the light bracket and use the Allen key to fix the screw and nut well.

9

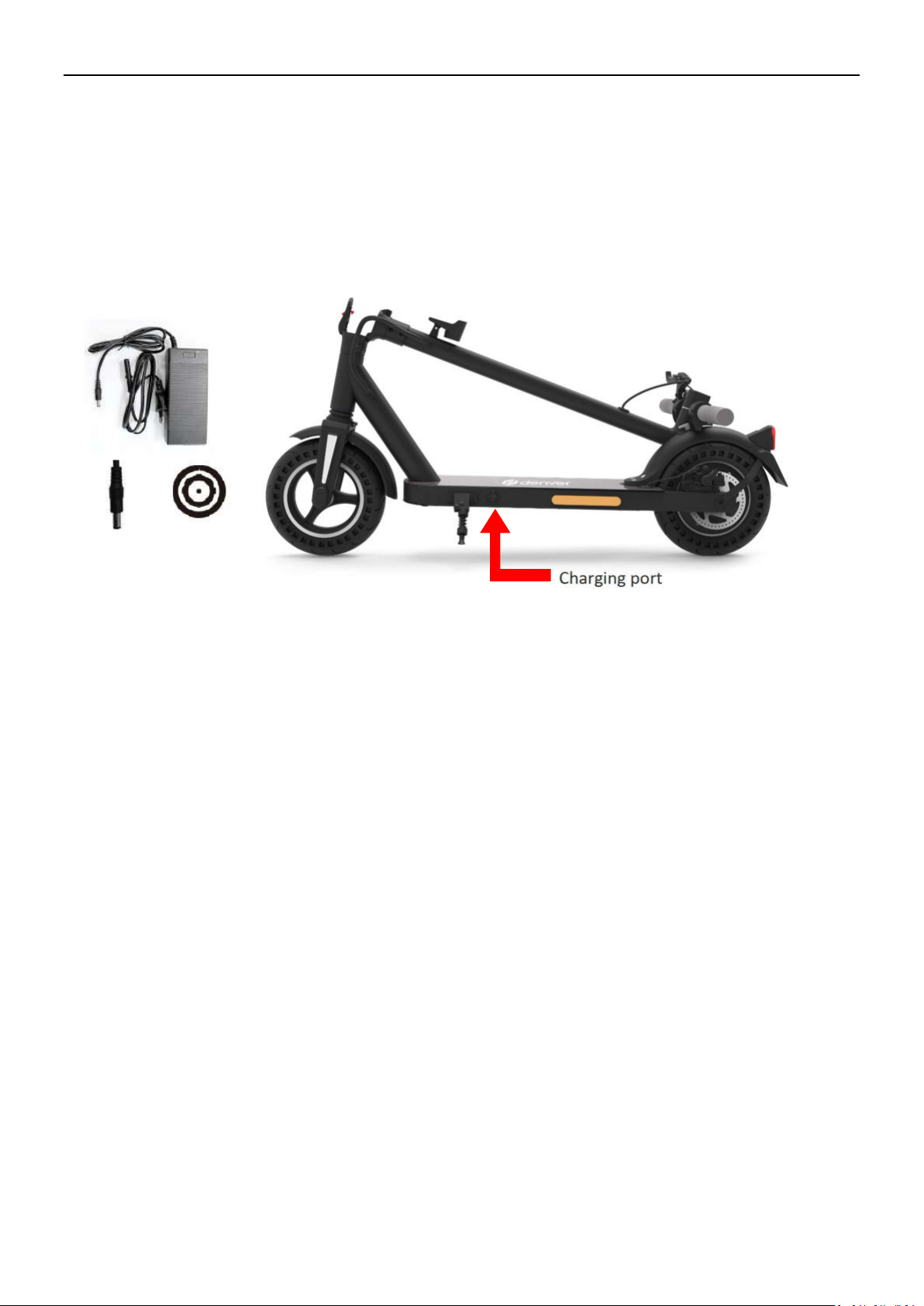

5 Charging the scooter

Connect the supplied power adapter to the charging port of the electric scooter.

Charging port

10

6 Intended Use

The Electric scooter is neither a means of transport nor sports equipment, but a device for personal
entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a
technically permissible total weight (kg): 120kg. This includes scooter weight 16.5Kg. The other parameters for
the permissible operation of the Electric scooter are defined in the section (“10. List of parameters”) .
Importantly, the Electric scooter may only be operated in good visibility conditions and only if the physical
conditions for stability on the Electric scooter are met (for example, not on one leg/not under the influence of
drugs or alcohol). When operating the electric scooter, the operator must wear personal protective
equipment specified in the section (“13. Warnings” > 13.2 Preparation”).

7 Safety Instruction

We recommend always wearing helmet and protective gear like elbow, knee and wrist protectors to ensure
your personal safety.

Also make sure you have read the user manual carefully, to ensure you know how to ride it in a safe and
fun way.

The Electric scooter is for domestic use only.

It is your responsibility to be aware of and comply with all regulations. If there are no regulations for this
Electric scooter in your country, please take care of your own safety and the safety of others.

Also pay attention to other people. Always ride safely and only at a speed that allows you to brake safely
at any time. A common thing for such products is that there is a risk that you may fall off the product
and injure yourself. Always ride as safely as possible.

If lending the electric scooter to friends and family, please make sure they use proper protective gear
and know how to ride it.

Before riding the electric scooter, please check that all parts are working as supposed to. If any loose
parts, abnormal noise, reduced battery life etc. are detected, please contact your retailer for product
service and warranty. Do not repair the electric scooter yourself.

Inspect the rear tire, rear brake, and brake pad according to Section 8 of the maintenance specification
in this operating instructions. The electric scooter may become unstable if the rear brake is deformed or

11

loose. This is because the distance between the brake pad and the rear wheel becomes too small,
possibly leading to a blocked rear wheel.

Avoid applying too much force or stepping on the rear fender permanently. This may cause the fender
to loosen or damage the spring holding the fender.

As a result, the brake pad constantly touches the wheel and the motor temperature increases due to the
additional resistance. The rear tire can also get loose if the brake is in constant braking position.

Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften
the rubber and it will no longer have the same grip on the road as usual. Do not touch the tire after
braking.

If you hear unusual noises or notice friction when switching on the electric scooter, a bearing may be
damaged. A worn bearing may even be indicated by strong vibration of the handlebar. In this case,
please contact your retailer since the bearing needs to be replaced and/or the handlebar checked and
adjusted.

Ride the electric scooter only on a dry surface since otherwise the riding safety and braking performance
may be impaired and the motor or bearings may be damaged.

Please do not ride up or down long and steep slopes.

Stop riding when you receive the "Low Battery Warning". The electric scooter then moves only slowly
and does not have the same traction as normal and the electric brake does not work. In this case, please
use the rear brake to stop the electric scooter. Get off the Electric scooter as soon as the speed allows to
do that safely.

Do not use the electric brake and the throttle at the same time.

A normally working Electric scooter operates safely and quietly. If you hear noises or notice bumpy
operation, please check wheels, bearings, and brakes. Contact your customer service for repair and
maintenance, if necessary.

8 Maintenance

● To ensure you get the best possible performance and experience from your electric scooter, it is

important to do regular maintenance for important parts of the product.

● Battery maintenance

● Bearings, Screws, Brakes and Wheels

● Storage and Cleaning

Your electric scooter will require some maintenance so please read and familiarize yourself with this guide.

● Battery maintenance

All batteries have a life cycle, and performance will decrease over time, however here are some advice to
maximize the life span of the battery.

12

Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long
time. This is to prevent damage to the battery, caused by low voltage over an extended period.

Avoid draining the battery completely. It is best to charge while there is still power on it. This will extend battery
life. If the battery is constantly depleted, it will damage the battery (damaged battery caused by wrong handling
are not covered by the warranty).

If riding the electric scooter in cold or very hot areas, the battery time can be lower than when riding in
temperatures from 15-25° Celsius. This is not a failure on the batteries, but normal behavior.

Please notice: Even a fully charged battery will run out of power if the electric scooter is not used for a period.
Expect a fully charged battery to keep power between 90 and 120 days in off mode, before it is fully discharged. If
only partially charged, this period is lower.

Please make sure the battery does not get above 50° Celsius, or below minus 10° Celsius for a longer period. (e.g.
don’t leave the electric scooter in a hot car in summer, do not put battery into fire etc.) Low temperature (e.g.
subzero temperature) can damage the battery cells.

Keep the Electric scooter away from open flame or other sources of heat to prevent the battery from getting too
hot. Also make sure not to leave the electric scooter at freezing temperatures. Both heat and excessive cold can
cause the battery to discharge.

Only use original charger or an official replacement, as different batteries may require specific charger, and if
using other chargers, this could cause damage to the product.

Do not overcharge and discharge the battery.

Please make sure to charge the battery before it is completely out of power, to avoid damaging the battery cells.
(damaged battery caused by wrong handling are not covered by the warranty)

It is forbidden to disassemble battery package. This is only to be handled by official service repair centers and
professionals.

● Bearings, Screws, brakes and Wheels

Your electric scooter is made up of moving parts, which in time, will be susceptible to wear and tear.

Bearings and screws:

The electric scooter has sealed and dustproof bearings so that no lubrication is required. Check the bearings for
wear at regular intervals to avoid unsafe riding. Do not jump on and off and do not apply excessive force
otherwise to avoid damage to the bearings. This is not a sports electric scooter.

Make sure that all screws are properly tightened to avoid unsafe situations.

Please check the screws regularly and tighten if they seem loose.

Brakes:

Check the brake for wear at regular intervals to avoid unsafe riding. Do not apply excessive force to avoid damage
to the brake.

Electric scooter with disc brake will require adjustment over time and in the end will need to be replaced, when
worm down. Avoid using electric scooter when brakes are worn down, as this is unsafe and will also damage the
brake.

Wheels:

Check the wheels for wear at regular intervals to avoid unsafe riding.

13

Electric scooters come with different wheels but can in general be separated into tires with inflatable inner tubes
and solid wheels.

For inflatable tires, please make sure to keep the right pressure, as hard tires will last longer.

If the wheel seems wobbly even after screws are tightened, the bearings might be worn
down and need replacement

WARNING

● Please make sure to check that the steering system is correctly adjusted and that all connection

components are firmly secured and not broken before riding, refer to handle assembly and safety
instruction.

● Please read operation guide and warnings of correct techniques for use and braking

● Always wear shoes.

● We highly recommend to always wear helmet/pads for your own protection.

● Self-locking nuts and other self- locking fixings may lose their effectiveness.

● All parts and materials of electric scooter cannot be changed, modifications of the scooter are not

allowed. If done, then warranty is void.

● Storage and cleaning

If your Electric scooter gets dirty, please clean it with a damp cloth only, you may not use pressured water-gun or
running water, as this could damage vital parts. It is also possible to use a little toothpaste if the dirt is stuck.
Remember to clean with damp cloth after this.

Please make sure to keep the electric scooter turned off while cleaning it, and make sure to cover the charging
input to avoid problems with the electronics.

Make sure to dry the scooter with a towel, should it become wet.

Please notice: Do not use alcohol, gas, kerosene or other corrosive and volatile chemical solvents. This can
damage both the appearance and the internal structure of the electric scooter.

Please store your Electric scooter in a dry and cool environment when not in use. Avoid leaving it outdoors, as it is
not made for storing in wet areas. Nor is it good to expose to high temperatures caused by direct sun for a long
time.

14

Front /Back K

- Light

9 Operational control

For better operation, please read the instructions carefully.

9.1 Control and display

Speed

Gear level

Battery level

9.2 Button and speed transfer

Only power buttons in the display, press”Power” button with 5s, the scooter power on! Press one time
to turn on /off the Front /Back K- Light.

Press “power” 2 times constantly to tranfer the speed with 3 gear, ECO: 6KM/H, D: 15KM/H, S: 20KM/H

15

You have to manually move the Electric scooter with your foot before the accelerator button works.

10 Electric scooter riding

1. Press “Power” buttons to adjust speed level.

2. You have to manually move the Electric scooter with your foot before the accelerator handle are

working. Press the accelerator button to accelerate, so you can drive.

3. Press the Electric brake or Disc brake to brake.

4. When you press the accelerator and electric brake button at the same time, the Electric scooter will

automatically brake

5. For safety, the rear wheel brake system must be used when driving at high speed.

6. When driving at night, press the headlight switch button to turn on the headlight.

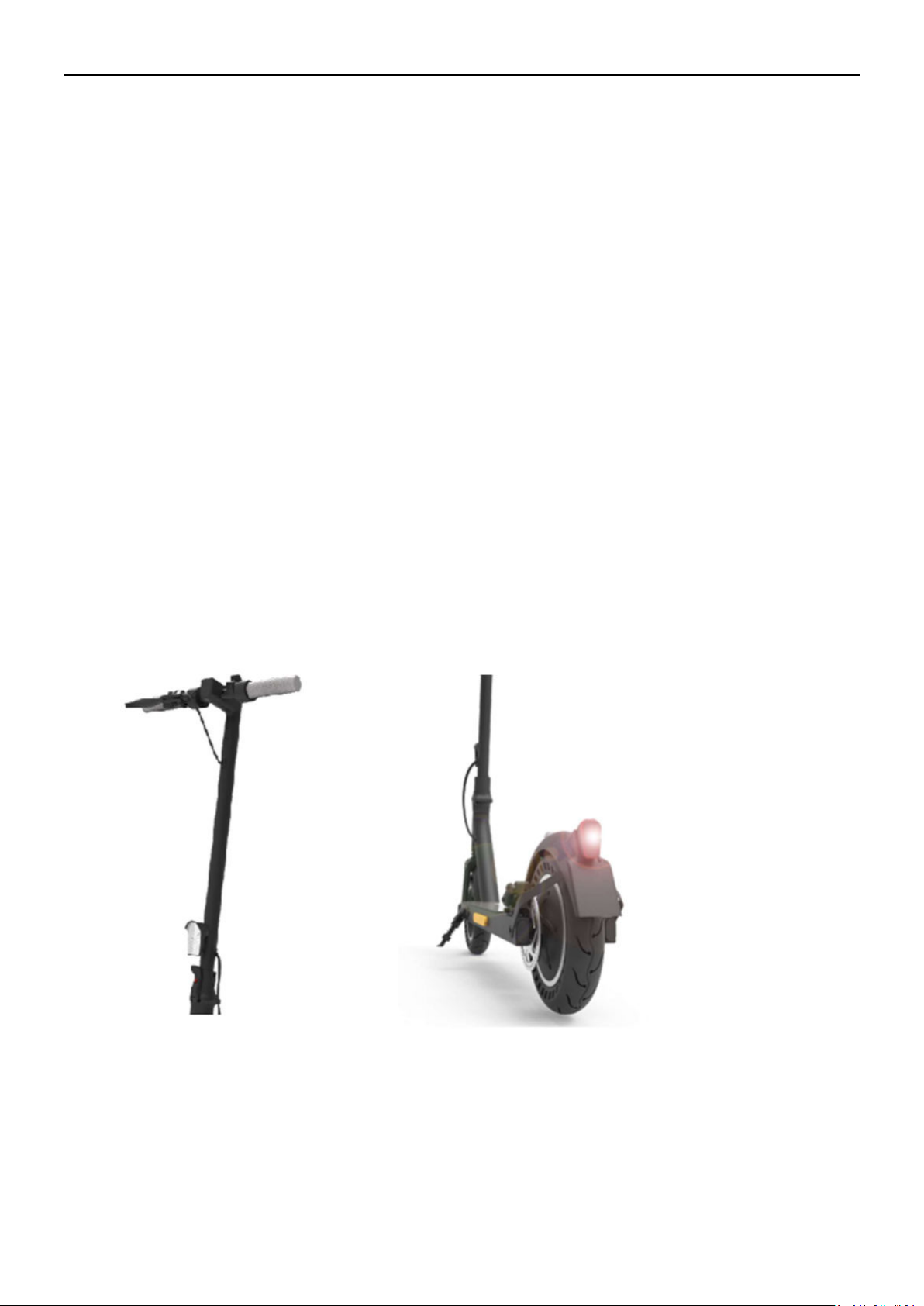

10.1 Front and Back K- Light

Press the key to turn ON the power, the headlights and taillights always be ON.

Press the key to turn OFF the power, the headlights and taillights go out.

16

17

11 List of parameters

Parameter Range

Size Folding size(mm) 1120*450*525

Unfolded Size(mm) 1120*450*1150

Quality Technically permissible total weight

(kg)

Weight (kg) 17.5

Ride Condition Age(Year) 14+

Electric scooter Max. speed (horizontal riding)

(km/h)

Distance up to (km) 30

Terrain Level and dry surface

Battery

Type: Li-ion battery

Motor Motor Power (W) 350

Emission sound pressure level (DB) Emissions < 70 db (A).

Power adapter Rated input voltage (V) 100-240

Nominal voltage (V) 36

Input voltage (V) 42

Battery capacity (mAH) 10000

Rated output voltage (v) 42

Rated current (A) 2A

120

20

Charging Time(h) 6

Electric scooter
Model: SEL-10350 ODIN
Input: 100V-240V~, 50/60Hz, 2.5A(Max)
Output: 42V 2A
Max Speed: 20km/h
Weight: 17.5kg
Year Of manufacture: 2021
Technically permissible total weight (kg): 120kg
Battery: 36V/10Ah

Power Consumption: ≤ 350W

Always charge the electric scooter with the supplied power adapter: XHK-800B-4220
DENVER ELECTRONICS A/S
Omega 5A Soeften DK-8382 Hinnerup
Denmark
www.denver-electronics.com

18

12 Electric scooter safe parking

Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot
to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter
below the foot board.

Before you ride again, push the side stand back up so that it is parallel to the foot board.

13 Safe transportation

Pack the Electric scooter flat, don’t drop the Electric scooter during the transportation, don’t to put the
Electric scooter near fire or explosive materials.

14 Warnings

14.1 Risks of riding

WARNING

First, learn safe riding before you ride the Electric scooter fast.

- Failure to observe, loss of control, falls, and violations of the rules can cause injuries.

- Speed and range depend on the rider's weight, terrain, temperature, and riding style.

- Wear a helmet and protective clothing when riding the Electric scooter.

- Read the operating instructions carefully before riding the Electric scooter.

- For use only in a dry environment.

- Make sure that this product complies with local regulations.

- For domestic use only

14.2 Preparation

- First, charge the battery completely.

- Wear a helmet, knee and elbow pads, as well as earmuffs/earplugs.

- Do not wear loose clothing or open laces that can get caught in the Electric scooter wheels.

14.3 Weight restriction

Reason for the weight restriction:

● Ensuring the rider's safety;

● Avoiding damage due to overload.

Technically permissible total weight (kg): 120kg. This includes scooter weight 17.5Kg.

19

WARNING

Do not try to make a turn too fast.

WARNING

Lithium battery inside.

WARNING

If the Electric scooter switches off, the system will block the vehicle automatically.

It can be released again by pressing On/Off.

● Use the device only at temperatures between -10 °C and +45 °C.

14.4 Range per charge

The range depends on several factors:

● Topography: On level paths you have a greater range than on uneven ground.

● Weight: The range depends on the rider's weight.

● Temperature: Extreme temperatures reduce the range.

● Maintenance: If the Electric scooter is charged properly and the battery is kept in good condition,

the range will be extended.

● Speed and riding style: The range is greater at constant speed than at frequent stops and starts,

acceleration and braking.

14.5 Safe riding

This chapter focuses on safety, experience, and warnings. Before operating the vehicle, please read all
installation and operating instructions carefully.

WARNING

Familiarize yourself with the vehicle before you use it so that you can keep the Electric scooter in sound
condition.

● Observe all safety instructions when riding the Electric scooter.

● The Electric scooter is designed only for personal entertainment. Avoid operating it on public

roads/in road traffic.

● Children below 14 are not allowed to ride the vehicle.

● People with limited sense of balance are not allowed to ride the Electric scooter.

● Avoid riding the Electric scooter under the influence of alcohol or other substances.

20

● Do not carry any objects while riding.

● Make sure you have a clear vision in front of you to ride the Electric scooter safely.

● While riding, your feet must always be on the foot board.

● The Electric scooter can accommodate only one person.

● Do not start or stop abruptly.

● Avoid riding on steep slopes.

● Stop riding the Electric scooter if you hit a solid object (such as a wall or other structure) with it.

● Do not ride in dimly lit or dark places.

● Ride the Electric scooter at your own risk, we assume no liability for accidents or damage.

● Ride at a safe speed that allows you to stop at any time.

● Keep the Electric scooter at a sufficient distance from other people and avoid collisions.

● Steer through balance shifting, fast movement can result in falls.

● Do not ride in rain or under other wet conditions. Ride only in dry weather.

● Avoid riding over obstacles, if possible, and avoid snow, ice, and slippery surfaces.

● Avoid riding over textiles, small branches, and stones, if possible.

● Avoid riding in narrow places or in places with obstacles, if possible.

● Jumping on and off the Electric scooter will cause damage that is not covered by the warranty.

There is a risk of injury. Injuries and damage due to "trick riding" are not covered by the warranty.

14.6 Charging

● Make sure that the Electric scooter, charger, and DC power input of the device are always dry.

● Note: To charge this Electric scooter, use SOLELY the supplied XHK-800B-4220 charger with the

following output: 42 V -2 A.

● Using a different charger may cause damage to the device and other potential risks.

● Use the mains adapter to plug the DC input of the device into a conventional socket.

● There will be no light on the charger before charging, when connected to e-scooter the adapter will

light red, and charging has started.

● The red indicator lights up when properly charged; if this is not the case, please check the

connections.

● Now you can stop the charging cycle. Overcharge shortens the battery life.

● The charging process takes up to 4 hours. Do not charge the battery for more than 3 hours. After 3

hours, disconnect the charger from the device and the power supply. Overcharge reduces the
battery service life.

21

● The product must not be charged over extended periods.

● Always keep an eye on the device throughout the charging cycle.

● Charge the device only at temperatures between 0 °C and +45 °C.

● When charging at lower or higher temperatures, there is a risk that the battery performance will be

reduced. Therefore, there is a potential risk of injuries and material damage.

● Store and charge the device in an open, dry area away from combustible materials.

● Do not charge the device in direct sunlight or in the vicinity of open flames.

● Do not charge the device immediately after use. Allow the device to cool down for an hour before

charging it.

● If the device is left to other people, it must be charged partially (20 - 50%), not fully.

● Do not remove the device from its package to fully charge it and then put it back in the package.

● The device is generally partially charged as shipped from the factory. Keep the device partially

charged until it is used.

● Allow the Electric scooter to cool down for at least 1 hour before it can be put in the package.

● Do not leave the device exposed to sunlight in a car.

CAUTION

The Electric scooter must not be used during the charging cycle!

● The LED indicator on the battery charger lights red during the charging process.

● The LED indicator on the charger will light green when the charging process is complete.

● After charging, disconnect the charger from the mains and the Electric scooter.

CAUTION

Connect the DC cable supplied with the Electric scooter only to the DC input!

● Do not insert foreign objects into the DC input.

CAUTION

● Do not remove the protective cap from the DC input!

● Remove the cap only when charging the Electric scooter!

● After charging, disconnect the DC plug and close the DC input again with the cap!

WARNING

Make sure that neither water nor other liquids penetrate into the inner components of the Electric
scooter; otherwise, the electronics/batteries of the device could be permanently damaged. There is a
risk of injury.

CAUTION

● Do not open the electric scooter casing, otherwise the warranty is invalidated.

WARNING

● Make sure to wear helmet and protective clothing before using the Electric scooter.

22

● Make sure to read manual carefully before using the Electric scooter.

● The Electric scooter must only be used on dry and level ground

● For domestic use only

● The Electric scooter may not be used by anyone under age of 14 years

23

Please notice - All products are subject to change without any notice. We take reservations for errors
and omissions in the manual.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

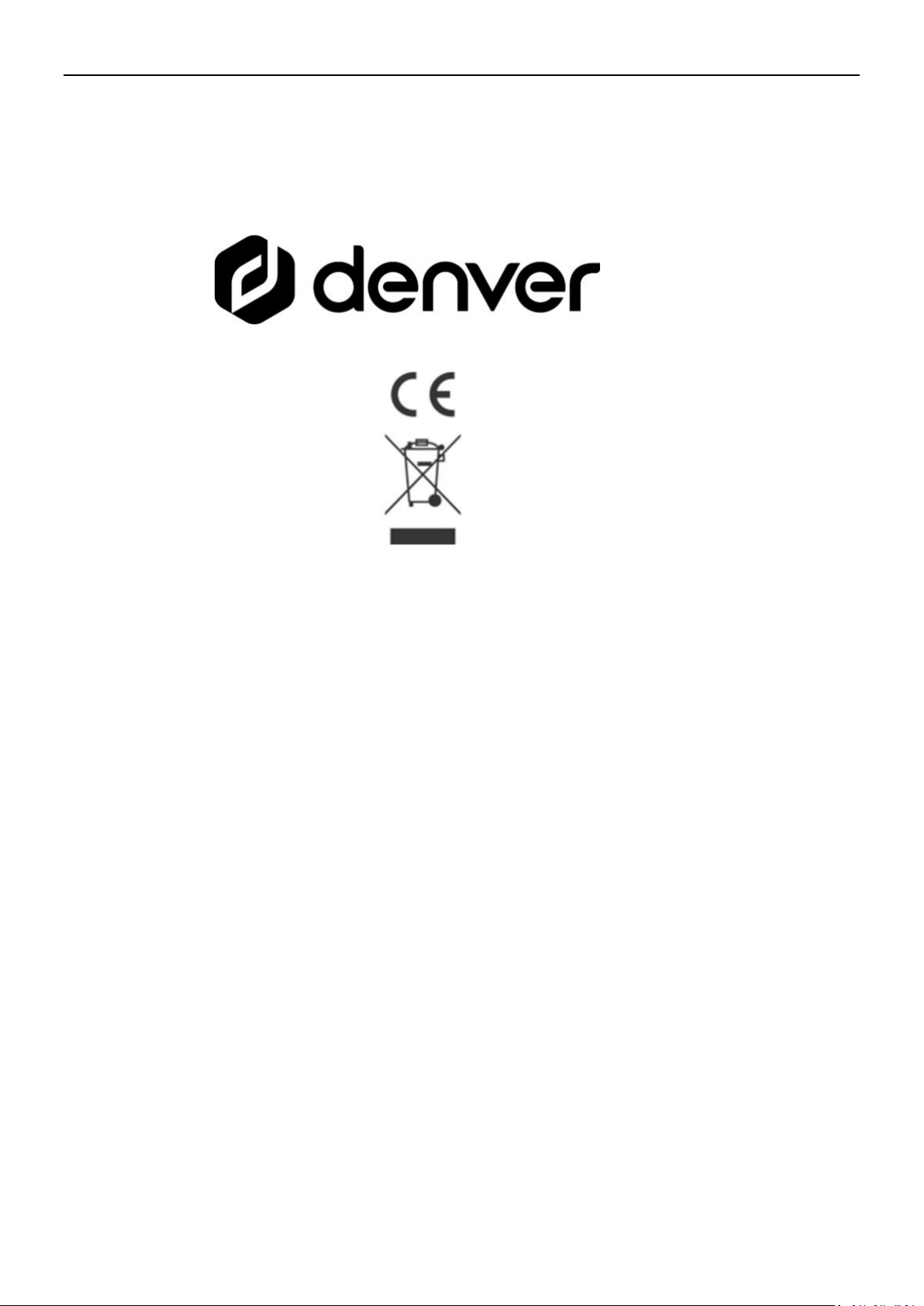

Electric and electronic equipment and included batteries contains materials, components and
substances that can be hazardous to your health and the environment, if the waste material (discarded
electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol,
seen below. This symbol signifies that electric and electronic equipment and batteries should not be
disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated
facility. In this manner you make sure that the batteries are recycled in accordance with legislature and
will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can
either be submitted free of charge at recycling stations and other collection sites, or be collected from
the households. Additional information is available at the technical department of your city.

DENVER ELECTRONICS A/S

Omega 5A, Soeften

DK-8382 Hinnerup Denmark

facebook.com/denverelectronics

24

Regarding Battery charging SEL-10350 ODIN

Important – Please read!

Dear customer. We hope you get a lot of joy out of your new Electric scooter.

The battery built in the Electric scooter is not fully charged from production line and when left unused
the battery can slowly discharge by itself.

This can lead to slow charge if the battery is fully discharged, but this is done to avoid damage to the
battery.

If you experience that you cannot turn on your E-scooter, and it doesn’t seem to charge (the charger
lights up green instantly), then please do the following.

1. Leave the charger in for 6-7 hours. This will make sure the battery will be fully charged again (it can
take 3-4 hours before it starts normal charging).

2. If this does not solve your problem, please ride the Electric scooter manually without turning it on.
Use your legs to give speed, for around 100 m, and then connect the charger. The engine in the front
wheel will this way help to activate the charging function and it will charge normally. (fully charge
takes 3 hours if using this way)

Please enter: www.denver-electronics.com to obtain the electronic version of the manual.

25

WARNINGS

Please read the manual completely and the instructions below before using the

product.

Product names: SEL-10350 ODIN

Product type: Electric scooter

Year of manufacturing: 2021

• Note: ONLY use the supplied charger labelled XHK-800B-4220 with the following output voltage
to charge this Electric scooter: 42V – 2A.

• Using another charger may damage the product or create other potential risks.

• Never charge the product without supervision.

• The charging period of the product should not exceed four hours. Stop charging after four hours.

• The product should only be charged in temperatures between 0°C and 45°C.

• If charging at lower or higher temperatures, there is a risk that the performance of the battery
will be reduced and a potential risk of damage to the product and personal injury.

• The product should only be used in temperatures between -10°C and +45°C.

• If used at lower or higher temperatures, there is a risk that the performance of the battery will
be reduced and a potential risk of damage to the product and personal injury

• Store the product at temperatures between 0°C and 35°C. (optimum storage temperature is
25°C)

• Charge and store the product in an open, dry area and away from flammable materials (i.e.

materials that may burst into flames).

•

Do not charge in sunlight or near open fire.

•

Do not charge the product immediately after use. Let the product cool down for one hour before

charging.

•

If the product is left with other persons for example during a holiday period, it should be partially

charged (20-50% charged). Not fully charged.

• When shipped from the factory, the product has often been partially charged. Keep the product
in a partially charged state, until it is going to be used.

DENVER ELECTRONICS A/S

Omega 5A, Soeften, 8382 Hinnerup, Denmark

www.denver-electronics.com

26

DENVER ELECTRONICS A/S

EC Declaration of Conformity (Machinery Directive)

The undersigned

Company Name: DENVER ELECTRONICS INTERNATIONAL A/S
Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark

certify that the design and manufacturing of this product

Product Brand Name: DENVER
Product Model No.: SEL-10350 ODIN
Product type: Electric scooter

conforms to the following directives:
Machinery directive 2006/42/EC

MD Standards: Annex I of 2006/42/EC, EN ISO 12100:2010, EN 60335-1:2012+A11:2014+A13:2017

and therefore complies with the essential requirements of the Machine Directive.

MD 2006/42/EC,
LVD 2014/35/EU
EMC 2014/30/EU

Name and address of the person authorized to sign the declaration and collect the technical documentation

Serial no.: 1094-07/21/06001 to 1094-07/21/06500

1095-07/21/06501 to 1095-07/21/07000
1096-07/21/07001 to 1096-07/21/07500
1097-07/21/07501 to 1097-07/21/08000
1098-07/21/08001 to 1098-07/21/08500
1099-07/21/08501 to 1099-07/21/09000

Full Name: Torben Balmer
Position: CEO
Company: DENVER ELECTRONICS A/S
Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark
Date: 27 Aug, 2021

Inter Sales A/S • Omega 5A, Soeften • 8382 Hinnerup • Denmark • Tel: [phone] • Fax: [phone]

Homepage: www.denver-electronics.com • A/S Reg. No. 223906 • Vat. No. DK18831678

27

28
