Page 1
MICROWAVE OVEN
Quickstart guide
OG-2030
www.denver-electronics.com
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
English
Page 2
Household use only
To ensure sufficient ventilation, the distance of the back of
microwave to the wall should be at least 10 cm, the side to
the wall should be at least 5 cm, the free distance above the
top surface at least 20 cm. the distance of the microwave to
the ground should be at least 85 cm.
The appliance must be positioned so that the plug is
accessible, and must ensure a good grounding in case
leakage, ground loop can be formed to avoid electric shock.
The microwave oven must be operated with the door closed.
The microwave oven must not be placed in a cabinet. The
microwave oven is intended to be used freestanding.
First time use may give some odor. This is perfectly normal,
and will go away after just a few uses of the microwave
oven.
.CLEANING…………………………………………………………………….…。
MICROWAVE OVEN CARE
The oven should be cleaned regularly and any food deposits
removed. The oven will get hot when being used.
1. Remove the power cord from the wall outlet before
cleaning. Don't immerse the appliance in water or other
fluids when cleaning.
Wipe the oven inside and outwith a dampened soft cloth
If there is a smell inside the oven, please put in a cup of
water with lemon slices in and give it 1 minute at full power
(beware that the water/glass will get hot)
Page 3
Turntable/ Rotation ring/ Rotation axis:
Wash with mild soap water
Rinse with clean water and allow drying thoroughly
.PRODUCT INSTRUCTION………………………….............................
Waveguide cover
1) Door lock
Microwave oven door must be properly closed in order for it to
operate
2) Viewing window
Allow user to see the cooking status
3) Rotating axis
The glass turntable sits on the axis; the motor underneath it
drives the turntable to rotate
4) Rotating ring
The glass turntable sits on its wheels; it supports the turntable
and helps it to balance when rotating
5) Turntable
The food sits on the turntable
6) Control panel – adjust time and microwave power
7) Waveguide cover – NEVER remove this
Page 4
8) Grill rack – use to place the roasting food.
OPERATION OF CONTROL PANEL…。。。。。。。。。。……............
1) Timer
-The max cooking time length that can be set is 30
minutes.
- Each setting is 1 minute
- A bell ring will be heard when the timer times out and returns
to Zero position.
2) Function / Power knob
There are 5 microwave power levels:
High 100% power output (Quick cooking)
M.High 81% power output (Normal cooking)
Med 58% power output (Slow cooking)
Defrost 36% power output (Defrost)
Low 18% power output (Keep warm)
Page 5
Page 6
Grill-- only heat element is energized. Good brown color will
be obtained, even the color makes you mouth water, but if the
food is thickly, it may result in the surface of food have been
burned, but the center of the food is unbaked. It is suitable for
broiling sausage, chicken wings, chops, meat slice, sandwich
and etc.
Combination-- magnetron and heat element work in an
alternate way. According to the properties of food, utilizing the
excellence of grill and microwave, to obtain the best result.
Combi 1: 30% operation time the magnetron is energized and
70% time heat element is energized. It is suitable for roasting
chops, sandwich and etc.
Combi 2: 49% operation time the magnetron is energized and
51% time heat element is energized. It is suitable for broiling
small chicken and meat.
Combi 3: 67% operation time the magnetron is energized and
33% time heat element is energized. It is suitable for broiling
large chicken, duck and etc
.OPERATION…。。……….……………………………….。。。。。。。...。…….........
1) Connect the cord
- Before connecting the cord, make sure the timer is set to
“0” position
- Do not block the ventilation
2) Place the food on the glass turntable and close the door;
food must be contained in a utensil.
3) Select the desired power level
4) Set the timer
If desired time is less than 10 minutes, turn the timer knob to
over 10 minutes position and then turn back to the desired
time setting
Page 7
5) Once the desired time is set, the cooking begins. If pausing
in between is needed, just open the door at any time, and
close it to resume operation
6) When it times out and cooking ends, the microwave oven
produces a bell ring, the inside lamp will also be
automatically turned off
- If food is removed before time out, make sure to set back the
timer to “0” position, this avoids the microwave oven from
operating in empty load
- It is recommended to wear gloves when removing the cooked
food from oven.
Warning. Never use metal inside the microwave oven.
If the microwave oven are not working properly, please contact
your nearest service center or the store where you bought it.
Never try to repair the oven yourself.
Page 8
ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S
Electric and electronic equipment contains materials, components and
substances that can be hazardous to your health and the environment,
if the waste material (discarded electric and electronic equipment) is not
handled correctly.

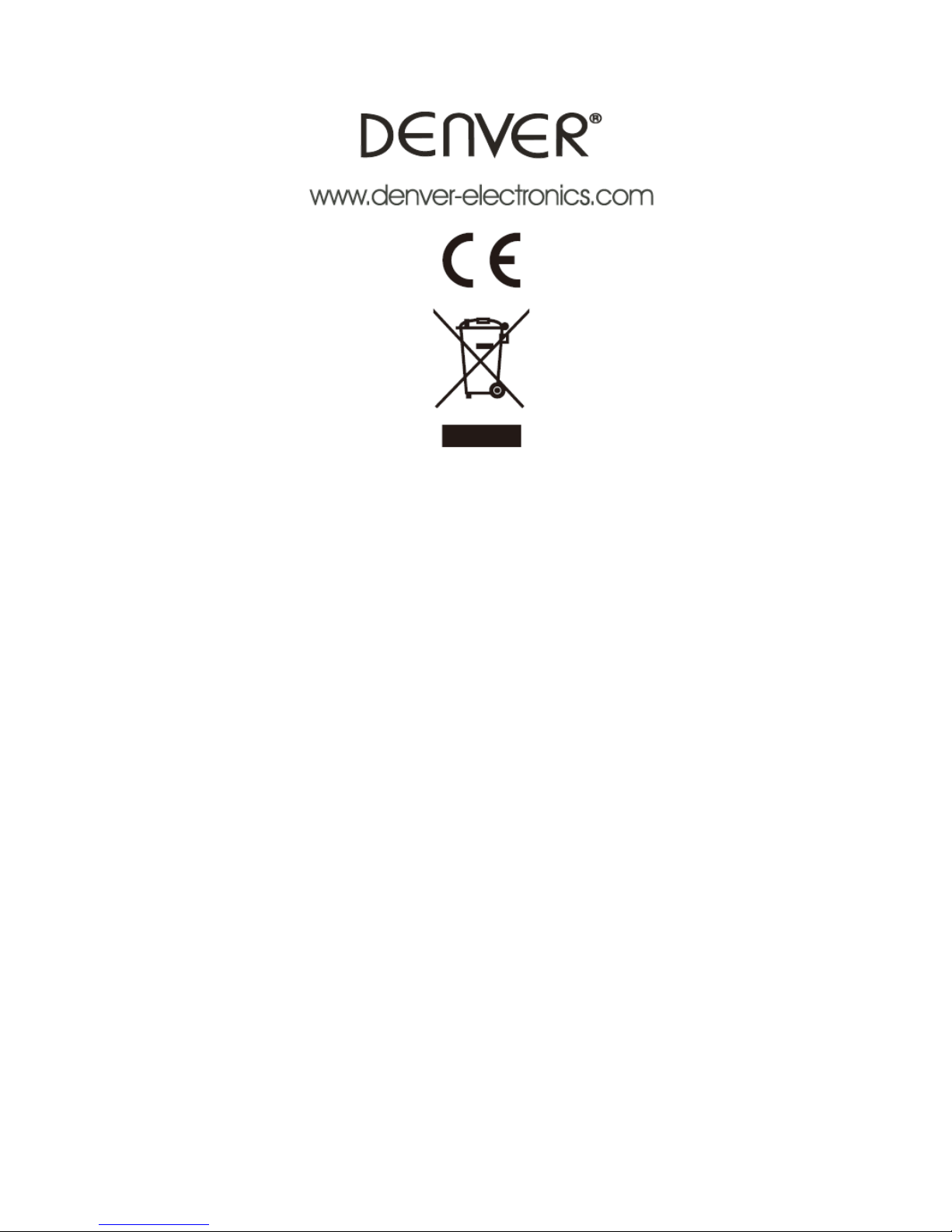

Electric and electronic equipment is marked with the crossed out trash
can symbol, seen below. This symbol signifies that electric and
electronic equipment should not be disposed of with other household
waste, but should be disposed of separately.
All cities have established collection points, where electric and
electronic equipment can either be submitted free of charge at recycling
stations and other collection sites, or be collected from the households.
Additional information is available at the technical department of your
city.
Imported by:
DENVER ELECTRONICS A/S
Omega 5A, Soeften
DK-8382 Hinnerup
Denmark
facebook.com/denverelectronics
