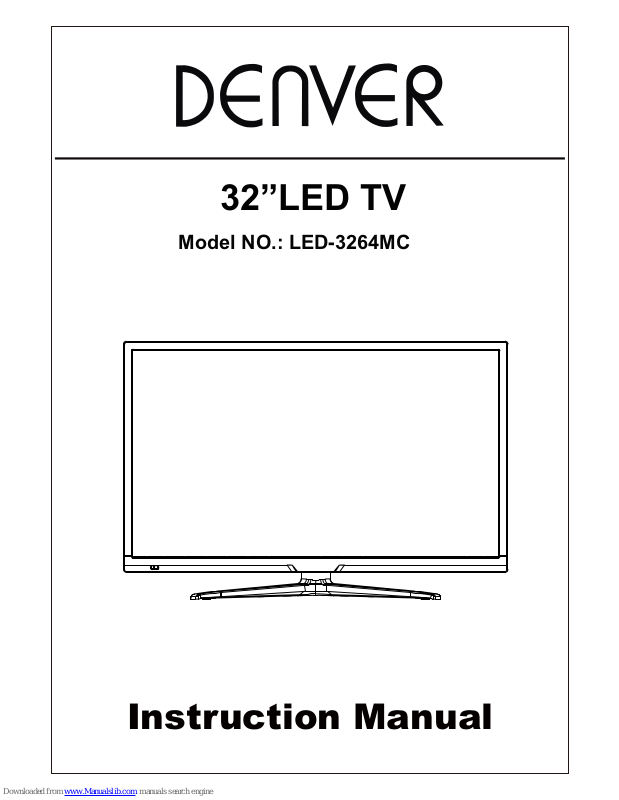

Denver LED-3264MC Instruction Manual
Instruction Manual
32”LED TV
Model NO.: LED-3264MC
Contents
Contents
Safety Information
OSD Menu
1. Picture menu
2. Sound menu
3. Channel menu
4. Feature menu
1-3
4
11-17
11
12
13-14
15-16
17
Product Introduction
5
Connections
Remote Control
Basic Operation
6-7
10
Multimedia Operation 18 -20
EPG menu 21
5. Setup menu
8-9
AUTO INSTALLATION
Safety Information
1
Safty Information
2
Safety Information
IMPORTANT SAFETY INFORMATION (Continued)
This unit has been produced according to all current safety regulations. The following safety
tips should safeguard users against careless use and the dangers connected with such use.
Although this appliance has been carefully manufactured and rigorously checked
prior leaving the factory, as with all electrical appliances it is possible for problems to
develop. If you notice smoke, an excessive build up of heat or any other unexpected
phenomena, you should disconnect the plug from the mains power socket
immediately.
Ensure that the unit is sufficiently ventilated! Never place next to or underneath
curtains!
The mains plug or appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operarble.
This set should only be connected to a mains power supply which matches that
stated on the label on the rear of the TV – do not attempt to connect it to any other
type of supply.
The socket – outlet must be installed near the equipment and easily accessible.
To prevent overload, don’t share the same mains supply socket with too many other
items of equipment.
Apparatus with Class 1 construction shall be connected to a mains socket outlet with
a protective earthing connection.
Keep away from rodents. Rodents enjoy biting into electric flexes.
Always hold the plug when pulling out the plug from the mains supply socket. Do not
pull on the flex, the flex can become overloaded and cause a short circuit.
Set up the unit so that no one is able to trip over the flex.
Do not place heavy items on the flex, which may damage it.
Take note that the flex cannot be reached and pulled by young children, avoiding
injury.
Do not set up the unit near to heat sources. The casing and the flex could be
damaged by the impact of heat.
The screen is made of plastic and can break if damage is done to it. Be careful when
collecting sharp edged plastic splinters to avoid injury.
Avoid placing the unit on any surfaces that may be subject to vibrations or shocks.
To protect the unit during a thunderstorm unplug the AC power cable and disconnect
the aerial. Caution: Do not touch the aerial (RF) connector.
When you leave your home for long periods of time, unplug the AC power cable for
safety reasons.
The unit becomes warm when in operation. Do not place any covers or blankets on
the unit in order to prevent overheating. The ventilation holes are not to be blocked.
Do not set up near radiators. Do not place in direct sunshine. When placing on a
shelf leave 5 cm (2”) free space around the whole unit.
Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas
such as Bathrooms, steamy kitchens or near swimming pools.
Do not use this unit when moisture condensation may occur
Any repairs must be carried out by qualified personnel only.
Do not open this unit. A non – expert attempting to repair the unit could be dangerous
and potentially cause a fire hazard.
Safety Information
Safety Information
Safety Information
3
IMPORTANT SAFETY INFORMATION (continued)
Liquids spilt into the unit can cause serious damage. Switch the set OFF and
disconnect the mains power supply, then consult a qualified service person before
attempting to use the unit again.
Do NOT remove the safety covers. There are no useable or serviceable parts inside.
You may invalidate the warranty. Qualified personnel must only service this
apperatus.
Do NOT tap or shake the screen, you may damage the internal circuits. Take good
care of the remote control, do not drop.
Never place hot objects or open flame sources on or close to the TV.
High temperatures can melt plastic and lead to fires.
Where to install
Locate the television away from direct sunlight and strong lights, soft indirect lighting is
recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight
falling on the screen. Place the TV on a sturdy platform of which the surface should be flat
and steady. This will prevent it from falling over.
Make sure the television is located in a position where it cannot be pushed or hit by objects,
as pressure will break or damage the screen, and so that small objects cannot be inserted
into the ventilation slots or openings in the cabinet.
Headphone Warning
Loud music can damage your hearing irreversibly, therefore do not set the volume to a high
level when listening through headphones,
particularly for lengthy listening periods.
To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp cloth with dilute detergent.
Product Introduction
Product Introduction
4
Front View
The functions of the TV buttons are described below.
MENU: Press to display the OSD menu, Press again to exit the menu.
CH+/CH-: Press to scan through channels.
They are also can be used to move down/up in the OSD menu screen.
VOL+/VOL-: Press to adjust the volume.
They are also can be used to move left/right in the OSD menu screen.
VOL+ button can be used to skip forward to next menu.
INPUT: Press to select the source.
POWER: Turn on/off the TV set.
LED indicator Remote Control window(keep clear)
INPUT MENU CH- CH+ VOL- VOL+ POWER
Headphone
HDMI1 TRACS
COAX
HDMI2
HDMI3
RF
USB
MINI AV
MINI YPbPr
Common Interface
AC POWER IN
PC - IN
AGV
Connections
Connections
5
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
AC POWER IN:
Connect to power.
HDMI1/2/3: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.
Coax:
Digital output to AV receiver.
MINI AV: Connect it to the audio & video output terminal of DVD with the Converter cable.
(Audio terminals are shared with YPbPr)
MINI YPbPr: Connect it to the YPbPr video output terminal of DVD with the Converter cable.
USB: Connect to USB device for multimedia
Common Interface: CI slot.
Headphone: Connect it to your headphone or other audio equipment.
Remote Control
Remote Control
6
The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote
control may not work correctly if it is operated out of range or out of angle.
CH.LIST: Display the programs list.
EPG: To show the Electronic Program Guide during no-
menu state only in DTV mode.
FAV: Display the favorite program list.
SLEEP: StandbyTimer
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
POWER(red button): Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
Buttons for Basic operating
MENU: Press to display the OSD menu.
INPUT : Display the input source menu.
EXIT: Press to exit the OSD menu.
THUMBSTICK(
OK): Allows you to navigate
the on-screen menus and adjust the system settings to your
preference.
NUMBER BUTTONS: Choose channel directly. Press
number buttons and press OK button to play the channel.
: Return to the previous channel viewed.
ASPECT: Adjust picture size
SUBTITLE: Turn on/off the subtitle display in DTV mode
TV/RADIO: Switch to TV/RADIO.
DISPLAY: Press to display the current mode’s information.
POWER MUTE
DISPLAY
MENU
TV/TXT CANCEL REVEAL NICAM/A2
INDEX HOLD SIZE SUBPAGE
EXIT
VOL CH
1234
5678
90
INPUTTV/RADIO
PICTURE SOUND ASPECT SLEEP
SUBTITLE CH.LIST EPG FAV
OK
