DENVER GSP-110 User guide [es]

Senior Phone

GSP-110

www.facebook.com/denverelectronics

User Guide

English, Deutsch, Dansk,

Suomalainen, Svenska,

Français, Nederlands,

Español, Italiano

Start to Use-----------------------------------------------2

Put in/Take out battery------------------------------2

Insert/Take out SIM card---------------------------5

Battery Charging-------------------------------------6

Your Phone------------------------------------------------8

Stand by Mode------------------------------------- 8

Key Functions----------------------------------------11

Voice Dial-------------------------------------------------13

Emergency Dial-------------------------------------13

Make an International Call--------

----------------15

Dial extension No. of a Fixed line---------------15
Speed Dial--------------------------------------------16

English-1

Start to Use

Put in/Take out battery

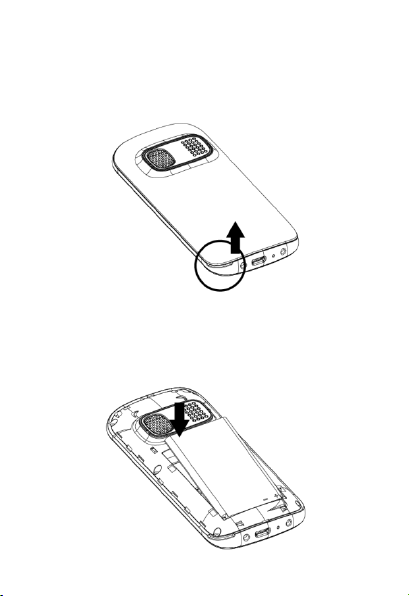

Put in battery

1. Open the battery cover

2. Put battery into the battery slot. Keep three
metal points of battery facing downward and
matching with the three metal connection
points on phone.

English-2

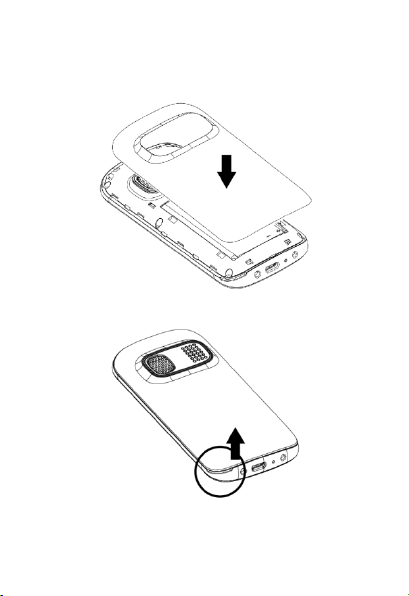

3. Put on battery cover. Make sure that cover is

completely matched and the cover matching
sound could be heard.

Take battery out

1. Open battery cover.

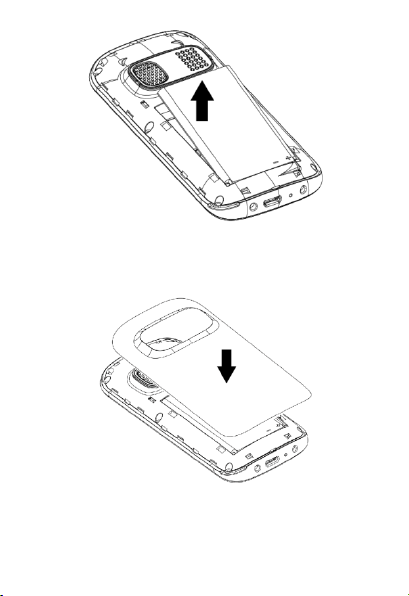

2. Press the battery side and lift it up to take it out
from battery slot.

English-3

3. Close the cover. Make sure that cover is
completely matched and the cover matching
sound could be heard.

English-4

Remark：Shut down all devices and cut the

connection with charger when removing

battery. Please use battery which is matched

with this phone only.

Insert/Take out SIM card

1. Insert SIM card：

Remove battery cover；
Insert and slide the SIM card with the metal
part facing downward by following below
arrow direction at battery slot until SIM card
is completely inserted in right position.

2. Take out SIM card：

Hold the notch of SIM
card and lift it slightly up by the other hand to
take card out.

English-5

Remark：Phone must be power off when put
in and take out battery.

SIM card and the contact point will be
easily damaged due to scratch and bending.
Please be careful when inserting and
taking out the SIM card.

Battery Charging

Phone could be charged when phone is
power off or power on.

Make sure that battery is inserted in

phone before charging.

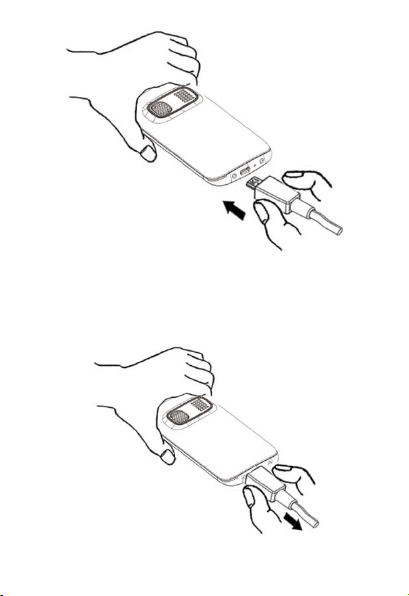

1. Plug in the charger.

English-6

2. Plug out the charger from power jack first
after it is charged. Then unplug charger
from phone.

English-7

Remark： Battery indication will be

Charging

Charged

displayed after several minutes if
battery is over-discharged.

Battery Level Indication Bar

Not enough battery alert

Phone will give alert when battery is not enough
and display a message of low battery on screen.
Please charge battery. Please charge battery
when you receive the alert of low battery during
calling in order to keep the calling.

Your Phone

When phone is ready to use but no operation

Stand by Mode

is done on phone, then phone is under stand
by mode.

English-8

1

2

3

5

4

8

10

11

6

7

9

English-9

Icons might be displayed on screen.

Alarm

Message Full

Missed call

Silent mode

Headset

No SIM

When listening FM

When playing
music

BT

When on call

Flight mode

When SOS

not finish

Vibration m ode

Icons on Screen

Battery status

Signal status

procedure does

English-10

Key

No

Press to call out:

you choose.

move cursor down

3

4

Key Functions

Key Name

Navigation

Up key

Answer Key

(Green

key)

Functions

Standby mode：press
to enter main menu
Operating ： press to
move cursor up

press to pick up
phone when there is
incoming call.
Standby mode：press
to enter call list
Operating ： Press to
confirm the function

Navigation

5

Down key

End Key

6

(Red Key)

Standby mode：press
to enter phonebook
Operating ： press to

Phone Off ： Long
press to switch on;
Phone On ： Long
press to switch off;
Operating ： Press to
go back to previous

English-11

menu

Long press it at

screen.

symbol.

Input digit 0 and

mode during on call.

non-editing screen to
go back to standby

Numeric

7

key

8 * key

9 # key

Handfree

10

mode

Press to input
numbers or letters

Standby mode：Long

press to call the set
number directly;
Short press to type in
*，P.

Editing mode: Press

to use normal

Standby mode：Long

press to set phone
silent mode, short
press to type in #.

Editing mode：Press

to switch typing
method.

open/Close handfree

English-12

Emergency Call is

ON： Long press to

set it on.

dial emergency call

Emergency Call is

OFF：Long press this
key. It will prompt out

11

SOS

BUTTON

a message
Reopened? Then
press answer key to

Voice Dial

Emergency Dial
How to set emergency dialing status：Contact 
Emergency number  Status. Set it as ON or
OFF.

When SIM card is inserted：

1. When emergency call is set ON: you can long

press SOS button at phone back side to dial the
emergency number if you already set it.

2. When emergency call is set OFF: you can long

press SOS button at phone back side. It will
prompt a message on phone screen:
Reopened? Then you can press answer key to
set it on.

3. When emergency call is set ON: phone will

English-13

send a message to set emergency numbers
and then call those numbers one by one if you
already set the emergency call number. There
will be 3 calling cycles. It will call next number
if previous number is failed to connect.

4. Phone will send out alerting sound when it is

sending message and calling to set emergency
numbers.

5. If all emergency numbers are dialed but without

answering, then phone will be in emergency
mode within one hour. In this case, phone will
pick up incoming call and activate hand free
mode automatically (only pick up one incoming
call). After that, phone will go back to normal
status. That means you need to press green
key to pick up incoming calls. During dialing
emergency calls, if one of calls is connected,
then phone will return to normal status after this
call is end.

Hang up the call：Long press End button to hang

up the call during calling out or in.

Long pressing SOS button at any condition

will let phone return to standby mode
automatically. Long pressing the button will not
activate the emergency call during Keypad lock
mode .

English-14

Remark： In every country where it can use GSM
network, you can use emergency dialing service if
you are in network covering range (you can check
the network strength indicator on left upside of
phone screen to know whether you are in the
range or not). If your network provider doesn’t
provide roaming service at that area, then it will
show EMERGENCY CALLS ONLY on phone
screen. That means you can only call emergency
numbers. If you are in the range of network
covering, you can dial emergency number without
SIM card.

1. Press 0 key for twice times and sign “+ ” will

Make an International Call

come out. Then enter country code, area code
and phone number (without a zero in front of
mobile phone number) Press Send key to enter
voice dial to call out.

2. Dial a fixed line: “＋”country code + entire

phone number + Send key.

Dial extension No. of a Fixed line

Some extension numbers of fixed line couldn’t be
dialed directly. You need to dial telephone
exchange first and then dial the extension number.

pe in a P symbol between telephone exchange

Ty
number and extension number, this phone will

English-15

dial the extension number automatically. Follow
below method to make a symbol P: short press *
key for twice times. Then it will display a P symbol
on screen.

If you already set the speed dial numbers, then

Speed Dial

you can long press number key 2 to 9,* key to
dial set numbers out under standby mode. Long
pressing number key 1 is to dial to voice mailbox
if you already set the mailbox number.

Radio frequency (RF) exposure and SAR
THIS DEVICE MEETS INTERNA

TIONAL
GUIDELINES FOR EXPOSURE TO RADIO
WAVES

Your mobile device is a radio transmitter and
receiver. It is designed and manufactured not to
exceed the limits for exposure to radio frequency
(RF) recommended by international guidelines
(ICNIRP). These limits are part of comprehensive
guidelines and establish permitted levels of RF
energy for the general population. The guidelines
were developed by independent scientific
organizations through periodic and thorough
evaluation of scientific

studies. The guidelines
include a substantial safety margin designed to
assure the safety of all persons, regardless of age
and health.

English-16

The exposure standard for mobile devices
employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit
stated in the international guidelines is 2.0
watts/kilogram (W/kg)*. Tests for SAR are
conducted using standard operating positions
with the device transmitting at its highest certified
well below the maximum value. This is because
the device is designed to operate at multiple
power levels so as to use only the power required
t

o reach the network. In general, the closer you
are to a base station, the lower the power output
of the device. power level in all tested frequency
bands.
Although the SAR is determined at the highest
certified power level, the actual SAR of the device
while operating can be well below the maximum
value. This is because the device is designed to
operate at multiple power levels so as to use only
the power required to reach the network. In
general, the closer you ar

e to a base station, the
lower the power output of the device.
SAR values may vary depending on national
reporting and testing requirements and the
network band. Use of device accessories and
enhancements may result in different SAR
values.
* The SAR limit for mobile devices used by the
public is 2.0 W/kg averaged over 10 grams of

English-17

body tissue. The guidelines incorporate a
substantial margin of safety to give additional
protection for the public and to account for any
variations in measurements. SAR values may
vary depending on national reporting
requirements and the network band.
The highest SAR value for this model phone
tested for use is 0.743 mW/g

Electric and electronic equipment and included
batteries contains materials, components and
substances that can be hazardous to your health
and the environment, if the wast

e material
(discarded electric and electronic equipment and
batteries) is not handled correctly.

Electric and electronic equipment and batteries is
marked with the crossed out trash can symbol,
seen below. This symbol signifies that electric
and electronic equipment and batteries should not
be disposed of with other household waste, but
should be disposed of separately.

As the end user it is important that you submit
your used batteries to the approriate and
designated facility. In th

is manner you make sure
that the batteries are recycled in accordance with
legislature and will not harm the environment.

English-18

All cities have established collection points, where
electric and electronic equipment and batteries
can either be submitted free of charge at recycling
stations and other collection sites, or be collected
from the households. Additional information is
available at the technical department of your city.

ALL RIGHTS RESERVED

DENVER ELECTRONICS A/S

WWW.DENVER-ELECTRONICS.COM

Importer:

DENVER ELECTRONICS A/S

Stavneagervej 22

DK-8250 EGAA

DENMARK

Hereby, Inter Sales A/S, declares that this senior
mobile phone DENVER GSP-110 is in
compliance with the essential requirements and

English-19
