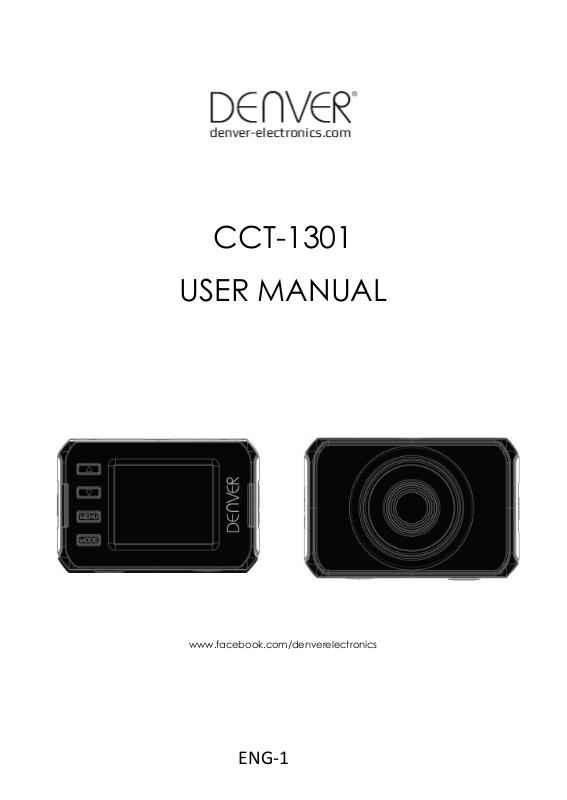

Denver CCT-1301 User Manual

CCT-1301

USER MANUAL

www.facebook.com/denverelectronics

ENG-1

2

Full

Middle

Low

1.Shutter

2.Speaker

3.ON/OFF

4.USB port

5.Micro SD card slot

6.Lens

7.Charging indicator

light

8.Busy indicator light

9.Cover

10.Screen

11.Mode

12.Menu

13.AV port

14.Down (Zoom out)

15.Up (Zoom in)

16.Tripod slot

For the power capacity in the battery, refer to the following icons:

1 . Connect device to car adaptor through Mini-USB port, device will power on automatically &

enter standby mode and start charging w ith red indicator light ON. Once device has been fully

charged, red indicator light goes out.

2. Connect device to PC via USB cable, device will power on automatically and start charging.

Once device has been fully charged, red indicator light goes out.

Installation and Removal of micro SD card

1. In the direction as indicated, insert the micro SD card into the slot until it is held firmly.

2. To take the micro SD card out, slightly press the micro SD card to eject it out.

[Note]:

1. Observe the direction to insert the micro SD card; if the direction is wrong, t he device and/or

the micro SD card may be damaged.

2. When the micro SD card is inserted into the device, the machine will set the micro SD card as

preset storage.

3. If the micro SD card is incompatible with the device, please insert the card again or replace it

for retry.

ENG-

ENG-3

4. PLEASE USE 8GB-32GB/CLASS 10 (C10) MICRO SD CARDS ONLY.

- Sound Effect:

Shutter: [on]/[off]

Start-up: [on]/[off]

Beep: [on]/[off]

- Frequency:

[50HZ]/ [60HZ]

5. Please insert the micro SD card ONLY when device is OFF.

Operation Instructions

Turn ON/OFF Device

1. Press the ON/OFF key for 1 second to switch ON and hold for 1 seconds to switch OFF device

manually.

2. Connect the device with car charger in the car. When car engine starts up, device w ill be

switched ON automatically. When car engine shuts off or car charger been disconnected,

device switches OFF with 10 seconds delay.

How to Enter System Setup

In Video / Photo / Vehicle mode, continuous press the Menu key to select the System Setup, press

the UP/Down - shutter key to setting:

- Auto Power Off:[OFF]/[1min]/[2min]/[3min]

- Language: You may set the desired OSD language menu.

[German]/[Danish]/[Spanish]/[French]/[Italian]/[Dutch]/[Polish]/[Portuguese]/[Swedish]/

[Finnish]/[English]

- TV Mode: [NTSC] / [PAL]

- Format: Format the memory card. [YES ]/[NO]

- Default Setting:[YES ]/[NO]

Take Video and Set Video Menu

1. Take video

When its powered of enter the Vehicle mode as default; press the Mode key to enter the video

mode with icon displaying at the upper-left corner of sc reen. Press the ‘Shutter’ key to start

video recording after proper Micro SD card been inserted. During recording, the red icon
flashes. To stop, press and hold power 2 second.

2. Set Video Menu

Press Menu to switch this options.

- Video Resolution :[1280*720 HD]/[640*480 VGA]

- Loop recording time: [3 Minutes]/[5 Minutes]/[10 Minutes]/[off]. To record, store and recycle the

video file by 3/5/10 minutes per section.

- Date: [on]/[off]/[Set Date].

- Setup: Refer to setting the System Setup.
