USER MANUAL
BTS-120
www.facebook.com/denverelectronics
Page 2
ENG
1
Thank you for choosing our Bluetooth speaker. Before using the product, read this user
Power on and off
Select a source ( Bluetooth , FM , Micro SD card and USB
flash drive )
Increase volume/skip to a next track
Decrease volume/skip to a previous track
Start/pause music playback/answer a phone call
Micro USB charging port
Micro SD card slot (support up to 32GB )
Standard USB port to play music
Aux input connector
manual carefully to be familiar with the product for proper use of the product. Keep this
manual in a safe place for future reference.
Product overview:
Page 3
ENG
2
Use
Bluetooth mode
Press to turn the product on, and Bluetooth mode is activated.
On your mobile phone, activate Bluetooth and search for Bluetooth devices then select
“BTS-120” to pair your mobile with this product. If a password is prompted for connection,
input “0000”. For details on Bluetooth connection, refer to the user manual of your
mobile phone.
After pairing, music from your mobile phone can be streamed to this product. Start music
playback on your mobile phone, use / buttons to adjust volume and select next
or previous track.
When a phone call comes in, press to answer. To end the call, press again, and
Bluetooth speaker resumes music playback.
Music playback from USB
Connect a USB flash drive, and press to enter USB mode. Music playback will start.
Press to pause or resume music playback.
Aux-in mode
Press to turn the product on. Using an audio cable, connect the Aux input connector
on the product to an external audio device (e.g. mobile phone, MP3 player or PC). Then
music from the external audio device can be played through the speaker of the product.
During playback, press and hold / to adjust volume. To switch to other source,
press .
FM mode
Press to turn the product on. Press until the prompt for radio is heard. For
better radio signal reception, connect an audio cable as an FM antenna.
Press to search for all FM radio stations. After the searching completes, press /
Page 4
ENG
3
to select a radio station.
True wireless stereo (TWS) via Bluetooth for two speakers
1. Turn two Bluetooth speakers on. Bluetooth mode is activated. The LED on the top of
the Bluetooth speaker flashes.
2. Make sure Bluetooth on your mobile phone and other Bluetooth device is
deactivated. Press and hold on either of the Bluetooth speaker. “Didi” sound is
heard, then “Dingdong” sound is heard to indicate the two Bluetooth speakers are
paired.
3. On your mobile phone, activate Bluetooth and search for Bluetooth devices.
4. Select “BTS-120” to pair with the Bluetooth speakers.
5. “Dingdong” sound is heard to indicate your mobile phone is paired with the
Bluetooth speakers. Then music from your mobile phone can be streamed to the two
Bluetooth speakers.
Note: If a password is prompted for Bluetooth connection, input “0000” on your mobile
phone.
Charging
Turn the product off. Then using a USB cable, connect the Micro USB port on the product
to a computer or power adapter. The LED indicator turns red during charging. The LED
indicator turns off after fully charged.
Notes:
Do not let children play with the product.
Do not throw the product into fire.
Do not use the product in very humid or high/low temperature environments. Product
performance will decrease when used in such environments.
Page 5
ENG
4
Please notice - All products are subject to change without any notice. We take
reservations for errors and omissions in the manual.
ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S
Electric and electronic equipment and included batteries contains materials, components
and substances that can be hazardous to your health and the environment, if the waste
material (discarded electric and electronic equipment and batteries) is not handled
correctly.

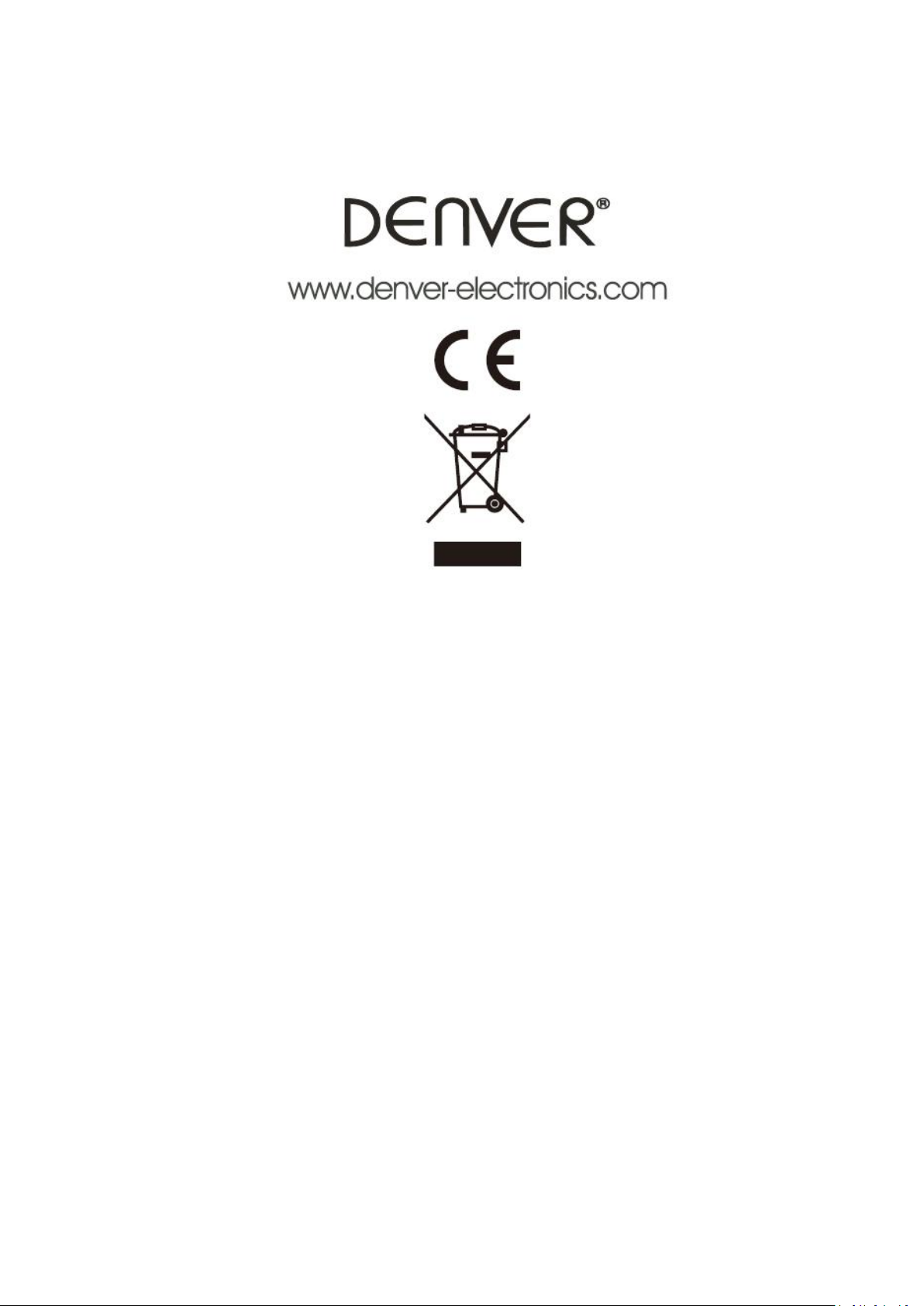

Electric and electronic equipment and batteries is marked with the crossed out trash can
symbol, seen above. This symbol signifies that electric and electronic equipment and
batteries should not be disposed of with other household waste, but should be disposed
of separately.
As the end user it is important that you submit your used batteries to the appropriate and
designated facility. In this manner you make sure that the batteries are recycled in
accordance with legislature and will not harm the environment.
All cities have established collection points, where electric and electronic equipment and
batteries can either be submitted free of charge at recycling stations and other collection
sites, or be collected from the households. Additional information is available at the
technical department of your city.
Page 6
ENG
5
Hereby, Inter Sales A/S declares that the radio equipment type BTS-120 is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at
the following internet address: www.denver-electronics.com and then click the search
ICON on topline of website. Write model number: BTS-120. Now enter product page, and
red directive is found under downloads/other downloads.
Operating Frequency Range: 2402MHz~2480MHz
Max Output Power: 42dBm
FM frequency: 87.5~108.0MHz
DENVER ELECTRONICS A/S
Omega 5A, Soeften
DK-8382 Hinnerup
Denmark
