Page 1
PORTABLE DVD
Before connecting, operating or adjusting this product,
please read this us er's manual careful ly and completely.
USER'S MANUAL
PDVT-12809S
PDVT-12809 SUNPLUS方案 标准说明书
Page 2
Table of Contents
1
P3
Safety Precautions
P1
Table of Contents
P4-P6
Identification of Controls
P7-P8
SETUP Menu Setting
P10
Parameters and specifications
Battery Parameters
P10
Important Safety Instructions
P2
SETUP Menu Introduction
P9
Page 3
Warning: To reduce the risk of electric shock, do not remove
the cover or back. There are no user-s erviceable part s
inside. Refer servicing to qualified personnel.
Warning: To prevent fire or electric shock hazard, do not
expose the unit to ra in or moisture.
Do not expose the Adaptor and portable DVD to water
(dripping or splashing) and no objects filled with liquids,
such as vases, should be placed on the unit.
Keep the portable DVD away from direct sunlight and heat
source such as radiators or stoves.
Do not block the ventilation openings. Slots and openings on
the unit are provided for ventilation. The openings should
never be blocked by p lacing your portabl e DVD on a cushion,
sofa or other simil ar surface.
Do not place the port able DVD on unstable ca rt, stand,
tripod, bracket or table. The unit may fall, resulting in
possible damage or injury.
Never place heavy or sharp objects on the LCD panel or
frame.
Only use the AC adapter included with portable DVD. Using
any other adapter will void your warranty.
The plug of AC adaptor is used as the disconnect device, the
disconnect device shall remain readily operable.
Unplug the power from the outlet when the unit is not in use.
Attention shoul d be drawn to the environ mental aspects of
battery disposal.
This marking indicates that this product should not
be disposed with other household wastes
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
return your used device, please use the return and
collection systems or contact the retailer where
the product was purchased. They can take this
product for environmental safe recycling.
2
Important Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
WARNN ING: The batt ery (battery or batte ries or battery
pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
WARNNING: Excessive sound pressure from earphones or
headphones can cause hearing loss.
WARNNING: Only use attachments/accessories specified
provided by the manufacturer, the portable DVD is supplied
by AC adapter, the AC adapter is used as disconnect device,
the disconnect device shall remain readily operable.
Caution: Danger of explosion if battery is incorrectly
replaced, replaced only with the same or equivalent type
(Lithium battery)
Page 4
N
Notes on Copyrights:
It is forbidden by law to copy, broadcast, show,broadcast via
cable, play in public, or rent copyrighted material without
permission.
This product features the copy protection function developed by
Macrovision.Copy protection signals are recorded on some discs.
When recording and playing the pictures of these discs picture
noise will appear.This product incorporates copyright protection
technology that i s protected by method c laims of certain U. S.
Patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners.Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless
otherwise authorized by macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SERIAL NUMBER:
You can find the serial number on the back of the unit.This number
is unique to this uni t and not available to ot hers.You should record
requested information here and retain this guide as a permanent
record of your purchase.
Model No. ______________________________
Serial No. ______________________________
Date of Purchase_________________________
3
Safety Precautions
N
Warning: when the unit using by child, parents must make sure
to let the child understand all contents in Instruction book how
battery using to guarantee using battery correctly all the time.
Warning: when find battery overheat, swell or dour, please
stop using batter y and contact service c entre for getting
replacement.
Warning: do not charging battery on the place of insufficient
ventilation such as: mattress, sofa, cushion , soft mat......
Warning: we will not take any responsibility if user incorrectly
use battery, not following our warning instruction label on the
battery case.
Warning: more than 250mm USB extension cord is prohibited
to use for USB port
Warning: This digital video disc player employs a laser system.
Use of controls,adjustments, or the performance of procedures
other than those specified herein may result in hazardous
radiation Exposure.
Warning: To prevent direct exposure to laser beam,do not open
the enclosure.Visible laser radiation when open.
Warni ng: Never stare dir ec tly into the laser be am.
Caution: Do not install this product in a confined space such
as a book case or simil ar unit.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
charge
over
heat
40 C
strong
impact
Page 5

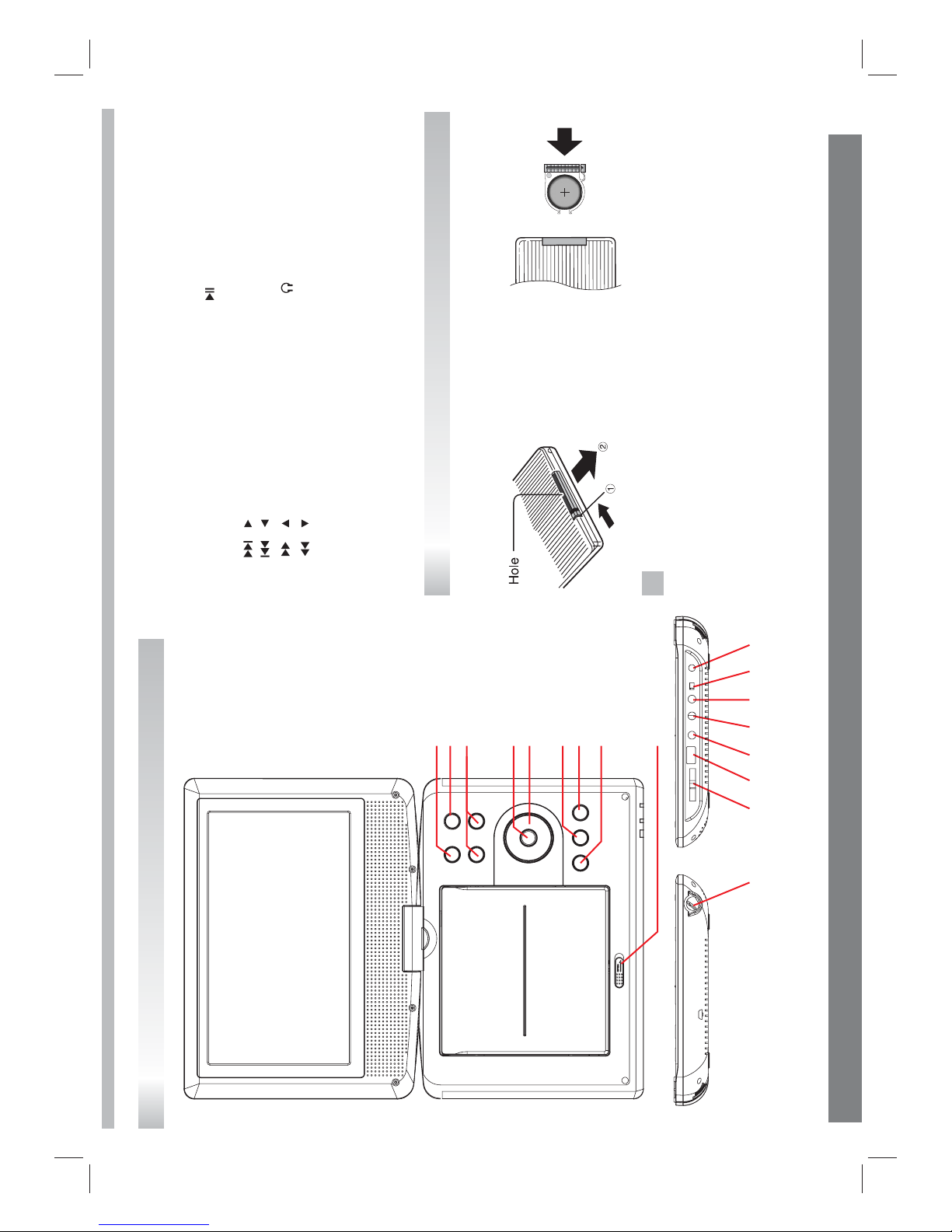

Identification of Controls
Main Unit
Insert the battery
Remove battery du ring storage or when yo u are not using the DVD
player for a long tim e.
2.Insert battery.
N
NOTES:
1.Open the battery door.
4
6.■ STOP
7. SETUP
8. PLAY/PAUSE
9. OPEN
10. SD/MMC/MS
11. USB
12. Earphone Socket
13. AV OUT
14. COAXIAL
15. ON/OFF
16. DC IN 9-12V
17. ANT.
1. DVD/DVB
2. SOURCE
3. VOL- / VOL+
4. ENTER
5. / next / right
/ prev / left
/ forward / up
/ backward / down
short press is up/r ight/down/left;
long press is forwa rd/next/
backward/prev.
10
11
12 13 14
15 16
123
4
9
756
8
17
Page 6
12
3
4
5
678
9 0 10+
ENTER
MUTE
SLOW
DVD/DVB
A-B
SOURCE

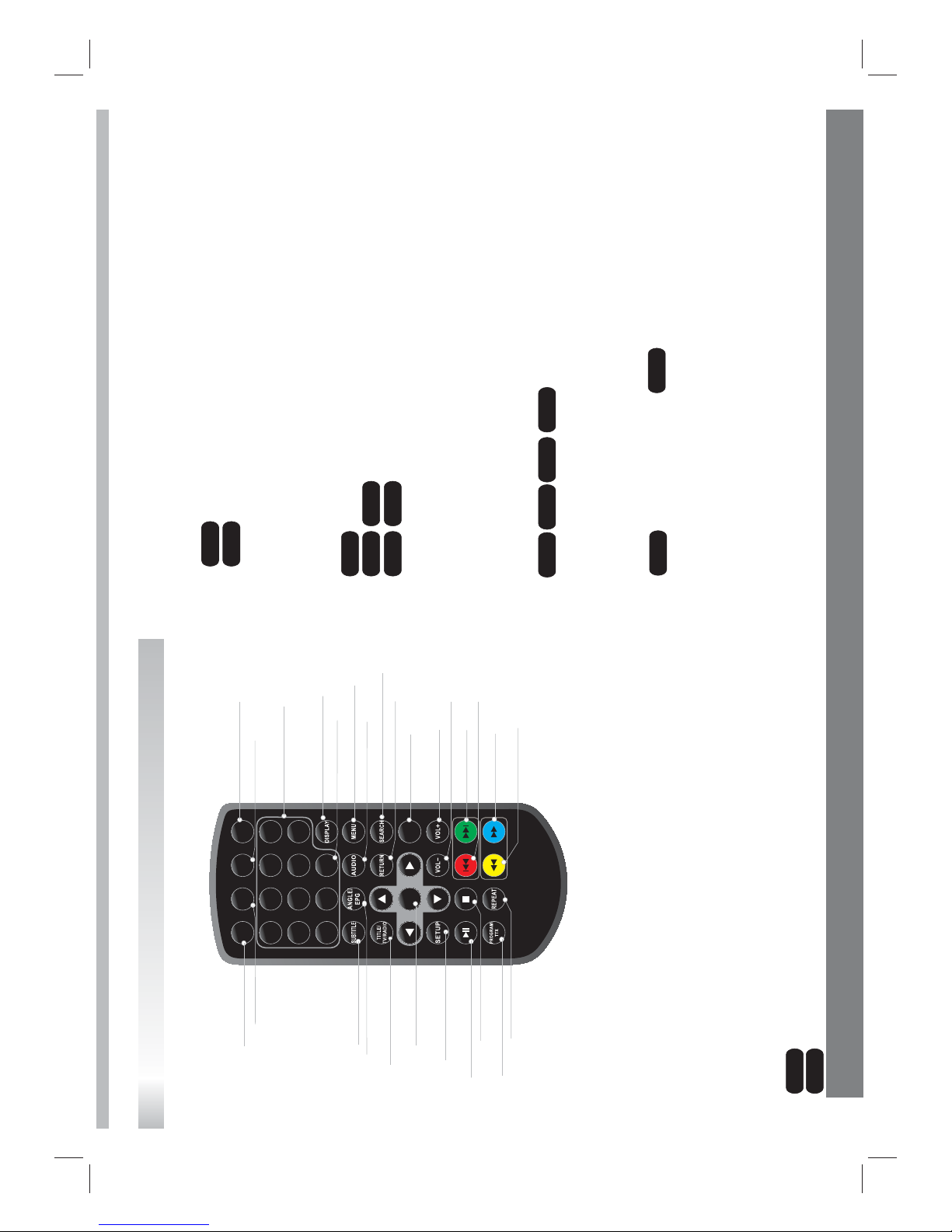

Remote control unit
7
9
16
18
8
15
26
21
1
2
22
23
12
19
13
14
25
6
17
10
24
Identification of Controls
1.PLAY/PAUSE
Press PLAY/PAUSE once to pause playback, pressing PLAY/
PAUSE second time will resume the playback.
2.STOP
When this buttom is pressed once, the unit records the stopped
point,from where playback will resume if ENTER is pressed after
wards. But if STOP button is pressd again instead of ENTER
button, there will be no resume function.
3.Reverse Skip
: Go to previous chapter/ track to the beginning.
: Red key in Telete xt.
4.Forward Skip
: Go to next chapter/ t rack.
: Green key in Teletwxt.
5.VOL -
Adjust VOLUME.
6.REPEAT
Press REPEAT during playback to select a des ired repeat mode.
: you can play a chapte r/title/all on a di sc .
VCD CD
DVD
: you can play a track/ all on a disc.
: you can select Repeat one/Repeat folder
play mode on a disc.
7.A B
To repeat a segment: press AB once to set the starting point for
repeat segment, p ress it again to set an end p oint, and the player
will repeat the segment from the start to the end point.
8.PROGRAM
:The program fu nction enables you to
store your favour ite tracks from the dis c. Press PROGRAM bu tton ,
then PROGRAM MENU will appear on screen, now you can use the
number key to direct input the titles,chapters or tracks number and
select PLAY option. TO resume normal playback, press PROGRAM
and select CLEAR option on the program menu.
: Teletext function .
Mp3 WMA
DVD VCD CD
Mp3
5
20
543
11
27
DVB
DVD
DVB
DVD
TTX
DVB
Page 7
18.ANGLE
Press ANGLE will change the view angle, on DVDs that support this
feature.
19.SETUP
Accesses or removes setup menu.
20.10+ BUTTON
In order to select a track 10 or greater, f irst press 10+, For e xa mple;
select track 12, first press 10+, and then press number 2 button.
21.RETURN
Return to upper menu or close menu.
22. BUTTON
Press BUTTO N allow skipping back at 5-level speed
(X2->X4->X8->X20), press ENTER button return to normal
playback.
YELLOW Key in Teletext.
23. BUTTON
Press BUTTO N allow skipping ahead at 5-level speed
(X2->X4->X8-> X20), press ENTER but ton return to norma l
playback.
BLUE key in Teletext.
24. SLOW
Slow play.
25.MENU
Accesses menu on a DVD disc.
26.SEARCH
Goto time point , tit le or chapter you want in D VD Mode.
27. MUTE
Disable Audio output.
Identification of Controls
Remote control unit
:You can p ress PROGRAM repe atly to select the slide show
mode, the are 16 type s slide show.
9. SOURCE
DVD/CARD/USB.
10.TITLE
: Return to DVD title m enu.
: Switch to TV or R adio program.
11.DVD/DVB
Switch to DVD or DVB mo de.
12.0-9 NUMBER BUTTON
Selects numbered items in a menu.
13.ENTER
Confirms menu selection.
14. VOL +
Adjust VOLUME.
15.DISPLAY
To display the playtime and status information.
16.AUDIO
Press AU DIO repeatedly du ring playback to hear a d ifferent
audio language or audio track, if avilable.
Press AUDIO repeatedly during playback to hear a
different audio channel (Stereo, Left, or Right).
17.SUBTITLE
Press SUBTITLE repeatedly during playback to hear a different
subtitle languages.
JPEG
DVD
VCDCD
Mp3
6
DVB
DVD
DVB
DVD
DVB
DVD
DVB
Page 8

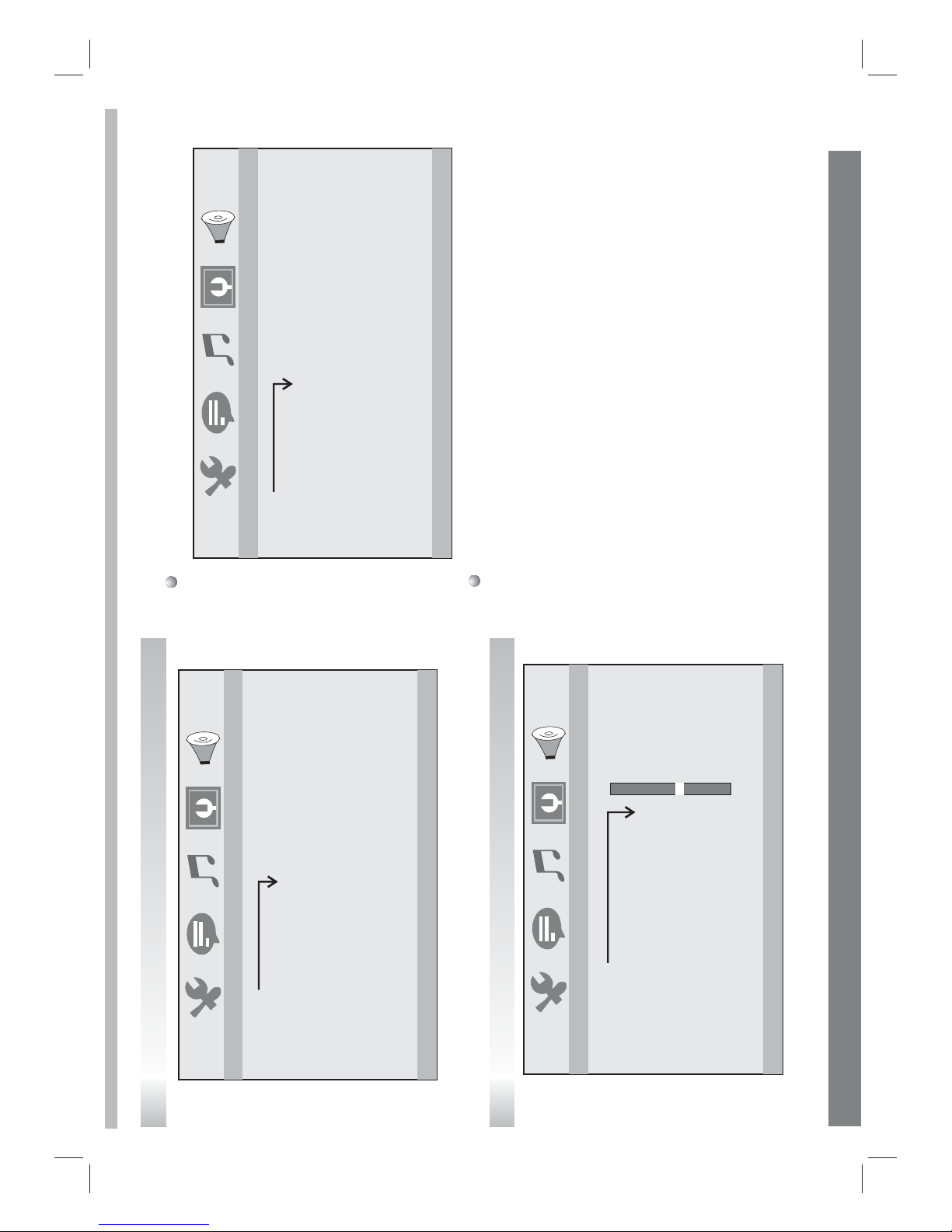

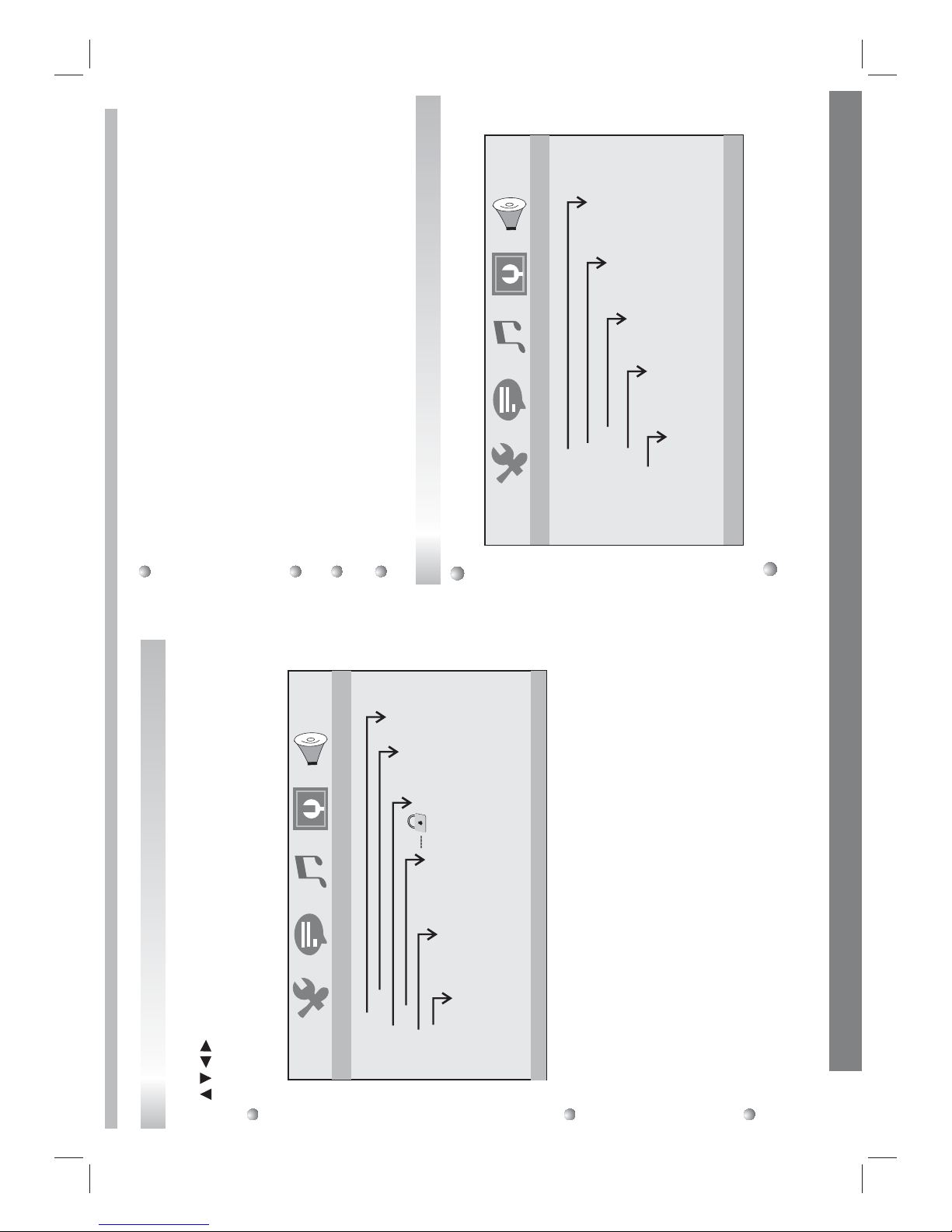

SETUP Menu Setting
System Setup Page
Language Setup Page
Language setup
--
OSD LANGUAGE
ENGLISH
GERMAN
SPANISH
FRENCH
PROTUGUESE
ITALIAN
AUDIO LANGUAGE
SUBTITLE LANGUAGE
MENU LANGUAGE
Press SETUP button to get the setu p me nu. Use direction b uttons
to select the preferred item. After finishing settings, press
SETUP again to normal display.
LANGUAGE SETUP
System Setup
SYSTEM SETUP
TV SYSTEM
SCREEN SAVER
TV TYPE
PASSWORD
RATING
DEFAULT
ON
OFF
1 KID SAFE
2 G
3 PG
4 PG13
5 PG-R
6 R
7 NC-17
8 ADULT
TV System
Selecting the color system that corresponds to your TV when AV
output. Thi s DVD Player is compa ti ble with both NTSC an d PAL.
PAL - Select this if the connected TV is PAL system. It will change
the video signal of a N TSC disc and output in PAL fo rmat.
NTSC - Select this if the connected TV is NTSC system. It will
change the video si gnal of a PAL disc and output i n NTSC format.
Auto: Chang the video signal output automatic according to the
playing disk format.
Screen Saver
This function is us ed to turn the screen sav er on or off.
NTSC
PAL
AUTO
4:3 PS
4:3 LB
16:9
RESTORE
ENGLISH
GERMAN
SPANISH
FRENCH
PROTUGUESE
ITALIAN
ENGLISH
GERMAN
SPANISH
FRENCH
PROTUGUESE
ITALIAN
ENGLISH
GERMAN
SPANISH
FRENCH
PROTUGUESE
ITALIAN
TV Type
Selects the aspect ratio of the playback picture.
4:3 PS: if you have a normal TV and want both sides of the picture
to be trimmed or formatted to fit your TV screen.
4:3 LB: if you have a normal TV. In this case, a wide pictur e with
black bands on the upper and lower portions of the TV screen will
be displayed.
16:9: wide screen display.
Password
Input user password. Default password is 0000.
Rating
After input correct password, you can change parental level.
Default
Restore the facto ry setting of setup men u.
You can select OSD language, and select audio/subtitle/menu
language of DVD discs if available. Also you can select font type for
mpeg4 subtitle.
FONT SETUP
CENTRAL EU
CYRILLIC
WESTERN EU
GREEK
TURKISH
7
Page 9
SETUP Menu Setting
Video Setup Page
You can change the video setting: brightness, contrast, hue,
saturation.
Downmix:
LT/RT: When playing a 5. 1ch DVD disc, the LS/ RS /Center channel
audio will output t hrough both L and R channel.
STEREO: When playing a 5.1ch DVD disc, the LS channel audio
will output only through L channel, RS channel audio will output
only through R channel, Center channel audio will output through
both L an d R channel.
Speaker Setup
8
BRIGHTNESS
CONTRAST
HUE
SATURATION
121086420
--
VIDEO SETUP
--
SPEAKER SETUP
DOWNMIX
LT/RT
STEREO
--
AUDIO SETUP
AUDIO OUTPUT
SPDIF/OFF
SPDIF/RAW
SPDIF/PCM
The function is use l to select the SPDIF out put: SPDIF off,
SPDIF/RAW,SPDIF/PCM.
Audio Setup Page
Page 10
TV Setting
Video Setting
Audio Setting
Language
Parent Control
Time Setting
System Info
System Config
DVB SETUP MENU
Channel Guide
TV Channels: Enter TV channels list.
In TV channels list, press DISPLAY key can sort programs.
Radio Channels: Enter radio channels list.
In radio channels list, press DISPLAY key can sort programs.
Channels Class: Set channels class: Favor, Movie, News, Show.
Channels Edit: Edit channels: rename, move, delete.
System Config
TV Channels
Radio Channels
Channels Class
Channels Edit
Channel Guide
SETUP Menu Introduction
Installalion
Auto Scan
Manual scan
Language
Default Setup
Installation
Auto Scan: Auto search all available channels.
Manual Scan: Manual search channels.
Default Setup: Reset DVB factory setting.
10
TV Setting: Selec ts TV system an d TV type.
Video Setti ng: Change the video setting: brightness, contrast, hue,
saturation.
Audio Setting: Selects coaxial digital out mode: OFF, RAW, PCM.
Language: Selects OSD language.
Parent Control: Change password and set channel lock.Default
password is 0000.
Time Settin g: Set time zone.
System Info: Informations about the update data,tuner,F/W version and
model version.
Game
BoxMan
Burning Tetris
Hit Rat
Game
There are three games:BoxMan,Burning Tetris and Hit
Rat.Select "ENTER" to play.
Page 11
Parameters and specifications
Item
Standard requirement
Output
Electronical parameters
VIDEO O UT
AUDIO OUT
:1.4 Vrms (1 K Hz, 0 dB)
Power r equir ement s
Power c onsum ption
Dimen sions ( Appro x.)
Weigh t (Appr ox.)
Operating humidity
: AC 100-2 40 V , 50/6 0 Hz
: 250(L)X191(W)X42(H)MM
: <12W
: 1.3 kg
: 5 % to 90 %
System
Laser
:Semi condu ctor la ser, wav eleng th 650 nm
Signal system
: NTSC / PAL
Frequency
response
Signal-to-noise ratio
:More than 80 dB (ANALOG OUT connectors only)
Dynamic range
:More t han 85 dB ( DVD/C D)
Note: Design and sp ecifications are su bject to change pri or notice.
N
: 20Hz to 2 0 kHz(1 dB)
Battery Parameters
Battery Specifications：
Output：7.4V
Charge / Discharg e Time：
Standard charge t ime：3h ~ 4h
Storage and work circumstances：
1. Storage circum stances Temperature Hu midity
2.Work circ umstances Temperatur e Humidity
6 months
-20 C +45 C~
-20 C +65 C~
65+20%
65+20%
Standard charge
Standard discharge
0 C +45 C~
-20 C +65 C~
65+20%
65+20%
1 week
9
Loading...
