LED Curing/Exam Combo Light System
Powered by Patented Focus Beam Technology
Setting New Standards through Innovation
FUSION-DOE
INSTRUCTIONS FOR USE
Product Information
Description and Indications for Use
Fusion-DOE Curing/Exam Combo Light System (Rev 5) is a high-power LED light device as a source of
illumination for polymerization of photo-activated dental materials and fluorescent imaging for oral exams.
FUSION light head covers the wavelength range of 420 – 490 nm and the violet DOE violet exam light head
covers 390-430nm wavelengths. These operating instructions provide recommendations and guidelines for the
intended use of the light. Please read them carefully.
System Components
FUSION-DOE Light System consists of
Handpiece, Charging Stand, Curing Caps, Power
Adapter, Fluorescent Shields, Fluorescent
Goggles, Barrier Sleeves, Stand Stick Pad, and
Instructions for Use.
Quantity
Description
1
FUSION Light Head
1
DOE Light Head
1
Main Control
1
Battery Assembly
3
Curing Caps (3mm, 9mm,
13mm/each)
1
Barrier Sleeves
(1 pack of 100)
1
Orange Fluorescent Shield
1
Green Fluorescent Shield
1
Orange Goggle
1
Green Goggle
1
Power Adapter
1
Light shield
1
Charging Stand
1
Stand Stick Pad
1
Instructions for Use
The handpiece includes a FUSION silver light head, a DOE violet light head, Main Control and Battery Assembly. The
Fluorescent Shields include: an orange shield for hard tissue and a green shield for soft tissue exams. The Fluorescent
Goggles include: a green goggle for soft tissue and an orange goggle for hard tissue exam or patient protection.

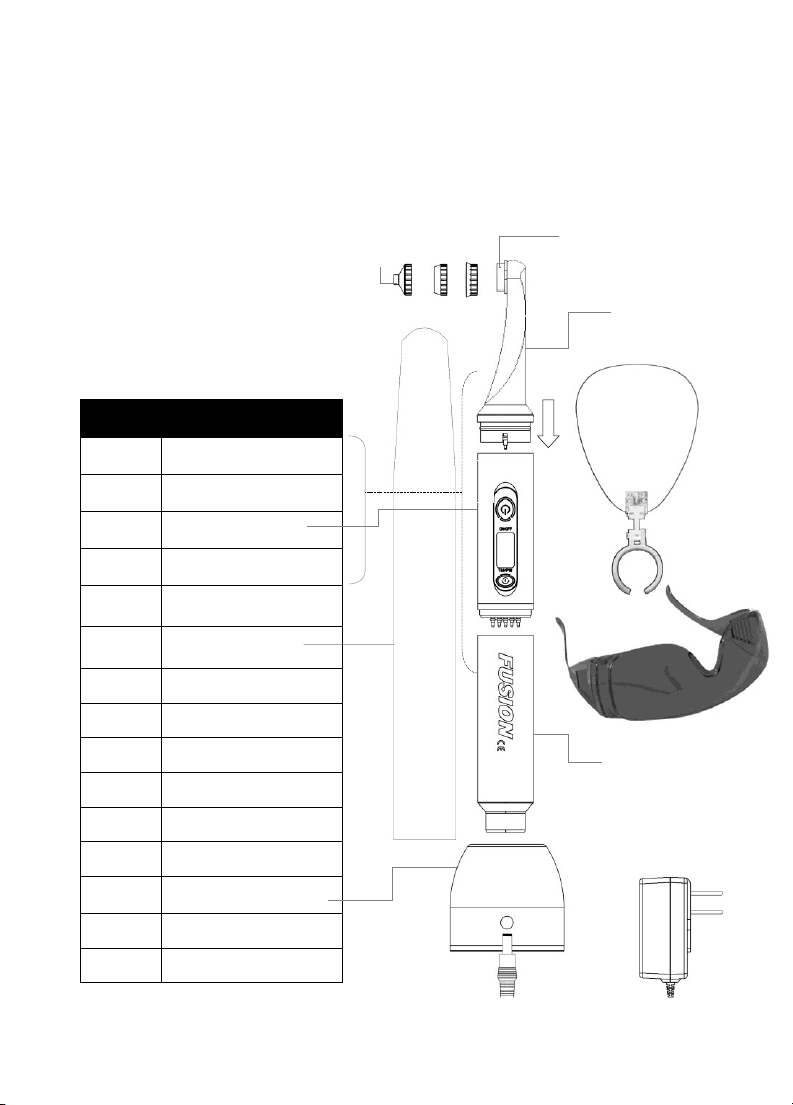

DC Power Plug
Lens Module
Light Head
3mm
9mm
13mm
Curing Caps
Fluorescent
Shield
Power Adapter
Handpiece
Battery Assembly
Fluorescent
Goggle
Product Safety Warnings and Cautions
Prior to installation and activation of the light, please read these instructions carefully and follow safety
procedures as well as the specific safety comments and recommendations presented throughout the
instructions for use. The manufacturer accepts no liability for any damage resulting from the improper use
of this unit and/or for any purpose other than those covered by these instructions.
1. CAUTION! FUSION-DOE produces high intensity light. Prolonged exposure to the skin, oral mucosa, or
pulp can result in irritation or injury.
- Do not place light in direct contact with unprotected gingival, oral mucous membrane or skin.
- Do not place light directly on the same tooth segment for more than 6 seconds in Plasma Power Mode.
- If long exposure cannot be avoided, direct a stream of air over the tooth surface from an air syringe or
high-speed vacuum tip, adjust to Pulse Power Mode or adjust curing distance.
2. CAUTION! Do not look directly at emitted light. Do not use FUSION-DOE without suitable eye protection
for the operator, assistant, and patient. Use Light Shields, Goggles, and/or Curing Caps. Exposure must be
restricted to the area of the oral cavity for which the clinical treatment is intended.
3. CAUTION! FUSION-DOE must be used with “Single Use” Barrier Sleeves to avoid cross contamination.
Replace Barrier Sleeve after each patient treatment is completed. This sleeve also prevents composite/residue
material from adhering to the surface of the lens and degrading the curing performance.
4. Products marked “Single Use” on the labeling are intended for single use only. Discard properly after each use.
5. DO NOT operate the unit in the proximity of flammable mixtures. Use in well-ventilated area.
6. Keep solvents, flammable liquids, and sources of intense heat away from FUSION-DOE as they may damage
internal and external parts, the seals, or the buttons on the control panel.
7. DO NOT autoclave or immerse the unit in any kind of ultrasonic bath, disinfectant, cleaning solution or any kind
of liquid. Do not spray liquids directly onto the light and prevent liquids from entering the device open area such
as Keypad, Charging Stand, and its connectors as this may damage or short-circuit the device and can cause
potential hazard for operator and/or patient.
Start Up
Assemble Handpiece
Upon receiving your kit,
remove all components from
the package and examine
them. If damage is apparent, please contact your authorized DentLight distributor from whom your light was purchased.
Attach the Battery Assembly to the Main Control by screwing the Battery Assembly clockwise into the Main Control. The
silver FUSION head is attached to the Main control for composite curing. Adjust the 360º swivel Light Head to a
comfortable curing position and ensure good connection with the Main Control. The Light Head quick connects with the
Main Control with easy twist Push/Pull and can easily change with the DOE violet light head for fluorescent imaging. Light
is now ready for use.
Operation and Setting
The handpiece uses advanced Metal Keypad and LCD interface. ON/OFF Key starts and stops the light. TM/PW
Key sets the Operation Time and Power Mode. The light defaults in Pulse Power Mode (green backlit LCD and flash
MODE symbol) with 5 second timer. Press TM/PW Key to select a Digital Timer of your choice. Press and hold
TM/PW Key for 2 seconds and release to change power to Plasma Power Mode (white backlit LCD with steady
MODE symbol) and vice versa.
Plasma Power Mode allows the fastest curing with plasma-like energy dosage. Pulse Power Mode maintains the
peak power and generates the minimum heat by lowering the average power in half with a 50/50 on and off duty
cycle. Built-in settings are shown in the table below. After starting, Digital Timer counts down and the light makes an
audible beep every 5 seconds. Press ON/OFF Key anytime to stop.
Select 60 seconds timer for oral exams using the DOE violet Light Head for early cancer
screening and fluorescent caries detection.
MODE
Plasma Power
Pulse Power
Digital Timer
(seconds)
3
3* 5 10
20
60
Backlit LCD
White
Green
To Change
Power Mode
Press/hold TM/PW Key for 2 seconds then release
* Sequential curing 6 times (3s cure, 5s period) for brackets/veneers.
Built-in Self-Protection FUSION has built in self-protection on low
battery and overheats. Low battery is indicated with low Battery Bars
(one or no bars). Low battery triggers one beep a minute ahead of
self-protection shutdown. Light then goes to sleep mode. Overheating
is indicated with a flashing Thermometer symbol, an audible warning
beep together with a red backlit LCD. Light shuts off when overheat is
triggered.
Curing Recommendations
For specific resin, sealants, and bonding materials, perform a timed curing test outside the mouth using a 3mm
washer or hardness disk. Cure from the top for the recommended time and reverse the disk. Using a sharp
instrument, compare the hardness of the disk to the hardness of the top composite - it should feel the same if well
cured. For general guidance, use recommended curing times below. For reduced heat or shrinkage, use Pulse
Power Mode and replace 3sec with 5sec curing times below.
Recommended Cure Times (seconds) - Plasma Power Mode
Manufacturer
3M
Ivoclar
Dentsply
Kerr
Resin Brand
Filtek Supreme
Plus
Heliomolar
Tetric
EvoCeram
TPH3
XRV
Herculite
Color/Shade
A3E
C6D
A3
A2
A3
DY
A3
YB
Cure
Times
Per layer
3
3x3 3 3
3 3 3
3
Final layer
3x2
3x4
3x2
3x2
3x2
3x2
3x2
3x2
To bond brackets, use 1) 3 seconds in Plasma Mode for single bracket; 2) 3x2 seconds in Plasma Mode for band or
tube; 3) 3 seconds in Pulse Mode for a quadrant.
Fluorescence Exams/Visualization
The DOE violet light head interchanges with the FUSION curing
light head. It is used as a soft and hard tissue fluorescence
visualization tool by exciting the tissue with uniform violet light
allowing the direct visualization of the resulting natural tissue
fluorescence to enhance the identification of abnormalities from
tissues. When used in combination with the orange fluorescent shield, hard tissue fluorescent exams can be
performed for detection of caries, plaques, fillings, and dentin infections. When used in combination with the green
fluorescent shield, soft tissue fluorescent exams can be performed for detection of premalignant dysplasia and
cancerous lesions.
Battery Protection Tempe rature Overhea t
Check connection
Replace battery
Allow cool down
Thermometer
ON/OFF
MODE
DIGITAL TIMER
BATTERY BARS
TM/PW
ON/OFF
TM/PW

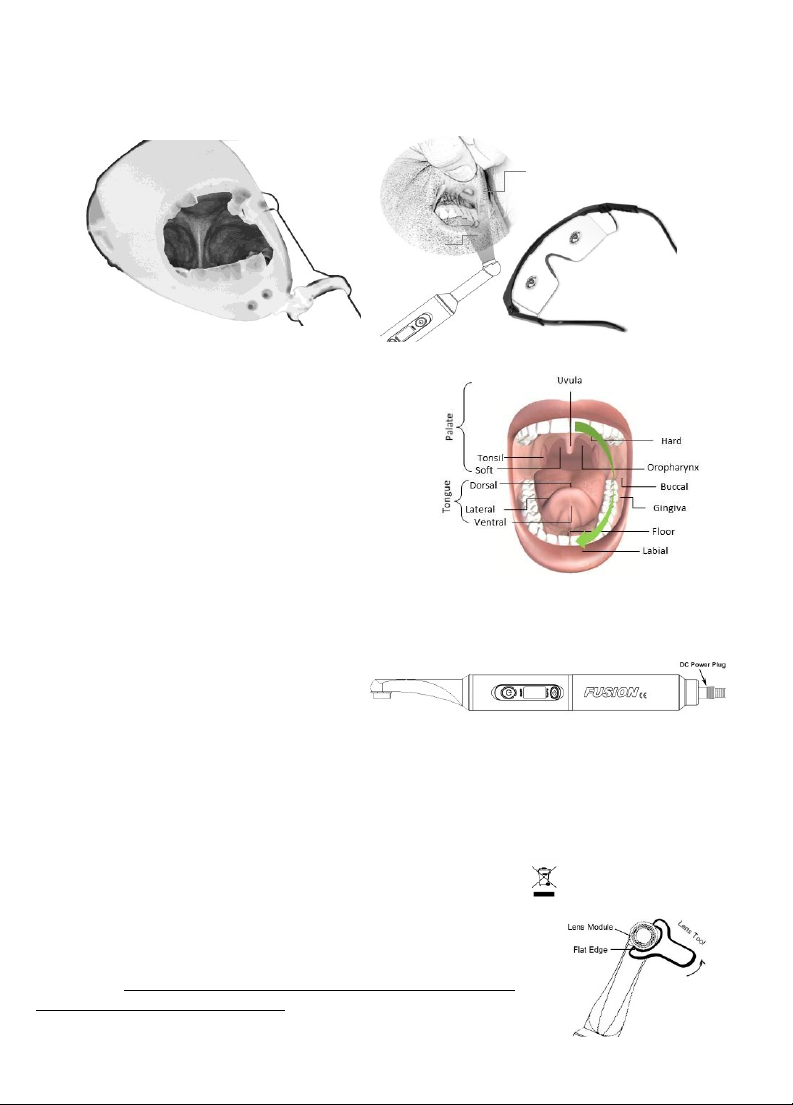

To start tissue fluorescence examination, make sure patient always wear protective goggle (orange). Slide in the
respective fluorescent shield into the handpiece. Direct and point light to illuminate target tissue spot at 1 to 3
inches distance away. Set timer to 60 seconds on pulse mode then press ON/OFF button to activate the light.
Visualize emitted tissue fluorescence through fluorescence shield
for the easiest operation. Alternatively, operator or assistant can
use the Fluorescent Goggle or an optional loupe-mounted
Fluorescence Filter Pairs for magnified exam.
In soft tissue exam, use the green fluorescent shield. The
contrast for bright and dark tissue green fluorescence enables
identification of lesions and early cancers (watch training DVD for
details). Dark spot indicates early signs of problems. Pay
attention, in particular, to asymmetric dark spots with irregular
shapes. Follow the cavity through Labial, Buccal, Gingiva,
Tongue, Floor, and Palate clockwise as illustrated on the right.
In hard tissue or tooth structure exam, follow the same steps using the orange fluorescent shield. Caries will appear in
red under the violet light head excitation when viewed through the orange fluorescent shield. This will assist not only
exams but also for preps to clean up all residue caries and infections.
Battery Care
Keep the device on the Charging Stand when not in
use. Connect DC Power Plug to Plug Receptor on the
Charging Base. Peel off Stand Stick Pad and secure Charging Stand on a table counter for easy one-handed pick up.
Alternatively connect DC Power Plug directly to the back end of the Handpiece to charge and power on the unit.
Separate Battery Assembly from Main Control in case of long-term storage (>2 months).
LCD screen lights green while charging. LCD backlight turns off when fully charged. It is completely safe to have the
light stand on the Charging Stand all the times. Battery Bar displays three full bars when the battery is fully charged.
In normal operation, Battery Bar drops from three to two bars while running and returns to full bar upon completion
of a cycle.
BATTERY DISPOSAL: The Battery Assembly contains a Lithium ion (Li-ion) battery. When the battery is at
the end of its life, recycle or dispose it according to national, state, and local
regulations.
Techniques
Lens Module: Always use disposable Barrier Sleeves and Curing Caps to protect
lenses from liquid and composite damages. Replace Lens Module immediately if it: a)
has cured resin or residue; b) is scratched or cloudy. Align and lock flat edge of Lens
Tool (optional accessary) to flat edge of Lens Module. Turn Lens Tool
Handpiece
Target Tissue Spot
Fluorescence
Goggle
Illumination
counter-clockwise and unscrew Lens Module. Replace damaged lens with a new Lens Module by reversing the
steps. Do not overtight the thread and O-rings underneath.
Barrier Sleeves: Slide sleeve into Handpiece. Twist body relative to sleeve for tight fit.
Light Shield: Slide in Light Shield from the LED Light Head to the Handpiece into proper position for best access.
Tip Size: Tip and beam size can be adjusted by selecting the proper size Curing Caps. For
small cavity treatment, snap on 9mm Curing Cap and anchor light on occlusal or bonding
surface. For temporary bonding, snap on 3mm Curing Cap (Tacking Tip) at the end of the
Lens Module and apply pressure at the center of crown/veneer for best contact. Tack for 1
second then remove excess adhesives before final bonding. For veneer bonding and molar
cavity treatment, snap on 13mm Curing Cap and place light in direct contact.
Cleaning and Disinfecting
Clean and disinfect Handpiece and Charging Stand with a soft cloth or tissue dampened with cleaning solution
including: Cavicide, Lysol, Isopropyl or Ethyl alcohol and equivalent. Do not spray, soak, or autoclave.
Use Q-tips to clean lens and electrical contacts by slightly dampening the tip (do not soak) with Isopropyl alcohol.
Safeguard Handpiece opening area, Metal Keypad, Charging Plug, and Lens Module against liquid and sharp
objects as this may cause electrical short-circuit, permanent optical damage or malfunction.
Optional Add-ons
FUSION-DOE is the most advanced and versatile LED light system allowing users to perform beyond normal and
composite curing and exams. You can implement additional advanced curing and therapeutic procedures by twisting
and pulling out its modular light head and switch it for custom illumination. Additional optional light heads are:
Plus Head – providing larger (12mm) curing tip with broader wavelength coverage from
385 to 490nm. It allows curing of larger areas than the standard 10mm tip and cures wider
range of photoinitiators.
Twinhead – Trans-enamel cure: Rotate each head to approximately face each other and
place light heads from both the buccal and the lingual at the same time. Set timer to 3
seconds in Plasma mode (cure twice) or 10 seconds in Pulse mode and cure. Help
eliminating shrinkage (e.g. bulk cure) or indirect brackets bonding. Rotate each head to point it at a different spot
from the other head also allows curing of multiple teeth and brackets. Popping out one head the same way as the
Standard LED Light Head enables the remaining head to cure in full power of 4000mW/cm2 in Plasma Mode.
fPad Light Head - providing red light (620 – 650 nm) for 1) photodynamic pain therapy for local pain relief for TMJ
patient or after oral surgery; 2) photo-activated disinfection of gum diseases.

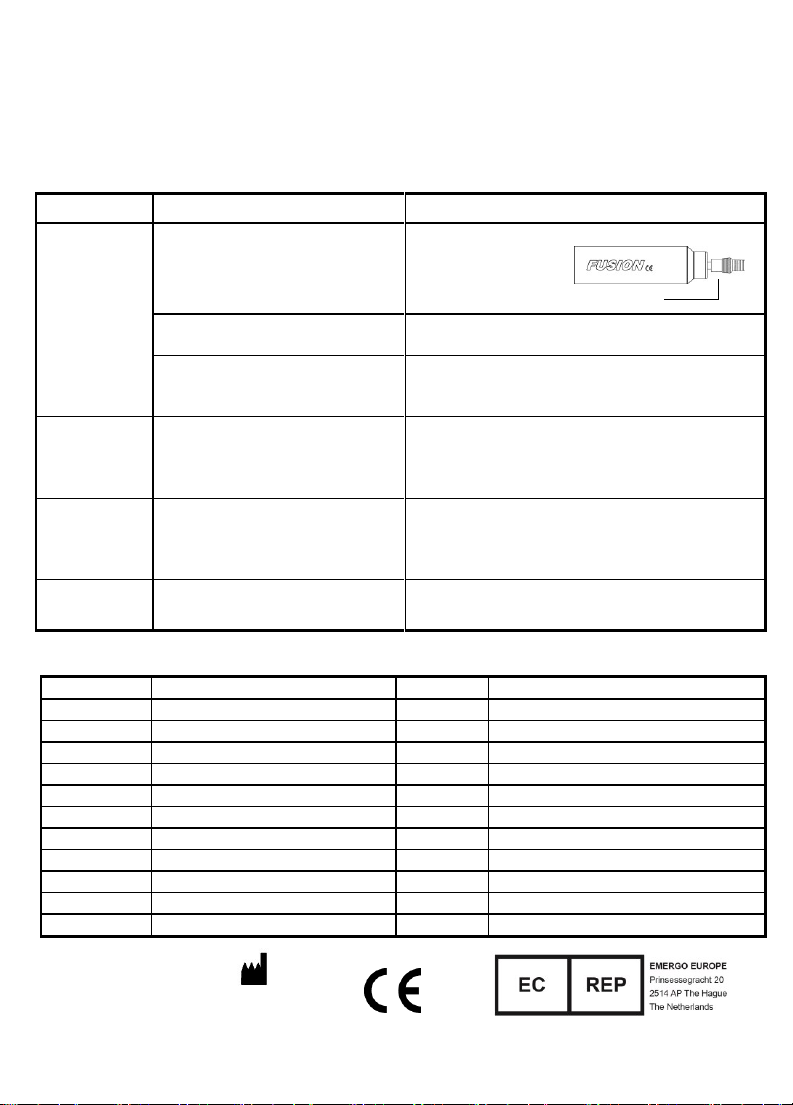

Product Specification
Type of information
Specifications
Wavelength
LED Light Head
Twinhead
420-490nm
Plus Light Head
385-490nm
Violet Light Head
385-440nm
White Light Head
5000- 6500K
fPad Head
620-660nm
Tip Size (mm)
Standard Head
10
Plus Light Head
12
Light Intensity
LED Light Head
4000 (Plasma Mode); 2000 (Pulse Mode)
Tacking Tip
at light tip
(± 10% mW/cm2
or lux)*
Twinhead
2000 (Plasma Mode); 1000 (Pulse Mode)
Plus Light Head
4000 (Plasma Mode); 2000 (Pulse Mode)
Violet Light Head
1200 (Plasma Mode)
White Light Head
110,000 lux (Plasma Mode with Tacking/Exam Tip)
fPad Head
1600 (Plasma Mode); 800 (Pulse Mode)
Power Adapter
Input: 100-240V - 50/60Hz; Output: 5V 1-2A
Battery performance
Output: 3.7V nominal and 1.4AH. Total light exposure time 70 minutes
(Plasma Mode) and 140 minutes (Pulse Mode); 90 minutes full recharging
time. Expected life: 1000 full charge/discharge cycles.
Operation
Continuous operation patient application, curing: duty cycle 6sec (Plasma
Mode) 10sec (Pulse Power Mode) ON/30sec OFF; exam (place 1inch [2.5cm]
away from soft tissue): 60sec (Pulse Power Mode) ON/1 minute OFF.
Shutoff
Timer auto shutoff; User shut off anytime by pressing ON/OFF Key; Low
battery auto shutoff; Overheat auto shutoff (50◦C at Light Head).
Self-protection shutoff is accompanied by warning backlight, audible beep and
flashing THERMOMETER or BATTERY BAR symbols.
Overcurrent Protection
Auto
Light Dimension (mm)
Length: 204; Width: 22; Height: 22
Charging Dock Dimensions (mm)
Height: 45; Diameter:44
Weight (grams):
Handpiece: 114; Charging Stand: 89
Equipment Class
Symbol for class II equipment.
Safety
IEC 60601-1
EMC Compliance
IEC 60601-1-2
Protection from Electric shock
Type BF
Protection from ingress of liquids
IPX0
Service Lifetime
Lifetime of the device is approximately 150,000 curing cycles based on battery
life or typically 5 service years in normal office use.
Operating environment
Ambient temperature: 50ºF to 86ºF (10º C to 30ºC) Relative humidity:
10%-80%, non-condensing, Atmospheric pressure:0.5-atm to
1.0-atm(500hPa-1060hPa)
Storage environment
Ambient temperature: 14ºF to 104ºF (-10ºC to 40ºC) Relative humidity:
10%-80%, non-condensing, Atmospheric pressure:0.5-atm to
1.0-atm(500hPa-1060hPa)
* Irradiance (mW/cm2) is absolute irradiance measured using calibrated optical spectrometer.
Limited Two-Year WARRANTY
Register your light at www.dentlight.com. DentLight Inc. extends a two-year warranty against defects in material and
workmanship to the original purchaser of this product from an Authorized dealer, except the Battery Assembly, Charging
Stand, and Power Adapter (one-year warranty). This warranty does not cover accessory components such as curing caps,
barrier sleeves and light shield, which are disposable items. This warranty is valid providing factory inspection indicates that
any such defect was developed during normal and proper use. DentLight shall under no circumstances be liable for
incidental, special, consequential damages and damage from misuse including the following expressed or implied:
Improper operation, accident or neglect, misuse, or abuse, such as physical damage (dents, scratches, etc.);
Liquid, water, rain, extreme humidity, ultrasonic, autoclaving;
Tampering, improper repairs or modifications that have not been carried out by a certified Service Center;
Use of other spare parts and accessories other than from the manufacturer such as incorrect power adapter;
Other acts which are not the faults of DentLight.
For service, call 1-800-763-6901 (in US) to obtain RMA number. Fill out RMA form online and return as instructed. In case
of a warranty claim, the complete apparatus must be returned. Alternatively, contact your dealer for service return.
Troubleshooting Guide
Problem
Error Indication
Possible Solutions
Light will not
turn on
1. Buzzing noise when charging. 2.
LCD is blank.
1) Charge Battery Assembly alone by directly plugging DC
Power Plug (bypassing
Charging Stand) for 5
hours. 2) Push any Key.
Handpiece is overheated. LED Light
Head gets hot.
Direct an air stream from an air syringe or high-speed
vacuum tip to the light tip or wait for cool down.
1. Light does not activate with Key.
2. Timer counts down yet no output
light.
Contact manufacturer or your local dealer for service.
Light does not
stay on for
desired time
1. One or no Battery Bars.
2. Bad connection or contacts.
3. Out-of-capacity or battery at the
end of its life.
1) Charge Handpiece directly (bypass Charging Stand)
for 1 hour; 2) Check connection pins to make sure that
they are not damaged; 3) Replace battery.
Light generates
too much heat
Patient feeling discomfort
1) Cure 3 seconds at plasma power or 5 seconds at pulse
mode per layer. 2) Direct an air stream from an air syringe
or high-speed vacuum tip. 3) Adjust to Pulse Power Mode;
4) Adjust curing distance.
Battery will not
charge
1. Broken pins in Charging Stand.
2. Electronic defect in Battery Assembly.
1. Bypass, replace or service Charging Stand.
2. Replace or service Battery Assembly.
Reorder and Optional Item Codes
REF
Description
REF
Description
7800080
FUSION5 Curing Light Kit
7800060
LED Light Head
7700512
FUSION5 -DOE Combo Light Kit
7810060
LED Twinhead
7810080
FUSION5 Twinhead Curing Light Kit
7820060
LED Plus head
7500082
Barrier Sleeves (100/pack)
7800060U
Violet Light Head
7510092
Orange Shield (Fluorescence)
7520092
Green Shield (Fluorescence)
7500088
Orange Safety/Fluorescence Goggle
7510088
Green Fluorescence Goggle
7500182
Twinhead Barrier Sleeves (100/pack)
7800060W
White Light Head
7600081
Curing Caps – 9mm (10/pack)
7800060R
fPad Head
7610081
Curing Caps – 13mm (10/pack)
7500085
Power Adapter
7620081
Curing Caps – 3mm (10/pack)
7500093
Focus Lens Module
7500084-08
Battery Assembly
7500083
Charging Stand
Made in U.S.A.
2/2018, v5.4
FUSION is a trademark owned by DentLight.
©2018 DentLight
DC Power Plug
DentLight Inc.
1825 Summit Ave. #210
Plano, TX 75074, US
Tel: (800) 763 6901
Outside US: 1-972-889-8857
www.dentlight.com
Loading...
