Denso BHT-604BW User Manual

Barcode Handy Terminal

BHT-604BW

User’s Manual

ALP

+=

%

#&$

:,

*

／

-

SPACE

i

BHT-604BW

Preface

Thank you for using the BHT-604BW DENSO WAVE Barcode Handy Terminal.
Please read this manual thoroughly prior to operation to ensure full use of the product’s functionality, and store safely

in a convenient location for quick reference even after reading.

Liability Limitations

 DENSO WAVE INCORPORATED does not assume any product liability (including damages for lost profits,

interruption of operations, or the loss of business-related information) arising out of, or in connection with, the
use of, or inability to use the BHT system software or related manuals.

 DENSO WAVE INCORPORATED ("DENSO WAVE") takes reasonable precautions to ensure its products do not

infringe upon any patents or other intellectual property rights of other(s), however, DENSO WAVE cannot be
responsible for any patent or other intellectual property right infringement(s) or violation(s) arising from any of the
following.

1) The use of DENSO WAVE's products in connection or in combination with other components, products,
devices, data processing systems or software not supplied by DENSO WAVE.

2) The use of DENSO WAVE's products in a manner for which they were not intended nor designed.

3) The modification of DENSO WAVE's products by parties other than DENSO WAVE.

 If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product having

been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty
period.

ii

Barcode Handy Terminal

Customer Registration and Inquiries

Customer Registration

To allow us to provide our customers with comprehensive service and support, we request that all customers
complete a Member Registration Form. Registered members will be offered the following privileges.

 The latest upgrade information
 Free exhibition and event information for new products
 Free Web-information service "QBdirect".

QBdirect Service Contents

Information search
service (FAQ)

Offers detailed information on each product.

Download service Offers downloads of repair modules for the latest BHT Series systems or

software, and sample programs.

E-mail inquiries Product related queries can be sent in by e-mail.

* Please note that these privileges may be subject to change without prior notice.

− How to Register

Access the URL below and follow the instructions provided.

http://www.qbdirect.net

/

Inquiries

− Technical Inquiries (QBdirect)

 BHT product programming method
 Product setup method, usage
 Other technical questions

Inquires relating to the above can be made at our exclusive Web site for registered users (QBdirect).
Access the link below to log on or register.

http://www.qbdirect.net

/

iii

BHT-604BW

About this Manual

 Due to improvements and so on, the content of this manual may be subject to change without prior notice.
 The reproduction or duplication of the whole or part of this manual is strictly prohibited without prior consent.
 Every attempt has been made to ensure that the content of this manual is thorough and up to date, however, we

kindly ask that any questionable content, mistakes, or omissions be reported to DENSO WAVE.

 The copyright for this User’s Manual belongs to DENSO WAVE INCORPORATED.

Manual Composition

This manual is made up of the following 9 chapters.

Chapter 1 Outline

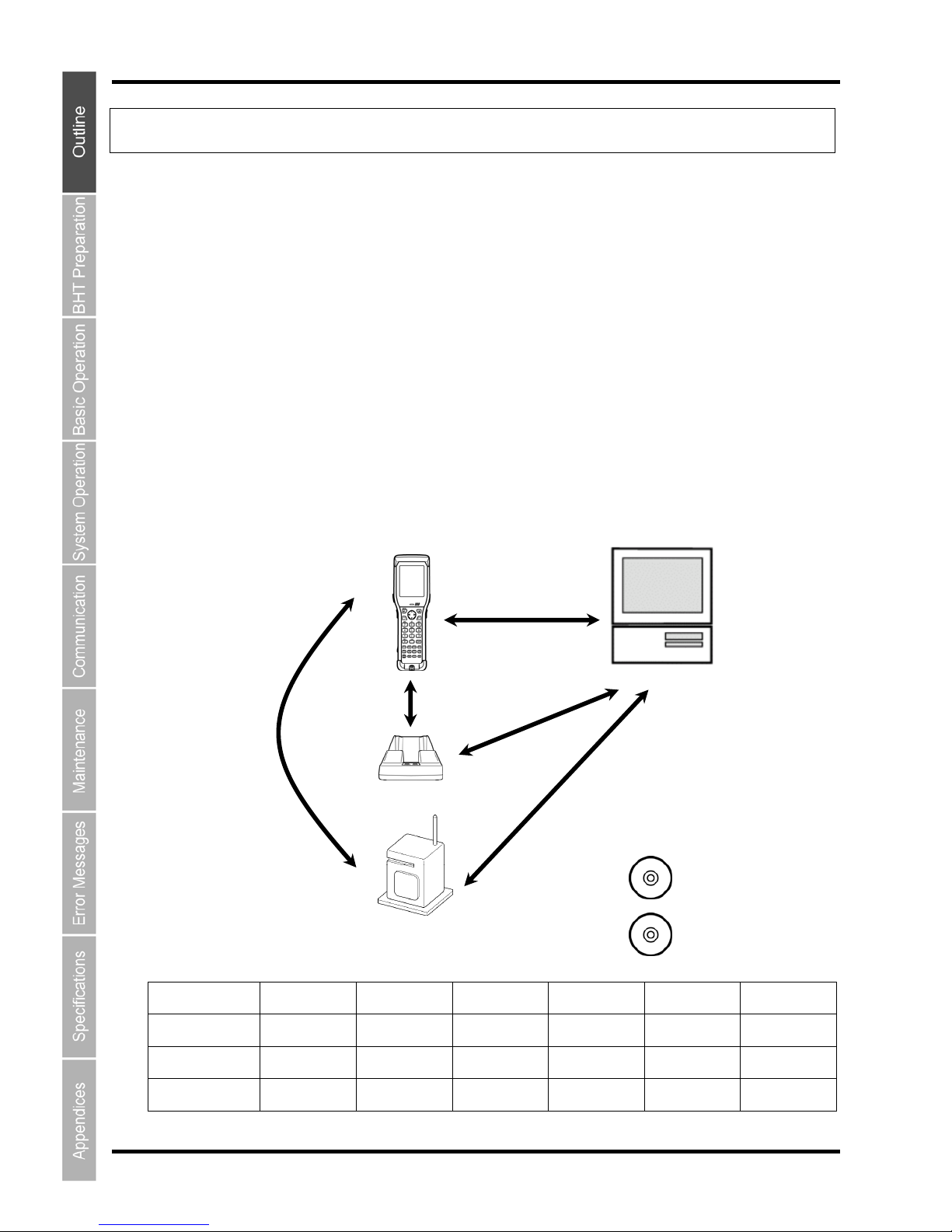

Describes the BHT system and provides an overall outline of the BHT.

Chapter 2 BHT Preparation

Describes information required by the user and procedures that must be performed prior to
commencing operation.

Chapter 3 Basic Operation

Describes basic operations performed by the operator and how to make basic changes to settings such
as the beeper volume.

Chapter 4 System Operation

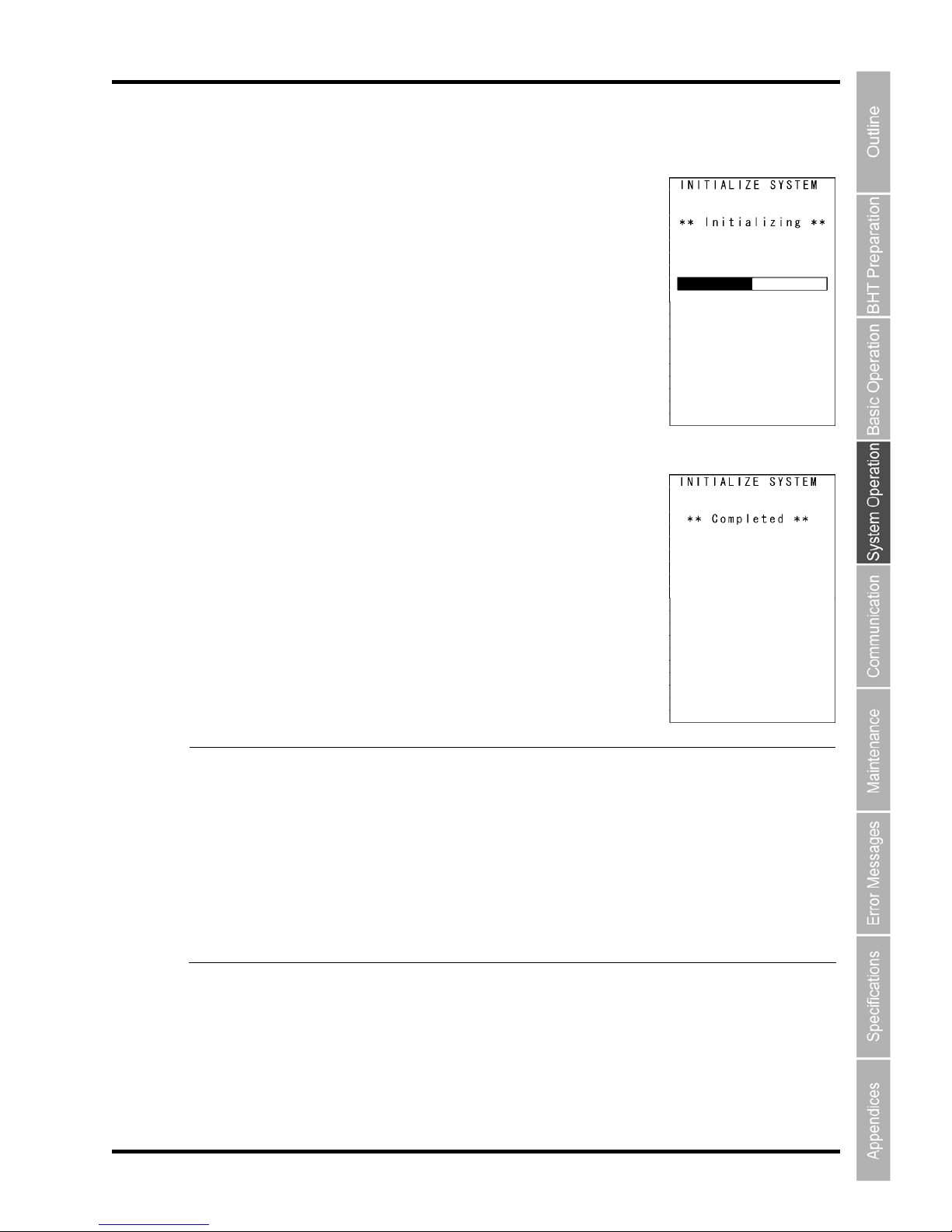

Describes how to initialize and update the system, start up a user program, and operate System Mode.

Chapter 5 Communication

Describes interfaces and communication specifications.

Chapter 6 Maintenance

Describes battery cartridge replacement and daily procedures for taking care of the BHT.

Chapter 7 Error Messages

Describes causes and countermeasures for error messages expected to occur during basic operation.

Chapter 8 Specifications

Describes specifications for hardware, readable barcodes, and interfaces.

Appendices-1 CU-600 Specifications (Option)

Describes the main specifications for the CU-600 Series (option).

Appendices-2 When File Transfer is Not Possible Using the Transfer Utility

Describes causes and countermeasures when unable to transfer files.

iv

Barcode Handy Terminal

Viewing this Manual

− About the Bookmark

The PDF Bookmark function can be used to jump to the Contents page.

<Procedure>
(1) Click the “Bookmark” tab.
(2) Click

to search for the desired item.

(3) Click the item to be read.

(1) Click the “Bookmarks” tab.

(2) Click “+” to search for the desired item.

(3) Click the item to be read.

v

BHT-604BW

− Searching by Word

The PDF search function can be used to jump to the target page by entering words or characters related to the
item being searched.
(1) Click the Sear ch icon. (Or select “Edit” – “Search”.)
(2) Enter the word(s) or character(s) to be searched for.
(3) Click [Search].

(1) Click the Search icon.

(2) Enter the search word(s)

or character(s).

(3) Click [Search].

<Sea

rch Res

ults Example>

vi

Barcode Handy Terminal

Related Documentation

 BHT-BASIC Programmer’s Manual (BHT-600 Series)

This is an instruction manual used to create handy terminal programs with BHT-BASIC.
This manual can be found in the BHT-BASIC Compiler CD-ROM.
This manual can also be downloaded from the DENSO WAVE member’s Web site (QBdirect).

 BHT-BASIC 4.0 Transfer Utility User’s Guide

This is an instruction manual for software relating to data transfer between the computer and BHT-604 and
comes bundled with the BHT-BASIC 4.0 Transfer Utility.
This manual can also be downloaded from the DENSO WAVE member’s Web site (QBdirect).

vii

BHT-604BW

SAFETY PRECAUTIONS

Be sure to observe all these safety precautions.

 Please READ through this manual carefully. It will enable you to use the BHT and CU correctly.
 Always keep this manual nearby for speedy reference.

Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury
and substantial property damage. Make sure you fully understand all definitions of these terms and symbols given
below before you proceed to the text itself.

Alerts you to those conditions that could cause serious bodily injury or death if the instructions
are not followed correctly.

Alerts you to those conditions that could cause minor bodily injury or substantial property
damage if the instructions are not followed correctly.

Meaning of Symbols

A triangle ( ) with a picture inside alerts yo u to a warning of danger. Here you see the warning for electrical
shock.

A diagonal line through a circle ( ) warns you of something you should not do; it may or may not have a picture
inside. Here you see a screwdriver inside the circle, meaning that you should not disassemble.

A black circle (

) with a picture inside alerts you to something you MUST do. This example shows that you

MUST unplug the power cord.

viii

Barcode Handy Terminal

Handling the battery cartridge

 Never disassemble or heat the battery cartridge, nor put it into fire or water; doing so could cause

battery-rupture or leakage of battery fluid, resulting in a fire or bodily injury.

 Do not carry or store the battery cartridge together with metallic ball-point pens, necklaces, coins,

hairpins, etc.

Doing so could short-circuit the terminal pins, causing the batteries to rupture or the battery fluid to leak,

resulting in a fire or bodily injury.

 Never put the battery cartridge into a microwave oven or high-pressure container.
Doing so could cause the batteries to break, generate heat, rupture or burn.

 Avoid dropping the battery cartridge or letting it undergo any shock or impact.
Doing so could cause the batteries to break, generate heat, rupture or burn.

 Never charge the rechargeable battery cartridge where any inflammable gases may be emitted; doing

so could cause fire.

 Only use the dedicated charger for charging the rechargeable battery cartridge.
Using a different type of charger could cause battery-rupture or leakage of battery fluid and result in a

fire, bodily injury, or serious damage to property.

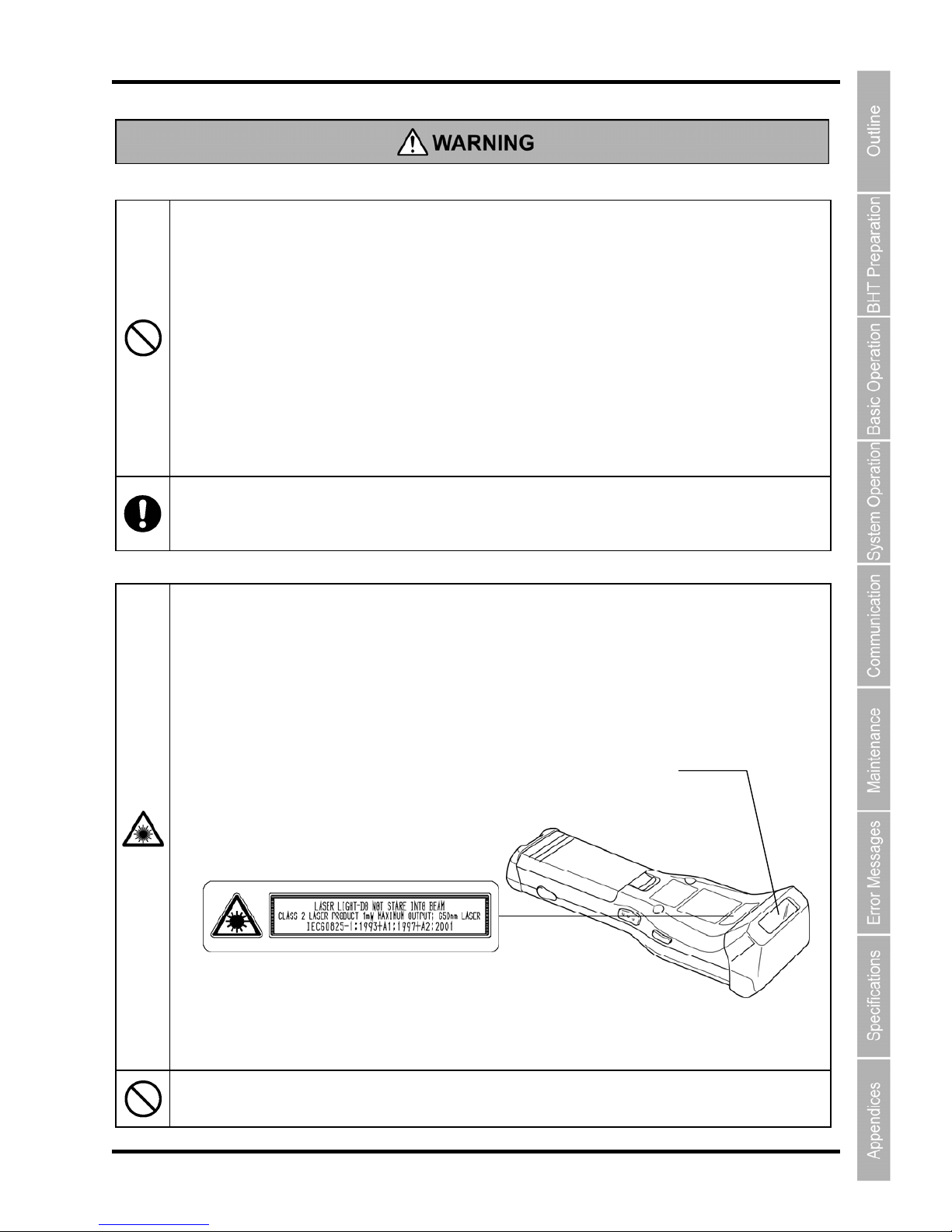

Handling the BHT

 The BHT uses a laser light for indicating the scanning range. Though the intensity of the laser light is

too low to inflict bodily injury.
You must observe the following precautions when handling the BHT equipped with laser light:

1) Never stare into the laser light.

2) Never point the code reading window at someone’s eyes.
The BHT complies with IEC 60825-1:1993+A1:1997+A2:2001.
In accordance with Clause 5, IEC 60825-1, the following information is provided to the user:

Caution - Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser light exposure.

 Never put the BHT into a microwave oven or high-pressure container.
Doing so could cause the BHT to break, generate heat, rupture or burn.

Reading window

(Laser light emission

w

indow)

LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

ix

BHT-604BW

Handling the CU

 If smoke, abnormal odors or noises come from the CU, immediately unplug the AC adapter from the

wall socket or CU and contact your nearest dealer.

Failure to do so could cause fire or electrical shock.
 If foreign material or water gets into the CU, immediately unplug the AC adapter from the wall socket or

CU and contact your nearest dealer.

Failure to do so could cause fire or electrical shock.
 If you drop the CU so as to damage its housing, immediately unplug the AC adapter from the wall

socket or CU and contact your nearest dealer.

Failure to do so could cause fire or electrical shock.

 Never use the CU for charging anything other than the specified battery cartridges.
Doing so could cause heat, battery-rupture, or fire.

 Never bring any metals into contact with the output terminals.
Doing so could produce a large current through the CU, resulting in he at or fire, as well as damage to

the CU.

 Never use the CU on the line voltage other than the specified level.
Doing so could cause the CU to break or burn.

 Use the dedicated AC adapter only.
Failure to do so could result in fire.

 If the power cord of the AC adapter is damaged (e.g., exposed or broken lead wires), stop using it and

contact your nearest dealer.

Failure to do so could result in a fire or electrical shock.

x

Barcode Handy Terminal

To System Designers:

 When introducing BHTs in those systems that could affect human lives (e.g., medicines management

system), develop applications carefully through redundancy and safety design which avoids the
feasibility of affecting human lives even if a data error occurs.

Handling the battery cartridge

 Never charge a wet or damp rechargeable battery cartridge.
Doing so could cause the batteries to break, generate heat, rupture or burn.

Handling the BHT

 If smoke, abnormal odors o r noises come from the BHT, immediately turn off the power, pull out the

battery cartridge, and contact your nearest dealer.

Failure to do so could cause smoke or fire.
 If foreign material or water gets into the BHT, immediately turn off the power, pull out the battery

cartridge, and contact your nearest dealer.

Failure to do so could cause smoke or fire.
 If you drop the BHT so as to damage its housing, immediately turn off the power, pull out the battery

cartridge, and contact your nearest dealer.

Failure to do so could cause smoke or fire.
 Do not u se batteries or power sources other than the specified ones; doing so could generate he at or

cause malfunction.

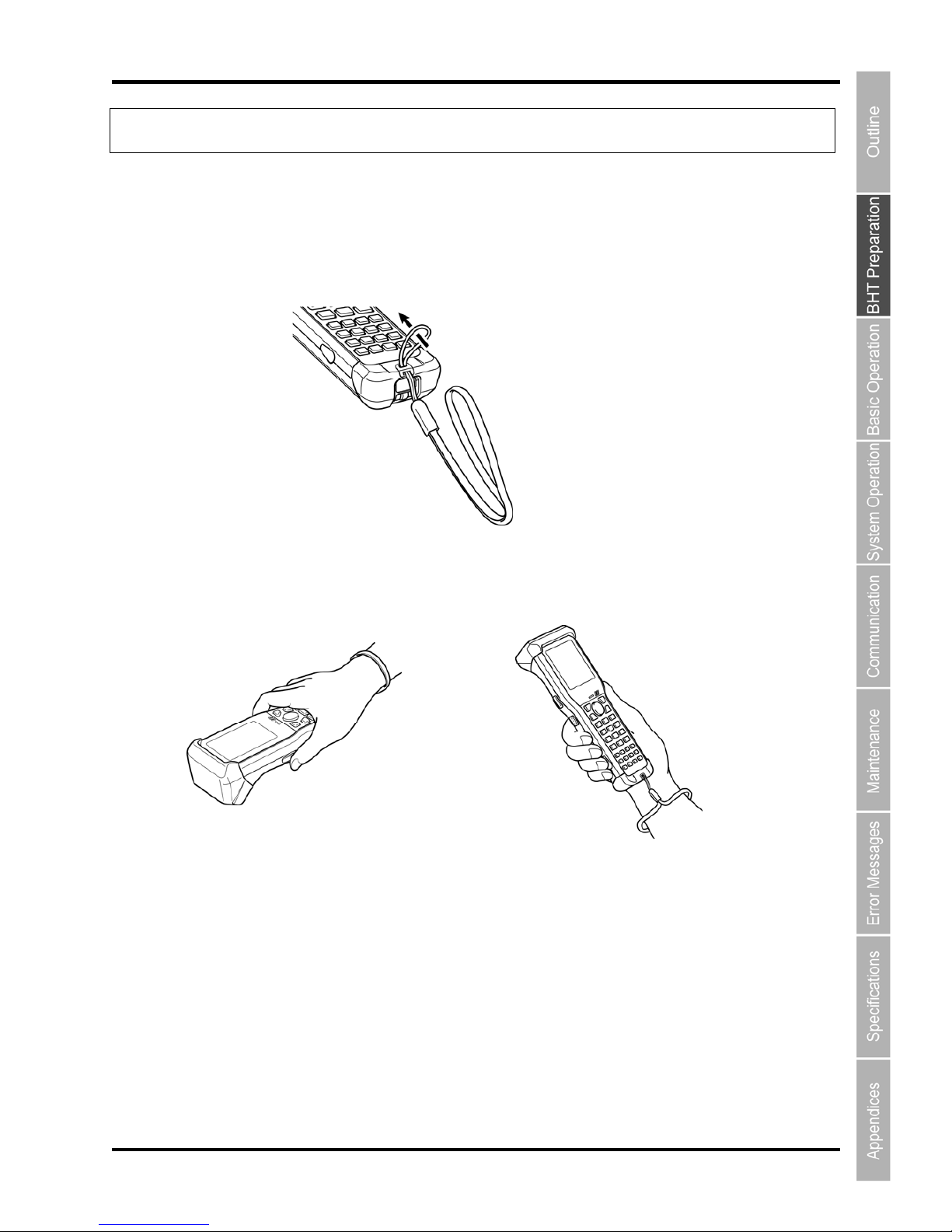

 When using the hand strap or neck strap, exercise due care to avoid getting them caught in other

objects or entangled in rotating machinery.
Failure to do so could result in accident or injury.

Never dis-

assemble

 Never disassemble or modify the BHT; doing so could result in an accident such as break or fire.

 Never put the BHT in places where there are excessively high temperatures, such as inside closed-up

automobiles, or in places exposed to direct sunlight.

Doing so could affect the housing or parts, resulting in a fire.
 Avoid using the BHT in extremely humid or dusty areas, or where there are drastic temperature

changes.

Moisture or dust will get into the BHT, resulting in malfunction, fire or electrical shock.
 In environments where static electricity can build into significant charges (e.g., if you wipe off the plastic

plate with a dry cloth), do not operate the BHT. Doing so will result in malfunction or machine failure.

 When connec ting or disconnecting the direct-connect interface cable to/from the BHT, do not plug or

unplug it at an angle and do not pull the cable strongly. Doing so will result in a machine failure.

 Do not apply excessive forc e when inserting or removing the rechargeable battery cartridge. Doing so

will result in damage.

 If the BHT has been stored in a hot (50°C to 60°C, 122°F to 140°F) and humid place, allow it to sit at

room temperature and humidity for at least one day before use. Using the BHT with its inside being hot
will fail to scan or result in a machine failure.

xi

BHT-604BW

Handling the CU

 Never disassemble or modify the CU; doing so could result in an accident such as fire or malfunction.

 Never put the CU in places where there are excessively high temperatures, such as inside close d-up

automobiles, or in places exposed to direct sunlight.

Doing so could affect the housing or parts, resulting in a fire.
 Avoid using the CU in extremely humid or dusty areas, or where there are drastic temperature changes.

Moisture or dust will get into the CU, resulting in malfunction, fire or electrical shock.
 Never cover or wrap up the CU or AC adapter in a cloth or blanket.

Doing so could cause the unit to heat up inside, deforming its housing, resulting in a fire.
Always use the CU and AC adapter in a well-ventilated area.

 Do not place the CU anyplace where it may be subjected to oily smo ke or steam, e.g., near a cooking

range or humidifier.

Doing so could result in a fire or electrical shock.
 Keep the power cord away from any heating equipment.

Failure to do so could melt the sheathing, resulting in a fire or electrical shock.
 Do not insert or drop foreign materials such as metals or anything inflammable through the openings or

vents into the CU.

Doing so could result in a fire or electrical shock.

 If you are not using the CU for a long time, be sure to unplug the AC adapter from the wall socket for

safety.

Failure to do so could result in a fire.
 When caring for the CU, unplug the AC adapter from the wall socket for safety.

Failure to do so could result in an electrical shock.

xii

Barcode Handy Terminal

Declaration of Conformity

For European Union

English: Hereby, DENSO WAVE INCORPORATED, declares that this BHT-604BW contains Wireless LAN Module
(type: NJT-517) that is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.

Česky: Firma DENSO WAVE INCORPORATED tímto prohlašuje, že její radio- a telekomunikační terminál
BHT-604BW obsahuje bezdrátový síťový (LAN) modul (typ NJT-517), který se shoduje se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Dansk: Undertegnede, DENSO WAVE INCORPORATED, erklærer herved, at følgende udstyr, BHT-604BW,
indeholder en trådløs netværkskomponent (type: NJT-517), som overholder de væsentlige krav og øvrige relevante
krav i Rådets direktiv 1999/5/EF.

Deutsch: Hiermit erklärt der Hersteller, DENSO WAVE INCORPORATED, dass sich das Gerät: BHT-604BW (mit
Wireless LAN Modul „Typ: NJT-517“), in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.

Eesti: Käesolevaga kinnitab DENSO WAVE INCORPORATED, et seade BHT-604BW sisaldab traadita kohtvõrgu
moodulit (tüüp: NJT-517), mis vastab direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele muudele
asjakohastele sätetele.

Español: Por medio de la presente, DENSO WAVE INCORPORATED, declara que el BHT-604BW incluye módulo de
red inalámbrica ( tipo: NJT-517), el cual cumple con los requisitos esenciales y otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE.

Ελληνική: Με το παρόν η DENSO WAVE INCORPORATED, δηλώνει ότι αυτή η συσκευή BHT-604BW περιλαμβάνει
μονάδα ασύρματου τοπικού δικτύου Wireless LAN (τύπος: NJT-517), η οποία πληροί τις βασικές απαιτήσεις και τις
λοιπές σχετικές διατάξεις της Οδηγίας 1999/5/ΕK.

Français: Par la présente DENSO WAVE INCORPORATED déclare que le terminal BHT-604BW est doté d’un module
de connexion à un réseau local sans fil (type: NJT-517) conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.

Italiano: Con la presente, DENSO WAVE INCORPORATED, dichiara che questo BHT-604BW contiene il modulo
wireless LAN (modello: NJT-517), che è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite
dalla direttiva 1999/5/CE.

Latviski: Ar šo DENSO WAVE INCORPORATED deklarē, ka BHT-604BW satur bezvadu LAN moduli (tips: NJT-517),
kas atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistīt

ajiem no

teikumiem.

Lietuvių: Šiuo „DENSO WAVE INCORPORATED“deklaruoja, kad šis BHT-604BW įrenginys su bevielio LAN moduliu
(tipas NJT-517) atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Nederlands: Hierbij verklaart DENSO WAVE INCORPORATED dat het toestel BHT-604BW een draadloze LAN
Module (type: NJT-517) bevat, die in overeenstemming is met de essentiële eisen en de andere relevante bepalingen
van richtlijn 1999/5/EG.

Malti: Hawn hekk, DENSO WAVE INCORPORATED tiddikjara li dan il- BHT-604BW fih Wireless LAN Module (tip:
NJT-517), li hu konformi mal-kondizzjonijiet essenzjali u provvedimenti relevanti oħra tad-Direttiva 1999/5/KE.

Magyar: Alulírott, DENSO WAVE INCORPORATED, nyilatkozom, hogy a BHT-604BW típusú készülék vezeték nélküli
helyi hálózati (Wireless LAN) modult (NJT-517 típus) tartalmaz, amely megfelel a vonatkozó alapvető
követelményeknek és az 1999/5/EK irányelv egyéb előírásainak.

xiii

BHT-604BW

Polski: Niniejszym, DENSO WAVE INCORPORATED, oświadcza, że ten BHT-604BW zawiera moduł łączności
bezprzewodowej dla sieci LAN (typu: NJT-517) i jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi
postanowieniami Dyrektywy 1999/5/EC.

Português: DENSO WAVE INCORPORATED declara que este BHT-604BW inclui um Módulo LAN sem fios (tipo:
NJT-517), o qual está conforme aos requisitos essenciais e a outras disposições da Directiva 1999/5/CE.

Slovensko: Podjetje DENSO WAVE INCORPORATED izjavlja, da ta BHT-604BW vsebuje brezžični modul LAN (tip:
NJT-517), ki je v skladu z bistvenimi zahtevami in drugimi pripadajočimi določili direktive 1999/5/ES.

Slovensky: Firma DENSO WAVE INCORPORATED týmto vyhlasuje, že jej rádio- a telekomunikačný terminál
BHT-604BW obsahuje bezdrôtový sieťový (LAN) modul (typ NJT-517), ktorý spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.

Suomi: Täten DENSO WAVE INCORPORATED vakuuttaa, että tämän tuotteen BHT-604BW sisältämä langaton
WLAN-moduli (tyyppi NJT-517) on direktiivin 1999/5/EY oleellisten vaatimusten ja sen tätä tuotetta koskevien muiden
ehtojen mukainen.

Svenska: Härmed intygar DENSO WAVE INCORPORATED att denna BHT-604BW innehåller en trådlös LAN-modul
(type: NJT-517), som står i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser
som framgår av direktiv 1999/5/EG

Íslenska: Hér með lýsir DENSO WAVE hf. því yfir að þetta BHT-604BW inniheldur þráðlausa staðarnetseiningu
(tegund: NJT-517), sem er í samræmi við grundvallarkröfur og önnur viðeigandi ákvæði reglugerðar 1999/5/EB.

Norsk: DENSO WAVE INCORPO RATED erklærer med dette at denne BHT-604BW inneholder trådløst
LAN-nettverksmodul (type: NJT-517), som er i samsvar med regelverk og øvrige bestemmelser i direktiv 1999/5/EC.

CE marking:

For Australia and New Zealand

This BHT-604BW contains Wireless LAN Module (type：NJT-517).

C-tick marking:

BHT-604BW

Chapter 1

Outline

This chapter describes the BHT system and provides an overall outline of the BHT.

1.1 System Configuration ···················································································2

1.1.1 Hardware Configuration···················································································2

1.1.2 Software Configuration·····················································································5

1.2 Component Names and Functions ·······························································8

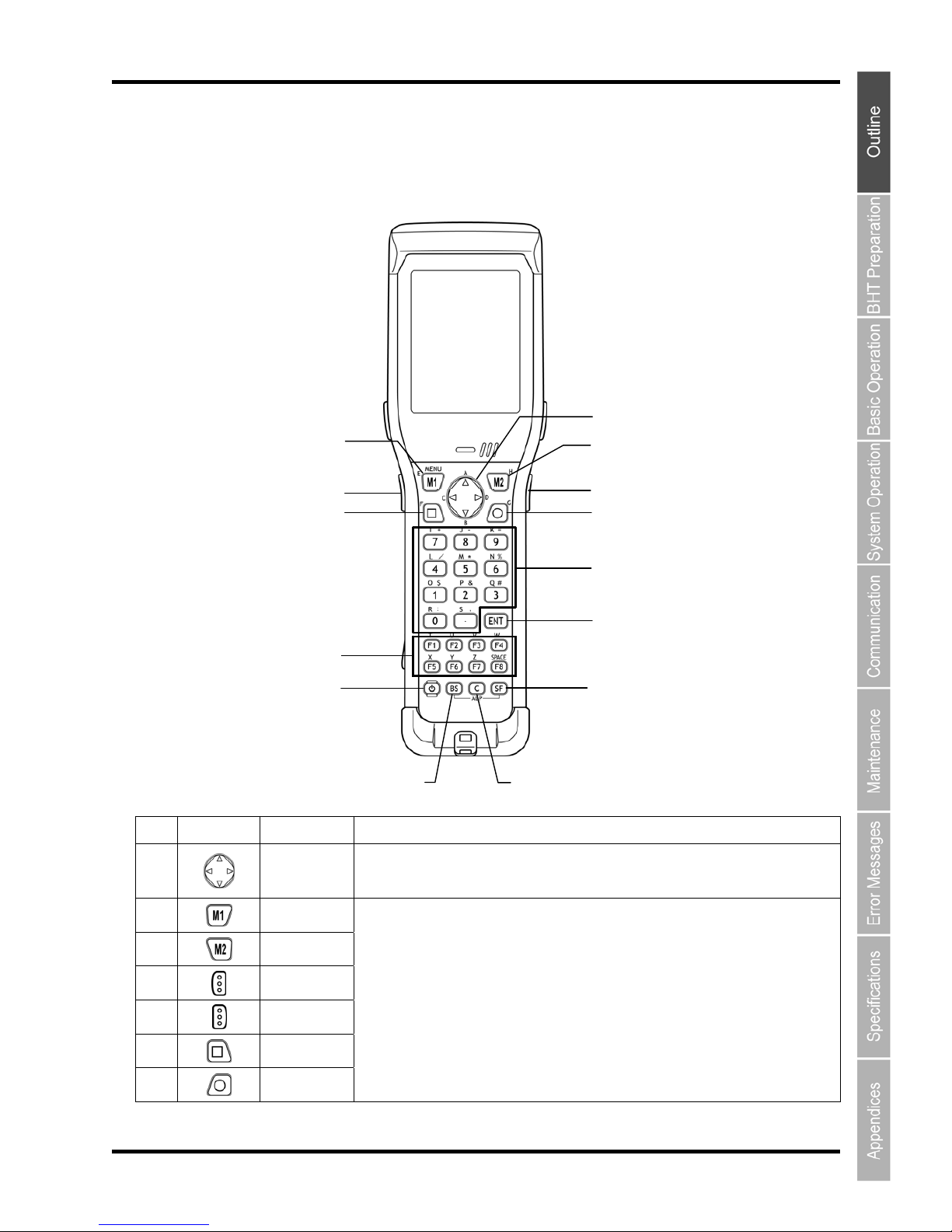

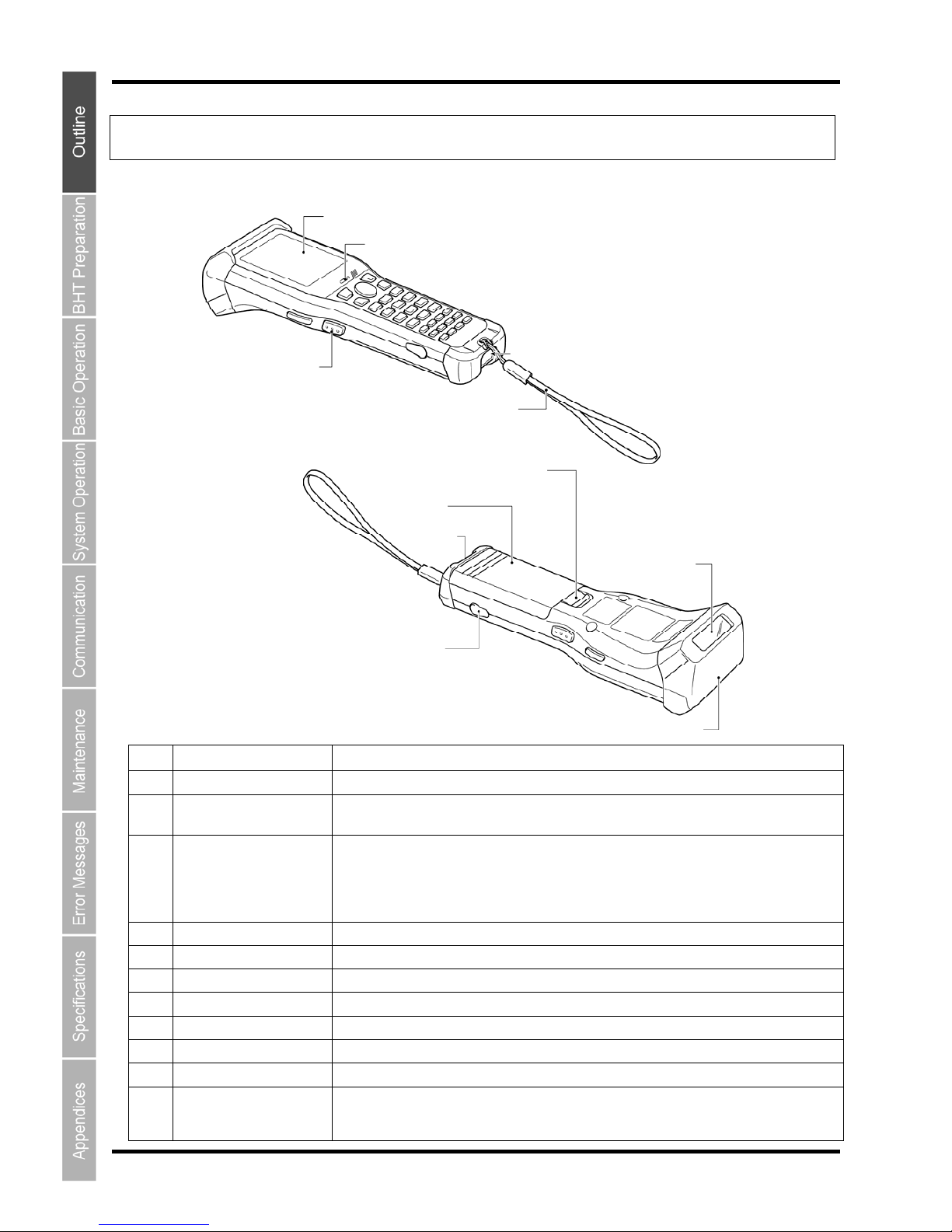

1.2.1 BHT Front/Rear································································································8

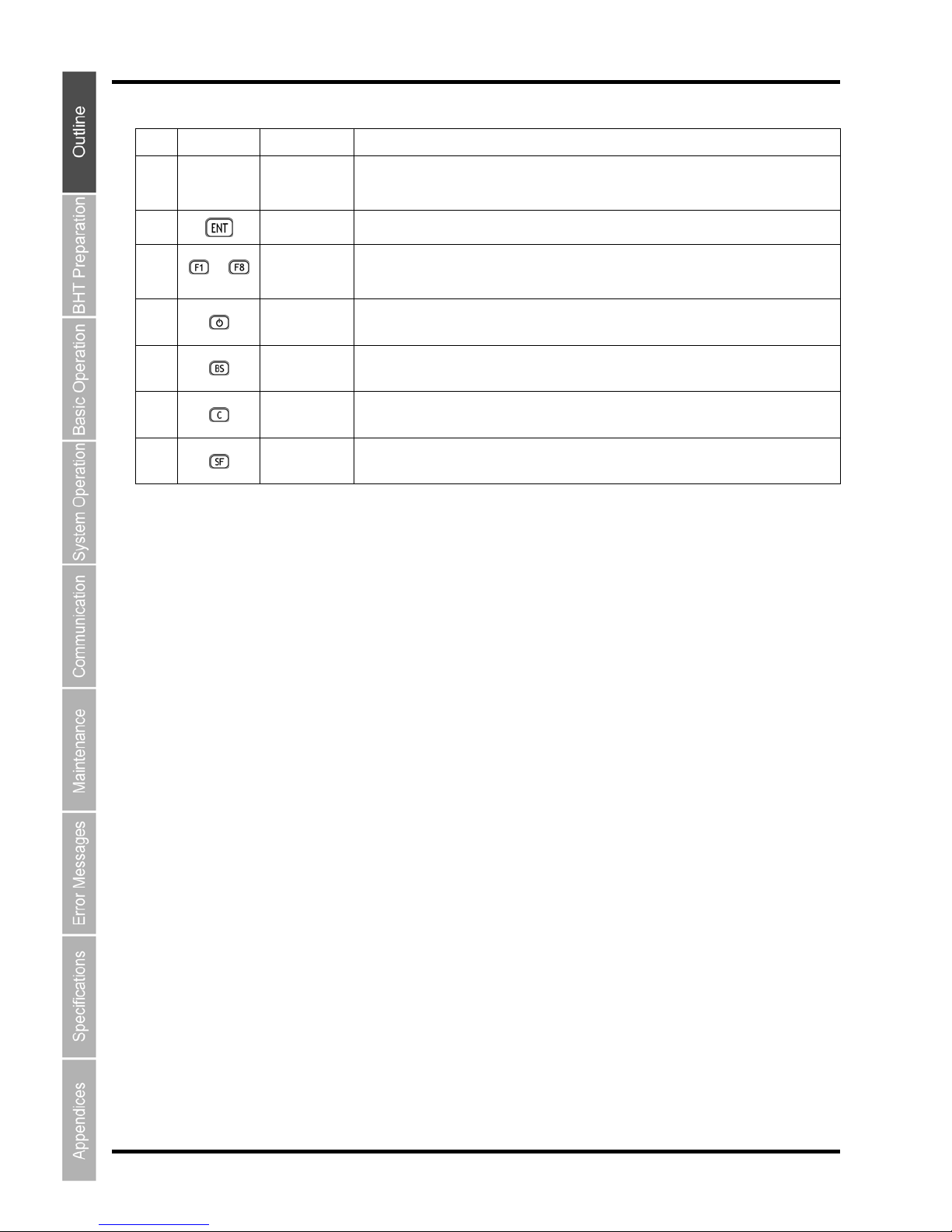

1.2.2 Keypad·············································································································9

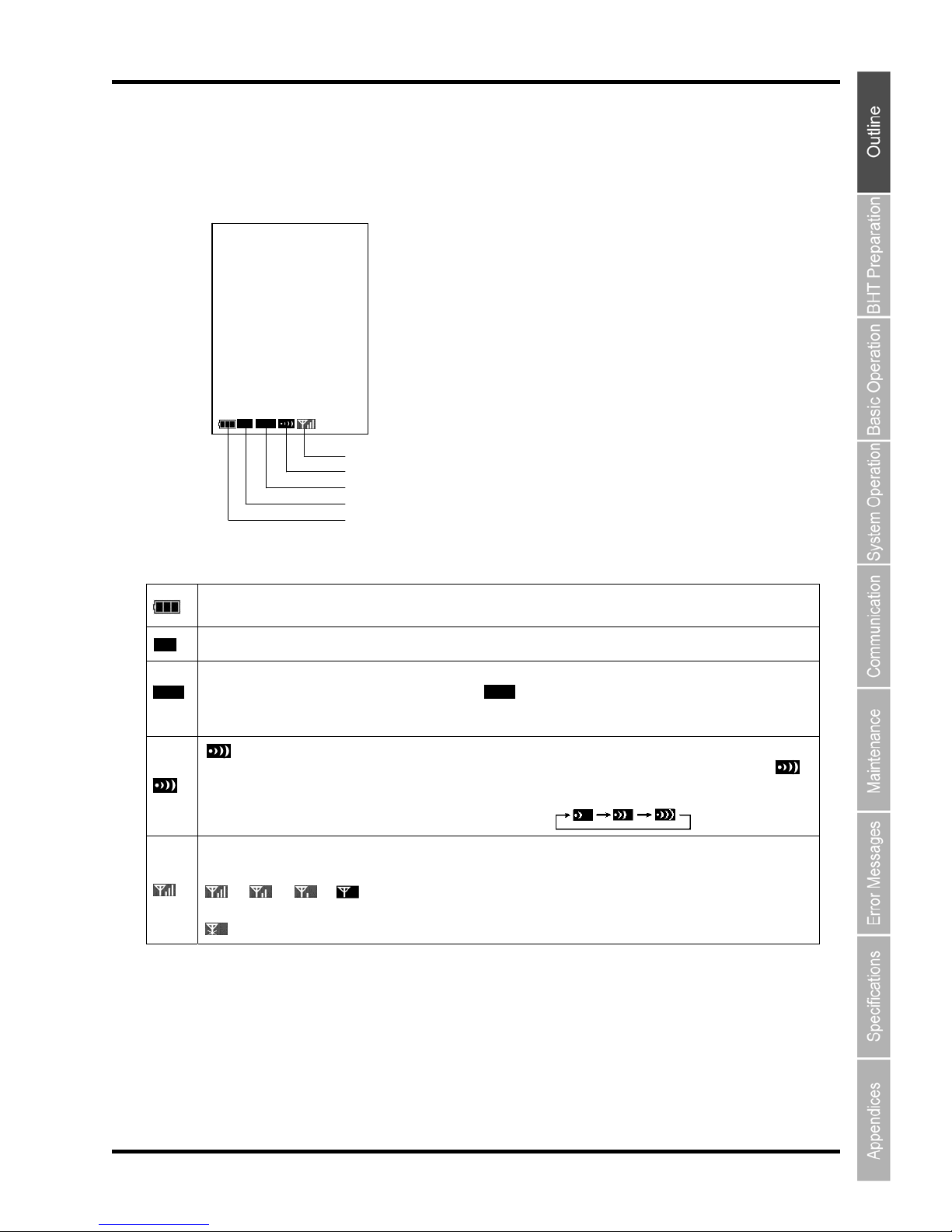

1.2.3 BHT Screen····································································································11

2

BHT-604BW

1.1 1System Configuration

This section describes the hardware required for the barcode data collection system used by the BHT and the BHT
software.

1.1.1 Hardware Configuration

In addition to the BHT, the following hardware and software are required for the barcode data collection
system used by the BHT.
Please note that certain components of the required hardware will differ depending on the type of
communication used.

 Host computer
 CU-600 Series (option): Communication unit
 Connection cable (option): Used to connect the BHT and host computer.
 Wireless LAN access point ( option)
 Software: BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option)

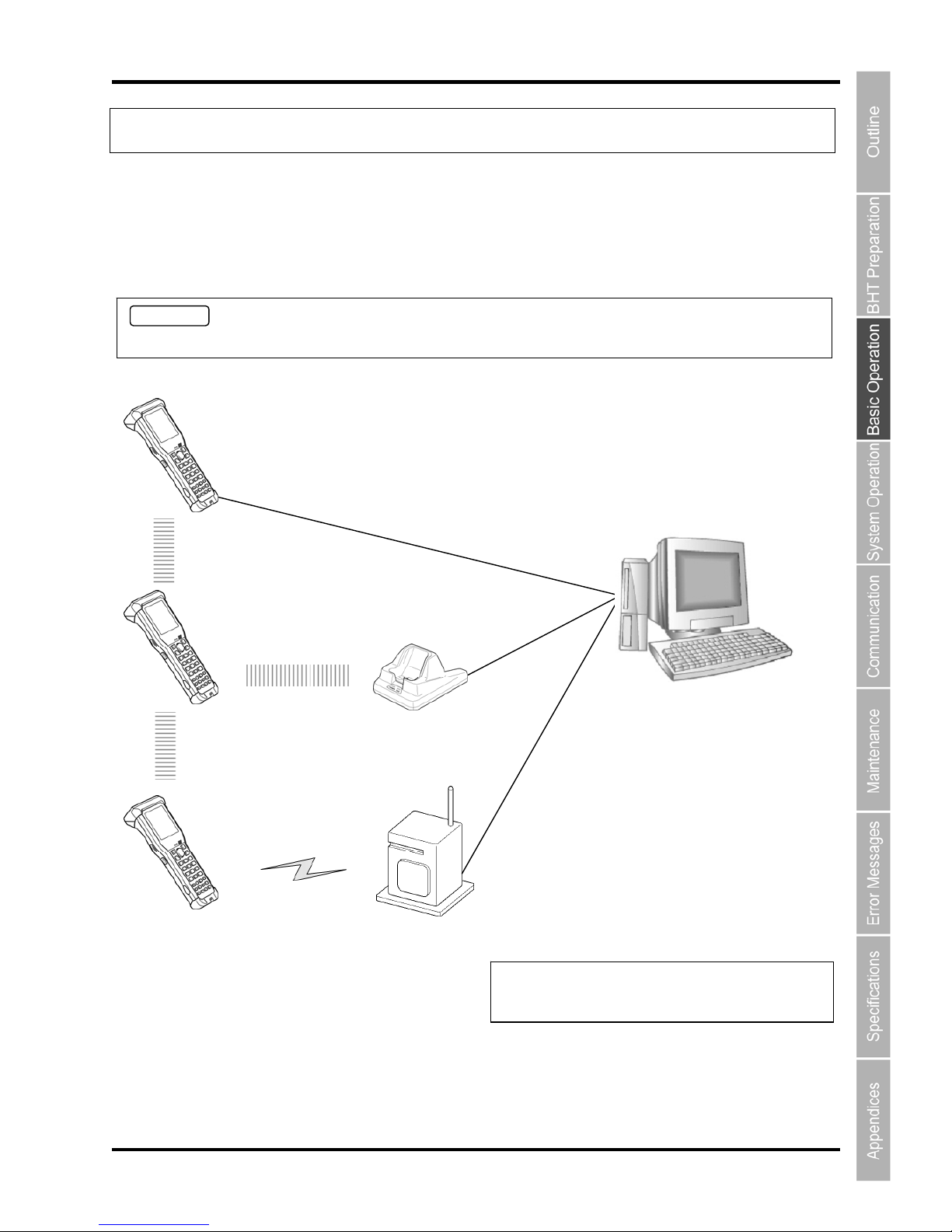

Host computer

BHT

Wireless LAN access point

(optio

n)

CU(option)

(1) Connector

communication

(3) Wireless

communication*

(2) IrDA

communication

BHT-BASIC 4.0
Development Pack
(Option)

BHT-BASIC 4.0
Transfer Utility
(Option)

● : Required f

or system configuration

Host computer BHT CU

Wireless LAN

access point

Software Ref. Page

(1)Connector

communication

● ● — — ●

Page 34

(2) IrDA

communication

● ● ● — ●

Page 35

(3) Wireless

communication

● ● — ● ●

Page 36

3

Barcode Handy Terminal

 Host Computer

Allows you to edit, manage and download user programs and data, as well as downloading system
programs.

Models : PC/AT Compatible

Operating Systems and Optional Application Programs

Operating Systems (OS) Windows 98

Windows NT

3.51/4.0

Windows 2000

Professional

Windows XP

BHT-BASIC4.0 Development Pack – –  
BHT-BASIC4.0 T ransfer Utility*    

*This application does not activate any built-in IrDA interface port.

 CU-600 Series (Option)

Used for communication between the BHT and host computer.
Communication with the BHT is performed by IrDA communication, and communication with the host
computer is performed with an RS-232C, Ethernet or USB interface.
The following three types of CU are available depending on the interface used to communicate with the
host computer.

 CU-601: RS-232C interface
 CU-611: Ethernet
 CU-621: USB interface

 Connection Cable (Option or Commercially Available Product)

Used to connect the host computer and CU-600 Series.
Select a cable suited to the CU-600 Series interface being used.

Supported CU-600 Series Cables

 CU-601: RS-232C cable (Option)
 CU-611: Ethernet (10BASE-T) cable (commercially available product)
 CU-621: USB cable (Option)

Furthermore, by preparing the BHT connector interface and cable suited to each connection port,
connection is also possible between the BHT and host computer, between the BHT and modem, and
between BHT units.
Please note, however, that the BHT connector interfaces have not been designed for frequent cable
insertion and removal and therefore use of the CU-600 Series is recommended.
* Refer to “Chapter 8 Specifications” for further details on BHT interfaces.

 Wireless LAN Access Point (Option)

Used for wireless communication between the BHT and host computer.
The BHT is compatible with wireless LAN standard IEEE802.11g/b and can therefore be used with
existing wireless LAN infrastructure. (Max. wireless communication speed: 54Mbps)
Furthermore, the BHT is WPA/WPA2 compatible to ensure maximum security.

4

BHT-604BW

 BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility

(Option)

Refer to “Software Configuration” on the following page.

5

Barcode Handy Terminal

1.1.2 Software Configuration

This section describes the software used for BHT Series application development and application in
addition to the software used at the BHT unit.
Please note that the above-mentioned software can be downloaded (Certain versions may be for trial
use.) from the QBNet service discussed at “Customer Registration” on page ii.

[1] Application Development Procedure

The procedure for BHT Series program development is as follows.

Program creation

Program generation (compiling and linking)

Program download

Program execution and debugging

[2] Software Used for Application
 BHT-BASIC Programm

er’s Manual for BHT-600 Series

This is an instruction manual used to create handy terminal programs with BHT-BASIC.

 BHT-BASIC 4.0 Development Pack (option)

This is a package containing four software products required for BHT Series application development
and accessories.
The BHT-BASIC 4.0 Development Pack contains the following products.

 BHT-BASIC 4.0 Compiler

Compiles and links a source program written in BHT-BASIC 4.0 to create a user program executable
on the BHT (*.PD4).

 BHT-BASIC 4.0 Simulator

Performs an operation check for generated application programs (*.PD4) at the computer.

 BHT-BASIC 4.0 Remote Debugger

Uses the BHT unit to debug generated application programs (*.PD4) at the computer.

6

BHT-604BW

 BHT-BASIC4.0 Transfer Utility

Transfers files between the host computer and BHT at the host computer.

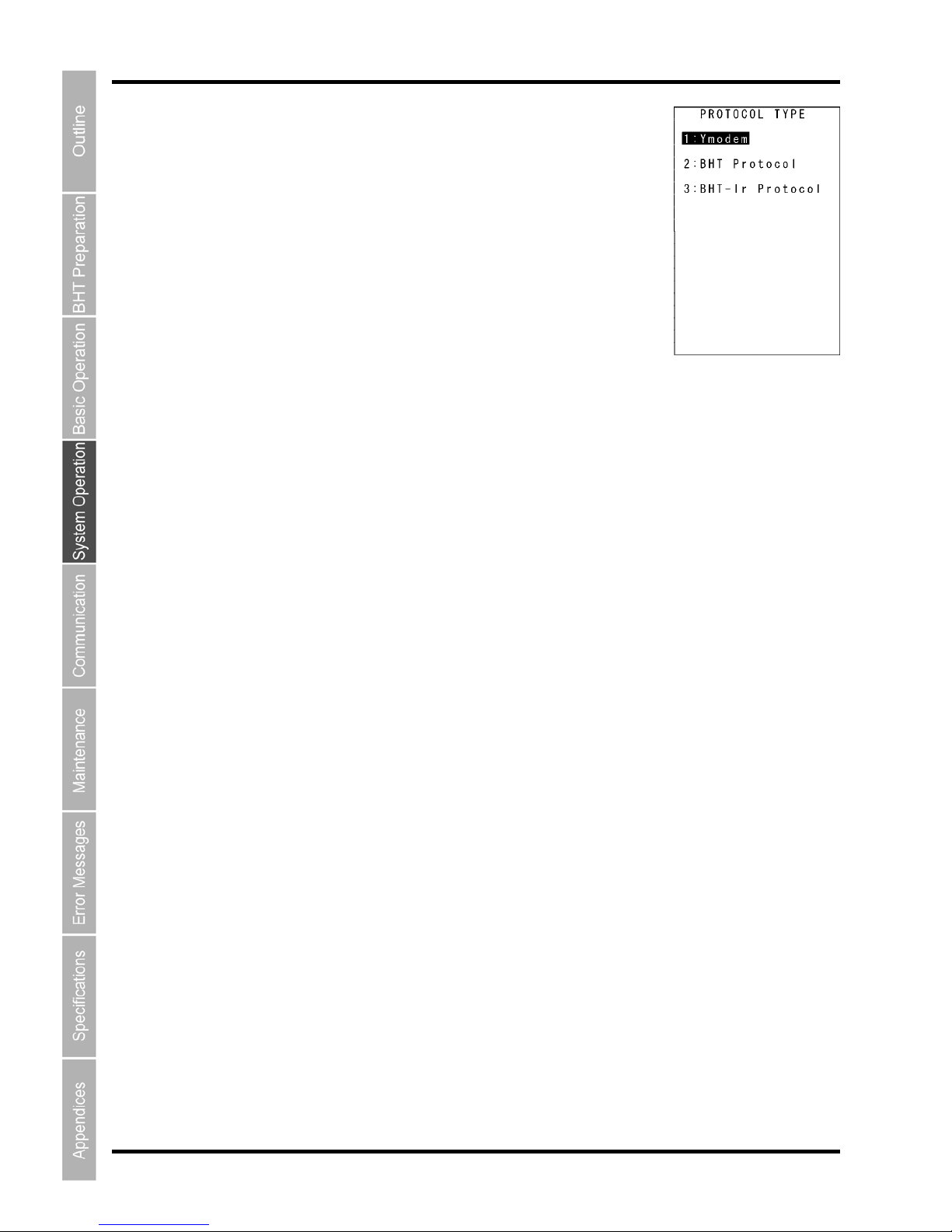

YMODEM or BHT-Ir protocol is used for file transfer.
BHT-BASIC 4.0 specification files such as application programs and data files are transferred using
YMODEM protocol.

 BHT-PC Cable (RS-232C)

This cable can be used to connect the BHT and computer using the BHT connector interface and
computer RS-232C interface.
(Note) The BHT connector interface has not been designed for frequent removal and insertion of the

cable. The CU-600 Series should normally be used. Refer to “Chapter 5 Communication” - “5.1
Connector Communication (RS-232C Interface)” for details on the connector interface.

 BHT-BASIC4.0 Transfer Utility (Option)

This is the same BHT-BASIC 4.0 Transfer Utility that comes bundled with the BHT-BASIC 4.0
Development Pack.

[3] Software Used at the BHT Unit

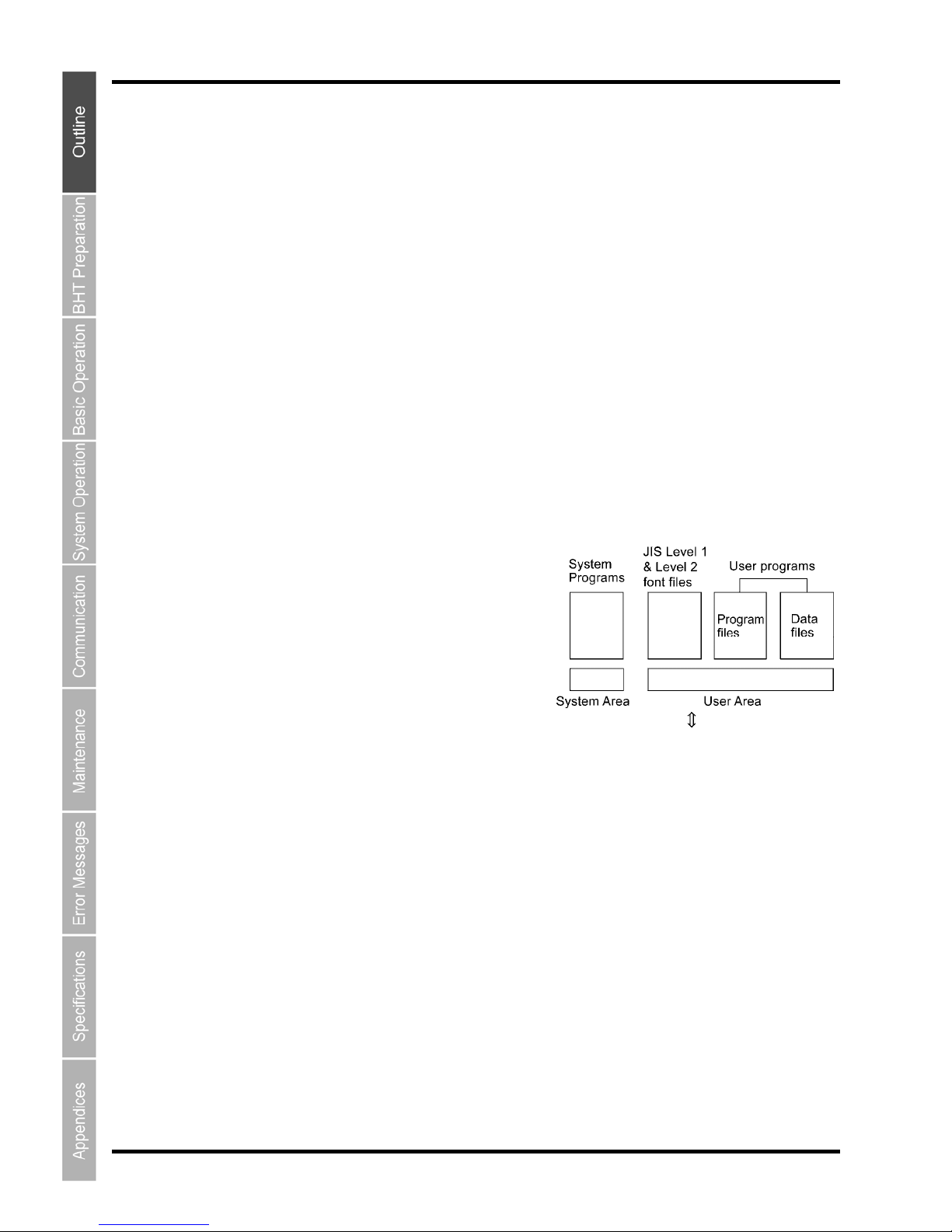

The BHT unit FLASH memory has a system area and
user area, with the system program stored in the
system area and font files and user programs stored in
the user area.

The BHT unit i

s shipped with the system program and font

files stored in their respective areas.

Host computer

Applicatio

n programs (*.PD4) stored in th

e user area are run by the system program in order to use the
BHT.
It is necessary to download application programs (*.PD4) and data files (product master files etc.) required
to run application programs (*.PD4) to the BHT user area prior to use.

 System Program

 Driver

Drivers is a set of programs that directly controls the BHT hardware. It can be called up by the
BHT-BASIC Interpreter or System Mode.

 BHT-BASIC Interpreter

This program interprets application program (*.PD4) command language and controls the BHT unit
hardware via drivers.

7

Barcode Handy Terminal

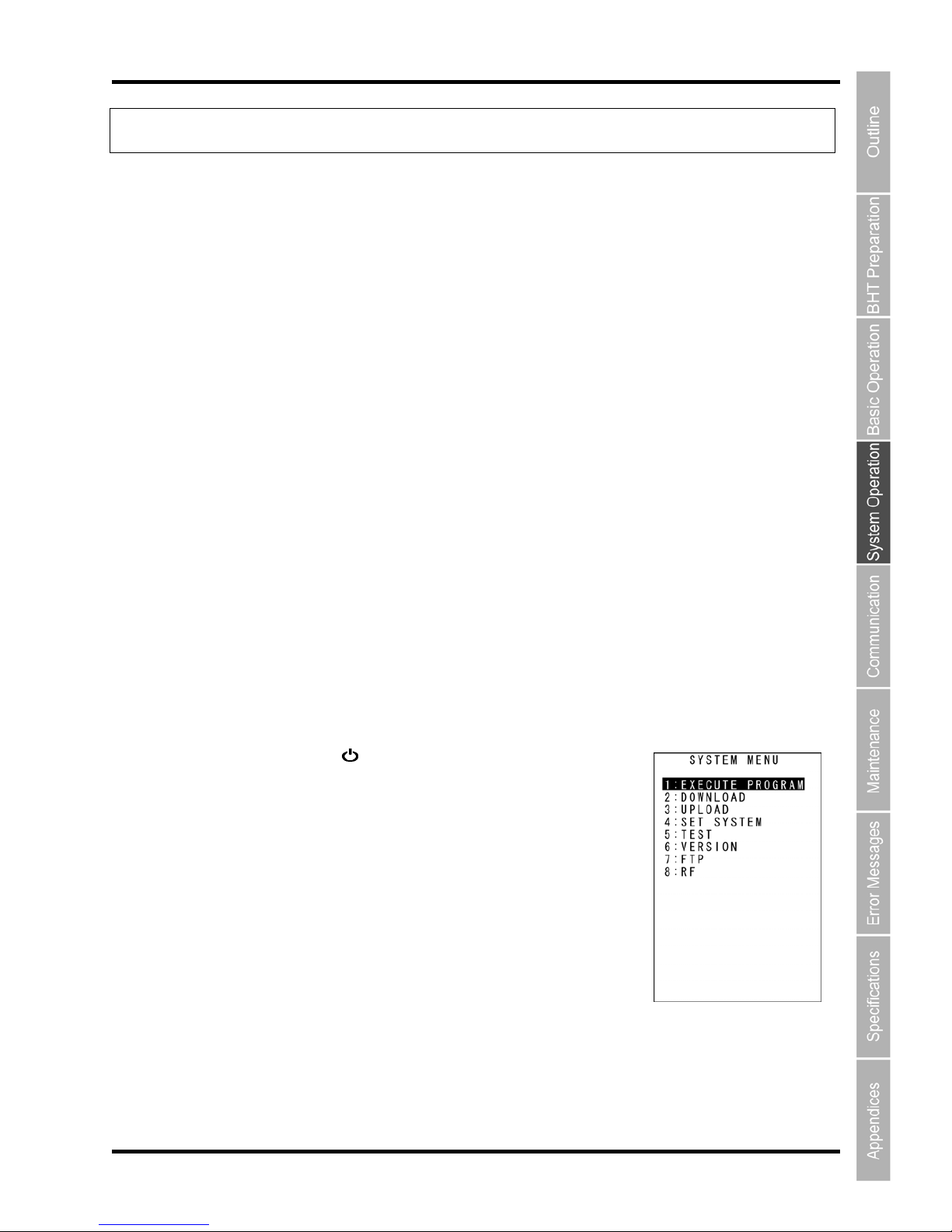

 System Mode

This program is used to operate files, make system environment settings, and perform various types of
tests.
Refer to “Chapter 4 System Operation” –“4.4 System Mode” for further details.

 Font File

These files are required to display JIS 1 and 2 standard Kanji characters at the BHT unit LCD display.
By using font files, the BHT unit is able to display 16 to 40 dot Kanji in application programs (*.PD4).

 Point  If you do not need to display Kanji characters, you may delete these JIS font files. After deletion, the

memory area which was occupied by these files can be used as a user area. For the deleting
procedure, refer to "Chapter 4 System Operation" - "4.1.4 Performing System Initialization"o

r

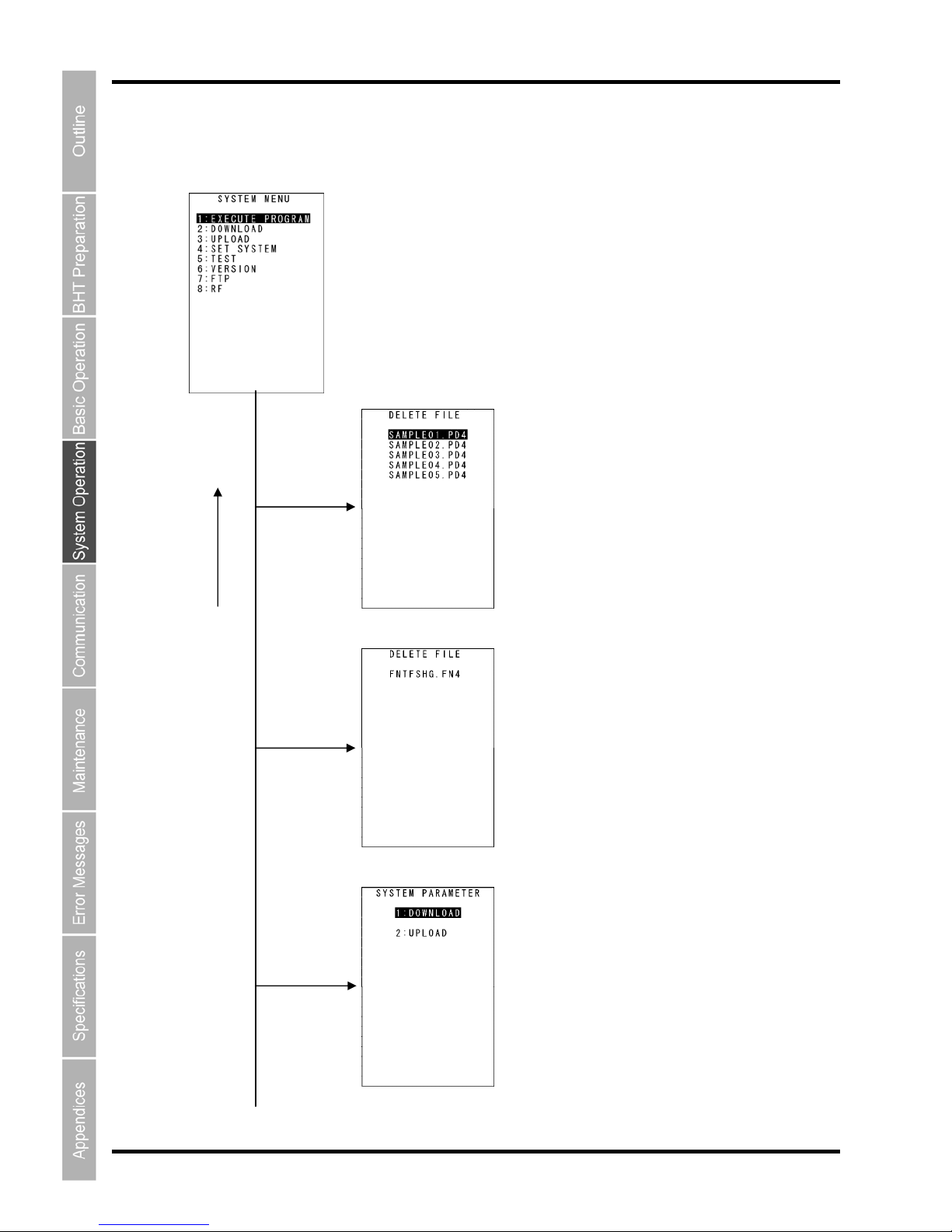

"4.5.11 Deleting Font Files (DELETE FILE Menu)."
The names of the font file: FNTFSHG.FN4 (JIS Level 1 and 2 font, 16-dot to 40-dot)

 User Programs

Application programs and data files are downloaded to the BHT user area and are collectively known
as user programs.
To download a BHT-BASIC 4.0 specification user program to the BHT unit, the BHT-BASIC 4.0
Transfer Utility is required.

8

BHT-604BW

1.2 Component Names and Functions

1.2.1 BHT Front/Rear

(1)

(2)

(3)

(4)

(5)

(6)

(8)

(7)

(11)

(10)

(9)

(12)

No. Name Function and Description

(1) LCD (Liquid crystal display) Displays the characters and graphic patterns.
(2) Indicator LED Indicates the barcode read status.

Illuminates in blue when the BHT has successfully read a barcode.

(3)
(4)

Trigger switch
(M3 and M4 Magic keys)

Press when reading a barcode.
The SF and ENT key functions can be assigned to these magic keys by making settings at the
SYSTEM MENU.
Character strings can be assigned at user programs.

* Refer to “Chapter 4 System Operation” for details on how to operate the SYSTEM MENU.
(5) IrDA interface port Used to exchange data/programs with the communication unit CU-600 or other BHTs.
(6) Hand strap Wear this strap around your wrist to prevent you from dropping the BHT accidentally.
(7) Battery cover Remove this cover to replace the battery cartridge.
(8) Battery cover lock Use this to lock or unlock the battery cover.
(9) Connector port Inside this cover is the connect interface port.

(10) Barcode reading window Align the reading window with barcodes to perform barcode reading.
(11) Charge terminal Place on the CU to charge the BHT.
(12) IEEE802.11 b/g

built-in antenna

Used to communicate with the wireless LAN access point.

Do not cover this antenna section with metal-evaporated tape or by hand. Doing so may result in

communication failures.

9

Barcode Handy Terminal

1.2.2 Keypad

The BHT key functions can be set at user programs.
The diagram below shows an example of settings for each key function.

(1)

(2) (3)

(5)

(4)
(6)

(7)

(8)

(9)

(10)

(14)

(11)

(12)

(13)

No.

Key Name Function and Description

(1)

Cursor keys

Used to move the cursor and select menus.

(2)

Magic key [M1]

(3)

Magic key [M2]

(4)

Magic key [M3]

(5)

Magic key [M4]

(6)

Magic key [M5]

(7)

Magic key [M6]

 Each of the M3 and M4 keys is assigned a trigger switch by default.
 The M5 key is assigned the C key by default.
 The M6 key is assigned the ENT key by default.
 The SF, ENT, Backlight, MENU or C key functions can be assigned with SYSTEM

MENU.

 A character or character strings can also be assigned with the user programs.

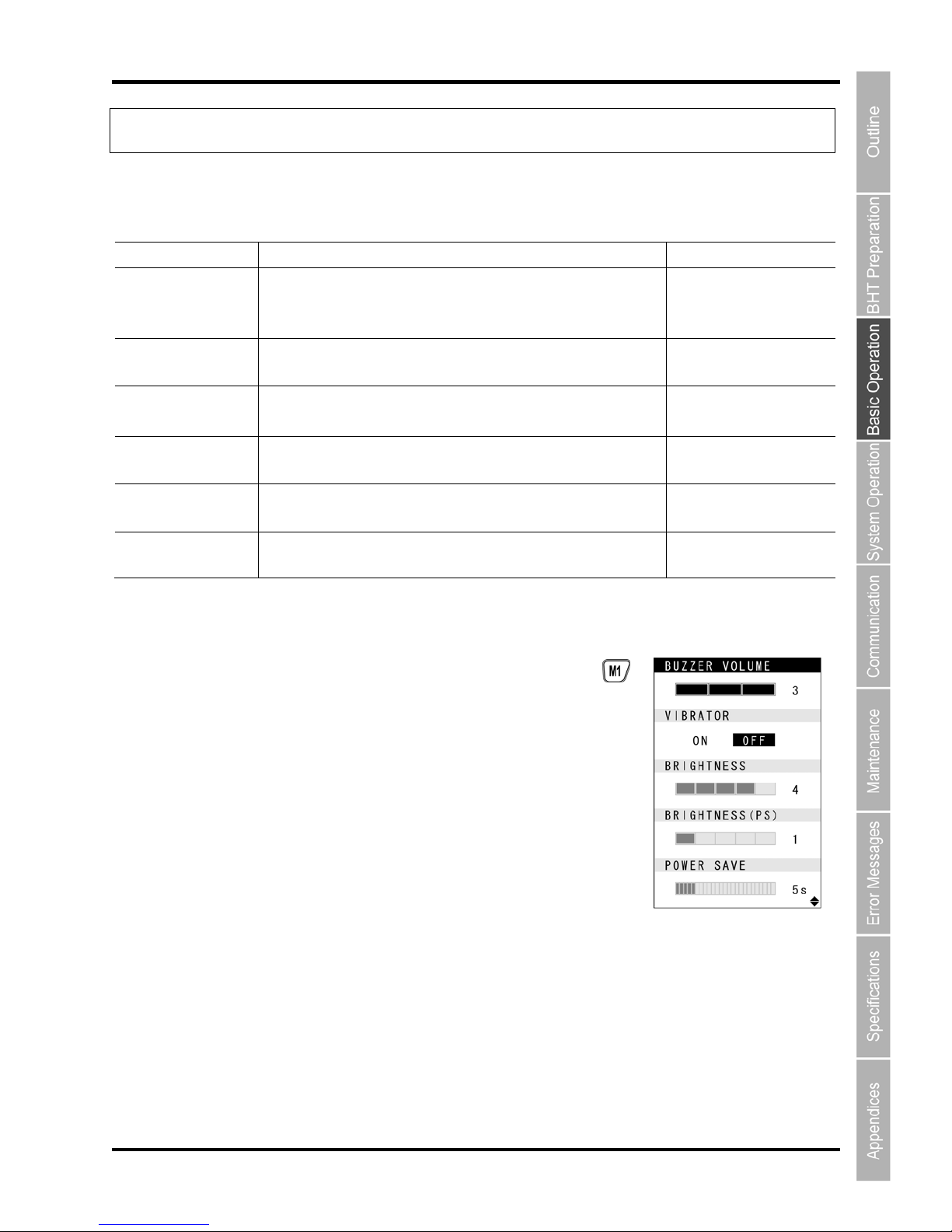

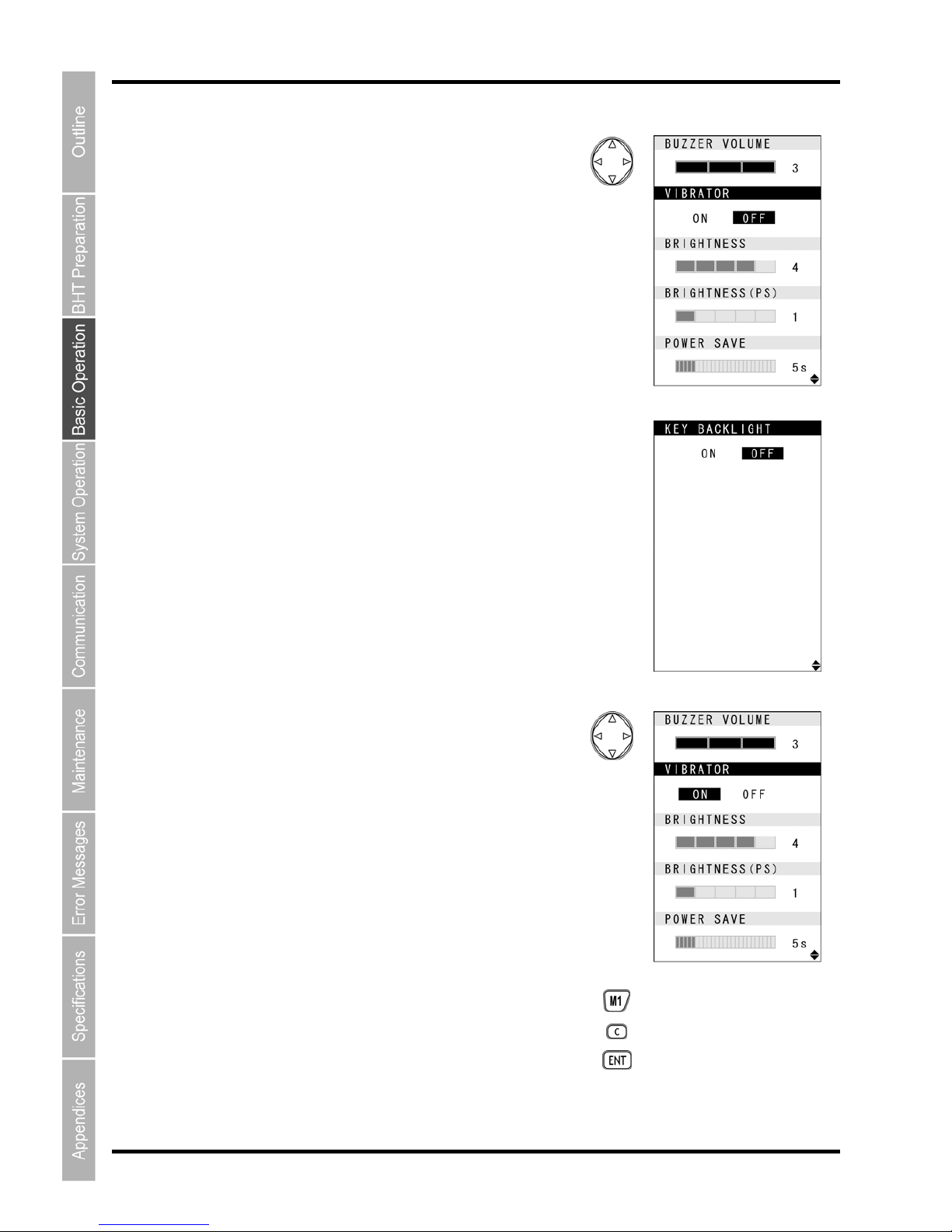

 Hold down the M1 key to display the following setting screens when set to the default.

- Beeper volume

- Vibrator

- LCD display brightness

- Power save

- Key backlight

10

BHT-604BW

No.

Key Name Function and Description

(8)

Numerical
keys

Used to enter data.

(9)

Enter key

Press to finalize entered data or execute operations.

(10)

-

Function keys Used to select functions.

(11)

Power key Turns ON or OFF.

(12)

Backspace key Removes the last character that you entered.

(13)

Clear key Cancels entry and returns the LCD display to the previous screen.

(14)

Shift key

Used in combination with other keys such as the numerical keys for special input
procedures.

11

Barcode Handy Terminal

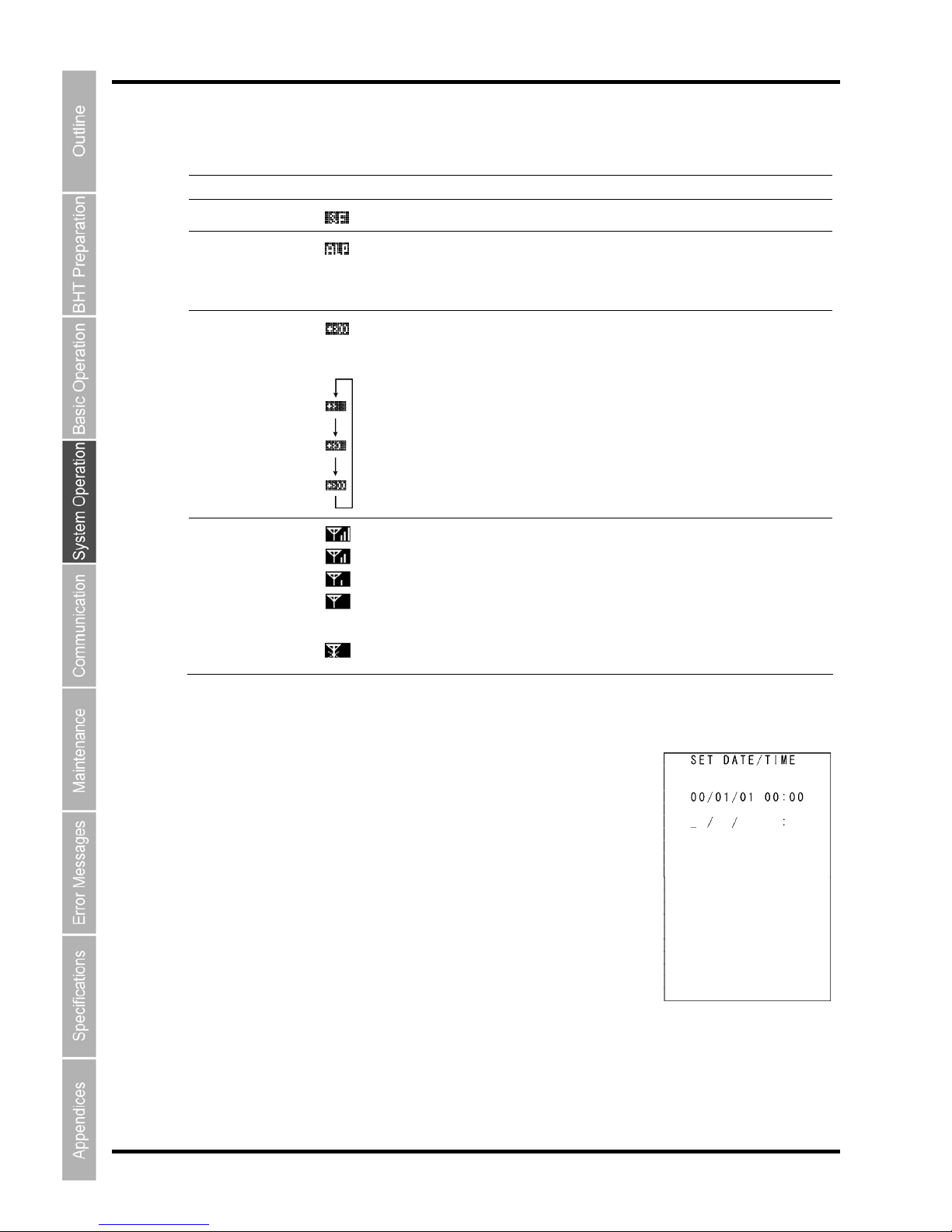

1.2.3 BHT Screen

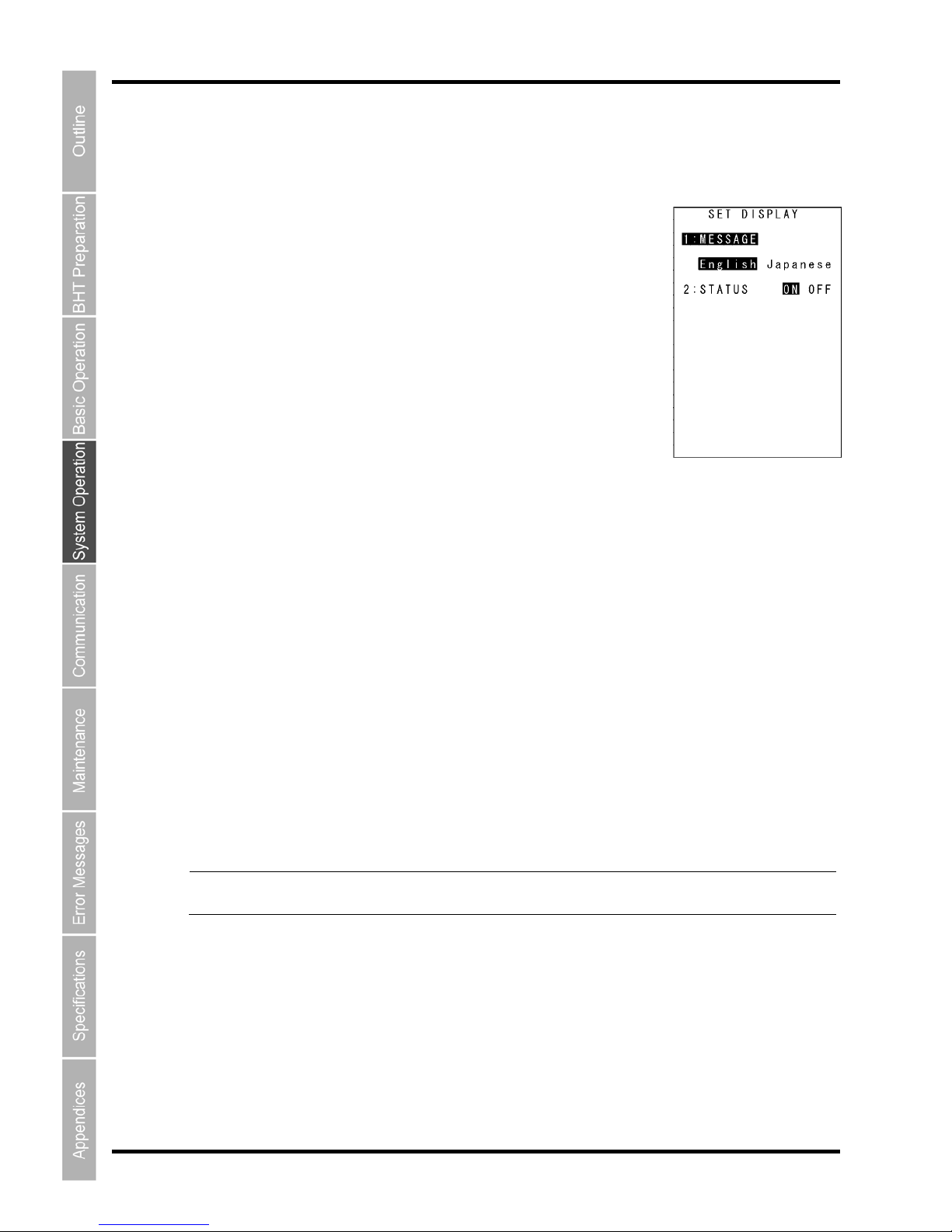

If the system display is set to ON at the system settings or in the user program, icons display at the bottom of the
screen (default) indicating the key shift status, alphabet entry status, and status of the link with the CU-611.

Connection status with access point
Link status with CU-611

A

lphabet entry status
Key shift status
Battery icon

SF ALP

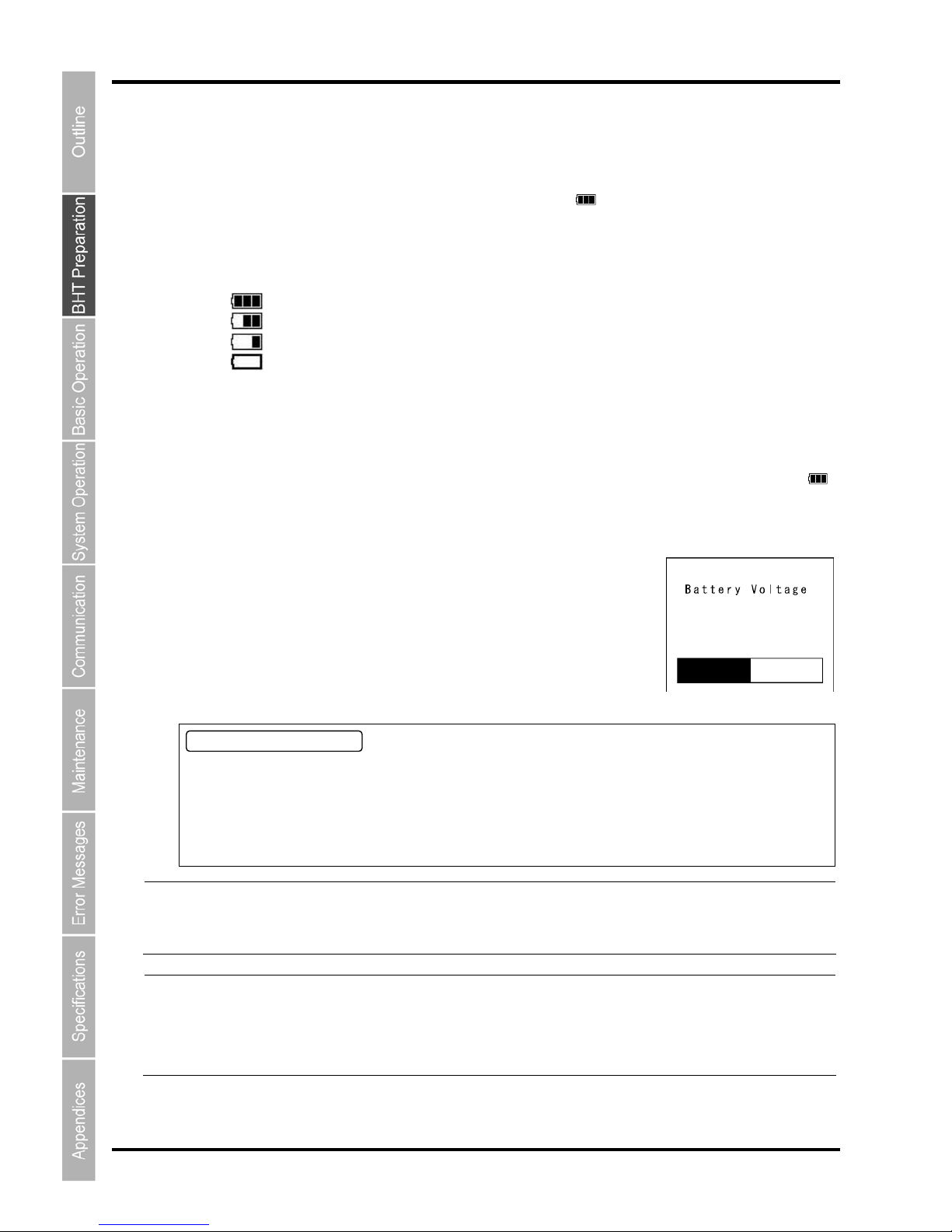

This is the battery icon.
Indicates the current battery power level.

Displays when the SF key is pressed and the keys are in the shift status.

When the SF and the BS keys are pressed while set to alphabet entry mode at the user program, the entry mode

changes from “numeric entry” to “alphabet entry” and displays.

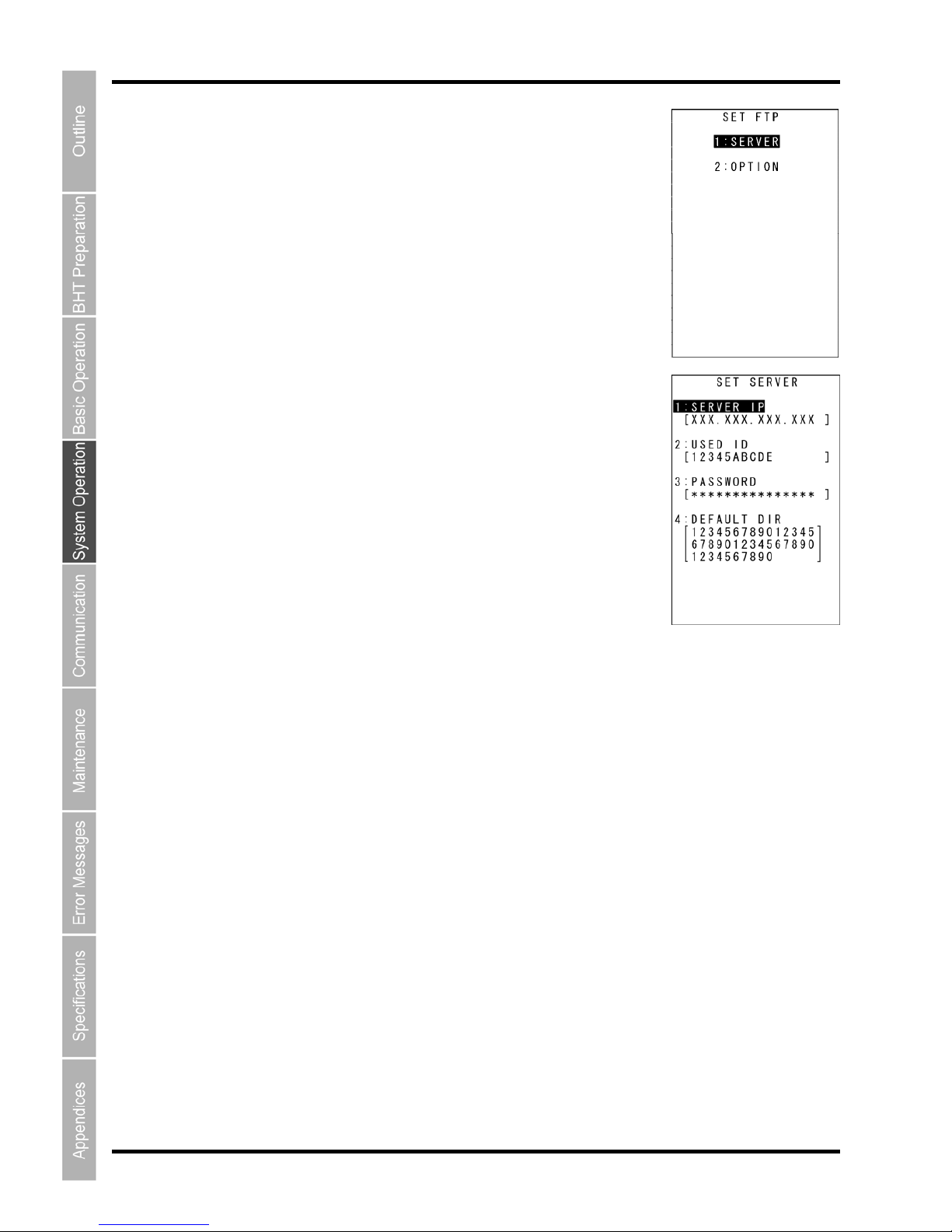

Alphabet entry is used when performing FTP settings.
Refer to “Chapter 7.2.1 Numeric, Alphabet Entry of Programmer’s manual” for more information.

displays when a link is established with the CU-611.

When an attempt is made to perform communication with the CU-611 when no link has been established, the
icon flashes.
When there is no response from the CU-611, when waiting for the link with the CU-611 to be established, or when
waiting for the link to be disengaged, the icon displays in the order .

Displays when the BHT is connected to the access point.
The radio field intensity status displays as follows.

→ → →

Strong Weak

displays when the BHT is not connected to the access point.

SF

ALP

ALP

12

BHT-604BW

BHT-604BW

Chapter 2

BHT Preparation

This chapter

describes inserting and charging the battery cartridge, turning

the BHT power ON and OFF, and use of the hand strap.

2.1 “BHT Preparation” Proce dure ···································································14

2.2 Loading and Charging the Battery Cartridge ··············································14

2.2.1 Battery Power Level Indicator········································································20

2.3 Attaching the Hand Strap············································································21

2.3.1 Attaching the Hand Strap···············································································21

2.3.2 Holding the BHT·····························································································21

2.4 Initial Setup·································································································22

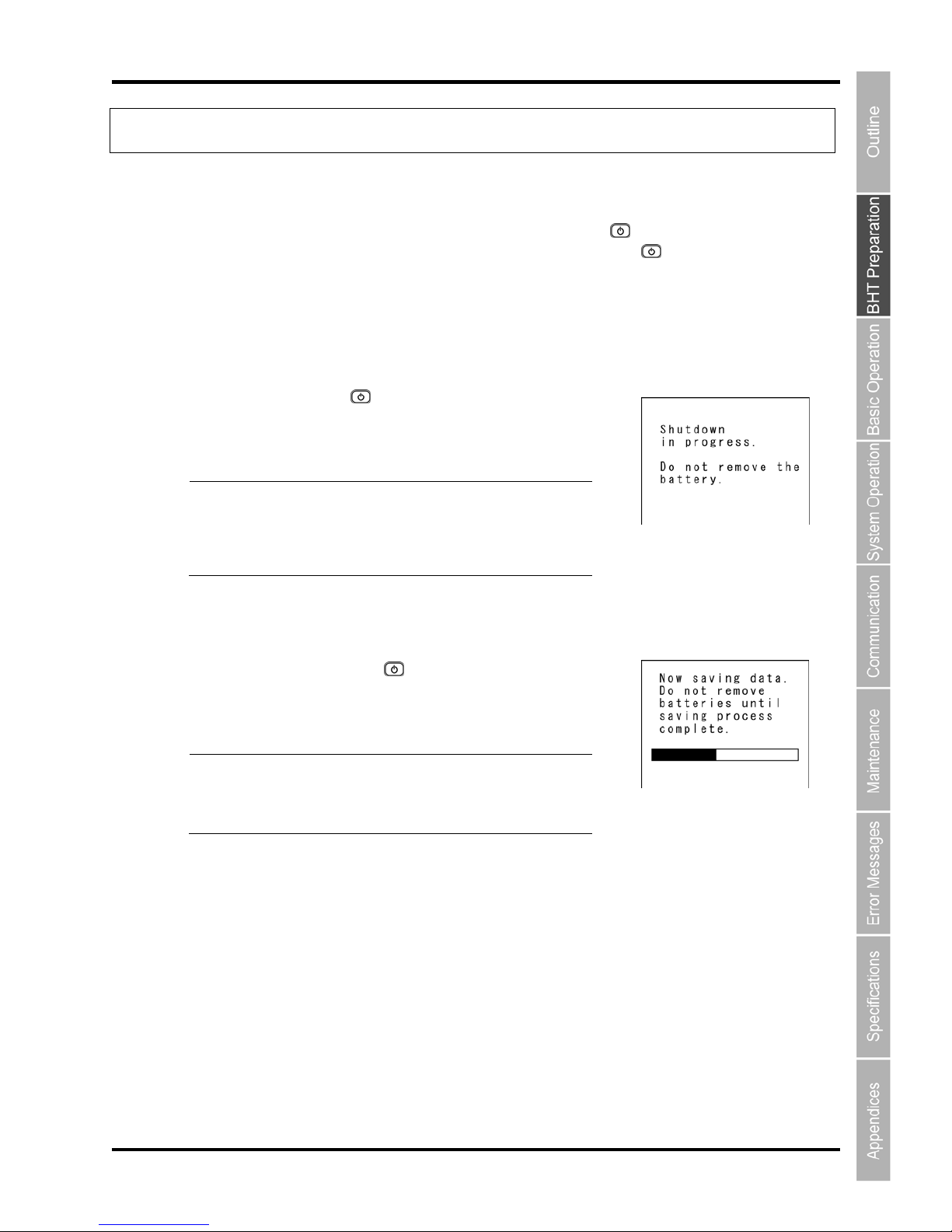

2.5 Turning OFF the Power··············································································23

2.5.1 Normal Power OFF························································································23

2.5.2 Turning the Power OFF after Data Back-up ··················································23

2.5.3 Auto Power OFF ····························································································23

2.5.4 If the BHT Is Shut Down Abnormally······························································24

2.5.5 If Invalid Files Are Found················································································26

14

BHT-604BW

2.1 “BHT Preparation” Procedure

Follow the steps below to prepare the BHT for use.

2.2 Inserting and Charging the Battery

Cartridge(Page 14)

First insert and charge the battery cartridge.

2.3 Wearing

the Hand Strap

(Page 21)

Wear the hand strap at your wrist to prevent the BHT
from being dropped.

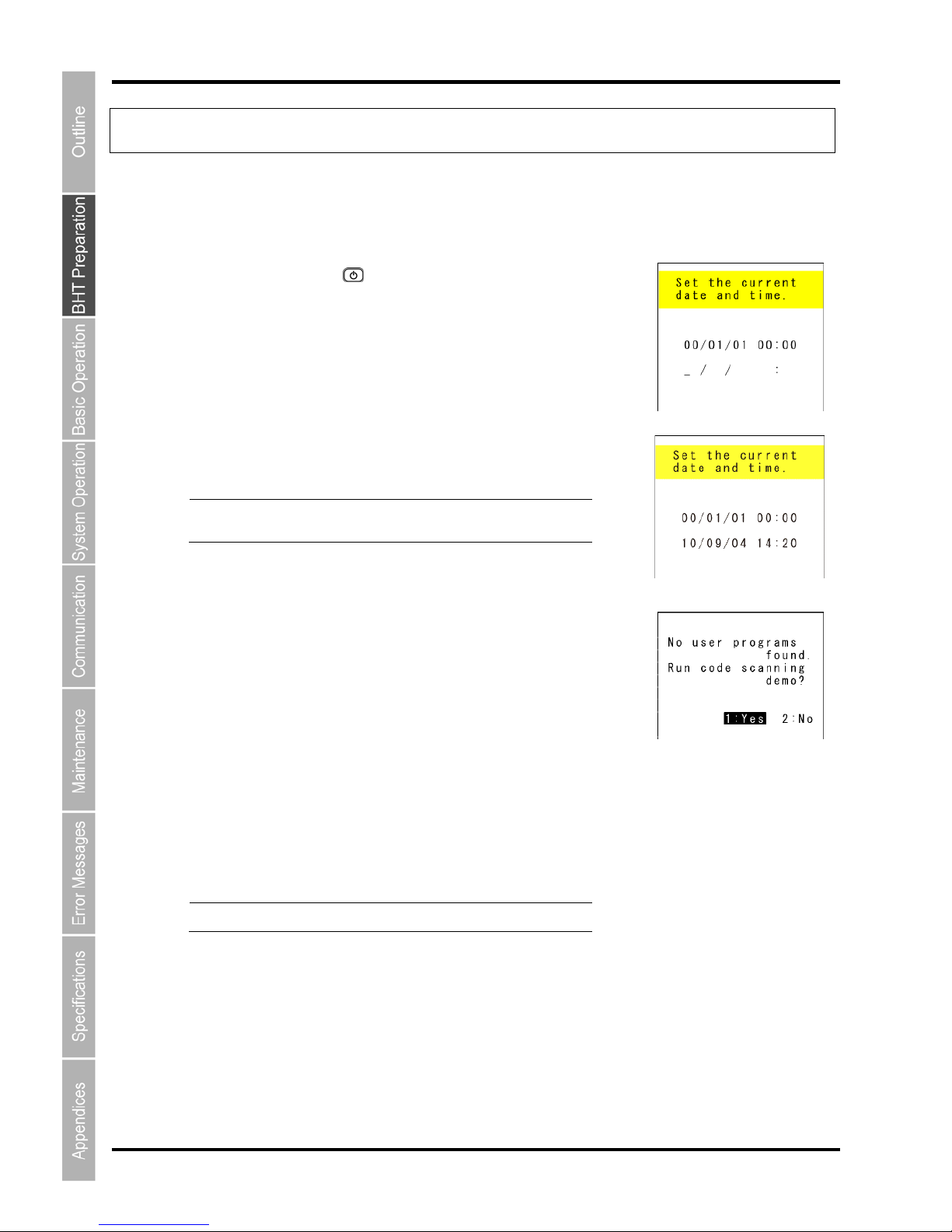

2.4 Initial Setup
(Page 22)

Set the calendar clock

when the power is turned ON for

the first time.

2.2 Inserting and Charging the Battery Cartridge

The battery cartridge is not charged when purchased and should therefore be charged prior to use.
The chargers that can be use with the BHT are the communication units (CU-601, CU-611 and CU-621) and battery
chargers (CH-201A, CH-651, CH-704 and CH-654).

* The CH-201A and CH-704 are chargers to separately charge the battery cartridge on its own, while the

CH-651 and CH-654 are stationary models (same type as CU (communication unit)) for directly charging
the battery cartridge placed in the BHT.

The charging time is approximately 3 hours.

 The charging time is approximately 7 hours using the CU-621 with power supplied via the USB port.
 This time will be reduced for a battery cartridge with low discharge capacity.

Charging P

recautions

 Do not touch

any terminals of the BHT, battery, or charger by hand or stain them. Doing so could result

in a contact failure or prevent charging.

 Never charge the battery near fire or in a high-temperature environment.

High-temperatures may activate the charger’s protective device, preventing charging, and lead
to protective device damage, overheating, blowout or combustion.

 Terminate charging if not completed even after the specified time has elapsed.

15

Barcode Handy Terminal

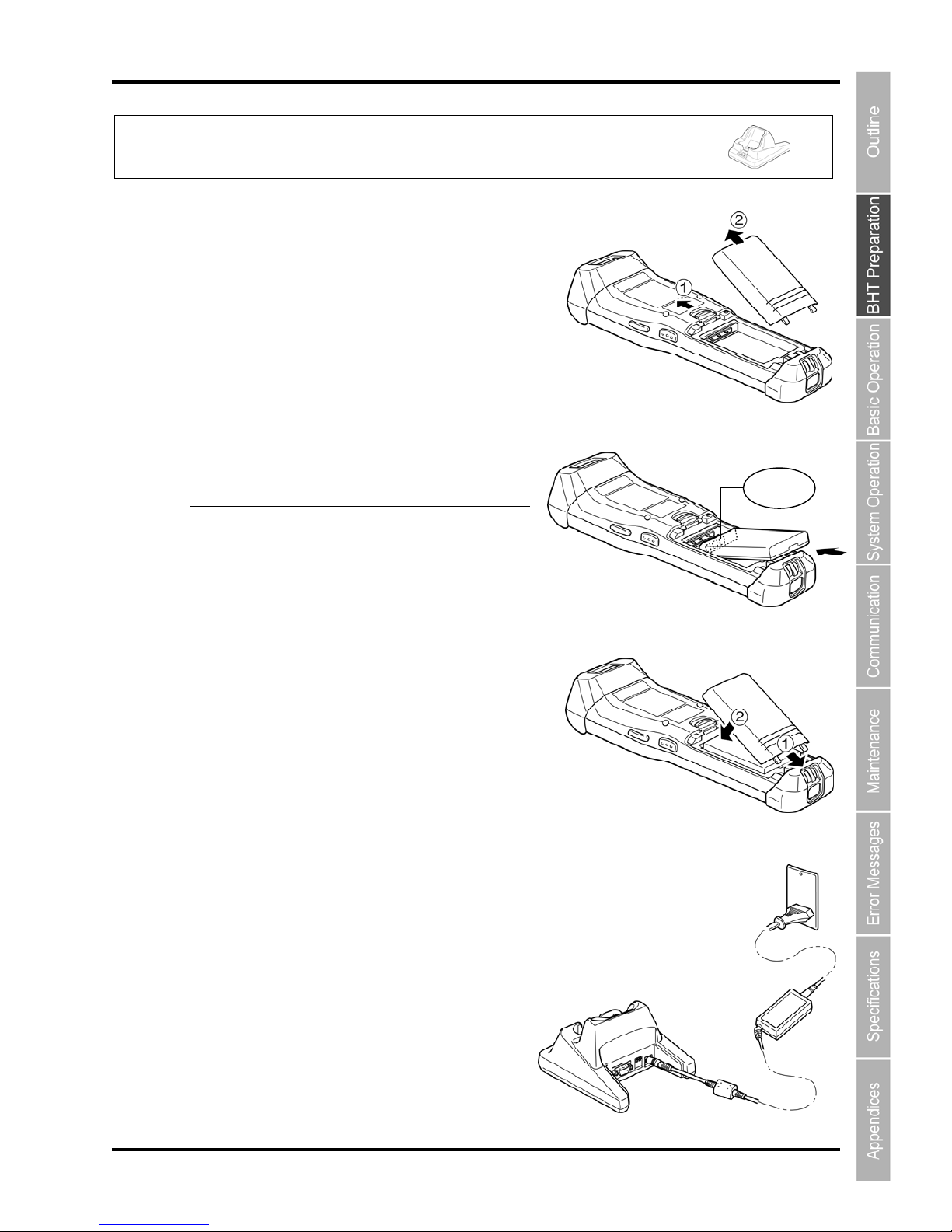

Charging with the communication unit (CU-601, CU-611 and CU-621)
or battery charger (CH-651 and CH-654)

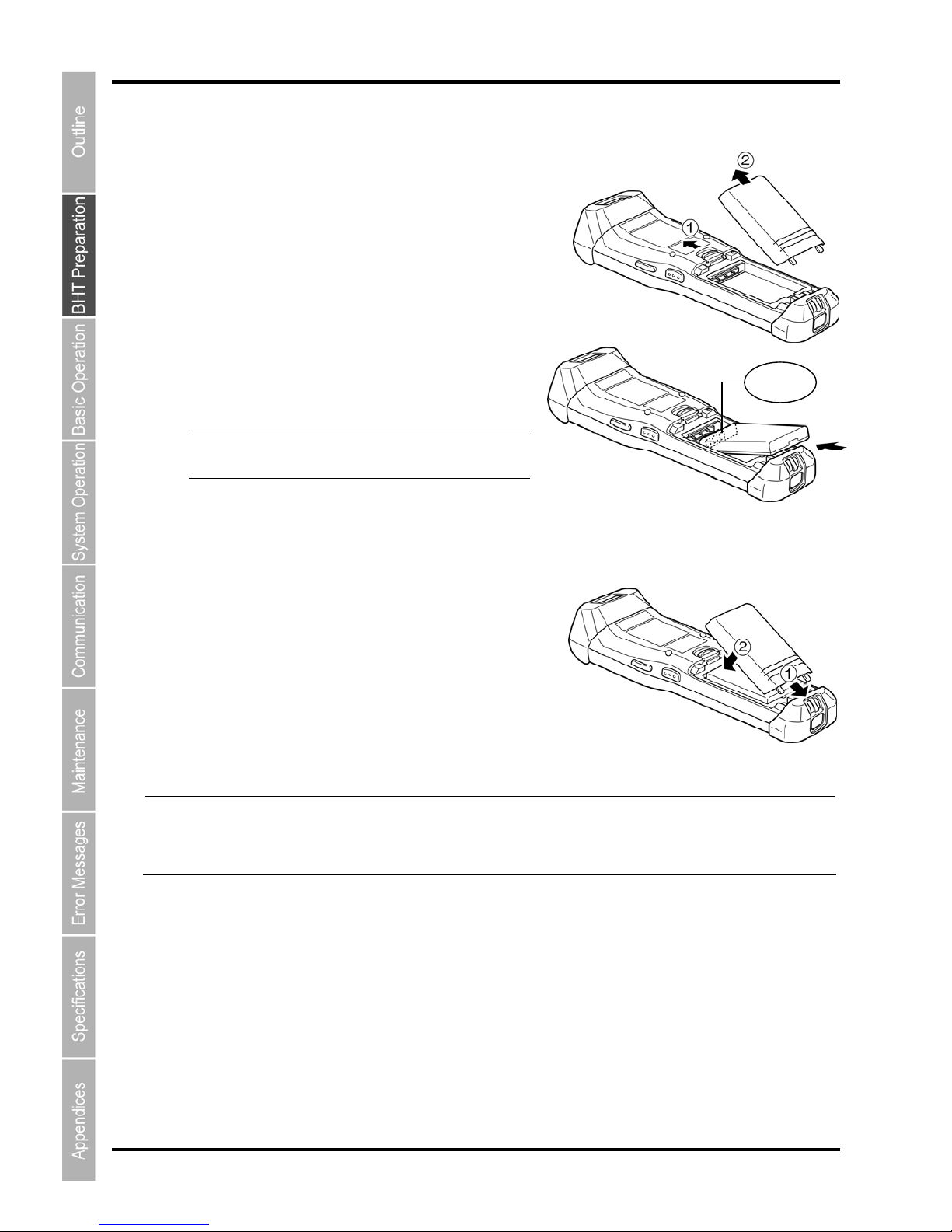

1. Slide the battery cover lock (1) in the direction

indicated by the arrow and remove the battery cover
(2).

2. Check the battery cartridge terminals and indication

on the BHT unit, and then insert the cartridge in the
direction indicated by the arrow.

Terminal

 Point  Do not use battery cartridges other than

those specified by DENSO WAVE.

3. Insert the battery cover tab (1), and then close the

battery cover (2) The battery cover is now locked in
position.

4. Connect the dedicated AC adapter to the DC input

connector on the charger and plug the adapter into
the wall socket.

The charger Power LED (green) turns ON.

16

BHT-604BW

 Note  Power for the CU-621 can be obtained from a USB connection port (host computer or hub),

however, charging is not possible while the host computer is in suspend mode. Charging is
resumed when suspend mode is exited. This can be avoided using a dedicated AC adapter to
supply power. Suspend mode is a power saving function used to temporarily put the computer on
standby when not in use.

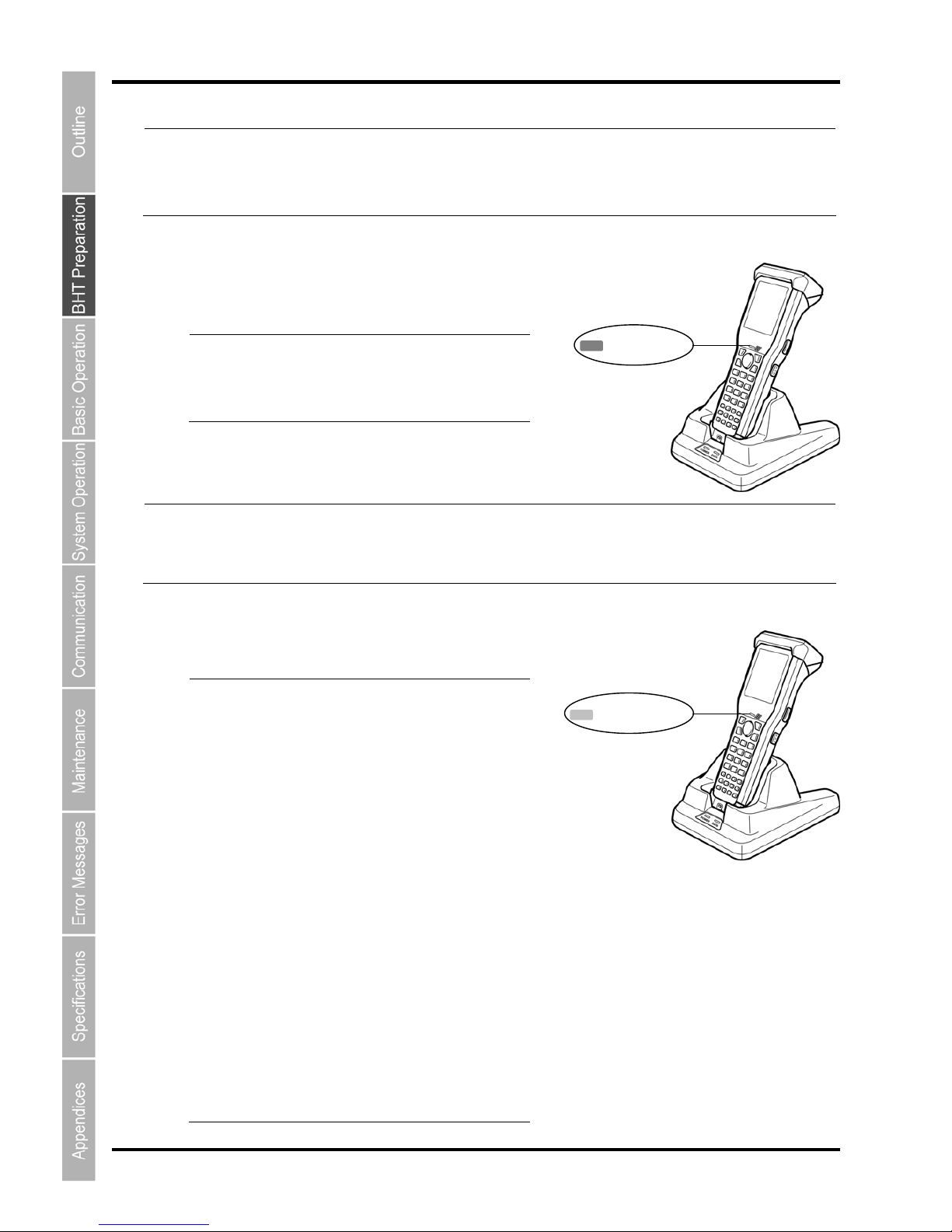

5. Place the BHT on the charger.

The Iindicator LED illuminates in red and charging begins.

 Point  After placing the BHT on the charge

r

when using the BHT for the first time o

r

when left unused for long periods of time,
do not remove from the charger fo

r

approximately 10 minutes.

 Note  The BHT is equipped with a back-up battery used to back-up the internal memory and calenda

r

clock. The internal back-up battery is charged first when charging is commenced.
Do not remove the BHT from the charger for at least 10 minutes when using the BHT for the first

time or when using after long periods of time.

Red LED ON

Green LED ON

6. The BHT indicator LED will change to green

when charging is complete.

 Point   Charging takes approximately 3 hours.

 Charging takes approximately 7 hours

when using the CU-621 with powe

r

supplied via the USB port.

 An only slightly discharged battery

cartridge should take this time to
become fully charged.

 Take proper steps if the BHT indicato

r

LED is blinking in red.
a. Detecting the abnormal temperature
of the battery cartridge.
Charge at the right temperature(0 to 40
degree). Avoid the direct sunlight o

r

something hot.
Stop the charging if under the prope

r

environment.
b. Bad electrical contact.
Wipe any dirt from battery cartridge
terminals with refer to “Chapter 6.3
Daily Maintenance”.
c. Non-completion of the charge in the
given time.
Charge again using dedicated AC
adapter if the charging was using USB
port which is weak power supplying
capability.
d. Failure or life of battery cartridge.
Replace the new battery cartridge.

17

Barcode Handy Terminal

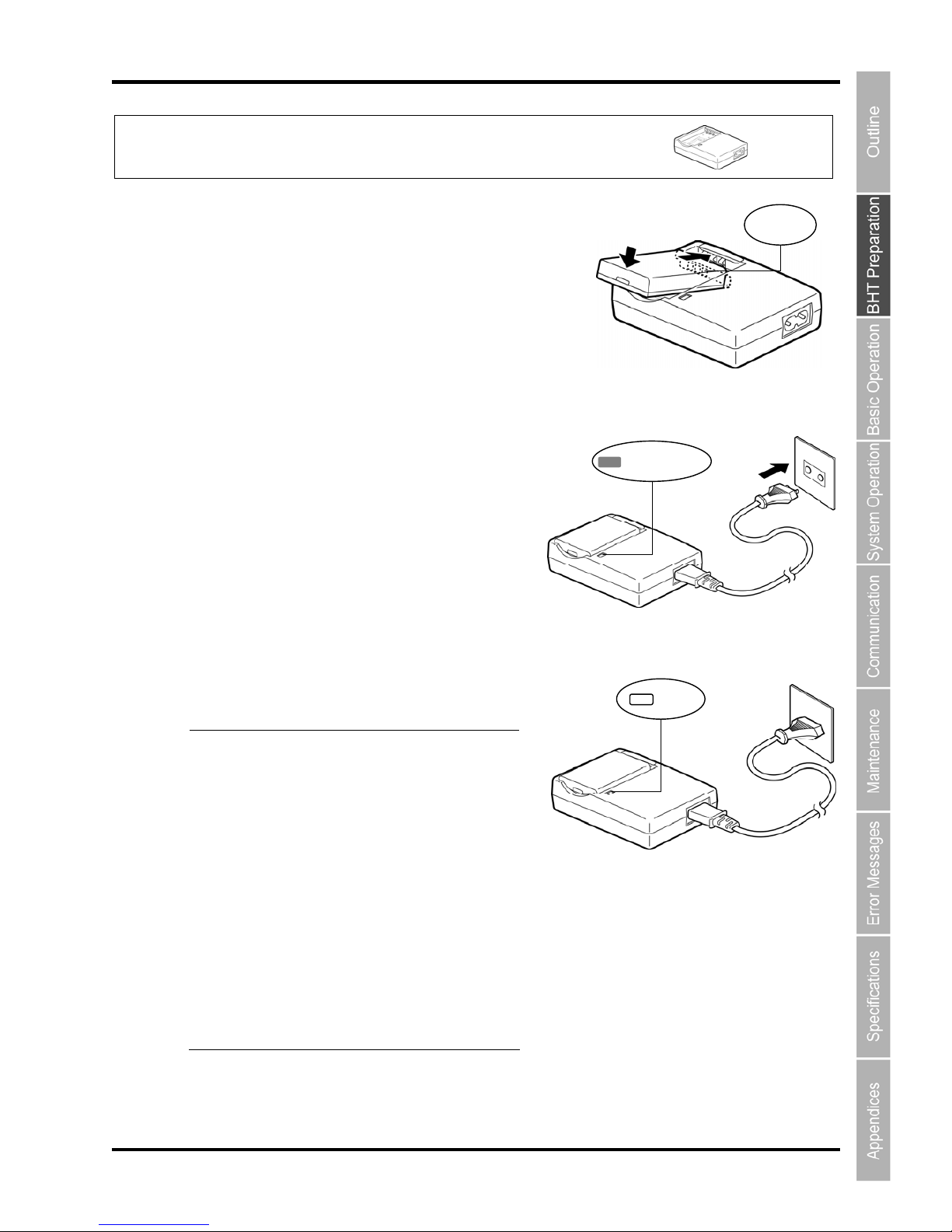

Charging with the battery charger (CH-201A and CH-704)

Terminal

1. Check the battery cartridge terminals and insert the

cartridge.

2. Connect the power cable to the CH-201A and

connect the plug to a commercial AC power source
(230 V AC).

The LED will turn red when charging is commenced.

Red LED ON

3. The LED will turn OFF when charging is complete.

OFF

 Point   Charging takes approximately 3

hours.

 An only slightly discharged battery

cartridge should take this time to
become fully charged.

 Take proper steps if the LED is

blinking in red.
a. Detecting the abnormal
temperature of the battery cartridge.
Charge at the right temperature(0 to
40 degree). Avoid the direct sunlight
or something hot.
Stop the charging if under the prope

r

environment.
b. Bad electrical contact.
Wipe any dirt from battery cartridge
terminals with refer to “Chapter 6.3
Daily Maintenance”.
c. Failure or life of battery cartridge.
Replace the new battery cartridge.

18

BHT-604BW

4. Slide the battery cover lock (1) in the direction indicated

by the arrow and remove the battery cover (2).

5. Check the battery cartridge terminals and indication

on the BHT unit, and then insert the cartridge in the
direction indicated by the arrow.

Terminal

 Point  Do not use battery cartridges other than

those specified by DENSO WAVE.

6. Insert the battery cover tab (1), and then close the

battery cover (2) The battery cover is now locked in
position.

 Note  The BHT is equipped with a back-up battery used to back-up the internal memory and calenda

r

clock. The internal back-up battery is charged first when charging is commenced.
Do not remove the BHT from the charger for at least 10 minutes when using the BHT for the first

time or when using after long periods of time.

19

Barcode Handy Terminal

Mishandling of the charger may result in charger overheating, smoke generation, blowout o

r

combustion. Please read the following items prior to use.

 Never disassemble or modify the battery cartridge.
 Never connect the battery cartridge (+) and (-) terminals with a metal object such as a piece o

f

wire.

 Never carry or store the battery cartridge together with metallic necklaces, hairpins and so on.
 Never expose the battery cartridge to fire or apply heat.
 Never use or leave the battery cartridge in the vicinity of high-temperature locations (60 C o

r

higher) such as a fire or stove.

 Never place the battery cartridge into or soak it in water or seawater.
 Never charge the battery cartridge in the vicinity of fire or under a scorching sun.
 Never hammer nails into the battery cartridge, hit it with a hammer, or trample on it.
 Never apply strong impact to or throw the battery cartridge.
 Never use significantly damaged or deformed battery cartridges.
 Never apply solder directly to the battery cartridge.
 If battery fluid leaked from the battery cartridge gets into the eyes or comes into contact with the

skin, wash thoroughly with clean water such as tap water without rubbing, and obtain medical
treatment immediately. Failure to do so will result in eye or skin injuries.

Mishandling of the charger may result in charger overheating, smoke generation, blowout or
combustion. Please read the following item prior to use.

 Terminate charging if not completed even after the specified time has elapsed.

 Note   The BHT is equipped with a back-up battery used to back-up the internal memory and calenda

r

clock when the battery cartridge is removed or the battery voltage falls below the stipulated
level.
It is therefore necessary to charge the internal back-up battery when using the BHT for the first
time or when left unused for long periods of time.
The back-up battery is charged automatically when a fully-charged battery cartridge is inserted.
To ensure that the back-up battery is fully charged, do not remove the battery cartridge for at
least 10 minutes when using the BHT for the first time or when using after long periods of time.

 If you leave the BHT without a battery cartridge inserted for a long tim e, the memory contents

will no longer be backed up so that the message "Contact your administrator. Note the erro

r

number. (XXXX)" or "Set the current date and time." may appear on the LCD.

 Refer to “Chapter 6 Maintenance” – “6.3 Using the BHT after Long Periods” for details o

f

handling the BHT after long periods of time.

 Avoid storing the battery cartridge in high-temperature locations. The battery capacity may

decrease.

 Do not touch the BHT, battery, or charger terminals by hand or stain them. Doing so may result

in a BHT operation defect or battery cartridge charging failure. It is recommended that dirt on
the battery cartridge terminals or BHT battery terminals be periodically wiped with a soft, dry
cloth.

20

BHT-604BW

2.2.1 Battery Power Level Indicator

Confirming at the Power Level Icon

The battery power level can be confirmed at the battery icon ( ) displayed in the bottom left of the LCD
screen.
The battery power is indicated in four levels.
The battery power level indicator tells you when to charge the battery cartridge.

：Sufficient battery power remains.
：The battery power is partially depleted. Making early charge is recommended.
：The battery power is almost fully depleted. Charge immediately.
：The battery power is totally depleted.
Charge immediately or replace with a fully charged battery cartridge.

Confirming at the “Battery Voltage” Screen

The battery power level can also be confirmed at the "Battery Voltage" screen.
The "Battery Voltage" screen displays the battery power level in more detail than the battery icon ( )
that displays at the LCD screen.
Display the "Battery Voltage" screen using

the following procedure.

1. Hold down the SF key and press the Enter key.

The "Battery Voltage" screen displays while the keys are pressed.

About the Ba

ttery Level

 The battery pow

er level indicator does not accurately reflect the battery residual power and should

only be used as a guideline.

 The battery power level will fluctuate due to BHT operation, and therefore disparities may

occur between the actual battery voltage and the display indicator.

 Ensure to charge the battery as soon as possible before the battery power is depleted.

 Point   If the BHT is placed in the alphanumeric entry system in user programs, the combination of the SF

and ENT keys cannot be used for displaying the battery voltage lev el. This is because in the
alphanumeric entry system the SF key and BS key are used for switching between the numeric
and alphabet entry modes.

 TIP   In user programs, you may select the key to be used for displaying the battery voltage level

(instead of the default: combination of SF and ENT keys).

 The displayed battery level shows the terminal voltage of the battery, not how much power is left.
 The actual voltage level varies depending upon the operation of the BHT, so the displayed level

also may vary.

21

Barcode Handy Terminal

2.3 Wearing the Hand Strap

Wear the hand strap to prevent the BHT from being accidentally dropped during use.

2.3.1 Attaching the Hand Strap

Attach the hand strap to the BHT as shown below.

2.3.2 Holding the BHT

Wear the hand strap to your wrist and hold the BHT as shown below.

or

22

BHT-604BW

2.4 Initial Setup

Turn ON the power after inserting the fully charged battery cartridge into the BHT.
The date and time are not set at the time of purchase.You are required to set the date and time when turning ON the
power for the first time.

1. Press the Power key ( ) to turn ON the BHT.

The screen right displays.

2. Enter the date and time using the numeric keys.

[Ex.] : September 4, 2010, 14:20

 Point  Enter the last two digits for the year, and enter the

time in 24-hour clock format.

3. Press the ENT key to set the date and time.

The screen right displays when the date and time are set.

4. Press the numeric key 1 and the ENT key. Then, select [1:Yes].

A scanning demo commences.
The scanning demo is a program that allows barcodes to be read without a user program. Press the
trigger switch to enable barcode reading.

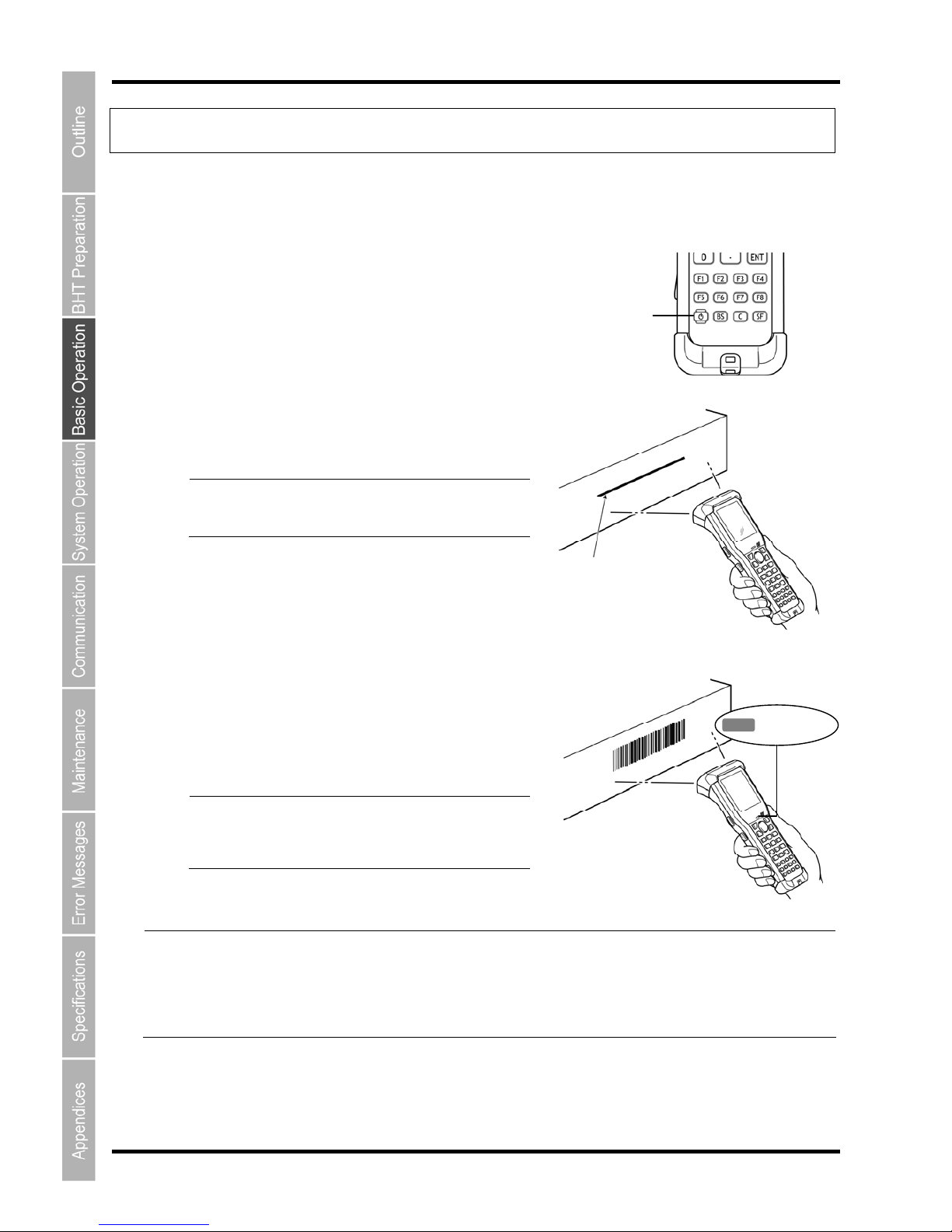

Refer to "Chapter 3 Basic Operation" – “3.1 Reading Barcodes” and read a barcode .

 Point  The power turns OFF by selecting [2:No].

23

Barcode Handy Terminal

2.5 Turning OFF the Power

You can turn OFF the BHT in one of the following three methods.

Normal power OFF  Press the Power key (

).

Turning the power OFF after data back-up  Hold down the Power key (

) for at least 3 seconds.

Auto power OFF  The power turns OFF itself when the BHT is not used for

specified period of time set at the user program.

2.5.1 Normal Power OFF

1. Press the Power key ( ).

The BHT turns OFF after the message on the screen given to the right
displays.

 Point  Do not remove the battery cartridge while the

message on the right is displayed.

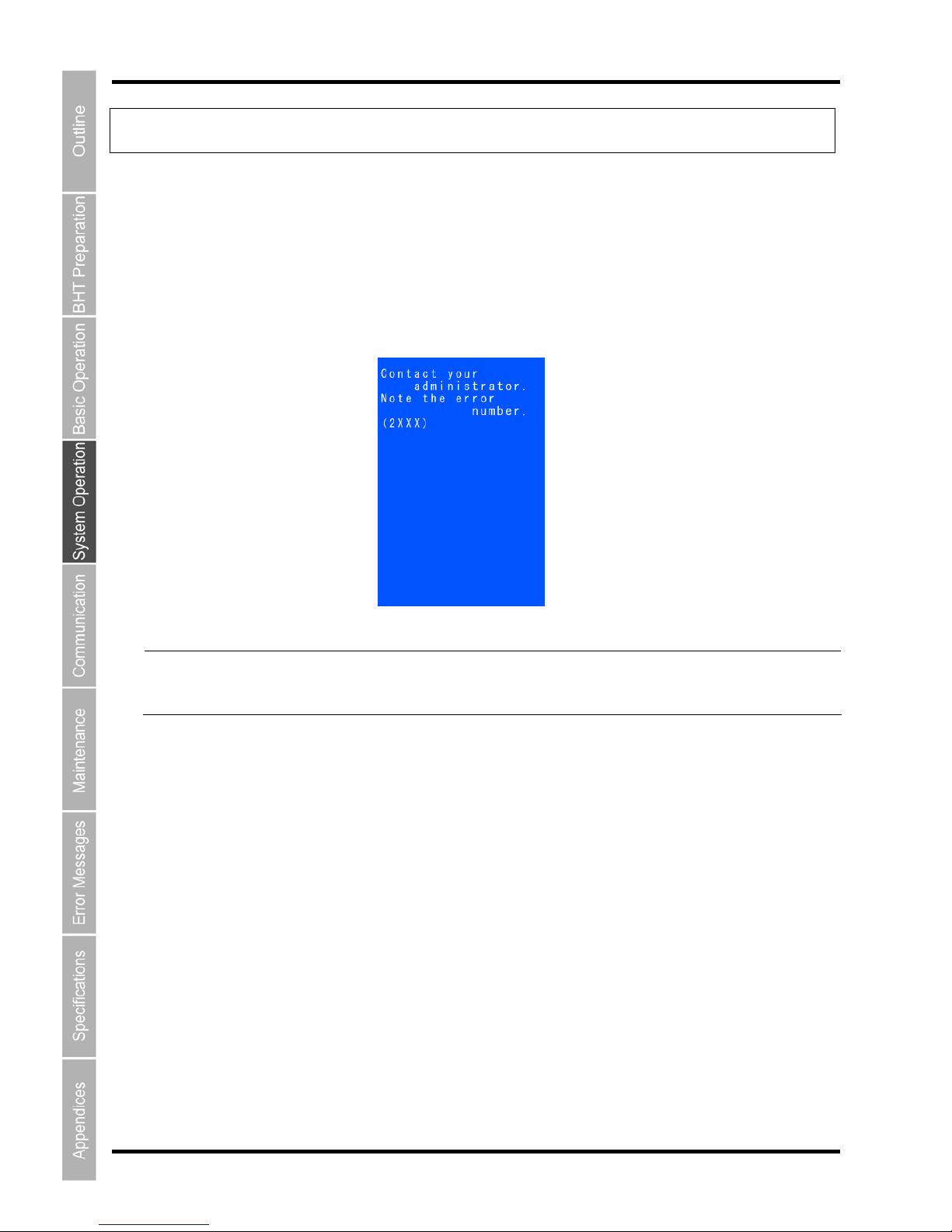

When the power is next turned ON, there are times

when a message (2XXX ) displays asking the use

r

to contact the administrator.

2.5.2 Turning the Power OFF after Data Back-up

1. Hold down the Power key ( ) for at least 3 seconds.

The message right displays and data back-up is commenced.
The power turns OFF itself when the back-up is complete.

 Point  Do not remove the battery cartridge while the

message on the right is displayed.
The back-up process may take several tens o

f

seconds depending on the amount of data.

2.5.3 Auto Power OFF

The power turns OFF itself when the BHT is not used for the specified period of time set at the user
program.
This is set to 3 minutes at default when the BHT is shipped from the factory.
* Refer to “BHT-600 Programmer’s Manual” for details of auto power OFF.

24

BHT-604BW

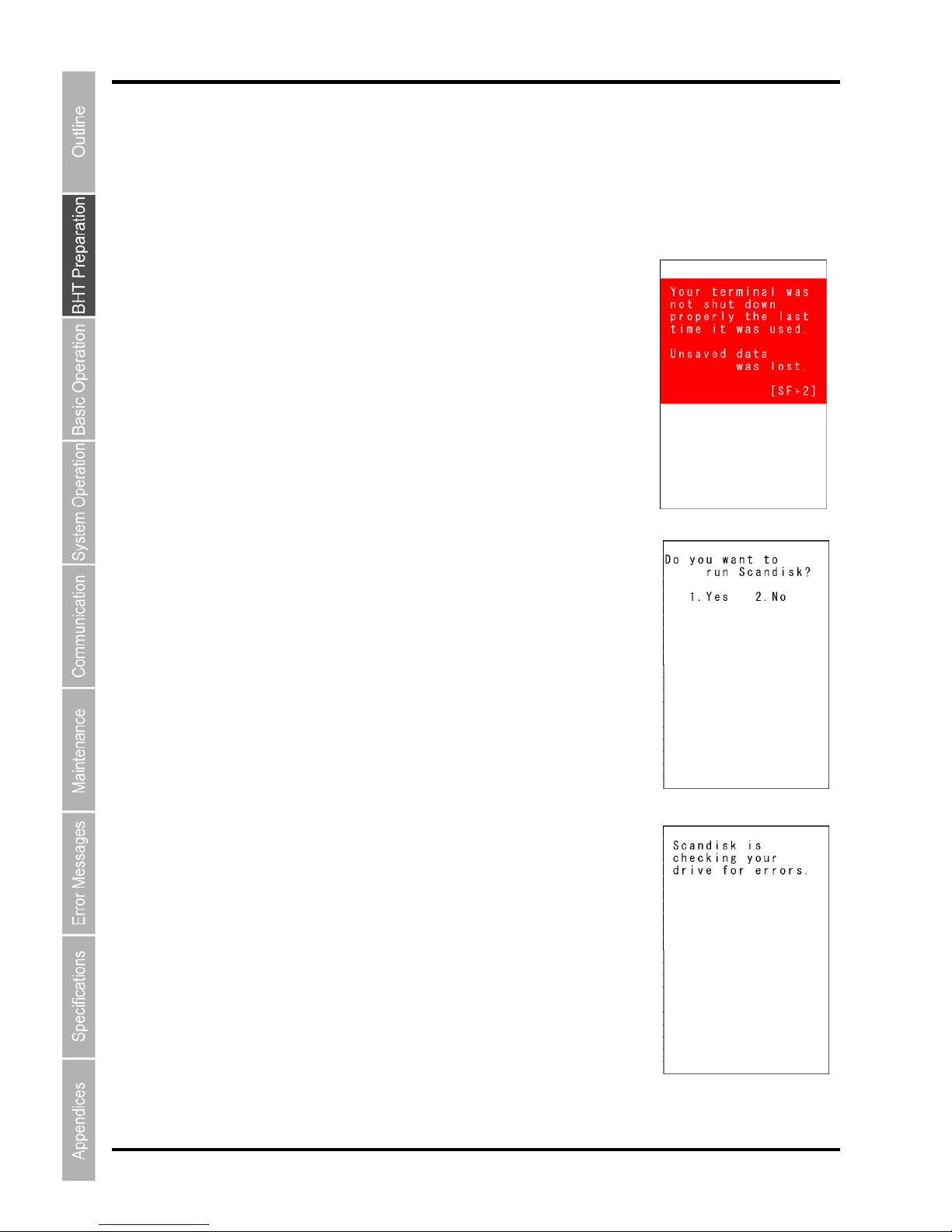

2.5.4 If the BHT Is Shut Down Abnormally

If the BHT is shut down abnormally* and is left without a battery cartridge or with a discharged battery
cartridge insert, then unsaved data may be lost.
(*"Normally shut down" refers to "2.5 Turning OFF the Power.")

1. The right message will appear when you insert a charged battery

cartridge and turn the BHT on.

2. Press the 2 key while holding down the SF key.

The screen will switch to the right.
[1. Yes]: Run Scandisk and start the System.
[2. No]: Turn the BHT off.

3. Choose [1. Yes] with the numerical keys and press the ENT key.

When Scandisk is in progress, the right message is displayed.

25

Barcode Handy Terminal

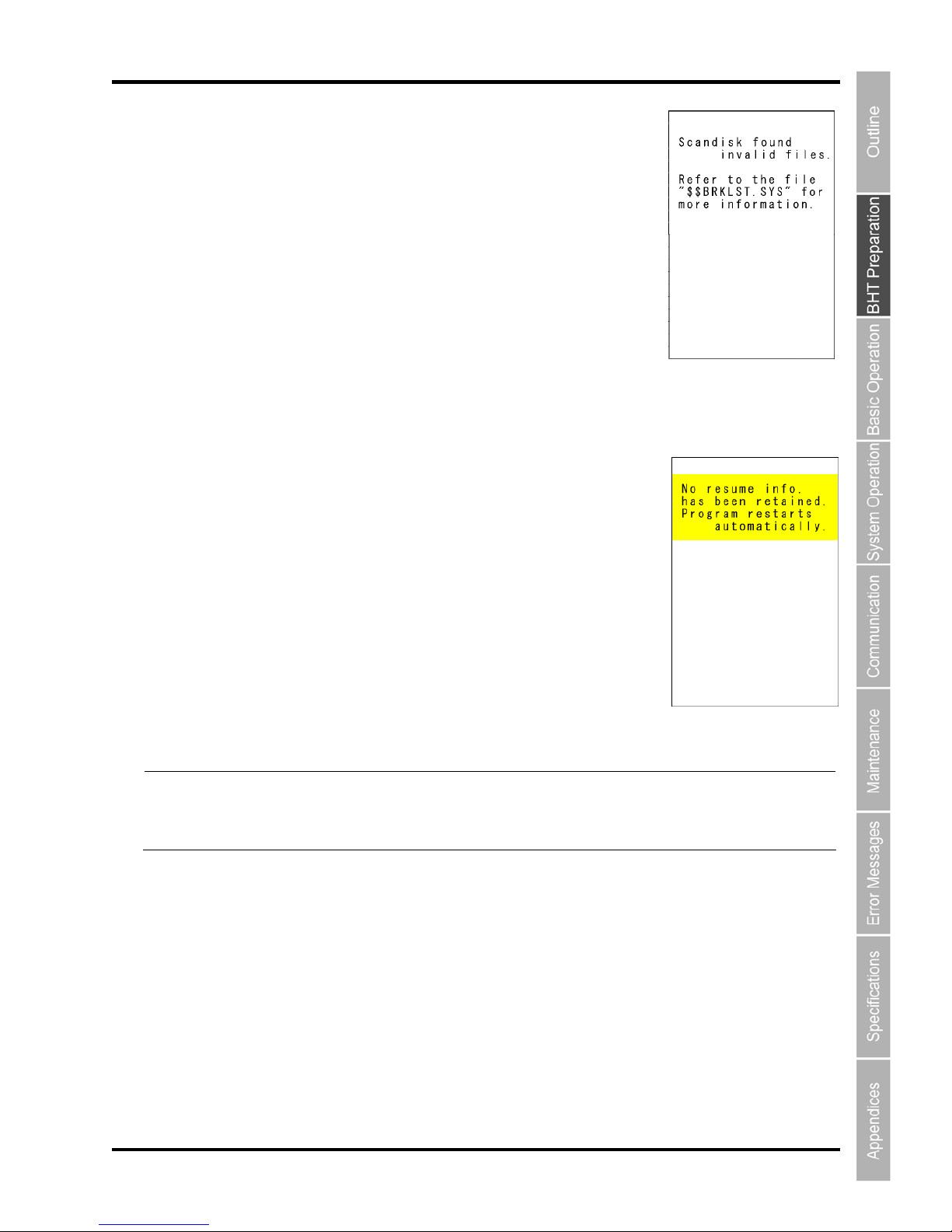

If Scandisk finds an invalid file(s), the right screen will appear.
(As long as an invalid file exits, the screen displays every time the BHT
System is started up.)

(Refer to “About “$$BRKLST.SYS” on the following page.)

4. Press the ENT key to start up the BHT System.

Scandisk when the resume function is enabled

If Scandisk runs when the resume function is enabled, the screen given right
may appear.

The BHT displays the screen for three seconds and then automatically runs
the execution program from the beginning.
(The screen may also appear when the calendar clock built in the BHT stops,
even without running Scandisk.)

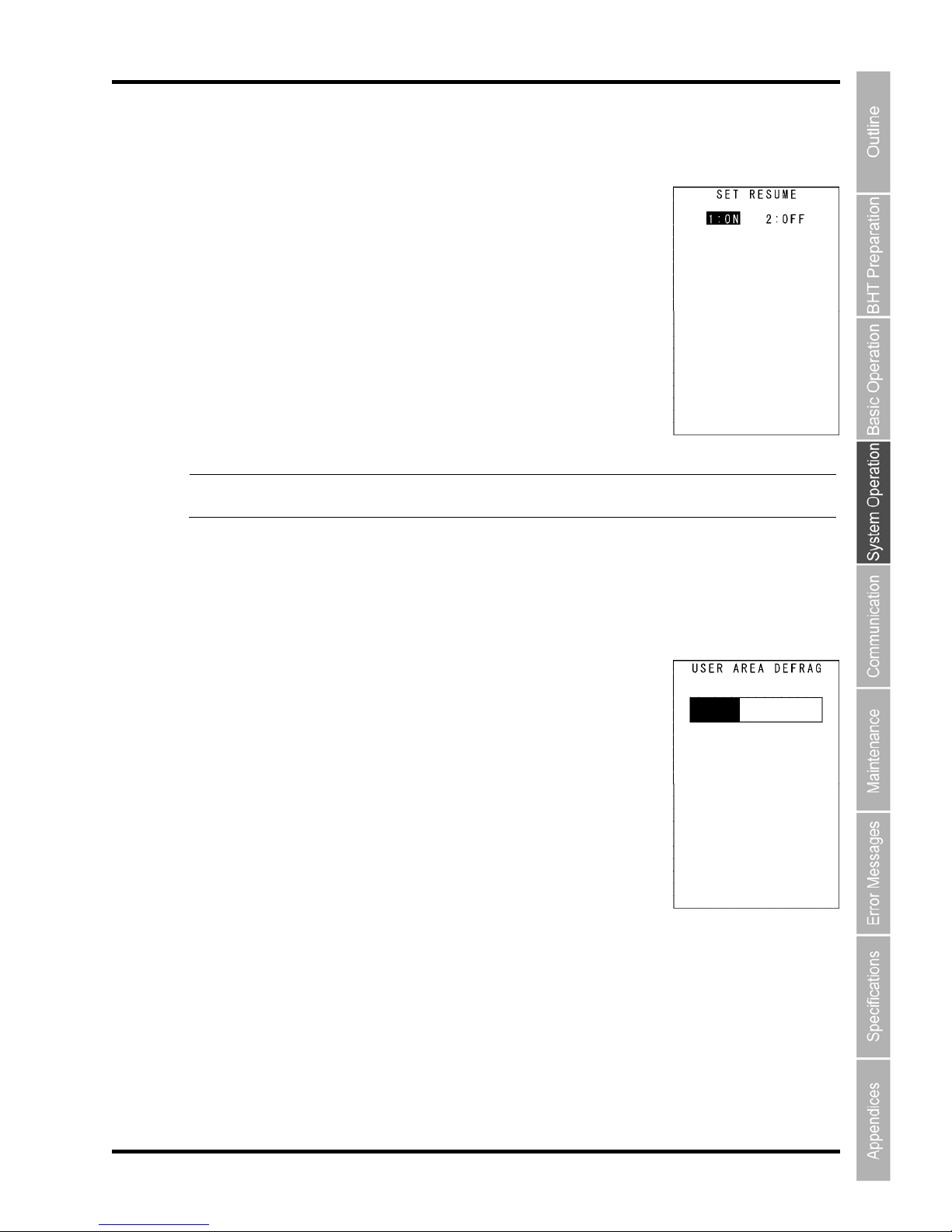

 Point  The resume function is used to return the display to the status (screen) when the power was last

turned OFF when the power is next turned ON.

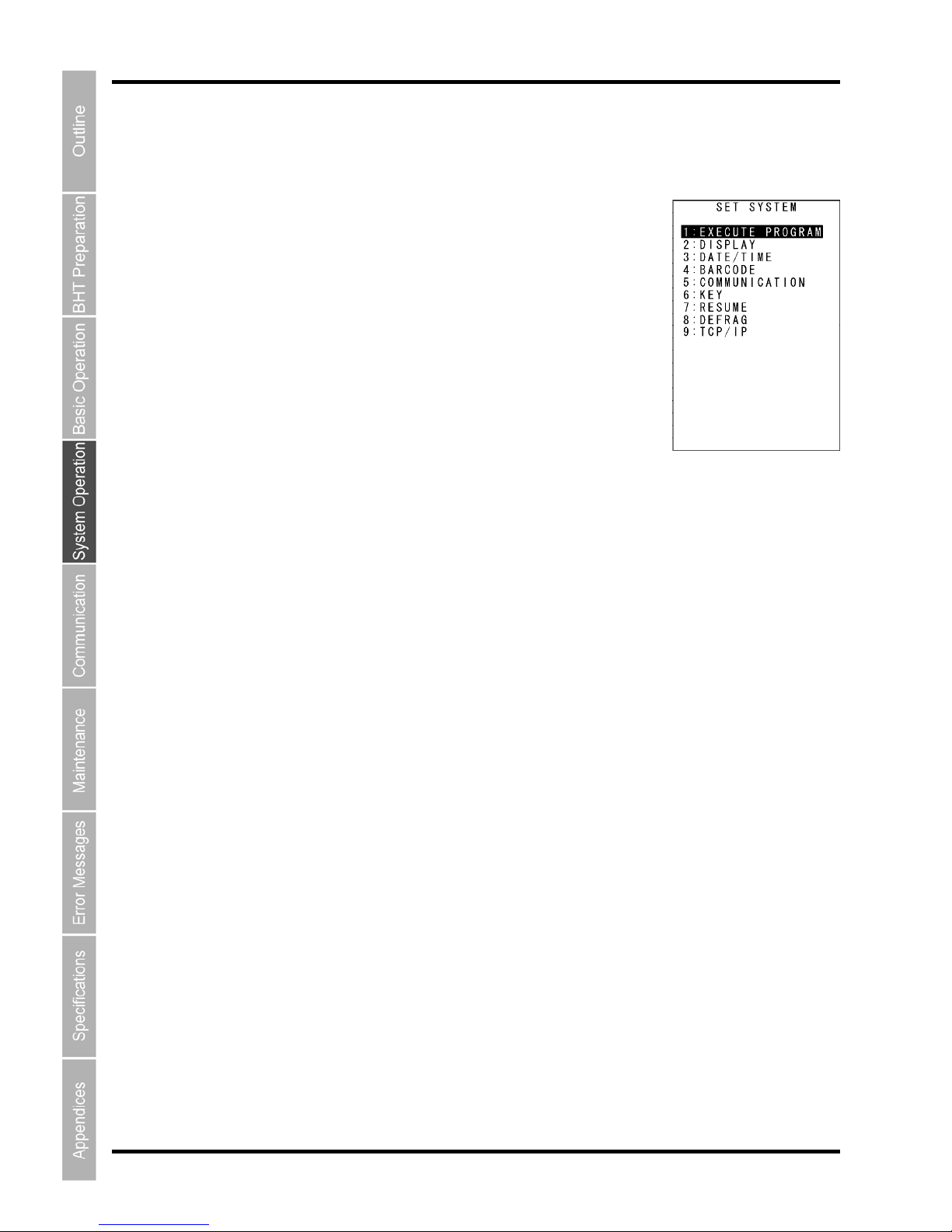

Resume function settings are made at the “SET SYSTEM” menu. Refer to “Chapter 4 System

Operation” - “4.5.5 System Environment Settings (SET SYSTEM Menu)” for further details.

26

BHT-604BW

About “$$BRKLST.SYS”

If Scandisk finds an invalid file(s), it will automatically create the "$$BRKLST.SYS" file.

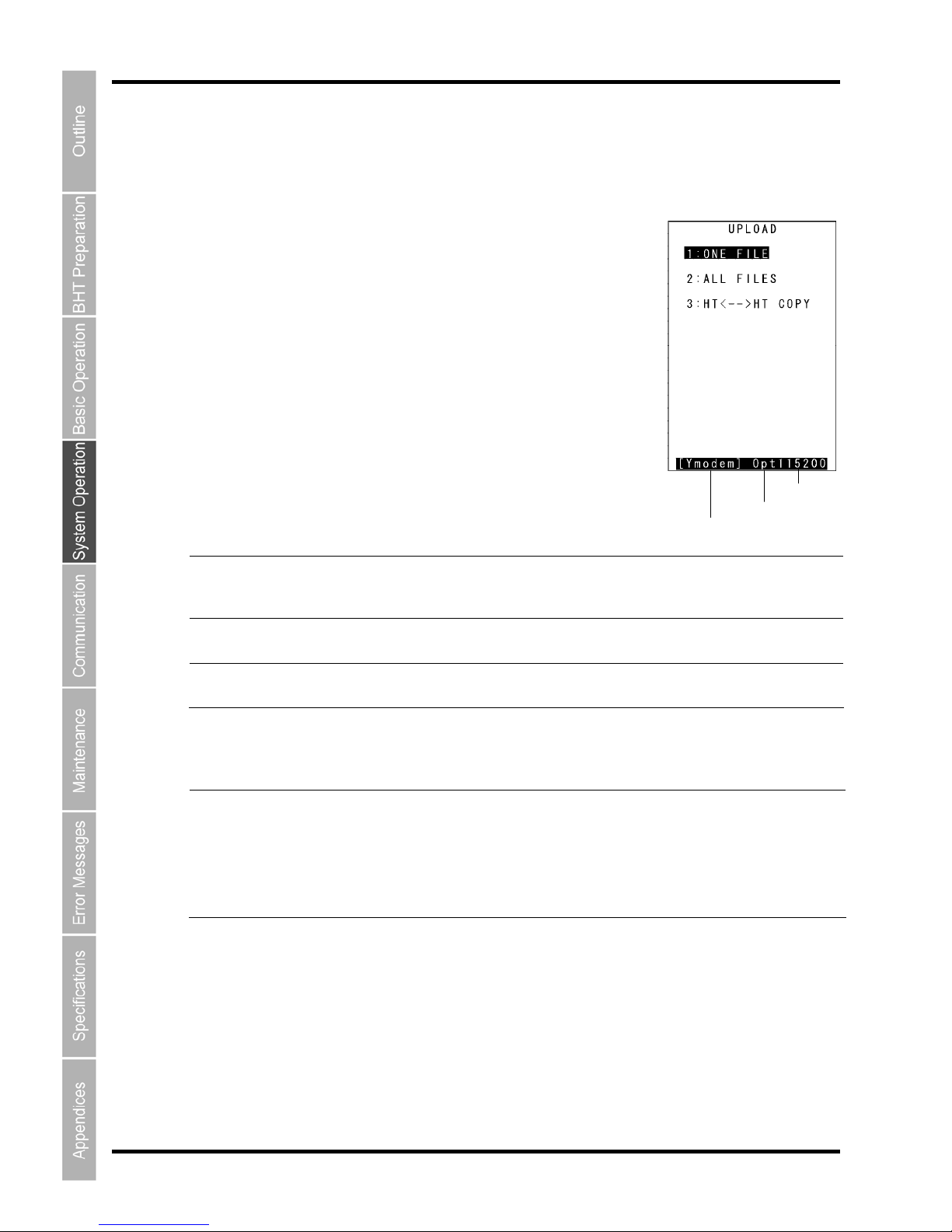

To check the contents of the file, upload the file in System Mode to the host computer. (Refer to “Chapter
4 System Operation" – “4.5.3 Uploading Files (UPLOAD MENU).")

Contents of the “$$BRKLST.SYS” file

Records (1) File name
(2) Error factor + (Broken since the BHT has not been turned off normally)
* (Broken due to any other causes)
(3) Broken records e.g. 01000-01200 (Data in records numbered 1000 to 1200 is lost)

[Ex.]
SAMPLE1.DAT + 01000-01050

If more than

one sequence of records is broken in a
same file, they will be written into the subsequent
records in the "$$BRKLST.SYS."

SAMPLE1.

DAT + 01200-01250
SAMPLE1.DAT + 01600-01650
SAMPLE2.DAT * 00250-00275
SAMPLE3.DAT * 00100-00150

↑ ↑ ↑

(1) (2) (3)

2.5.5 If Invalid Files Are Found

Even invalid files can be uploaded, so upload them to the host computer according to your needs.
After uploading,
 Delete those invalid files.

(Refer to “Chapter 4 System Operation" – “4.5.10 Deleting Program/Data Files (DELETE FILE
MENU).")

 Download valid files having the same names as invalid ones.

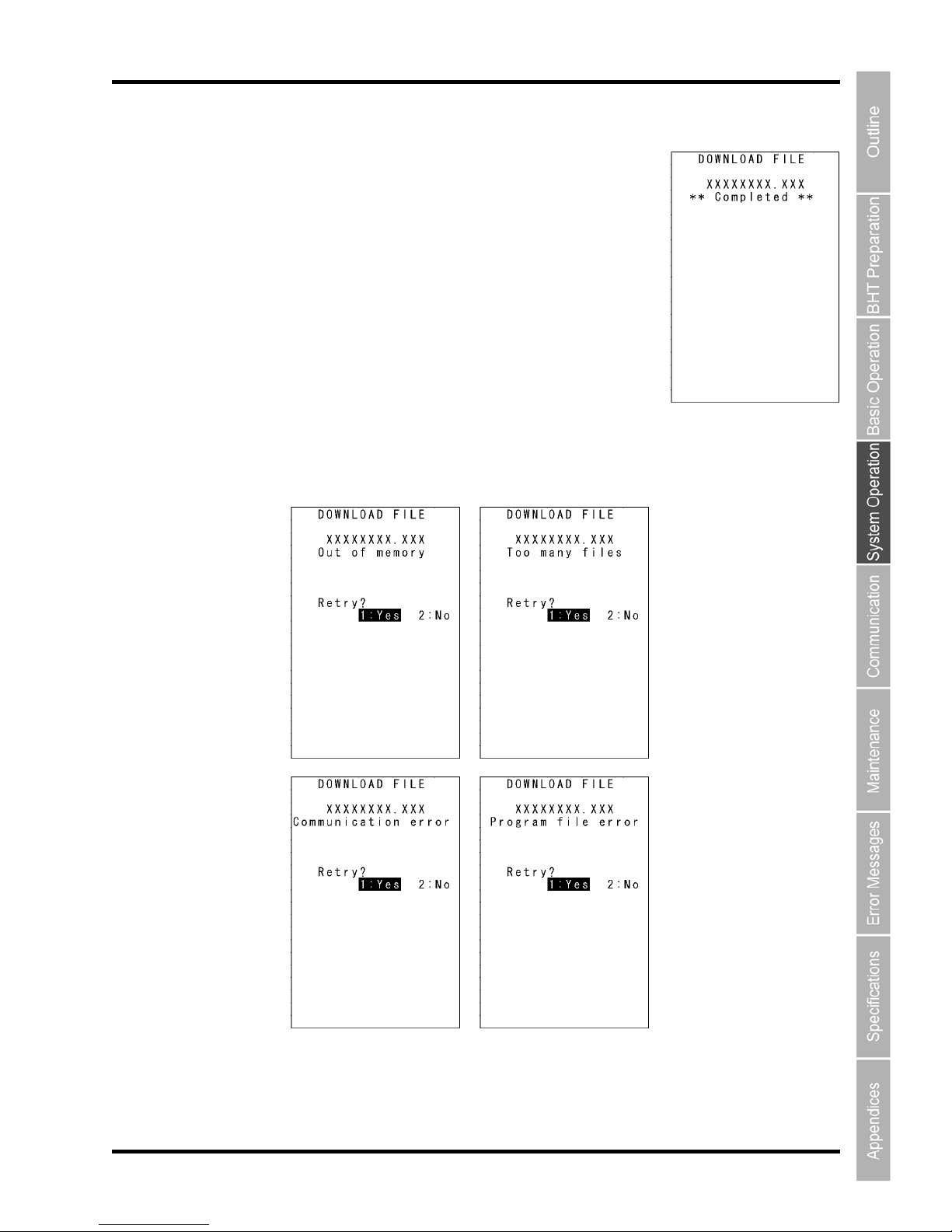

(Refer to “Chapter 4 System Operation" – “4.5.2 Downloading Files (DOWNLOAD MENU).")

BHT-604BW

Chapter 3

Basic Operation

This chapter describes basic operations such as barcode reading, numerical data
entry and item selection using the BHT, basic changes to settings, and BHT data
transmission.

3.1 Reading Barcodes······················································································28

3.2 Numeric Data Entry····················································································30

3.3 Task Selection····························································································30

3.4 Changing the Default Settings····································································31

3.4.1 Procedure·······································································································31

3.5 Transmitting Data·······················································································33

3.5.1 Connector Communication ············································································34

3.5.2 IrDA Communication······················································································35

3.5.3 Wireless Communication···············································································36

28

BHT-604BW

3.1 Reading Barcodes

Follow the procedure below to read barcodes.

1. Turn the BHT power ON.

Power key

2. Press the trigger switch.

The BHT emits light for reading to indicate the read area.

 Point  The trigger switch is assigned to magic

keys M3 and M4 when shipped from the
factory.

Light

3. Hold the BHT close to the barcode within the reach of

light.

When the BHT has read the barcode successfully, the
indicator LED will illuminate in blue.

Blue LED ON

 Point  The barcode reading method may diffe

r

depending on the application. Select the
most appropriate option in accordance
in the User’s Manual.

 Note   If required, clean dirty labels before reading.

 It may not be possible to perform reading in direct sunlight.
 If the barcode is on a curved surface, perform reading in the center of the light emission range.
 If the barcode reading window is pulled away from the barcode, the r eadble barcode range will

become narrower than that of the light emission.

29

Barcode Handy Terminal

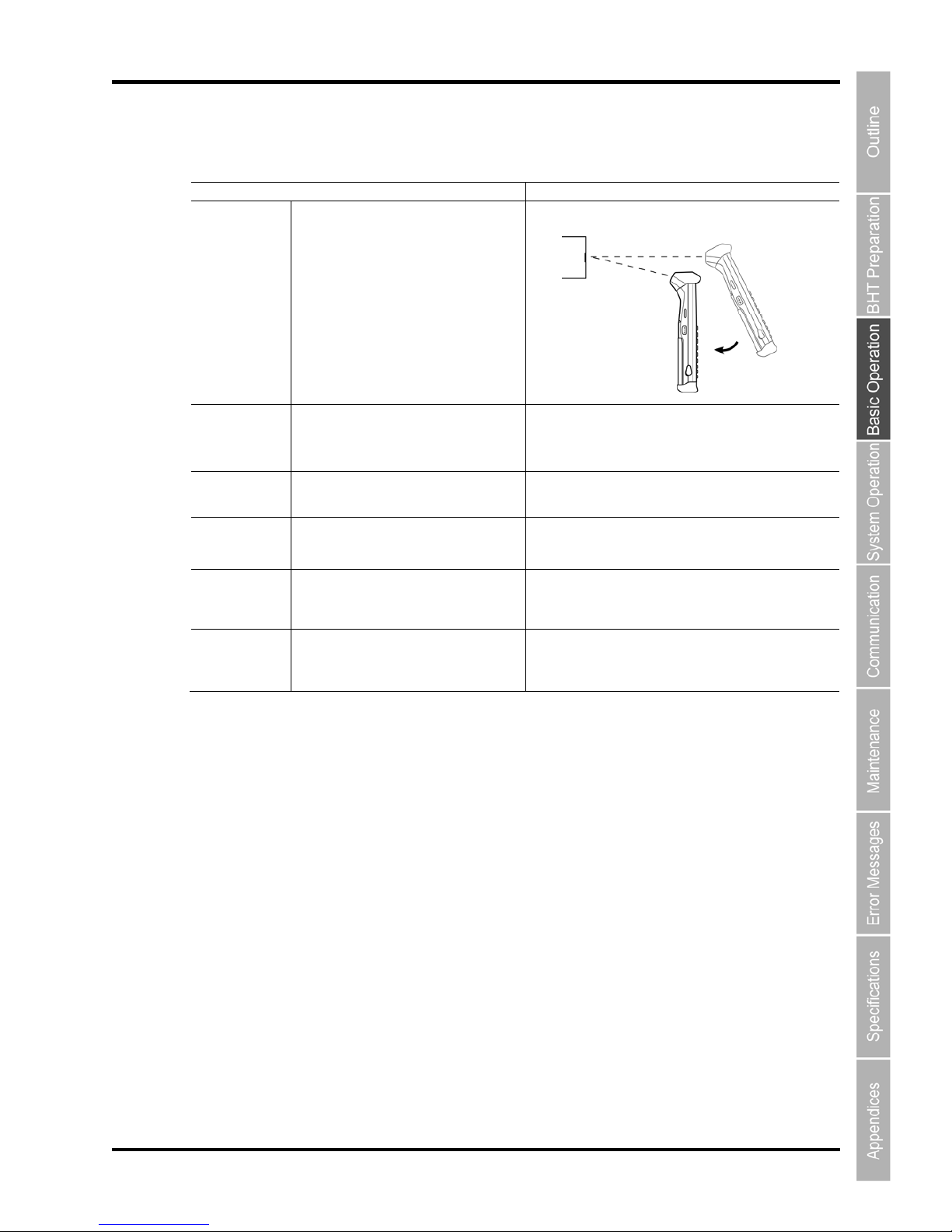

When unable to successfully read barcodes…

Cause Countermeasure

Specular
reflection

When the light is focused on the printed
surface of the barcode from directly above,
the BHT may not read the code due to
specular reflection.

Change the BHT reading angle and try again.

Distance from
barcode

The barcode may not be read if it is too
close to or too far from the BHT reading
window,

Move the BHT slowly toward or away from the barcode
and try again.

Barcode surface
curvature

The barcode may not be read if surface is
extremely curved.

Read the barcode at the center of the barcode reading
window.

Barcode surface
dirt

The barcode may not be read if its surface
is dirty.

Wipe the dirt from the barcode and try again.

Barcode reading
window dirt

The barcode may not be read if the
barcode reading window is dirty.

Blow any dust away with an airbrush, and then gently
wipe the reading window with a cotton swab or similar soft
object.

Direct sunlight,
ambient light

Barcode reading may be adversely
affected by direct sunlight or the
brightness of the surrounding light.

Read the barcode away from direct sunlight. Adjust the
brightness of the surrounding light when reading indoors.

30

BHT-604BW

3.2 Numeric Data Entry

Enter numeric data such as product volume with the numeric keys and Enter ( ) key.
If numeric data is entered incorrectly, use the backspace key (

) to delete the data and then reenter with the

numeric keys.

When Entering “120” Ke

y Operation

Press numeric keys 1, 2, and 0 followed by the Enter
key.

3.3 Task Selection

If a selection item "such as “1:XXX 2:XXX” with numeric values displays, enter the values with the numeric entry
keys and then press the Enter key.

When Selecting Task 2:XXX Key Operation

Press numeric key 2 followed by the Enter key.

If a YES/NO selection screen such as “1:YES 2:NO” displays, press numeric key [1] to select “YES”, and [2] to
select “NO”.

When Selecting “1:YES” Key Operation

Press numeric key 1 followed by the Enter key.

31

Barcode Handy Terminal

3.4 Changing the Default Settings

The buzzer volume, vibrator, LCD screen brightness, power save settings and key backlight can be changed at the
MENU screen.

Item Details Setting

BUZZER VOLUME

Used to set the volume of the buzzer that notifies the user when
barcode reading is complete.

The volume can be adjusted in 4 levels: Hi, Lo, Mid and Mute.

Mute→Lo→Mid→Hi

VIBRATOR

Used to turn ON/OFF the vibrator that notifies the user when
barcode reading is complete.

ON, OFF

BRIGHTNESS

Used to set the backlight brightness of the LCD screen.
The brightness can be adjusted in 5 levels.

Levels 1 to 5

BRIGHTNESS(PS)

Used to set the backlight brightness of the LCD screen during
power save mode. The brightness can be adjusted in 6 levels.

Levels 0 to 5

POWER SAVE

Used to set the time until the LCD screen backlight is dimmed
when not in use in order to save power.

1-second units
(max. 30 seconds)

KEY BACKLIGHT Used to turn ON/OFF the keypad backlight. ON, OFF

3.4.1 Procedure

1. Hold down magic key M1 for at least 1 second.

The MENU screen displays

32

BHT-604BW

2. Use the [▲] and [▼] cursor keys to select the item to be

changed.
With the start or end of the item highlighted, press [▲] or
[▼] to change to the next screen.

The selected item is highlighted.

[▲] key / [▼] key

3. Use the [◄] and [►] cursor keys to select the setting.

4. Press any of the following keys to exit the settings screen.

● M1 key long press

● Clear key

● Enter key

The settings screen is exited.

33

Barcode Handy Terminal

3.5 Transmitting Data

Data gathered by the BHT can be transmitted to the host computer by connector communication, IrDA
communication and wireless communication.
The data transmission method and BHT setting method will differ depending on the system used, and therefore the
system administrator should be contacted for details of operation.

Request

Data gathered by the BHT should be promptly uploaded

to the host computer.

Wireless

communication

Infrared

communication

Connector
communication

IrDA

communication

IrDA

communication

Dedicated interface cable

Ethernet

Host computer

CU-601 : RS232C

CU-601
CU-621
CU-611

CU-621 : USB
CU-611 : Ethernet

Wireless LAN access point

To perform wireless communication

w

ith a wireless LAN access
point, it is necessary to configure the wireless local area network
(wireless LAN) at the BHT and access point.

34

BHT-604BW

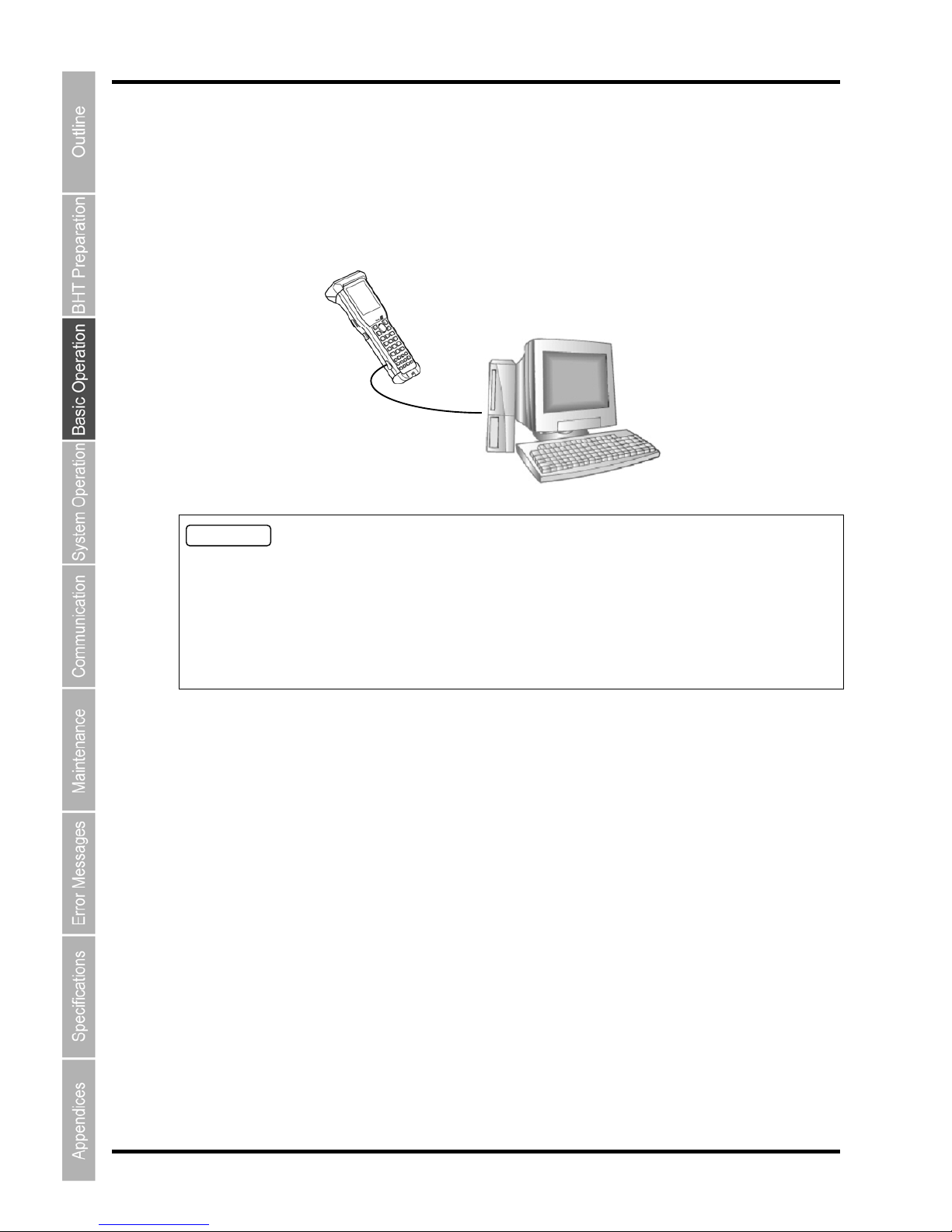

3.5.1 Connector Communication

Connect the host computer and BHT with a dedicated interface cable (Option, Type:
CBBHT-RS1000/3-9-02) and perform data communication.
The BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC 4.0 Transfer Utility (Option) software is
required.

Dedicated interface cable

Requests


Do not use a c

able other than the dedicated interface cable.

 Avoid disconnecting and reconnecting the cable more than once a day. Disconnecting and

reconnecting the cable too frequently will shorten the lifetime of the connector interface port.
Use the communication unit (CU-601, CU-621 or CU-611) when it is necessary to perform frequent
communication between the host computer and BHT.

 Avoid inserting the connector at an angle or pulling the cable strongly.

35

Barcode Handy Terminal

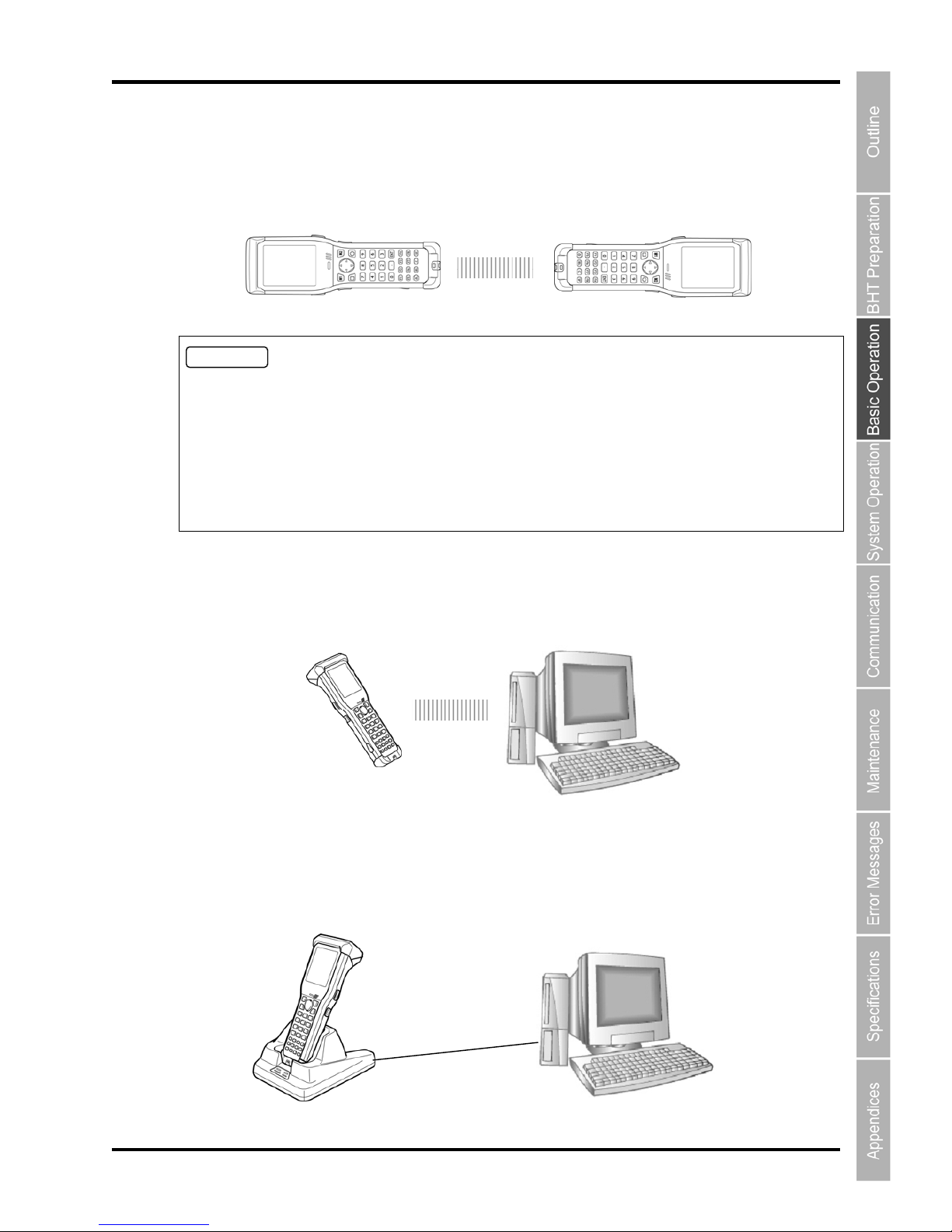

3.5.2 IrDA Communication

 When performing data communication between BHT units

Point the BHT IrDA communication ports toward each other and perform communication.

Requests
 Make sure that the light path

between the BHT and any target stations is not obstructed.

 Perform communication within the effective IrDA emission range (15 cm).
 Do not operate remote control units for televisions and so forth in the vicinity of IrDA communication.

This may result in comunication failure.

 Perform communication in locations where the BHT units will not be exposed to light interference from

sources such as intence ambient lighting (inverter-driven fluorescent lighting, in particular) or direct
sunlight. This may result in comunication failure.

 When performing data communication with the host computer

Data can be transmitted directly to the host computer if the computer is equipped with an IrDA
communication port.

If the host c

omputer is not equipped

with an IrDA communication port, place the BHT on the
communication unit (CU-601, CU-621 or CU-611) and transmit data.
In case of using the CU-601 or CU-621, the BHT-BASIC 4.0 Development Pack (Option) and BHT-BASIC

4.0 Transfer Utility (Option) software is required.
In case of using the CU-611, FTP communication environment is required.

CU-601: RS232C
CU-621: USB
CU-611: Ethernet

36

BHT-604BW

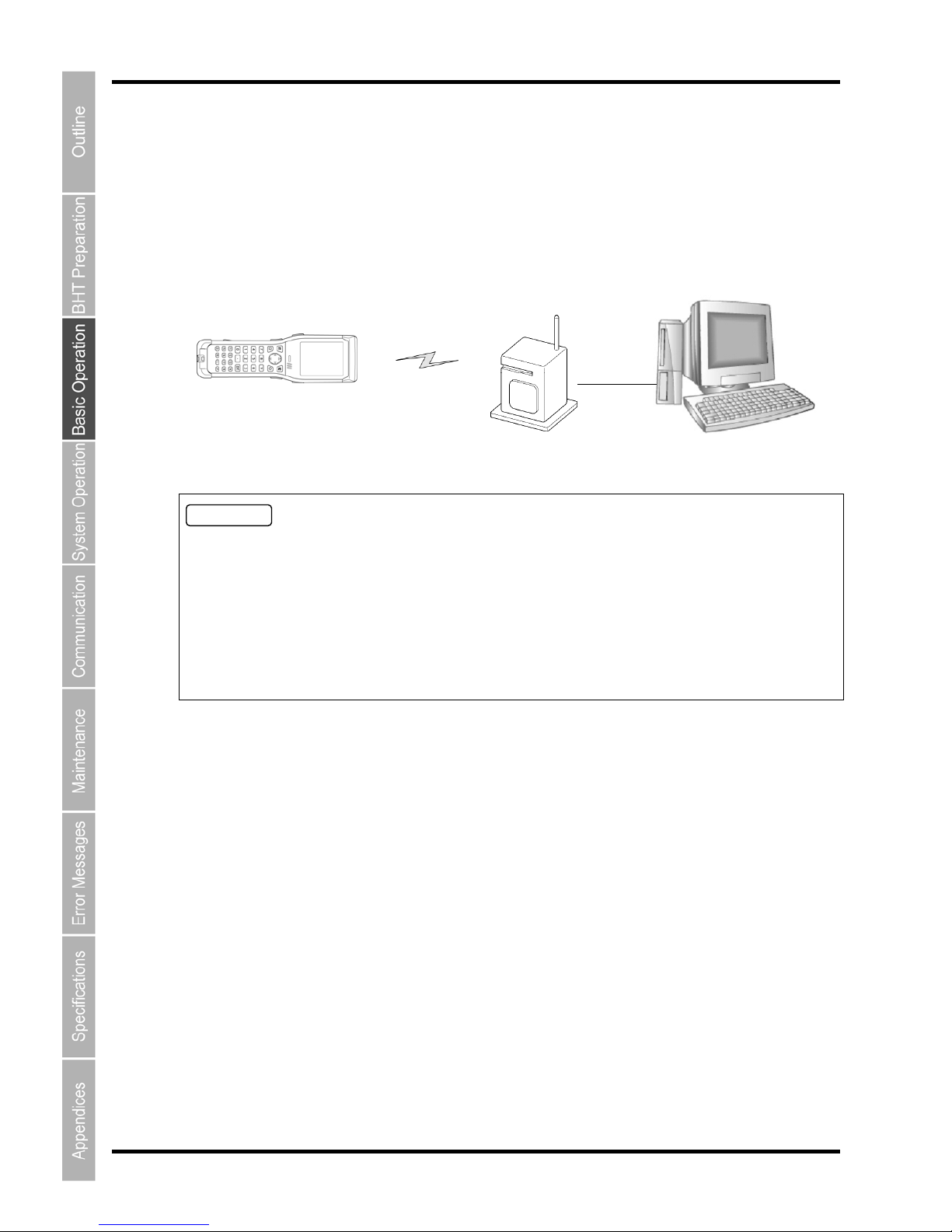

3.5.3 Wireless Communication

Transmit data to host computer via the wireless LAN access point.
To perform wireless communication, it is necessary to configure the wireless local area network (wireless
LAN) at the BHT and access point.

Wireless

communication

Wireless LAN access point

Requests
 Point the ante

nna on top of the BHT toward the access point to improve communication performance.

 Communication may not be possible at the following locations.

1. In the vicinity of devices operating on the same 2.4 GHz waveband as the BHT such as microwave
ovens, industrial heating equipment, or high-frequency medical equipment.

2. In the vicinity of computers or household appliances such as refridgerators that emit
electromagnetic noise.

3. In the vicinity of metallic objects, in places with high levels of metallic dust, in rooms surrounded by
metal walls (metallic influence), or places where the BHT may be subject to strong impact.

BHT-604BW

Chapter 4

System Operation

This chapter describes how to initialize and update the system, start up a user
program, and operate System Mode.

4.1 Initializing the BHT System·········································································38

4.1.1 Selecting the Memory Area to be Initialized···················································39

4.1.2 Selecting the Message Version (English or Japanese)·································40

4.1.3 Confirming the Memory Area Selected for Initialization·································40

4.1.4 Performing System Initialization·····································································41

4.2 Updating the System ··················································································42

4.2.1 Updating the BHT System··············································································42

4.2.2 CU-611 System Update ·················································································43

4.3 Executing User Programs···········································································44

4.3.1 Executing from the SYSTEM MENU “EXECUTE PROGRAM”·····················44

4.3.2 Automatically Executing the Program Set at the SYSTEM MENU
when Turning the Power ON··········································································44

4.3.3 Executing the First Registered Program by Turning the Power ON
(BHT System Directory Management Program Function)·····························44

4.3.4 Executing by Wake-up···················································································46

4.3.5 Executing by Remote Wake-up······································································46

4.4 System Mode······························································································47

4.4.1 Starting Up System Mode ··············································································47

4.4.2 System Mode Basic Operation ······································································48

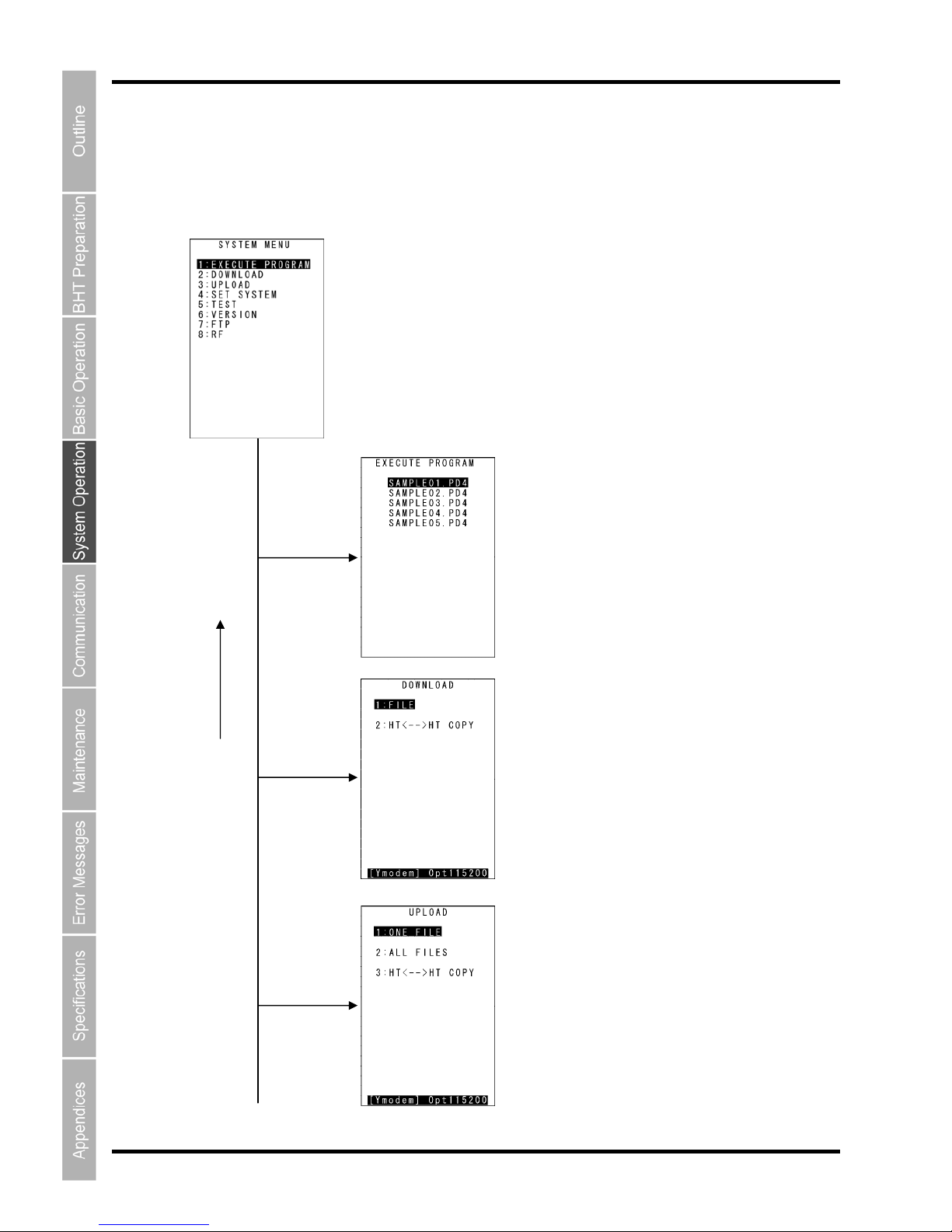

4.4.3 SYSTEM MENU Configuration······································································50

4.5 SYSTEM MENU ························································································· 54

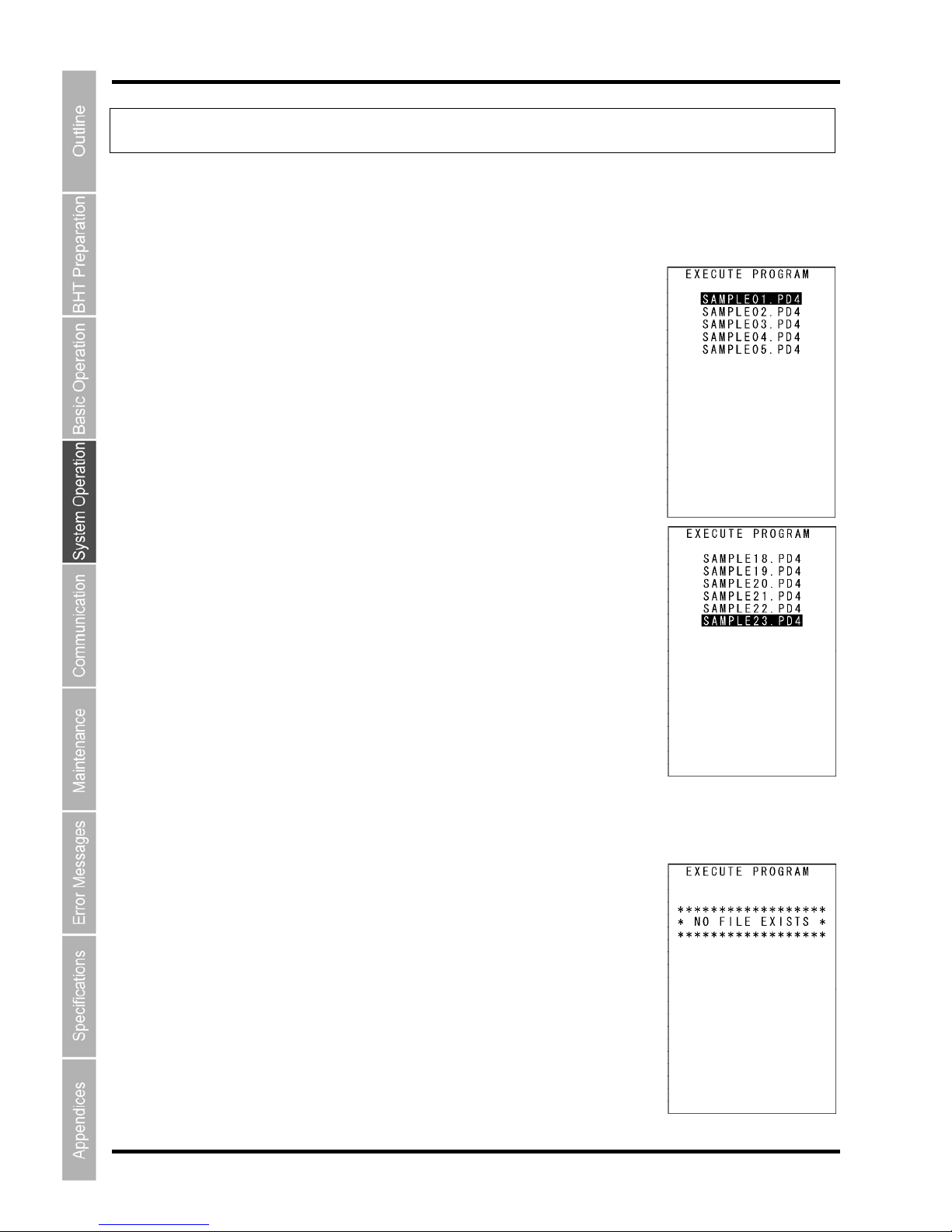

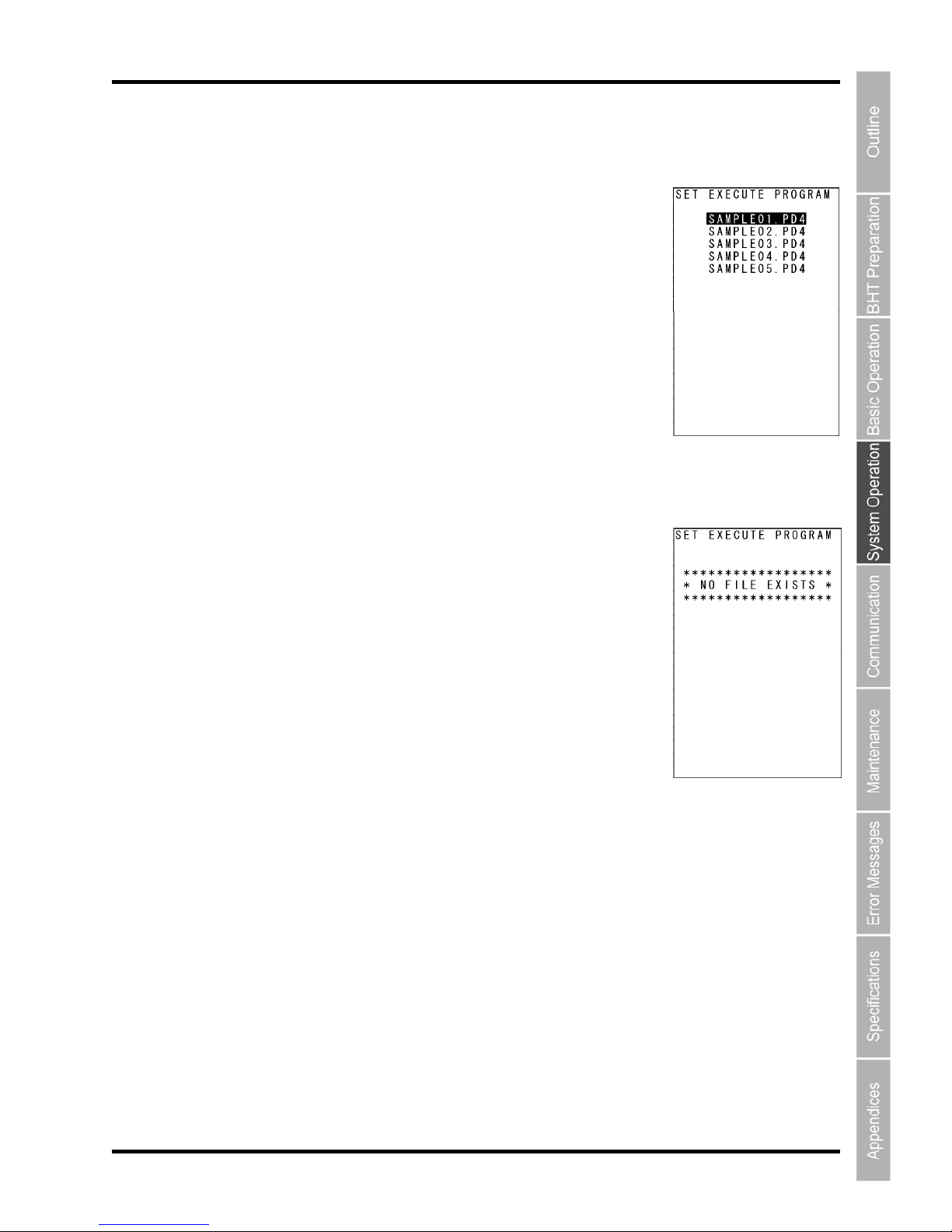

4.5.1 Executing User Programs (EXECUTE PROGRAM Menu) ···························54

4.5.2 Downloading Files (DOWNLOAD Menu)·······················································55

4.5.3 Uploading Files (UPLOAD Menu)··································································58

4.5.4 Copying Files between 2 BHT Units······························································61

4.5.5 System Environment Settings (SET SYSTEM Menu) ···································64

4.5.6 BHT Operation Test (TEST Menu) ·································································87

4.5.7 System Information (SYSTEM INFORMATION Menu) ·······························106

4.5.8 Downloading/Uploading Files by FTP (FTP MENU)····································109

4.5.9 Wireless Communcation Settings (RF MENU)············································115

4.5.10 Deleting Program/Data Files (DELETE FILE Menu)·································132

4.5.11 Deleting Font Files (DELETE FILE Menu)···················································133

4.5.12 Downloading/Uploading the BHT System Parameter File
(SYSTEM PARAMETER Menu)···································································135

4.5.13 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu)·················138

4.5.14 Downloading/Uploading the System Message File
(SYSTEM MESSAGE Menu)·······································································139

4.5.15 Updating the System (MODIFY MENU) ······················································142

38

BHT-604BW

4.1 Initializing the BHT System

By initializing the system, program files and data files downloaded to the BHT user area are deleted, and sy stem
settings are returned to the default status when shipped from the factory.
The system must be initialized when:

 Deleting all program files and data files downloaded to the BHT user area (Font files are also deleted by

selecting the area subject to initialization.)

 The following message displays on the screen when the BHT is turned on.

- Point - By initializing the system, all files in the user area are deleted, and therefore all files that need to be

backed up should be uploaded to the host computer and so on beforehand.
Refer to section “4.5.3 Uploading Files (UPLOAD Menu)” for details of uploading.

The initialization procedure is described on the following pages.
Perform operation in accordance with the procedure for each item.

 Selecting the Memory Area to be Initialized

 Selecting the Message Version (English or Japanese)

 Confirming the Memory Area to be Selected for Initialization

 Performing System Initialization

39

Barcode Handy Terminal

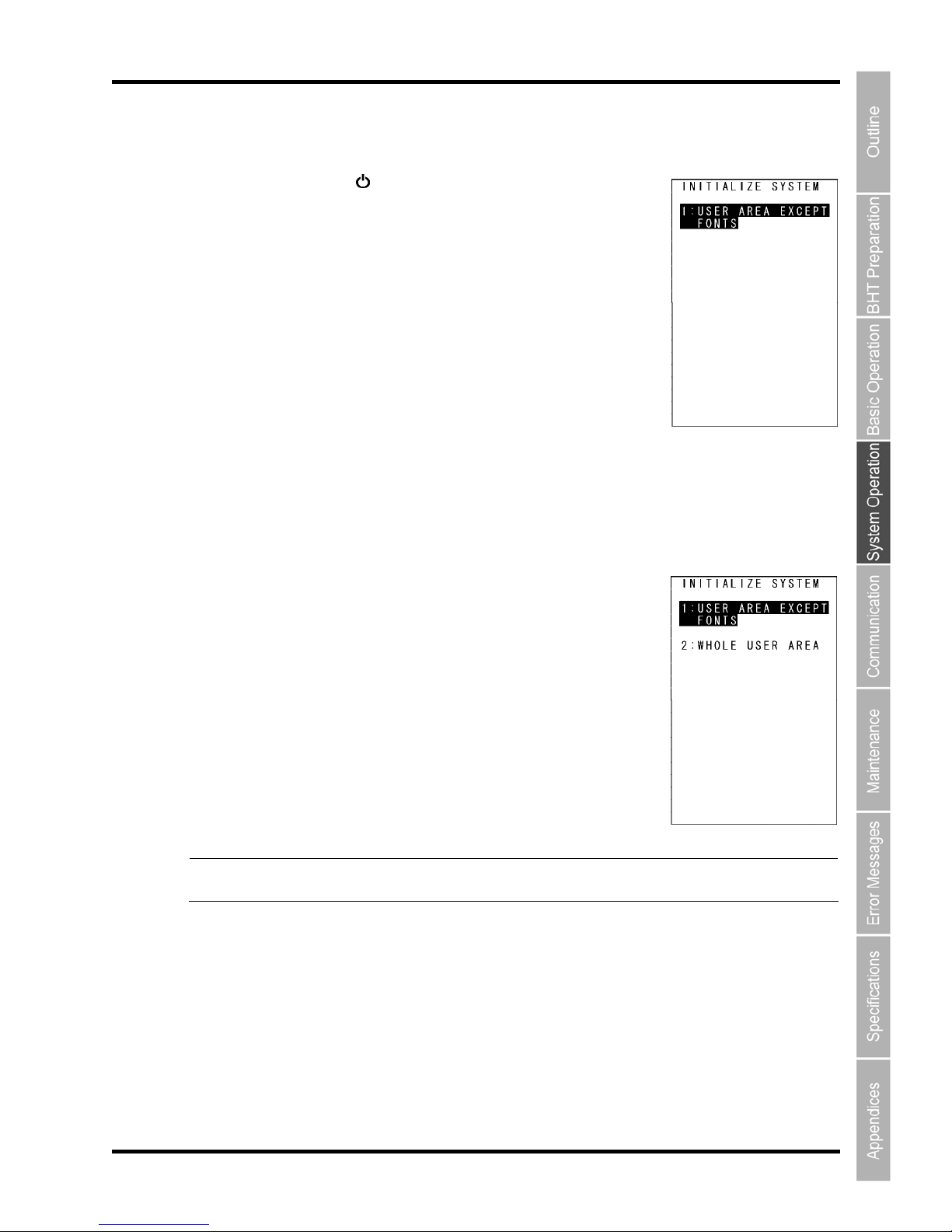

4.1.1 Selecting the Memory Area to be Initialized

1. Press the Power key ( ) while holding down the SF, M1 and 0

keys together.

The screen displays as shown on the right..

2. Select the memory area to be initialized.

(1) To exempt font files from deletion:

Ensure that “1:USER AREA EXCEPT FONTS” is selected and press the ENT key.
The screen changes to the “4.1.3 Confirming the Memory Area Selected for Initialization”.

(2) To delete font files:

Press the 2 key while holding down the SF key.
The screen displays as shown on the right.
Next, press the 2 key, select “2:WHOLE USER AREA”, and press the ENT
key.
The screen changes to the “4.1.2 Selecting the Message Version (English
or Japanese)”.

“1: USER AREA EXCEPT FONTS”

The user area is initialized without deleting file fonts.

“2: WHOLE USER AREA”

The entire user area is initialized and therefore file fonts are also
deleted.

- Point - If a “Contact the administrator. (2XXX)” message displays when the BHT power is ON,

select ”2: WHOLE USER AREA”.

40

BHT-604BW

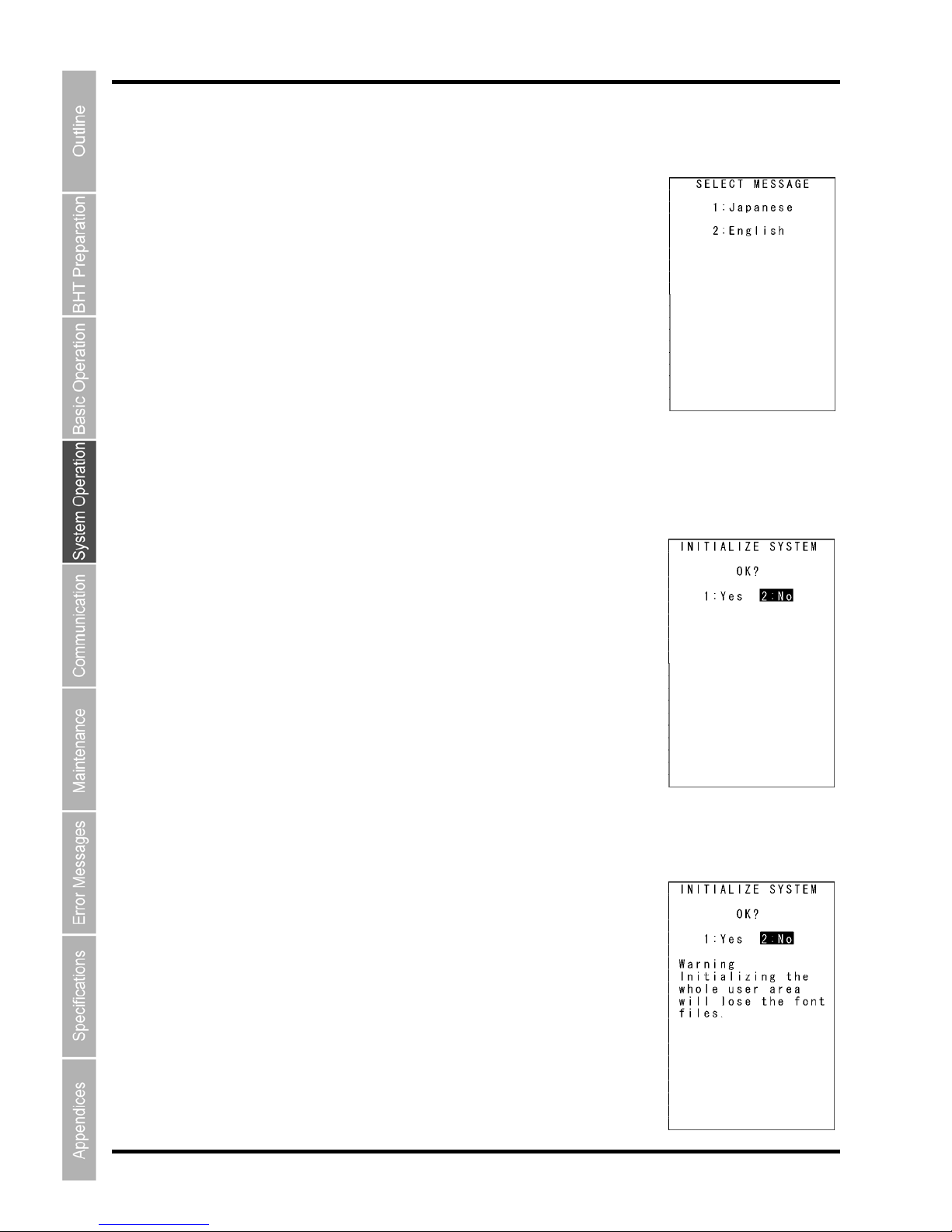

4.1.2 Selecting the Message Version (English or Japanese)

1. When the screen displays as shown on the right, select the

message display language with the numerical keys.

“1: Japanese” Changes the message language to Japanese.
“2: English” Changes the message language to English.

2. Press the ENT key.

Proceed to the operation at section “4.1.3 Confirming the Memory Area
Selected for Initialization”.

4.1.3 Confirming the Memory Area Selected for Initialization

(1) To exempt font files from deletion:

When the screen displays as shown on the right, select the item and
press the ENT key.

Press the C key to return to the screen to select the area for
initialization.

“1: Yes”:

The system will be initialized without deleting font files.

“2: No”:

Cancels system initialization and turns the BHT power OFF.

(2) To dele

t

e font files:

When the screen displays as shown on the right, select the item and
press the ENT key.

Press the C key to return to the screen to select the area for
initialization.

“1: Yes”:

The system will be initialized, and all files in the user area, including font
files, will be deleted.

“2: No”:

Cancels system initialization and turns the BHT power OFF.

41

Barcode Handy Terminal

4.1.4 Performing System Initialization

1. The screen displays as shown on the right during system

initialization.

2. Upon completion of system initialization, the BHT displays the

screen on the right for a second and then turns OFF automatically.

- Point -  Never turn OFF the BHT power during system initialization. Turning the power OFF too

early will interrupt the process, requiring initialization to be performed again.

 If a “Contact your administrator. Note the error number. (XXXX)” message displays even

although initialization has been completed, initialize the BHT again.

 Following initialization, all programs and data files stored in the target memory area will be

lost. Download them again if necessary. (Refer to section “4.5.2 Downloading Files
(DOWNLOAD Menu)” for details of downloading.)

 Always set the calendar clock following initialization. (Refer to “Chapter 2 BHT

Preparation“ – “2.4 Initial Setup”.)

 Initialization will restore the display contrast level, communication conditions and othe

r

settings to their default values when shipped from the factory, and therefore they should
be edited if necessary.

42

BHT-604BW

4.2 Updating the System

4.2.1 Updating the BHT System

The BHT system update procedure is as follows.

BHT System Update File Download

BHT System Update

 BHT System Update File Download

Refer to sections “4.5.2 Downloading Files (DOWNLOAD Menu)” and ”4.5.8 Downloading/Uploading Files
by FTP (FTP MENU)”, and download the BHT system update file to the BHT.

- Note - The BHT system update file can be downloaded from the following Web site.

http://www.qbdirect.net/

 BHT System Update

Refer to section “4.5.15 Updating the System (MODIFY MENU)” and update the BHT system.

- Important -

In order to prevent the battery running low during the system update process, perform the
system update with the battery sufficiently charged, or with the BHT placed in the CU-600
Series. If the BHT power turns OFF due to a low battery and so on during the system update,
the system update will continue when the power is next turned ON. Furthermore, during
system update, the power will not turn OFF even if the Power key (

) is pressed. Wait until

the system update process is complete before operating the BHT.

43

Barcode Handy Terminal

4.2.2 CU-611 System Update

The CU-611 system update procedure is as follows.

CU-611 System Update File Download

CU-611 System Update

 CU-611 System Update File Download

Refer to sections “4.5.2 Downloading Files (DOWNLOAD Menu)” and ”4.5.8 Downloading/Uploading Files
by FTP (FTP MENU)”, and download the CU-611 system update file to the BHT.
Download the CU-611 system update file as a data file with field length of 64 bytes.

- Important - If the Transfer Utility is used to download in BHT protocol, select the “Perform binary file

transfer (F)” check box at the Transfer Utility Options screen and then download.

- Note - The CU-611 system update file can be downloaded from the following Web site.

http://www.denso-wave.com/en/

 CU-611 System Update

Refer to section “4.5.15 Updating the System (MODIFY MENU)” and update the CU-611 system.
The CU-611 LED flashes during CU-611 system update.

- Important - Never remove the BHT from the CU-611 or turn the BHT power O FF during the system

update process.
If the BHT is removed from the CU-611 or the BHT power turned OFF during system update,

a system update error will occur, and the CU-611 will wait for the update to be retried.
In such a case, either perform the CU-611 system update again, or reboot the CU-611.

- Point - If the CU-611 power is turned OFF during the system update, when the power is next turned

ON, either the system prior to updating or system after updating will run.
The system running can be verified at the CU-611 System Information display.

(Refer to section ”4.5.7 System Information (SYSTEM INFORMATION Menu)” for details.)

44

BHT-604BW

4.3 Executing User Programs

User programs (application programs) can be executed using the following methods.
Select the most appropriate method to meet the objective.

4.3.1 Executing from the SYSTEM MENU “EXECUTE PROGRAM”

Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu.
In such a case, the selected program will always be executed from the start.
Refer to section ”4.5.1 Executing User Programs (EXECUTE PROGRAM Menu)” for details.

4.3.2 Automatically Executing the Program Set at the SYSTEM MENU
when Turning the Power ON

Select the program to be executed at the SYSTEM MENU “EXECUTE PROGRAM” menu, and then turn
the BHT power OFF. The selected program will executed automatically the next time the BHT power is
turned ON.
If the resume function has been set, the BHT will resume from the position in the program that was
stopped when the BHT power was last turned OFF.
Refer to section ”4.5.5 System Environment Settings (SET SYSTEM Menu)” for details.

4.3.3 Executing the First Registered Program by Turning the Power ON
(BHT System Directory Management Program Function)

If no program has been selected at the SYSTEM MENU “EXECUTE PROGRAM” menu and the BHT
power is turned ON, control will switch to the directory management program, and the first of the programs
(.PD4) registered in the BHT will executed.
If the resume function has been set, the BHT will resume from the position in the program that was
stopped when the BHT power was last turned OFF.

If downloading multiple programs after system initialization, programs are registered in the system in the
order in which they are downloaded, and therefore ensure that the program to be executed is the first
program downloaded.

If a program is later downloaded for purpose of upgrading the version, use the same program name. The
order in which programs are registered in the system will not change, and therefore the same program will
be executed even after upgrading the version. ()

 The system directory management program also manages files with other extensions simultaneously. If

the top file from the first registered program is deleted and a new program is downloaded, the new
program will be registered in the position vacated by the deleted file and therefore caution is advised. It
is recommended that the program to be execute after turning on the BHT power is first downloaded
following system initialization.

45

Barcode Handy Terminal

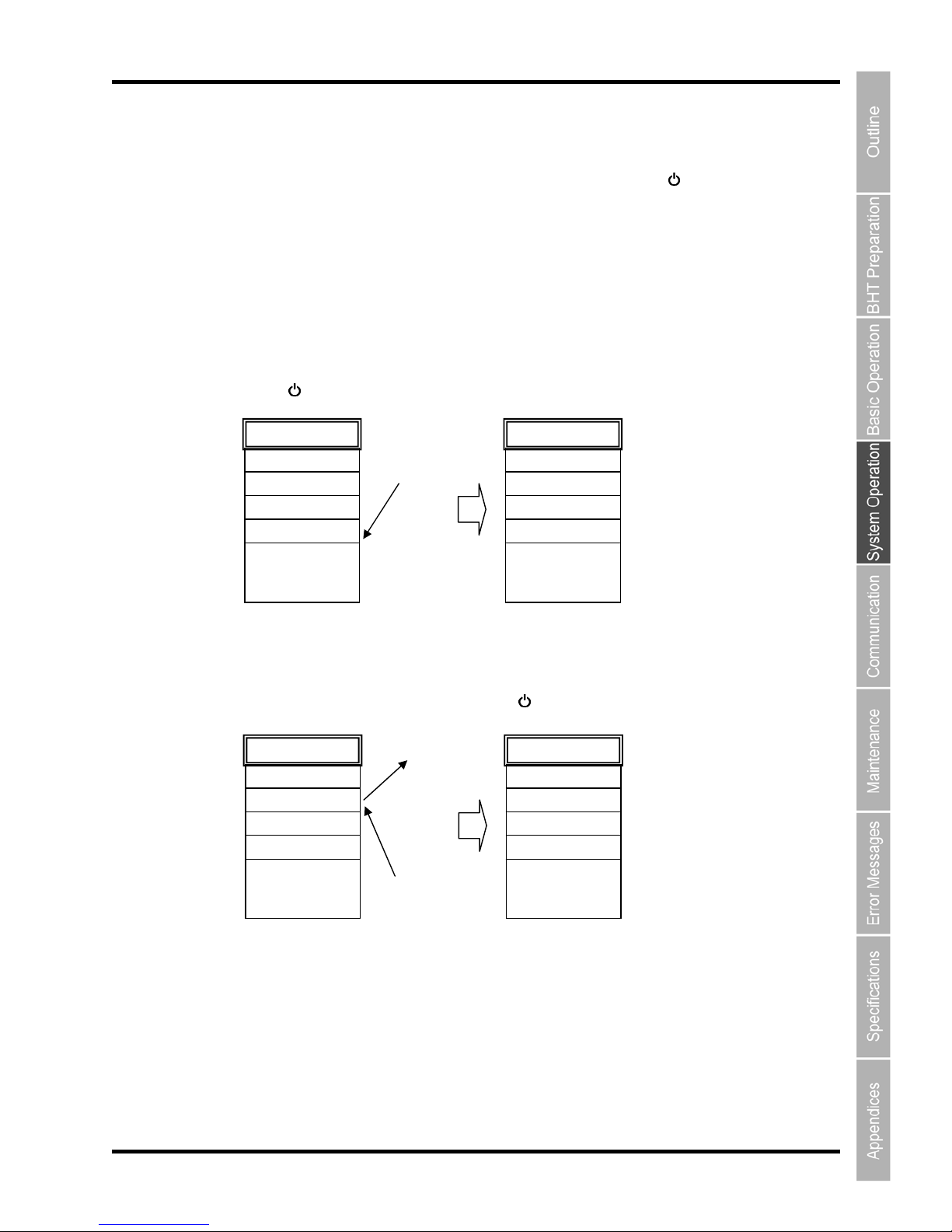

Several directory management program examples are given below.
The names of the files used in these examples are as follows.

MAIN.PD4 : Program to be executed by pressing the Power key (

) only

SUBMAIN.PD4 : Program chained from MAIN.PD4 using the BHT-BASIC CHAIN

statement
USER.PD4 : New program
AAAAAAAA.DAT : Data file 1 used at the user program
BBBBBBBB.DAT : Data file 2 used at the user program

 (Example 1) When downloading the MAIN.PD4 and SUBMAIN.PD4 upgrade version

In the above case, the registration order does not change and therefore MAIN.PD4 starts up by pressing
the Power key (

).

AAAAAAAA.DAT
BBBBBBBB.DAT

MAIN.PD4

Directory info

:

:

:

SUBMAIN.PD4

 MAIN.PD4

(Upgra

de ver

.)
 SUBMAIN.PD4
(Upgrade ver.)

Download

AAAAAAAA.DAT
BBBBBBBB.DAT

MAIN.PD4

Directory info

:

:

:

SUBMAIN.PD4

 (Example 2) When newly downloading USER.PD4 after deleting BBBBBBBB.DAT

In the above case, USER.PD4 is registered after BBBBBBBB.DAT, and therefore USER.PD4 will be
the first registered program. Press the Power key (

) to start up USER.PD4.

AAAAAAAA.DAT
BBBBBBBB.DAT

MAIN.PD4

SUBMAIN.PD4

:
:

Directory info

USER.PD4

Download

AAAAAAAA.DAT

:

:

SUBMAIN.PD4

MAIN.PD4

USER.PD4

Directory info

Delete

46

BHT-604BW

 (Example 3) Recommended download method

After system initialization, first download the program to be executed simply by pressing the Power key
(

). In this case, this program is always registered at the beginning of the system directory management

unless the program has been deleted and another file downloaded.

(1) MAIN.PD4
(2) SUBMAIN.PD4
(3) AAAAAAAA.DAT
(4) BBBBBBBB.DAT

Download in
the order (1),
(2), (3), (4).

:
:
:

Directory info

AAAAAAAA.DAT
BBBBBBBB.DAT

MAIN.PD4

SUBMAIN.PD4

:
:
:

Directory info

<Status following system initialization>

4.3.4 Executing by Wake-up

By specifying the wake-up time at the user program, the BHT can be started up at the wake-up time and a
program executed.
If an auto-start execution program has been selected at the System Mode ”4.5.5 [1] Setting the auto-start
execution program”, the selected program will be executed.
If no auto-start execution program has been selected, the first registered program from among the
programs (.PD4) registered in the BHT will be executed.
Refer to the “BHT-BASIC Programmer’s Manual” for details.

4.3.5 Executing by Remote Wake-up

If remote wake-up is enabled, the BHT can be started up by receiving a control command from the host
computer. If a fixed file called “BHTRMT.PD4” exists in the BHT at this time, BHTRMT.PD4 will be
executed.
In other words, it is possible to execute the desired program by chaining from BHTRMT.PD4 using a
BHT-BASIC CHAIN statement.
Refer to ”4.5.13 Setting the Remote Wake-up (SET REMOTE WAKEUP Menu)” and the “BHT-BASIC
Programmer’s Manual” for details.

47

Barcode Handy Terminal

4.4 System Mode

By starting up the BHT in System Mode and selecting each menu, the following operations can be performed
individually.

 Executing user programs
 File download/upload
 System environment setting
 BHT operation test
 System information display
 Downloading/uploading files by FTP
 File deletion
 Font file deletion
 System settings parameter file do wnload/upload
 Remote wake-up setting
 System message file do wnload/upload
 System update

Refer to each item at the “4.5 SYSTEM MENU” for details of the above operations.

4.4.1 Starting Up System Mode

Use the following procedure to start up System Mode.

1. Press the Power key ( ) while holding down the SF and 1 keys.

System Mode starts up and the SYSTEM MENU (screen on right)
displays.

Select and display each menu from the SYSTEM MENU and perform
each operation.

Hold down the SF key and press the appropriate numerical key to
display items not displayed at the SYSTEM MENU.
Refer to ”4.4.3 SYSTEM MENU Configuration” for details.

48

BHT-604BW

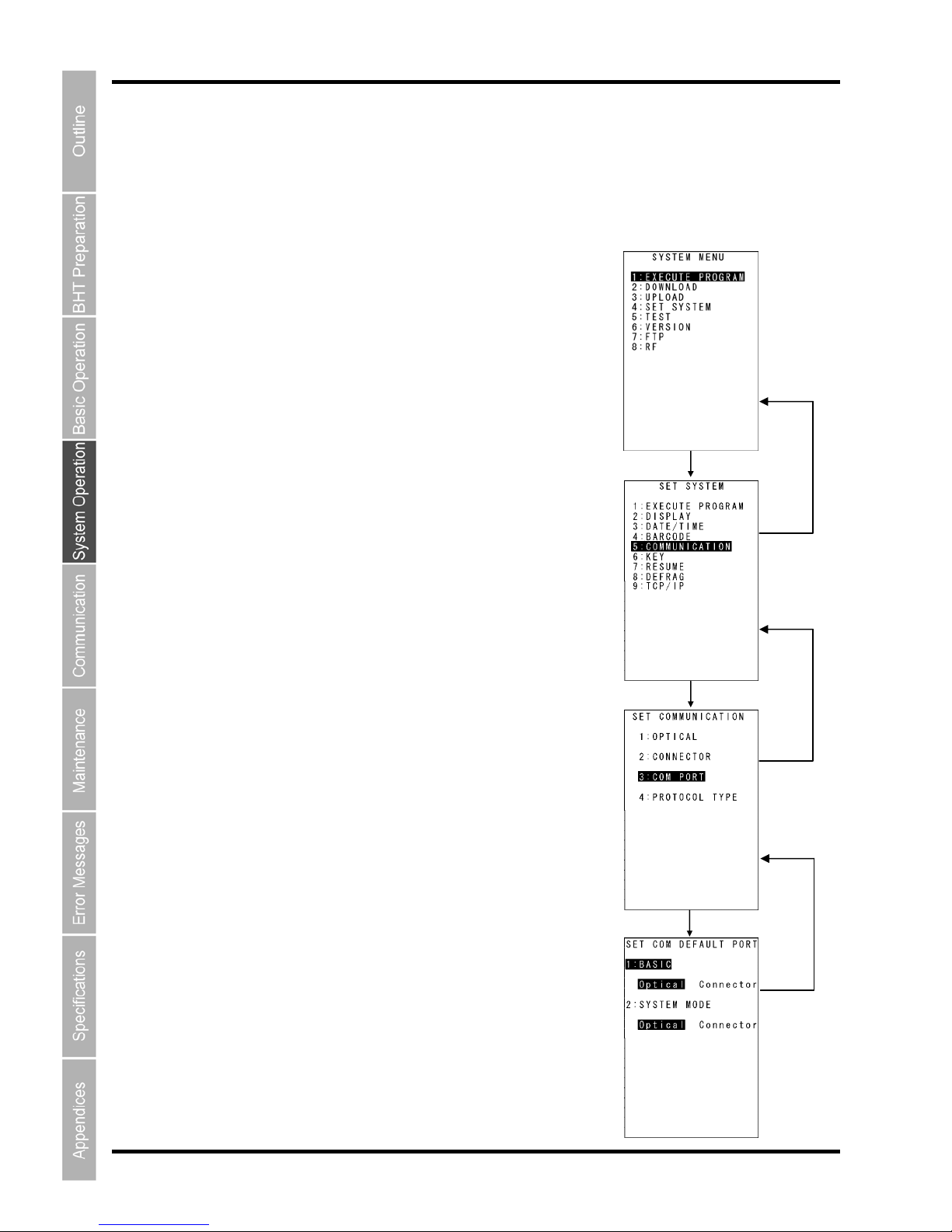

4.4.2 System Mode Basic Operation

Menu Selection and Display

Use the following procedure to select and display each menu.

 Operation example

1. Press the numerical key

corresponding to the menu to
be selected.
Alternatively, press the cursor
keys ([▲] [▼]) to select the
menu.

The selected menu item will be
highlighted.
”EXECUTE PROGRAM” will be
highlighted when System Mode is
started up.

2. Press the ENT key.

The selected item is set and the
next screen displays.
Press the C key to return to the
previous screen.
The selected item will be
highlighted when returning to the
previous screen.

3. Repeat the above operation to

display the target menu.

ENT key

ENT key

ENT key

C key

C key

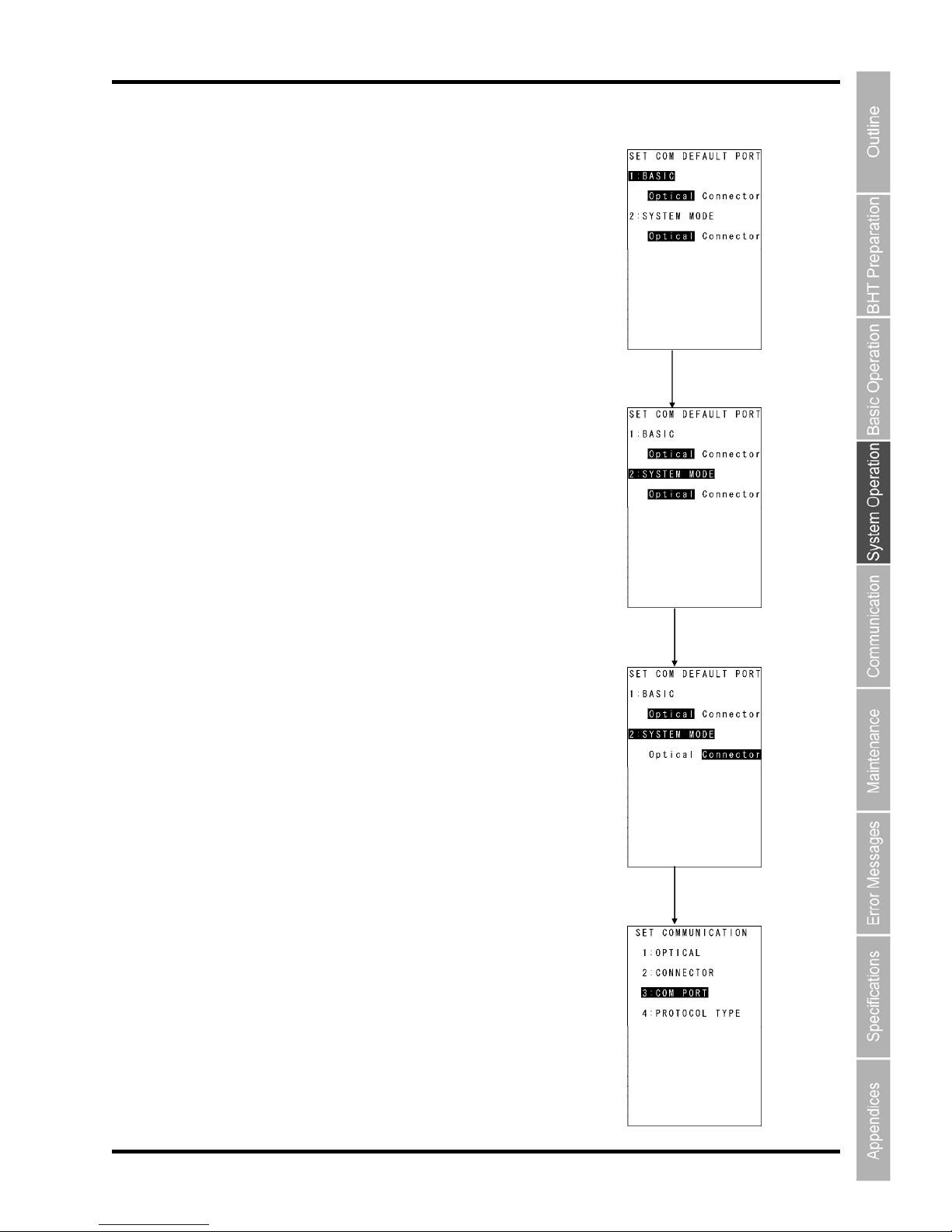

Select [4: SET SYSTEM] w
the [4] or [▲]/[▼] keys.

ith

Select [3:COM PORT] with
the [3] or [▲]/[▼] keys.

Select
[5:COMMUNICATION] with
the [5] or [▲]/[▼] keys.

C key

49

Barcode Handy Terminal

Setting Value Selection

 Operation example

Select the setting item with the
[2] key or [▲]/[▼] keys.

Use the follow

ing procedure to select setting values.

1. Press the numerical key corresponding to the item to be

selected.
Alternatively, press the cursor keys ([▲] [▼]) to select the
item.

The selected item will be highlighted.

2. Select the setting value with the cursor keys ([◄] [►]).

3. Press the ENT key.

The selected setting value will be set.

Select the setting value with
the cursor keys ([◄] [►]).

ENT key

50

BHT-604BW

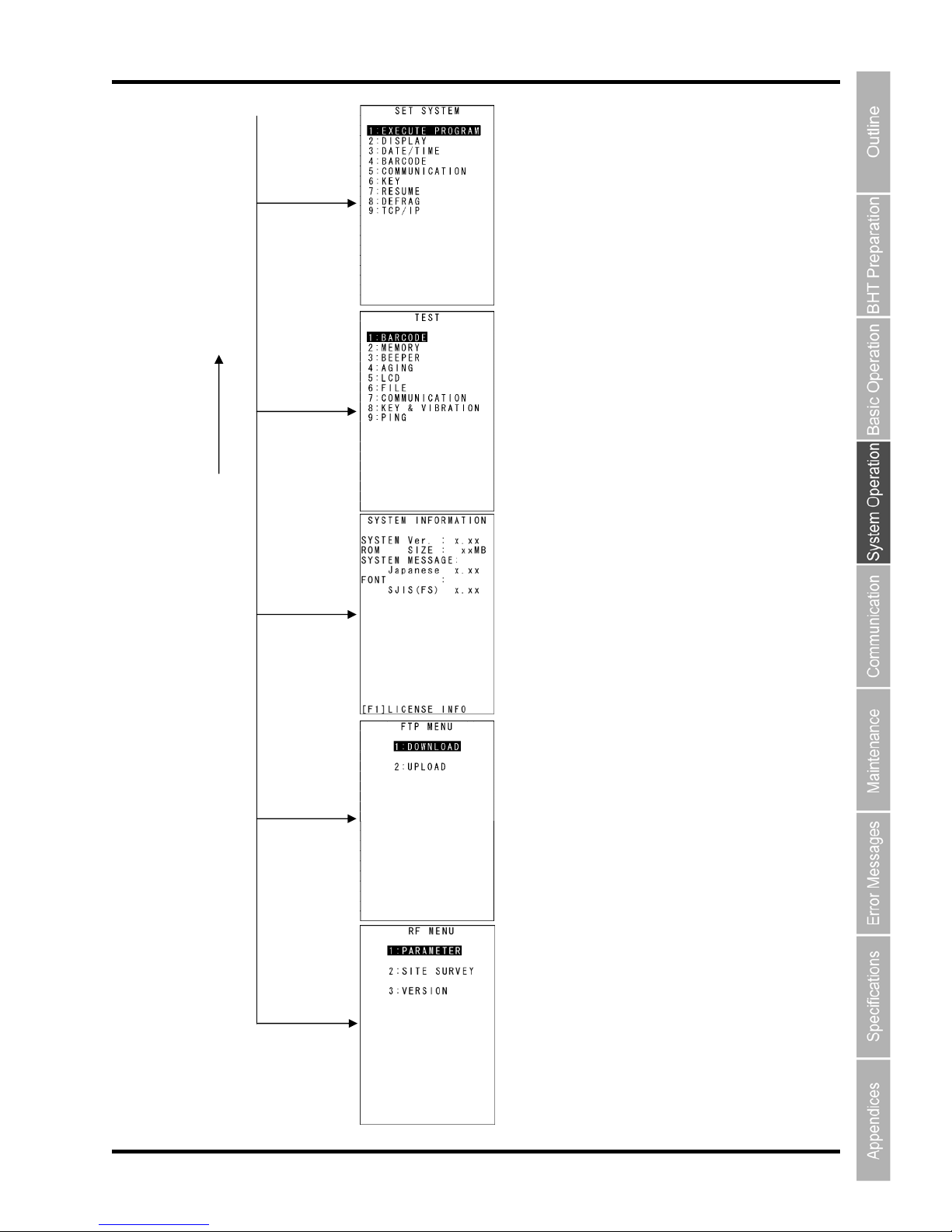

4.4.3 SYSTEM MENU Configuration

Menu Configuration for Items Displayed at the SYSTEM MENU Screen

Select the item with the numerical keys or cursor keys ([▲] [▼]) and press the ENT key.

SYSTEM MENU

1 and ENT keys

2 and ENT keys

3 and ENT keys

C key

Exeuctin

g Programs

Refer to section “4.5.1 Executing User Programs”.

Downloading

Refer to section “4.5.2 Downloading Files”.

Uploading

Refer to section “4.5.3 Uploading Files”.

51

Barcode Handy Terminal

System Environment Setting

Refer to section “4.5.5 System Environment Setting”.

Testing

6 and ENT keys

7 and ENT keys

8 and ENT keys

5 and ENT keys

4 and ENT keys

C key

Refer to section “4.5.6 BHT O

peration Test”.

System

Information Display

Refer to section “4.5.7 System Information

Display”.

Dow

nloading/Uploading by FTP

Refer to section “4.5.8 Dow

nloading/Uploading Files by

FTP”.

RF MENU

Refer to section “4.5.9 Wirele

ss Communic

ation Settings”.

52

BHT-604BW

Menu Configuration for Items Not Displayed at the SYSTEM MENU Screen

Press the corresponding numerical key while holding down the SF key.

SYSTEM MENU

0 wi

th SF

held down

2 with SF
held down

Dele

ting Program/Data Files

Refer to section “4.5.10 De

leting Program/Data Files”.

C key

Dele

ting Font Files

Refer to section “4.5.11 Deleti

ng Font Files”.

Downloading/Uploading the BHT System Parameter File

Refer to section “4.5.1

2 Downloading/Uploading the BHT

System Parameter File”.

3 with SF
held down

53

Barcode Handy Terminal

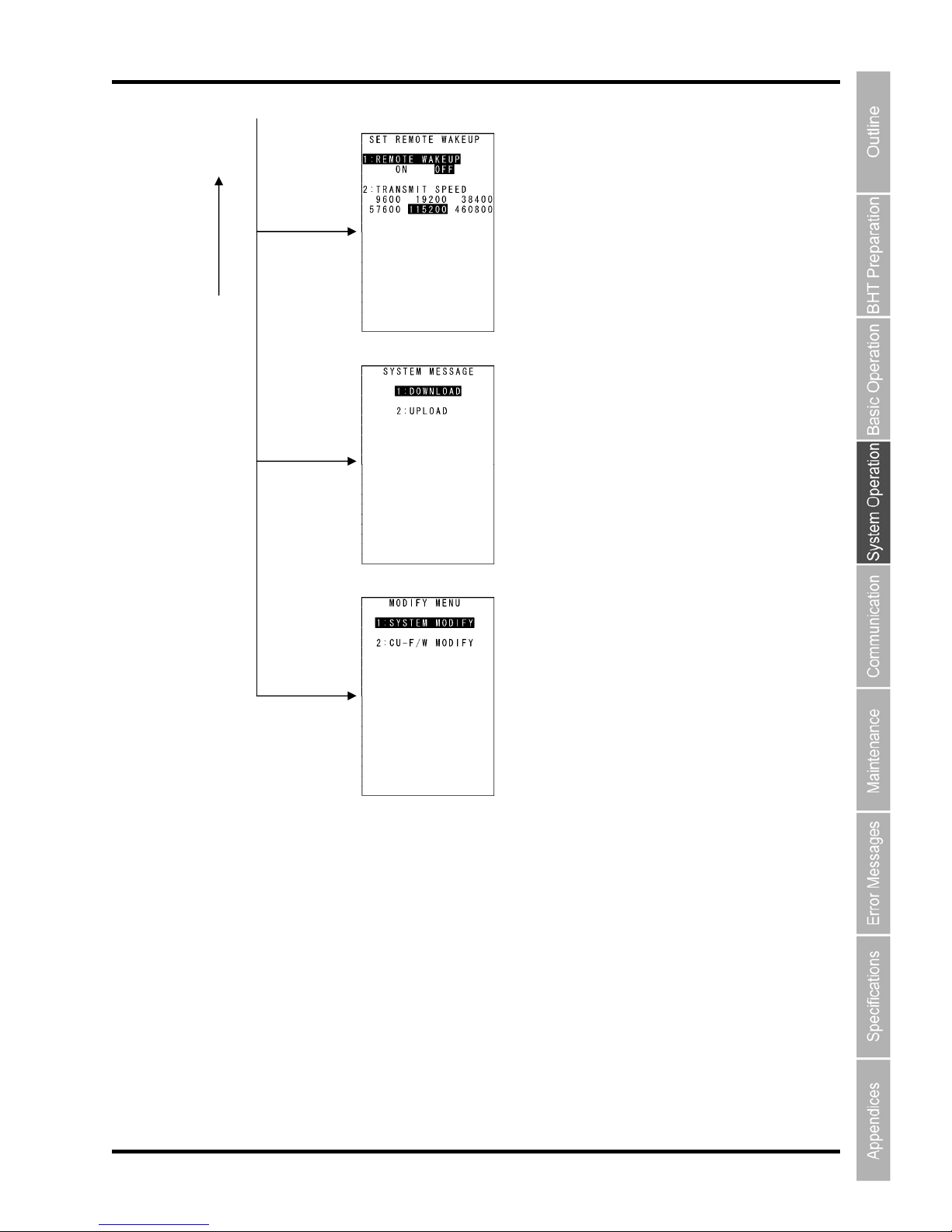

Setting Remote Wake-up

Refer to section “4.5.13 Setting Remote Wake-up”.

C key

4 with SF

held do

wn

Downloading/Uploading the System Message File

Refer to section “4.5.14 Do

wnloading/Uploading System

the Message File”.

6 with SF
held do

wn

Updating the System

Refer to section “4.5.15 Updating the System”.

Dot [.]

wit

h SF held

down

54

BHT-604BW

4.5 SYSTEM MENU

4.5.1 Executing User Programs (EXECUTE PROGRAM Menu)

Individually select and execute user programs downloaded to the BHT.
Use the following procedure to execute user programs.

1. Select “1: EXECUTE PROGRAM” at the SYSTEM MENU and then

press the ENT key.

The screen displays as shown on the right.
Press the C key to return to the SYSTEM MENU.

2. Use the cursor keys ([▲] [▼]) to select the target program.

The selected program will be highlighted.
Use the [▼] key to scroll down when more than 18 programs have been
downloaded to the user area.

The screen on the right shows an example in which 23 programs have
been downloaded.

3. When the target program is highlighted, press the ENT key.

The selected program will be executed.

The screen displays as shown on the right when no program files exist in
the user area.
Press the C key to return to the SYSTEM MENU.

55

Barcode Handy Terminal

4.5.2 Downloading Files (DOWNLOAD Menu)

Download files to the BHT user area from other devices such as the host computer.

- Point -

 If a file with the same name as one already used in the user area of the target memory in

the BHT is downloaded, the newly downloaded file replaces the old one.

 If an auto-start execution program has not been specified (See 4.5.5 [1] Auto-start

Execution Program Settings), the directory management program will execute the first
managed program from among the programs (.PD4) downloaded to the BHT when the
BHT power is turned ON. (Program displayed at the top of the “EXECUTE PROGRAM”
menu) Take this into account when determining the file download order.

Refer to “4.3 Executing User Programs” for details.

Use the following procedure to download files.

1. Select “2: DOWNLOAD” at the SYSTEM MENU and then press the

ENT key.

The screen displays as shown on the right.

“1: FILE”:

Select to download a specific file.

“2: HT<-->HT COPY”:

Select to download a file from another BHT.
Refer to “4.5.4 Copying Files between 2 BHT Units” for details.

Press the C key to return to the SYSTEM MENU.

The current communication settings display at the bottom of the screen.

Transmit speed

Interfa

ce used

Communication protocol type

Communication protocol typ

e Ymodem

BHT-Ir
BHTp

Ymodem protocol
BHT-Ir protocol
BHT protocol

Interface used Opt

Con

Infrared interface
Connector interface

Transmit speed 300 to 460800 Transmission speed corresponding to each

protocol

Refer to “4.5.5 System Environment Settings (SET SYSTEM Menu)” for details of communication
environment settings.

56

BHT-604BW

2. Select either “1: FILE” or ”2: HT<-->HT COPY” and press the ENT

key.

The screen displays as shown on the right indicating that the BHT is waiting
for the file to be downloaded.

The screen displays as shown on the right only when “1: FILE” is selected.
If “2: HT<-->HT COPY” is selected, “HT<-->HT” displays in the center of the
second row of the screen.

3. By executing the BHT-BASIC 4.0 Transfer Utility or similar program,

the screen displays as shown on the right and file downloading is
commenced.

(Refer to the “BHT-BASIC 4.0 Transfer Utility User’s Guide.”)

4. The screen displays as shown on the right during downloading.

The screen displays as shown on the right indicating the file name and the
number of received records/the total number of records.
(When using the Ymodem protocol, the received file size/the total file size
(units: KB) displays.)

Press the C key to abort the download process and return to the
DOWNLOAD menu.

57

Barcode Handy Terminal

5. When downloading is complete, the beeper sounds once and the scr

the right.

een displays as shown on

When the number of received records equals the total number of records,

downloading is complete.
(When using the Ymodem protocol, the received file size equals the total
file size.)

Press the C key to return to the DOWNLOAD menu.
With this screen is displayed on the BHT, downloading another new file
from the host computer allows the BHT to begin receiving.
(Refer to the “BHT-BASIC 4.0 Transfer Utility User’s Guide.”)

If “2: HT<-->HT COPY” is selected, repeat the above operation until all files are downloaded.

If an error message (screen below) displays during downloading, refer to “Chapter 7 Error Messages”.

58

BHT-604BW

4.5.3 Uploading Files (UPLOAD Menu)

Upload files stored in the BHT user area to another device.
Use the following procedure to upload files.

1. Select “3: UPLOAD” at the SYSTEM MENU and then press the

ENT key.

The screen display as shown on the right.

“1: ONE FILE”:

Select to upload a specific file.

“2: ALL FILES”:

Select to upload all files, excluding font files.

“3: HT<-->HT COPY”:

Select to upload a file to another BHT.
Refer to “4.5.4 Copying Files between 2 BHT Units” for details.

Press the C key to return to the SYSTEM MENU.

The current communication settings display at the bottom of the screen.

Transmit speed

Interface used

Communication protocol type

Communicatio

n protocol typ

e Ymodem

BHT-Ir
BHTp

Ymodem protocol
BHT-Ir protocol
BHT protocol

Interface used Opt

Con

Infrared interface
Connector interface

Transmit speed 300 to 460800 Transmission speed corresponding to each

protocol

Refer to “4.5.5 System Environment Settings (SET SYSTEM Menu)” for details of communication
environment settings.

- Point -

If BHT protocol or BHT -Ir protocol is selected for the communication protocol, BHT-BASIC

4.0* specification files will not display at the file selection screen, and therefore cannot be
downloaded.

(*Applications with extension “.PD4”, extension libraries with extension “.FN4”, and data files
that have any of the following structures: the number of fields is 17 or more, the total of the
number of fields and each field length is 255 or more, and the number of records is 32768 o

r

more)

59

Barcode Handy Terminal

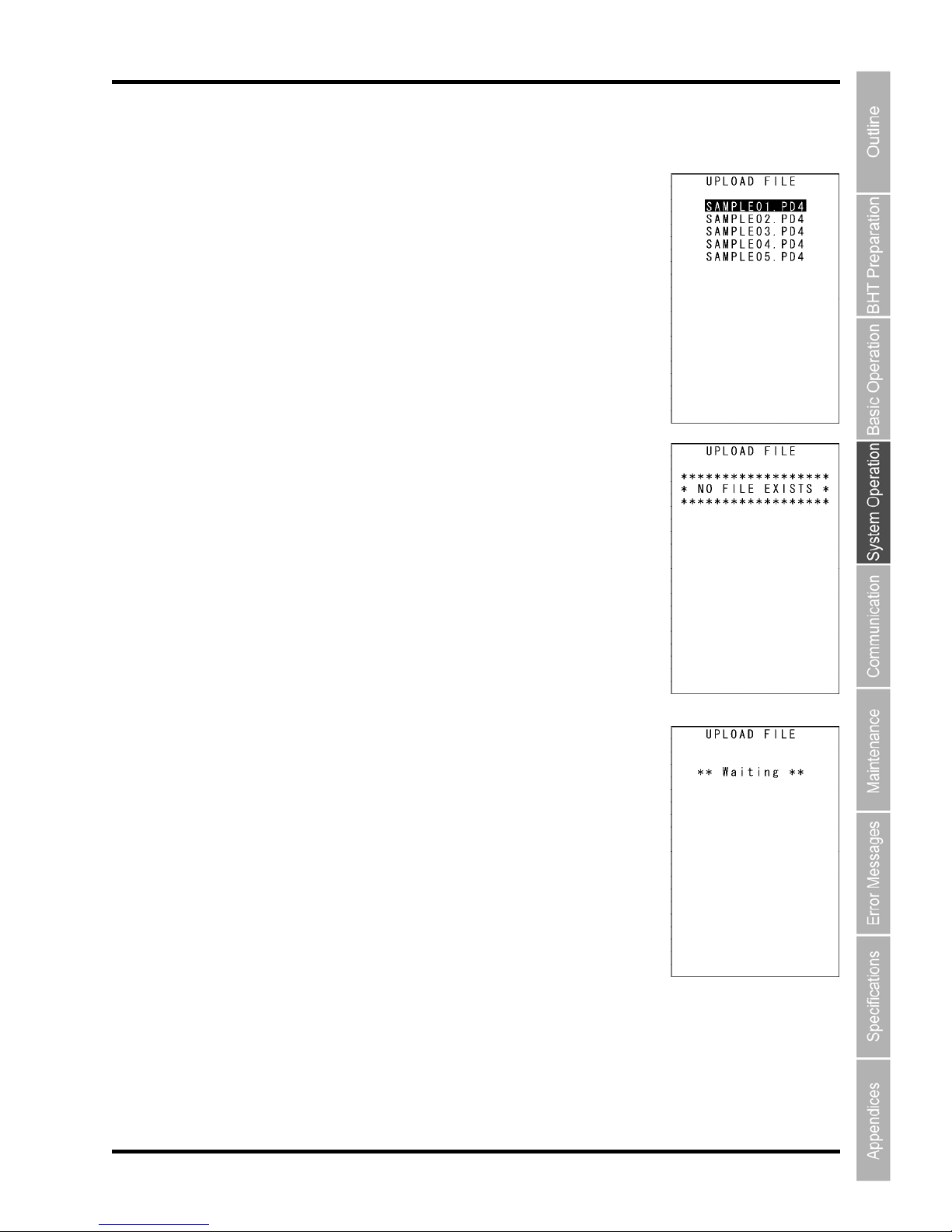

2. Select “1: FILE”, ”2: ALL FILES” or ”3: HT<-->HT COPY” and press the ENT key.

When “1: FILE” is selected:

The screen displays as shown on the right. Select the file to be uploaded
and press the ENT key.
Next, proceed to step 3.

When “2: ALL FILES” or ”3:HT<-->HT COPY” is selected:

Proceed to step 3.

The screen displays as shown on the right

if no files that can be uploaded

exist in the user area.

Press the C key to return to the UPLOAD menu.

3. The screen displays as shown on the right indicating that the BHT is

waiting for the file to be uploaded.

The screen displays as shown on the right only when “1: FILE” is selected.
If “2:ALL FILES” is selected, “ALL” displays in the center of the second row
of the screen.
If “3: HT<-->HT COPY” is selected, “HT<-->HT” displays in the center of the
second row of the screen.

60

BHT-604BW

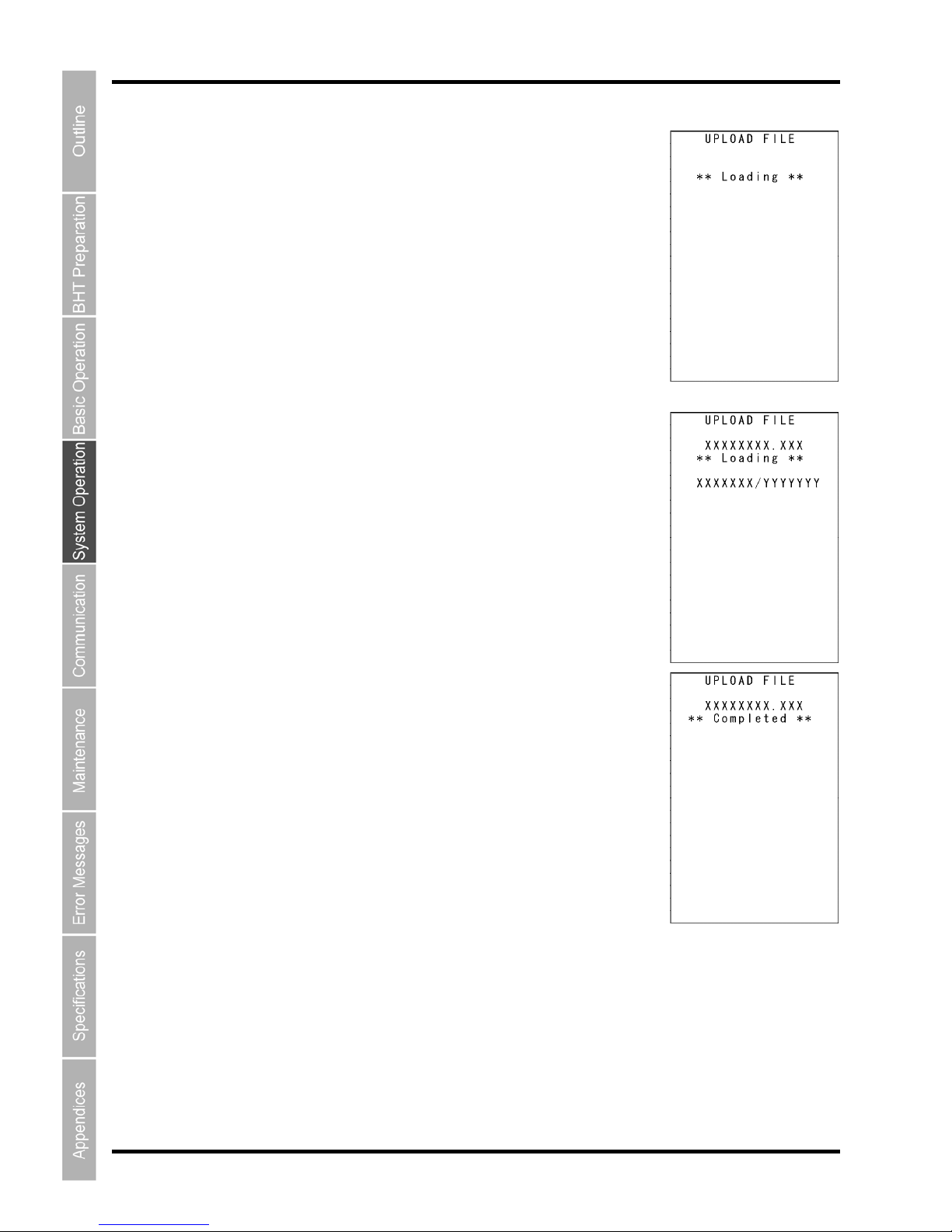

4. By executing the BHT-BASIC 4.0 Transfer Utility or similar program,

the screen displays as shown on the right and file uploading is
commenced.

(Refer to the “BHT-BASIC4.0 Transfer Utility User’s Guide.”)

5. The screen displays as shown on the right during uploading.

The screen displays as shown on the right indicating the file name and the
number of sent records/the total number of records.
(When using the Ymodem protocol, the sent file size/the total file size
(units: KB) displays.)

Press the C key to abort the download process and return to the UPLOAD
menu.

6. When uploading is complete, the beeper sounds once and the

screen displays as shown on the right.

When the number of sent records equals the total number of records,

downloading is complete.
(When using the Ymodem protocol, the sent file size equals the total file
size.)

Press the C key to return to the UPLOAD menu.

If “2: ALL FILES” or ”3: HT<-->HT COPY” is selected, repeat the above
operation until all files are uploaded.

If an error message displays during uploading, refer to “Chapter 7 Error
Messages”.

61

Barcode Handy Terminal

4.5.4 Copying Files between 2 BHT Units

Copy “all files (excluding font files)”, “setting data”, and the “date and time” stored in the BHT user area to
another BHT.
Use the following procedure to copy files between 2 BHT units.

1. Set the same interface at both BHT units.

An infrared communication (Optical) interface and connector communication (Connector) interface are
available.
The default interface is set to infrared communication (Optical).

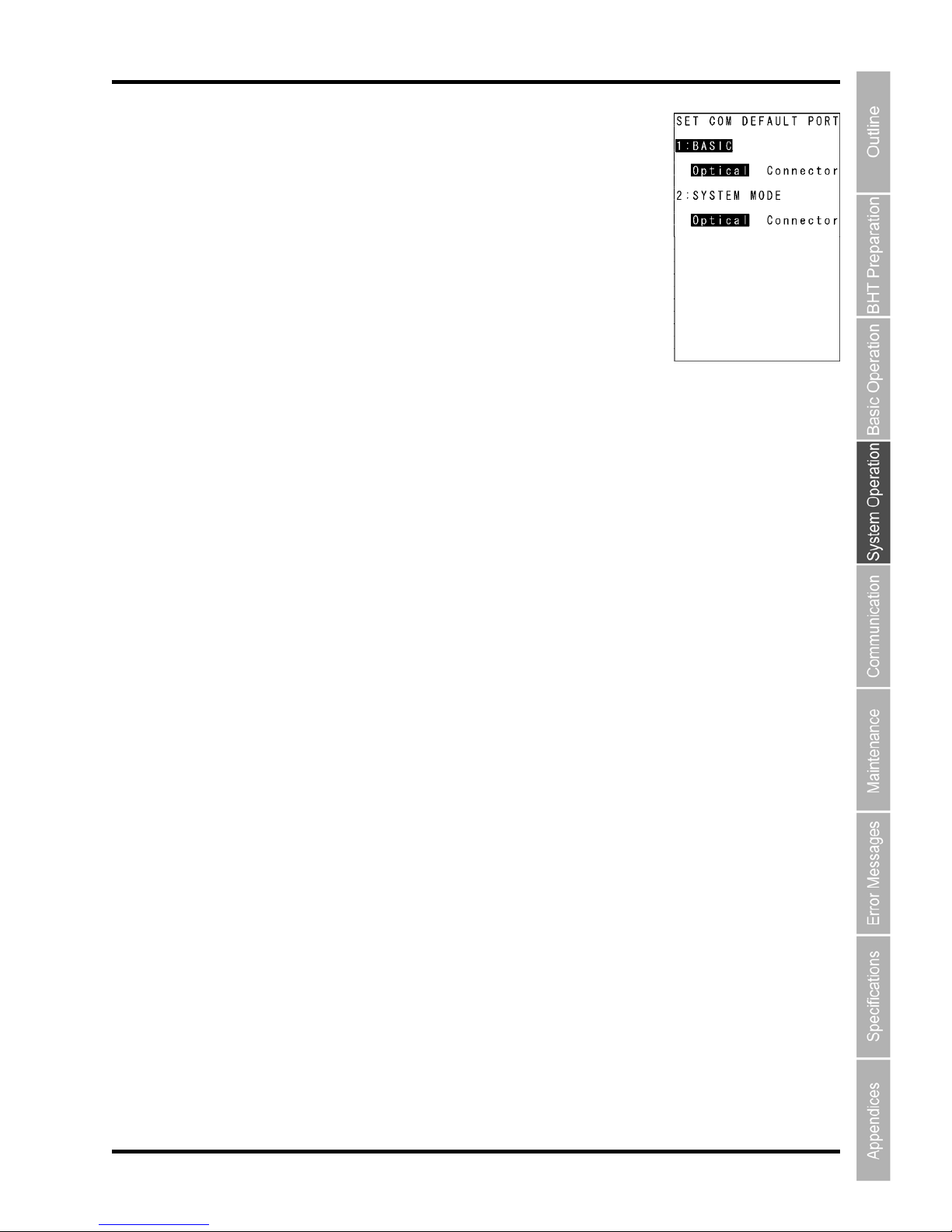

Changing the Interface

Select ”4: SET SYSTEM”  ”5: COMMUNICATION”  ”3: COM PORT” from the SYSTEM MENU, and
change at the [2: SYSTEM MODE] “INTEFACE USED” item.

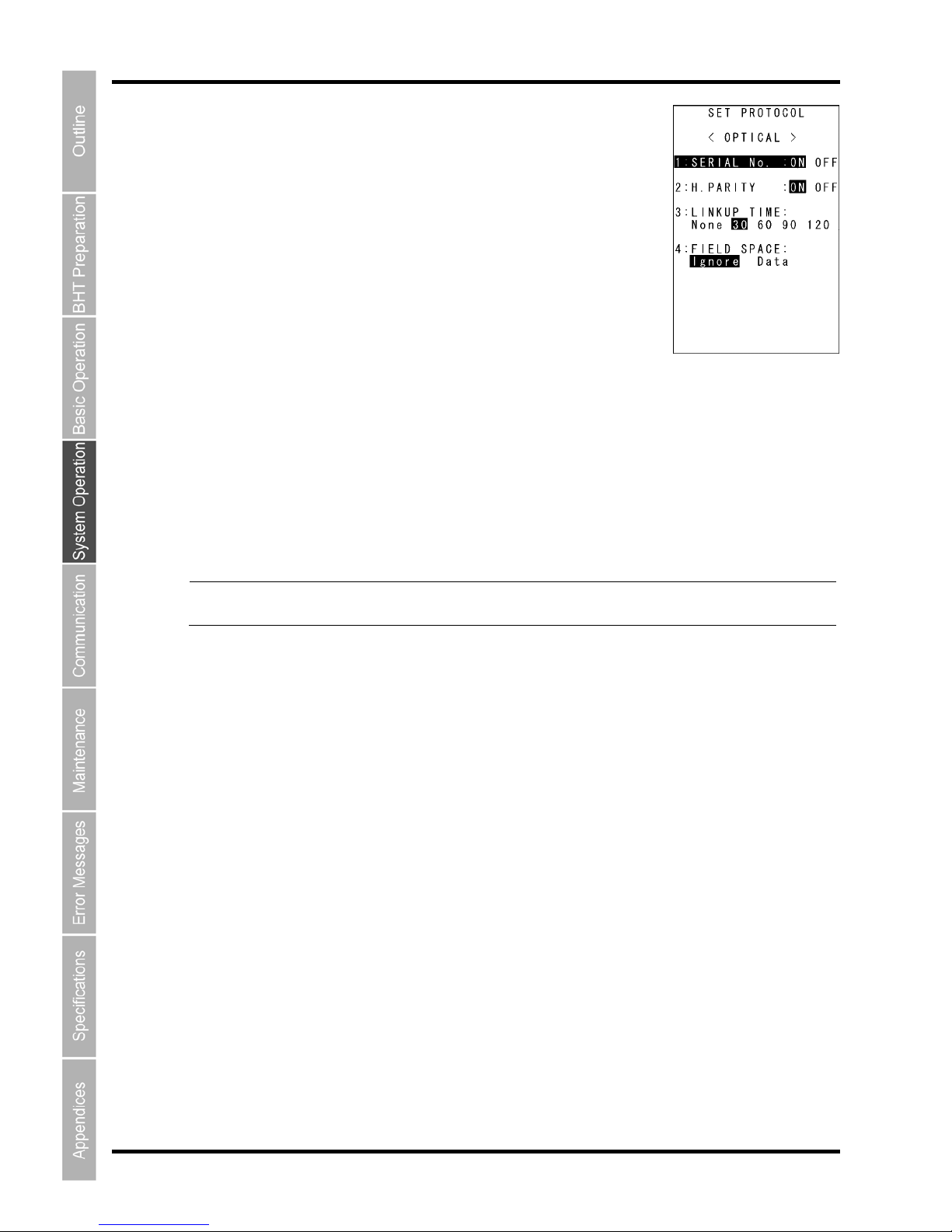

2. Set “COMMUNICATION PROTOCOL OPTION”  “FIELD SPACE” (space at the end of the

field) to “Ignore” at both BHT units.

The default setting is “Ignore”.
Refer to “4.5.5 System Environment Settings (SET SYSTEM Menu)” when changing the interface.

3. When using infrared communication, ensure that the BHT infrared communication ports are

facing one another.

 When using the connector interface, open the BHT connector covers and connect both BHT units using

a cable with JC-25-P-3 (2.5mm stereo mini-plug).
(Refer to “Chapter 8 Specifications” for cable details.)

4. Select “2: DOWNLOAD”  ”2: HT<-->HT COPY” at the SYSTEM MENU of the BHT that is

downloading to await downloading.

Refer to “4.5.2 Downloading Files (DOWNLOAD Menu)” for details.
When copying only the system parameter file, use the SYSTEM PARAMETER transfer menu. Refer to
“4.5.12 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu)” for
details.

5. Select “3: UPLOAD”  ”3: HT<-->HT COPY” at the SYSTEM MENU of the BHT that is

uploading to await uploading.

Refer to the “4.5.3 Uploading Files (UPLOAD Menu)” for details.
When copying only the system parameter file, use the SYSTEM PARAMETER transfer menu. Refer to
“4.5.12 Downloading/Uploading the BHT System Parameter File (SYSTEM PARAMETER Menu)” for
details.

6. Preparation at both BHT units is now complete and file copying will be commenced.

62

BHT-604BW

- Note - The following setting data is copied when copying between BHT units.

LCD contrast level

Beeper volume
Switching between beeper and vibrator
Program to be executed automatically when the BHT is turned ON
Message version (English or Japanese)
Backlight brightness of the LCD display
Backlight brightness of the LCD display during power save mode
Key backlight
Display font size
System status display
Date
Time
Setting of black-and-white inverted label reading function (enable/disable)
Decode level
Minimum number of digits to be read for ITF
Minimum number of digits to be read for STF
Minimum number of digits to be read for Codabar (NW-7)
Interface port to be used in user programs
Interface port to be used in System Mode
Communication parameters for the infrared interface
Communication parameters for the direct-connect interface
Communication protocol options for the infrared interface
Communication protocol options for the direct-connect interface
Communication protocol type
Shift key function definition
M1 key function definition
M2 key function definition
M3 key function definition
M4 key function definition
M5 key function definition
M6 key function definition
Resume function
Remote wake-up setting (enable/disable)
Transmission speed for remote wake-up
Remote wake-up history
YMODEM option
IP address of FTP server
User name of FTP server
Password of FTP server
Default directory for FTP server

63

Barcode Handy Terminal

FTP option, Line delimiters (CR/LF)
FTP option, Handling of line delimiters
FTP option, Handling of trailing spaces in data fields
FTP option, Upload mode
FTP option, Verbose mode
IP address of host computer for ping-test
Data size of echo request
Echo request intervals
Timeout period for echo request
No. of echo requests to be sent
Echo request send timing
TCP/IP operation device
TCP/IP link layer
Transmission speed between BHT and CU
No. of retries for link establishment command to be sent
Link establishment command intervals
No. of retries for link release command to be sent
Link release command intervals
Link release period
Service Set ID (SSID) (Not possible to copy correctly if there is a space at the end.)
Power save mode for wireless module
Authentication system
WEP (Wired Equivalent Privacy) (enable/disable)

Maximum DHCP IP address acquisition wait time

Wireless method
Wireless security mode
Wireless security EAP authentication method
Wireless security encryption method
Wireless security root certificate filename
Wireless security EAP start time
Wireless security retry interval for non-response
Wireless security retry interval for authentication failure
Wireless security retry interval for authentication start failure
Wireless security retry count for authentication start failure

64

BHT-604BW

4.5.5 System Environment Settings (SET SYSTEM Menu)

Use the following procedure to set the system environment.

1. Select “4: SET SYSTEM” at the SYSTEM MENU and then press the

ENT key.

The SET SYSTEM menu screen displays as shown on the right.

“1: EXECUTE PROGRAM”:

Sets the auto-start execution program to be executed when the power is
turned ON.

“2: DISPLAY”:

Sets the message version (English or Japanese).

“3: DATE/TIME”:

Sets the calendar clock (date and time).

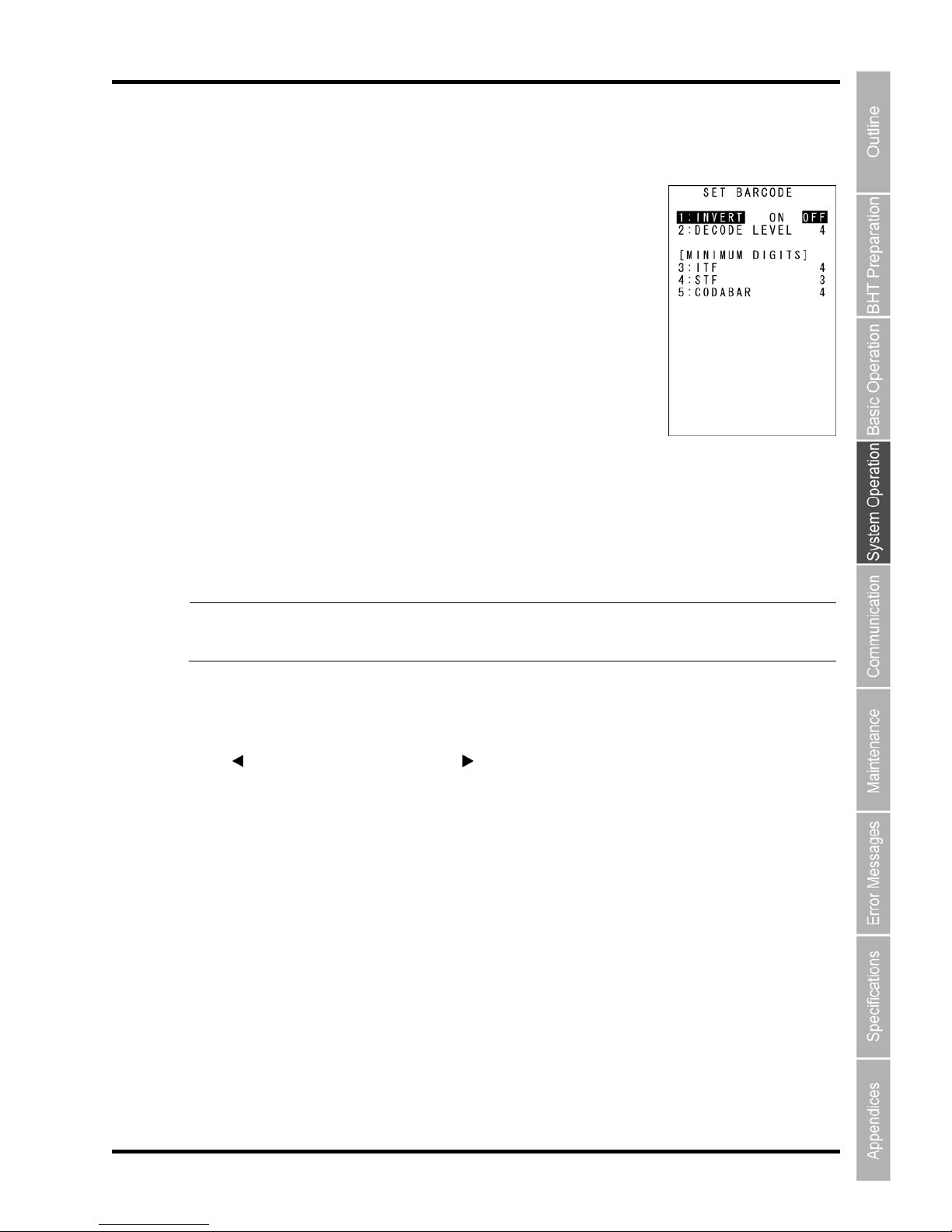

“4: BARCODE”:

Sets the barcode reading conditions (black/white inverted label reading
function and decode label) and minimum number of scan digits for scan
codes (ITF, STF, Codabar).

“5: COMMUNICATION”:

Sets the communication environment (interface port and communication parameters).

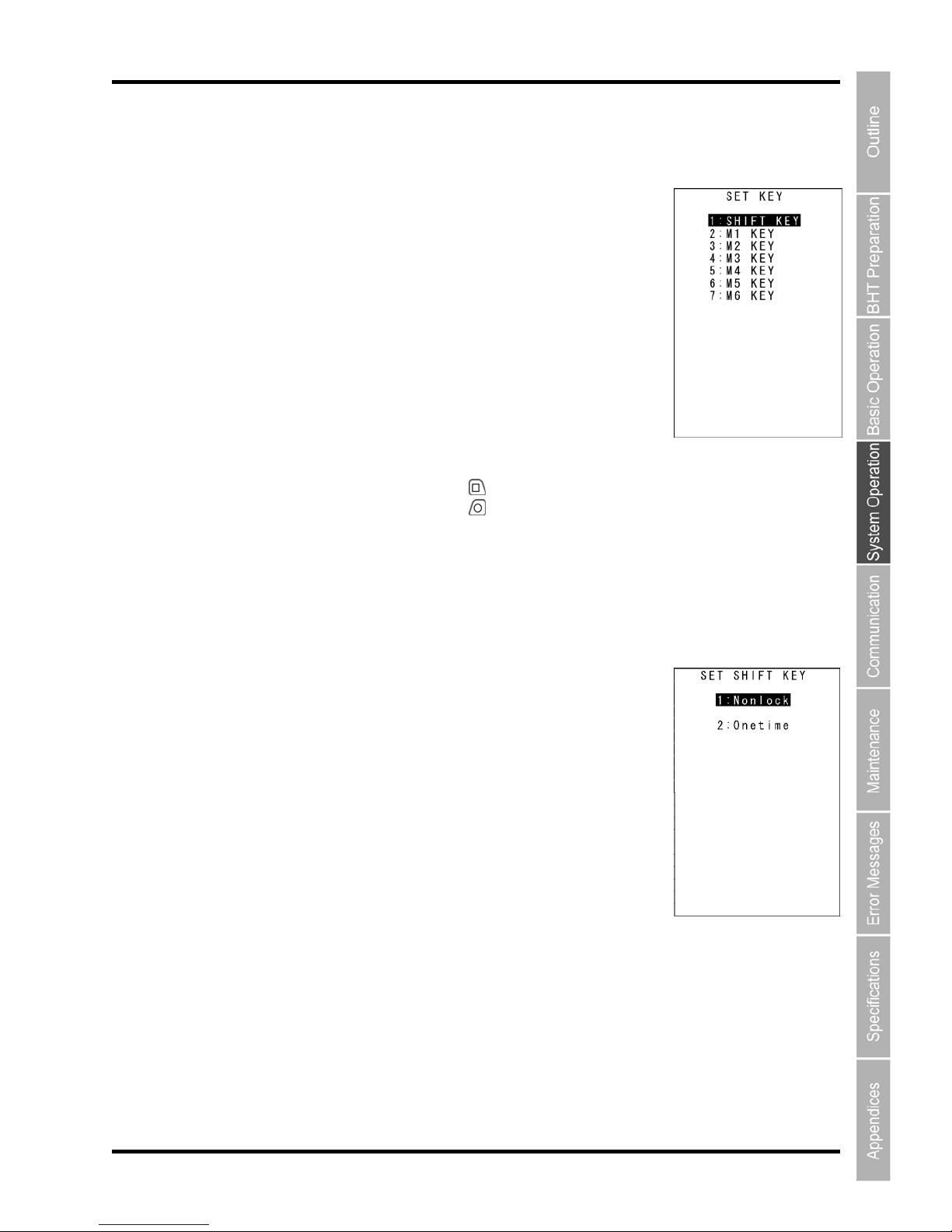

“6: KEY”:

Defines the functions of the shift key and magic keys.

“7: RESUME”:

Sets the resume function.

“8: DEFRAG”:

Defragments the drive.

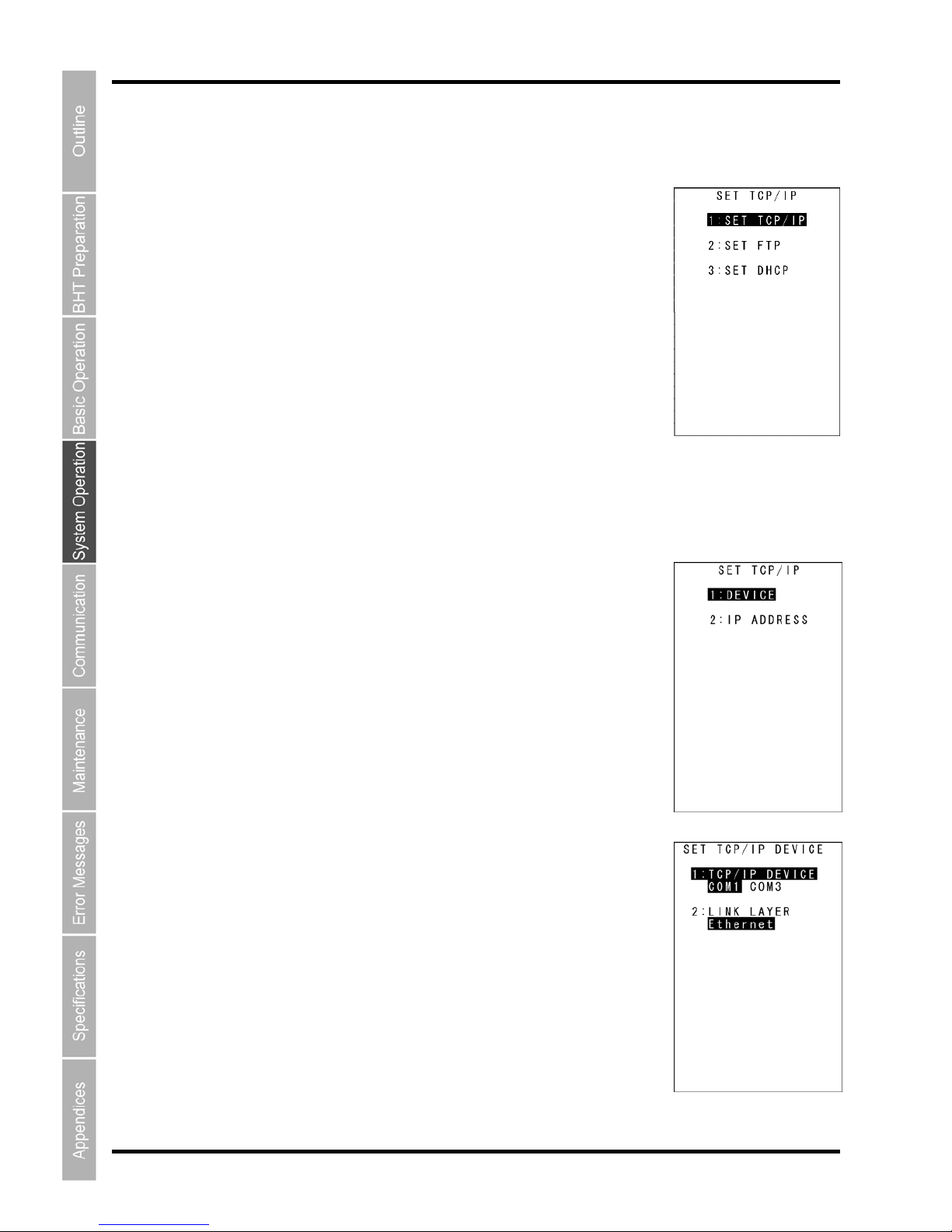

“9: TCP/IP”:

Displays the setting menu for TCP/IP, FTP and DHCP.

Refer to the following section for details of the above items.
Press the C key to return to the SYSTEM MENU.

65

Barcode Handy Terminal

[1] Setting the auto-start execution program

Use the following procedure to set the auto-start execution program.

1. Select “1: EXECUTE PROGRAM” at the SET SYSTEM menu and

then press the ENT key.

The SET EXECUTE PROGRAM menu screen displays as shown on the
right.
The highlighted program will be the program currently set as the auto-start
execution program.

2. Use the cursor keys ([▲] [▼]) to highlight the target program.

3. Press the ENT key.

The selected program will be set as the auto-start execution program.

Press the C key to return to the SET SYSTEM menu.

The screen displays as shown on the right if no programs have been
downloaded.

Press the C key to return to the SET SYSTEM menu.

66

BHT-604BW

[2] Setting the message version, system status indication and screen display compatible mode

Use the following procedure to set the display language, system status indication and screen display
compatible mode.

1. Select “2: DISPLAY” at the SET SYSTEM menu and then press the

ENT key.

The SET DISPLAY menu displays as shown on the right.
The highlighted settings will be the current settings.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to

highlight ”1: MESSAGE” or ”2: STATUS”.

3. Highlight the target setting with the cursor keys ([◄] [►]) and press

the ENT key.

Press the C key to return to the SET SYSTEM menu.

“1: MESSAGE”:

Sets whether messages displayed at the screen are displayed in English or Japanese.
The default is the message version selected at the system initializing process.
The English and Japanese display changes at the following messages.

 System error messages
 Indications relating to the LCD contrast
 Beeper volume
 Beeper & vibrator switching
 Battery voltage level screens

“2: STATUS”:

Sets whether to display or hide the system status displayed at the bottom of the screen.
Refer to “System Status Indication” on the following page for details of the system status indication.

 “ON”: The system status is displayed.
 “OFF”: The system status is hidden.

- Note - The system status indication can be turned ON or OFF using the OUT statement in use

r

programs. Refer to the “BHT-BASIC Programmer’s Manual.”

67

Barcode Handy Terminal

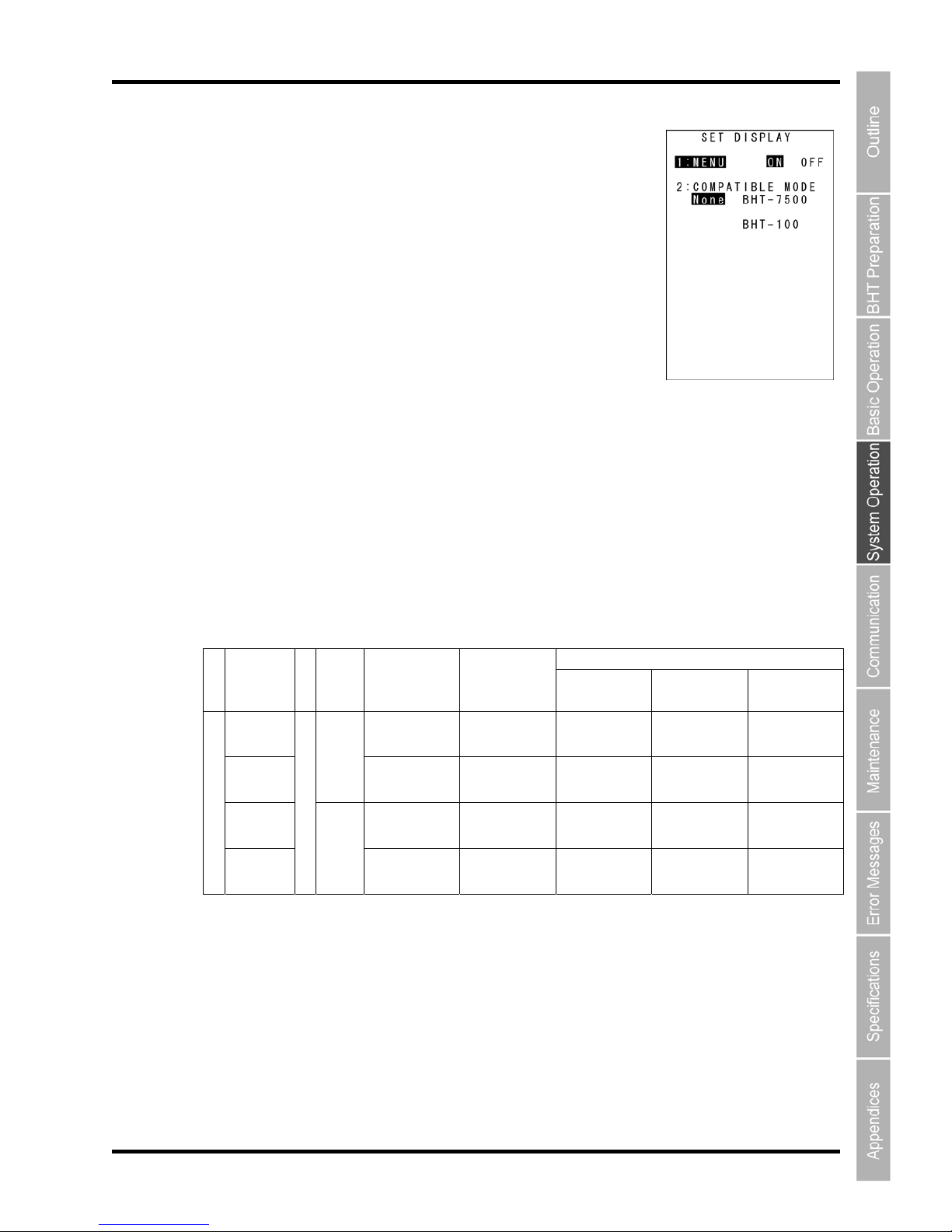

4. Simultaneously press the SF key and “1: MESSAGE” at the SET

DISPLAY menu.

The SET DISPLAY menu displays as shown on the right.
The highlighted settings will be the current settings.

5. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to

highlight ”1: MENU” or ” 2: COMPATIBLE MODE”.

6. Highlight the target setting with the cursor keys ([◄] [►]) and press

the ENT key.

Press the C key to return to the SET SYSTEM menu.

“1: MENU”:

Sets whether to permit or prohibit menu screens (beeper volume, vibrator, screen brightness, power
saving, key backlight settings) being started up while applications are running.

 “ON”: Permits menu screen display.
 “OFF”: Prohibits menu screen display.

“2: COMPATIBLE MODE”:

Sets compatible mode for screen display between the BHT-100 and BHT-7500.
This allows BHT-100 Series and BHT-7500 Series application programs to be used at the BHT-604BW
without changing or correcting the font size.

BHT-604BW

BHT-7500 BHT-100

BHT-7500

Mode

BHT-100

Mode

Normal Mode

Standard
font

26 x 20 char.
(6 x 8 dots)

16 x 25 char.
(12 x 12 dots)

26 x 26 char.
(9 x 12 dots)

20 x 26 char.
(12 x 12 dots)

20 x 20 char.
(12 x 16 dots)

Small
font

ANK
mode

26 x 26 char.
(6x6 dots)

16 x 25 char.
(12 x 12 dots)

26 x 26 char.
(9 x 12 dots)

20 x 26 char.
(12 x 12 dots)

20 x 20 char.
(12 x 16 dots)

Standard
font

10 x 10 char.
(16x 16dots)

12 x 19 char.
(16 x 16 dots)

10 x 13 char.
(24 x 24 dots)

15 x 20 char.
(16 x 16 dots)

8 x 10 char.
(30 x 30 dots)

Font size

Small
font

Screen mode

Kanji
mode

13 x 13 char.
(12 x 12 dots)

16 x 25 char.
(12 x 12 dots)

13 x 17 char.
(18 x 18 dots)

20 x 26 char.
(12 x 12 dots)

10 x 13 char.
(24 x 24 dots)

68

BHT-604BW

 System Status Indication
Turning ON the system status indication displays the following icons at the bottom of the screen.

Indication Icon Description
Key Shift status

Displays when the keys on the keypad are in Shift mode.

Alphabet
entry mode

Displays when the BHT is set to alphabet entry mode.

(If the alphanumeric entry system has been selected in user programs,
pressing the SF and the BS key switches from the numeric entry mode
to alphabet entry mode.)

Displays when a communication link is established with the CU-611.
Flashes when the BHT tries to communicate with a CU-611 that has not

been linked with the BHT.

Communication link
with the CU-611

Displays cyclically when the BHT receives no response from the
CU-611, or when it is waiting for the link to be established with or
severed from the CU-611.

Radio link with
access point

If synchronization with the access point is established during wireless
communication, the overall quality of communication with the access
point is displayed incrementally. These respective icons indicate how
good the communication environment is.

Displays when synchronization with the access point has not been
established, or when authentication fails.

[3] Setting the calendar clock

When resetting the date and time, refer to “Chapter 2 BHT Preparation” ­“2.4 Initial Setup.”
Select ”3: DATE/TIME” at the SET SYST

EM menu and press the ENT key

to display the

SET DATE/TIME menu screen on the right.

69

Barcode Handy Terminal

[4] Setting the special barcode reading parameters

Use the following procedure to set the barcode reading conditions.

1. Select “4: BARCODE” at the SET SYSTEM menu and then press the

ENT key.

The SET BARCODE menu screen displays as shown on the right.
The highlighted display and displayed values will be the current settings.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5]) to

highlight the item to be set.

3. Change settings with the cursor keys ([◄] [►]) and press the ENT

key.

Press the C key to return to the SET SYSTEM menu.

 “1: INVERT”: Black/white inverted label reading function

Enable or disable black/white inverted label reading.

“ON”: Enables black/white inverted label reading.
“OFF”: Disables black/white inverted label reading.

- Point - By enabling black/white inverted label reading, it will also be possible to scan black/white

inverted labels, however, there is higher chance of barcodes being incorrectly scanned.
This should normally be set to “OFF” (black/white inverted label reading disabled).

 “2: DECODE LEVEL”: Decode level

Set the decode level (barcode reading tolerance level).
Press [

] to decrease the setting value and [ ] to increase the setting value.

Decode level entry range: 1 - 9 (Default: 4)

Decreasing the level increases the barcode reading efficiency, however, the BHT may incorrectly read
low-quality (split or stained) barcodes.
On the other hand, increasing the level decreases the barcode reading efficiency, but will decrease the
possibility of incorrect reading.

70

BHT-604BW

 “3: ITF”: Minimum number of digits to be read for ITF
 “4: STF”: Minimum number of digits to be read for STF
 “5: CODABAR”: Minimum number of digits to be read for Codabar

Set minimum number of digits for the code to be scanned.
Press [

] to decrease the setting value and [ ] to increase the setting value.

ITF entry range: 2 - 20 (Default: 4)
STF entry range: 1 - 20 (Default: 3)
Codabar entry range: 3 - 20 (Default: 4)

Setting a small number of digits increases the frequency of missing digits when reading or incorrectly
reading depending on how barcodes are read or the quality of barcodes. On the other hand, setting a
large number will decrease the possibility of such errors.

[5] Setting the communication environment

The communication environment settings following system initialization are follows.
Do not change these settings unless necessary.

Item Default

Interface port Optical (infrared interface port)
Communication protocol Ymodem protocol

Infrared interface port

TRANSMIT SPEED Baud rate 115200 bps
PROTOCOL Protocol options SERIAL No.: ON (Adds serial numbers to data

blocks.

)

H. PARITY: ON (

Adds horizontal parity.)

LINKUP TIME: 30

seconds

FIELD SPACE: Ignore (

Trim)

Direct-connect interface port

TRANSMIT SPEED Baud rate

115200 bps

PARITY BIT (Vertical parity) None
DATA BIT (Character length) 8 bits

STOP BIT (Stop bit length) 1 bit
PROTOCOL (Protocol options) SERIAL No.: ON (Adds serial numbers to data

blocks.

)

H. PARITY: ON (

Adds horizontal parity.)

LINKUP TIME: 30

seconds

FIELD SPACE: Ignore (

Trim)

71

Barcode Handy Terminal

Use the following procedure if necessary to change the communication environment settings.

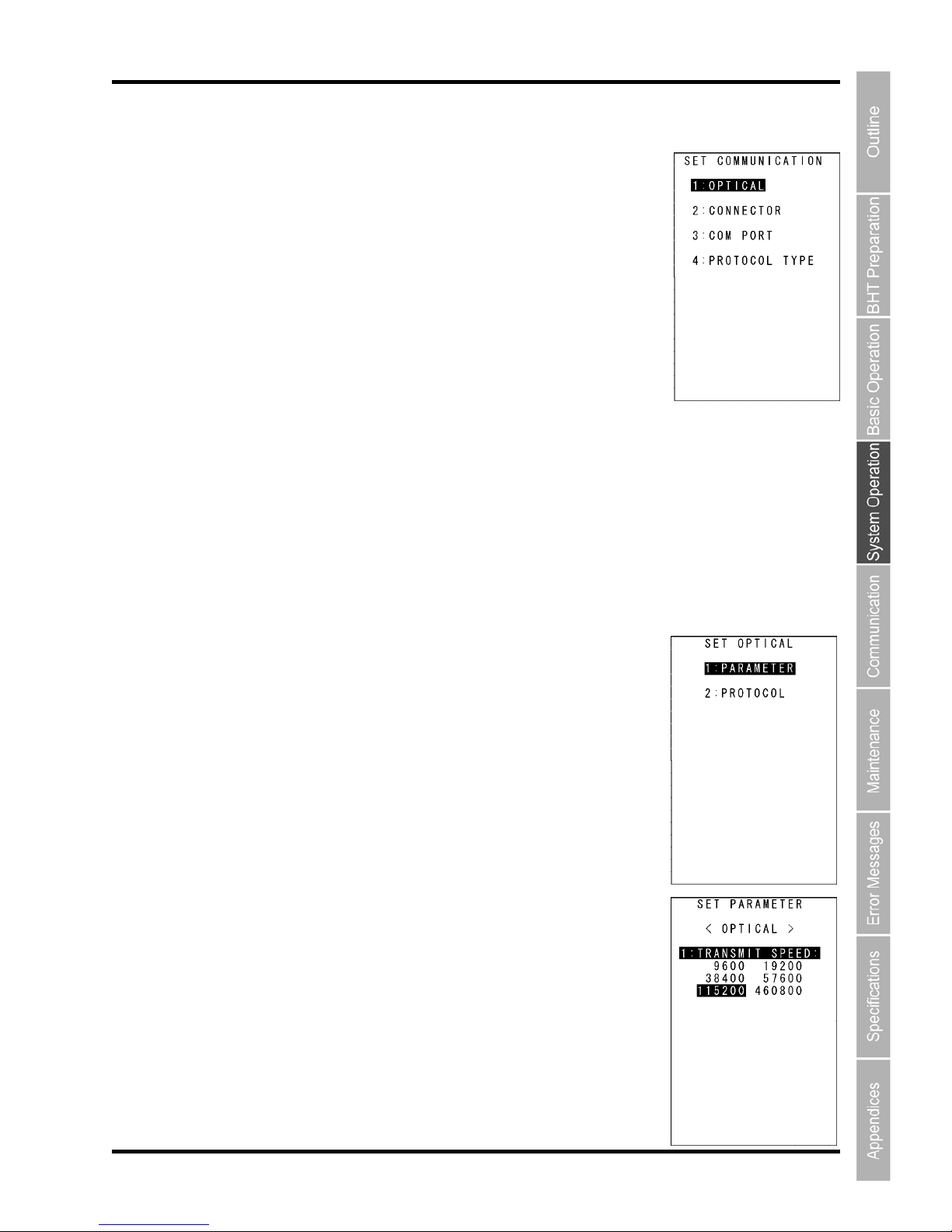

1. Select “5: COMMUNICATION” at the SET SYSTEM menu and then

press the ENT key.

The SET COMMUNICATION menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to

highlight the item to be set and press the ENT key.

“1: OPTICAL”:

Changes the infrared communication parameters.

“2: CONNECTOR”:

Changes the connector communication parameters.

“3: COM PORT”:

Changes the communication port setting.

“4: PROTOCOL TYPE”:

Changes the communication protocol setting.

Refer to the following section for details of the above items.
Press the C key to return to the SYSTEM MENU.

 “1: OPTICAL”: Infrared communication parameters

1. Select “1: OPTICAL” at the SET COMMUNICATION menu and then

press the ENT key.

The SET OPTICAL menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to

highlight ”1: PARAMETER” or ”2: PROTOCOL”, and then press the
ENT key.

Press the C key to return to the SET SYSTEM menu.

“1: PARAMETER”: Setting the communication parameters

Select “1: PARAMETER” to display the screen shown on the right.

The highlighted setting will be the current setting.

“1: TRANSMIT SPEED”: Setting the transmission speed

To change the setting, use the highlight the transmission speed with the
cursor keys ([◄] [►]) and press the ENT key.
Press the C key to return to the SET OPTICAL menu.

72

BHT-604BW

“2: PROTOCOL”: Communication protocol options setting screen

Select “2: PROTOCOL” to display the screen shown on the right

The highlighted settings will be the current settings.

“1: SERIAL No.”:

Selects whether or not to add serial numbers to data blocks.

“2: H.PARITY”:

Selects whether or not to add horizontal parity.

“3: LINKUP TIME”:

Selects the timeout length (in seconds) to be applied when a link is to be
established.

“4: FIELD SPACE”:

Specifies handling for trailing spaces in fields.
To trim trailing spaces in fields, select “Ignore”, and to retain them as data, select “Data”.

To make changes, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to
be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key.
Press the C key to return to the SET OPTICAL menu.

- Point - Selecting the BHT-Ir or YMODEM protocol ignores the serial number and horizontal parity

settings.

73

Barcode Handy Terminal

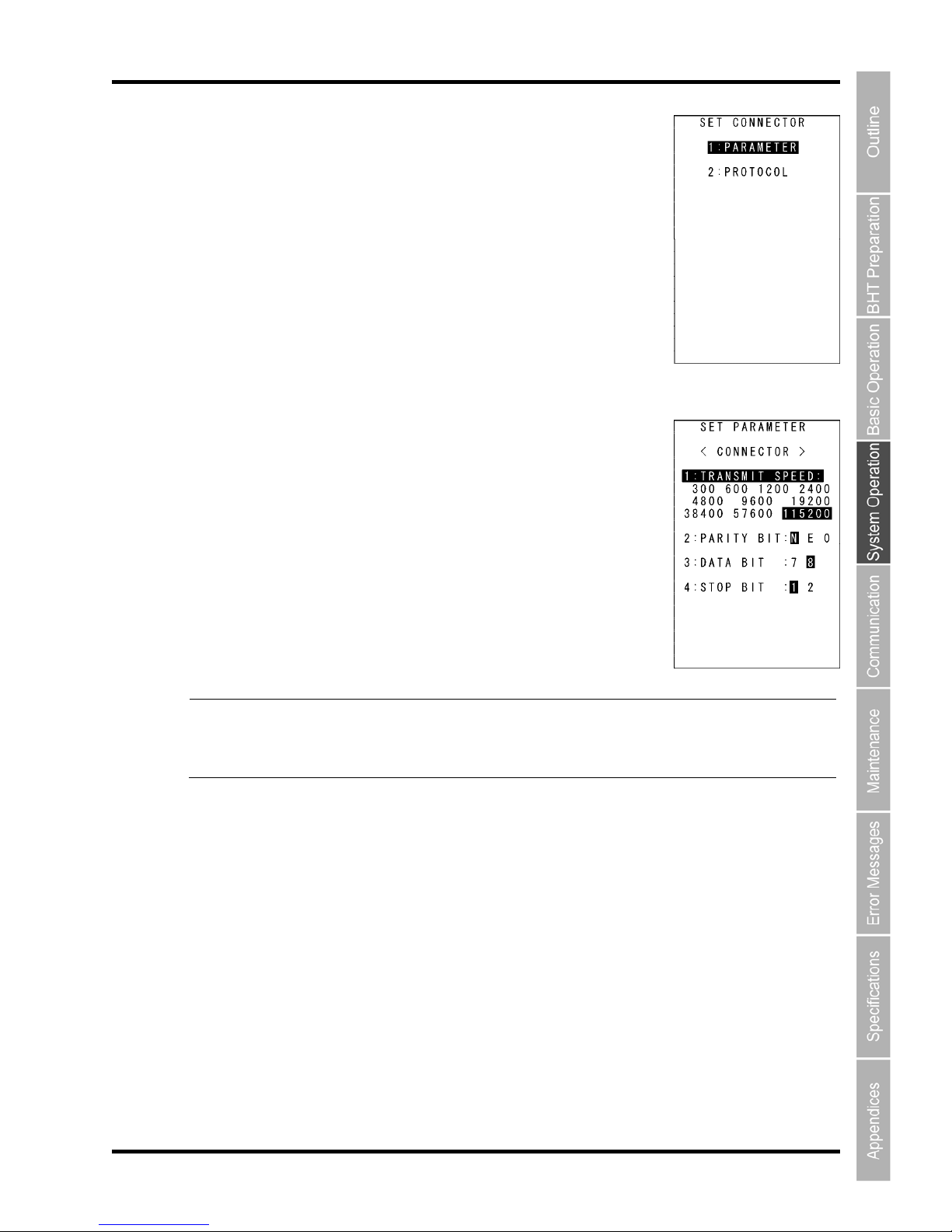

 “2: CONNECTOR”: Connector communication environment

settings

1. Select “2: CONNECTOR” at the SET COMMUNICATION menu and

then press the ENT key.

The SET CONNECTOR menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to

highlight ”1: PARAMETER” or ”2: PROTOCOL”, and then press the
ENT key.

Press the C key to return to the SET COMMUNICATION menu.

“1: PARAMETER”: Setting the communication parameters

Select “1: PARAMETER” to display the screen shown on the right.
The highlighted settings will be the current settings.

“1: TRANSMIT SPEED”: Sets the transmission speed.
“2: PARITY BIT”: Sets the vertical parity: none, odd, or even.
“3: DATA BIT”: Sets the character length.
“4: STOP BIT”: Sets the stop bit length.

To make changes, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]
[3] [4]) to highlight the item to be set, highlight the setting value using the
cursor keys ([◄] [►]), and then press the ENT key.
Press the C key to return to the SET CONNECTOR menu.

- Point -  Selecting the BHT-Ir protocol ignores the vertical parity, character length, and stop bit

length settings.

 Selecting YMODEM requires the vertical parity, character length, and stop bit length to be

set to N, 8 and 1, respectively.

74

BHT-604BW

“2: PROTOCOL”: Communication protocol option menu

Select “2: PROTOCOL” to display the screen shown on the right.

The highlighted settings will be the current settings.

“1: SERIAL No.”:

Selects whether or not to add serial numbers to data blocks.

“2: H.PARITY”:

Selects whether or not to add horizontal parity.

“3: LINKUP TIME”:

Selects the timeout length (in seconds) to be applied when a link is to be
established.

“4: FIELD SPACE”:

Specifies the handling for trailing spaces in fields.
To trim trailing spaces in fields, select “Ignore”, and to retain them as data, select “Data”.

To make changes, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to
be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key.
Press the C key to return to the SET CONNECTOR menu.

- Point - Selecting the BHT-Ir or YMODEM protocol ignores the serial number and horizontal parity

settings.

75

Barcode Handy Terminal

 “3: COM PORT”: Setting the interface port

1. Select “3: COM PORT” at the SET COMMUNICATION menu and

then press the ENT key.

The SET COM DEFAULT PORT menu screen displays as shown on the
right.
The highlighted settings will be the current settings.

“1: BASIC”

Selects the infrared communication (Optical) or connector
communication (Connector) interface port to be used for user programs
written in BHT-BASIC (OPEN “COM:”).

“Optical”: Uses infrared communication.
“Connector”: Uses connector communication.

“2: SYSTEM MODE”

Selects the infrared communication (Optical) or connector communication (Connector) interface port to
be used for downloading or uploading files in System Mode.

“Optical”: Uses infrared communication.
“Connector”: Uses connector communication.

To make changes, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight the item to be set,
highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key.
Press the C key to return to the SET COMMUNICATION menu.

76

BHT-604BW

 “4: PROTOCOL TYPE”: Setting the communication protocol

type

1. Select “4: PROTOCOL TYPE” at the SET COMMUNICATION menu

and then press the ENT key.

The PROTOCOL TYPE menu screen displays as shown on the right.
The highlighted setting will be the current setting.

“1: Ymodem”:

Selects Ymodem when uploading/downloading in System Mode or for
the execution of the XFILE statement in BHT-BASIC.

“2: BHT Protocol”:

Selects the BHT-protocol when uploading/downloading in System Mode
or for the execution of the XFILE statement in BHT-BASIC.

“3: BHT-Ir Protocol”:

Selects the BHT-Ir protocol when uploading/downloading in System Mode or for the execution of the
XFILE statement in BHT-BASIC.

To make changes, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight the setting item,
and then press the ENT key.
To use the BHT-BASIC 4.0 Transfer Utility, select Ymodem or BHT-Ir protocol.
Press the C key to return to the SET COMMUNICATION menu.

77

Barcode Handy Terminal

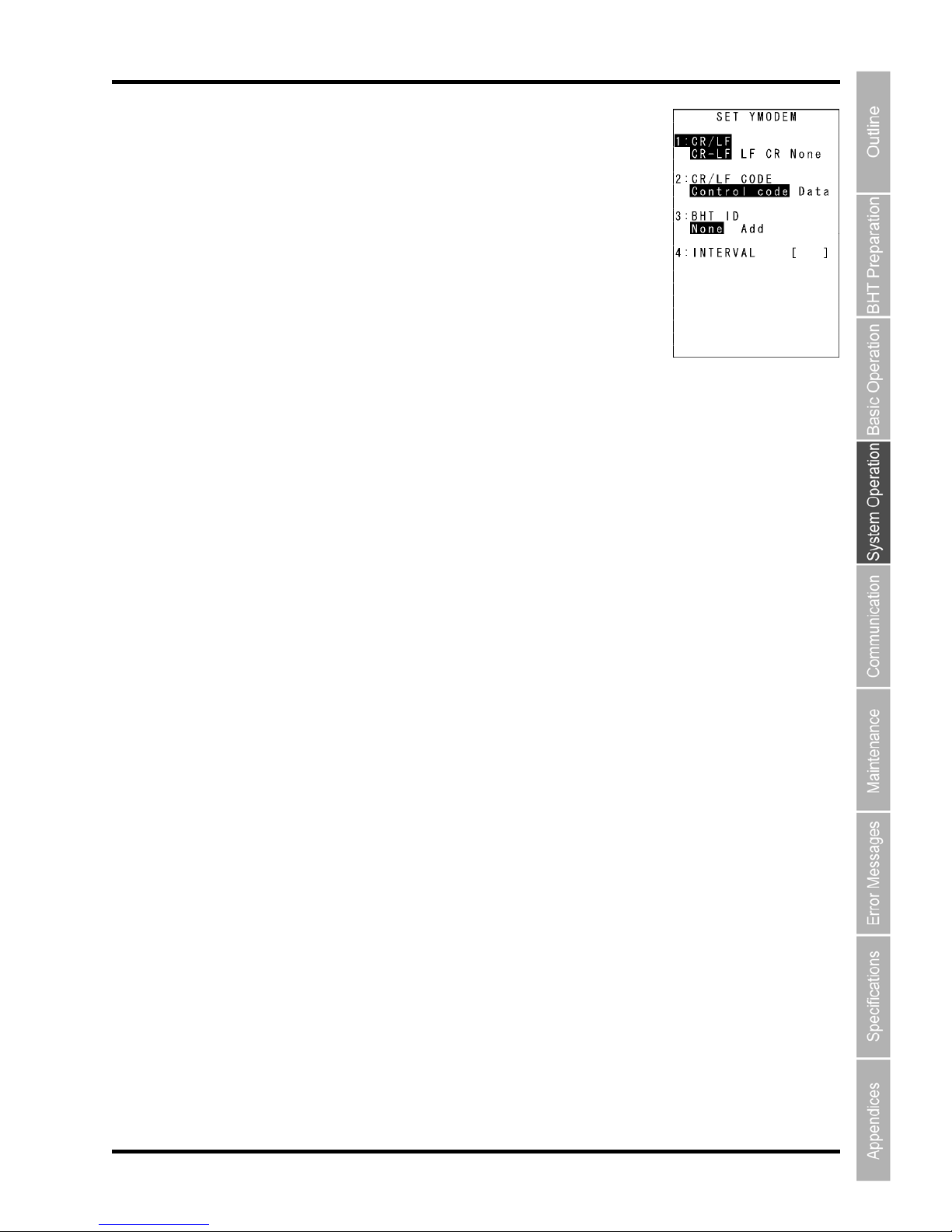

Select “1: Ymodem” at the PROTOCOL TYPE menu to display the screen
on the right.
The highlighted settings

will be the current settings.

“1: CR/LF”:

Specifies line delimiters.

“2: CR/LF CODE”:

Specifies handling for line delimiters in records when data files are
downloaded.

“Control code”:

Does not handle line-break codes as data.
(Handles as record delimiters.)

“Data”:

Handles line-break codes as data.

“3: BHT ID”:

Specifies whether or not to add the BHT ID number to packets when performing YMODEM transfer.
“None” should normally be selected. To add the BHT ID number to the transfer tool, select “Add”. (This
setting is not supported. Changing this setting has no result.)

“4: INTERVAL”:

Specifies the retry interval within a range of 1 to 255 in units of 100 ms.

To make changes, use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4]) to highlight the item to
be set, highlight the setting value using the cursor keys ([◄] [►]), and then press the ENT key.
For “4: INTERVAL”, press the ENT key to change to entry mode.
The cursor displays, allowing the previous setting to be deleted by pressing the BS key.
Enter a new setting values with the numerical keys and press the ENT key.

Press the C key to return to the SET COMMUNICATION menu.

78

BHT-604BW

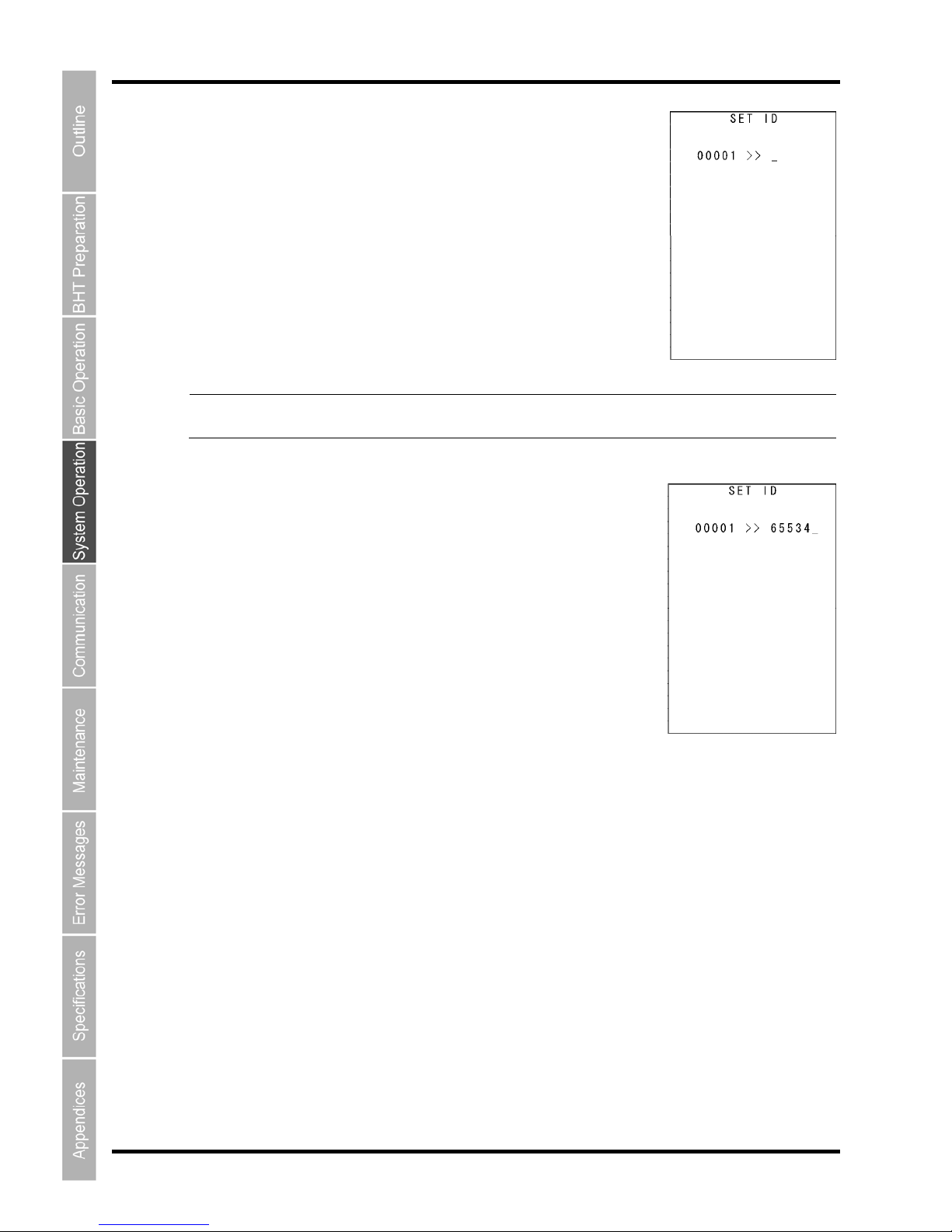

Select “3: BHT-Ir Protocol” at the PROTOCOL TYPE menu to display the
screen on the right.

Enter the ID n

umber of the

BHT using the numerical keys and then press
the ENT key. If there is no need to edit the current setting, press the ENT
key only.

- Point - ID numbers should consist of a five-digit decimal character string. The entry range is from

00001 to 65534. If the entry value is less than five digits, the ENT key will be invalid.

If an incorrect entry is made, press the BS key to delete it and then enter
the correct data.
Press the C key to return to the SET COM

MUNICATION menu.

79

Barcode Handy Terminal

[6] Defining the functions of the Shift key and Magic keys

Use the following procedure to change the key settings.

1. Select “6: KEY” at the SET SYSTEM menu and then press the ENT

key.

The SET KEY menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5] [6]

[7]) to highlight the item to be set, and then press the ENT key.

“1: SHIFT KEY”: Displays the SF key definition screen.
“2: M1 KEY”: Displays the M1 key definition screen.
“3: M2 KEY”: Displays the M2 key definition screen.
“4: M3 KEY”: Displays the M3 (left-hand trigger

switch) key definition screen.
“5: M4 KEY”: Displays the M4 (right-hand trigger
switch) key definition screen.
“6: M5 KEY”: Displays the M5 key ( ) definition screen.
“7: M6 KEY”: Displays the M6 key ( ) definition screen.

Refer to the following section for details of the above items.
Press the C key to return to the SET COMMUNICATION menu.

 “1:SHIFT KEY”: Defining the Shift key function

1. Select “1: SHIFT KEY” at the SET KEY menu and then press the

ENT key.

The SET SHIFT KEY menu screen displays as shown on the right.
The highlighted setting will be the current setting.

“1: Nonlock”: Shifts the keypad only when the SF key is held down.
“2: Onetime”: Shifts only the key pressed immediately after the SF

key is pressed. (The following keys will not be shifted.)

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight

the item to be set, and then press the ENT key.

The selected item will be set and the screen will return to the SET KEY menu.

80

BHT-604BW

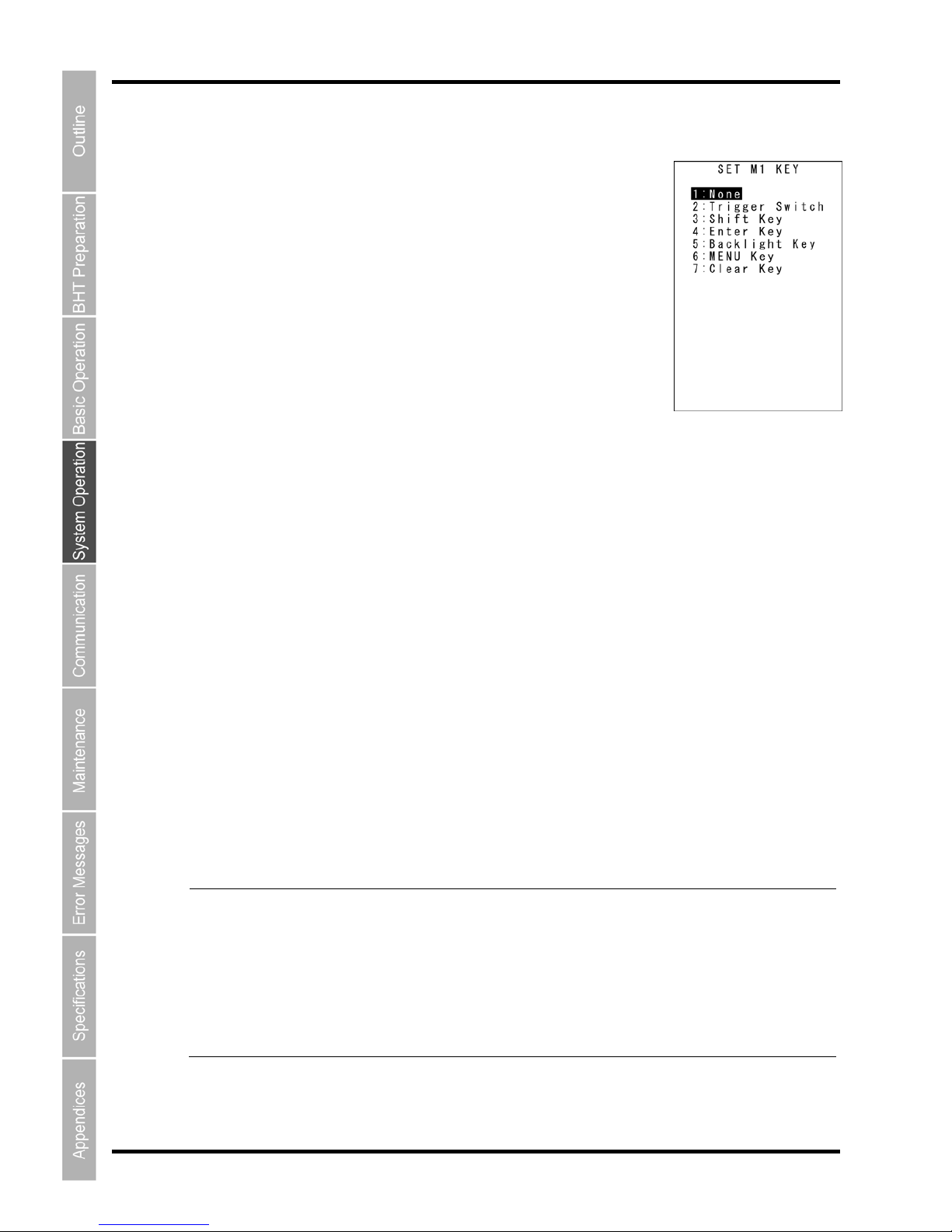

 “2: M1 KEY” - ”7: M6 KEY”: Defining the Mx key functions

1. Select “2: M1 KEY” to “7: M6 KEY” at the SET KEY menu and then

press the ENT key.

The SET Mx KEY menu screen displays as shown on the right.
(In the example on the right, “2: M1 KEY” has been selected.)
The highlighted setting will be the current setting.

“1: None”:

Key entry will be ignored.

“2: Trigger Switch”:

Sets the magic key as the trigger switch.

“3: Shift Key”:

Sets the magic key as the SF key.

“4: Enter Key”:

Sets the magic key as the ENT key.

“5: Backlight Key”:

Sets the magic key as the backlight function ON/OFF key.

“6: MENU”:

Sets the magic key as a key used to start up the “Beeper/Vibrator/Backlight Adjustment Screen”.

“7: Clear Key”:

Sets the magic key as the C key.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5] [6] [7]) to highlight the item to

be set, and then press the ENT key.

The selected item will be set and the screen will return to the SET KEY menu.

 Magic keys (M1 to M6)

Magic keys (M1 to M6) can be set to function as the trigger switch, SF key, ENT key, backlight function
ON/OFF key, MENU key or C key.
If the M1 key is defined as the backlight function ON/OFF key, pressing the M1 key enables or disables
the backlight function.
In user programs, data strings can be also assigned to these magic keys.
Magic keys M3 and M4 are set as the trigger switch by default.

- Point -

The backlight function ON/OFF key can be assigned only to one of the magic keys fr om M1
to M6. The key defined more recently will act as the backlight function ON/OFF key and the
previously defined key will be ignored.

If, for example, the M1 and M2 keys are defined as the backlight function ON/OFF key in this
order, the M2 key will function as the backlight function ON/OFF key and the M1 key entry
will be ignored.

On the other hand, if the M2 and M1 keys are defined as the backlight function ON/OFF key
in this order, the M1 key will function as the backlight function ON/OFF key and the M2 key
entry will be ignored.

81

Barcode Handy Terminal

[7] Setting the resume function

Use the following procedure to set the resume function.

1. Select “7: RESUME” at the SET SYSTEM menu and then press the

ENT key.

The SET RESUME menu screen displays as shown on the right.
The highlighted setting will be the current setting.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to change

the setting and press the ENT key.

Press the C key to return to the SET SYSTEM menu.

“1: ON”: Enables the resume function.
“2: OFF”: Disables the resume function.

- Note - The resume function is used to return the BHT status (screen) when the power is turned ON

to the status at the point the power was turned OFF.

[8] Defragmenting the drive

Use the following procedure to defragment the drive.

1. Select “8: DEFRAG” at the SET SYSTEM menu and then press the

ENT key.

The screen displays as shown on the right and the defragmentation process
is performed for the entire user area.
The screen returns to the SYSTEM MENU when defragmentation is
complete.

Defragmentation reorganizes the user area in order to increase the amount
of available space.
If defragmented, the BHT may download files more efficiently than before
performing defragmentation.

82

BHT-604BW

[9] Setting the TCP/IP, FTP and DHCP

Use the following procedure to change the TCP/IP, FTP and DHCP settings.

1. Select “9: TCP/IP” at the SET SYSTEM menu and then press the

ENT key.

The SET TCP/IP menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to

highlight the item to be set, and then press the ENT key.

“1: SET TCP/IP”: Changes the TCP/IP setting.
“2: SET FTP”: Changes the FTP setting.
“3: SET DHCP”: Changes the DHCP setting.

Refer to the following section for details of the above items.
Press the C key to return to the SET SYSTEM menu.

 “1: SET TCP/IP”: Setting the TCP/IP

1. Select “1: SET TCP/IP” at the SET TCP/IP menu and then press the

ENT key.

The SET TCP/IP menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight

the item to be set, and then press the ENT key.

Press the C key to return to the SET TCP/IP menu.

“1: DEVICE”: Setting the TCP/IP device

Select “1: DEVICE” at the SET TCP/IP menu to display the screen on the
right where the current settings are displayed.

“1: TCP/IP DEVICE”: TCP/IP communication device
“2: LINK LAYER”: Link layer

Press the C key to return to the SET TCP/IP menu.

83

Barcode Handy Terminal

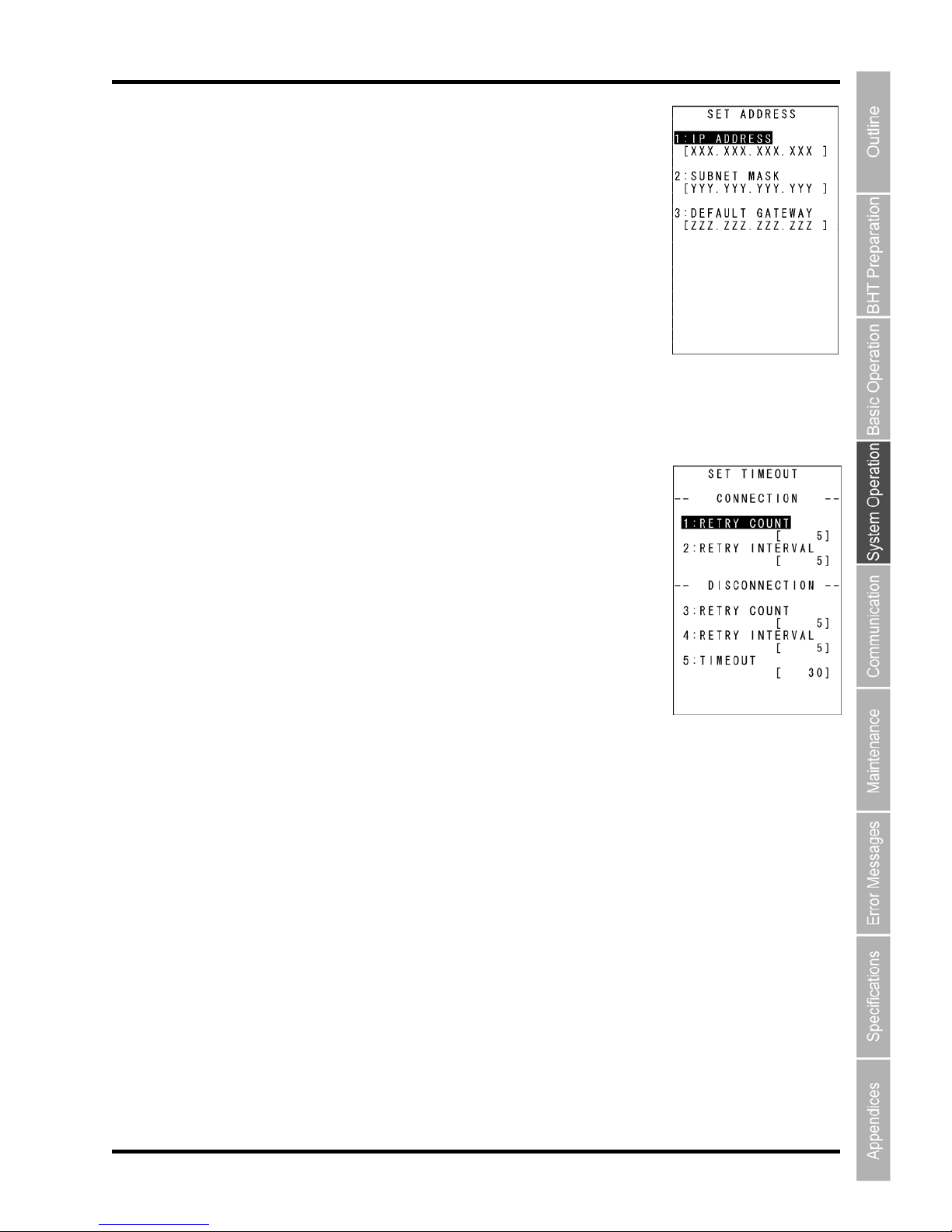

“2: IP ADDRESS”: Setting the IP address

Select “2: IP ADDRESS” at the SET TCP/IP menu to display the screen on
the right where the current settings are displayed.

To change the setting:
(1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3]) to highlight

the item to be set and press the ENT key.

(2) The mode changes to entry mode and the cursor displays, allowing the

setting to be entered with the numerical keys and dot key.
To delete a single character, press the BS key. To delete the entire
entry, press the C key.

(3) Enter the desired value and then press the ENT key.

If the IP address, subnet mask and default gateway are all set to [0.0.0.0], DHCP is enabled.
Press the C key to return to the SET TCP/IP menu.

“3: TIMEOUT”: Setting the timeout (only when COM1 selected)

Select “3: TIMEOUT” at the SET TCP/IP menu to display the screen on the
right where the current settings are displayed.

To change the setting:
(1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [

2] [3] [4] [5]) to

highlight the item to be set and press the ENT key.

(2) The mode changes to entry mode and the cursor displays, allowing the

setting to be entered with the numerical keys and dot key.
To delete a single character, press the BS key. To delete the entire entry,
press the C key.

(3) Enter the desired value, and then press the ENT key.

Press the C key to return to the SET TCP/IP menu.

84

BHT-604BW

 Setting the FTP

1. Select “2: SET FTP” at the SET TCP/IP menu and then press the

ENT key.

The SET FTP menu screen displays as shown on the right.

2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight

the item to be set, and then press the ENT key.

Press the C key to return to the SET TCP/IP menu.

“1: SERVER”: Setting the FTP server connection environment

Select “1: SERVER” at the SET FTP menu to display the screen on the right
where the current settings are displayed.

“1: SERVER IP”:

Sets the IP address for the FTP server.

“2: USER ID”:

Sets the user name.

“3: PASSWORD”:

Sets the password.

“4: DEFAULT DIR”:

Specifies an initial directory through which the FTP server will
search for files for transfer first when the FTP client establishes a
connection to the server.

To change the setting:
(1) Use the cursor keys ([

▲] [▼]) or numerical keys ([1] [2] [3] [4]) to

highlight the item to be set and press the ENT key.

(2) The mode changes to entry mode and the cursor displays, allowing the

setting to be entered with the numerical keys and dot key.
Press the SF and the BS key to change the entry mode (numeric entry
(with no guidance display) and alphabet entry).
To delete a single character, press the BS key. To delete the entire
entry, press the C key.

(3) Enter the desired value, and then press the ENT key.

Press the C key to return to the SET FTP menu.

85

Barcode Handy Terminal

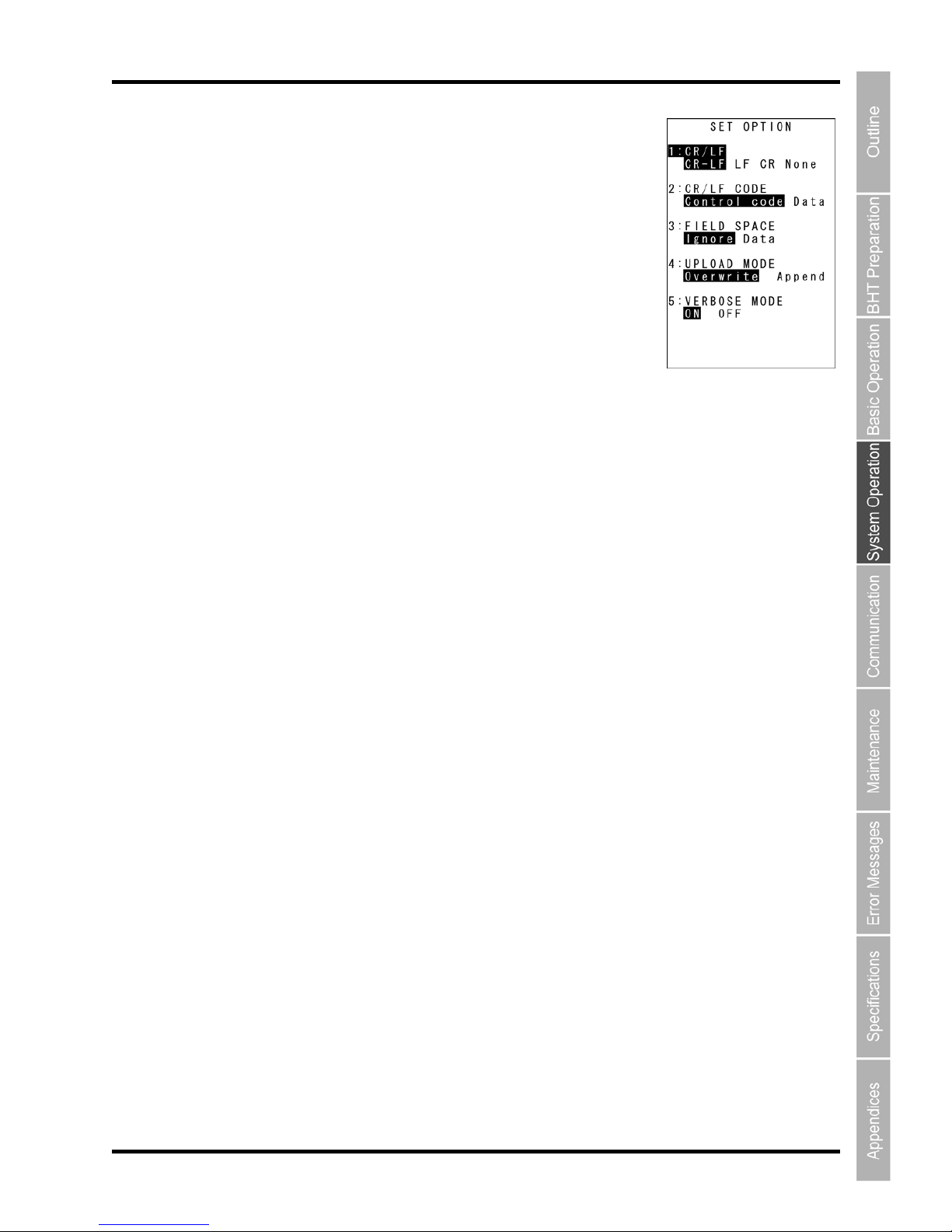

“2: OPTION”: Setting the FTP options

Select “2: OPTION” at the SET FTP menu to display the screen on the right
w

here the current settings are displayed.

“1: CR/LF”:

Specifies line delimiters that should match ones used in the server OS.

“2: CR/LF CODE”:

Specifies the treatment of line delimiters in records when data files are
downloaded.

“Control code”: Does not handle line-break codes as data.

(Handles as record delimiters.)

“Data”: Handles line-break codes as data.

“3: FIELD SPACE”:

Specifies the treatment of trailing spaces in fields.

“Ignore”: Trims trailing spaces in fields.
“Data”: Retains trailing spaces as data.

“4: UPLOAD MODE”:

Specifies handling for trailing spaces in fields.

”Overwrite”: Uploaded files will be written over the existing files
“Append”: Uploaded files will be appended to the existing files.

“5: VERBOSE MODE”:

Specifies the command response display when using FTP.

“ON”: Displays a message to the response (number) from the FTP server when the BHT (FTP

client) outputs a message.

“OFF”: Displays only messages output by the BHT (FTP client).

Refer to “FTP Download/Upload Messages” at section “4.5.8 Downloading/Uploading Files by FTP (FTP
MENU)” for messages output by the BHT (FTP client).
Refer to “Response Messages from the FTP Server” at section “4.5.8 Downloading/Uploading Files by
FTP (FTP MENU)” for messages to responses (numbers) from the FTP server.

To change the setting:
(1) Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2] [3] [4] [5]) to

highlight the item to be set and press the ENT key.
(2) Use the cursor keys ([◄] [►]) to highlight each setting value.
(3) Press the ENT key.

Press the C key to return to the SET FTP menu.

86

BHT-604BW

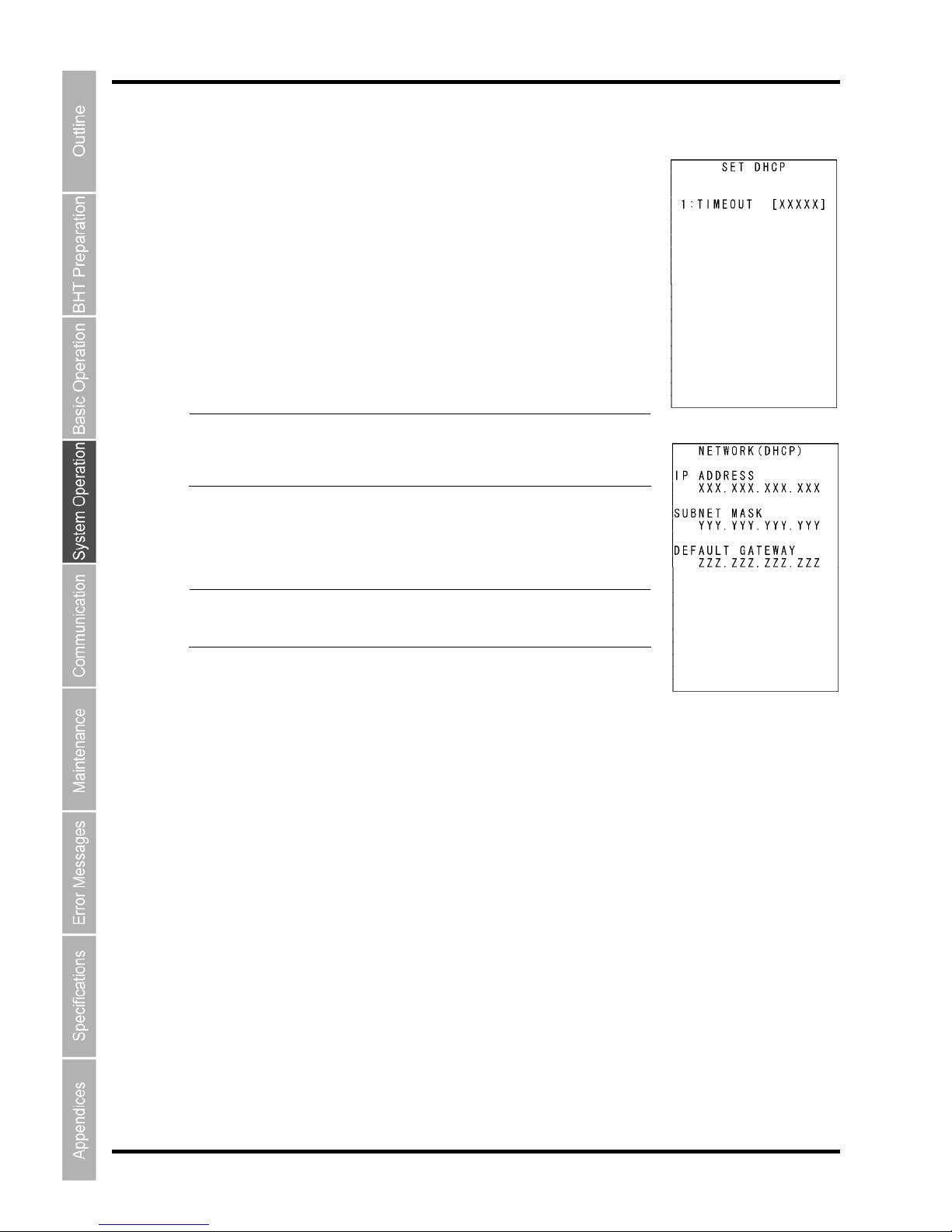

 Setting the DHCP

1. Select “3: DHCP” at the SET TCP/IP menu and then press the ENT

key.

The SET DHCP screen displays as shown on the right.
The highlighted setting will be the current setting.
Press the C key to return to the SET TCP/IP menu.

Press the dot key while holding down the SF key at the SET DHCP menu to
display the NETWORK (DHCP) screen (acquisition check screen for IP
address at DHCP).
Press the C key at the NETWORK (DHCP) screen to return to the SET
DHCP screen.

- Point - If the acquired IP configuration is displayed when the IP

address, subnet mask or default gateway is set to a value
other than ”0.0.0.0”, the DHCP does not display on the screen
shown on the right.

C key / SF key + [.] key

“1: TIMEOUT”:

Sets the timeout for acquiring the IP configuration from the DHCP
server. The entry range is from 00001 to 32767 seconds.

- Point - Up to 32767 seconds can be entered, but in actual oper ation,

a maximum of 190 seconds is available since the number o

f

retries and retry intervals are determined by the system.

To set the DHCP:
(1) Press the ENT key.
(2) The mode changes to entry mode and the cursor displays, allowing the

setting to be entered with the numerical keys.

To delete a single character, press the BS key. To delete the entire entry,

press the C key.
(3) Enter the desired value, and then press the ENT key.

Press the C key to return to the SET FTP menu.
