Denso BHT-470BWB-CE, BHT-420BWB-CE, BHT-420BB-CE, BHT-470BB-CE, BHT-400BWB-CE Operator's Manual

BHT

-

400B

B-CE

BHT

-

400BW

B-CE

This guide has been

prepared expressly for the
hands-on user.
Always keep it nearby for

speedy reference.

Operator’s Guide

2

If you leave the BHT with the battery cartridge discharged or with no battery cartridge
loaded or if you replace the battery cartridge in a wrong way, the BHT may lose the
data stored in it.

Before cold booting (refer to "Warm and Cold Booting"), it is recommended that
important data be saved into the FLASH folder or uploaded to the host computer. Cold
booting will erase all data stored in the RAM.

All products and company names mentioned in this manual are trademarks or
registered trademarks of their respective holders.

The latest precision manufacturing technology yields LCD panels whose pixels are

99.99% defect free. The downside, note, is that up to 0.01% of the pixels can
remain permanently dark or lit on today's state-of-the-art panels.

A thin Newton's rings (rainbow-like patterns) may appear on the touch panel.
This does not necessarily indicate a problem with the touch panel.

Bluetooth® is a trademark owned by its proprietor. DENSO WAVE uses Bluetooth®
wireless technology under license.

? DENSO WAVE INCORPORATED does not assume any product liability arising

out of, or in connection with, the application or use of any product, circuit, or
application described herein.

? If it is judged by DENSO WAVE INCORPORATED that malfunction of the product

is due to the product having been dropped or subjected to impact, repairs will be
made at a reasonable charge even within the warranty period.

? Intellectual Property Precaution
DENSO WAVE INCORPORATED ("DENSO WAVE") takes reasonable

precautions to ensure its products do not infringe upon any patent of other
intellectual property rights of other(s), but DENSO WAVE cannot be responsible
for any patent or other intellectual property right infringement(s) or violation(s)
which arise from (i) the use of DENSO WAVE's product(s) in connection or in
combination with other component(s), product(s), data processing system(s) or
equipment or software not supplied from DENSO WAVE; (ii) the use of DENSO
WAVE's products in a manner for which the same were not intended nor
designed; or (iii) any modification of DENSO WAVE's products by other(s) than
DENSO WAVE.

3

Product Name

BHT-400BB- CE/400BWB-CE series has following models, and this operator's Guide
is for following models.

The difference of each model is shown on following table.

Key type Radio Interface

Series Model name

31-key 50-key

Wireless LAN

(IEEE 802.11b/g)

Bluetooth

®

Technology

BHT-420BB-CE

○

○

BHT-400BB-CE

BHT-470BB-CE

○

○

BHT-420BWB-CE

○

○

○

BHT-400BWB-CE

BHT-470BWB-CE

○

○

○

Related Publications

BHT-400BB-CE/400BWB-CE User's Manual

(This manual can be downloaded from

our Web site given below.)

Instructions for using the handy terminal (BHT-400BB-CE/400BWB- CE) and optical
communication unit (CU-400).

BHT-400-CE API Reference Manual

(This manual can be downloaded from our Web site

given below.)

Description for developing application programs for the handy terminal in Microsoft
eMbedded Visual C++ 4.0.

DENSO WAVE INCORPORATED http://www.denso-wave.com/

4

Contents

SAFETY PRECAUTIONS...................................................................................................5

Components and Functions............................................................................................... 10

Operating the Touch Screen ..............................................................................................14

Windows Desktop on the LCD........................................................................................... 14

Reading Bar Codes.......................................................................................................... 15

Using Radio Link and Bluetooth® Wireless Communication Link.......................................... 17

Using Infrared Link........................................................................................................... 18

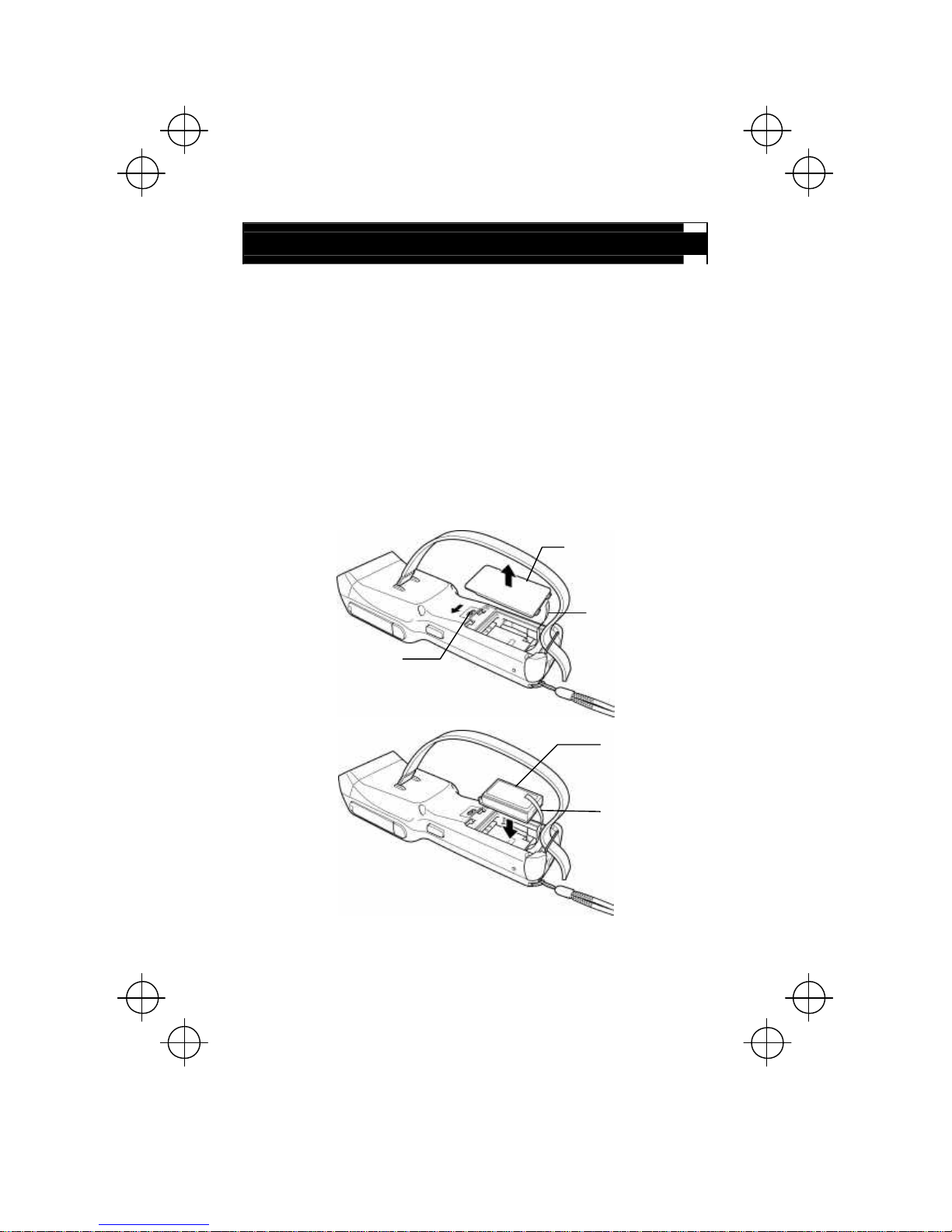

Loading the Battery Cartridge............................................................................................ 19

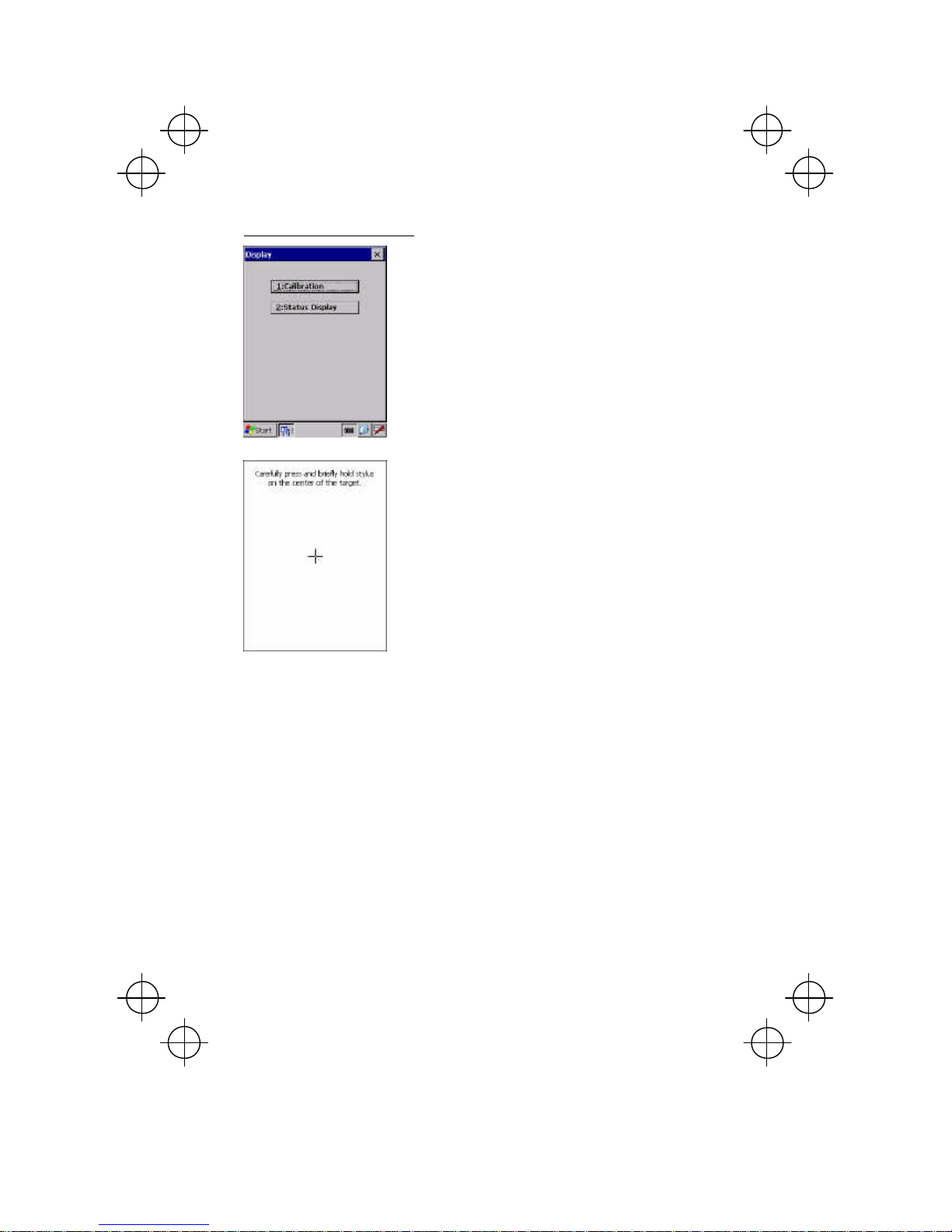

Calibrating the Touch Screen............................................................................................ 21

BHT Turning-off Notes...................................................................................................... 22

Battery Replacement Notes.............................................................................................. 23

Warm and Cold Booting.................................................................................................... 24

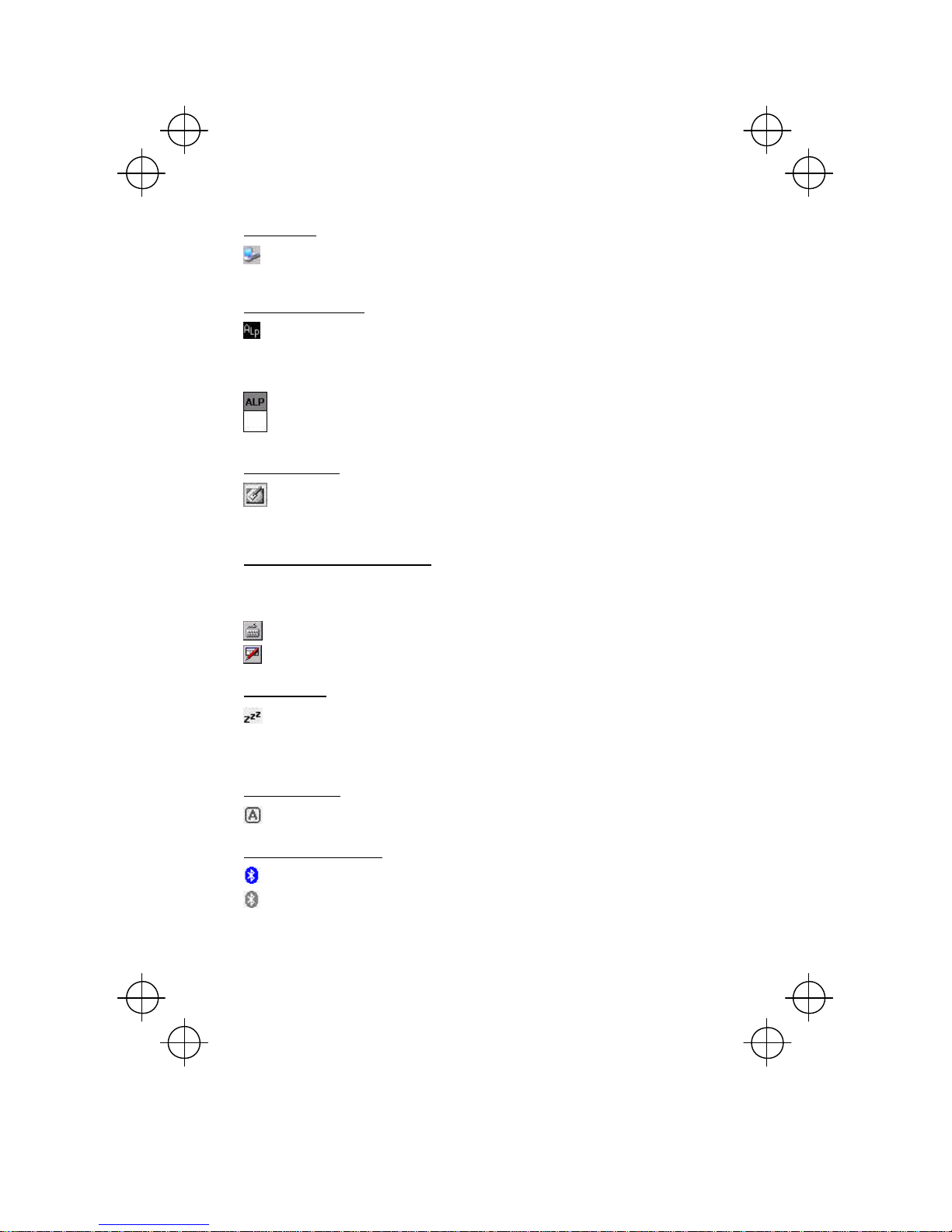

About Status Indic ators.....................................................................................................26

Setting the Backlight......................................................................................................... 28

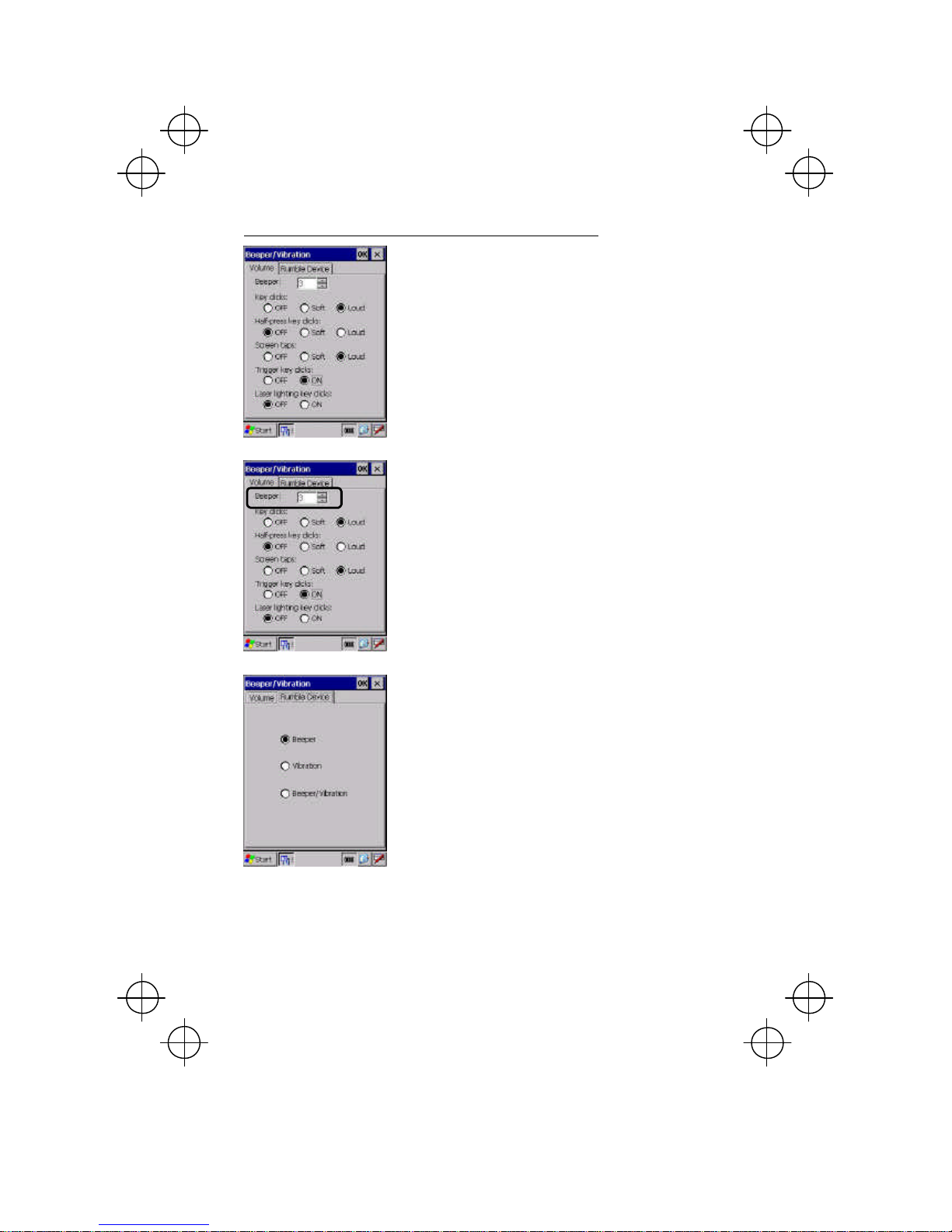

Adjusting the Beeper Volume, Switching the Beeper & Vibrator, Calibrating the Touch Screen,

and Setting the Backlight.................................................................................................. 29

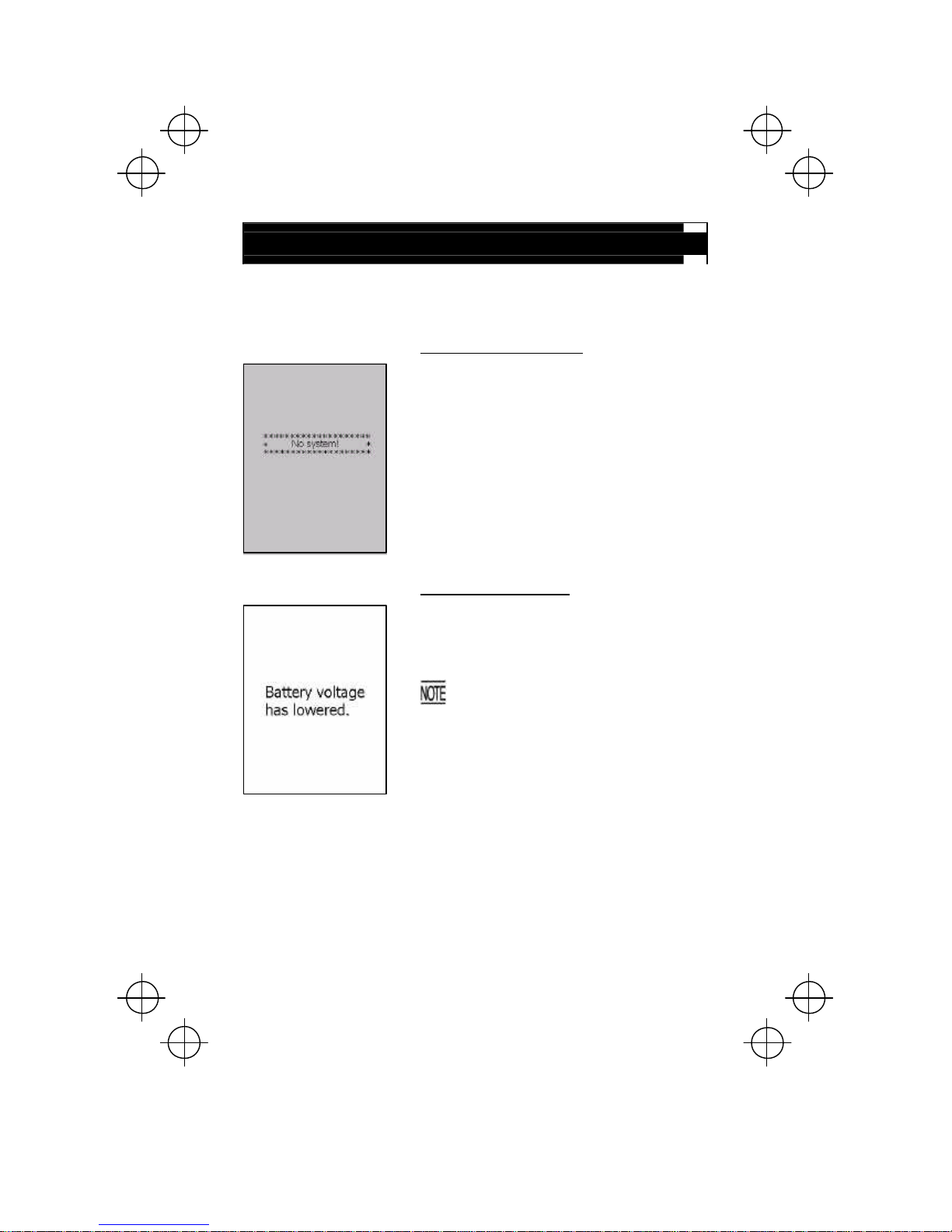

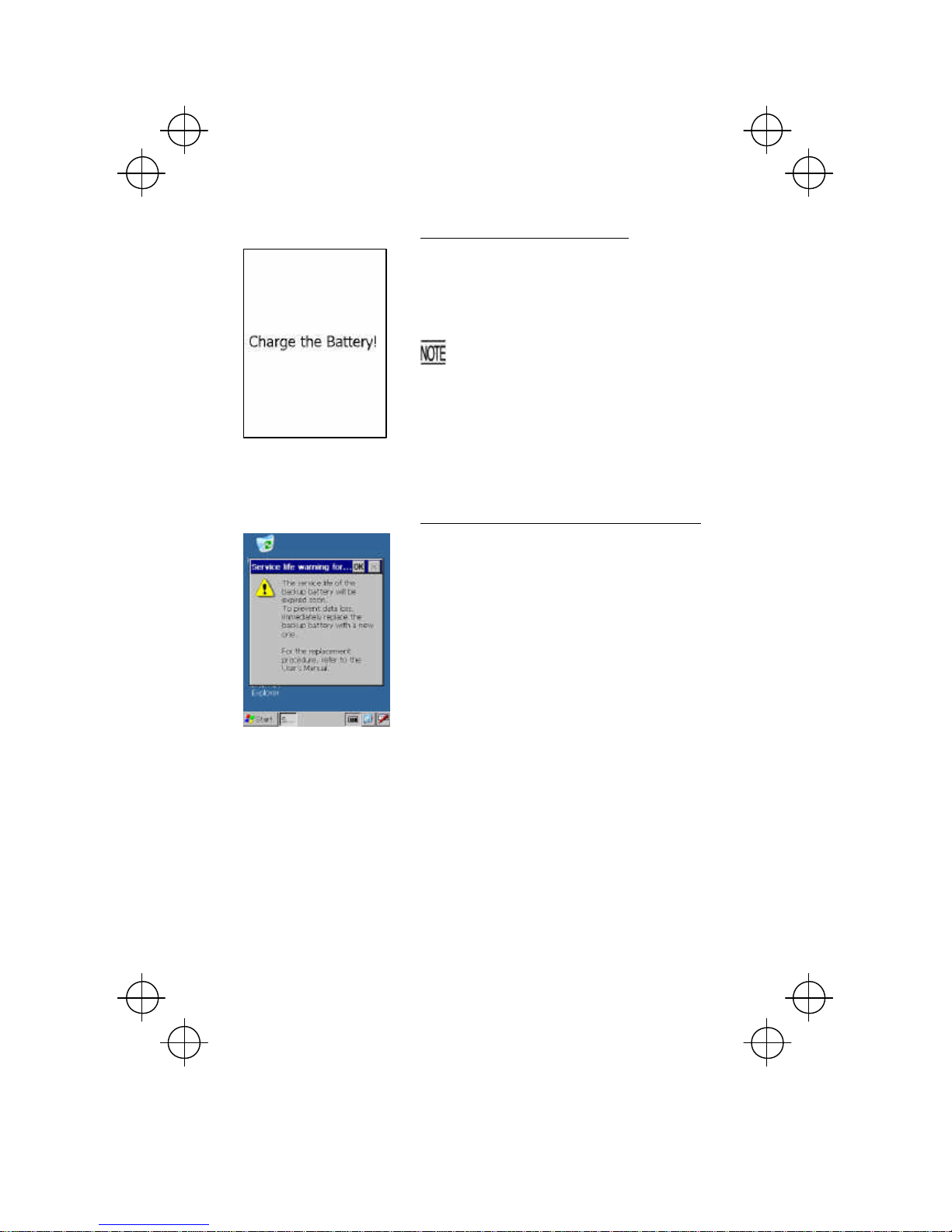

Error Messages................................................................................................................ 34

Proper Care of the BHT .................................................................................................... 36

Handling Notes................................................................................................................. 37

Declaration of Conformity (For European Union)................................................................ 39

Customer Registration...................................................................................................... 39

5

SAFETY PRECAUTIONS

Be sure to observe all these safety precautions.

Strict observance of these warning and caution indications are a MUST for
preventing accidents which could result in bodily injury and substantial property
damage. Make sure you fully understand all definitions of these terms and related
symbols given below, before you proceed on to the text itself.

Alerts you to those conditions which could cause
serious bodily injury or death if the instructions are
not followed correctly.

Alerts you to those conditions which could cause
minor bodily injury or substantial property damage if
the instructions are not followed correctly.

Meaning of Symbols

A triangle (

) with a picture inside alerts you to a warning of danger.

Here you see the warning for electrical shock.
A diagonal line through a circle (

) alerts you to something you should

not do; it may or may not have a picture inside. Here you see a

screwdriver inside the circle, meaning that you should not disassemble.
A black circle (

) with a picture inside alerts you to something you

MUST do. This example shows that you MUST unplug the power cord.

6

Handling the battery cartridge

?

Only use the dedicated charger for charging the rechargeable battery

cartridge.
Using a different type of charger could cause battery-rupture or

leakage of battery fluid and result in a fire, bodily injury, or serious
damage to property.

?

Never disassemble or heat the rechargeable battery cartridge, nor

put it into fire or water; doing so could cause battery-rupture or
leakage of battery fluid, resulting in a fire or bodily injury.

?

Do not carry or store the battery cartridge together with metallic

ballpoint pens, necklaces, coins, hairpins, etc.
Doing so could short-circuit the terminal pins, causing the batteries to

rupture or the battery fluid to leak, resulting in a fire or bodily injury.

?

Avoid dropping the battery cartridge or letting it undergo any shock or

impact.
Doing so could cause the batteries to break, generate heat, rupture

or burn.

?

Never charge the rechargeable battery cartridge where any

inflammable gases may be emitted; doing so could cause fire.

7

Handling the BHT

?

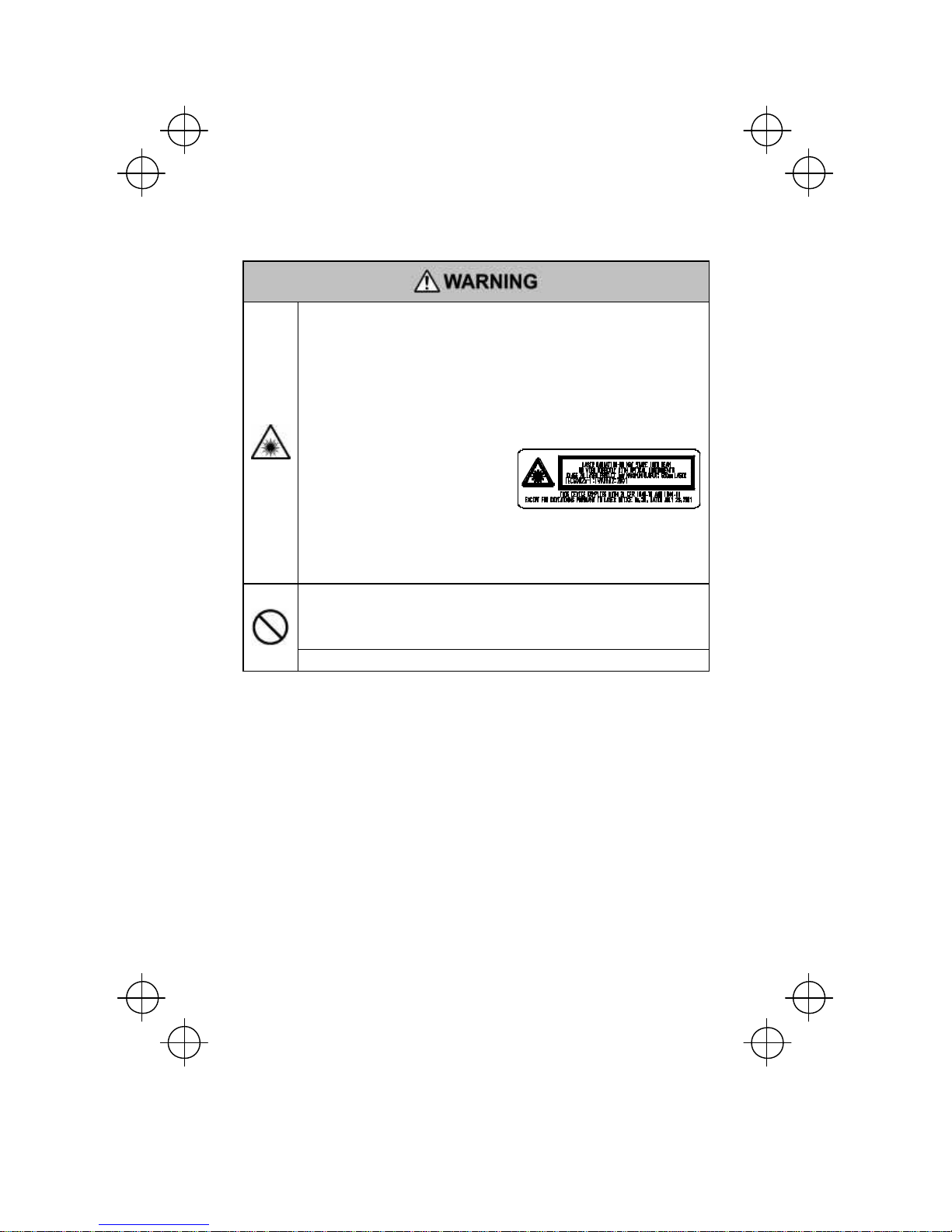

The BHT uses a laser light for indicating the scanning range. The

intensity of the laser light might be too low to inflict bodily injury.
However, do not look into the laser beam or view directly with optical

instruments.
The BHT complies with IEC 60825-1:1993+A2:2001.
In accordance with Clause 8 and 9, IEC 60825-1, the following

information is provided to the user:

Caution - Use of controls or adjustments or performance of

procedures other than those specified herein may result in

hazardous laser light exposure.

?

Do not look into the light source through the reading window or point

the light source towards the eyes.
The light emitted through the reading window is harmful to the eyes.

• Do not poke at the eyes with the stylus that comes with the BHT.

LASER RADIATION

DO NOT STARE INTO BEAM OR VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS

CLASS 2M LASER PRODUCT

8

Handling the rechargeable cartridge

?

Never charge a wet or damp rechargeable battery cartridge.

Doing so could cause the batteries to break, generate heat, rupture

or burn.

Handling the BHT

?

If smoke, abnormal odors or noises come from the BHT, immediately

turn off the power, pull out the battery cartridge, and contact your

nearest dealer.

Failure to do so could cause smoke or fire.

?

If foreign material or water gets into the BHT, immediately turn off the

power, pull out the battery cartridge, and contact your nearest dealer.

Failure to do so could cause smoke or fire.

?

If you drop the BHT so as to damage its housing, immediately turn off

the power, pull out the battery cartridge, and contact your nearest

dealer.

Failure to do so could cause smoke or fire.

?

Do not use batteries or power sources other than the specified ones;

doing so could generate heat or cause malfunction.

Never

disas-

sembly

• Never disassemble or modify the BHT; doing so could result in an

accident such as break or fire.

• Never put the BHT in places where there are excessively high

temperatures, such as inside closed-up automobiles, or in places

exposed to direct sunlight.
Doing so could affect the housing or parts, resulting in a fire.

• Avoid using the BHT in extremely humid or dusty areas, or where

there are drastic temperature changes.
Moisture or dust will get into the BHT, resulting in malfunction, fire or

electrical shock.

9

• In environments where static electricity can build into significant

charges (e.g., if you wipe off the plastic plate with a dry cloth), do not

operate the BHT. Doing so will result in malfunction or machine

failure.

• Touch (tap) the LCD only with the stylus that comes with the BHT.
Using the tip of a pen or any pointed object will result in a damaged

or broken LCD.

??Limited Warranty on Software Products

In no event will DENSO WAVE INCORPORATED be liable for direct, indirect,
special, incidental, or consequential damages (including imaginary profits or
damages resulting from interruption of operation or loss of business information)
resulting from any defect in the software or its documentation or resulting from

inability to apply the software or its documentation.

10

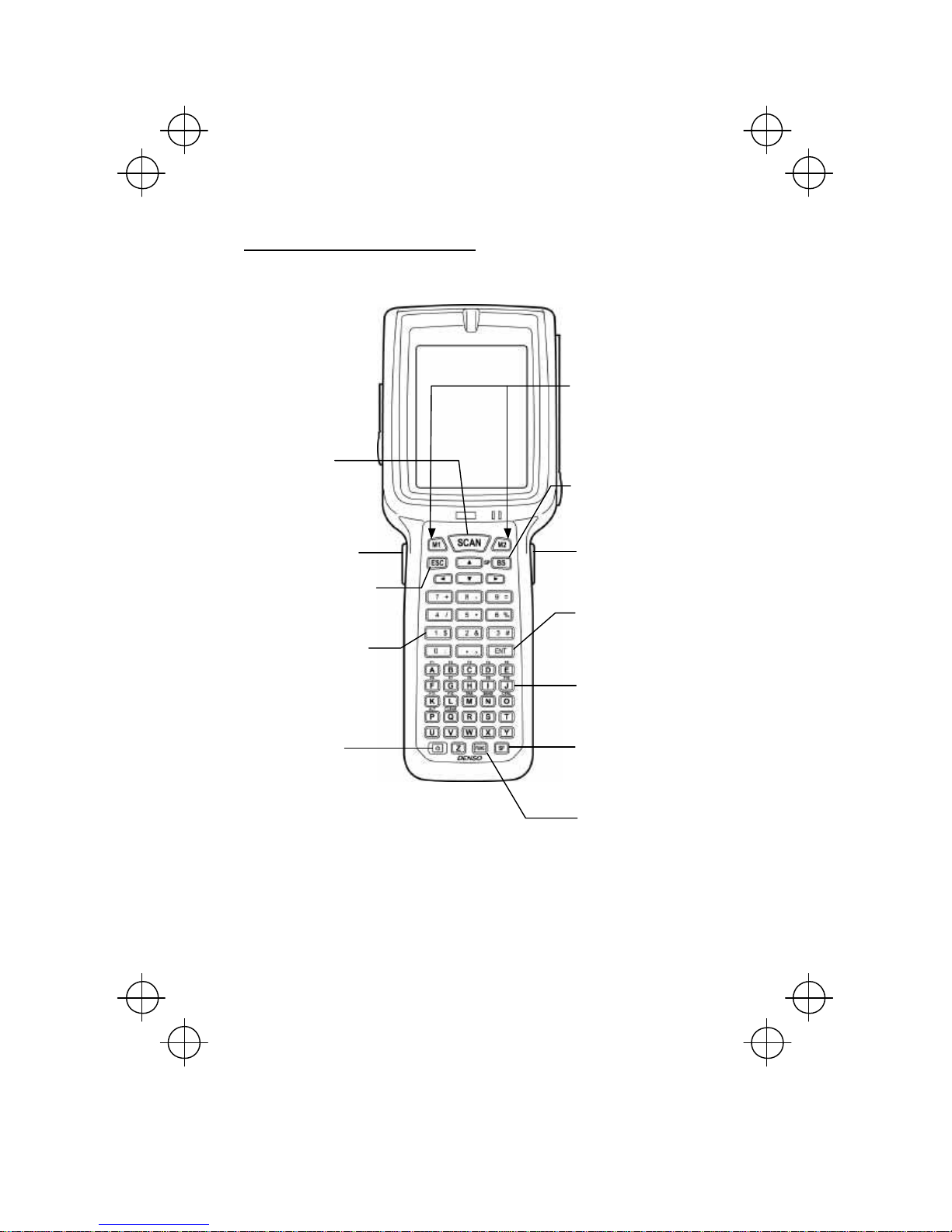

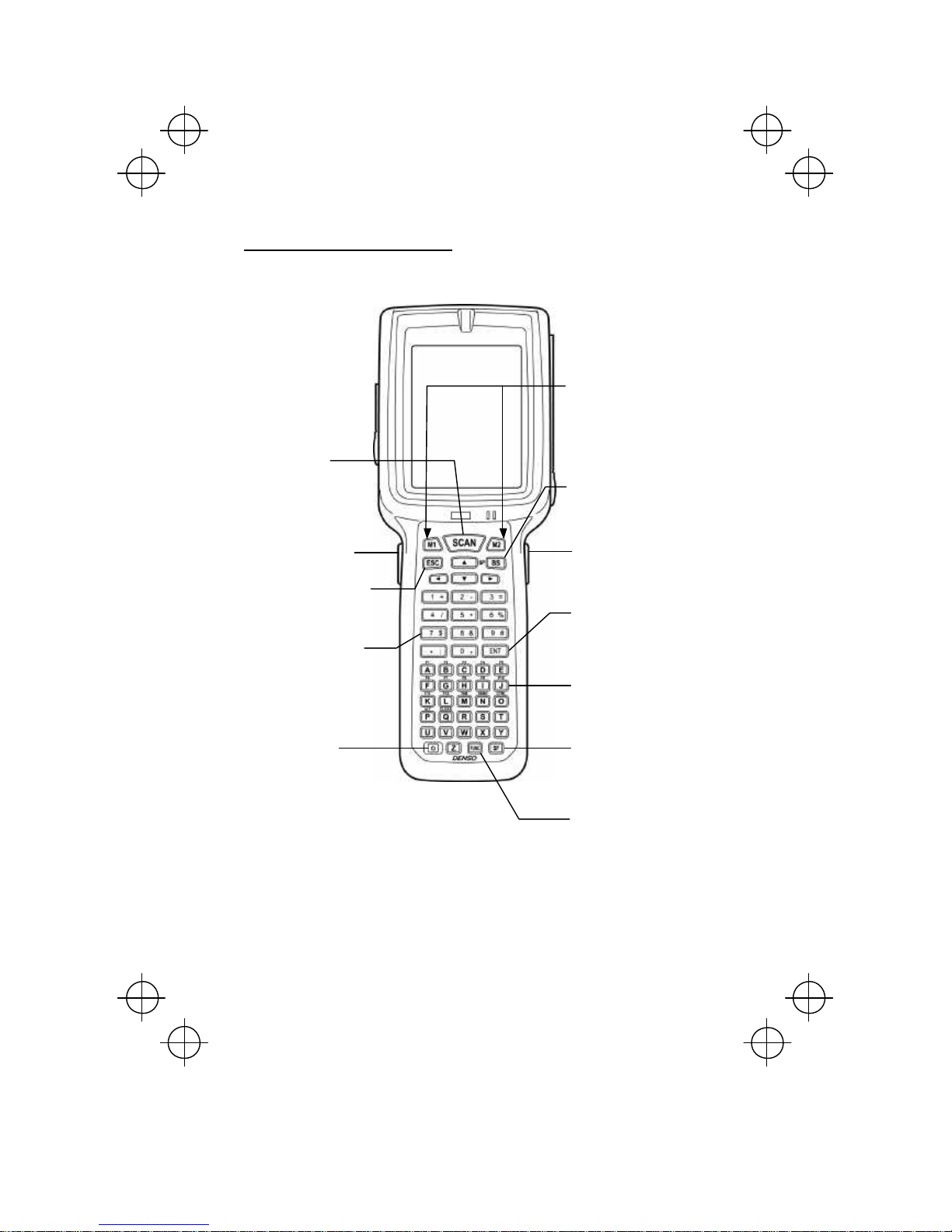

Components and Functions

Indi

cator LED

Illuminates in blue when the BHT has
successfully read a bar code.

Touch screen LCD

(liquid crystal display)

Shows the characters and graphic patterns. You may directly

tap

the screen with the stylus for data entry.

Reading

window

Interface port

USB and RS-232C interfaces

Trigger switch

(M3 key)

Press this switch to start bar code reading.

• Press this halfway to emit a laser light.

• Press this fully to scan a bar code.

Trigger switch

(M4

key)

Press this switch to start bar code reading.

• Press this halfway to emit a laser light.

• Press this fully to scan a bar code.

R

eset

button

IrDA

interface port

Used to exchange
data/programs with the host
computer via its integrated IR
port or via the optical
communication unit CU-400.

Hand strap

Be sure to put your
hand through this
strap to prevent

you

from dropping the
BHT accidentally.

Stylus

Rechargeable battery

cartridge

Main power source of the
BHT.

Hand b

elt Built-in antenna

*

（

for Wireless LAN）

Do not cov er this
antenna section with
metal-evaporated

tape or by hand.

Doing so may result in
communications
failures.

Battery cartridge cover

Remove this cover to
replace the battery
cartridge.

CompactFlash card slot

Insert an optional CompactFlash card

into this memory extension slot.

Charge LED

Illuminates in red during charging and turns green
at completion of charging.

*Provided on the BHT

-

400BWB

-CE

Built-in antenna

（

for Bluetooth）

11

31-key pad

ENT (Enter) key

Finalizes the inputted data or
operations, and starts the

corresponding processing.

Numerical keys

Used for data input.

Magic keys (M1 to M4)

Other functions, such as SF key and
ENT key functions, can be assigned

to Magic Keys (M1 to M4).

For details, refer to the
BHT-400B-CE/400BW -CE User’s
Manual.

ALP (Alphabet) key

Pressing this key switches
between the numeric entry and
alphabet entry modes.

Trigger switch

(M4 key)

Power key

Turns the BHT on or off.

Trigger switch

(M3 key)

C (Clear)

key

Pressing this key in
BHTSHELL returns to

the previous screen.

SF (Shift) key

Used in combination with other
keys for special input procedures.

BS (Backspace) key

Moves back one character.

Scan key

Also functions as a

trigger switch to scan

bar codes.

12

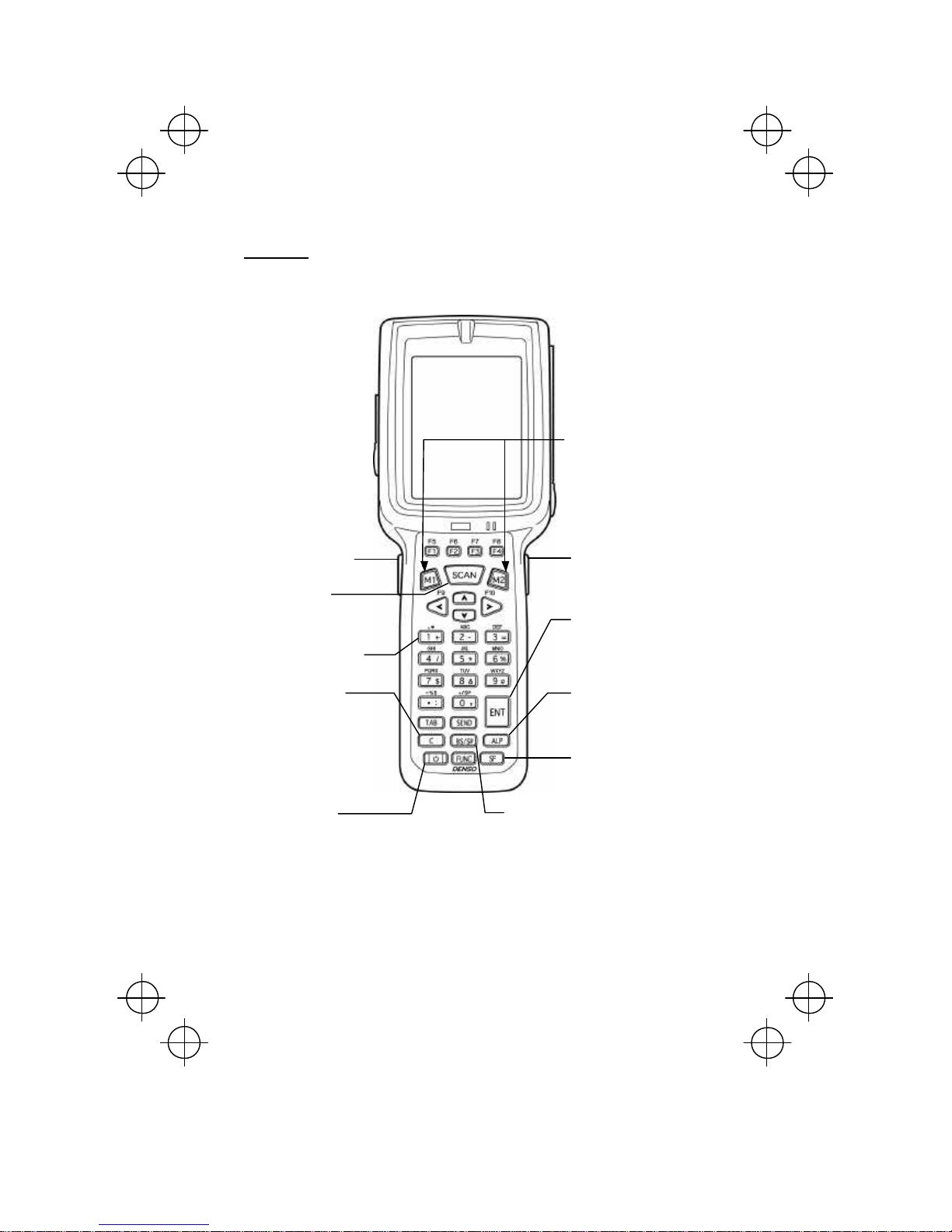

50-key pad (Phone-type key layout)

ENT (Enter) key

Finalizes the inputted data or
operations, and starts the
corresponding processing.

Numerical keys

Used for data input.

Magic keys (M1 to M4)

Other functions, such as SF key and
ENT key functions, can be assigned

to Magic Keys (M1 to M4).

For details, refer to the
BHT-400B-CE/400BW -CE User’s

Manual.

Alphabet keys

Used for data input.
When in function mode, the unit
functions as the symbol printed

on each key (e.g. F1, F2).

Trigger switch

(M4 key)

Power key

Turns the BHT on
or off.

Trigger switch

(M3 key)

SF (Shift) key

Used in combination with other
keys for special input procedures.

BS (Backspace) key

Moves back one character.

Scan key

Also functions as

a trigger switch to

scan bar codes.

ESC (Escape) key

FUNC (Function) key

Switches between key input
function mode and non-function
mode.

13

50-key pad (Calculator-type key layout)

ENT (Enter) key

Finalizes the inputted data or
operations, and starts the
corresponding processing.

Numerical keys

Used for data input.

Magic keys (M1 to M4)

Other functions, such as SF key and
ENT key functions, can be assigned

to Magic Keys (M1 to M4).

For details, refer to the
BHT-400B-CE/400BW -CE User’s
Manual.

Trigger switch

(M4 key)

Power key

Turns the BHT on

or off. Trigger switch

(M3 key)

SF (Shift) key

Used in combination with other
keys for special input procedures.

BS (Backspace) key

Moves back one character.

Scan key

Also functions as

a trigger switch to

scan bar codes.

ESC (Escape) key

Alphabet keys

Used for data input.
When in function mode, the unit
functions as the symbol printed
on each key (e.g. F1, F2).

FUNC (Function) key

Switches between key input
function mode and non-function
mode.

14

Operating the Touch Screen

You can perform tasks by tapping the elements on the touch screen LCD with the
stylus that comes with the BHT.

Action Description

Tap Refers to touching the LCD once.

(Functionally equivalent to "click" with a mouse on a PC.

Double-tap Refers to quickly touching the LCD twice.

(Functionally equivalent to "double-click" with a mouse on a PC.

Drag Refers to moving the stylus to the object while touching the

LCD.
(Functionally equivalent to "drag" with a mouse on a PC.

* Always use the stylus to operate the touch screen. Do not use your fingernails or any

pointed or hard object or apply a strong pressure or impact to the LCD.

* Before operation, clean the LCD surface and stylus if dirty. Using dirty ones will scratch

the LCD surface or prevent the stylus from sliding smoothly.

Windows Desktop on the LCD

The Windows desktop in the screens in this operator's guide may be a little different
from that in the actual screens on the LCD.

(Windows desktop sample)

This task tray also may be a little different from
that in the actual screens.

15

Reading Bar Codes

Turn the BHT on, bring the bar-code reading window to the bar code to be scanned,
and press the trigger switch. Pressing th e trigger switch halfway emits a laser light
to indicate the scanning range and pressing it fully turns on the illumination LED to
scan the bar code.

Bar codes can also be scanned by pressing the Scan key.
When the BHT has read the bar code successfully, the indicator LED will illuminate

in blue.

* The BHT can read bar codes at a maximum distance of 50 cm (19.7") from the reading

window. (*For details, refer to the BHT-400BB-CE/400BWB-CE User's Manual.)

Max. 50 cm (

19.7

")* Bar code scanning range

indicated

by the laser light

Indicator LED

Illuminates in blue when the
BHT has successfully read the

bar

code. Power

key Trigger

switch

(M3 key)

Trigger switch

(M4 key)

Scan key

16

?

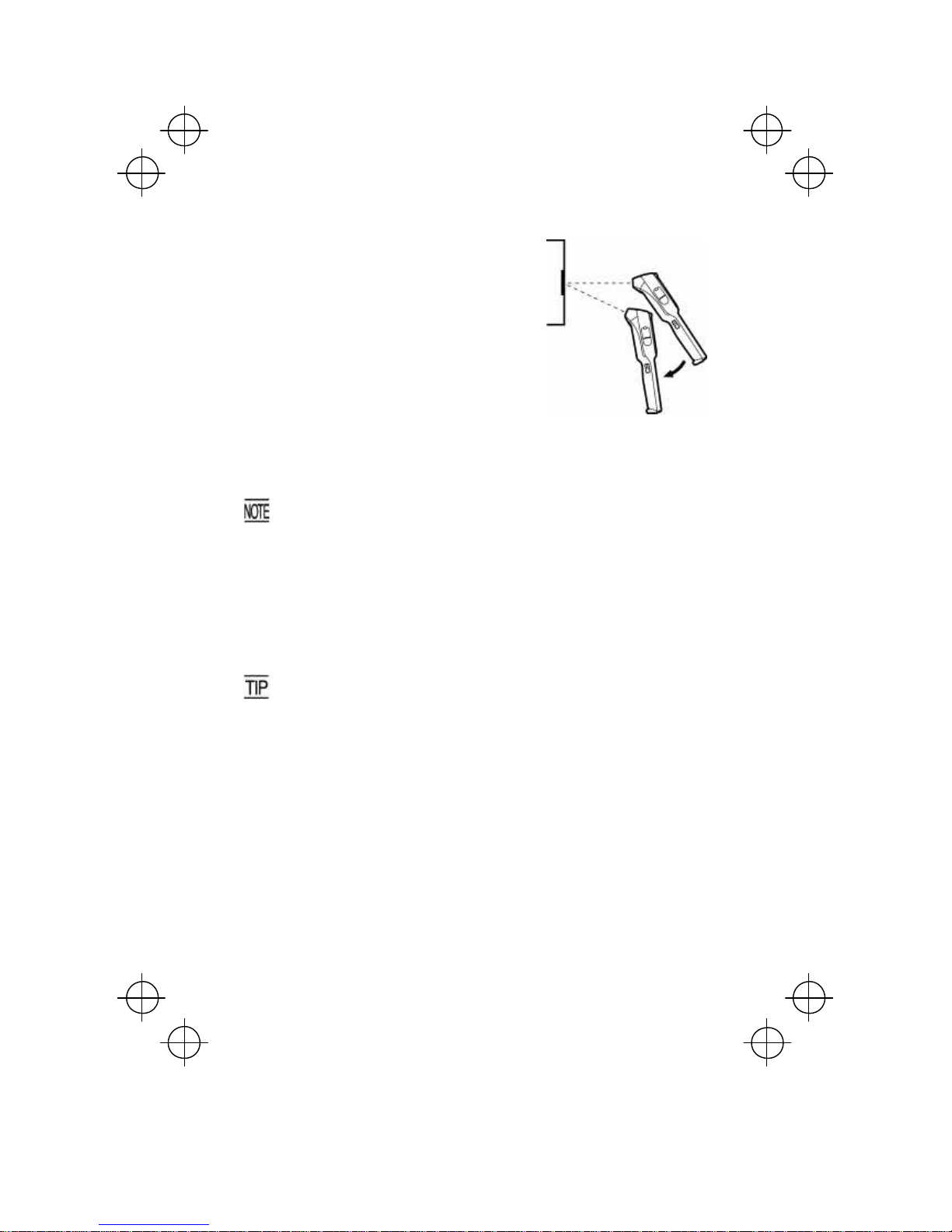

If the BHT fails to read due to specular effects or

other factors, change the scanning angle of the
reading window or the distance from codes as
shown at right, and try it again. (Specular effects
occur when the reflection of the light from the bar
code becomes excessively strong. This can easily
happen when the reflecting surface is polished or
covered with vinyl.)

?

The laser light indicates the scanning range as a

guide. The indicated scanning range will deviate a
little bit from the actual one. Keep the BHT so that
the laser light comes to almost the center of the
bar code height.

?

The bar code reading procedure may differ depending upon the application used,

so follow the application’s manual.

?

Before reading labels, clean them if stained.

?

Avoid using the BHT in direct sunlight. The BHT might fail to read

correctly.

?

To read bar codes on curved surfaces, apply the bar -

code reading window

to the center of each bar code at a right angle.

?

If you pull the bar-code rea

ding window away from bar codes, the actual

scanning range will become narrower than the range covered by

the

illumination LED.

The light intensity of the laser light or illumination LED will var

y

depending upon the scanning conditions and variation of its elements.

17

Using Radio Link and Bluetooth® Wireless

Communication Link

The BHT-400BB- CE/400BWB-CE supports spread spectrum communication.

• If there are too many communications errors, first make sure that the
BHT-400BB- CE/400BWB-CE points directly at an access point because the

2.4-GHz band requires a more or less straight line path. Note also that the
low-power radio waves have trouble passing through human bodies and other
obstacles along that path.

• This link will not operate properly in the vicinity of microwave ovens, industrial
heaters, high-frequency medical equipment, and other sources of radio waves in
the 2.4-GHz band.

• Electromagnetic noise from personal computers, refrigerators, and other home
appliances can also interfere with link operation.

• Environmental factors that can also interfere with link operation include large
metallic objects, metallic dust, or metallic walls in the vicinity of the path and
vibration at either end.

• In the vicinity of wireless LAN devices using radio waves in the 2.4 GHz band,
Bluetooth® wireless communication link operation may cause interference to radio
communications, resulting in decreased communications speed or
communications failures.

To System Designers:

•

Before developing the application, make sure that the intended

environment is free of the interference factors above and thus actually

capable of supporting link operation.

•

Assume that there will be communications failures requiring robust retry

capabilities in the software.

• When introducing the BHT link operation into an environment where
equipment using radio waves in the 2.4-

GHz band operates or when

introducing such

equipment after the introduction of the BHT link

operation, be sure to confirm that the BHT radio link operates properly

with all equipment being in operation beforehand.

•

If the environment of the radio communications system is changed after

the introdu

ction (e.g., newly installed household appliances and

movement/addition of shelves or objects), then confirm that the radio

link

operates properly again before the actual use.

18

Using Infrared Link

??CU- 400

Make sure that the BHT is securely in the CU-400.

Shield the IrDA

interface from direct sunlight, ambient intense lighting

(inverter-driven fluorescent lighting, in particular), and other potential
sources of infrared radiation. Sources to watch out for include remote
control units for television sets and the like.

19

Loading the Battery Cartridge

Before the first use of the BHT, be sure to load the battery cartridge as shown below.
The battery cartridge is not loaded in the BHT when shipped from the factory.

(1) Turn the BHT upside down.
(2) Slide the release buttons in the direction shown below and remove the battery

cartridge cover.
(3) Push the battery cartridge into the BHT.
(To remove it, first make sure that the BHT is turned off. Slide the release

buttons, remove the battery cartridge cover, and pull up the battery pull strap.)
(4) Set the battery cartridge cover back into place and slide the release buttons to

the original position.
(5) Place the BHT on the CU-400 to charge the rechargeable battery cartridge.

Battery pull strap

Battery cartridge

Release button

Battery cartridge cover

Battery pull strap

20

• The BHT integrates a rechargeable backup power source which backs up
the memory and calendar clock in the BHT when no battery cartridge is
loaded or the voltage level of the battery cartridge drops below the
specified level. The backup power source is automatically charged by the
battery cartridge.

When you first load the battery cartridge after purchase or you load it

after leaving the BHT

unused for a long time, do not remove the battery

cartridge for at least 48 hours after that loading. This is for charging

the

memory backup source integrated in the BHT.

• For handling notes to be observed at the time of battery replacement,

refer

to the "Battery Replacement Notes" on page 20.

21

Calibrating the Touch Screen

At the first use of the BHT, you need to calibrate the touch screen and set up the
calendar clock. Press the power key to turn on the BHT. The calibration screen
appears, so follow the on-screen instructions. If nothing appears, first perform a
"cold boot" (described on the "Warm and Cold Booting" on page 21).

?

Calibration screen

The "+" appears first at

the center of the screen as

shown at left.

Tap the center of the "+" with the stylus for one

second, and the "+" moves to the upper left. Tap its

center, and it moves to the bottom left.

This way, tapping the center of the "+" moves it,

starting from the c

enter of the screen to the upper

left, bottom left, bottom right and upper right in this

sequence.

During calibration, the power

key is

disabled. After completing the calibration,

press the power key.

?

After completion of the above calibration, press the

ENT

key or tap the screen. The calendar clock

setup screen will appear below at left.

Set the date, time, and time zone. Then tap the OK
button.

22

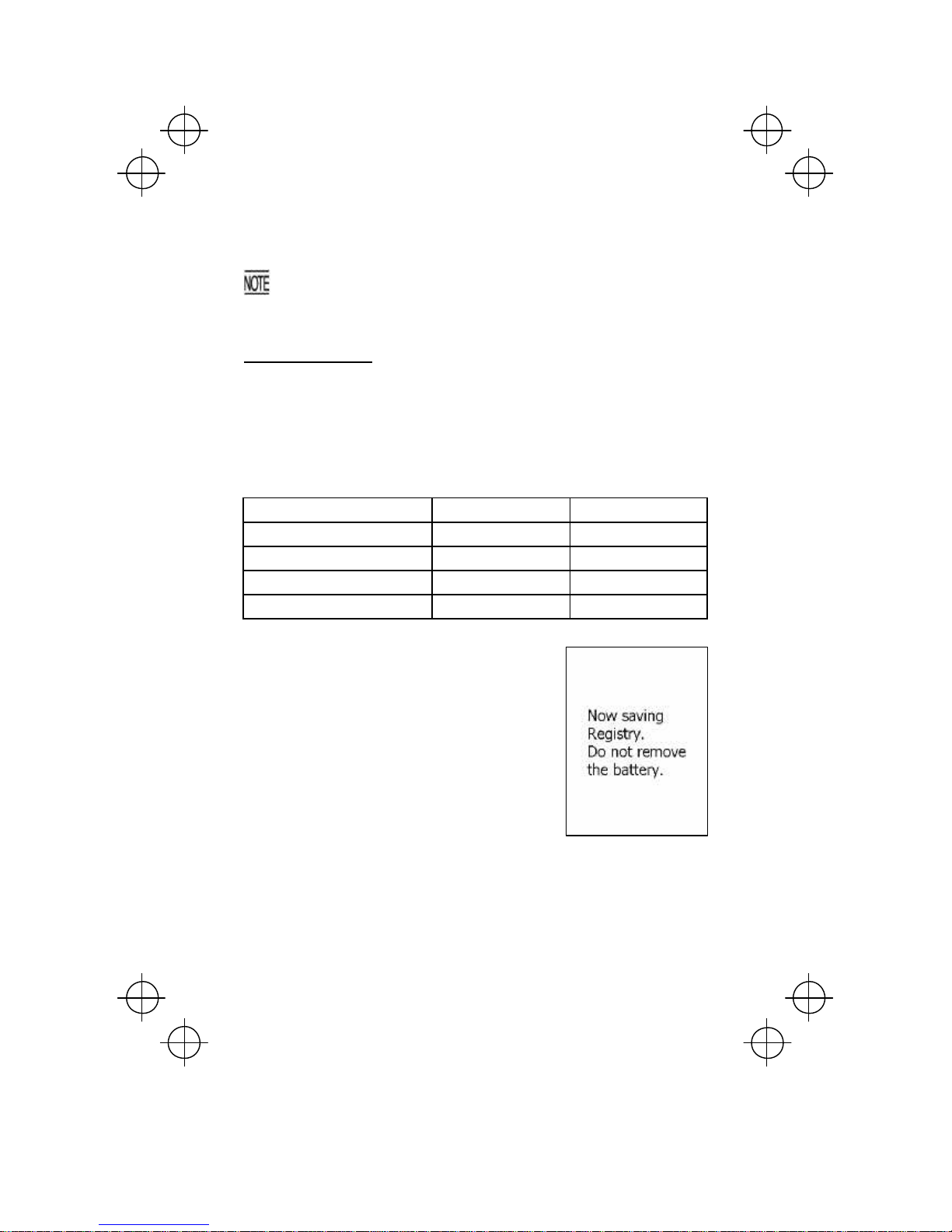

BHT Turning-off Notes

If you press the power key to turn off the BHT, the BHT displays the following
message and starts preparation for shutdown.

When the above message is displayed, do not remove the battery cartridge.
If you do so, the data stored in the BHT may be lost.

23

Battery Replacement Notes

??When is battery replacement needed?

If the "Charge the battery!" appears on the LCD, replace the rechargeable battery
cartridge with a fully charged one.

If you leave the BHT without replacing the rechargeable battery cartridge, the
integrated calendar clock and data stored in the BHT’s RAM can no longer be
backed up. The calendar clock may stop and RAM data may be lost.

• Be sure to turn the BHT off before battery replacement.

• Replace the bat tery cartridge quickly. Load a charged battery cartridge
within 3 minutes after the removal to avoid data loss.

• After battery replacement, turn the BHT on and check the BHT operation.

• If you leave the BHT with no battery cartridge loaded for a long tim

e, the

contents of the memory may no longer be backed up so that the data

stored in the BHT’ s

RAM may be lost. It is recommended that important

data be saved into the FLASH folder or uploaded to the host computer.

• The battery cartridge will gradually det

eriorate during the repeated cycles

of charging and discharging due to its properties. When the battery

operation period becomes shortened due to its deterioration even if it has

been charged for the specified hours, replace the battery cartridge with a

new one.

• Use only DENSO WAVE-authorized battery cartridges and chargers.

•

Never dispose of battery cartridges into a fire. They should be recycled

properly. Do not throw them in a trash.

24

Warm and Cold Booting

??Warm-booting the BHT

In any of the following cases, warm-boot the BHT:

• The BHT makes no response to entry from the touch screen or keys.

• The programs in the BHT malfunction due to any problems.

Warm-booting the BHT will not era

se data stored in the RAM, but it will

erase data being edited and not be saved.

Warm booting procedure
When the BHT is turned on, press the reset button with the stylus.

Stylus

Reset button

25

??Cold-booting the BHT

If a problem persists even after warm-booting the BHT, cold-boot the BHT.

Cold-

booting the BHT will erase all data stored in the RAM. It is

recommended that important data b

e saved into the FLASH folder or

uploaded to the host computer.

Cold booting procedure
Turn the BHT off. While holding down the reset button with the stylus, press the

power key and then release both buttons. Press the power key again, and the BHT
cold-boots.

??Contents of the memory after warm-/cold-booting the BHT

After warm booting After cold booting
Data in the FLASH folder Retained Retained
Data in other folders Retained Erased
Contents of the Registry Retained Erased

(Note)

Data being edited Erased E rased

(Note)

If the Registry has been backed up*, that backup will apply after cold booting.
* When the BHT is on, pressing the power

key

with the SF

key held down displays the screen

shown at right and starts backing up the

Registry.

26

About Status Indicators

Battery voltage level

Shows the current battery voltage level.

Displays when the voltage level is high.
Displays when the voltage level is low.

The displayed battery level shows the

terminal voltage of the battery cart

ridge, not

how much power is left.

The battery voltage level varies depending

upon the operation of the BHT, so the

displayed level also may vary.

Wireless Zero Configuration radio status

Indicates that the Wireless Zero
Configuration (WZC) radio is connected to a wireless network.
Indicates that the Wireless Zero
Configuration (WZC) radio is not connected to a wireless network.

Synchronization state (Provided on the BHT-400BWB-CE)

Displays the open state of the wireless device and the radio field intensity.

Displays when the wireless device is open.

Shows the radio field intensity with the number of bars.

Keypad shift state

Displays when the keypad is shifted.

Function key mode state

Displays when the function key is pressed.

Status indicators

27

ActiveSync

Displays when the BHT is communicating with the PC via Microsoft

ActiveSync.

Alphabet input state

Displays when the alphabet input function is act ivated.
(Pressing the ALP key

switches between the numeric entry and alphabet

entry modes.)

The ALP window appears when the alphabet input function is activated.

Pressing any numeric key displays the alphabet letter assigned to that key in

this ALP window.

Desktop display

Tapping this icon when an application program is running switches the screen

to the desktop display. Tapping it again returns to the application execution

screen.

Software keyboard display/hide

Shows whether the software keyboard is displayed or hidden.
(Tapping this icon toggles the software keyboard on and off.)

Displays when the software keyboard is displayed.
Displays when the software keyboard is hidden.

Standby state

Appears when the CPU comes to be on standby.

(This icon does not appear by default. You can display it by changing the

setting in System Menu or in user programs.)

Caps Lock state

Appears when the Caps Lock switch is pressed on the software keyboard.

Bluetooth® power state

Appears when the Bluetooth® device is powered on. (The icon color is blue.)
Appears when the Bluetooth® device is powered off. (The icon color is black.)

28

Setting the Backlight

Pressing the right-hand trigger switch (M4 key) with the SF key held down activates
or deactivates the backlight function.

In user programs, you can select the key to be used for

activating or

deactivating the backlight function (instead of the initial setting:
combination of SF key and right-hand trigger switch (M4)

), as well as

modifying the ON-duration of the back

light before the automatic

turning- off.

You can enable or disable the backlight function on the Backlight menu,

instead of pressing the backlight function on/off key. (For details, refer to

page 30.)

Backlight Off or Dim
(The backlight function is
Disable when you turn

the BHT power on.)

SF

key

Right-hand

trigger swi

tch

(M4)

Press the right-hand

trigger switch while

holding down SF .

Backlight Off or Dim
(The backlight function

is Enable.)

Back

light On

Press the right-hand

trigger switch while

holding down SF .

Press the
right-hand trigger
switch while
holding down SF .

If no key is

pressed for 3
seconds.*

Press any key (except for

the

simultaneous depression of

the right

-hand trigger switch
and SF) or tap the touch
screen.

*For one minute if the BHT is placed on the CU.

29

Adjusting the Beeper Volume,

Switching the Beeper & Vibrator,

Calibrating the Touch Screen, and

Setting the Backlight

You can adjust the beeper volume, switch the beeper and vibrator on and off,
calibrate the touch screen, and set the backlight according to the procedure below.

?

Double-tap BHTSHELL

on the desktop to call up

the System Menu.

Choose "3:System Properties."

30

?

Choose "3:Device."

?

The Device setting menu appears as shown at left.

31

Adjusting the beeper and switching the beeper and vibrator

Choosing "2:Beeper/Vibration"

on the Device

setting menu calls up the screen shown at left.

On this menu, you can adjust the beeper volume

and switch the beeper and vibrator.

Choosing the Volume tab calls up the screen

shown at left.
You can adjust the beeper volume to six levels

from

0 to 5. The greater the value, the higher the beeper

volume.

Choosing the Rumble Device tab calls up the

screen shown at left.
You may select any of three ways--

beeping only,

vibrating only, and combination of beeping and

vibrating as a confirmat

ion of completion of bar

code reading.
Beeper: Beeping only

Vibration: Vibrating only
Beeper/Vibration: Beeping and vibrating

32

Calibrating the touch screen

Choosing "3:Display" on the Device setting menu

calls up the screen shown at left.

Choosing "1:Calibration" on the Display setting

menu calls up the screen shown at left.

Follow the instructions on the screen. Refer to the

"Calibrating the Touch Screen."

33

Setting the backlight

Choosing "5:Backlight" on the Device setting menu

calls up the screen shown at left.

- Backlight function(*1)

Enable or disable the backlight function. If it is

enabled, the backlight comes on when you press

any key or tap the touch screen.

- Backlight On-duration

Set the ON-

duration of the backlight that comes on

when you press any key or tap the touch screen.
Battery Power: ON-

duration when the BHT is not

placed on the CU.

External Power: ON-

duration when the BHT is

placed on the CU.

- Brightness Level

Se

lect the desired brightness level from the

following four choices:
(Dark)

Off

↑

Low Bright

｜

Mid Bright

｜

High Bright

↓

(Bright)

(*1)

Pressing the backlight function on/off key (the initial

setting: the simultaneous depression of the SF

key

and right-hand trigger switch (M4

key)) toggles

between enabled and disabled states, regardless of the

backlight function setting made on this screen.

- Power Save Mode

Change the settings for turning off the backlight

after the BHT has not been used for a specified

period of time.
Off: The backlight turns off immediately.
Dim: The backlight remains on very dimly.

34

Error Messages

If some error occurs when the power is turned on or during program execution, one
of the following error messages will appear on the LCD.

System Program error

? Problem

A System Program error has occurred.

? Solution

Contact your system administrator.

Low battery warning

? Problem

When the BHT

is turned on or off or during

execution of program, the battery output level has
dropped below a specified lower limit.

If low battery is det

ected, the BHT displays

this

message for approx. 2 seconds and

beeps three

times (for 0.1 second per beep).

After that, it

will resume previous regular

operation.

? Solution

The battery cartridge will need to be

recharged

before long. Replace or recharge

the battery

cartridge.

35

Shutdown due to low battery

? Problem

When the power is turned on or off or during

execution of programs,

the battery output level has

lowered to the ex

tent the BHT can no longer

operate.

If lower battery is detected, the BHT beeps

five

times (for 0.1 second per beep) and

then turns

itself off. Depending upon the

battery level, the beeper may n

ot sound five

times.

? Solution

Replace or recharge the battery cartridge.

Service life warning for backup battery

? Problem

The backup battery has been charged/discharged

by the specified number of times so that the battery

capacity lowers below the specified level.

? Solution

Replace the backup battery. For the replacement
procedure, refer to the
BHT-400BB- CE/400BWB-CE User's Manual.

36

Proper Care of the BHT

Wipe the BHT's charge terminals and battery cartridge terminals with a cotton swab
or the like periodically. Clean the BHT housing with a dry, soft cloth. Before cleaning,
be sure to turn the BHT off.

?

Never use benzene, alcohol, or other

organic

solvents. The housing may be

marred or the

paint may come off.

?

Never rub or strike the liquid crystal

display

(LCD) with anything hard. The

LCD surface will

be easily scratched or broken.

?

When cleaning the keypad, do not

scrub the

surface too hard or

pull on the keys. Doing so

may break the keys.

?

If the BHT becomes smudged, wipe it with a soft cloth that has been moistened in

soapy water (always use neutral detergent) and wrung out thoroughly.

Dust or dirt accumulating on the clear plate of the bar-code reading window will
affect reading performance. If you use the BHT in dusty areas, therefore,
periodically check the clear plate of the bar-code reading window and clean it if
dusty.

?

To clean the plate, first blow the dust away with an airbrush. Then wipe the plate

with a cotton swab or the similar soft one gently.

?

If sand or hard particles have accumulated, never rub the plate; doing so will

scratch or damage it. Blow the particles away with an airbrush or a soft brush.

37

Handling Notes

?

An early upload of gathered data is recommended, since the data stored in the

RAM might be affected by the so-called "soft error" or other environmental
phenomena.

?

Do not use the BHT in the vicinity of radio equipment. The BHT may malfunction.

?

Avoid storing the battery cartridge in a hot place. The battery capacity may be

decreased.

?

Do not touch the battery cartridge terminals or BHT's charge terminals by hand or

stain them. Doing so could result in BHT's malfunction or cartridge charging
failure.

?

When connecting or disconnecting cables, do not plug or unplug at an angle and

do not pull them strongly. Doing so will result in a machine failure.

?

If the BHT has been stored in a hot (50?C to 60?C, 122?F to 140?F) and humid

place, allow it to sit at room temperature and humidity for at least one day before
use. Using the BHT with its inside being hot will fail to scan or result in a machine
failure.

?

If the stylus wears so that its tip becomes sharpened, replace it.

?

In environments where static electricity can build into significant charges, do not

operate the BHT. Doing so will result in malfunction or machine failure.

?

Avoid dropping the BHT or letting it undergo any shock or impact. Doing so will

break or damage the BHT.

?

If the "Charge the battery!" message appears after the BHT undergoes any shock

or impact, turn the BHT off and on and then check the battery output level. The
battery may not have run out.

?

Battery cartridges should be recycled properly in conformity with local codes and

regulations.

38

US and Canada Regulations

BHT-400BWB- CE(BHT-420BWB-CE/470BWB-CE) complies with Part 15 of FCC
rules and RSS-Gen of IC rules.

Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used on
accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct
the interference at his own expense.

NOTE: This Class A digital device apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du

Canada.
FCC WARNING: Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the
equipment.

CAUTION: Radio Frequency Radiation Exposure
The available scientific evidence does not show that any health problems are

associated with using low power wireless devices. There is no proof, however,
that these low power wireless devices are absolutely safe. Low power Wireless
devices emit low levels of radio frequency energy (RF) in the microwave range
while being used. Whereas high levels of RF can produce health effects (by
heating tissue), exposure to low -level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low -level RF exposures
have not found any biological effects. Some studies have suggested that some
biological effects might occur, but such findings have not been confirmed by
additional research. Barcode Handy Terminal (BHT-420BWB-CE,
BHT-470BWB- CE) has been tested and found to comply with FCC/IC radiation
exposure limits set forth for an uncontrolled equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of
the IC radio frequency (RF) Exposure rules. Please refer to the SAR test report
that was uploaded at FCC website.

Do not place hands or body near the antenna section to avoid RF exposure.
This transmitter must not be co-located or operated in conjunction with any other

antenna or transmitter.

39

Declaration of Conformity

(For European Union)

The radio frequency module that complies with the Directive 99/5/EC(R&TTE) is
mounted on this device (BHT-400BB-CE).

DECLARATION OF CONFORMITY

Directive 99/5/EC (R&TTE)

Manufacturer or
Authorized representative : DENSO WAVE INCORPORATED

Address :

1 -1 Showa - cho, Kariya -shi, Aichi -ken, 448- 8661, Japan

We declare on our sole responsibility, that the following product :

- Kind of equipment : Bluetooth Board

- Type-designation : DWBT007
is compliance with the essential requirement of §3 of the R&TTE.

- Health and safety requirements pursuant to §3(1)a :
Applied Standard(s) or other means of providing conformity :
EN60950-1

- Protection requirements concerning EMC §3(1)b :
Applied Standard(s) or other means of providing conformity :

EN301 489-1
EN301 489-17

- Measures for the effective use of the Radio frequency spectrum §3(2) :
Applied Standard(s) or other means of providing conformity :

EN300 328

CE marking

40

The radio frequency module that complies with th e Directive 99/5/EC(R&TTE) is
mounted on this device (BHT-400BWB- CE).

DECLARATION OF CONFORMITY

Directive 99/5/EC (R&TTE)

Manufacturer or
Authorized representative : DENSO WAVE INCORPORATED

Address :

1 -1 Showa - cho, Kariya -shi, Aichi -ken, 448- 8661, Japan

We declare on our sole responsibility, that the following product :

- Kind of equipment : Radio frequency module，Bluetooth Board

- Type-designation : WM-G-MR-01，DWBT007

is compliance with the essential requirement of §3 of the R&TTE.

- Health and safety requirements pursuant to §3(1)a :
Applied Standard(s) or other means of providing conformity :

EN60950-1

- Protection requirements concerning EMC §3(1)b :
Applied Standard(s) or other means of providing conformity :

EN301 489-1
EN301 489-17

- Measures for the effective use of the Radio frequency spectrum §3(2) :
Applied Standard(s) or other means of providing conformity :

EN300 328

CE marking

41

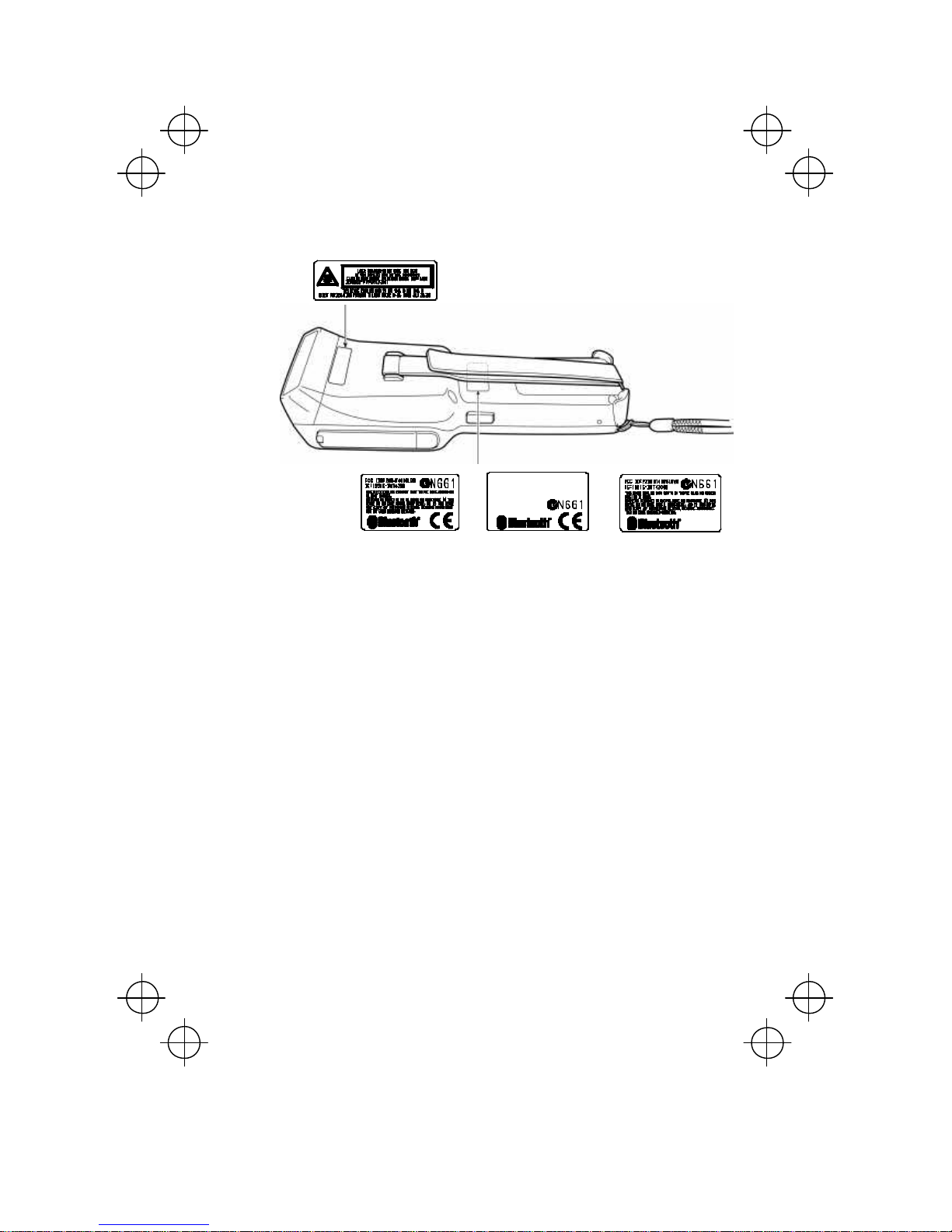

LABELING:

BHT-400BWB

（

For USA and Canada

）

BHT-400BB

BHT-400BWB

（

For European Union

）

42




Thank you for purchasing our product. We would like to offer you the following
support and assistance for your more convenient use of our products when you fill
out and submit the customer registration form.

Privileges of customer registration

1. Free upgrade information

2. Free exhibition and event information of new products

3. Free web-information service "QBnet."

"QBnet" Contents

●

Information searching

●

Download service

●

Inquiry with email

※

These are subject to change without notice.

How to Register

Through Internet at the following address

http://www.denso-wave.com/en/adcd/support/

After going into Internet, please access the above-mentioned URL address.

Customer Registration

4-2-12, Toranomon, Minato -ku, Tokyo, Japan 105-0001

http://www.denso-wave.com/

496487‑5231
