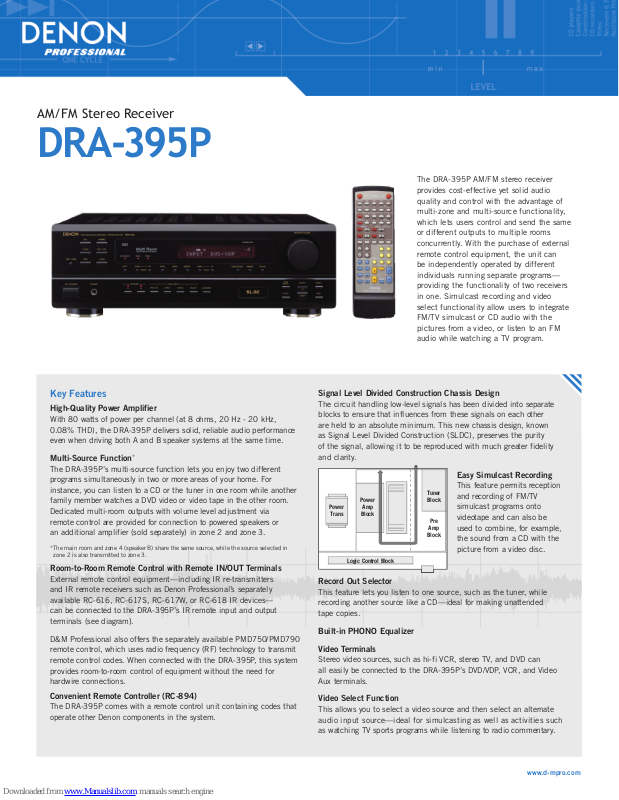

AM/FM Stereo Receiver
DRA-3 95P
The DRA-395P AM/FM stereo receiver
provides cost-effective yet solid audio
quality and control with the advantage of
multi-zone and multi-source functionality,
which lets users control and send the same
or different outputs to multiple rooms
concurrently. With the purchase of external
remote control equipment, the unit can
be independently operated by dif
individuals running separate programs—
providing the functionality of two receivers
in one. Simulcast recording and video
select functionality allow users to integrate
FM/TV simulcast or CD audio with the
pictures from a video, or listen to an FM
audio while watching a TV program.
ferent
Key Features
High-Quality Power Amplifier
With 80 watts of power per channel (at 8 ohms, 20 Hz - 20 kHz,
0.08% THD), the DRA-395P delivers solid, reliable audio performance
even when driving both A and B speaker systems at the same time.
Multi-Source Function
The DRA-395P’s multi-source function lets you enjoy two different
programs simultaneously in two or mor
instance, you can listen to a CD or the tuner in one room while another
family member watches a DVD video or video tape in the other room.
Dedicated multi-r
remote control are provided for connection to powered speakers or
an additional amplifier (sold separately) in zone 2 and zone 3.
*The main room and zone 4 (speaker B) share the same source, while the source selected in
zone 2 is also transmitted to zone 3.
Room-to-Room Remote Control with Remote IN/OUT Terminals
External remote control equipment—including IR re-transmitters
emote r
and IR r
available RC-616, RC-617S, RC-617W, or RC-618 IR devices—
can be connected to the DRA-395P’s IR remote input and output
minals (see diagram).
ter
ofessional also of
D&M Pr
remote control, which uses radio frequency (RF) technology to transmit
emote contr
r
ovides r
pr
hardwire connections.
ol codes. When connected with the DRA-395P
oom-to-room control of equipment without the need for
Convenient Remote Controller (RC-894)
The DRA-395P comes with a remote control unit containing codes that
operate other Denon components in the system.
*
e areas of your home. For
oom outputs with volume level adjustment via
eceivers such as Denon Pr
fers the separately available PMD750/PMD790
ofessional’
s separately
, this system
Signal Level Divided Construction Chassis Design
The circuit handling low-level signals has been divided into separate
blocks to ensure that influences from these signals on each other
are held to an absolute minimum. This new chassis design, known
as Signal Level Divided Construction (SLDC), preserves the purity
of the signal, allowing it to be reproduced with much greater fidelity
and clarity.
Easy Simulcast Recording
This feature permits reception
Tuner
and recording of FM/TV
Block
simulcast pr
videotape and can also be
Pre
Amp
used to combine, for example,
Block
the sound fr
e from a video disc.
pictur
ograms onto
om a CD with the
Power
rans
T
Power
Amp
Block
Logic Contr
ol Block
Record Out Selector
This feature lets you listen to one source, such as the tuner, while
recording another source like a CD—ideal for making unattended
tape copies.
Built-in PHONO Equalizer
Video Terminals
Stereo video sources, such as hi-fi VCR, stereo TV, and DVD can
all easily be connected to the DRA-395P’
Aux terminals.
s DVD/VDP
, VCR, and V
ideo
Video Select Function
This allows you to select a video sour
audio input sour
as watching TV sports programs while listening to radio commentary.
ce—ideal for simulcasting as well as activities such
ce and then select an alter
nate
www
.d-mpr
o.com
Page 2
DRA-3 95P
40-Station AM/FM Random Preset Memory Tuning
Auto Preset Memory
FM stations can be searched by the tuner and up to 40 stations
automatically stored in the preset memory, useful for locales with
many FM stations.
Sophisticated Tuning Circuit Design
The DRA-395P’s PLL circuit design makes reception drift a thing
of the past. The unit also has a 4-pole varactor diode in its front
end to guarantee accurate input of station frequencies.
Auto Scanning of Radio Frequency Bands
Fast Up/Down Manual Tuning
Manual Step Tuning
Last-Channel-Tuned Memory
Other Useful Features
– Bass and Treble Tone Controls
– Tone Defeat
– Muting Function via Remote Controller
– A/B Speaker Switching
– Last Function Memory
– Switched AC Outlets
Multi-Room Music Entertainment System
RC-616 RC-617S RC-617W RC-618
Specifications
Power Amplifier Section
Rated Output
Total Harmonic Distortion 0.009 % (-3 dB at rated output, 8 ohms)
Frequency Response 10 Hz - 50 kHz ±1.5 dB (at 1 W)
Preamplifier section
Input Sensitivity/Impedance
PHONO (MM) 2.5 mV/47 kohms
CD, CD-R/TAPE, DVD/VDP,
VCR, V-AUX 200 mV/47 kohms
Output Level/Load Impedance
CD-R/TAPE 200 mV/47 kohms
ZONE 2, ZONE 3 1.2 V/47 kohms
RIAA Deviation ±0.5 dB (20 Hz - 20 kHz)
Tone Control Treble: ±12 dB at 10 kHz
FM section
Tuning Frequency Range 87.5 - 107.9 MHz
Usable Sensitivity 1.4 µV (14.2 dBf)
S/N 50 dB Sensitivity Mono: 2.8 µV (20.2 dBf)
(µV at 75 ohms) Stereo: 23 µV (38.5 dBf)
S/N Ratio (A-weighting) Mono: 80 dB, Stereo: 75 dB
Total Harmonic Distortion Mono: 0.15%, Stereo: 0.3%
Capture Ratio 1.5 dB
AM Suppression 50 dB
Image Rejection 70 dB
Effective Selectivity 55 dB (±400 kHz)
Frequency Response 30 Hz - 15 kHz, +0.2, -1.5 dB
Stereo Separation 40 dB (1 kHz)
AM section
Tuning Frequency Range 520 - 1710 kHz
Usable Sensitivity
General
Power Supply AC 120 V, 60 Hz
Dimensions 434 (W) x 147 (H) x 417 (D) mm
eight 9.7 kg, 21.4 lbs
W
Accessory 4U rack mount kit included
80 W + 80 W (8 ohms, 20Hz - 20kHz,
THD 0.08%)
Bass: ±12 dB at 100 Hz
V
µ
18
17.1" (W) x 5.8" (H) x 16.4" (D)
D&M Professional
1100 Maplewood Drive Itasca, Illinois 60143
Tel: 630.741.0330 Fax: 630.741.0652
www.d-mpro.com
Specifications are subject to change without notice.
