6990 Kingsbury Road | Templeton, CA 93465 | 805-461-4100 | http://www.demeteramps.com/

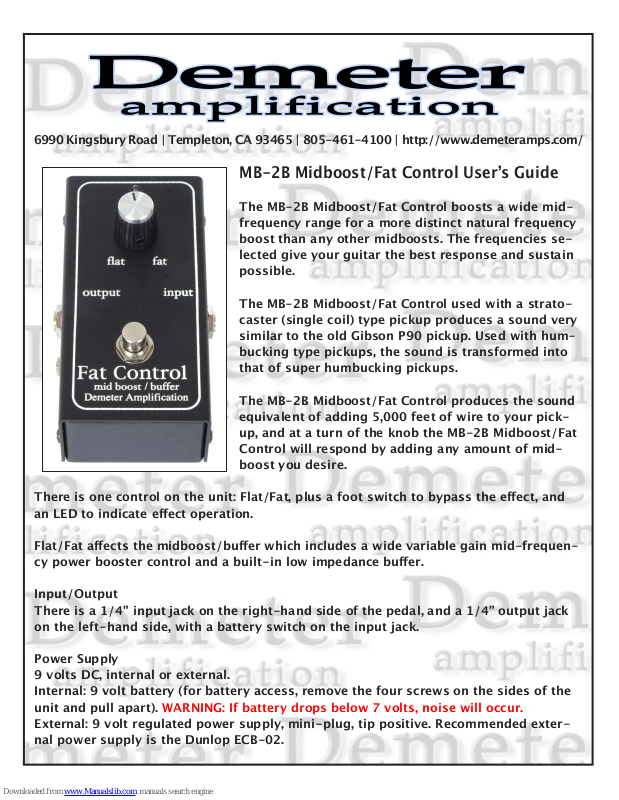

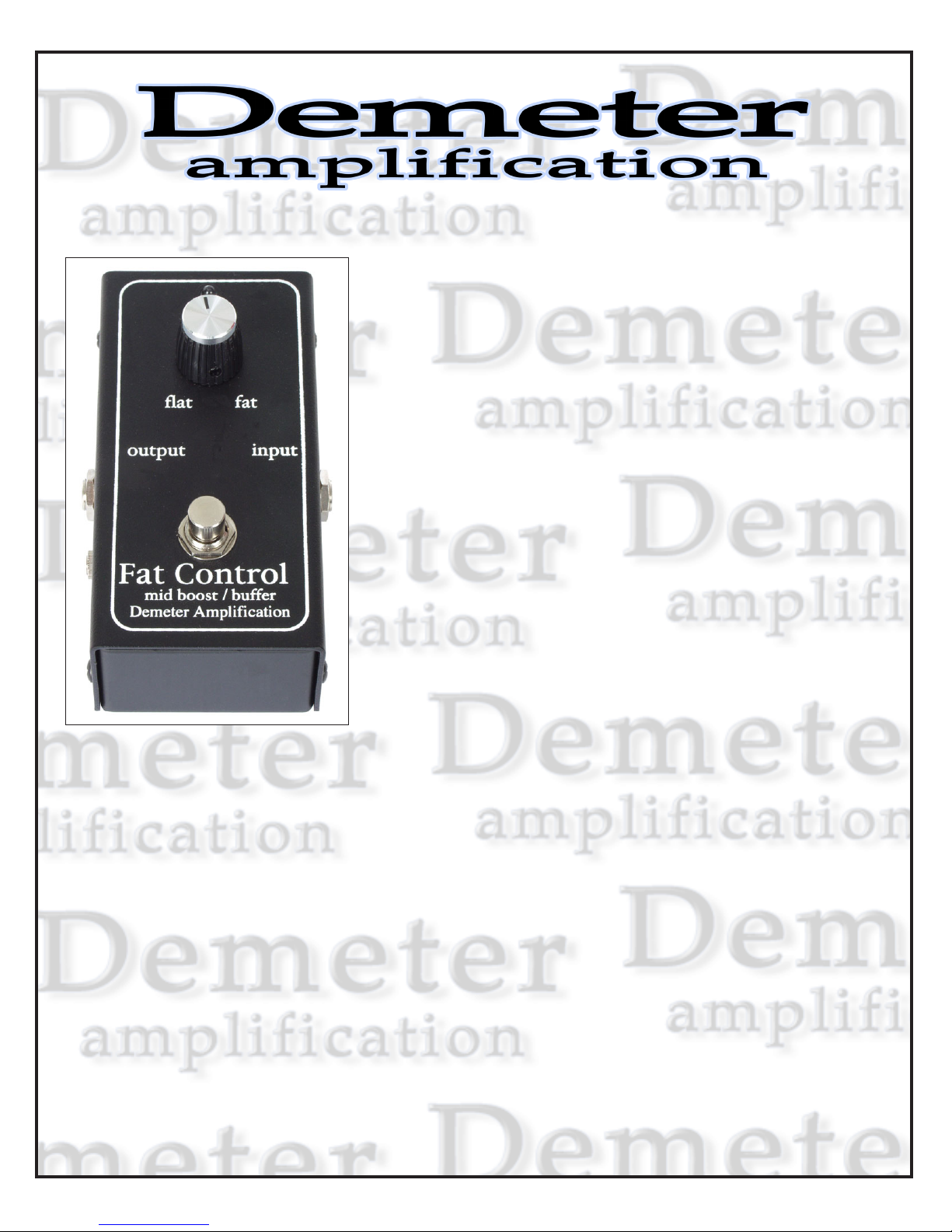

MB-2B Midboost/Fat Control User’s Guide
The MB-2B Midboost/Fat Control boosts a wide mid-
frequency range for a more distinct natural frequency
boost than any other midboosts. The frequencies selected give your guitar the best response and sustain
possible.
The MB-2B Midboost/Fat Control used with a stratocaster (single coil) type pickup produces a sound very
similar to the old Gibson P90 pickup. Used with humbucking type pickups, the sound is transformed into
that of super humbucking pickups.
The MB-2B Midboost/Fat Control produces the sound
equivalent of adding 5,000 feet of wire to your pickup, and at a turn of the knob the MB-2B Midboost/Fat
Control will respond by adding any amount of midboost you desire.
There is one control on the unit: Flat/Fat, plus a foot switch to bypass the eect, and
an LED to indicate eect operation.
Flat/Fat aects the midboost/buer which includes a wide variable gain mid-frequency power booster control and a built-in low impedance buer.
Input/Output
There is a 1/4” input jack on the right-hand side of the pedal, and a 1/4” output jack
on the left-hand side, with a battery switch on the input jack.
Power Supply
9 volts DC, internal or external.
Internal: 9 volt battery (for battery access, remove the four screws on the sides of the
unit and pull apart). WARNING: If battery drops below 7 volts, noise will occur.
External: 9 volt regulated power supply, mini-plug, tip positive. Recommended external power supply is the Dunlop ECB-02.
