DEMA MODEL 607 T-MC HI-FLOW FILL STATION
1. PARTS:
A. Fill Station Assembly (1 each) B. Mounting Screws and Anchors (4 each) C. 10’ Long Outlet Tubing with Priming Ring (1 each) D. Tubing Cla mp (1 each)
2. INSTALLAT ION:
CAUTION: ALL WORK DONE SHOUL D ADHERE TO ALL APPLICABLE PLUMBING CODES.
1. Remove Fill Station cover and hold assembly to wall, locate positions of mounting screws. Drill holes in wall about 1” deep. Mount assembly to wall using screws and anchors provided. After mounting the assembly onto the wall, reinstall cover onto the assembly.
2. Slip outlet tubing (large diameter) over threads of injector. Secure with tubing clamp and cut to convenient length.
3. Attach water supply hose (not provided) to water inlet and tighten.
INSTALLATION INSTRUCTION
RETURNS: NO MERCHANDISE M AY B E RETURNED FOR CREDIT WITHO UT DEMA’S
WRITTEN PERMISSION. RETURN MERCHANDISE AUTHORIZATION NUMBER REQUIRED IN ADVANCE OF RETURN.
WARRANTY: DEMA products are warranted against defective material and workmanship under
normal use and service for one year from the date of manufacture. This limited warranty does not apply to any products which have a normal life shorter than one year or failure and damage caused by chemicals, corrosion, improper voltage supply, physical abuse, or misapplication. Rubber and synthetic rubber parts such as “o”- rings, diaphragm s, squeeze tubing and gaskets are considered expendable and are not covered under warranty. This warranty is extended only to the original buyer of DEMA products. If products are altered or repaired without prior approval of DEMA, this warranty will be void.
Defective units or parts should be returned to the factory with transportation prepaid. If insp ecti on sh ows th em to be defecti ve, t hey will be r epai red or r epla ced with out ch ar ge, F.O.B. factory. DEMA assumes no liability for damages. Return merchandise authorization number, to return units for repair or replacement, must be granted in advance of retu rn.
I-619 Page 1 of 3 REV. --

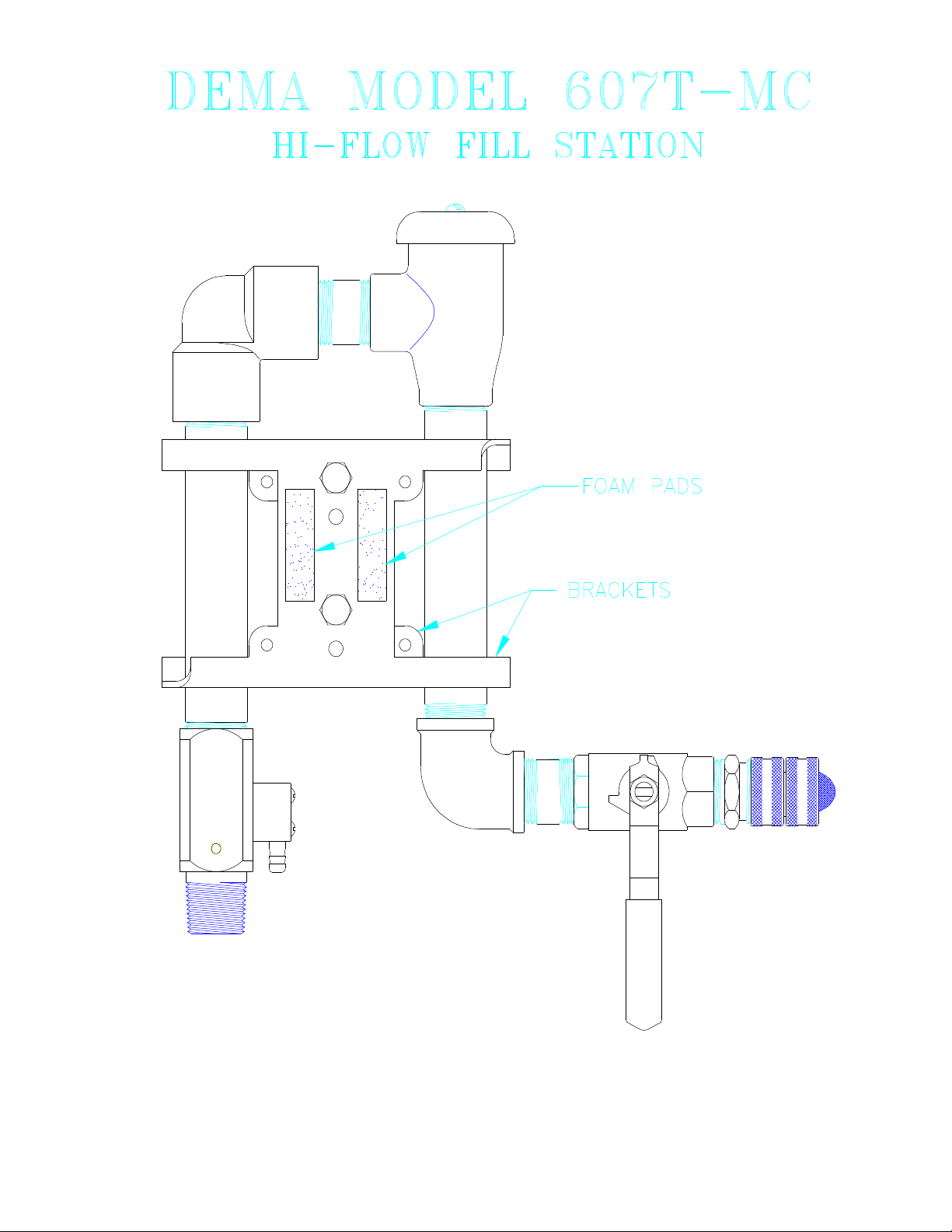

Page 2
I-619 Page 2 of 3 REV. --

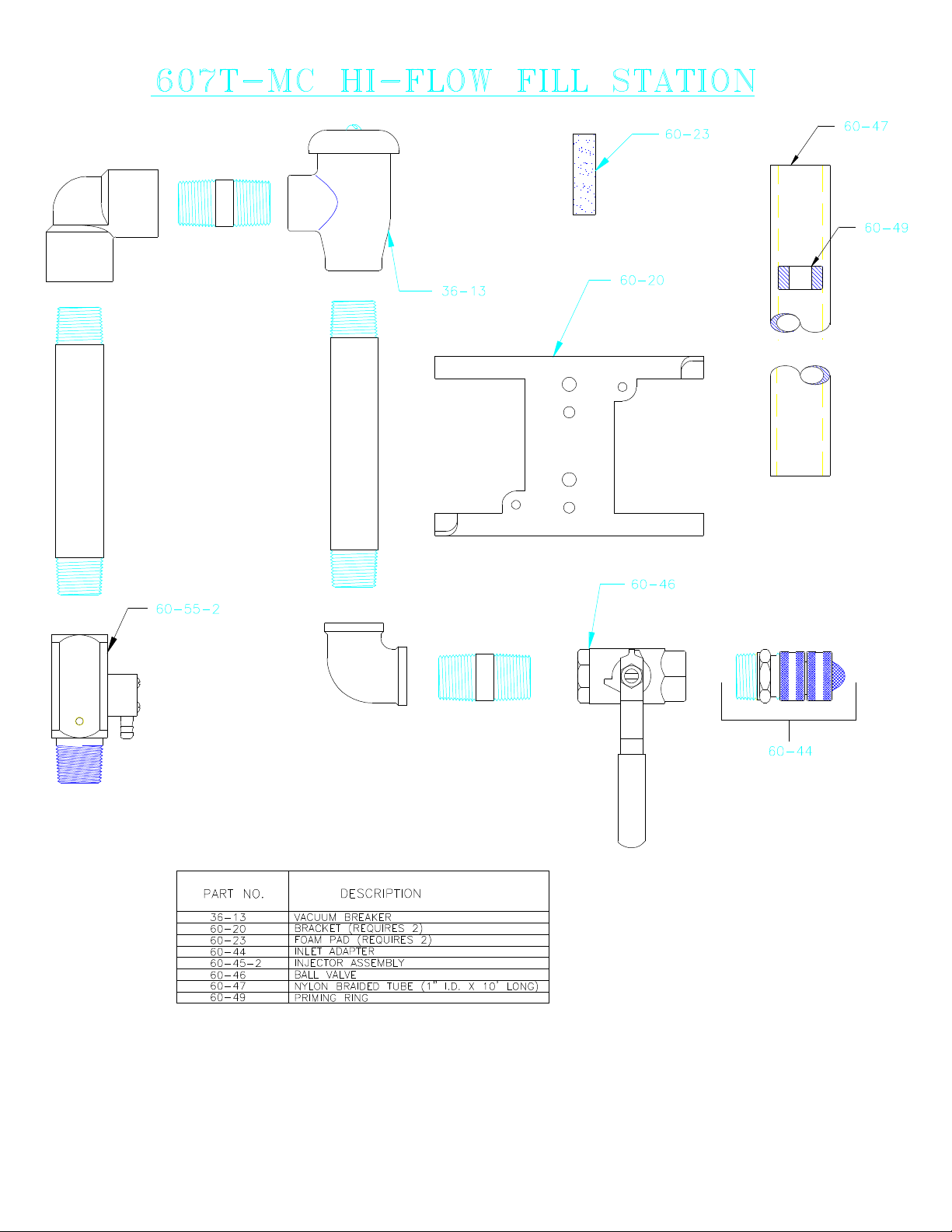

Page 3
I-619 Page 3 of 3 REV. --
