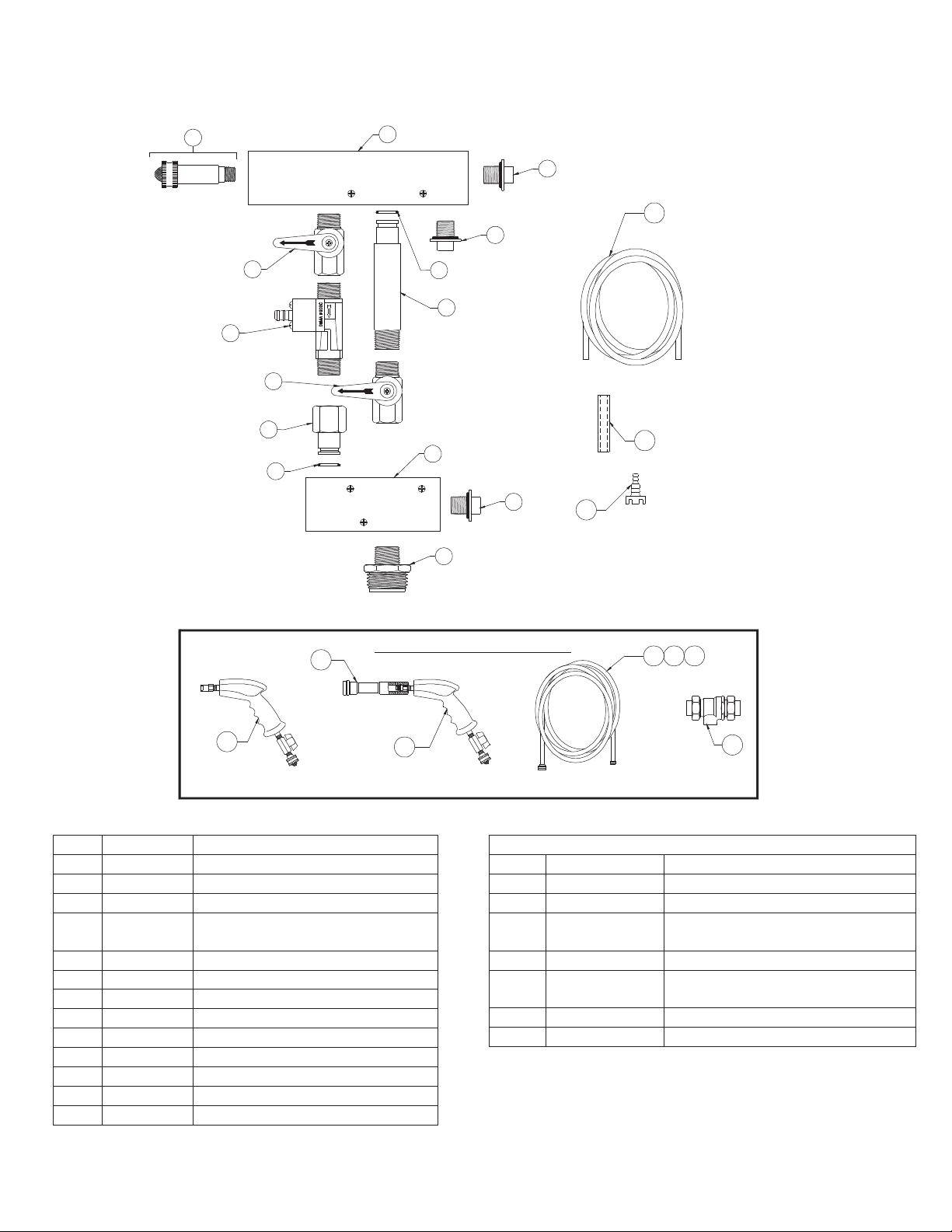

DEMA® SPRAY CLEAN DISPENSERS
MODEL 605T
1
5
See Page 6 for
injector breakdown
2
3
11
3
4
4
8
7
7
10
6
3
9
13
12
15
14
NO. PART NO. DESCRIPTION
1 63-32-2 Water Inlet
2 69-8-1 Top Manifold
3 66-153 Pipe Plug & O-Ring Assy.
4 60-60
65-2
Ball Valve w/Handle or
Ball Valve 3/8” NPT
5 P203CTC Injector
6 69-5-1 Bottom Manifold
7 30-5-14 O-Ring (EP)
8 69-9-1 Adapter
9 65-18-1 Outlet Fitting
10 58-83-1 Pipe Adapter
11 100-12 Vinyl Tubing1/4 ID X 8’ Lg.
12 61-107-2 Ceramic Weight
13 24-11MP Foot Strainer
OPTIONAL ACCESSORIES
16
NO. PART NO. DESCRIPTION
14 40-14HD Heavy Duty Spray Gun
15 292QD Foam Wand W/ Disconnect
16 40-14QD Heavy Duty Spray Gun W/
17 44-3 ½ ID X 25’ Hose (Black)
18 44-3RW ½ ID X 25’ Spring Garden Hose
19 44-3W ½ ID X 25’ Hose (White)
20 44-89 Backflow Preventer (A.S.S.E. 1012)
17 18 19
INLET
VENT
20
OPTIONAL ACCESSORIES
Disconnect
(Red)
