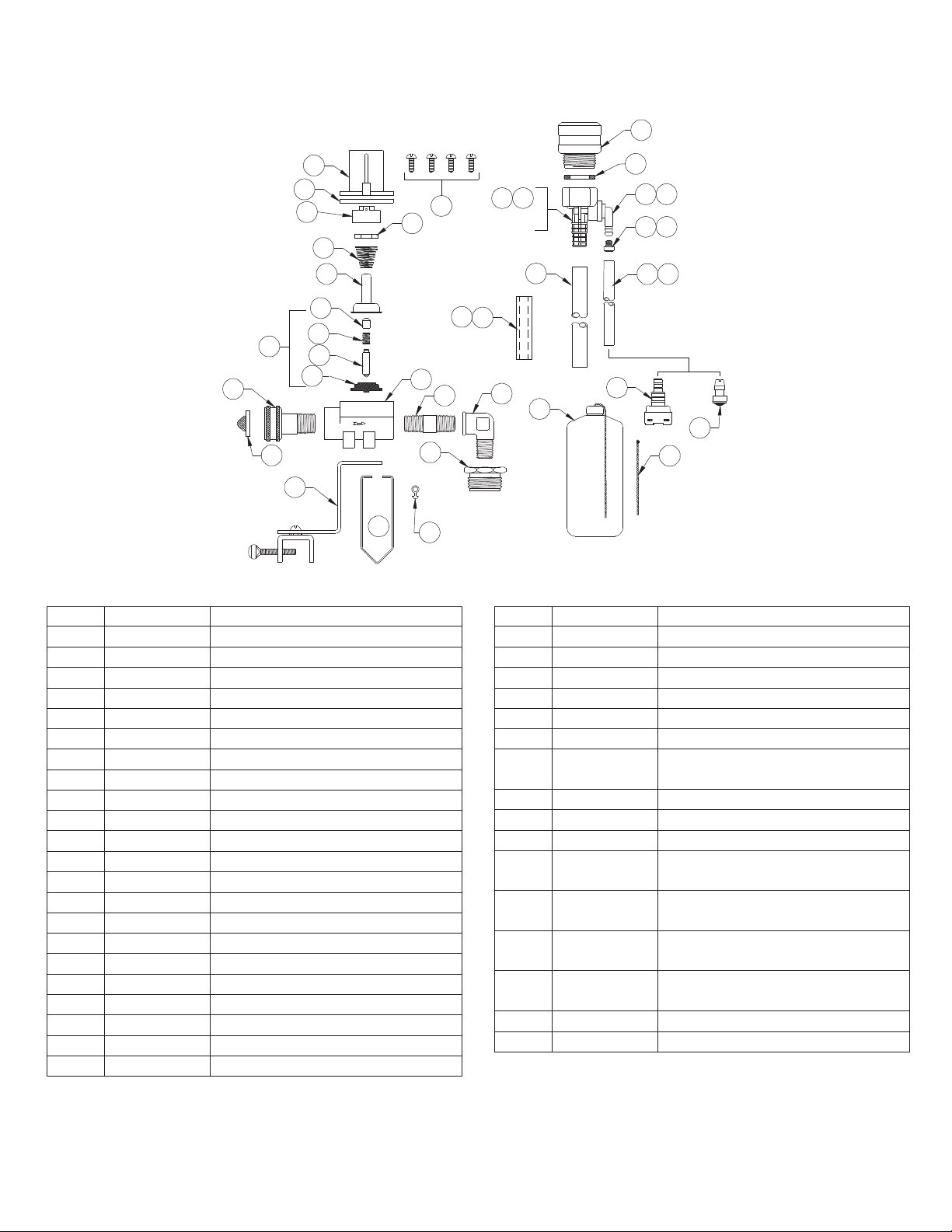

DEMA FLOAT VALVE WITH PROPORTIONER
MODELS: 440-22BT, 440-22T, 440-22T-1, 440-22T-2
22
2
3
4
6
7
9
8
13
14
10
11
12
DEMA P462
ST. LOUIS MO.
19
20
1
5
31
15
16
18
21
24
See page 5 for
breakdown
32
17
25
30
37
23
26 27
28 29
3433
OR
35
36
38
NO. PART NO. DESCRIPTION
1 44-116-1 Screws
2 35-44 Magnet Housing
3 35-37 Flange
4 35-43 Magnet Holder
5 63-35 Magnet
6 35-33 Spring
7 41-7-25 Enclosing Tube
8 63-87 Valve Repair Kit
9 63-37 Spacer
10 41-1-8 Spring
11 63-38 Plunger
12 41-15-5 Diaphragm
13 63-120 Inlet Hose Adapter
14 100-38 Inlet Washer Screen
15 35-36 Valve Body
16 25-78 Pipe Nipple 1/4” Plated
17 61-121-2 Elbow 1/4” Brass
18 61-122-2 Adapter (MGHT x ¼” FNPT)
19 35-34 Mounting Bracket Assembly
20 35-42 Float Hanger Wire
21 35-12 Float Hanger Clip
22 34-22-4 Backflow Preventer
NO. PART NO. DESCRIPTION
23 100-3 Rubber Washer
24 61-22-3 4 GPM (3/8” Barb) Proportioner
25 61-22-2 4 GPM (3/8” Barb) Proportioner
26 63-79 Inlet Barb (1/4” Barb)
27 63-80 Inlet Barb (3/8” Barb)
28 100-15K Metering Tip Kit (440-22BT)
29 61-9K
Metering Tip Kit (440-22T, 440-
22T-1, 440-22T-2)
30 16-3 3’ Discharge Tubing
31 61-107 Ceramic Weight (For 3/8” Tube)
32 61-107-2 Ceramic Weight (For 1/4” Tube)
33 100-12
34 100-12L
*35 100-16E-
36 36-22E
8’ Plastic Tubing (440-22BT)
(7/32” ID)
8’ Plastic Tubing (440-22T, 440-
22T-1, 440-22T-2) (3/8” ID)
Foot Valve (For 440-22BT, 440-
22T-2)
Foot Valve (For 440-22T, 440-
22T-1)
37 35-18 Float Assembly
38 34-17 16” Chain w/Connector
*Foot Valve also available with silicone (100-16S) or Viton (100-16V) rubber seals. Please specify material when ordering.
