Quick Start Guide
delvfire.com
Pulse
Multisport HR Fitness Tracker
ID115Plus HR
Register your new Delvfire product
and claim...
1 Year free warranty
The easy way to register - simply visit:
www.delvfire.com/warranty
and complete the online registration
e: info@delvfire.com
w: www.delvfire.com
Android 4.5 & aboveiOS 7.1 & above Bluetooth 4.0
1. Download the VeryFitPro App
To set up your tracker you will first need to pair it with your
phone/tablet using the VeryFitPro app. There are 2 options for
downloading and installing it:
Option 1: Search for ‘VeryFitPro’ in the App Store
Search for and download the VeryFitPro app from the Apple
App or Google Play stores. If you are installing on an iPad, you
will need to select the ‘iPhone Only’ search option in the Apple
App Store to reveal the English version of the app.
Option 2: Scan QR Code to Download the App
Use a QR code scanning app on your phone/tablet to scan the
QR code below. This will open the corresponding app store
ready for you to download the VeryFitPro app.
QUICK START GUIDE
PHONE / TABLET REQUIREMENTS
01
02
2. Remove Screen Protector
Your new tracker is fitted with a screen protector to protect it
whilst in transit. To remove the screen protector, lift the tab
located at the top right corner of your tracker’s screen and
slowly peel it back.

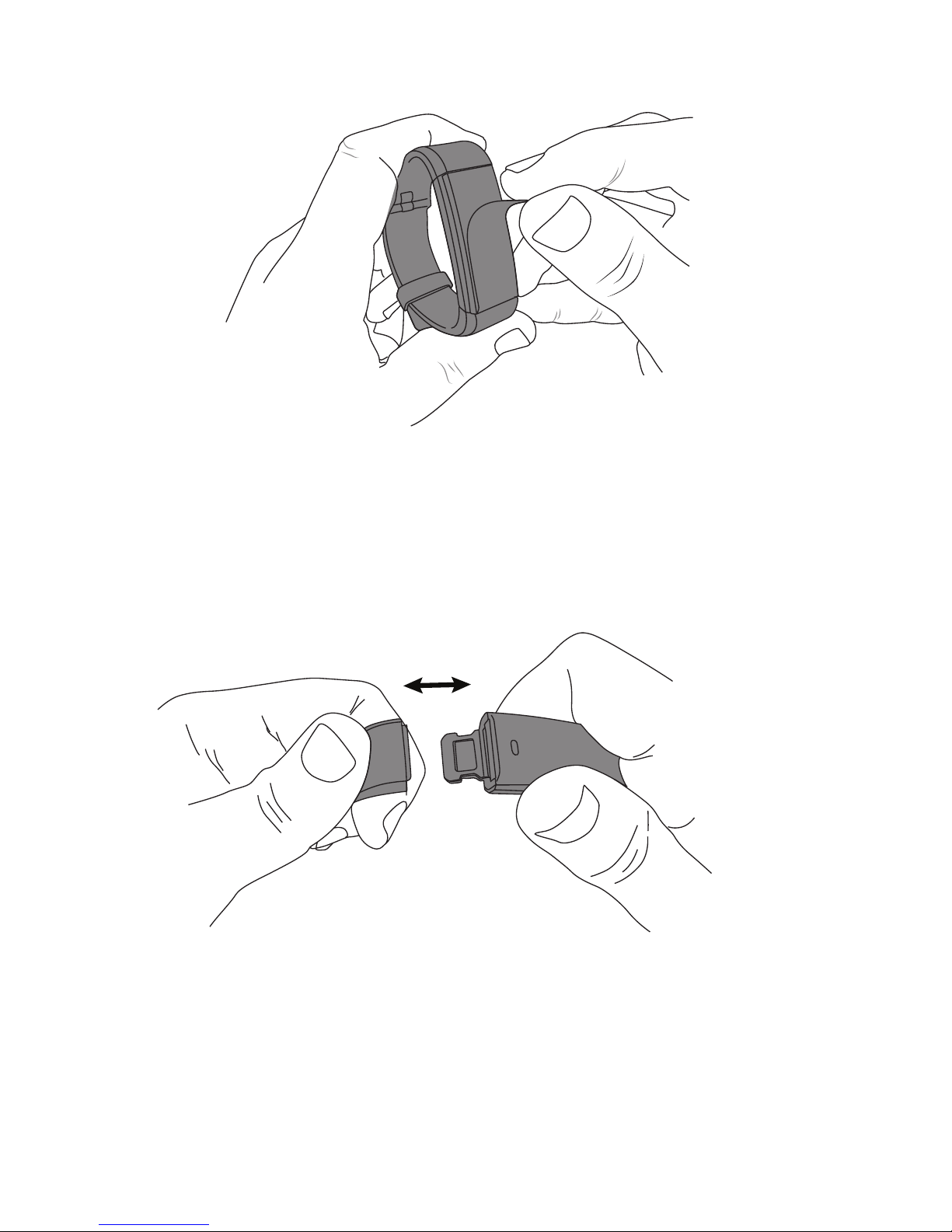

3. Charge Your Activity Tracker
Before using your tracker for the first time we highly
recommend that you fully charge it first. To do this, remove
both straps from the body of your tracker (Fig. 1) to expose
the 4 gold coloured USB charging strips.
Fig. 1
03

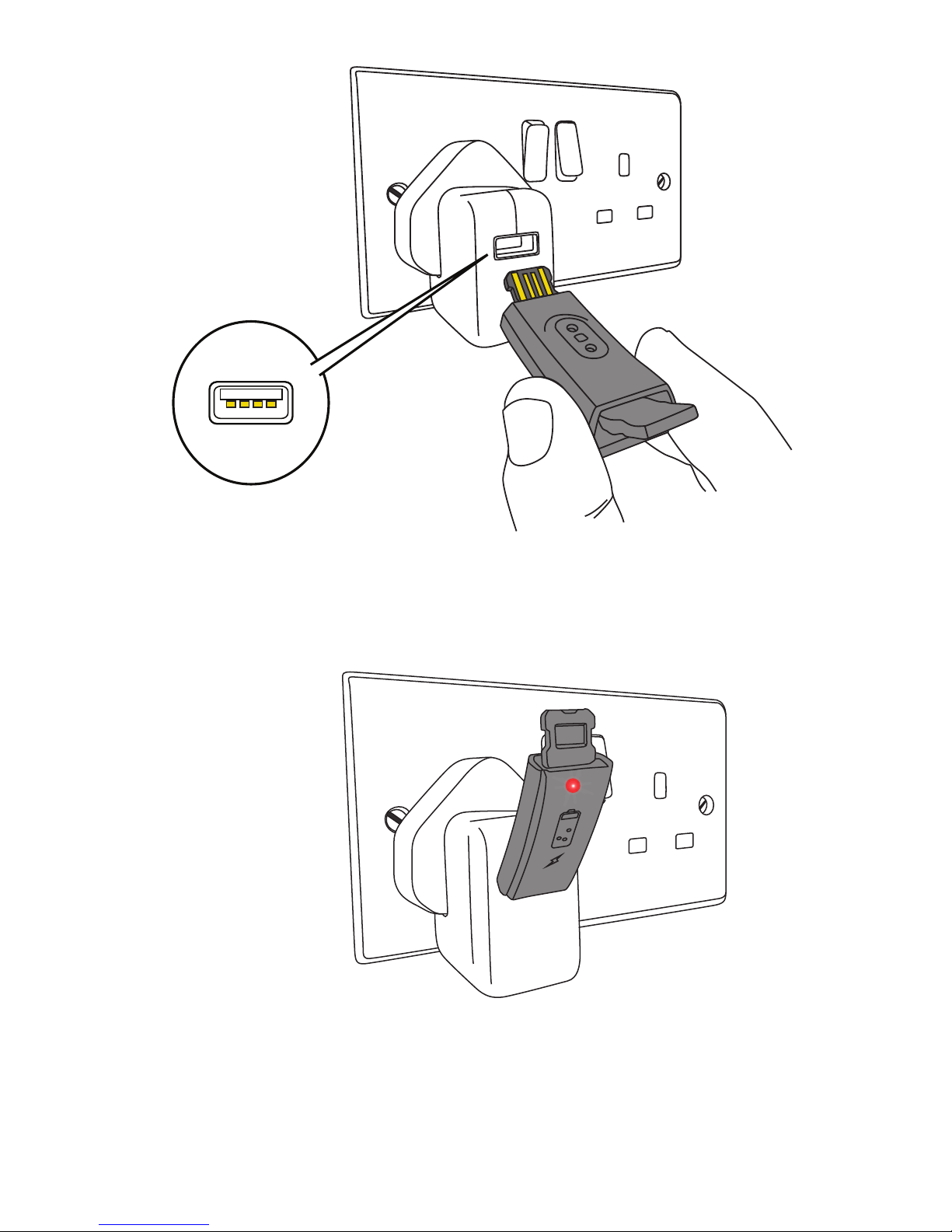

Plug in the body of your tracker directly into a USB socket,
ensuring that the 4 gold coloured charging strips on the
tracker are facing the 4 charging contacts inside the USB
socket (Fig. 2).
Once plugged into a USB socket, a red light will illuminate and
a charging icon will appear on screen to indicate that your
tracker is charging. If the red light does not illuminate, check
Fig. 2
Fig. 3
04
that you have plugged in your tracker the correct way round,
and that the gold coloured charging strips on your tracker are
facing the 4 contacts inside the USB socket.
Your tracker will take around 1 hour to fully charge, after
which time the red light will go out to indicate that it’s fully
charged. A full charge will last around 5-7 days.
You can charge your fitness tracker using a USB socket on
any computer, phone/tablet charger or power bank.
4. Set Up Your Activity Tracker using VeryFitPro
On your phone/tablet, ensure that Bluetooth is turned on
(Settings > Bluetooth) and open the VeryFitPro app that you
installed earlier.
1. When prompted, allow VeryFitPro to send notifications and
access to Apple Health/Google Fit if desired.
2. On the next page, keep swiping left until you get to the ‘Add
Device’ page.
3. Tap ID115Plus HR in the device list, wait a few moments
for a tick to appear and tap ‘Confirm Device’. Your activity
tracker will vibrate briefly to confirm which device you are
pairing.
4. When the Bluetooth Pairing Request pop-up appears, tap
‘Pair’ to complete the pairing process.
5. Enter your personal stats and set goals for steps and sleep
to finish the set up process.
If the VeryFitPro app fails to find your tracker, restart your
phone/tablet and check that Bluetooth is turned on. Plug your
tracker into a USB socket, open VeryFitPro and tap ‘Refresh’ to
refresh the device list on the ‘Add Device’ page.
05
1.1 Date / Time
The date/time on your tracker is synchronised
to your phone/tablet’s date/time via the
VeryFitPro app during set-up and each time
you transfer your activity data.
1.2 Time Format
If you wish to change your tracker’s 12/24 hour
time format, you must change this in your
phone/tablet’s settings and then resynchronise
your tracker with VeryFitPro by swiping down
anywhere on the main page of the app.
1.3 Alternative Watch Faces
You can choose between 4 different styles of
watch face by opening the VeryFitPro app and
selecting Device > More > Dial Settings.
MODES
USING YOUR TRACKER
Tapping
Tapping the function button at the
bottom of the screen will scroll
through the different functions
available.
Press and hold
Pressing and holding down
the function button will activate a
function or open a sub-menu.
FUNCTIONS
06
2.1 Steps
To see how many steps you’ve done for the
day so far, scroll to the Steps page (by tapping
the function button). Beneath the step count is
your goal progress bar. The solid line
represents your completed steps and the
dotted line represents steps required to meet
your daily goal.
2.2 Additional Stats
To access stats for Active Minutes, Distance
and Calories Burned, press and hold the
function button for 2 seconds whilst still on
the Steps page, then tap as normal to scroll
through the information.
3 Heart Rate
To view your heart rate, scroll to the Heart Rate
page (by tapping the function button). Wait
around 2 seconds for your heart rate reading
to appear. The beats per minute (BPM) figure
will then update every 0.5 seconds. It may take
10-15 seconds for the reading to stabilise. It
should be noted that automatic heart rate
monitoring happens throughout the day by
default. If desired, this option can be switched
from automatic to manual-only readings from
within the VeryFitPro app. This can also help to
extend the amount of time between charging.
We recommend when taking a heart rate
reading that you adjust your tracker’s strap so
that it is tighter than normal. You need to
ensure that the sensor on the underside of
your tracker is in good contact with your skin.
07
4.1 Alarms
Within the VeryFitPro app you can enable up to
10 alarms per day. Alarms can be used as
reminders to do certain tasks throughout the
day or simply to wake you up in the morning.
When an alarm is triggered, your fitness
tracker will quietly vibrate on your wrist. You
can stop the alarm by simply tapping once on
your tracker’s function button.
4.2 Disabling Alarms
If you wish to temporarily disable alarms,
scroll to the Alarms page on your fitness
tracker (by tapping the function button). Once
at the Alarms page, press and hold the
function button for 2 seconds to disable them.
You can re-enable alarms by pressing and
holding the function button again whilst on the
Alarms page.
5.1 Sports Mode
Your fitness tracker is capable of tracking 14
different sports modes. You can start up to 3
of these modes from your fitness tracker. By
default these are Walking, Running and
Cycling. If you wish to customise which sports
modes you wish to be able to start from your
tracker, open the VeryFit Pro app and select
Device > More > Activity Display. To replace
one of the existing sports modes, swipe left
over the mode you wish to remove and tap
Delete to remove it. Tap the (+) button (top
right of the app) to add your desired sports
mode.
Long press
to start
5.2 Starting a Sports Mode
To start a sports mode, scroll to the desired
sport on your fitness tracker (by tapping the
function button). When the desired sport is
selected, press and hold the function button. A
count of 3 and then ‘Go’ will appear to signify
that tracking for this activity has started.
Heart Rate Steps Calories Distance
Avg. Pace Pace Time
5.3 Sports Mode in Progress
Once sports mode has started you can review your progress
along with other information by tapping the function button.
08
5.4 Stopping Sports Mode
To stop a sports mode in progress, simply press
and hold the function button on your tracker for
around 2 seconds.
If you stop a sports mode after less than 1
minute of activity, your session will not be saved
and ‘Short training session! Not saved’ will
appear on screen to confirm this.
If you stop a sports mode after 1 minute or more
of activity, your training session will be saved
and a thumbs up icon will appear to confirm this.
You can then review your stats for this training
session by repeatedly tapping the function
button.
Short
training
session!
Not
saved
6 Remote Camera Control
To take a photo remotely using your fitness
tracker, open the VeryFitPro app, tap Device >
Camera (allow VeryFitPro access to your
phone/tablet’s camera if prompted). Position
your phone/tablet in the desired location for
taking a photo, then tap the function button on
your tracker to take the shot. If Device > Lift the
wrist bright screen is enabled in the VeryFitPro
app, rotating or flicking your wrist will also
trigger your phone/tablet’s camera.
Tip: Once you have finished taking photos, you
can exit Remote Camera control by pressing and
holding the function button on your fitness
tracker.
09
7 Call Alerts
If you want to see incoming phone calls
displayed on your fitness tracker, you will first
need to enable this option from within the
VeryFitPro app. To do this, open the app and tap
Device > Call Alert and enable the Call Alert
option. Once enabled, tap the tick button (top
right of the app) to confirm. (Tap ‘Pair’ if
prompted).
When receiving an incoming call, you can reject it
by pressing and holding your fitness tracker’s
function button.
Long press
hang up
8 Message Alerts
If you wish to see SMS and Social app messages
displayed on your fitness tracker, you will need to
enable this option from within the VeryFitPro
app. To do this, open the app and tap Device >
SNS Alert > Allow Notifications (tap slider), then
tap the slider for SMS to see incoming text
messages. Tap the tick button (top right of the
app) to confirm your selection. Also, tap sliders
for any of the desired social apps and tap the
tick button (top right) to confirm your selection.
(Tap ‘Pair’ if prompted).
Susa..
Are you
still on
for a run
this even
-ing?
Move
your
body
9 Reminders to Move
If you want your tracker to remind you to stay
active throughout the day, you can enable this
option within the VeryFitPro app. To do this, open
the app and tap Device > Sedentary Alert.
Enable the slider and specify how often you
should be reminded to move. Tap the tick button
(top right) to confirm your selection.
10
Activity Tracking
Your tracker tracks daily activities including steps, distance,
calories burned and minutes you were active for during the
day. Your stats can be checked on your tracker at anytime, or
by using the app for a more detailed view.
Multi-Sport Modes
14 Exercise modes for tracking your activities with increased
accuracy.
GPS
Connect your tracker to GPS on your smartphone to map
routes and see stats like pace, distance and time.
Heart Rate Monitor
Continuous, automatic tracking of your heart rate to help you
better understand your health and levels of fitness.
Sleep Tracking
Your tracker will automatically track how long and how well
you sleep. Stats including light sleep, deep sleep and duration
awake can be viewed in the app.
Silent Alarms
Set an alarm in the app and your tracker will vibrate to wake
you peacefully.
Reminders to Move
Your tracker will give you gentle reminders to stay active
throughout the day if you are stationary for too long.
Call, Text & Social App Alerts
See alerts for incoming calls, text messages and notifications
from Facebook, WhatsApp, Twitter, Instagram and more.
FUNCTIONS
11
Model: ID115Plus HR
Main Body Size: 49mm x 22mm x 9mm
Wrist Size: Smallest – 140mm, Largest 210mm
Screen: 24mm x 13mm OLED, Touch Sensitive
Battery: Built-in rechargeable 70mAh Lithium Polymer
Waterproof: IP67 (water resistant up to 2m)
System Requirements
Apple iOS 7.1 or above (iPhone 4s or above, iPad 3 or above,
iPod Touch 5 or above)
Android 4.5 & above
Bluetooth Version: 4.0 & above
Not Supported
Windows
Package Contents
1 x Delvfire Pulse Fitness Tracker
1 x Quick Start Guide
1 x Warranty Card
SPECIFICATION
NEED MORE HELP?
A full User Manual for the VeryFitPro app is available at our
website. Please visit: www.delvfire.com/help
If you still can’t find what you’re looking for, email
info@delvfire.com for assistance.
Remote Camera Control
Take photos with your phone/tablet using your tracker to
trigger the shot remotely.
12
Why isn’t a charger included?
Your tracker is charged by USB and can be plugged directly
into any USB socket on a computer, phone/tablet charger or
power bank. This does away with the need for a special
charger and messy cables. For the correct way to charge your
tracker, refer to section 3 on page 2 of this Quick Start Guide.
Why won’t my tracker charge?
The most common problems are a) the wrong end of the
tracker body has been inserted into the USB socket and b) the
4 gold coloured charging strips on the tracker are not facing
the 4 charging contacts inside the USB socket. Refer to
section 3 on page 2 of this Quick Start Guide.
PAIRING
Why can’t I pair my tracker?
1. Make sure that your phone/tablet meets the minimum
requirements of Apple iOS 7.1 or above (iPhone 4s or above,
iPad 3 or above, iPod Touch 5 or above), Android 4.5 or above,
Bluetooth Version 4.0 or above.
2. Make sure your phone/tablet has Bluetooth switched on.
3. Whilst searching for your tracker during set up within the
app, ensure that your tracker’s display is on and close to your
phone/tablet.
If you are still unable to pair your tracker to your phone/tablet
within the VeryFitPro app then please do the following exactly
as instructed:
1. Switch off your phone/tablet and restart it.
2. Ensure your phone/tablet’s Bluetooth is switched on.
13
FAQ - CHARGING
3. Delete the VeryFitPro app from your phone/tablet.
4. Open the Bluetooth settings on your phone/tablet and
delete/forget all devices listed (you can add these back later).
5. Reinstall the VeryFitPro app (don't open the app at this
point).
6. Plug your tracker into a USB socket away from other USB
devices that might cause interference. Make sure that the red
light is on and the charging symbol is displayed on the screen
to show that it's charging.
7. Open the VeryFitPro app and run through the set up. At the
point where the app starts searching for your tracker, hold your
phone/tablet close to your tracker and ensure that the
tracker’s display is turned on.
8. You should now be able to select ID115Plus HR (your
tracker) from the device list to complete the set up process.
STEPS
Why isn’t my step counter working correctly?
First you need to install the VeryFitPro app and run through
the set up process to pair it to your phone/tablet. Your tracker
will not function correctly if you skip this.
When you first set up your tracker it will go through an initial
calibration phase which can take up to a day to complete.
During this time you may find that steps may either not
register correctly or appear to jump around. This is
completely normal. After the first day of use, step counting
will register and record as expected.
It's also worth pointing out that after the calibration period,
the display will not always update in real time (step-by-step)
as you are walking. Under certain circumstances the screen
will update in batches of steps. This is especially apparent
when walking whilst watching the display.
14
If after the initial calibration period your steps are not
registering, we recommend resetting your tracker. To do this,
open the VeryFitPro app and go to Device > More > Reboot
the Device > Confirm to Reboot. This will backup the data on
your tracker and factory reset it. Once this operation is
complete your data will be restored back to your tracker.
Why do my steps keep reverting back?
If you walk less than 35 steps within a certain amount of time,
these steps will not be stored. This is to help improve
accuracy by filtering out movements other than steps, for
example driving, typing on a keyboard or washing your hands.
SYNCHRONISING YOUR DATA
Why isn’t my activity data showing in the app?
To transfer your activity data from your tracker to the app on
your phone/tablet, open the VeryFitPro app and swipe down
anywhere on the main page (the first page you see when you
open the app). This will initiate a sync of data between the
two devices.
MISCELLANEOUS
Why can’t I see all functions on my tracker?
Some functions require turning on from within the VeryFitPro
app before they will appear on your tracker.
How do I factory reset my tracker?
Make sure your tracker is connected to the app. Open the
VeryFitPro app and go to Device > More > Reboot the Device
> Confirm to Reboot. This will backup the data on your tracker
and factory reset it. Once this operation is complete your data
will be copied back to your tracker.
15
How do I install the VeryFitPro app on an iPad?
First check that your iPad is 3rd generation or above and is
running Apple iOS 7.1 & above.
1. Tap the Apple App Store icon on your iPad and search for
‘VeryFitPro’ (all one word).
2. Change the search option (normally top left of the Apple
App Store app) from 'iPad Only' to 'iPhone Only'.
3. Tap the 'Get' button next to VeryFitPro to install it.
Is my phone/tablet compatible?
Apple
iPhone 4s or above
iPad 3 or above
iPod Touch 5 or above
Running Apple iOS 7.1 or above
Android
Android 4.5 or above
Bluetooth 4.0 or above
Windows
Not currently supported
Is my tracker waterproof?
Your tracker is water resistant up to 2m and can be worn
whilst swimming.
Will my tracker work independently of a phone/
tablet?
In order to set up your tracker you first have to pair it with a
phone/tablet. Your tracker needs to know the current
time/date from your phone/tablet, plus information such as
your age, height, weight, preferred units of measurement
16
(Metric or imperial) and your activity and sleep goals. This all
goes towards the tracking algorithm it uses to calculate
activity/sleep stats. However, once you've been through the
initial set up there is no need to keep it connected to your
phone/tablet in order for it to function correctly.
Can I connect more than one tracker to my
phone/tablet?
It is not possible to pair more than one Delvfire Pulse to the
VeryFitPro app on a single phone/tablet.
How do I get call, text or social alerts on my
tracker?
First, ensure that Bluetooth is enabled on your phone/tablet
and open the VeryFitPro app.
1. Enable Call Alerts
Tap Device > Call Alert > Call Alert (tap slider). Tap the tick
button (top right) to confirm your selection. (Tap ‘Pair’ if
prompted).
2. Enable SMS and/or Social Alerts
Tap Device > SNS Alert > Allow Notifications (tap slider), then
tap the slider for SMS to see incoming text messages. Tap
the tick button (top right) to confirm your selection. Tap
sliders for any of the desired social apps then tap the tick
button (top right) to confirm your selection.
How do I set the time and date?
Date and Time are set automatically when you pair your
tracker to your phone/tablet during the set up process in the
app. If you need to change the time in future e.g. the clocks
have gone back/forward, you simply open the VeryFitPro app
on your phone/tablet and swipe down anywhere on the main
page to initiate a sync.
17
PULSE-R1
© 2018 Copyright Beronetti Limited
Delvfire™ is a registered trademark of Beronetti Limited
delvfire.com
Loading...
