Deltrol Controls PS-75 Specifications

PS-75
C
D
CONTROLS

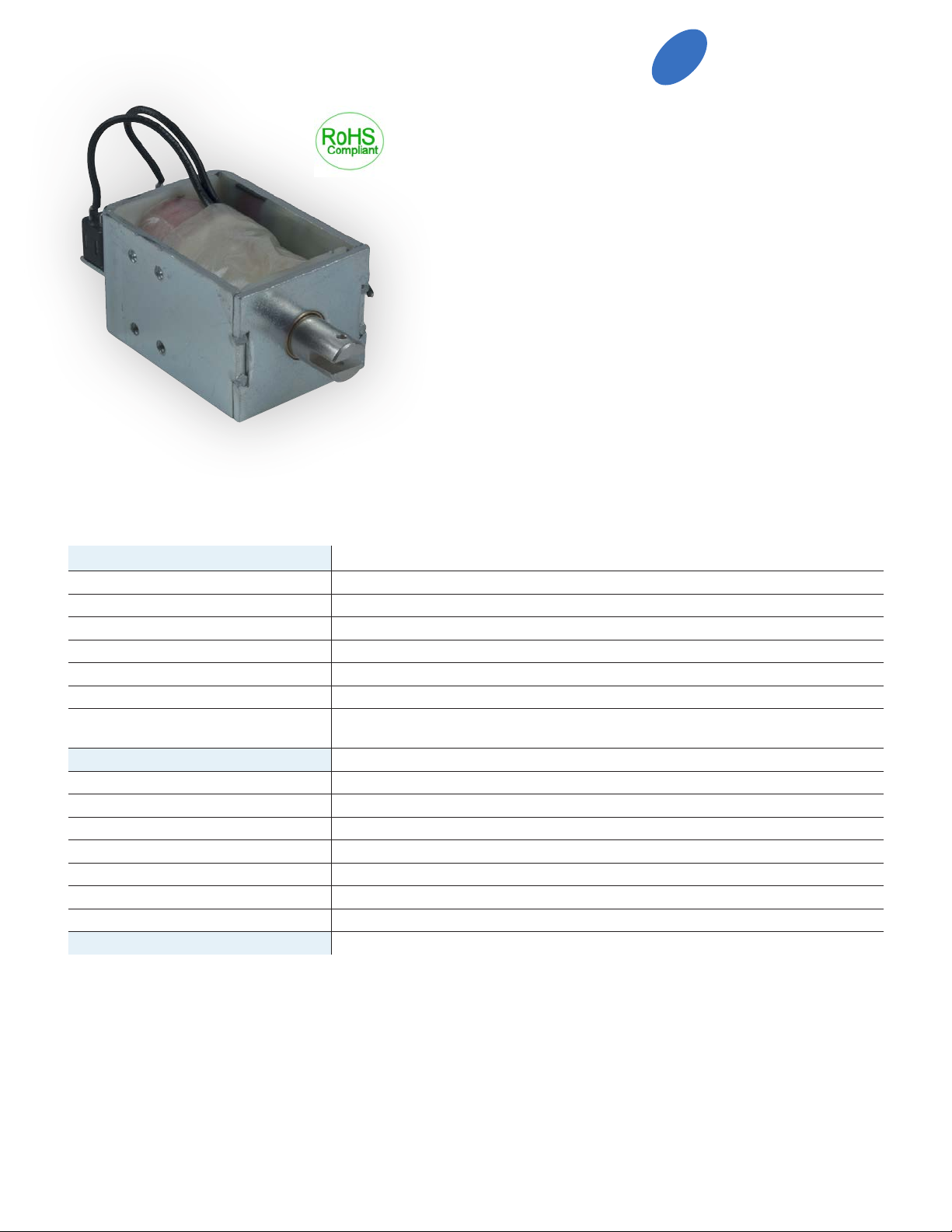

D-FRAME SOLENOID
Two position linear solenoid with D-frame construction.
Features
• Balance of cost and performance
• DC solenoids available
Electrical Specications
Coil Voltages 6, 12, 24, 28, 32, 36, 48, 90, 115 VDC
Coil Power 150 Watts Continuous
Coil Termination Wire leads (standard)
Duty Cycle Continuous
Coil Treatment Tape Wrapped
Insulation Class Class A Rating - 105ºC (221ºF) Max. (standard)
Dielectric Strength
Mechanical Specications
Size 2.625” (L) x 1.562” (W) x 1.828” (H) (See page 2 for dimensional drawing)
Forces See force curves on page 2
Plunger Diameter 0.500”
Plunger Guide Material Brass
Mounting 6X #8-32 UNC-2B Mount Holes
Weight Plunger - 1.91 oz., Total - 19 oz.
Life Expectancy 250,000 Cycles (Dependent on load conditions)
Agency Approval
30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute
All dimensions in Inches
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
1 of 4
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev 07/20/11
