MED 24x2.400
C
D
Deltrol
CONTROLS

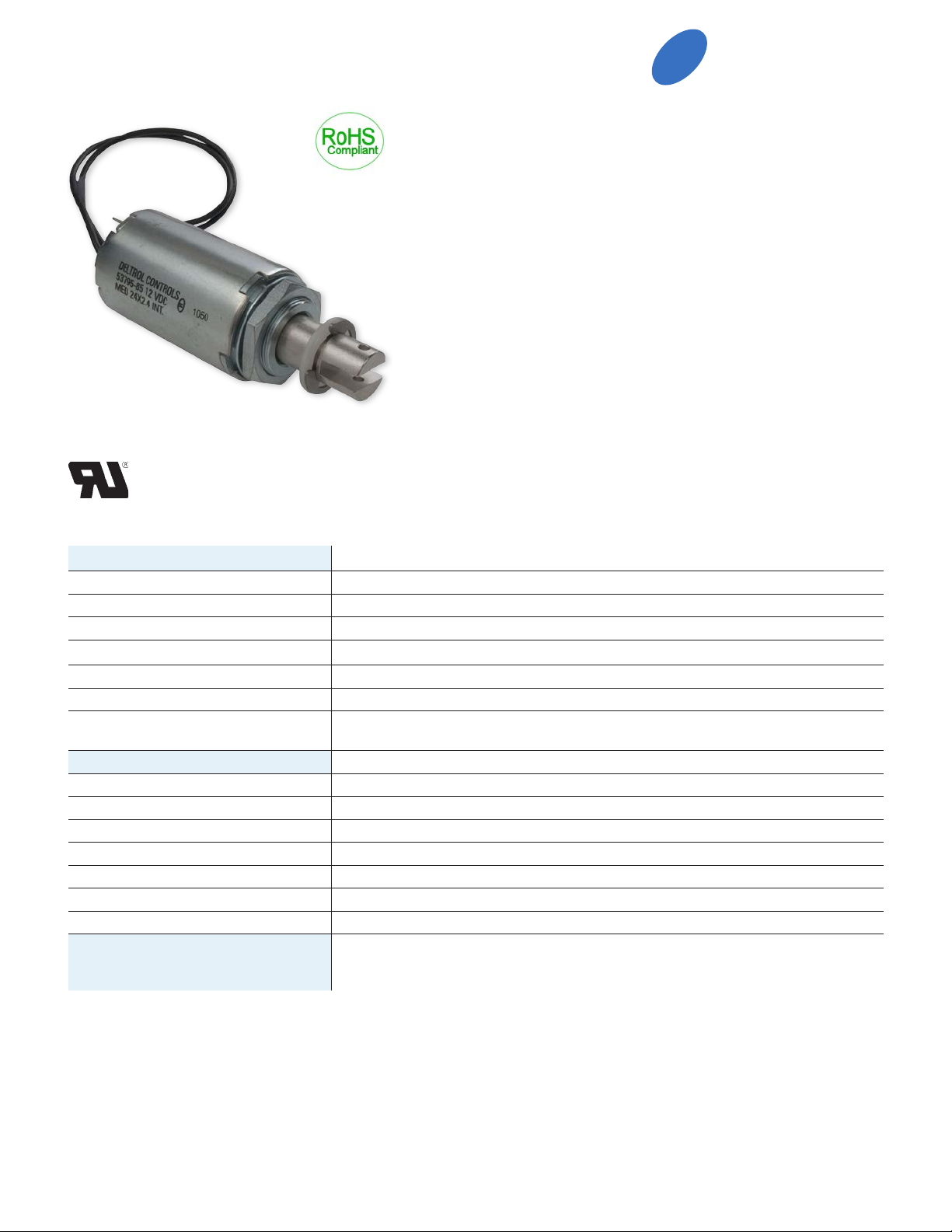

TUBULAR FRAME SOLENOID
Two position linear solenoid with tubular construction.
Features
• High performance construction
• DC solenoids applications only
• Standard push and pull versions available
• UL approval on many models
Electrical Specications
Coil Voltages 6, 12, 24, 110 VDC
Coil Power 14 Watts Continuous, 40 Watts Intermittent, 140 Watts Pulse
Coil Termination Wire leads 20 AWG (standard)
Duty Cycle Continuous, intermittent, pulse (See standard part numbers on page 4)
Coil Treatment Tape Wrapped
Insulation Class Class B Rating - 130ºC (265ºF) Max.
Dielectric Strength
Mechanical Specications
Size 2.400” (L) x Ø1.500” (D)
Forces See force curves on page 3
Plunger Diameter Ø.625”
Plunger Guide Material Brass
Mounting 1.250” Hex Nut
Weight Plunger - 3.7 oz., Total - 15.1 oz.
Life Expectancy 250,000 Cycles (Dependent on load conditions)
Agency Approvals
30 Volts and Under: 500 VRMS
Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute
UL File No. E57982 For Continuous Duty
UL File No. E74443 For Insulation Systems
S130
All dimensions in Inches
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
1 of 4
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev 07/07/11
