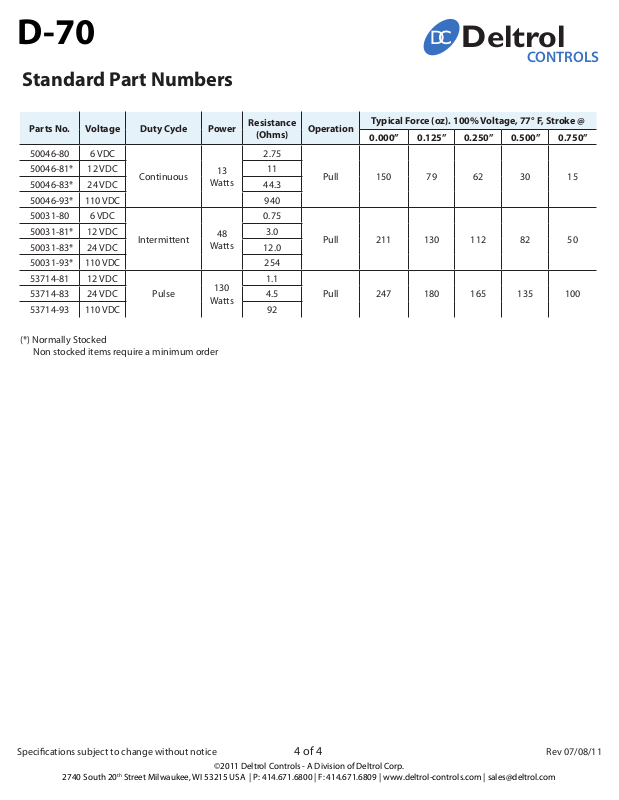

Deltrol Controls D-70 Catalog Page

D-70

Standard Part Numbers

D

C

Deltrol

CONTROLS

Parts No. Voltage Duty Cycle Power

50046-80 6 VDC

50046-81* 12 VDC 11

50046-83* 24 VDC 44.3

50046-93* 110 VDC 940

50031-80 6 VDC

50031-81* 12 VDC 3.0

50031-83* 24 VDC 12.0

50031-93* 110 VDC 254

53714-81 12 VDC

53714-93 110 VDC 92

(*) Normally Stocked
Non stocked items require a minimum order

Continuous

Intermittent

Pulse

13

Watts

48

Watts

130

Watts

Resistance

(Ohms)

2.75

0.75

1.1

Operation

Pull 150 79 62 30 15

Pull 211 130 112 82 50

Pull 247 180 165 135 10053714-83 24 VDC 4.5

Typical Force (oz). 100% Voltage, 77° F, Stroke @

0.000” 0.125” 0.250” 0.500” 0.750”

Specications subject to change without notice

2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | [e-mail]

4 of 4

©2011 Deltrol Controls - A Division of Deltrol Corp.

Rev 07/08/11
