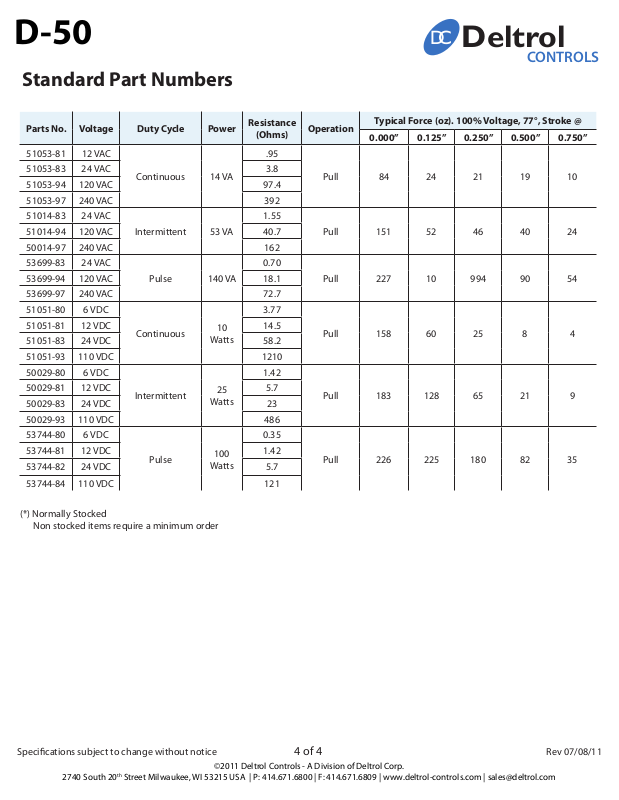

Deltrol Controls D-50 Catalog Page

D-50

Standard Part Numbers

D

C

Deltrol

CONTROLS

Parts No. Voltage Duty Cycle Power

51053-81 12 VAC

51053-83 24 VAC 3.8

51053-94 120 VAC 97.4

51053-97 240 VAC 392

51014-83 24 VAC

50014-97 240 VAC 162

53699-83 24 VAC

53699-97 240 VAC 72.7

51051-80 6 VDC

51051-81 12 VDC 14.5

51051-83 24 VDC 58.2

51051-93 110 VDC 1210

50029-80 6 VDC

50029-81 12 VDC 5.7

50029-83 24 VDC 23

50029-93 110 VDC 486

53744-80 6 VDC

53744-81 12 VDC 1.42

53744-82 24 VDC 5.7

53744-84 110 VDC 121

Continuous 14 VA

Intermittent 53 VA

Pulse 140 VA

Continuous

Intermittent

Pulse

10

Watts

25

Watts

100

Watts

Resistance

(Ohms)

.95

1.55

0.70

3.77

1.42

0.35

Operation

Pull 84 24 21 19 10

Pull 151 52 46 40 2451014-94 120 VAC 40.7

Pull 227 10 994 90 5453699-94 120 VAC 18.1

Pull 158 60 25 8 4

Pull 183 128 65 21 9

Pull 226 225 180 82 35

Typical Force (oz). 100% Voltage, 77°, Stroke @

0.000” 0.125” 0.250” 0.500” 0.750”

(*) Normally Stocked
Non stocked items require a minimum order

Specications subject to change without notice

2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | [e-mail]

4 of 4

©2011 Deltrol Controls - A Division of Deltrol Corp.

Rev 07/08/11
