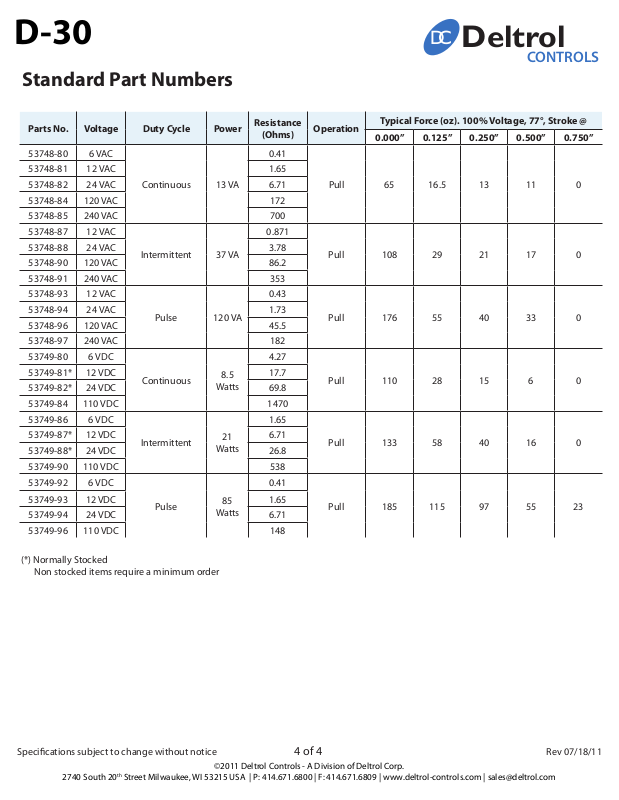

Deltrol Controls D-30 Catalog Page

D-30

Standard Part Numbers

D

C

Deltrol

CONTROLS

Parts No. Voltage Duty Cycle Power

53748-80 6 VAC

53748-81 12 VAC 1.65

53748-82 24 VAC 6.71

53748-84 120 VAC 172

53748-85 240 VAC 700

53748-87 12 VAC

53748-88 24 VAC 3.78

53748-90 120 VAC 86.2

53748-91 240 VAC 353

53748-93 12 VAC

53748-94 24 VAC 1.73

53748-96 120 VAC 45.5

53748-97 240 VAC 182

53749-80 6 VDC

53749-81* 12 VDC 17.7

53749-82* 24 VDC 69.8

53749-84 110 VDC 1470

53749-86 6 VDC

53749-87* 12 VDC 6.71

53749-88* 24 VDC 26.8

53749-90 110 VDC 538

53749-92 6 VDC

53749-93 12 VDC 1.65

53749-94 24 VDC 6.71

53749-96 110 VDC 148

Continuous 13 VA

Intermittent 37 VA

Pulse 120 VA

Continuous

Intermittent

Pulse

8.5

Watts

21

Watts

85

Watts

Resistance

(Ohms)

0.41

0.871

0.43

4.27

1.65

0.41

Operation

Pull 65 16.5 13 11 0

Pull 108 29 21 17 0

Pull 176 55 40 33 0

Pull 110 28 15 6 0

Pull 133 58 40 16 0

Pull 185 115 97 55 23

Typical Force (oz). 100% Voltage, 77°, Stroke @

0.000” 0.125” 0.250” 0.500” 0.750”

(*) Normally Stocked
Non stocked items require a minimum order

Specications subject to change without notice
