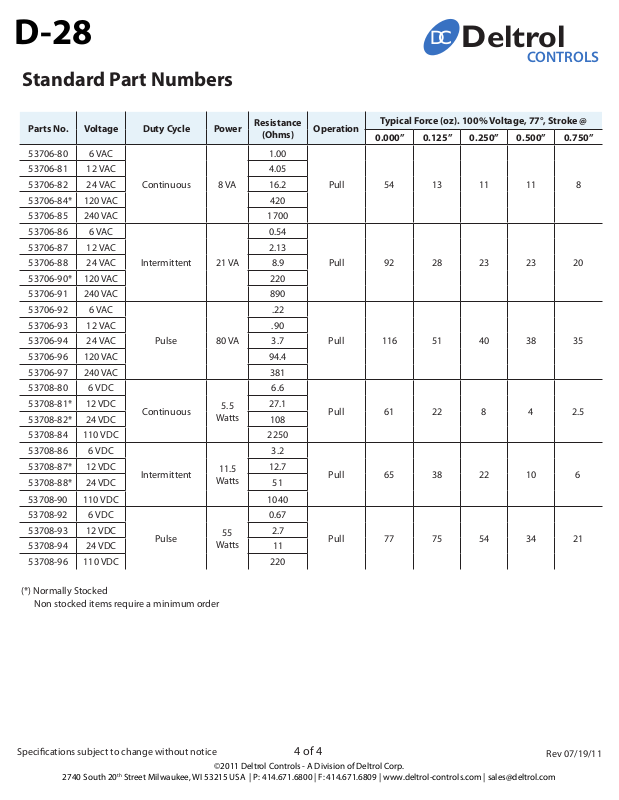

D-28
Standard Part Numbers
D
C
Deltrol
CONTROLS
Parts No. Voltage Duty Cycle Power
53706-80 6 VAC
53706-81 12 VAC 4.05
53706-82 24 VAC 16.2
53706-84* 120 VAC 420
53706-85 240 VAC 1700
53706-86 6 VAC
53706-87 12 VAC 2.13
53706-88 24 VAC 8.9
53706-90* 120 VAC 220
53706-91 240 VAC 890
53706-92 6 VAC
53706-93 12 VAC .90
53706-94 24 VAC 3.7
53706-96 120 VAC 94.4
53706-97 240 VAC 381
53708-80 6 VDC
53708-81* 12 VDC 27.1
53708-82* 24 VDC 108
53708-84 110 VDC 2250
53708-86 6 VDC
53708-87* 12 VDC 12.7
53708-88* 24 VDC 51
53708-90 110 VDC 1040
53708-92 6 VDC
53708-93 12 VDC 2.7
53708-94 24 VDC 11
53708-96 110 VDC 220
Continuous 8 VA
Intermittent 21 VA
Pulse 80 VA
Continuous
Intermittent
Pulse
5.5
Watts
11.5
Watts
55
Watts
Resistance
(Ohms)
1.00
0.54
.22
6.6
3.2
0.67
Operation
Pull 54 13 11 11 8
Pull 92 28 23 23 20
Pull 116 51 40 38 35
Pull 61 22 8 4 2.5
Pull 65 38 22 10 6
Pull 77 75 54 34 21
Typical Force (oz). 100% Voltage, 77°, Stroke @
0.000” 0.125” 0.250” 0.500” 0.750”
(*) Normally Stocked
Non stocked items require a minimum order
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
4 of 4
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev 07/19/11
