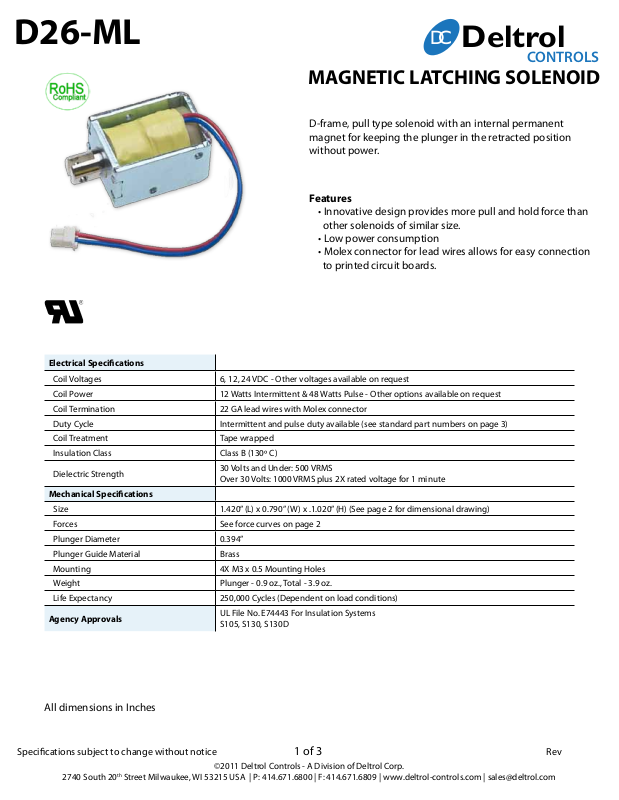

Deltrol Controls D26-ML Specifications

D26-ML
C
D
CONTROLS
MAGNETIC LATCHING SOLENOID
D-frame, pull type solenoid with an internal permanent magnet for keeping the plunger in the retracted position without power.
Features
• Innovative design provides more pull and hold force than
other solenoids of similar size.
• Low power consumption
• Molex connector for lead wires allows for easy connection
to printed circuit boards.
Electrical Specications
Coil Voltages 6, 12, 24 VDC - Other voltages available on request
Coil Power 12 Watts Intermittent & 48 Watts Pulse - Other options available on request
Coil Termination 22 GA lead wires with Molex connector
Duty Cycle Intermittent and pulse duty available (see standard part numbers on page 3)
Coil Treatment Tape wrapped
Insulation Class Class B (130º C)
Dielectric Strength
Mechanical Specications
Size 1.420” (L) x 0.790” (W) x .1.020” (H) (See page 2 for dimensional drawing)
Forces See force curves on page 2
Plunger Diameter 0.394”
Plunger Guide Material Brass
Mounting 4X M3 x 0.5 Mounting Holes
Weight Plunger - 0.9 oz., Total - 3.9 oz.
Life Expectancy 250,000 Cycles (Dependent on load conditions)
Agency Approvals
30 Volts and Under: 500 VRMS Over 30 Volts: 1000 VRMS plus 2X rated voltage for 1 minute
UL File No. E74443 For Insulation Systems
S105, S130, S130D
All dimensions in Inches
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
1 of 3
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev
D26-ML
Dimensional View
Units: Inches [mm]
D
C
CONTROLS
Force Curves
D26ML INTERMITTENT DUTY (12W)
140
120
100
80
60
FORCE (OZ)
40
20
0
0.000 0.050 0.100 0.150 0.200 0.250 0.300 0.350 0.400 0.450 0.500
Standard intermittent duty cycle at nominal voltage is 25%, with three (3) minutes maximum “ON” and nine “9” minutes minimum ”OFF” in a repetitive cycle. Standard Pulse duty cycle is 10% with 100 milliseconds “ON” and 900 milliseconds “OFF”. NOTE: Approx. 36 sq. in Heat Sink Required.
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
25º C - 100% VOLTAGE
105º C - 100% VOLTAGE
MAGNET ONLY - HOLD FORCE 109 OZ
STROKE (IN)
2 of 3
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev
D26-ML
Standard Part Numbers
D
C
CONTROLS
Parts No. Voltage Duty Cycle Power
53800-86* 6 VDC
Intermittent
53800-88* 24 VDC 48
53800-92 6 VDC
Pulse
53800-94 24 VDC 12
(*) Normally Stocked Non stocked items require a minimum order
12
Watts
48
Watts
Resistance
(Ohms)
3
0.75
Operation
Pull
Typical Force (oz). 100% Voltage, 77° F, Stroke @
0.000” 0.125” 0.250” 0.500” 0.750”
109 47.1 31 14.3 0 53800-87* 12 VDC 12
109 71.2 46.8 19.4 053800-93 12 VDC 3
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
3 of 3
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev
