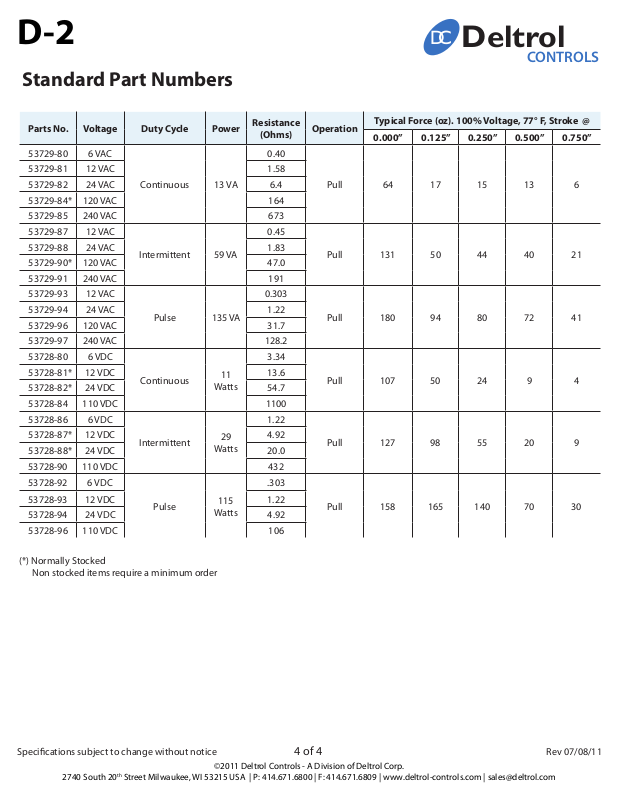

Deltrol Controls D-2 Catalog Page

D-2

Standard Part Numbers

D

C

Deltrol

CONTROLS

Parts No. Voltage Duty Cycle Power

53729-80 6 VAC

53729-81 12 VAC 1.58

53729-82 24 VAC 6.4

53729-84* 120 VAC 164

53729-85 240 VAC 673

53729-87 12 VAC

53729-88 24 VAC 1.83

53729-90* 120 VAC 47.0

53729-91 240 VAC 191

53729-93 12 VAC

53729-94 24 VAC 1.22

53729-96 120 VAC 31.7

53729-97 240 VAC 128.2

53728-80 6 VDC

53728-81* 12 VDC 13.6

53728-82* 24 VDC 54.7

53728-84 110 VDC 1100

53728-86 6 VDC

53728-87* 12 VDC 4.92

53728-88* 24 VDC 20.0

53728-90 110 VDC 432

53728-92 6 VDC

53728-93 12 VDC 1.22

53728-94 24 VDC 4.92

53728-96 110 VDC 106

Continuous 13 VA

Intermittent 59 VA

Pulse 135 VA

Continuous

Intermittent

Pulse

11

Watts

29

Watts

115

Watts

Resistance

(Ohms)

0.40

0.45

0.303

3.34

1.22

.303

Operation

Pull 64 17 15 13 6

Pull 131 50 44 40 21

Pull 180 94 80 72 41

Pull 107 50 24 9 4

Pull 127 98 55 20 9

Pull 158 165 140 70 30

Typical Force (oz). 100% Voltage, 77° F, Stroke @

0.000” 0.125” 0.250” 0.500” 0.750”

(*) Normally Stocked
Non stocked items require a minimum order

Specications subject to change without notice

2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | [e-mail]

4 of 4

©2011 Deltrol Controls - A Division of Deltrol Corp.

Rev 07/08/11
