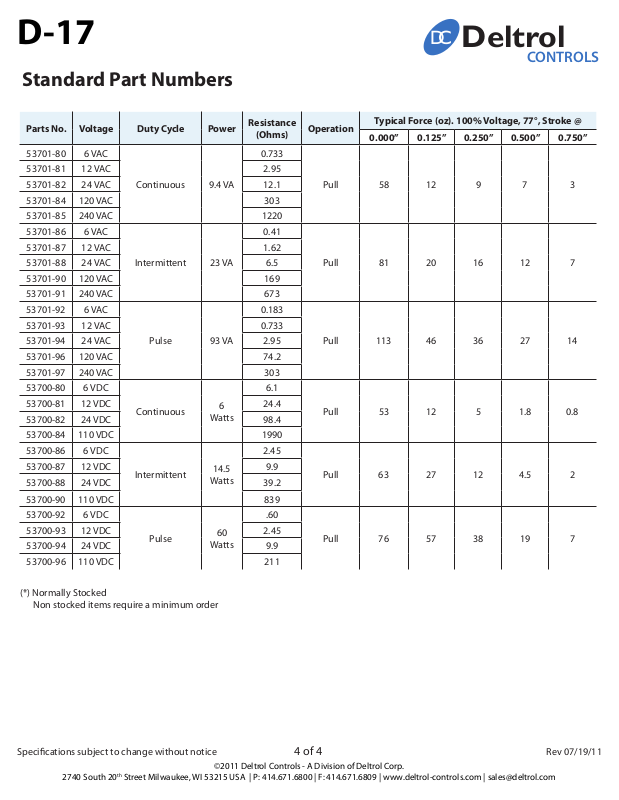

D-17
Standard Part Numbers
D
C
Deltrol
CONTROLS
Parts No. Voltage Duty Cycle Power
53701-80 6 VAC
53701-81 12 VAC 2.95
53701-82 24 VAC 12.1
53701-84 120 VAC 303
53701-85 240 VAC 1220
53701-86 6 VAC
53701-87 12 VAC 1.62
53701-88 24 VAC 6.5
53701-90 120 VAC 169
53701-91 240 VAC 673
53701-92 6 VAC
53701-93 12 VAC 0.733
53701-94 24 VAC 2.95
53701-96 120 VAC 74.2
53701-97 240 VAC 303
53700-80 6 VDC
53700-81 12 VDC 24.4
53700-82 24 VDC 98.4
53700-84 110 VDC 1990
53700-86 6 VDC
53700-87 12 VDC 9.9
53700-88 24 VDC 39.2
53700-90 110 VDC 839
53700-92 6 VDC
53700-93 12 VDC 2.45
53700-94 24 VDC 9.9
53700-96 110 VDC 211
Continuous 9.4 VA
Intermittent 23 VA
Pulse 93 VA
Continuous
Intermittent
Pulse
Watts
14.5
Watts
60
Watts
Resistance
(Ohms)
0.733
0.41
0.183
6.1
6
2.45
.60
Operation
Pull 58 12 9 7 3
Pull 81 20 16 12 7
Pull 113 46 36 27 14
Pull 53 12 5 1.8 0.8
Pull 63 27 12 4.5 2
Pull 76 57 38 19 7
Typical Force (oz). 100% Voltage, 77°, Stroke @
0.000” 0.125” 0.250” 0.500” 0.750”
(*) Normally Stocked
Non stocked items require a minimum order
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
4 of 4
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev 07/19/11
