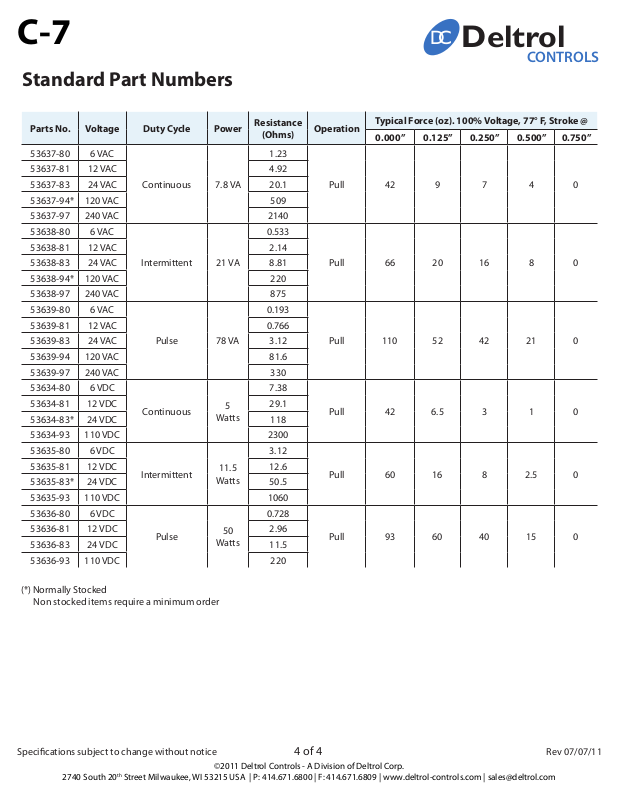

C-7
Standard Part Numbers
D
C
Deltrol
CONTROLS
Parts No. Voltage Duty Cycle Power
53637-80 6 VAC
53637-81 12 VAC 4.92
53637-83 24 VAC 20.1
53637-94* 120 VAC 509
53637-97 240 VAC 2140
53638-80 6 VAC
53638-81 12 VAC 2.14
53638-83 24 VAC 8.81
53638-94* 120 VAC 220
53638-97 240 VAC 875
53639-80 6 VAC
53639-81 12 VAC 0.766
53639-83 24 VAC 3.12
53639-94 120 VAC 81.6
53639-97 240 VAC 330
53634-80 6 VDC
53634-81 12 VDC 29.1
53634-83* 24 VDC 118
53634-93 110 VDC 2300
53635-80 6 VDC
53635-81 12 VDC 12.6
53635-83* 24 VDC 50.5
53635-93 110 VDC 1060
53636-80 6 VDC
53636-81 12 VDC 2.96
53636-83 24 VDC 11.5
53636-93 110 VDC 220
Continuous 7.8 VA
Intermittent 21 VA
Pulse 78 VA
Continuous
Intermittent
Pulse
Watts
11.5
Watts
50
Watts
Resistance
(Ohms)
1.23
0.533
0.193
7.38
5
3.12
0.728
Operation
Pull 42 9 7 4 0
Pull 66 20 16 8 0
Pull 110 52 42 21 0
Pull 42 6.5 3 1 0
Pull 60 16 8 2.5 0
Pull 93 60 40 15 0
Typical Force (oz). 100% Voltage, 77° F, Stroke @
0.000” 0.125” 0.250” 0.500” 0.750”
(*) Normally Stocked
Non stocked items require a minimum order
Specications subject to change without notice
2740 South 20th Street Milwaukee, WI 53215 USA | P: 414.671.6800 | F: 414.671.6809 | www.deltrol-controls.com | sales@deltrol.com
4 of 4
©2011 Deltrol Controls - A Division of Deltrol Corp.
Rev 07/07/11
