1 Product Data
2 Safety & Warnings
• DMX512 RDM decoder, RDM function can realize intercommunication between DMX master and decoder.
for example, you can set DMX decoder’s address by DMX master console.
• Total 5 PWM output channels, common anode. DMX channel quantity from 1CH~5CH settable
• PWM output resolution ratio 8bit , 16bit settable.
• Output PWM frequency from 500HZ ~ 30K HZ settable.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• Decoding mode settable.
• Galvanic isolation
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
RGBW DRIVER
A
B
+
A
B
A
Beschermd tegen vaste voorwerpen die groter zijn dan 12 mm
Protégé contre les objets solides de plus de 12 mm
Geschützt gegen Festkörper größer als 12 mm
Protected against solid objects greater than 12 mm
Protegido contra objetos sólidos superiores a 12 mm
Protetto contro oggetti solidi più grandi di 12 mm
Enkel geschikt voor toestellen op zeer lage spanning (minder dan 50 V-AC / 120 V-DC)
Convient uniquement pour les produits à très basse tension (moins de 50 V-AC / 120 V-DC)
Geeignet für Güter mit sehr niedriger Spannung (unter 50 V-AC / 120 V-DC)
Only suited for goods at very low voltage (below 50 V-AC / 120 V-DC)
Se recomieda únicamente para aquellos productos de tensión muy baja (menos de 50 V-AC / 120 V-DC)
Vale unicamente per i prodotti a tensione molto bassa (inferiore a 50 V-AC / 120 V-DC)
29
170
59
DC POWER INPUT
Commong Anode Output (+)
CH 1: R output (-)
CH 2: G output (-)
CH 3: B output (-)
CH 4: W/WW output (-)
CH 5: W/CW output (-)
2 groups DMX512
signal input & output
Last Update ALLU 17/04/2019
1
Installation Instruction
Ref: 21032 0010
3 Operation

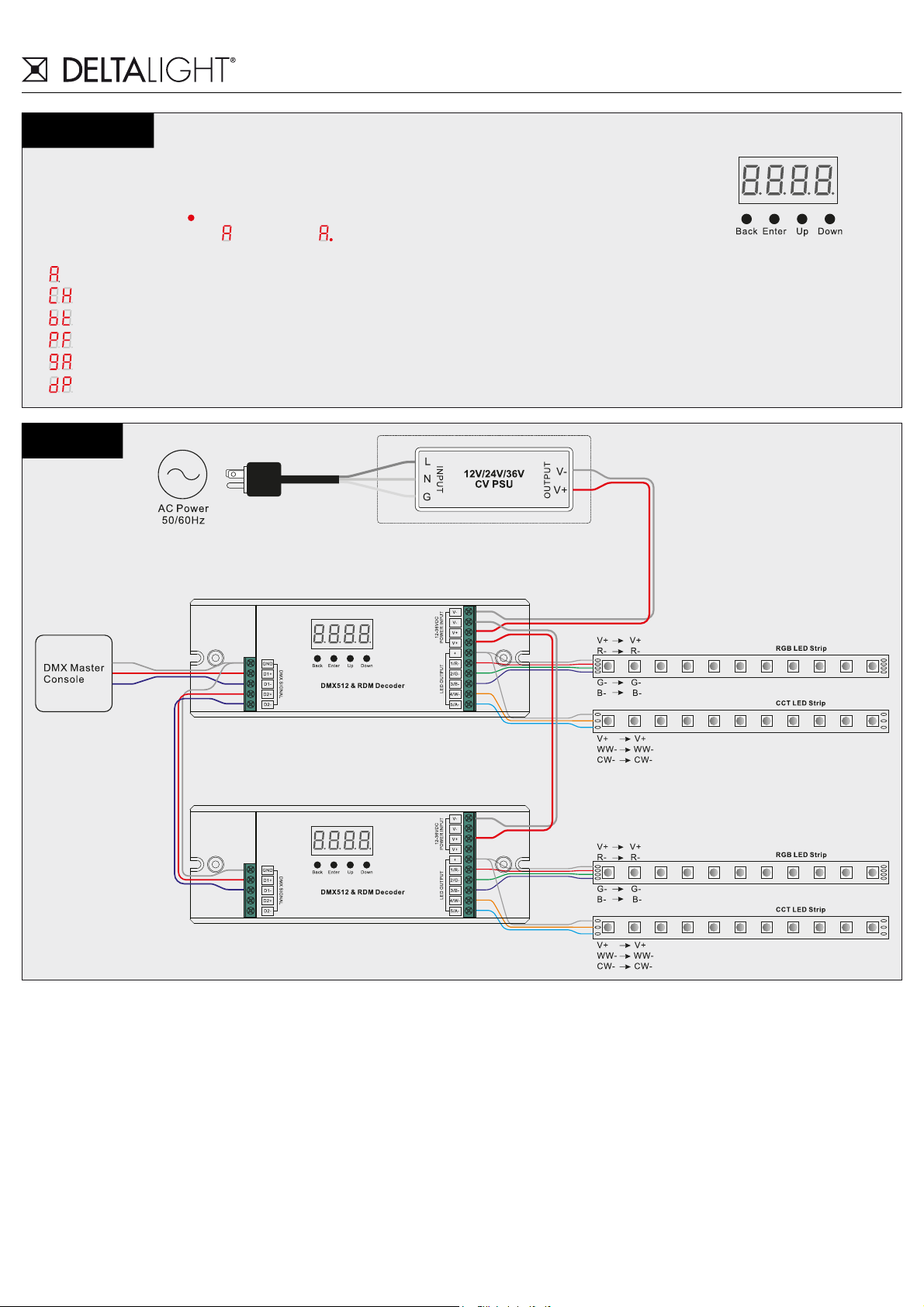

4 Wiring
Up, Down button is for menu selection.After power on the decoder,
if keep on clicking Up button, you will find below menu on display:
DMX signal indicator :: When DMX signal input is detected, the indicator on
the display following after turns on red X X X .
XXX Means DMX address. fa ctory defaults setting is 001.
XX Means DMX channels quantity. factory defaults setting is Ch05
XX Means Bit (8bit or 16bit). factory defaults setting is 16bit
XX Means output PWM frequency. factory defaults setting is 1K HZ
XX Means output dimming curve gamma value, factory defaults setting is ga 1.5
XX Means Decoding mode, factory defaults setting is dp1.1
2
Ref: 21032 0010
Installation Instruction
5 Operation
By holding button Back + Enter together at the same time over 5 seconds until the display go off, it will restore default settings .
1. DMX address setting:
select menu XXX, click button “Enter”, display flashes,then click or hold button “Up” / “Down”
to set DMX address (click is slow, hold is fast.), then click button“Back” to confirm.
2. DMX channel quantity setting:
Select menu XX, click button “Enter”, display flashes, then click button “Up” / “Down”
to set DMX channel quantity , then click button“Back” to confirm.
For example the DMX address is already set 001.
CH01=1 DMX address for all the output channels, which are all address 001.
CH02=2 DMX addresses , output 1&3 is address 001, output 2,4&5 is address 002
CH03=3 DMX addresses, output 1, 2 is address 001,002, output 3,4&5 is address 003
CH04=4 DMX addresses, output 1,2,3 is address 001,002,003, output 4&5 is address 004
CH05=5 DMX addresses, output 1,2,3,4,5 is address 001,002,003,004,005.
3. PWM output resolution Bit setting:
select menu XX, click button “Enter”,display flashes,
then click button “Up” / “Down” to choose 08 or 16 bit,
then click button“Back” to confirm.
4. output PWM frequency setting:
select menu XX, click button “Enter”, display
flashes,then click button “Up” / “Down”to choose 00~30,
then click button“Back” to confirm. 00=500HZ, 01=1kHZ,
02=2kHZ.....30=30kHZ.
5. output dimming curve gamma value setting:
select menu XX, click button “Enter”,
display flashes, then click or hold button “Up” / “Down”
to choose 0.1~9.9, then click button“Back” to confirm.
6. DMX decoding mode setting:
Select menu XX, click button “Enter”, display flashes, then click or hold button “Up” / “Down”to choose the
decoding mode, then click button“Back” to confirm. “dPxx” means the DMX address quantity used for control of
corresponding PWM output channel quantity. 1st “x” is DMX address quantity, 2nd “x” is PWM channel quantity.
Micro dimming: the micro dimming effect can only be visible when the dimming curve gamma value is set lower
than 1.4, and the lower the value is, the more visible the micro dimming effect will be.
3
Ref: 21032 0010
Installation Instruction
5 Operation
DMX Console
Slider number
DMX channel
1
dp 1.1
for output 1 dimming
for output 2 dimming
for output 3,4&5 dimming
for output 1 dimming
for output 1 micro dimming
for output 1 dimming
for output 1 dimming
for output 1 dimming
for output 1 dimming
for output 1 dimming
for output 2 dimming for output 2 dimming
for output 3,4&5 dimming
for all output master dimming
for output 3,4&5 dimming
for all output master dimming
strobe effects
for output 1 dimming
dp 2.1 dp 4.3 dp 5.3
2
3
4
5
6
DMX address is 001, CH03
DMX Console
Slider number
DMX channel
1
dp 1.1
for output 1 dimming
for output 2 dimming
for output 3 dimming
for output 4&5 dimming
for output 1 dimming
for output 1 micro dimming
for output 2 dimming
for output 2 micro dimming
for output 3 dimming
for output 3 micro dimming
for output 4&5 dimming
for output 4&5 micro dimming
for output 1 dimming
for output 2 dimming for output 2 dimming
for output 3 dimming
for output 4&5 dimming
for all output master dimming
for output 3 dimming
for output 4&5 dimming
for all output master dimming
strobe effects
for output 1 dimming
dp 2.1 dp 5.4 dp 6.4
2
3
4
5
6
7
8
DMX address is 001, CH04
DMX Console
Slider number
DMX channel
1
dp 1.1
for output 1 dimming
for output 2 dimming
for output 3 dimming
for output 4 dimming
for output 5 dimming
for output 1 dimming
for output 1 micro dimming
for output 2 dimming
for output 2 micro dimming
for output 3 dimming
for output 3 micro dimming
for output 4 dimming
for output 4 micro dimming
for output 5 dimming
for output 5 micro dimming
for output 1 dimming
for output 2 dimming for output 2 dimming
for output 3 dimming
for output 4 dimming
for output 5 dimming
for all output master dimming
for output 3 dimming
for output 4 dimming
for output 5 dimming
for all output master dimming
strobe effects
for output 1 dimming
dp 2.1 dp 6.5 dp 7.5
2
3
4
5
6
7
8
9
10
DMX address is 001, CH05
4
Ref: 21032 0010
Installation Instruction
5 Operation
The data definitions for strobe channel are as follows:
{0, 7},//undefined
{8, 65},//slow strobe-->fast strobe
{66, 71},//undefined
{72, 127},//slow push fast close
{128, 133},//undefined
{134, 189},//slow close fast push
{190, 195},//undefined
{196, 250},//random strobe
{251, 255},//undefined
Restore to Factory Default Setting
Press and hold down both “ ” and “Enter” keys until then release the keys,
system will reset and the digital display will turn on again, all settings will be restored to factory default.
Default settings are as follows:
DMX Address Code: a001
DMX Address Quantity: SW1=0: ch05, SW1=1: ch04
PWM Resolution Mode: bt16
PWM Frequency: pf01
Gamma: ga1.5
Decoding Mode: dp1.1
Back the digital display turns off,
The supported RDM PIDs are as follows:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
DMX_START_ADDRESS
IDENTIFY_DEVICE
SOFTWARE_VERSION_LABEL
DMX_PERSONALITY
DMX_PERSONALITY_DESCRIPTION
SLOT_INFO
SLOT_DESCRIPTION
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
