Application
For use in new construction applications where no insulating material is present.
For standard 5/8” drywall.
Suitable for damp locations.
Order information
NORTH AMERICAN EDITION

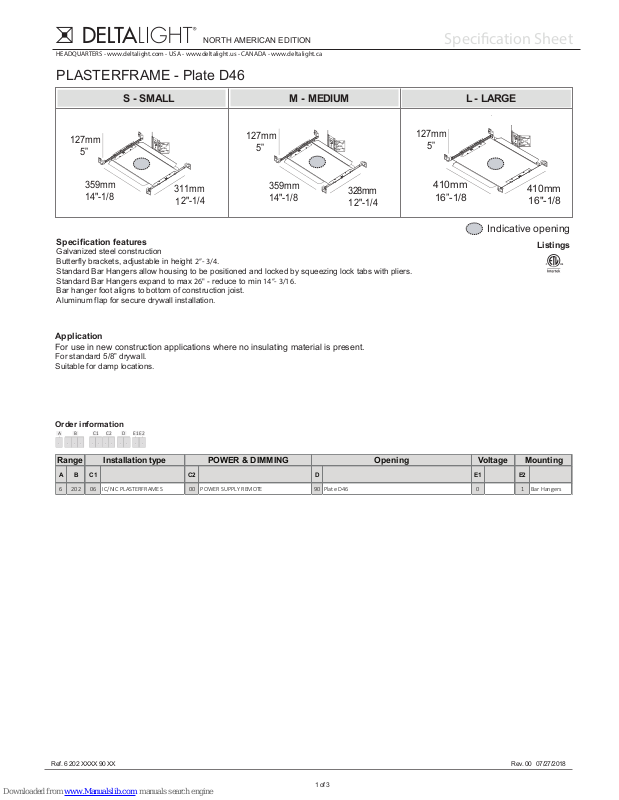

Specication Sheet
Specification features
Galvanized steel construction
Butterfly brackets, adjustable in height 2”- 3/4.
Standard Bar Hangers allow housing to be positioned and locked by squeezing lock tabs with pliers.
Standard Bar Hangers expand to max 26" - reduce to min 14”- 3/16.
Bar hanger foot aligns to bottom of construction joist.
Aluminum flap for secure drywall installation.
1 of 3
Ref. 6 202 XXXX 90 XX
Rev. 00 07/27/2018
PLASTERFRAME - Plate D46
...........
.
E2
E1
DC1 C2A B
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
Listings
A B C1 C2 D E1 E2
6 2 02 06 IC/NIC PLASTERFRAME S 00 POWER SUPPLY REMOTE 90 Plate D46 0 1 Bar Hangers
Range
Installation type
POWER & DIMMING
Opening
Mounting
Voltage
EGRAL - LMUIDEM - MLLAMS - S
Indicative opening
127mm
5”
359mm
14"-1/8
311mm
12"-1/4
410mm
16”-1/8
410mm
16"-1/8
127mm
5”
328mm
12"-1/4
127mm
5”
359mm
14"-1/8
HOUSING
Installation Instructions
NORTH AMERICAN EDITION
2 of 3
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
Ref. 6 202 XXXX 90 XX Rev. 00 07/27/2018
3
B
C
½” BAR HANGERS
½” BAR HANGERS
2
2x
2x
B
A
4
2x
Installation
A
2x Ø1/2”
1
3 of 3
HOUSING
CAUTION! - RISK OF FIRE
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE
WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.
ATTENTION! - RISQUE D’INCENDIE
CE PRODUIT DOIT ÊTRE INSTALLÉ SELON
LE CODE D’INSTALLATION PERTINENT,
PAR UNE PERSONNE QUI CONNAÎT BIEN LE PRODUIT
ET SON FONCTIONNEMENT AINSI
QUE LES RISQUES INHÉRENTS.
FIELD INSTALLED POWER LIMITED
CIRCUITS SHALL HAVE MINIMUM 300V
RATED INSULATED CONDUCTORS
Installation Instructions
NORTH AMERICAN EDITION
Finishing PLASTERFRAME - Plate D46
HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca
Ref. 6 202 XXXX 90 XX Rev. 00 07/27/2018
6
5
A
13”
330 mm
B
MIN. Tolerance between fixture and opening = 2mm;1/16”
DRYWALL CEILING
9”-7/16
240 mm
Ø 46mm
Ø 1”-13/16
DRYWALL CEILING PLASTER
7
8
PAINT
