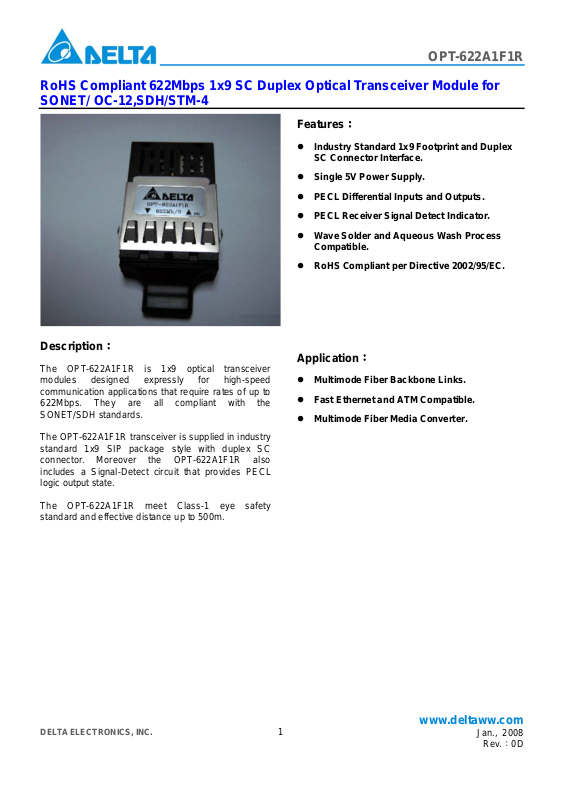

Delta Electronics OPT-622A1F1R User Manual

OPT-622A1F1R
RoHS Compliant 622Mbps 1x9 SC Duplex Optical Transceiver Module for SONET/ OC-12,SDH/STM-4
Features
Industry Standard 1x9 Footprint and Duplex
SC Connector Interface.
Single 5V Power Supply.PECL Differential Inputs and Outputs. PECL Receiver Signal Detect Indicator. Wave Solder and Aqueous Wash Process
Compatible.
RoHS Compliant per Directive 2002/95/EC.
Description
The OPT-622A1F1R is 1x9 optical transceiver modules designed expressly for high-speed communication applications that require rates of up to 622Mbps. They are all compliant with the SONET/SDH standards.
The OPT-622A1F1R transceiver is supplied in industry standard 1x9 SIP package style with duplex SC connector. Moreover the OPT-622A1F1R also includes a Signal-Detect circuit that provides PECL logic output state.
The OPT-622A1F1R meet Class-1 eye safety standard and effective distance up to 500m.
Application
Multimode Fiber Backbone Links.Fast Ethernet and ATM Compatible. Multimode Fiber Media Converter.
DELTA ELECTRONICS, INC.
1
www.deltaww.com
Jan., 2008
Rev.0D
OPT-622A1F1R
Absolute Maximum Ratings
Parameter Storage Temperature Ts -40 85 ºC Lead Soldering Temperature T Lead Soldering Time t Supply Volt age VCC 0 6 V
Symbol Min. Typ. Max. Unit Note
260 ºC
SOLD
10 Sec.
SOLD
Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit Note Data Rate 622.08 Mbps Operating Temperature TA 0 70 ºC Supply Volt age VCC 4.75 5 5.25 V
Electrical Characteristics
Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Transmitter Data Input Voltage-Low VIL-VCC -1.81 -1.48 V Transmitter Data Input Voltage-High VIH-VCC -1.16 -0.88 V
Receiver
Data Output Voltage-Low VOL-VCC -1.95 -1.62 V Data Output Voltage-High VOH-VCC -1.045 -0.74 V SD Output Voltage-Low V SD Output Voltage-High V
-VCC -1.95 -1.62 V ECL Family
SDL
-VCC -1.045 -0.74 V ECL Family
SDH
Optical Characteristics
Data Rate = 622.08Mbps, PRBS=223-1, NRZ, 62.5/125um MMF
Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Supply Current Icc Mean Launch Power PO -20
150
-14 dBm Optical Extinction Ratio E.R. 9 dB Center Wavelength Spectral Width (RMS) Optical Risetime / Falltime
λ
C
σ
t
3.0 ns
r/tf
1261 1360 nm
14.5
Output Eye Diagram Compliant with ITU-T recommendation G.957
Receiver
Supply Current Icc Sensitivity PIN
Input Optical Wavelength
λ
Signal Detect-Asserted PA
150
-26 dBm
1100 1600 nm
-26 Signal Detect-DeAsserted PD -35 dBm
Signal Detect-Hysteresis PA-PD 0.5 dB Overload P
NotesThe sensitivity should be tested at BER of 1×10
NRZ, PRBS=2
23
-1 and E.R.= 9dB.
-8 dBm
SAT
-10
or better with an input signal consisting of 622.08Mb/s,
mA
nm
10%90%
mA
dBm
DELTA ELECTRONICS, INC.
2
www.deltaww.com
Jan., 2008
Rev.0D
Pin Definition
OPT-622A1F1R
PIN Symbol
1 GND Receiver Signal Ground 2 RD (+) Receiver Data Out Non-inverted (LVPECL or PECL) 3 RD (-) Receiver Data Out Inverted (LVPECL or PECL) 4 SD 5 VccR Receiver Power Supply 6 VccT Transmitter Power Supply 7 TD (-) Transmitter Data In Inverted (LVPECL or PECL) 8 TD (+) Transmitter Data In Non-inverted (LVPECL or PECL) 9 GND Transmitter Signal Ground
Receiver Signal Detect (LVPECL、PECL)
Functional description
Pin Descriptions
Pin 1 Receiver Signal Ground, GND
Directly connect these pins to the ground plane.
Pin 2 Receiver Data Out Non-inverted (LVPECL), RD (+)
PECL logic family. Output external biased and internal DC coupled.
Pin 3 Receiver Data Out Inverted (LVPECL), RD (-)
PECL logic family. Output external biased and internal DC coupled.
Pin 4 Receiver Signal Detect (LVPECL), SD
PECL logic family. Normal Operation: Logic “1” Output; Fault Condition: Logic”0” Output.
Pin 5 Receiver Power Supply , VccR
Provide +3.3V dc power supply.
Pin 6 Transmitter Power Supply, VccT
Provide +3.3V dc power supply.
Pin 7 Transmitter Data In Inverted (LVPECL), TD (-)
Pin 7 Transmitter Data Input Inverted (LVPECL), TD (-).
Pin 8 Transmitter Data In Non-inverted (LVPECL), TD (+)
Pin 8 Transmitter Data Input Non-inverted (LVPECL), TD (+).
Pin 9 Transmitter Signal Ground, GND
Directly connect these pins to the ground plane.
DELTA ELECTRONICS, INC.
3
www.deltaww.com
Jan., 2008
Rev.0D
Recommend Circuit Schematic
OPT-622A1F1R
R1=R3=82 ohm (3.3V),68 ohm(5V) R2=R4=130 ohm (3.3V),191 ohm (5V)
R5=R6=150 ohm (3.3V),270 ohm (5V) R7=130 ohm (3.3V PECL),82 ohm(5V),NC (TTL) R8=82 ohm (3.3V PECL),130 ohm(5V),NC (TTL) C1=C2=C3=C4=C5=C6=C7=100 nF C8=C9=10uF L1=L2=1uH
DELTA ELECTRONICS, INC.
4
www.deltaww.com
Jan., 2008
Rev.0D
Package Outline
OPT-622A1F1R
DELTA ELECTRONICS, INC.
5
www.deltaww.com
Jan., 2008
Rev.0D
Regulatory Compliance
OPT-622A1F1R
Feature
Electromagnetic Interference
FCC Class B
Reference
(EMI)
EN 55022 Class B (CISPR 22A)
Radio Frequency
EN 61000-4-3
Electromagnetic Field
IEC 1000-4-3
Electrostatic Discharge to the
EN 61000-4-2
Duplex LC Receptacle
IEC 1000-4-2 IEC 801.2
Electrostatic Discharge to the Electrical Pins
MIL-STD-883E Method 3015.7
Eye Safety US FDA CDRH AEL Class 1
EN 60950: 2000 EN 60825-1: 1994+A11+A2 EN 60825-2: 2000
Component Recognition Underwriters Laboratories and
Canadian Standards Association Joint Component Recognition for Information Technology Equipment Including Electrical Business Equipment
Performance
(1) Satisfied with electrical
characteristics of product spec.
(2) No physical damage
CDRH File # 0321539-00 TUV Certificate No. R50032471
UL File # E239394
Order information
OPT- 622X1X2X3X4X5X6
X
: Fiber
1
A: MMF, 1310nm
X4: Data Coupling
1: 1x9SC, DC/DC
X
: Power Supply Voltage and SD Level
2
1: 5.0V, PECL SD Level
X
: Distance
3
F: 500m
X5: RoHS Compliant
R: RoHS Compliant
:
X
6
Temperature Blank: 0 to +70 degree C
Appendix ADocument Revision
Version No. Date Description
0C 2006-11 Release 0D 2008-01
Correct SD Output Voltage Overload symbolPin Definition Package OutlineRecommended Circuit Schematic
DELTA ELECTRONICS, INC.
6
www.deltaww.com
Jan., 2008
Rev.0D
OPT-622A1F1R
