Delta Electronics OADT-10UAD User Manual

Doc. No. 121-OA0901001-EN00
LED Tube Light Specification
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
www.deltaww.com.tw
1
of 8
CONTENT
1. OUTLOOK
2. APPLICATION
3. FEATURES
4. OPERATION CONDITION
5. SPECIFICATION
6. PHOTOMETRY
Doc. No. 121-OA0901001-EN00
7. PRODUCT CODE DEFINITION
8. MATERIAL FINISH
9. ASSEMBLY AND INSTALLATION
10. WARNING
11. WARRANTEE
12. ENVIRONMENTAL AND ECONOMIC BENIFIT
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
2 of 8
OUTLOOK
Doc. No. 121-OA0901001-EN00
3D Birdview
Top View
Side View
Bottom View
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
3 of 8
Doc. No. 121-OA0901001-EN00
APPLICATIONS
House Lighting Office Lighting Store Lighting
FEATURES
Easy to install on T8 fluorescence tube socket. System design with integration of power and LED tube light Good thermal dissipation design. Over 70% lumen maintenance at 50,000 hours (LED life 50,000 hours) at max acceptable ambient temperature
OPERATION CONDITION
Operation ambient temperature -40oC to +50oC Input voltage 100V~240V AC, 50/60Hz
SPECIFICATION
Optical
Mechanical and Dimension
Electrical
Luminaire Efficacy
900 LmBrightness
Cool DaylightCCT
18lux @8mAverage illumination
70CRI
Φ
=32.5mm L=580mmDimension
300g Weight
100V~240V AC, 50/60HzInput Voltage
10WattPower Consumption
> 0.9Power Factor
Warm white:56 lm/Watt Neutral white: 69 lm/Watt
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
4 of 8

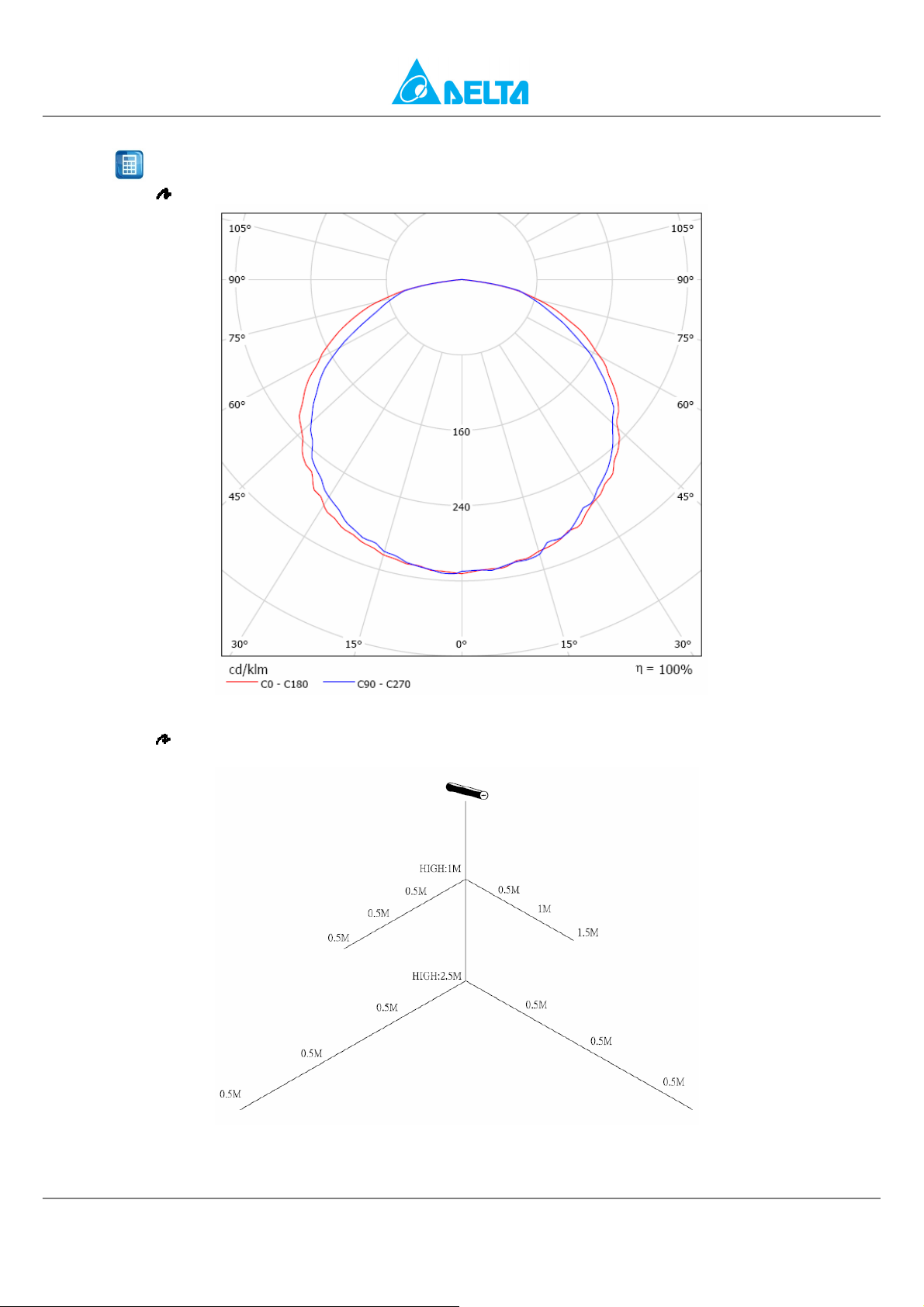

PHOTOMETRY
Cut-off Light Pattern(?)
Doc. No. 121-OA0901001-EN00
Illuminance
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
5 of 8
PRODUCT CODE DEFINITION
O A D T 1 0 A DU D X XB
12346895 7
Doc. No. 121-OA0901001-EN00
1.SERIES CODE
OADT OA Lighting
2.Input Power
10 10W
20 20W
3.Input voltage
U 100-240V AC
E 200-240V AC
A 100-120V AC
4. Lamp dimension
A 60
B :120
C :30x60
5.Cover type
T :Transparent
D :Diffuse
M :Microlens
6.COLOR
W Warm white
N Neutral white
D :Daylight
7.Features
P Premium (PFC+TRAIC Dimming)
C Commercial (only PFC)
S Step dimming
D TRAIC Dimming
B Basic (not dimmable, no PFC)
D 60x60
E 30x120
F 60x120
MATERIALS AND FINISH
Ten high brightness LEDs per tube light Anodized cast aluminum heatsink 300mA constant current driver
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
8.LED supplier
9. Binning
6 of 8

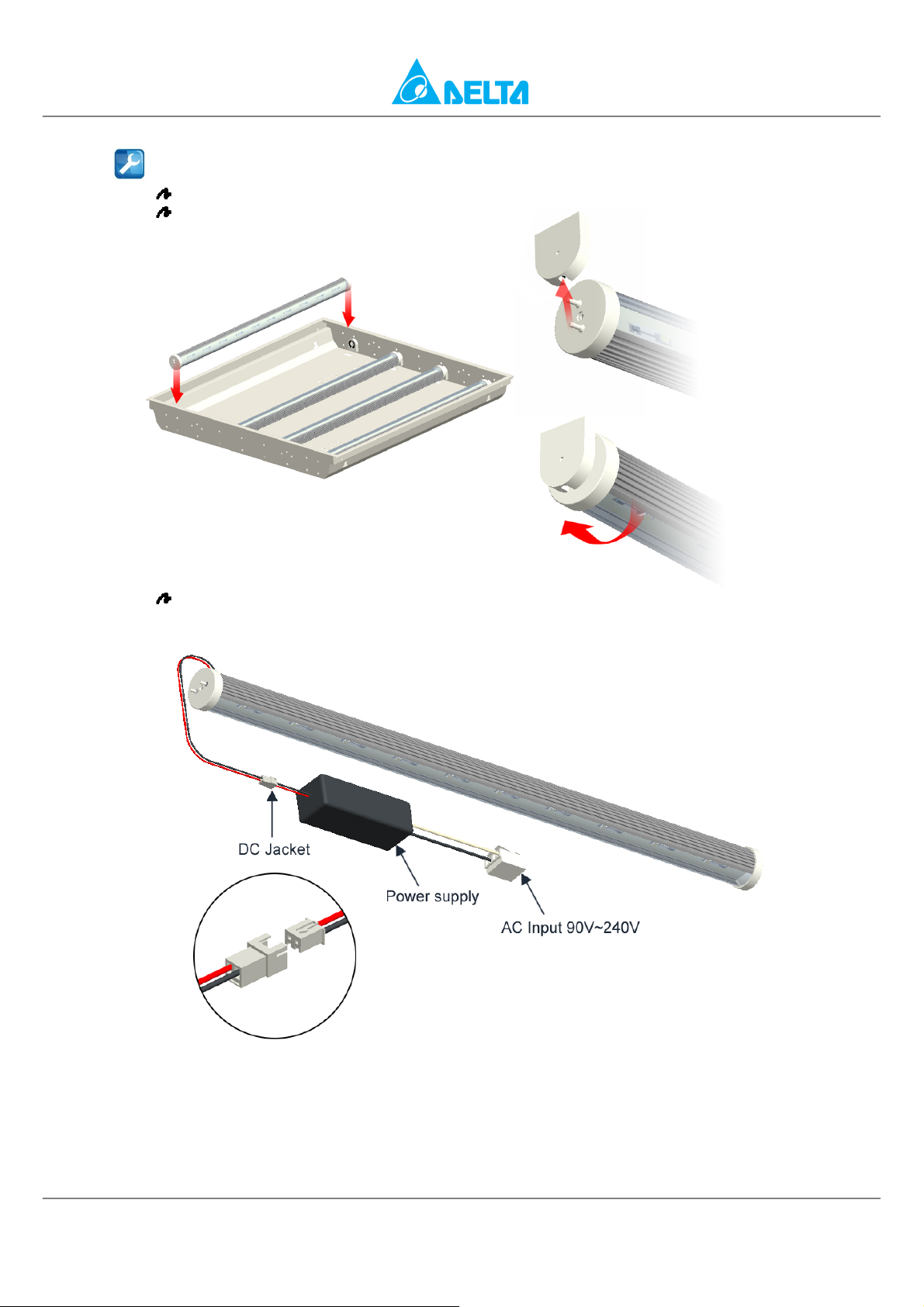

ASSEMBLY AND INSTALLATION
Assembly Installation
Doc. No. 121-OA0901001-EN00
Installation
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
7 of 8
Doc. No. 121-OA0901001-EN00
WARNING
Not suitable for high temperature and moisture area. Not suitable for close system fixture. Do not use inappropriate power supply.
WARRANTY
3 years of the entire system (power, LED tube light) with no mechanical damage under normal operation condition LED lumen degradation within 20% in 3 years (reference TW environment only)
ENVIRONMENTAL AND ECONOMIC BENIFIT
Energy Comparison 600mm T8 tube OADT-10AUDDB
Power Consumption (W) 18 10
Power (kW) 0.018 0.01 % 100% 56% Power Consumption Per Year kWh, 12hr/day light on 79 44 Power Saving Per Year (kWh) 35 Mone y S aving Pe r Ye ar (US D) $0.15/kW h 5 3-Year Saving (USD) 16 3-Year Maintain Fee T8 tube $0.75(×3year s) 2.25 0 3-Year Total Money Saving (USD) 18 3-Year Total CO2 Emission Saving (Kg) 0.736Kg CO2/kWh 77
Ene r gy Sa v ing
End of Specification
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
8 of 8
