Delta Electronics MCM12S03L User Manual

FEATURES

 Fully integrated point-of-load DC/DC

converter for low component count solutions

 Small footprint and low profile :

18.6 mm x 12.5 mm x 4.2 mm
(0.732" x 0.492" x 0.165")

 Input voltage range : 7V ~ 13.2V.
 3A DC output current
 Output adjustable 0.6V to 2.5V (no power

good) or 0.8V to 2.5V (with power good)

 Monotonic startup into normal and pre-

biased loads

 Power good function (power good model)
 Fast transient response
 Enable Function
 Mositure Sensitivity Level (MSL) 3
 Lead free reflow process compatible

Integrated, Non-Isolated, Point of Load,

DC/DC Power Modules: 7~13.2Vin, 0.6-2.5V/ 3Aout

The MCM12S03L, 7V~13.2V input, single output, fully integrated non­isolated point of load DC/DC converter is the latest offering from a world
leader in power systems technology and manufacturing － Delta
Electronics, Inc. This product family provides up to 3A of output current or

7.5W of output power in a compact, very low profile, miniature, IC-like,
very easy to use, molded package. It is highly integrated and requires
very few external components to provide the point-of-load function. The
back of the module is in close contact with the internal heat dissipation
components which provide excellent thermal performance. These
converters hence possess outstanding electrical and thermal
performance, as well as extremely high reliability under highly stressful
operating conditions. Operating over the input voltage ranges 7V to

13.2V, the MCM12S03L supports an output voltage range from 0.6V to

2.5V (with no power good) or 0.8V~2.5V (with power good), set by a
single resistor. The MCM12S03L is packaged in a thermally enhanced,
compact (18.6mm x 12.5mm), and low profile (4.2mm) over-molded
package suitable for automated assembly by standard surface mount
equipment. The MCM12S03L is lead free process compliant.

APPLICATIONS

 UMPC
 Server
 Industrial PC and Equipment
 Point of Load Regulation
 Other General Purpose Step Down DC/DC

 PCI Express Graphical Processing Unit

PRELIMINARY DATABRIEF
DB_MCM12S03L _04252008

SPECIFICATIONS

GENERAL SPECIFICATIONS OUTPUT SPECIFICATIONS

Input Voltage
Switching Frequency
Turn-on time
Size

Typical 7V ~ 13.2Vdc
Typical 600KHz
Typical 20 mS

18.6mm × 12.5mm × 4.2mm
(0.732" x 0.492" x 0.165")

MODEL LIST

Model Name Input Voltage Output Voltage Output

Current

MCM12S03L A 7 ~ 13.2Vdc 0.6V ~ 2.5Vdc

MCM12S03L-1A 7 ~ 13.2Vdc 0.8V ~ 2.5Vdc

3A

3A

SIMPLIFIED BLOCK DIAGRAM

Voltage Accuracy
Voltage Adjustment
Line Regulation
Load Regulation
Ripple & Noise

With Power Good Efficiency

Typical 2%
Typical 0.8V~2.5 V or 0.6V~2.5 V
Typical 0.2%
Typical 0.2%
Typical 65 mV (3A)

12Vin, 2.5Vo, full load

No 87%

Yes 87%

REFERENCE CIRCUITRY FOR GENERAL APPLICATION

For 7V ~ 13.2V

3

2

DB_MCM12S03L _04252008

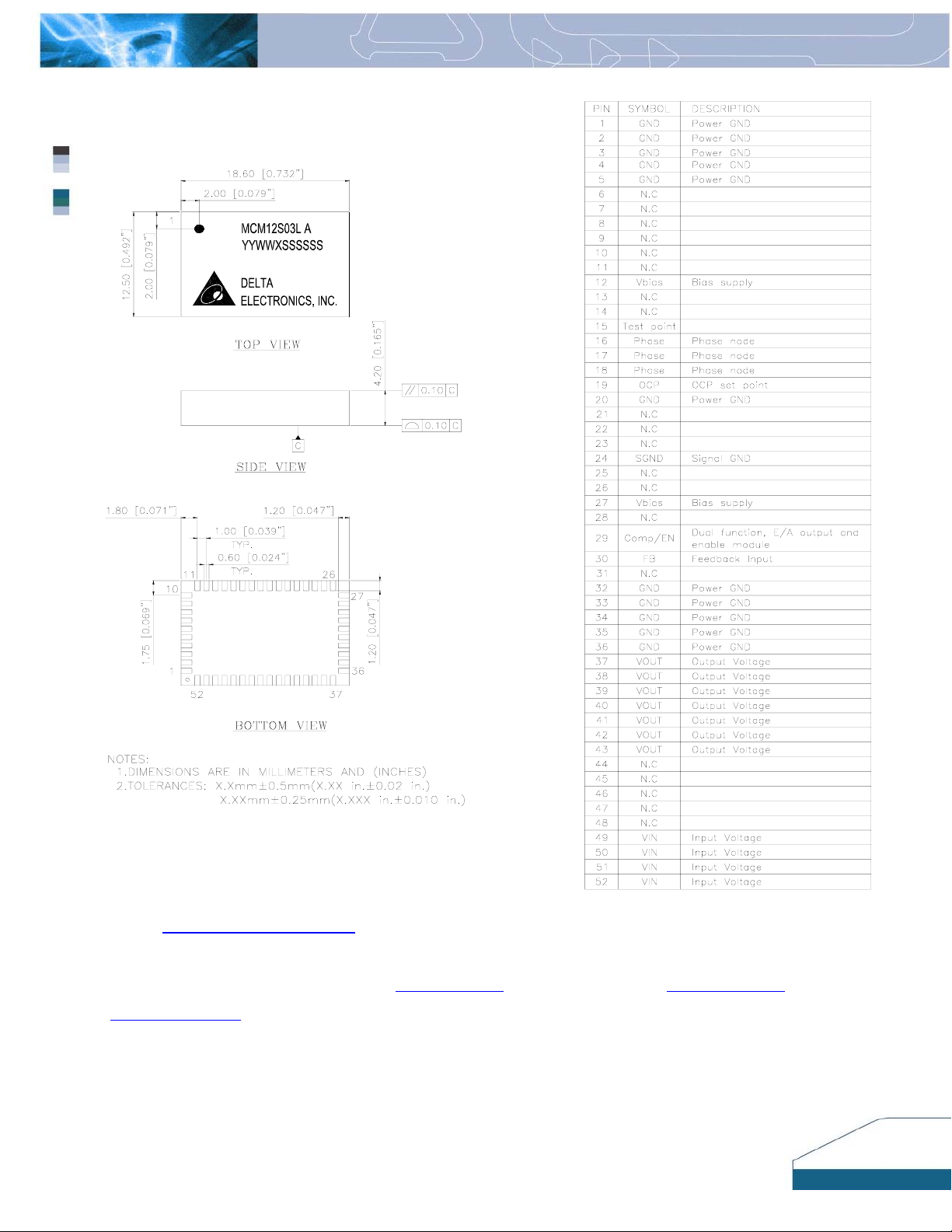

MECHANICAL DRAWING

CONTACT: www.delta.com.tw/dcdc

USA:

Telephone:
East Coast: [phone]
West Coast: [phone]
Fax: [phone]
Email: [e-mail]

Europe:

Telephone: [phone]
Fax: [phone]
Email: [e-mail]

Asia & the rest of world:

Telephone: [phone] x6220
Fax: [phone]
Email: [e-mail]

WARRANTY

Delta offers a two (2) year limited warranty. Complete warranty information is listed on our web site or is available upon request from Delta.
Information furnished by Delta is believed to be accurate and reliable. However, no responsibility is assumed by Delta for its use, nor for any infringements of patents or
other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Delta. Delta reserves the right
to revise these specifications at any time, without notice
