Delta Electronics LMWU200 User Manual

Wireless USB Adapter

User Manual

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna, (2) Increase the separation between the equipment and receiver, (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, (4) Consult the dealer or an experienced radio/TV technician for help.

Federal Communications Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.

Wireless USB Adapter

TABLE OF CONTENT

INTRODUCTION .............................................................................1

CONNECT THE USB ADAPTER TO YOUR DESKTOP PC ..... 2

ARDWARE INSTALLATION

DRIVER INSTALLATION............................................................... 2

NSTALL DRIVER UNDER WINDOWS

CONFIGURATION UTILITY .......................................................16

NSTALL THE CONFIGURATION UTILITY

ONFIGURE THE CONFIGURATION UTILITY

...............................................................2

98 ............................................2

ME ..........................................6

2000 ........................................9

XP .........................................13

..........................................16

....................................20

Wireless USB Adapter

Introduction

The Wireless USB Adapter solution overcomes the limitations of wired networks by providing fast, simple, mobile and reliable access. It is designed for desktop computers running Windows 98, 2000, Millennium and XP.

Features

 Complies with the IEEE 802.11b Direct Sequence Spread

Spectrum

 Complies with USB specification 1.0  Supports 1, 2, 5.5 and 11Mbps Data Rates  Wired Equivalent Privacy (WEP) 40-bit data encryption  Provides Firmware upgrade utility via USB port  Uses USB Bus power with no external power supply needed  Dipole antenna  Driver Supports Microsoft®Windows®98/2000, Millennium and

iii

Wireless USB Adapter

Connect the USB Adapter to Your Desktop PC

Hardware Installation

 Power on your desktop PC.  Connect the USB Adapter to the USB port of your desktop PC.  Insert the driver CD into your CD-ROM.  The Hardware Installation is complete.

Driver Installation

Install Driver Under Windows 98

1. Connect the Wireless USB adapter into your PC. Windows 98 automatically recognize a new USB device. Click the Next button to proceed.

Wireless USB Adapter

2. Select “Search for the best driver for your device” and click the Next button to continue.

3. Make sure that Specify a location is selected and click the Browse button. At this point, Windows will ask you to browse for the folder. Simply select the folder in which the driver is located and click the Next button.

Wireless USB Adapter

4. Windows is now ready to install the driver. Click the Next button to continue.

5. After Windows copies the files from your CD, you will be notified that installation has been complete. Click the Finish button to continue.

Wireless USB Adapter

6. Windows will now ask you to restart your computer. Click the Ye s button to restart your PC.

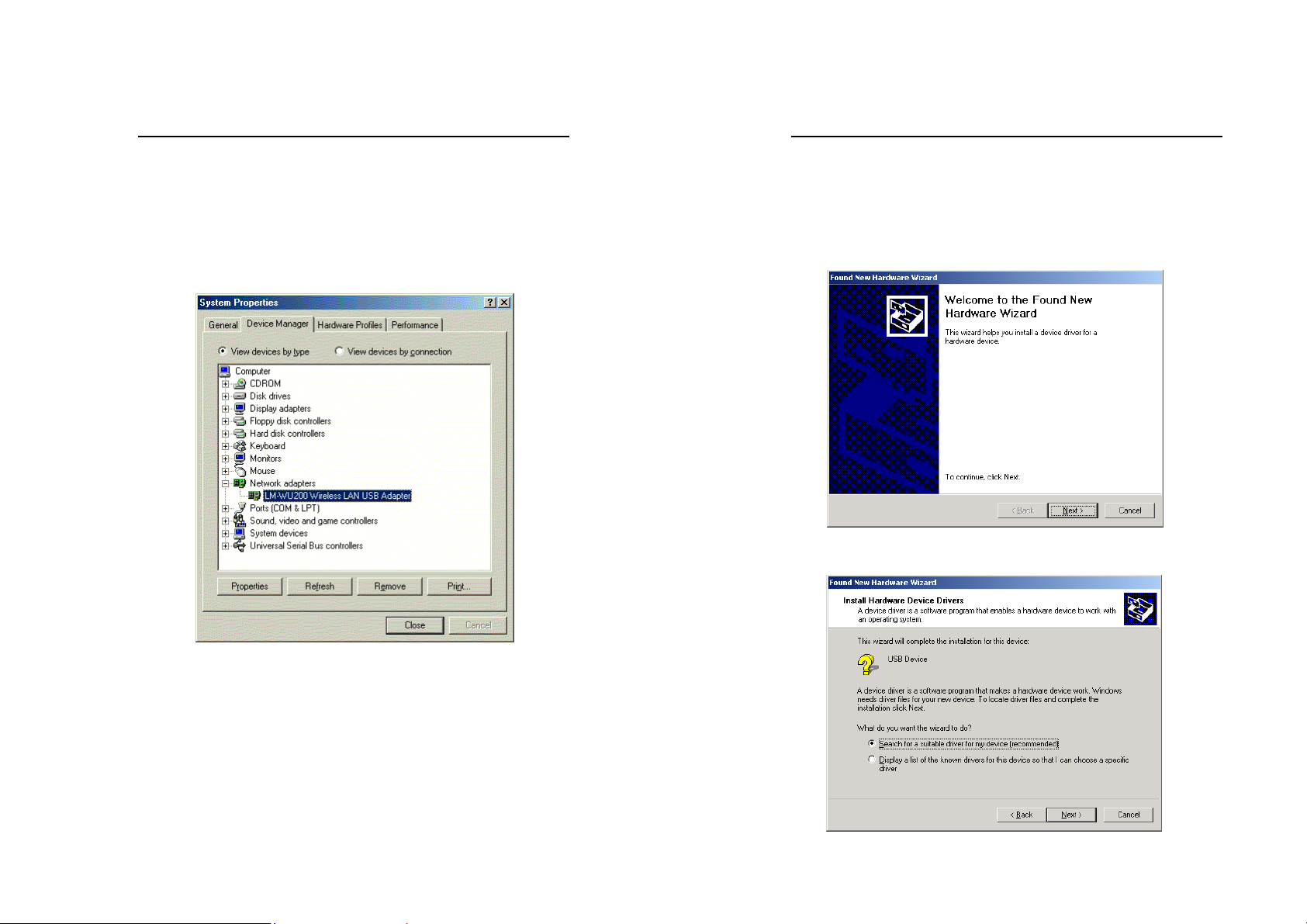

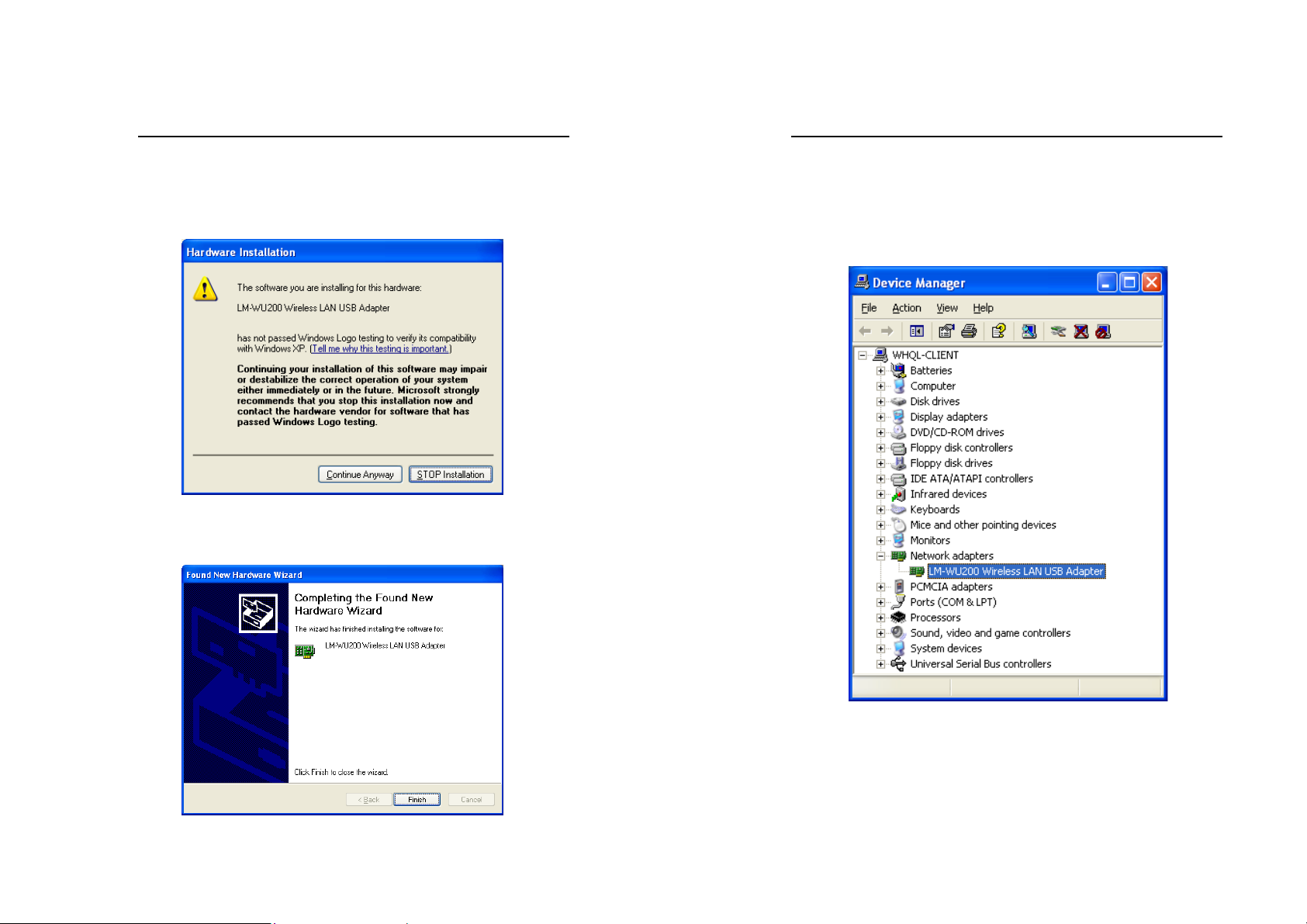

7. Click right on My computer and select Properties. Select Device Manager and click on the Network adapters. You will find the LM-WU200 Wireless LAN USB Adapter, if it has been installed successfully. The USB adapter driver installation is complete. You can continue on to Utility Installation.

Wireless USB Adapter

Install Driver Under Windows ME

1. Windows automatically recognizes that a new USB has been added. Select Automatic search for a better driver [Recommended] and click the Next button to proceed.

Wireless USB Adapter

3. Windows will indicate that the installation has been complete. Click the Finish button to continue.

4. Windows will now ask you to restart your computer. Click the Ye s button to restart.

2. At this point, Windows will ask you for new drivers. Click the Browse button, simply select the folder in which the driver is located and click the OK button to proceed.
