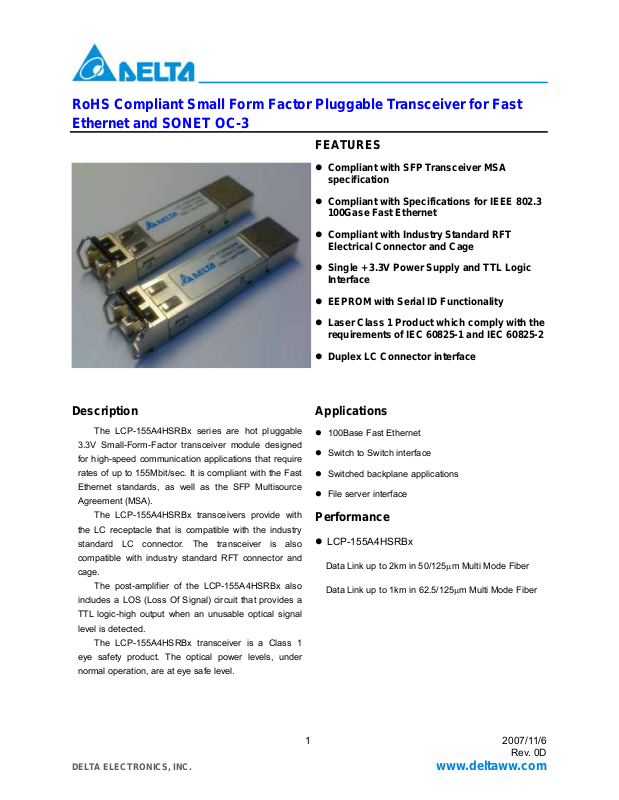

RoHS Compliant Small Form Factor Pluggable Transceiver for Fast Ethernet and SONET OC-3

FEATURES

 Compliant with SFP Transceiver MSA

specification

 Compliant with Specifications for IEEE 802.3

100Gase Fast Ethernet

 Compliant with Industry Standard RFT

Electrical Connector and Cage

 Single + 3.3V Power Supply and TTL Logic

Interface

 EEPROM with Serial ID Functionality  Laser Class 1 Product which comply with the

requirements of IEC 60825-1 and IEC 60825-2

 Duplex LC Connector interface

Description

The LCP-155A4HSRBx series are hot pluggable

3.3V Small-Form-Factor transceiver module designed

for high-speed communication applications that require

rates of up to 155Mbit/sec. It is compliant with the Fast

Ethernet standards, as well as the SFP Multisource

Agreement (MSA).

The LCP-155A4HSRBx transceivers provide with

the LC receptacle that is compatible with the industry

standard LC connector. The transceiver is also

compatible with industry standard RFT connector and

cage.

The post-amplifier of the LCP-155A4HSRBx also

includes a LOS (Loss Of Signal) circuit that provides a

TTL logic-high output when an unusable optical signal

level is detected.

The LCP-155A4HSRBx transceiver is a Class 1

eye safety product. The optical power levels, under

normal operation, are at eye safe level.

Applications

 100Base Fast Ethernet

 Switch to Switch interface

 Switched backplane applications

 File server interface

Performance

 LCP-155A4HSRBx

Data Link up to 2km in 50/125µm Multi Mode Fiber

Data Link up to 1km in 62.5/125µm Multi Mode Fiber

DELTA ELECTRONICS, INC.

1 2007/11/6

Rev. 0D

www.deltaww.com

Absolute Maximum Ratings

Parameter Symbol Min. Typ. Max. Unit Note Storage Temperature Ts -40 85 ºC Supply Voltage VCC 0 5 V

Recommended Operating Conditions

Parameter Symbol Min. Typ. Max. Unit Note Case Operating Temperature Commercial Extended Industrial

-5

-10

-40

70 85 85

ºC 1

Supply Voltage VCC 3.135 3.465 V

Note 1: See order information

Electrical Characteristics

(VCC=3.135V to 3.465V)

Parameter Symbol Min. Typ. Max. Unit Note Total Supply Current ICCT 300 mA

Transmitter

Transmitter Differential Input Voltage VDT 0.5 2.4 V 2 Transmitter Disable Input-High V Transmitter Disable Input-Low V Transmitter Fault Output-High V Transmitter Fault Output-Low V

DISH

DISL

TXFH

TXFL

Receiver

Receiver Differential Output Voltage VDR 0.35 0.7 2 V 4 LOS Output Voltage-High V LOS Output Voltage-Low V Output Data Rise/Fall Time tr / t

LOSH

LOSL

Notes:

2. Internally AC coupled and terminated to 100Ohm differential load.

2 VCC+0.3 V 0 0.8 V 2 VCC+0.3 V 3 0 0.8 V 3

2 VCC+0.3 V 3 0 0.8 V 3

2.2 nsec 5

3. Pull up to V

with a 4.7K – 10K Ohm resistor on host Board

4. Internally AC coupled, but requires a 100 Ohm differential termination at or internal to Serializer/

Deserializer.

5. These are 20%~80% values

2 2007/11/6

Rev. 0D

DELTA ELECTRONICS, INC.

www.deltaww.com

Optical Characteristics (LCP-155A4HSRBx)

(VCC=3.135V to 3.465V, Data Rate=125Mbps, PRBS=27-1 NRZ, 50/125µm or 62.5/125µm MMF)

Parameter Symbol Min. Typ. Max. Unit Note

Transmitter

Output Optical Power (Avg.) PO -10 -4 dBm Optical Extinction Ratio ER 9 dB Center Wavelength Spectral Width (RMS) Optical Rise/Fall Time Total Jitter(pk-pk)

Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3, Y4}

Receiver

Sensitivity (Avg.) PIN -25 dBm 2 Input Optical Wavelength LOS- De-Asserted (Avg.) PD -26 dBm LOS- asserted (Avg.) PA -38 dBm LOS-Hysteresis PD-PA 0.5 dB Overload P

Notes:

1. These are 20%~80% values

2. The sensitivity is provided at a BER of 1×10

-1 PRBS.

830 850 860 nm

0.85 nm

2.5 nsec 1

TJ 2.5 ns

{0.18, 0.29, 0.35, 0.35, 0.38, 0.4, 0.55}

-12

850 nm

-3 dBm

or better with an input signal consisting of 125Mbps,

Figure 1 Tx output Eye Mask

3 2007/11/6

DELTA ELECTRONICS, INC.

Rev. 0D

www.deltaww.com

SFP Transceiver Electrical Pad Layout

Pin Function Definitions

Pin Num. Name Function Plug Seq. Notes

1 VeeT Transmitter Ground 1 2 TX Fault Transmitter Fault Indication 3 Note 1

3 TX Disable Transmitter Disable 3

4 MOD-DEF2 Module Definition 2 3 Note 3, 2 wire serial ID interface 5 MOD-DEF1 Module Definition 1 3 Note 3, 2 wire serial ID interface 6 MOD-DEF0 Module Definition 0 3 Note 3, Grounded in Module 7 Rate Select Not Connect 3 Function not available 8 LOS Loss of Signal 3 Note 4

9 VeeR Receiver Ground 1 Note 5 10 VeeR Receiver Ground 1 Note 5 11 VeeR Receiver Ground 1 Note 5 12 RD- Inv. Received Data Out 3 Note 6 13 RD+ Received Data Out 3 Note 7 14 VeeR Receiver Ground 1 Note 5 15 VccR Receiver Power 2 3.3 ± 5%, Note 7 16 VccT Transmitter Power 2 3.3 ± 5%, Note 7 17 VeeT Transmitter Ground 1 Note 5 18 TD+ Transmit Data In 3 Note 8 19 TD- Inv. Transmit Data In 3 Note 8 20 VeeT Transmitter Ground 1 Note 5

Plug Seq.: Pin engagement sequence during hot plugging.

Note 2 Module disables on high or open

DELTA ELECTRONICS, INC.

4 2007/11/6

Rev. 0D

www.deltaww.com

Notes:

1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10K resistor on the host

board. Pull up voltage between 2.0V and VccT, R+0.3V. When high, output indicates a laser fault of some kind.

Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module

with a 4.7 – 10 K  resistor. Its states are:

Low (0 – 0.8V): Transmitter on

(>0.8, < 2.0V): Undefined

High (2.0 – 3.465V): Transmitter Disabled

Open: Transmitter Disabled

3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10Kresistor on the

host board. The pull-up voltage shall be VccT or VccR (see Section IV for further details). Mod-Def 0 is grounded

by the module to indicate that the module is present Mod-Def 1 is the clock line of two wire serial interface for

serial ID Mod-Def 2 is the data line of two wire serial interface for serial ID

4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10K resistor.

Pull up voltage between 2.0V and VccT, R+0.3V. When high, this output indicates the received optical power is

below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In

the low state, the output will be pulled to < 0.8V.

5) VeeR and VeeT may be internally connected within the SFP module.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100 differential lines which should be

terminated with 100 (differential) at the user SERDES. The AC coupling is done inside the module and is thus

not required on the host board. The voltage swing on these lines will be between 370 and 2000 mV differential

(185 – 1000 mV single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP

connector pin. Maximum supply current is 300mA. Recommended host board power supply filtering is shown

below. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage

at the SFP input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot

plugging of the SFP transceiver module will result in an inrush current of no more than 30mA greater than the

steady state value. VccR and VccT may be internally connected within the SFP transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100

differential termination inside the module. The AC coupling is done inside the module and is thus not

required on the host board. The inputs will accept differential swings of 500 – 2400 mV (250 – 1200

mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 –

600 mV single-ended) be used for best EMI performance.

DELTA ELECTRONICS, INC.

5 2007/11/6

Rev. 0D

www.deltaww.com

Recommend Circuit Schematic

Protocol Vcc

Tx_Disable

Tx_Fault

Rx_LOS

VCC

SerDes ICProtocol IC

PLD / PAL

1uH

RES1

100 Ohms*

3.3V

0.1uF10uF

RES1

3.3V

RES1 RES1 RES1

RES1 = 4.7k to 10k Ohms

* Depands on SerDes IC used

0.1uF

Tx_Disable

Tx_Fault

TD +

TD -

VeeT

0.1uF10uF

RD +

RD -

Rx_LOS

VeeR

Mod_def 2

Mod_def 1

Mod_def 0

DELTA SFP Module

VccT

10k Ohms

0.01uF 100 Ohms

0.01uF

VccR

0.01uF

Laser Driver

Preamp & Quantizer

EEPROM

Laser Diode

Photo Diode

DELTA ELECTRONICS, INC.

6 2007/11/6

Rev. 0D

www.deltaww.com

Package Outline Drawing for Metal Housing with Bail de-latch

Latch Color Identifier

Black

DELTA ELECTRONICS, INC.

Made in x

1040.10 and 1040.11

Complies with 21 CFR

7 2007/11/6

Rev. 0D

www.deltaww.com

SFP timing parameters for SFP management

Parameter Symbol Min. Max. Unit Unit Conditions

TX_DISABLE Assert time

TX_DISABLE Negate time

Time to initialize, including reset of TX_FAULT TX Fault Assert Time TX_DISABLE to reset LOS Assert Time t_loss_on 100 µsec Time from LOS state to Rx LOS assert LOS Deassert Time t_loss_off 100 µsec Time from non-LOS state to Rx LOS deassert Serial ID Clock Rate f_serial_clock 100 kHz

t_off 10 µsec

t_on 1 msec

t_init 300 msec

t_fault

t_rest 10 µsec

100 µsec Time from fault to TX fault on.

Time from rising edge of TX_DISABLE to when the optical output falls below 10% of nominal Time from falling edge of TX_DISABLE to when the modulated optical output rises above 90% of nominal

From power on or negation of TX_Fault using TX Disable.

Time TX Disable must be held high to reset TX_Fault

DELTA ELECTRONICS, INC.

8 2007/11/6

Rev. 0D

www.deltaww.com

SFP timing parameters

Power on initialization of SFP transceiver, TX_DISABLE negated

Example of initialization during hot plugging, TX_DISABLE negated.

Detection of transmitter safety fault condition Successful recovery from transient safety fault condition

Power on initialization of SFP, TX_DISABLE asserted Initialization during hot plugging of SFP TRANSCEIVER.

SFP TX_DISABLE timing during normal operation.

Unsuccessful recovery from safety fault condition Timing of LOS detection

9 2007/11/6

DELTA ELECTRONICS, INC.

Rev. 0D

www.deltaww.com

LCP-155A4HSRB EEPROM Serial ID Memory Contents (2-Wire Address A0h)

Address

Hex ASCII

00 03 25 20 50 53 S 75 SN 100 00 125 00 01 04 26 20 51 52 R 76 SN 101 00 126 00 02 07 27 20 52 42 B 77 SN 102 00 127 00 03 00 28 20 53 20 78 SN 103 00 04 00 29 20 54 20 79 SN 104 00 05 01 30 20 55 20 80 SN 105 00 06 00 31 20 56 41 81 SN 106 00 07 00 32 20 57 20 82 SN 107 00 08 00 33 20 58 20 83 SN 108 00 09 00 34 20 59 20 84 DC Note 3 109 00 10 00 35 20 60 03 85 DC 110 00

11 03 36 00 61 52 86 DC 111 00 12 01 37 00 62 00 87 DC 112 00 13 00 38 00 63 CS1 Note 1 88 DC 113 00 14 00 39 00 64 00 89 DC 114 00 15 00 40 4C L 65 1A 90 DC 115 00 16 C8 41 43 C 66 00 91 DC 116 00 17 64 42 50 P 67 00 92 00 117 00 18 00 43 2D - 68 SN Note 2 93 00 118 00 19 00 44 31 1 69 SN 94 00 119 00 20 44 D 45 35 5 70 SN 95 CS2 Note 4 120 00 21 45 E 46 35 5 71 SN 96 00 121 00 22 4C L 47 41 A 72 SN 97 00 122 00 23 54 T 48 34 4 73 SN 98 00 123 00 24 41 A 49 48 H 74 SN 99 00 124 00

Address

Hex ASCII

Address

Hex ASCII

Address

Hex ASCII

Address

Hex ASCII

Address

Hex ASCII

Notes:

1) Byte 63: Check sum of bytes 0-62.

2) Byte 68-83 (SN): Serial number.

3) Byte 84-91 (DC): Date code.

4) Byte 95 (CS2): Check sum of bytes 64-94.

Byte 128-255 had been set hex. 00.

DELTA ELECTRONICS, INC.

10 2007/11/6

Rev. 0D

www.deltaww.com

Regulatory Compliance

Feature Reference Performance

Electromagnetic Interference

(EMI)

Radio Frequency Electromagnetic Field

Electrostatic Discharge to the Duplex LC Receptacle

Electrostatic Discharge to the Electrical Pins

Eye Safety US FDA CDRH AEL Class 1

Component Recognition Underwriters Laboratories and

FCC CRF 47, Part15 Class B

EN 55022 Class B (CISPR 22A)

EN 61000-4-3

IEC 61000-4-3

EN 61000-4-2

IEC 61000-4-2

IEC 801.2

MIL-STD-883E Method 3015.7

EN 60950: 2000 EN 60825-1: 1994+A11+A2 EN 60825-2: 2000

Canadian Standards Association Joint Component Recognition for Information Technology Equipment Including Electrical Business Equipment

(1) Satisfied with electrical

characteristics of product spec.

(2) No physical damage

CDRH File # 0321539-00

TUV Certificate No. R50032471

UL File # E239394

Ordering information for SFP modules

LCP-155A4HSRBx

Temperature

Blank: -5 to +70 degree C H: -10 to +85 degree C T: -40 to +85 degree C

DELTA ELECTRONICS, INC.

11 2007/11/6

Rev. 0D

www.deltaww.com

Revision History

Rev Date Contents

0A Sep,, 2007 Preliminary Datasheet 0B Oct.16 2007 Modified the Byte6 of A0h from 00h to 20h

Add the total jitter specification of TX

0C Oct. 23 2007 Add latch color identifier

Modify the Byte5,Byte6,Byte11 and Byte12 of A0h.

0D Nov. 06, 2007 Modify the Byte 12 from 02h to 01h

DELTA ELECTRONICS, INC.

12 2007/11/6

Rev. 0D

www.deltaww.com
