Input Voltage 3.1 13.8 Vdc
Operating Temperature (Vertical) Refer to Fig.26 for the measuring point -40 113 °C
Operating Temperature (Horizontal) Refer to Fig.34 for the measuring point -40 118 °C
Storage Temperature -55 125 °C
INPUT CHARACTERISTICS
Operating Input Voltage
Input Under-Voltage Lockout
Turn-On Voltage Threshold 3.1 V
Turn-Off Voltage Threshold 2.8 V
Lockout Hysteresis Voltage 0.3 V
Maximum Input Current Vin=3.1V to 13.8V, Io=Io,max 6 A
No-Load Input Current Vin=12V, Vout=5V 50 mA
Off Converter Input Current Remote OFF 10 mA
Input Reflected-Ripple Current 5 10 mA
Input Ripple Rejection 120Hz 60 dB
OUTPUT CHARACTERISTICS
Output Voltage Adjustment Range 0.59 5.1 V
Output Voltage Set Point With a 0.1% trim resistor -1 +1 %
Output Voltage Regulation
Over Load Io=Io_min to Io_max ± 0.3± 0.5%
Over Line Vin=Vin_min to Vin_max ± 0.1± 0.2%
Over Temperature Ta=0~70°C ± 0.2± 0.3
Total output range Over load, line, temperature regulation and set point -2 +2 %
Output Voltage Ripple and Noise 5Hz to 20MHz bandwidth
Peak-to-Peak Full Load, 10uF Tan cap, 12Vin, 0.5Vo 15 mV
Peak-to-Peak Full Load, 10uF Tan cap, 12Vin, 0.9Vo 20 mV
Peak-to-Peak Full Load, 10uF Tan cap, 12Vin, 2.5Vo 30 mV
Peak-to-Peak Full Load, 10uF Tan cap, 12Vin, 5Vo 50 mV
RMS Full Load, 10uF Tan cap, 12Vin, 5Vo 10 mV
Output Current Range 0 6 A
Output Voltage Over-shoot at Start-up Vin=12V, Turn ON 0.5 %Vo
Output Voltage Under-shoot at Power-Off Vin=12V, Turn OFF 100 mV
Output DC Current-Limit Inception Hiccup mode 13.5 A
Output short-circuit current RMS value 3.7 Arms
DYNAMIC CHARACTERISTICS
Output Dynamic Load Response 12Vin, 2.5Vout, 10µF ceramic cap
Positive Step Change in Output Current 50~100% load , 10A/uS 150 mV
Negative Step Change in Output Current 50~100% load , 10A/uS 150 mV
Settling Time Settling to be within regulation band (to 10% Vo deviation) 50 µs
Turn-On Transient
Start-Up Time, from On/Off Control From Enable high to 90% of Vo 2 3 ms
Start-Up Time, from input power From Vin=12V to 90% of Vo 2 3 ms
Minimum Output Capacitance 0 µF
Maximum Output Startup Capacitive Load
Switching Frequency Fixed 600 KHz

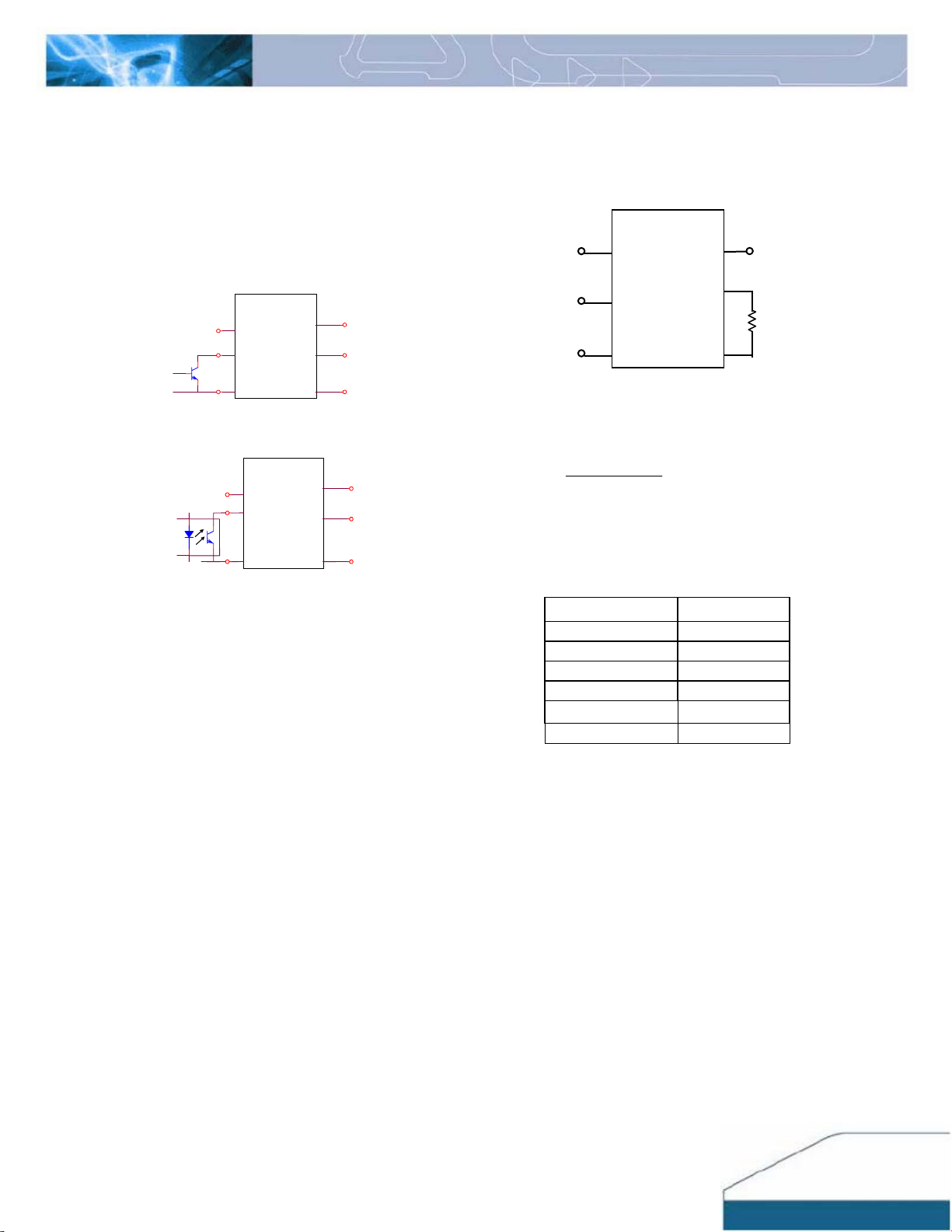

ON/OFF Control Positive logic (internally pulled high)
Logic High Module On (or leave the pin open) 0.8 5.0 V
Logic Low Module Off 0 0.3 V
GENERAL SPECIFICATIONS
Calculated MTBF
Weight 2 grams
Vo≦Vin-0.5V
turn on overshoot <1% vo ,ESR≥1m
Ta =2 5 ℃, 300LFM, 80% load
3.1 13.8 V
1000µF
18.0 Mhours
DS_NE12S06A_06302008
2
ELECTRICAL CHARACTERISTICS CURVE
Figure 1: Converter efficiency vs. output current
(0.59V output voltage, 12V input voltage)
Figure 3: Converter efficiency vs. output current
(1.8V output voltage, 12V input voltage)
Figure 2: Converter efficiency vs. output current
(0.9V output voltage, 12V input voltage)
Figure 4: Converter efficiency vs. output current
(2.5V output voltage, 12V input voltage)
Figure 5: Converter efficiency vs. output current
(3.3V output voltage, 12V input voltage)
DS_NE12S06A_06302008
Figure 6: Converter efficiency vs. output current
(5.0V output voltage, 12V input voltage)
3
ELECTRICAL CHARACTERISTICS CURVES (CON.)
Figure 7: Output ripple & noise at 12Vin, 0.59V/6A out
Figure 9: Output ripple & noise at 12Vin, 1.8V/6A out
Figure 8: Output ripple & noise at 12Vin, 0.9V/6A out
Figure 10: Output ripple & noise at 12Vin, 2.5V/6A out
Figure 11: Output ripple & noise at 12Vin, 3.3V/6A out Figure 12: Output ripple & noise at 12Vin, 5.0V/6A out
DS_NE12S06A_06302008
4
ELECTRICAL CHARACTERISTICS CURVES (CON.)
0
0
Figure 13: Turn on delay time at 12Vin, 1.0V/6A out
Ch1: Vin Ch4: Vout
0
0
0
0
Figure 14: Turn on delay time Remote On/Off, 1.5V/6A out
Ch1:Enable Ch4: Vout
0
0
Figure 15: Turn on delay time at 12Vin, 2.5V/6A out
Ch1: Vin Ch4: Vout
0
0
Figure 17: Typical transient response to step load change at
10A/μS from 50%~100% load, at 12Vin, 2.5V out
Figure 16: Turn on delay time at Remote On/Off, 3.3V/6A out
Ch1: Enable Ch4: Vout
DS_NE12S06A_06302008
5
